Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
1 / 5
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction
Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction

Galvanized Cuplock Ringlock Scaffold System Modern Allround Andamio for Construction

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
#48/#60
Material
Steel
Structural Style
Multi-Pole Scaffolding
Product Name
Cuplock Scaffolding System
Surface Treatment
Hot-DIP Galvanized / Painted / Cold Galvanized
Connection Method
Cup and Lock (Top & Bottom Cups)
Load Capacity
up to 60kN Per Standard
Service Life
5–10 Years
Application
Building, Bridge, Tunnel, Formwork, Stage
Standard Certification
En12810 / En12811 / As1576 / ISO9001
Production Capacity
15000 Tons/Month
Origin
China

Product Description

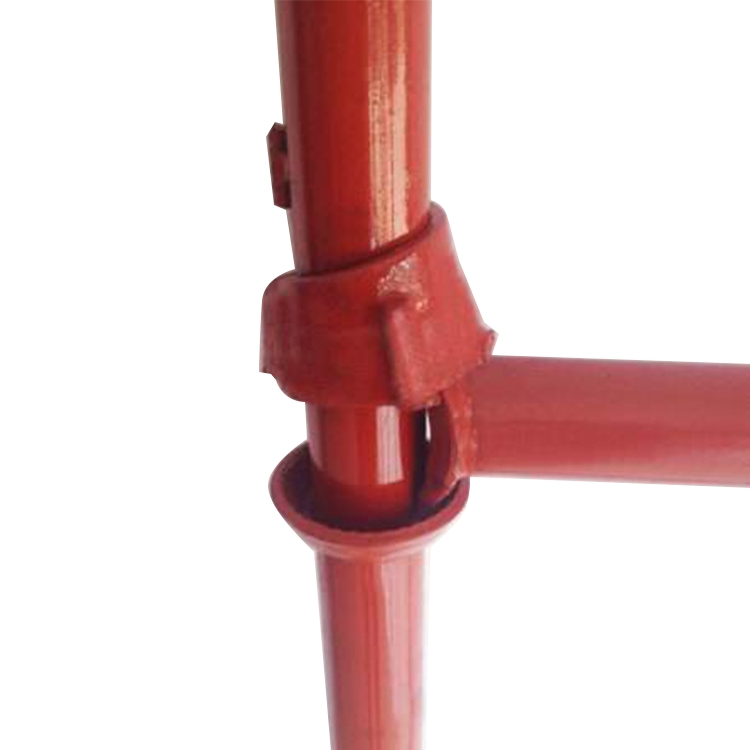

Cuplock scaffolding is a modular system scaffold widely used in construction, infrastructure, and industrial projects. It adopts a unique cup-and-lock joint connection, which allows quick fastening of ledgers and braces to the vertical standards without the need for bolts or loose fittings. This simple locking mechanism ensures fast installation, high strength, and excellent stability.

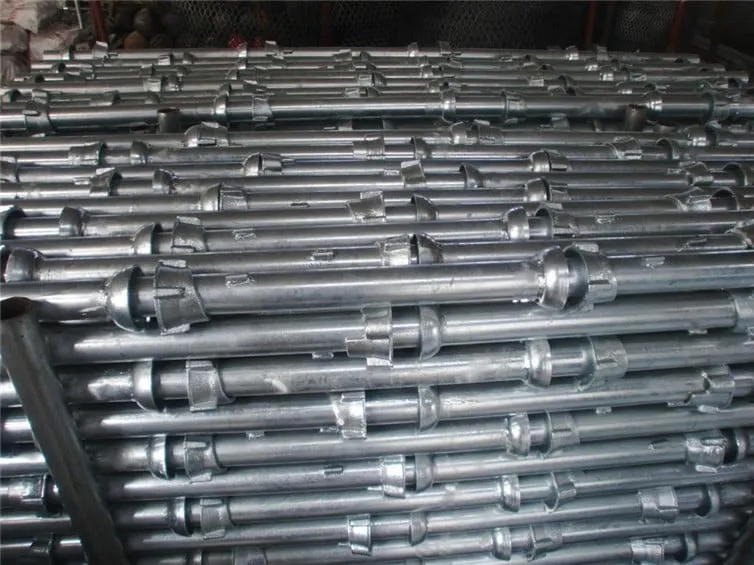

Scaffolding System

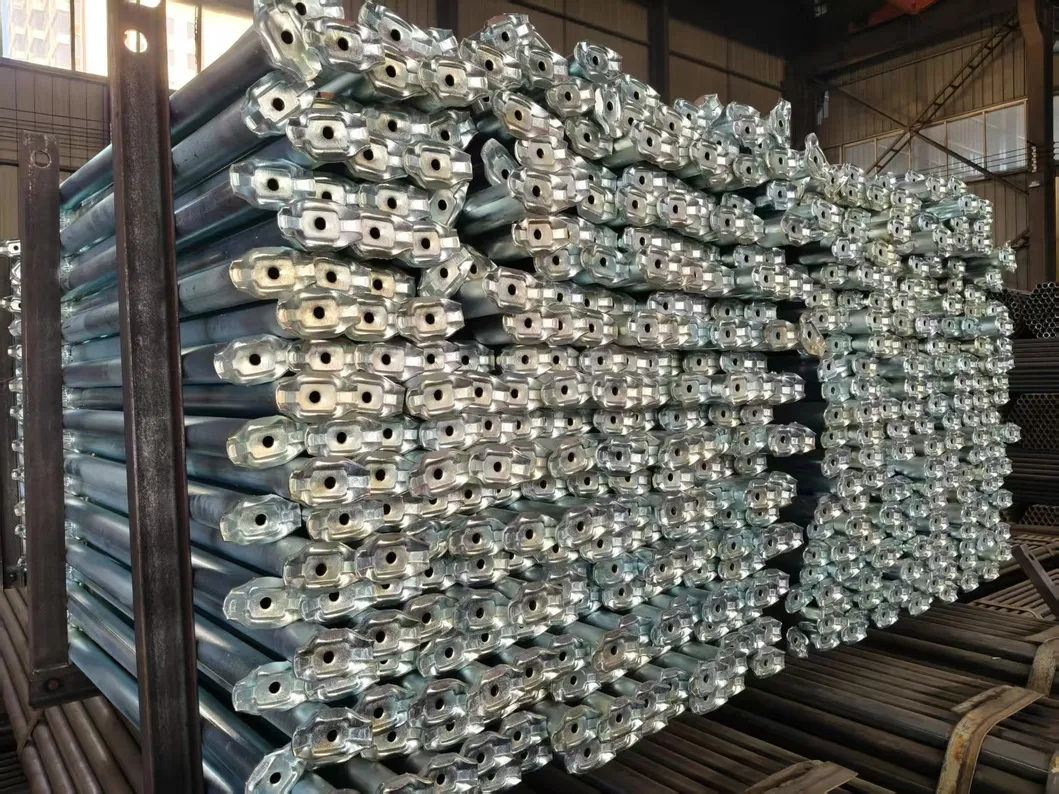

Modular Scaffolding

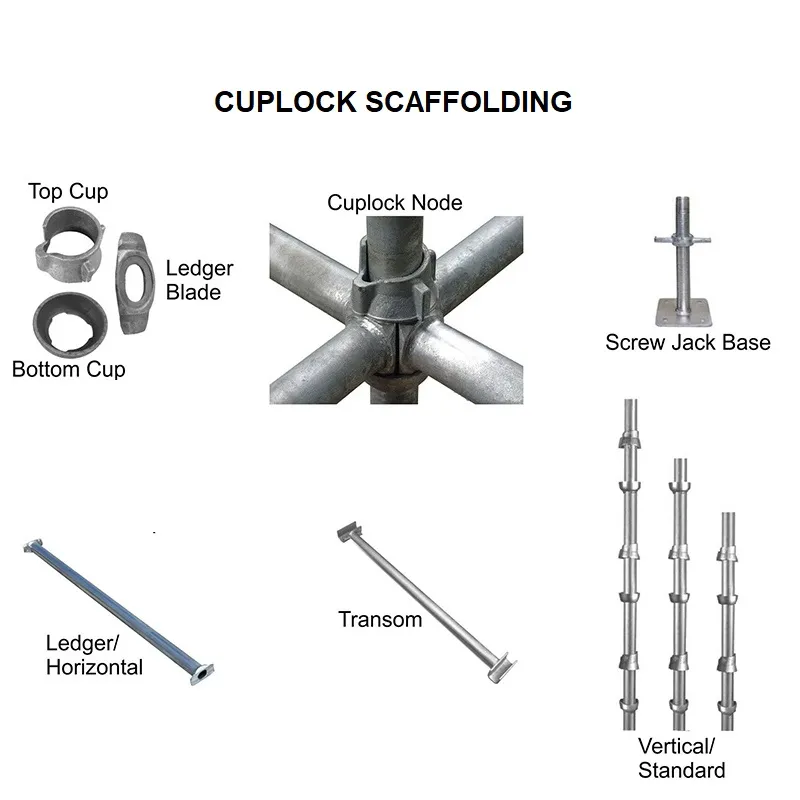

The system is designed with standardized modular components including verticals, ledgers, diagonal braces, base jacks, U-head jacks, steel planks, guardrails, and toe boards. The 500mm interval cup joints on the standards provide flexible height adjustment and versatile combinations for different structures.

Product Parameters

Parameter 1
Parameter 2
Parameter 3
Component Common Sizes (mm) Tube Diameter & Thickness (mm) Description

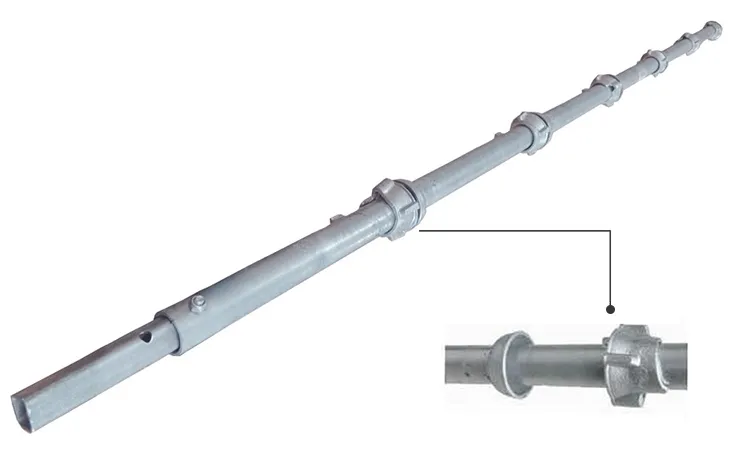

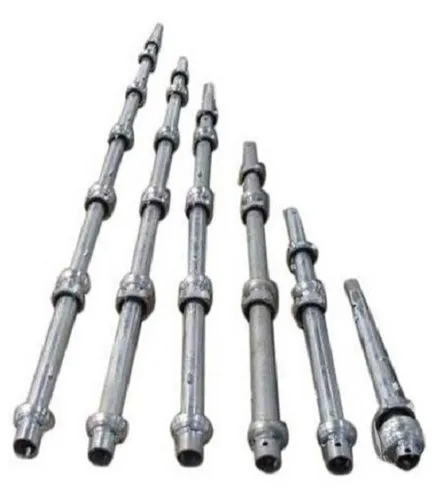

Vertical (Standard)500 / 1000 / 1500 / 2000 / 2500 / 3000#48.3 × 3.2 / 3.25With top and bottom cup joints, spacing every 500mm

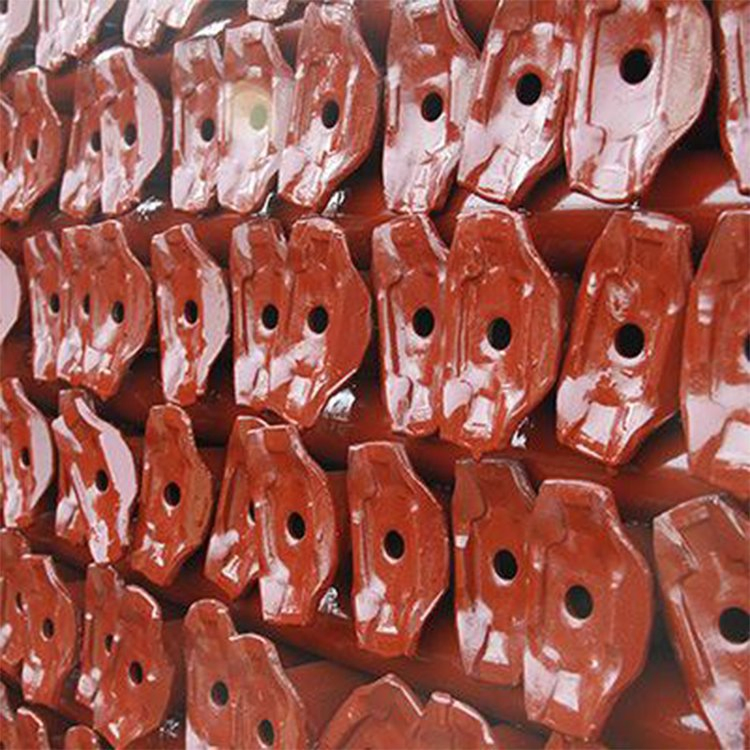

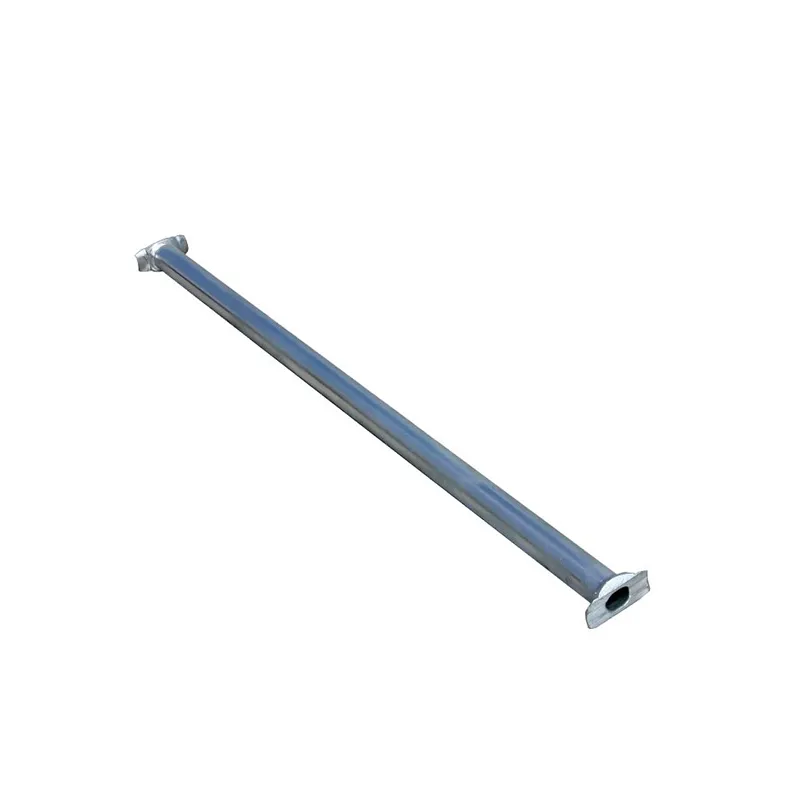

Ledger (Horizontal)500 / 1000 / 1250 / 1500 / 2000 / 2500#48.3 × 3.0 / 3.25Both ends with forged blade, locked into cup joint

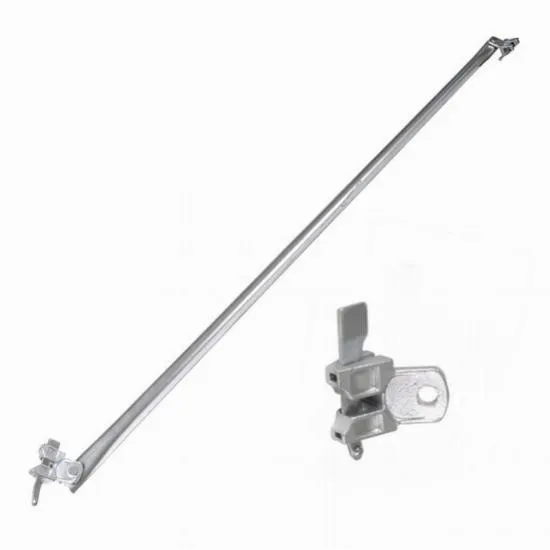

Diagonal Brace1500 / 2000 / 2500 / 3000 / 4000#48.3 × 3.0With swivel blade at both ends for bracing

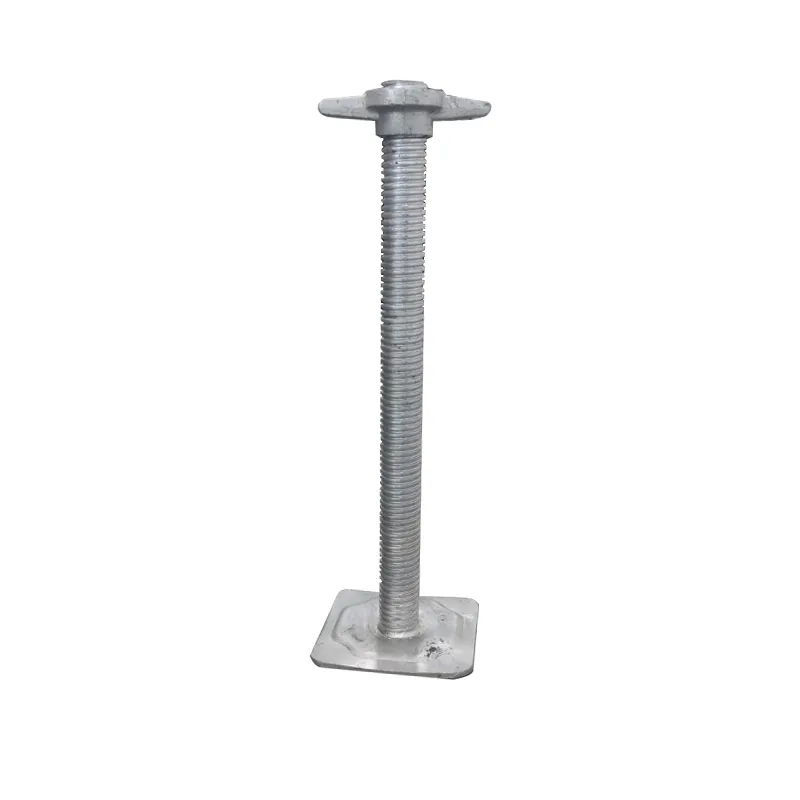

Adjustable Base Jack500 / 600#38 / #48 threaded screwFor height adjustment at the bottom of verticals

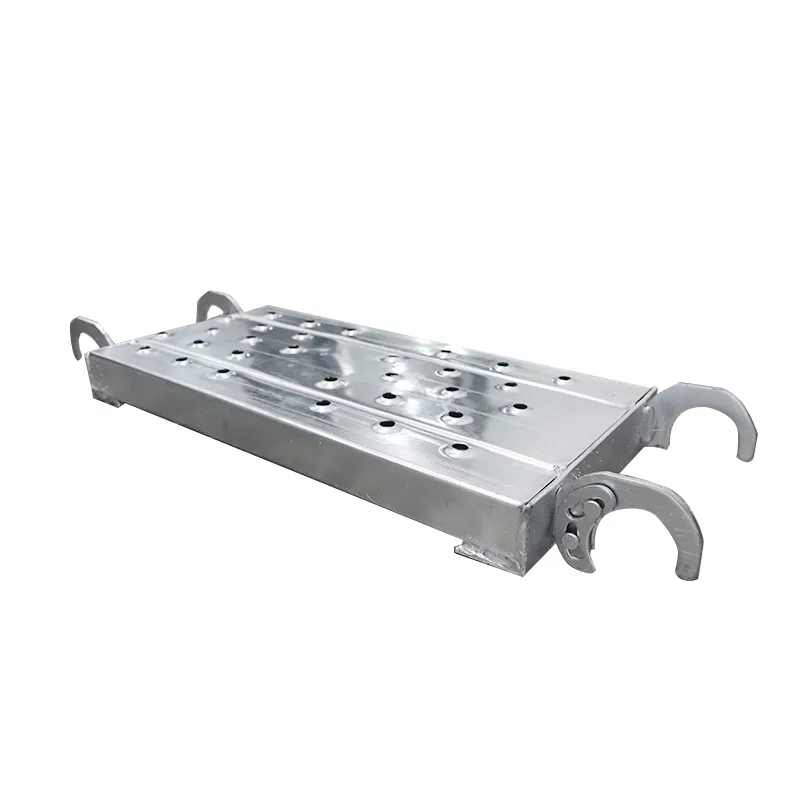

Steel Plank210×45×1000 / 1500 / 2000 / 3000Steel sheet 1.2-1.5mm thickWith anti-slip holes and hooks

Detailed Component View

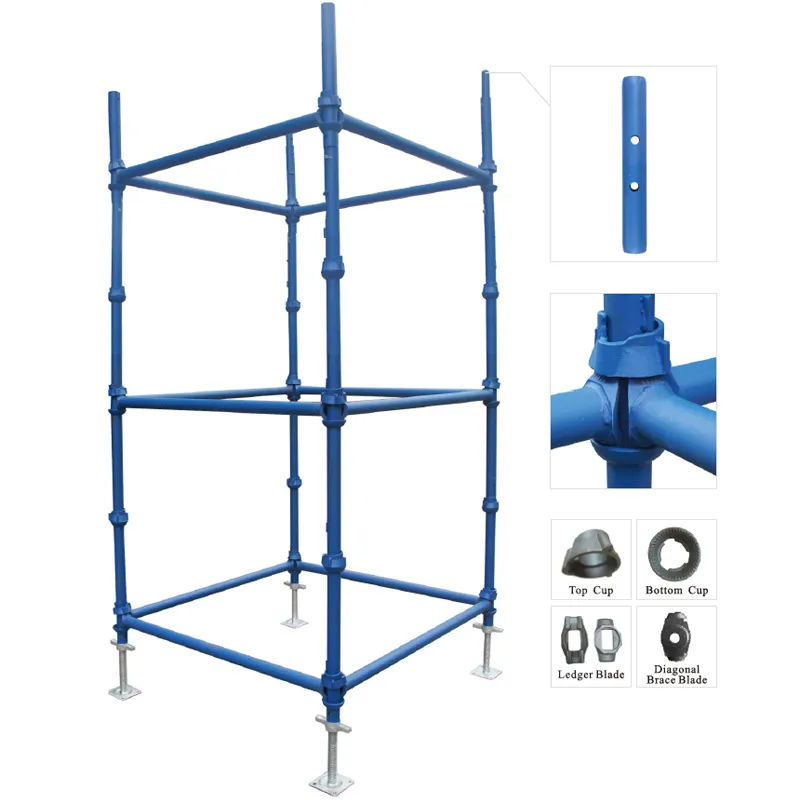

Our cuplock scaffolding features high-strength vertical standards with cup joints every 500mm; horizontal ledgers with precision forged blade ends; and diagonal braces with swivel blade ends. Adjustable base jacks and U-head jacks provide precise adjustment for any site condition.
Detail 1
Detail 2
Detail 3

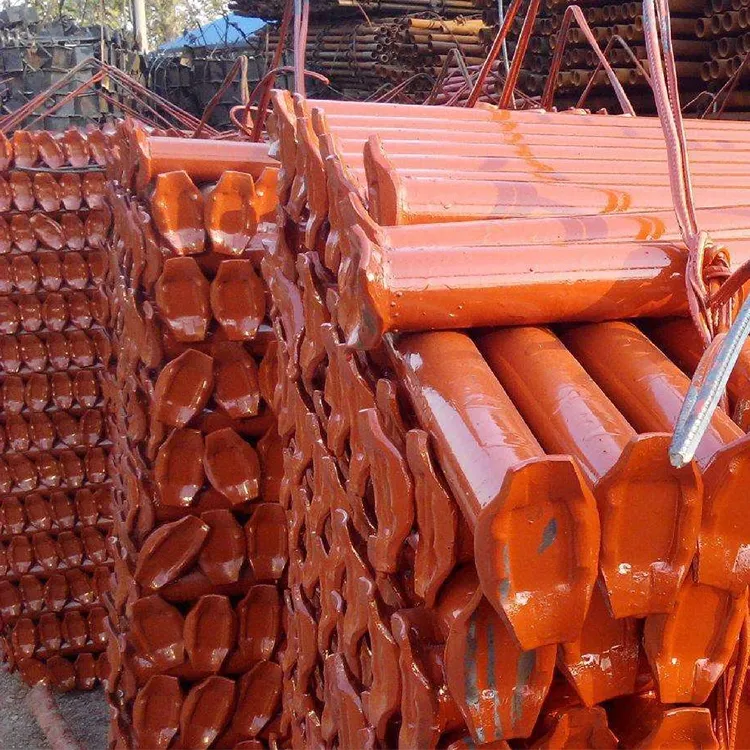

Detail 4
Detail 5

Product Advantages

  • Quick Assembly: Simple cup-and-lock design saves labor and time.
  • High Load Capacity: Each vertical carries 40-60kN, ideal for heavy infrastructure.
  • Stability & Safety: Rigid connections reduce movement significantly.
  • Durability: Hot-dip galvanized surfaces ensure long service life with minimal maintenance.
  • Versatility: Ideal for shoring, access scaffolding, and formwork support.
Advantage 1
Advantage 2

Production Process

Production

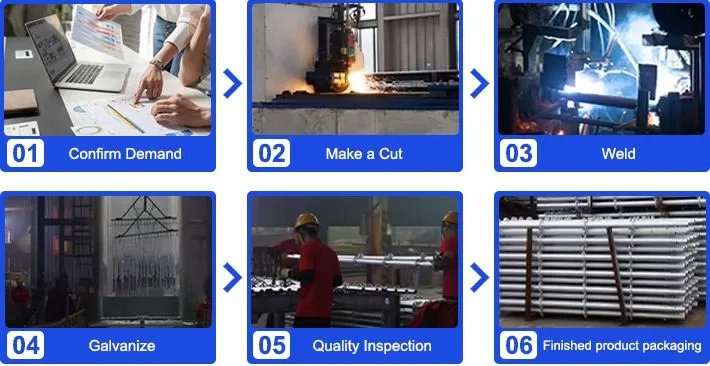

The manufacturing process involves raw material preparation, cutting, forming, welding, surface treatment, inspection, and packaging. Q345B or Q235B steel is cut and formed into components, welded precisely, then hot-dip galvanized for superior corrosion protection. Every part undergoes rigorous quality checks on dimensions and load capacity.

Quality Assurance

Our products have obtained multiple internationally recognized certifications, including EN12810/EN12811 European standards, AS/NZS 1576, and ISO 9001. We can provide inspection services from SGS, TÜV, and BV upon request.
Certification

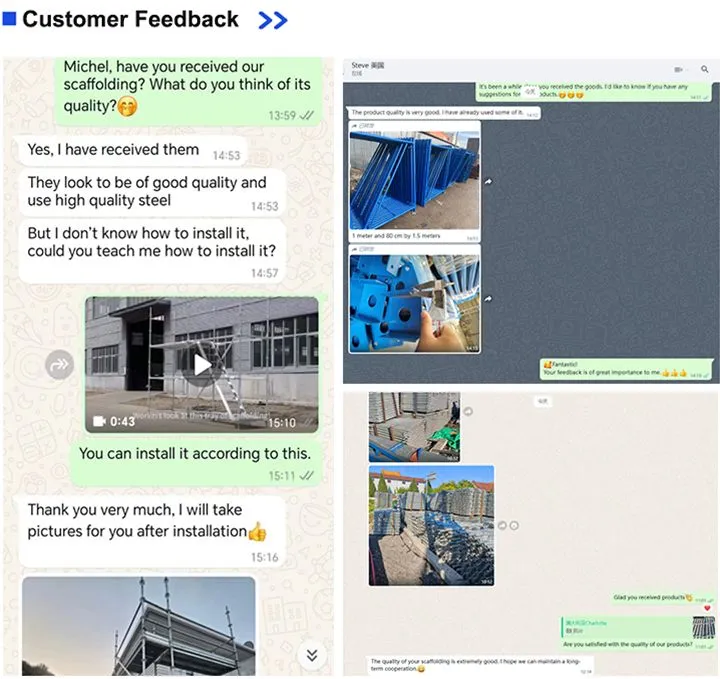

Feedback

Frequently Asked Questions

Q1: What is the main advantage of Cuplock scaffolding?
A1: The unique cup-and-lock joint allows for extremely fast assembly and dismantling without loose bolts, significantly reducing labor costs.
Q2: What materials are used in your scaffolding?
A2: We use high-quality Q235B or Q345B steel, ensuring excellent structural strength and load-bearing capacity.
Q3: How long is the service life of these products?
A3: With hot-dip galvanized surface treatment and proper maintenance, the scaffolding can be reused for 5 to 10 years.
Q4: Is it compatible with other scaffolding systems?
A4: Our system follows standardized modular designs (48.3mm diameter), making it compatible with most standard accessories in the industry.
Q5: Can you provide third-party test reports?
A5: Yes, we provide full quality inspection reports and can coordinate with SGS, BV, or TÜV for specific project requirements.
Q6: What is the lead time for large orders?
A6: Generally, the delivery time is between 15 to 30 days depending on the volume and specific customization requirements.
