Basic Specifications
Structural Style
Multi-Pole Scaffolding
Framework
Combined Scaffolding
Supporting Mode
Projecting Scaffolding
Lapping Form
Full Scaffolding
Erection Position
External Scaffolding
Move Method
Attached Lifting Scaffolding
Part Type
Scaffolding Planks
Surface Finish
Hot DIP Galvanized / Pre Galvanzied
Material
Steel Q235B, Q195
Certificate
ISO/SGS/CE/ANSI/AS NZS
Production Capacity
35,000 Tons Per Year

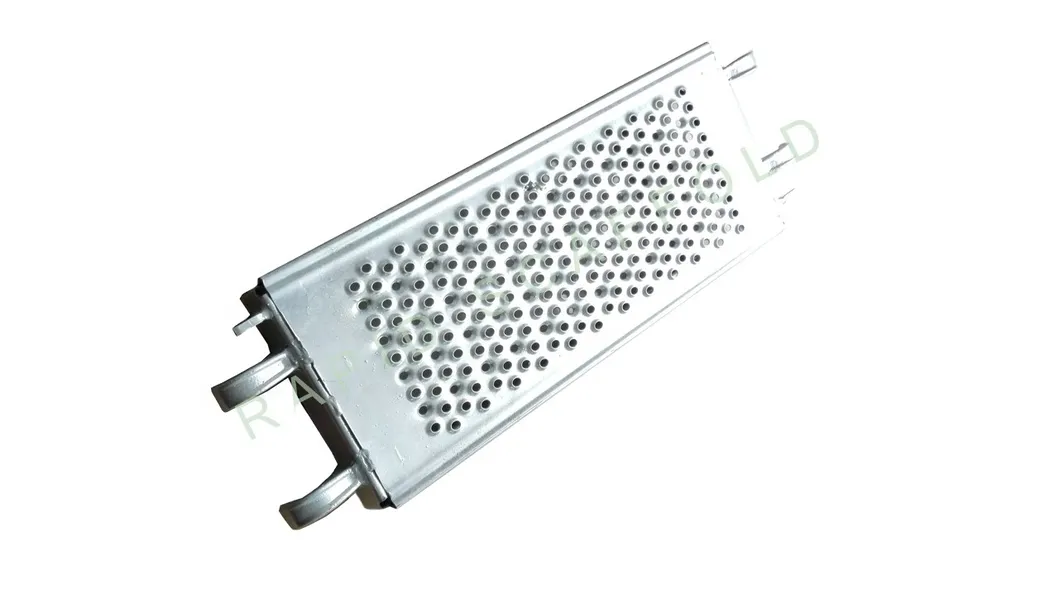

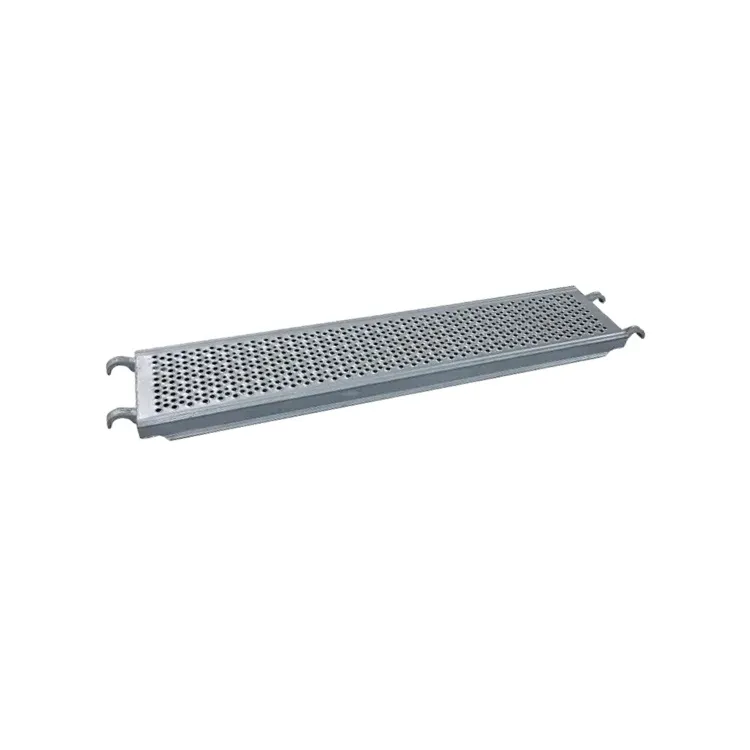

Product Description

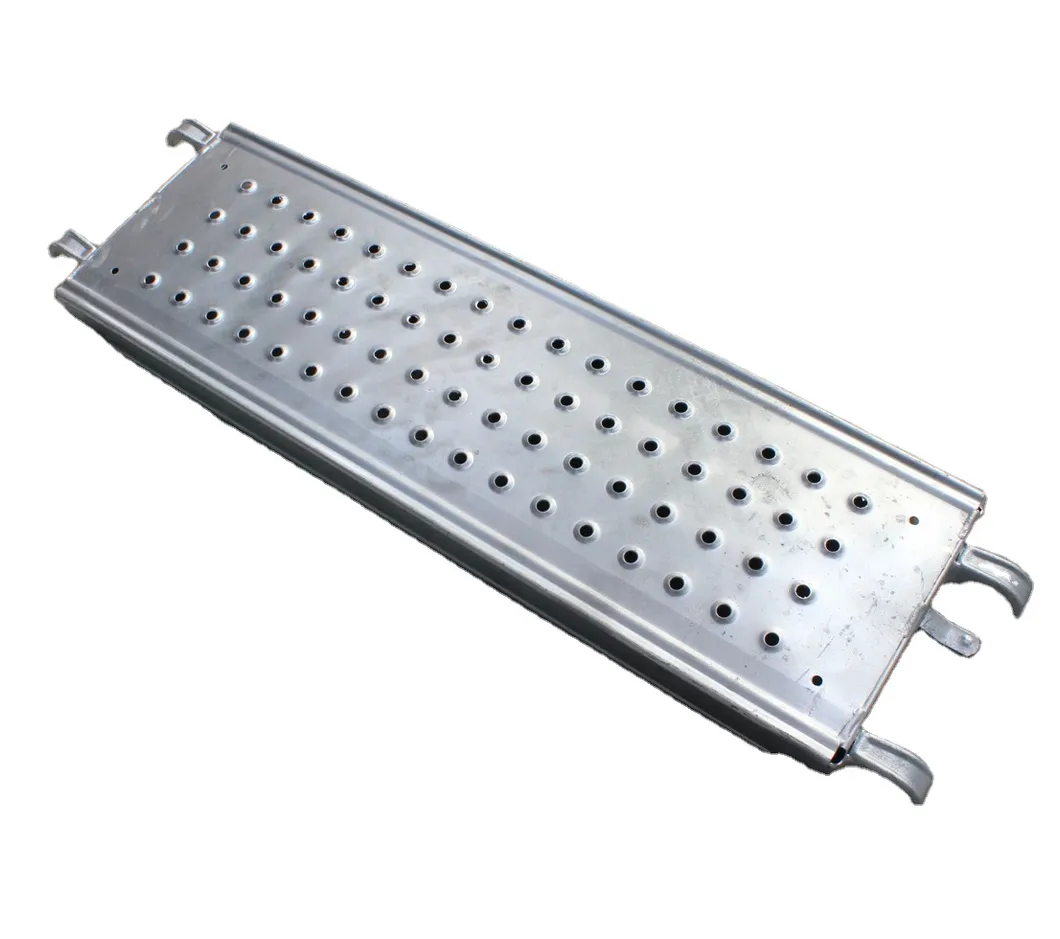

| Steel Pre-Galvanized Metal Scaffold Deck |
| Product Type |
Layer system steel metal scaffold deck |
| Width |
320mm / 241mm / 228mm |
| Material |
High-grade Steel |
| Color Options |
Galvanization / Powder coated |
| Warranty |
More Than 5 Years |
| Solution Capability |
3D Model Design, Graphic Design |
Technical Parameters - 228mm Series
| ITEM NO. |
Length (m) |
Width (m) |
Weight Approx (kg) |
Finish |
| SPW 073 | 0.73 | 0.2286 | 5.63 | Hot-dip Galvanize |
| SPW 109 | 1.09 | 0.2286 | 7.86 | Hot-dip Galvanize |
| SPW 207 | 2.07 | 0.2286 | 13.93 | Hot-dip Galvanize |
| SPW 307 | 3.07 | 0.2286 | 20.12 | Hot-dip Galvanize |
Technical Parameters - 241mm Series
| ITEM NO. |
Length (m) |
Width (m) |
Weight Approx (kg) |
Finish |
| SPW 073 | 0.73 | 0.241 | 5.85 | Hot-dip Galvanize |
| SPW 157 | 1.57 | 0.241 | 10.58 | Hot-dip Galvanize |
| SPW 307 | 3.07 | 0.241 | 19.01 | Hot-dip Galvanize |
Technical Parameters - 320mm Series
| ITEM NO. |
Length (m) |
Width (m) |
Weight Approx (kg) |
Finish |
| SPW 073 | 0.73 | 0.32 | 8.37 | Hot-dip Galvanize |
| SPW 157 | 1.57 | 0.32 | 14.46 | Hot-dip Galvanize |
| SPW 307 | 3.07 | 0.32 | 25.33 | Hot-dip Galvanize |

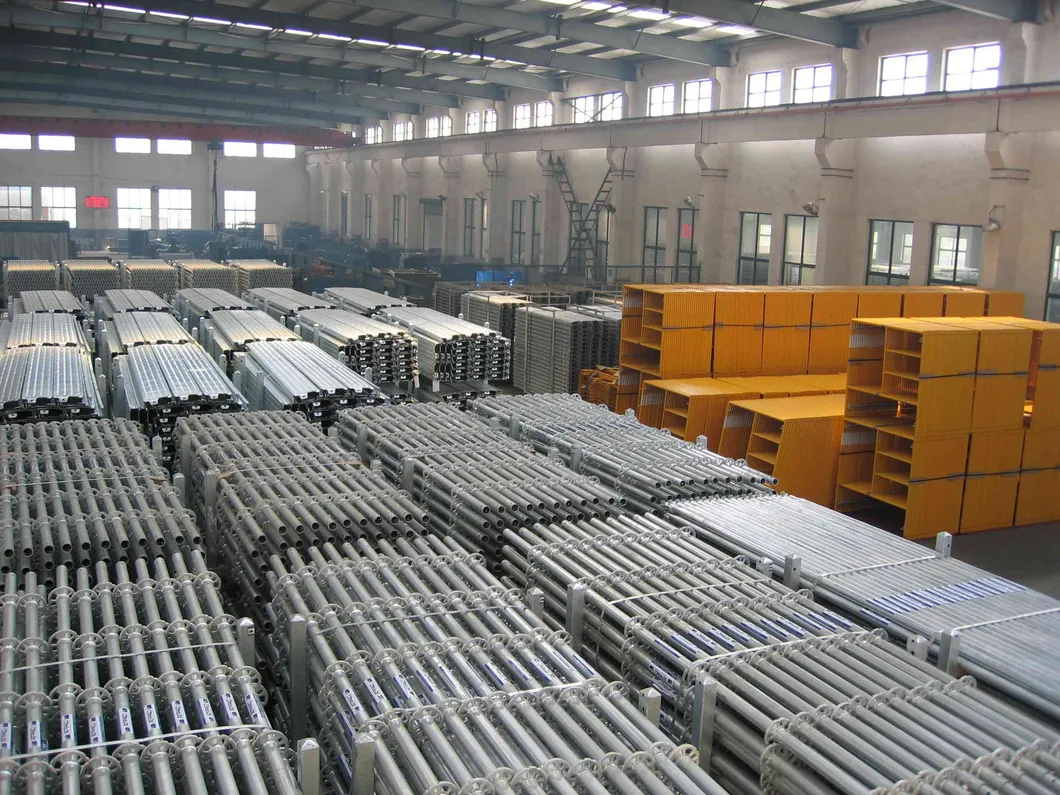

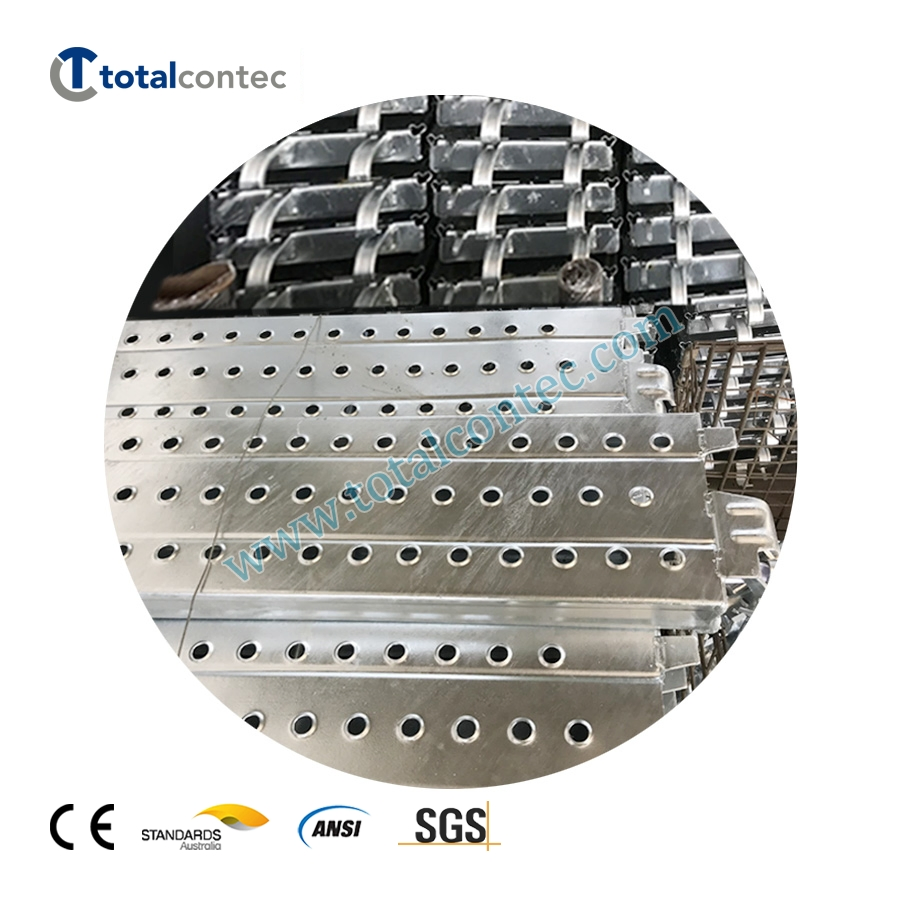

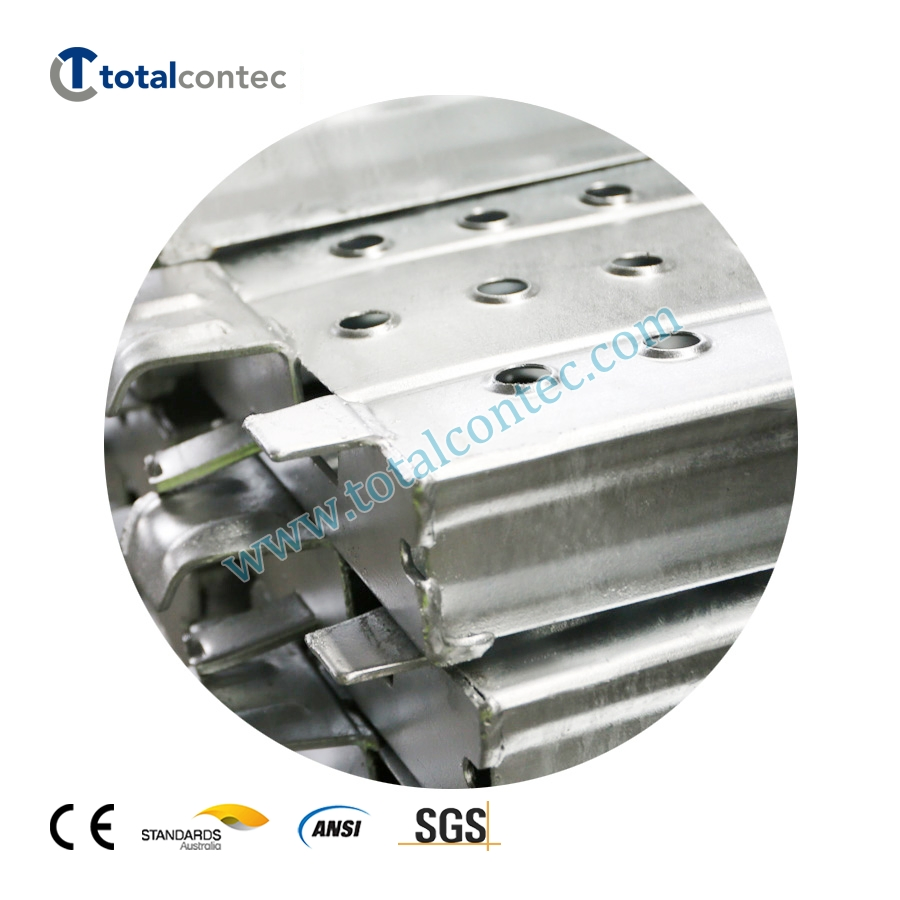

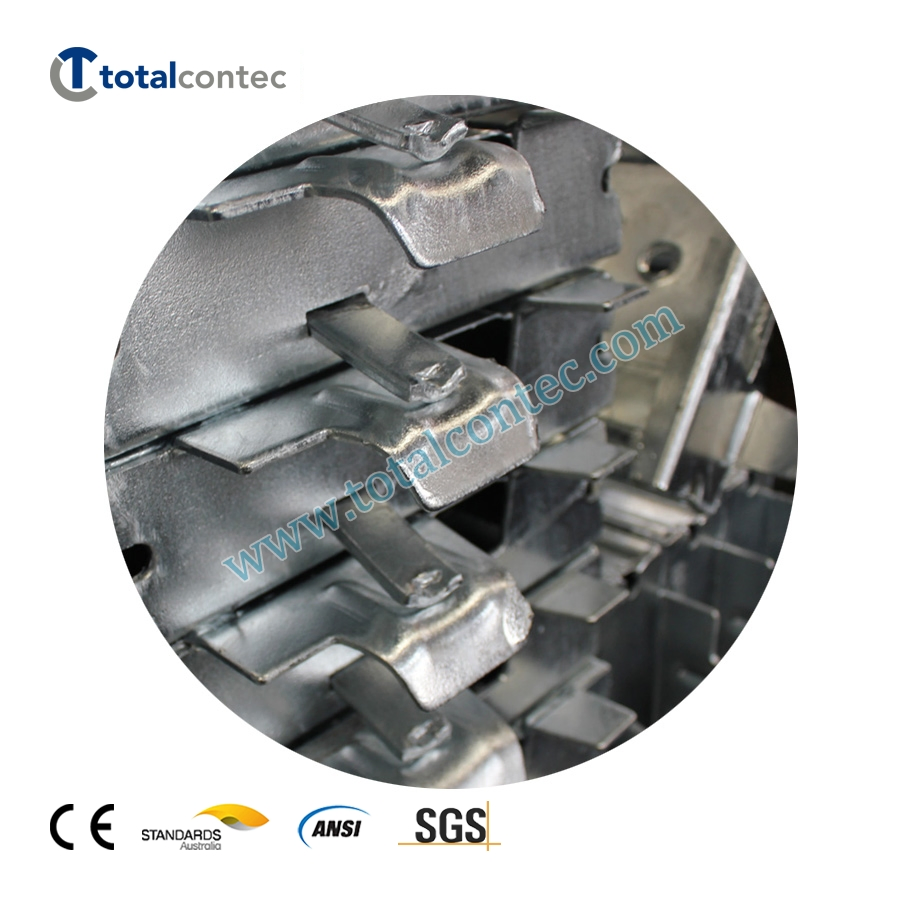

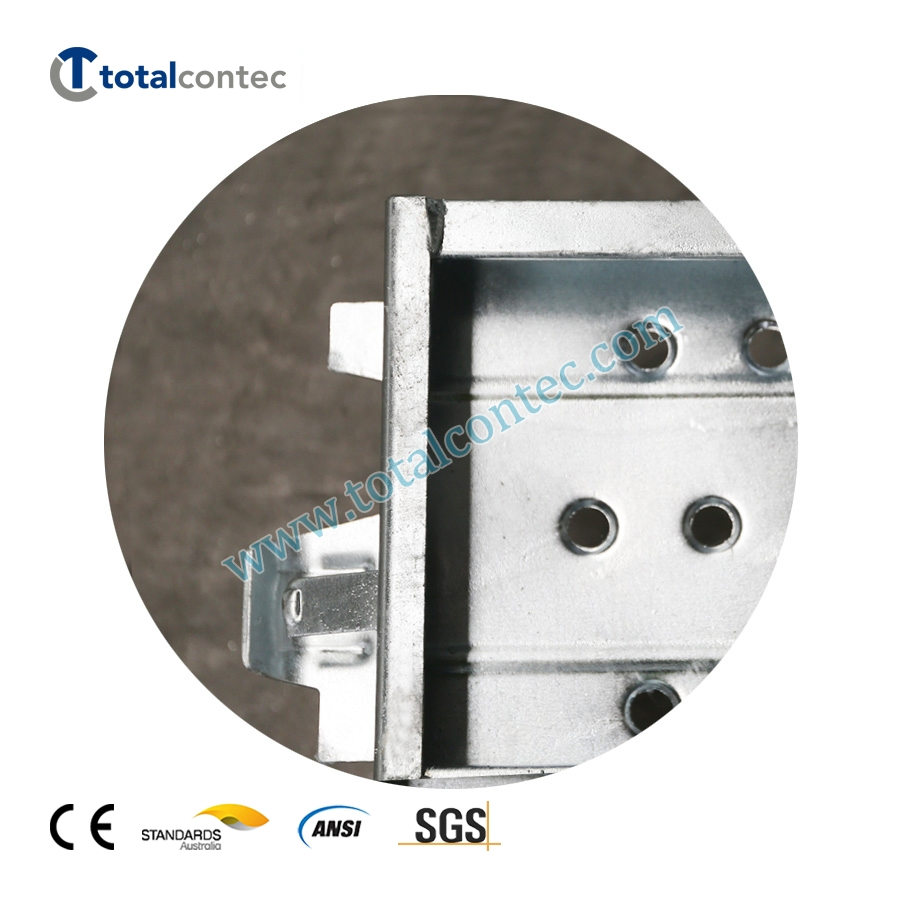

Product Display & Project Showcase

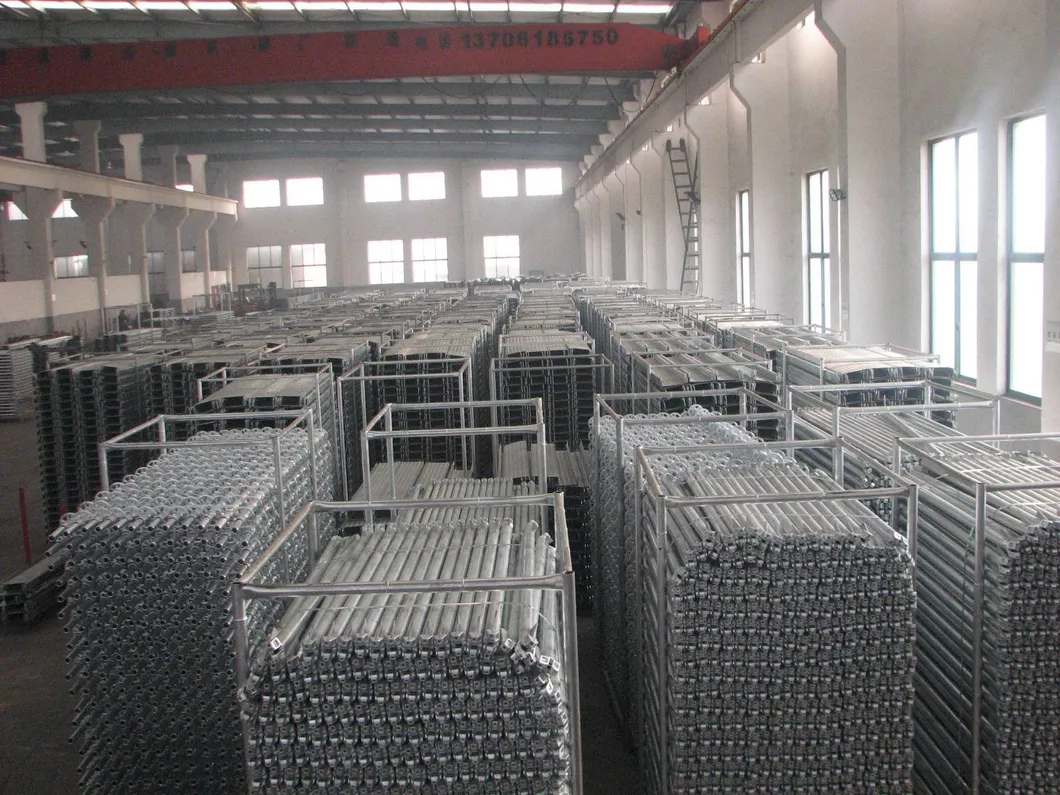

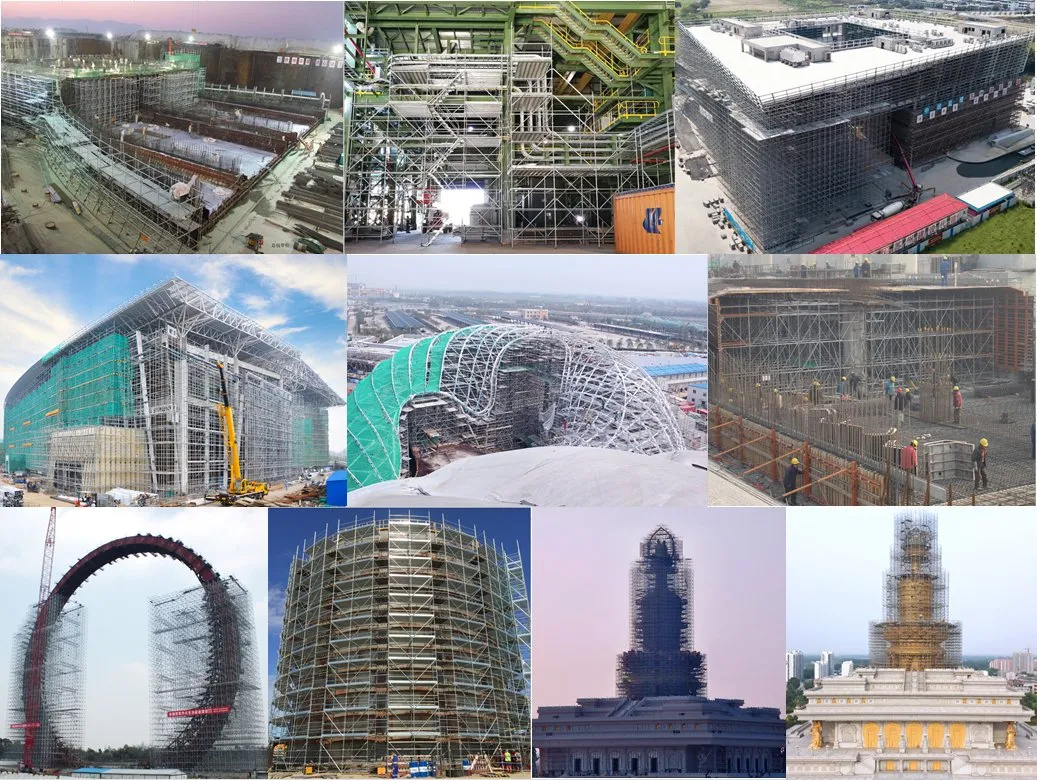

Project Case & Load Testing

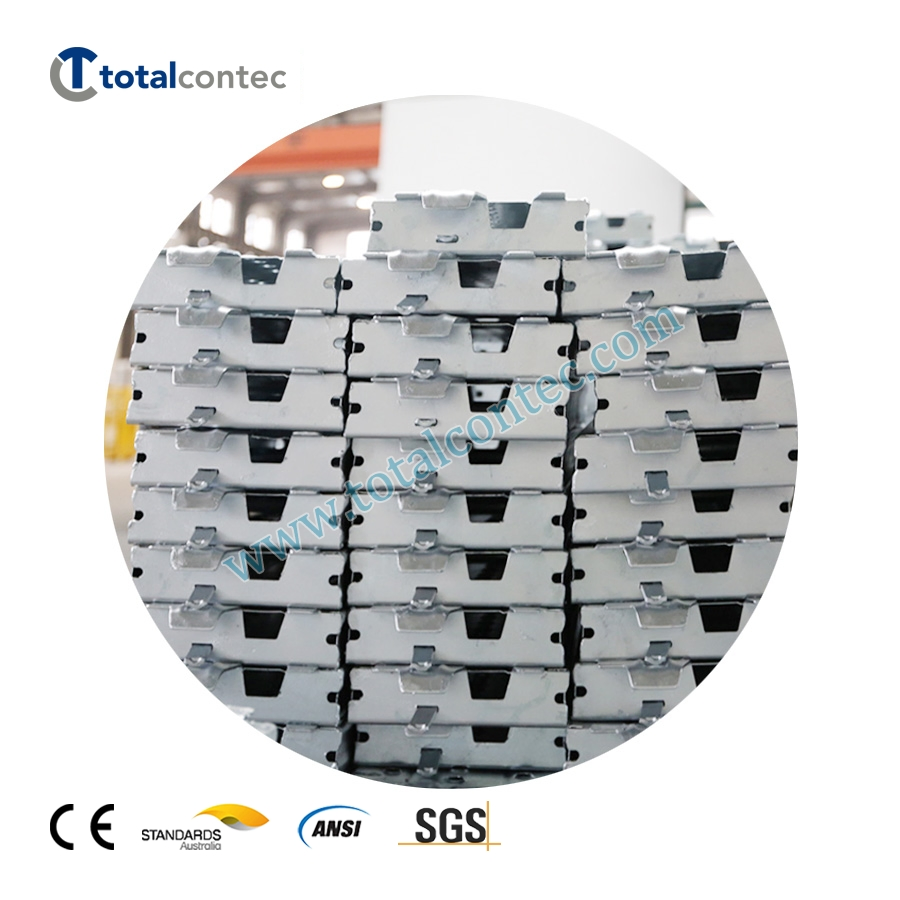

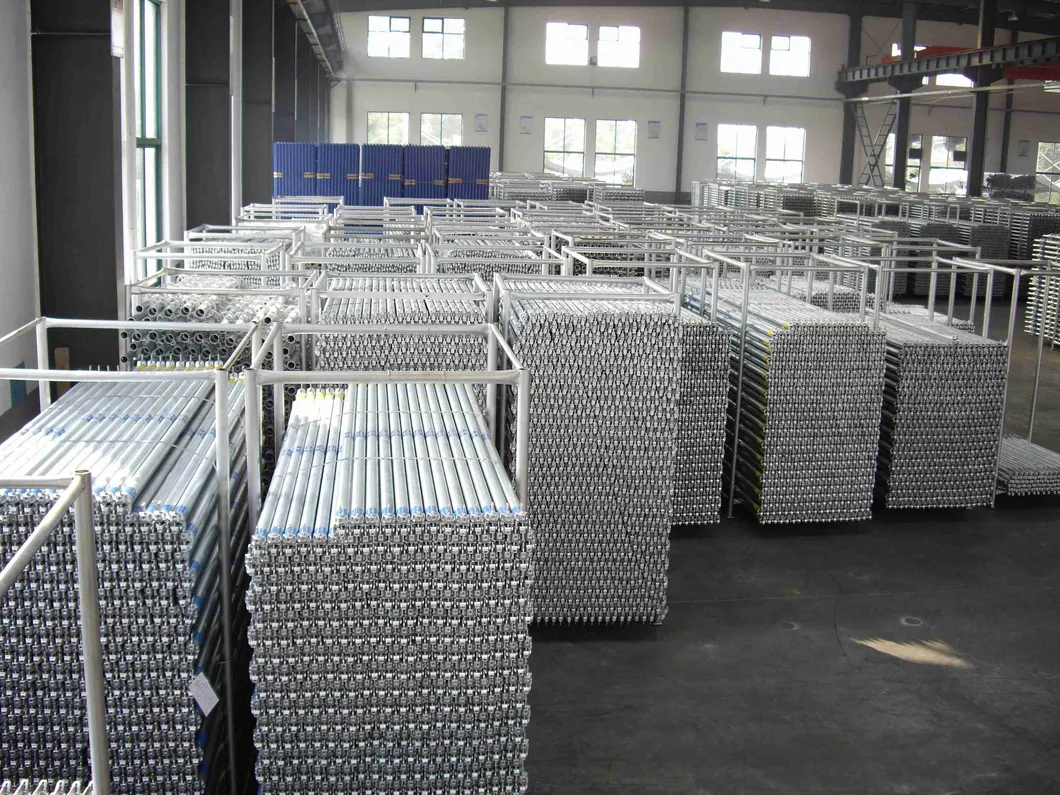

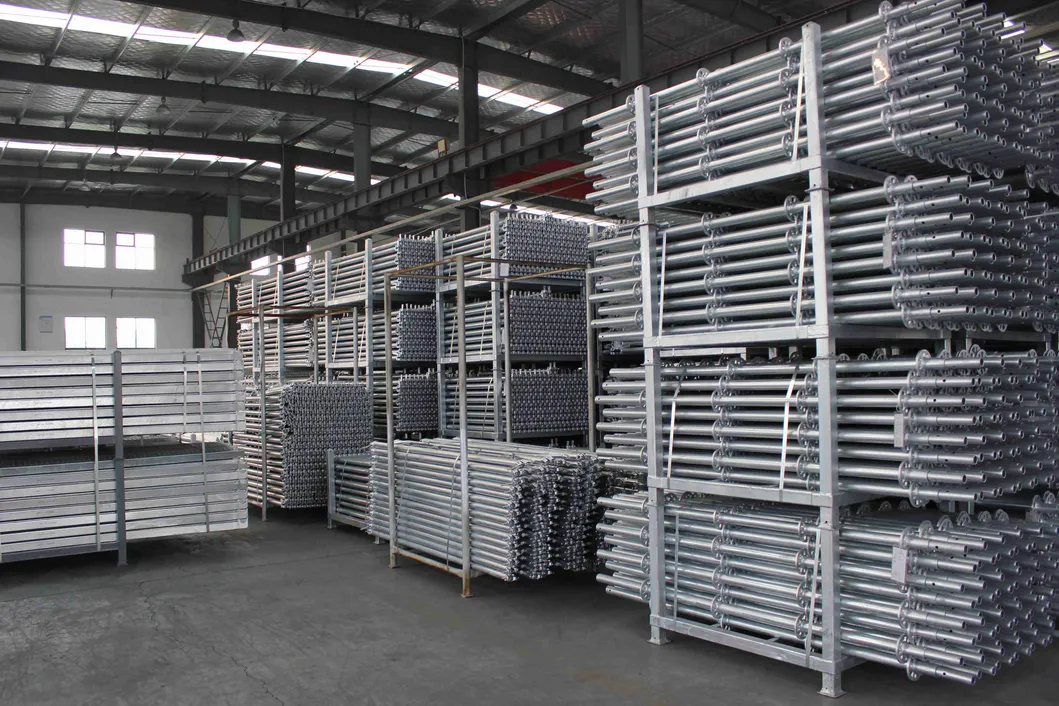

Packaging & Quality Control

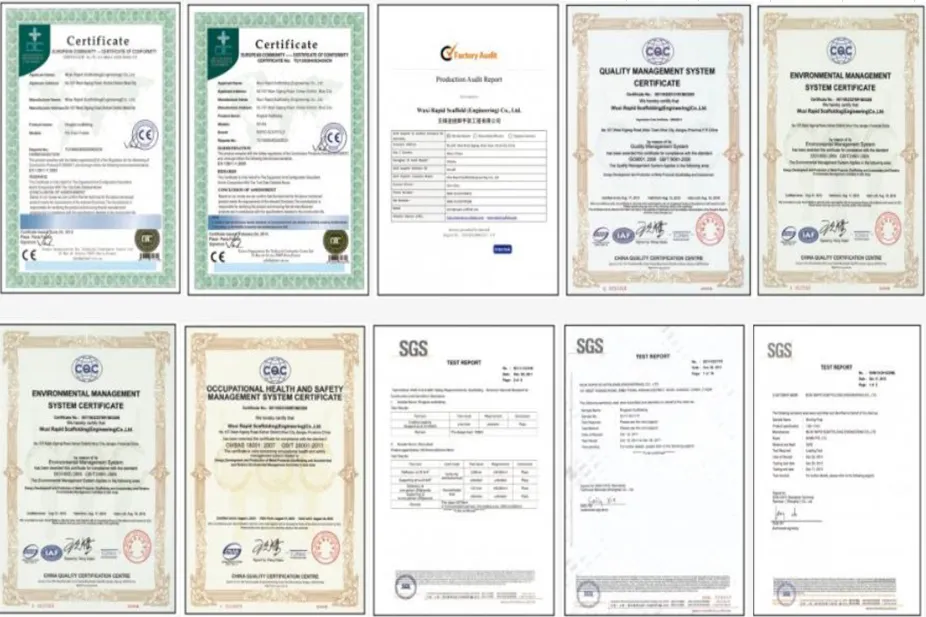

Certifications
Frequently Asked Questions
Q1: What materials are used for the scaffold steel planks?
Our scaffold planks are manufactured using high-quality Q235B and Q195 steel, ensuring excellent structural integrity and durability for construction projects.
Q2: What are the available surface finishes?
We offer both Hot-DIP Galvanized and Pre-Galvanized finishes, providing superior resistance to corrosion and rust in various environmental conditions.
Q3: Are these planks compatible with international standards?
Yes, our products are certified by ISO, SGS, CE, and ANSI/AS NZS, meeting rigorous global safety and quality requirements.
Q4: What is the typical loading capacity of the planks?
The planks undergo strict load testing to ensure they can safely support workers and materials. Detailed load specifications depend on the thickness (1mm-2mm) and length of the plank.
Q5: Can you provide customized sizes or designs?
We offer comprehensive project solutions including 3D model design and graphic design to meet specific construction requirements and customized dimensions.
Q6: How are the products packaged for transport?
Products are securely packed using steel frames or bundles to ensure safe handling and prevent damage during sea or land transportation.
