Cuplock scaffolding is a modular system scaffold widely used in construction, infrastructure, and industrial projects. It adopts a unique cup-and-lock joint connection, which allows quick fastening of ledgers and braces to the vertical standards without the need for bolts or loose fittings. This simple locking mechanism ensures fast installation, high strength, and excellent stability.

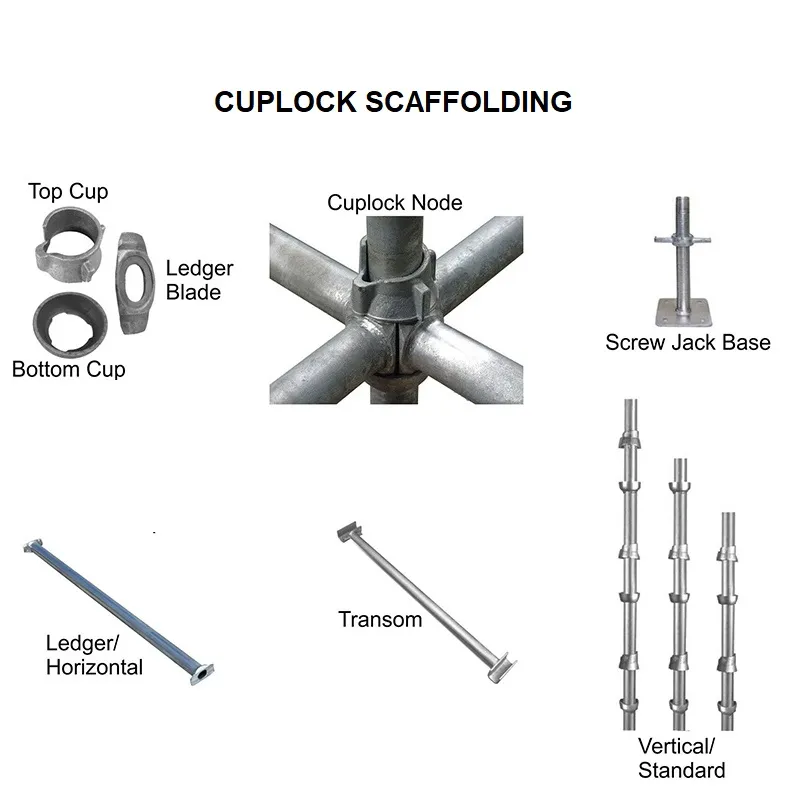

The system is designed with standardized modular components including verticals, ledgers, diagonal braces, base jacks, U-head jacks, steel planks, guardrails, and toe boards. The 500mm interval cup joints on the standards provide flexible height adjustment and versatile combinations for different structures.
Product Parameters
Component
Common Sizes (mm)
Tube Diameter & Thickness (mm)
Description

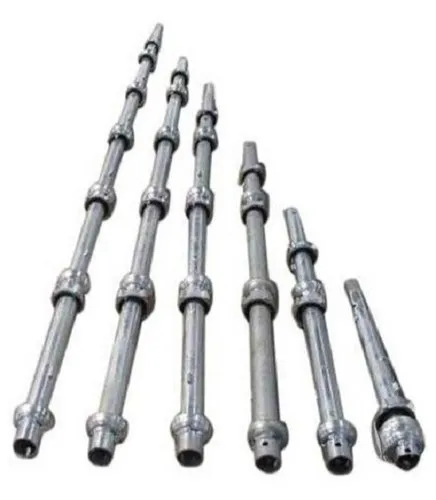

Vertical (Standard)
500 - 3000
#48.3 × 3.2 / 3.25
Top and bottom cup joints, spacing 500mm

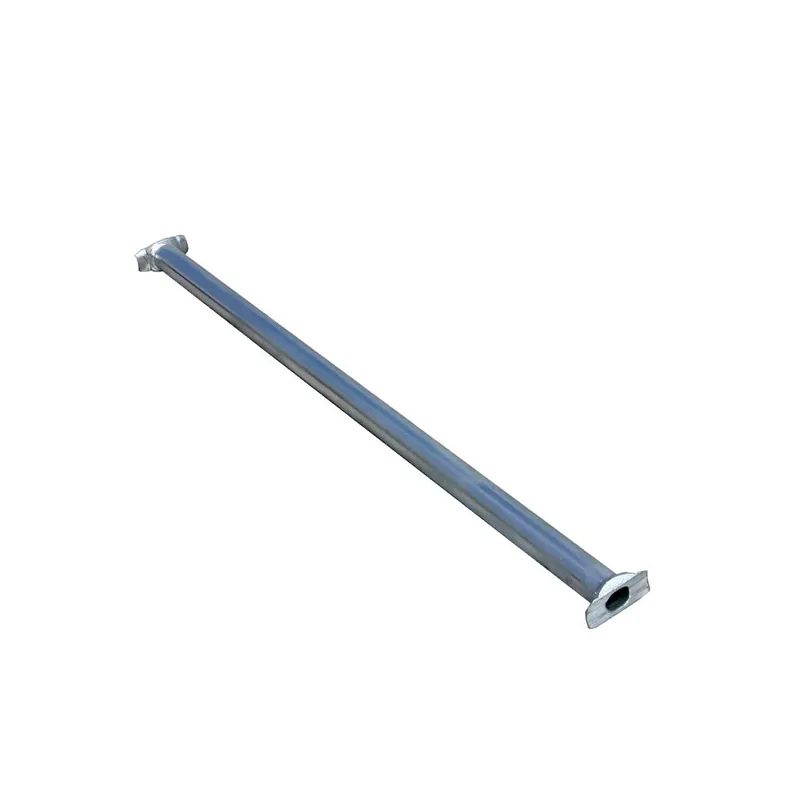

Ledger (Horizontal)
500 - 2500
#48.3 × 3.0 / 3.25
Forged blade ends, locked into cup joint
Diagonal Brace
1500 - 4000
#48.3 × 3.0
With swivel blade at both ends
Adjustable Base Jack
500 / 600
#38 / #48 threaded
For bottom height adjustment
Adjustable U-Head Jack
600 / 750
#38 / #48 threaded
Supporting beams or formwork at top
Steel Plank
Up to 3000
1.2-1.5mm thick
Anti-slip holes, loading ≥250kg/m²
Detailed Photos

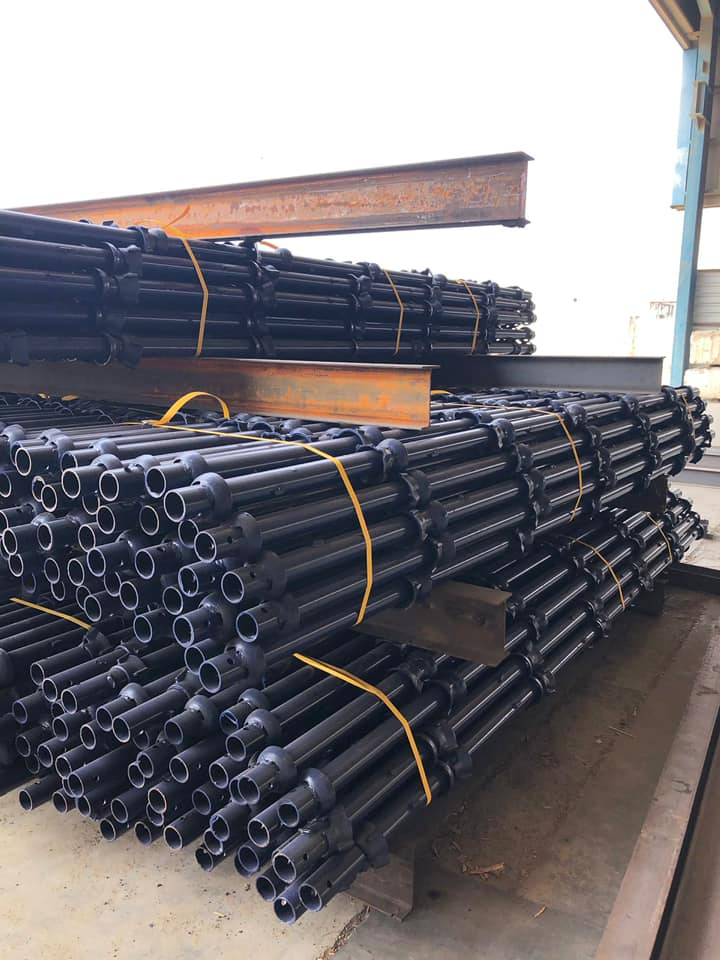

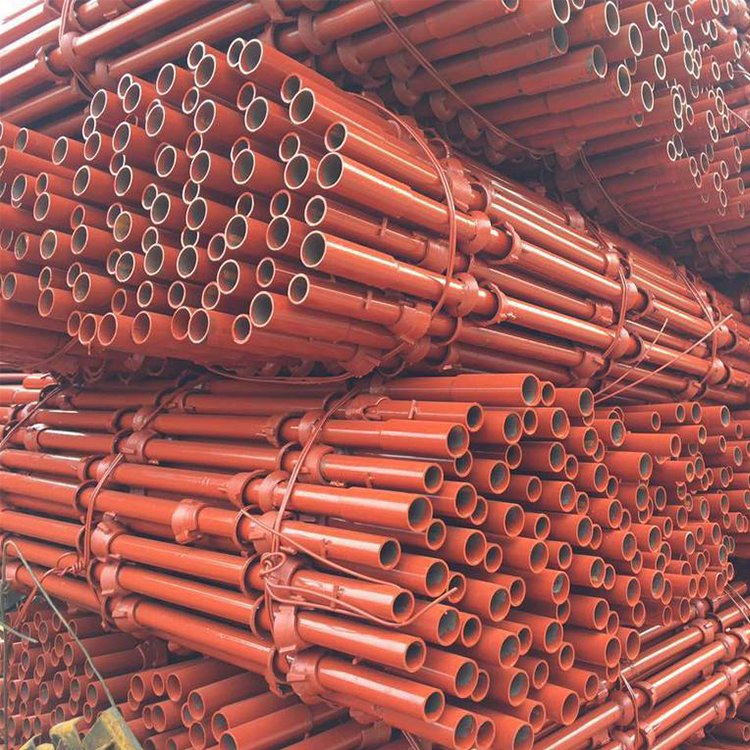

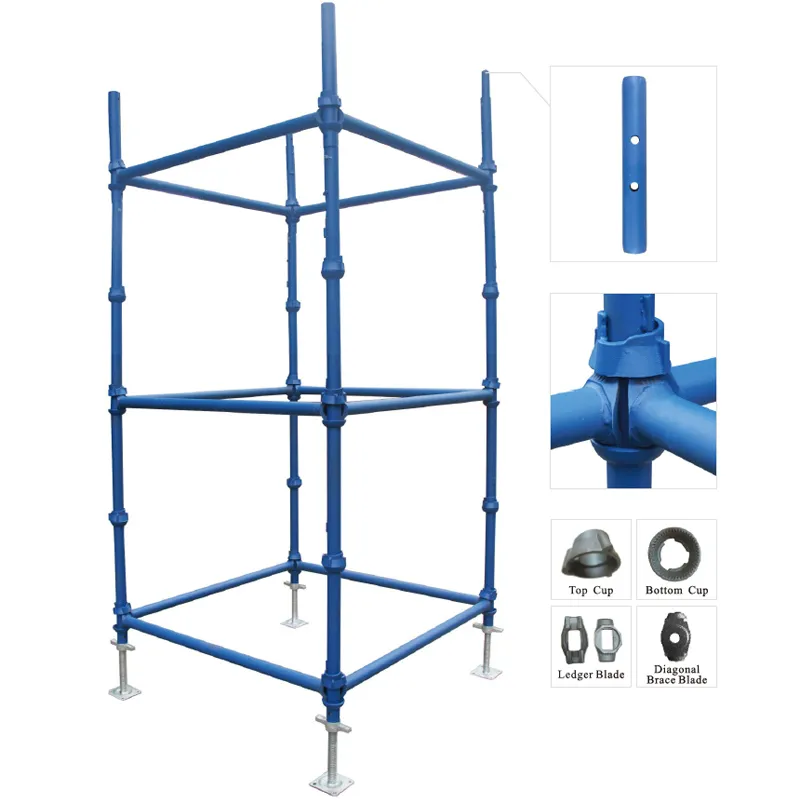

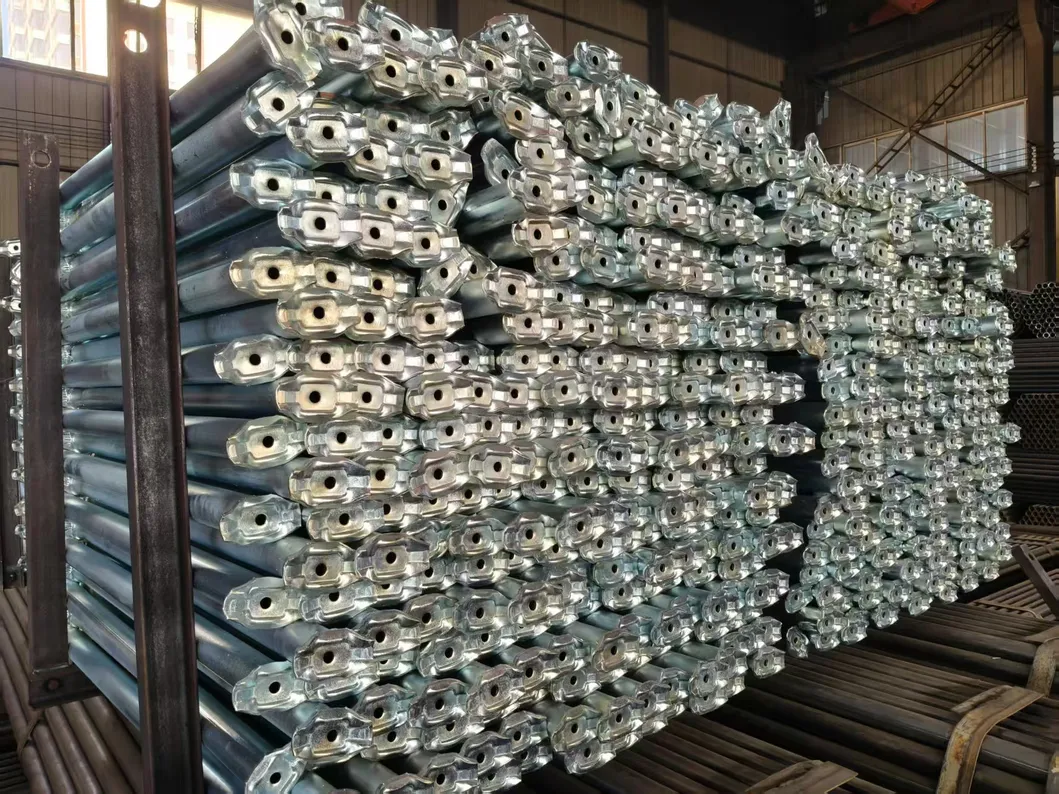

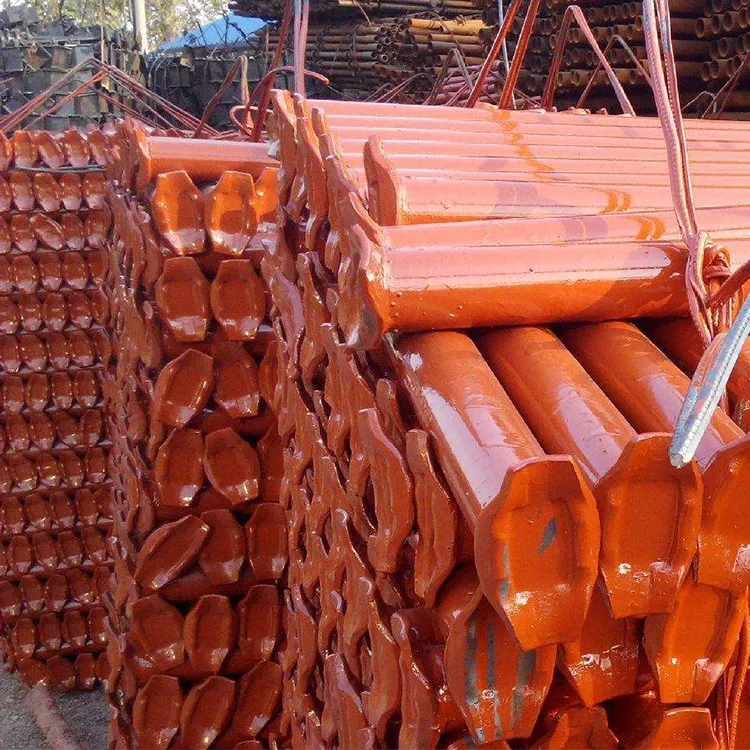

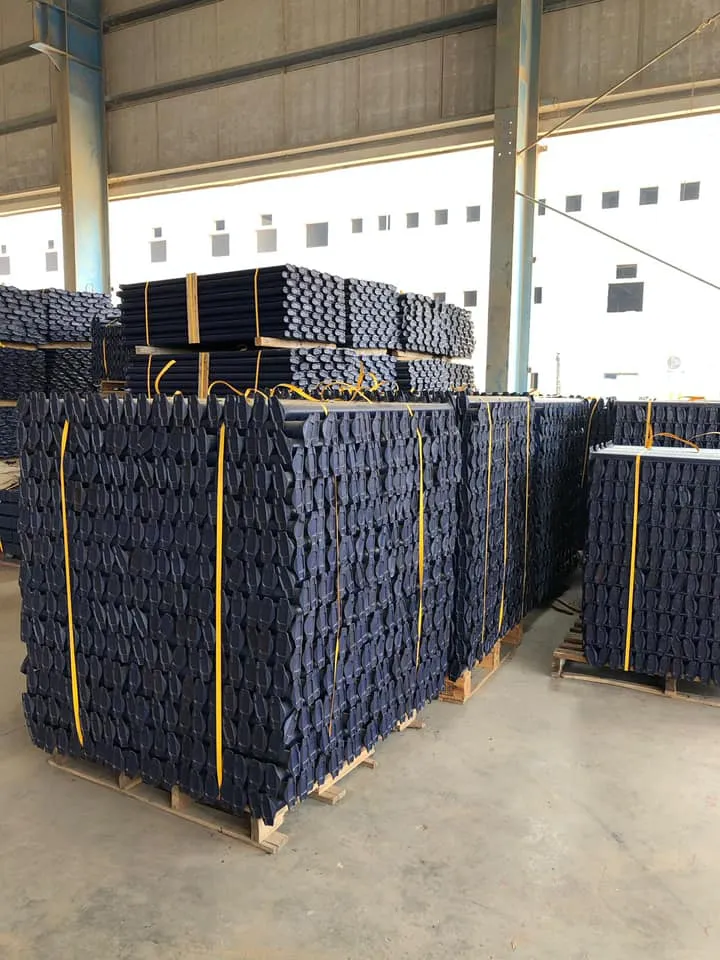

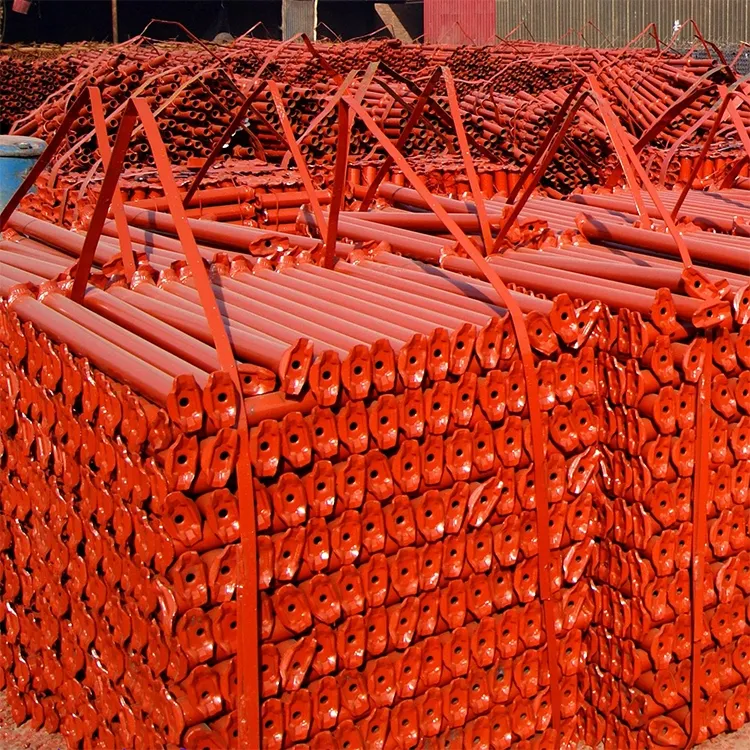

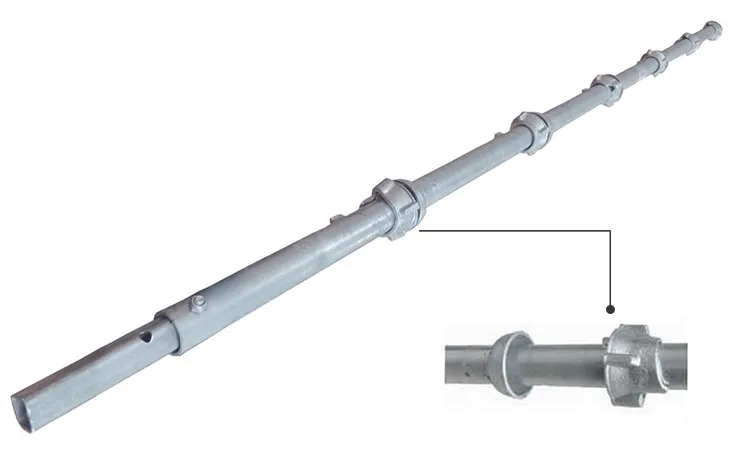

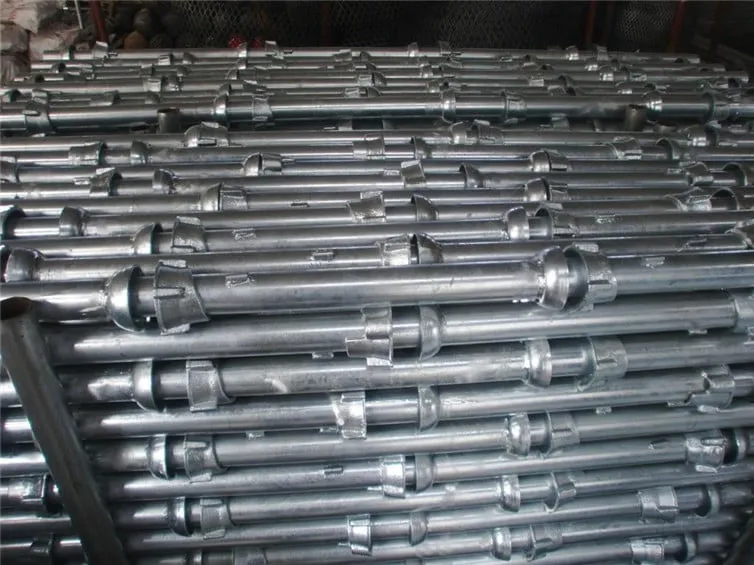

Our cuplock scaffolding features high-strength vertical standards with cup joints every 500mm; horizontal ledgers with precision forged blade ends; and diagonal braces with swivel blade ends for strong stability.
Product Advantages
✔
Quick Assembly: Simple cup-and-lock design for fast erection without bolts.
✔
High Load Capacity: Each vertical can carry 40-60kN, suitable for heavy-duty projects.
✔
Strong Stability: Rigid connections reduce movement and enhance safety.
✔
Durable Surface: Hot-dip galvanized coating ensures long service life and reuse.
Production Process

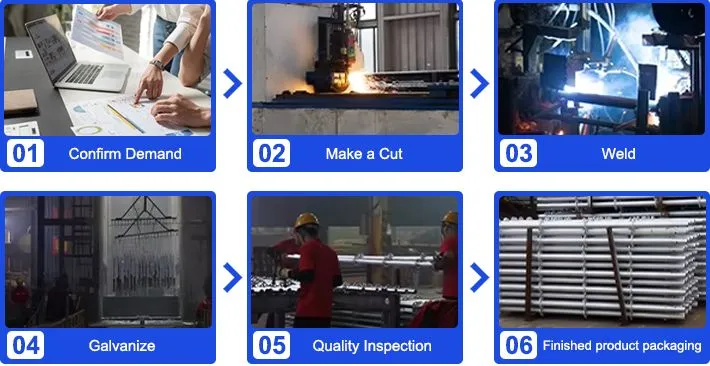

Scaffolding production involves raw material preparation, cutting, forming, welding, surface treatment, inspection, and packaging. Q345B or Q235B steel is cut and formed into components, welded precisely, then hot-dip galvanized or coated for corrosion protection.
Our Capability & Quality

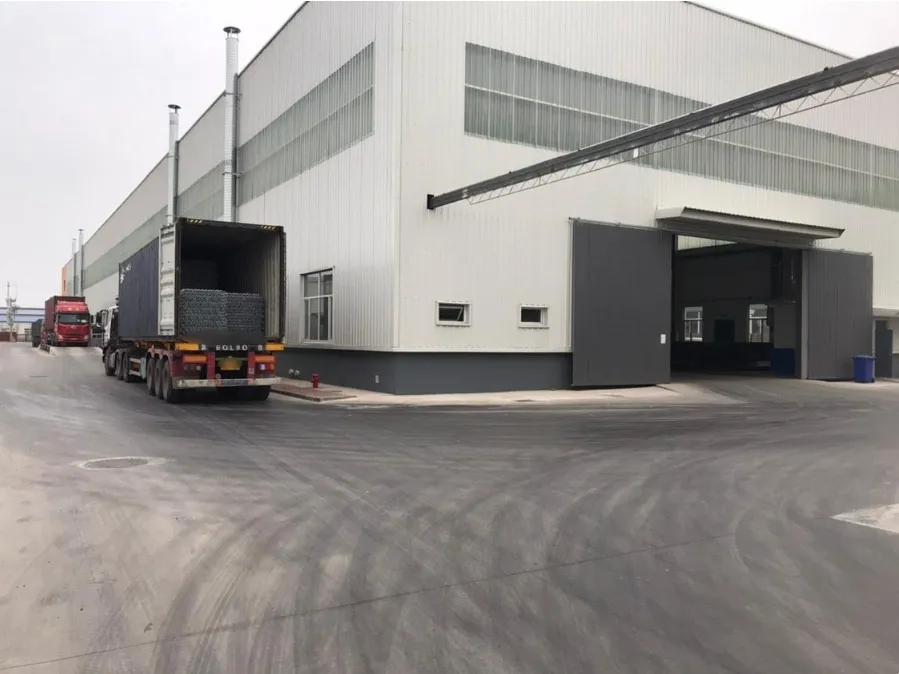

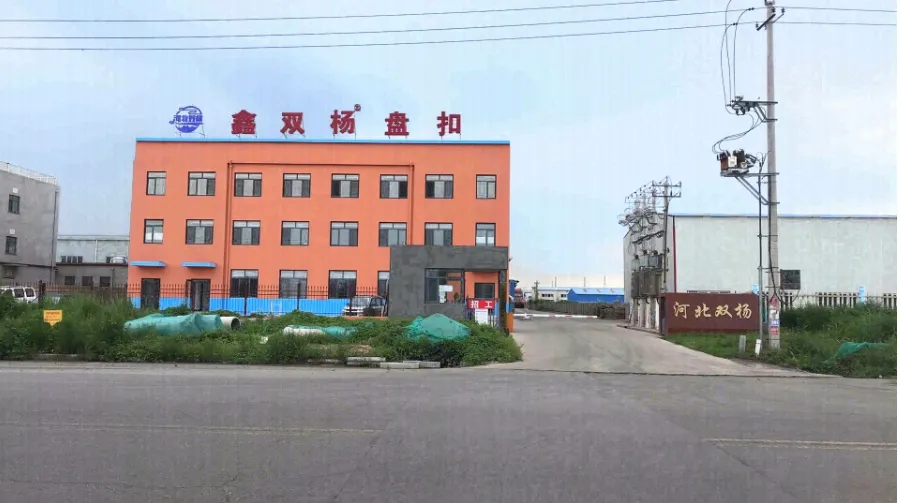

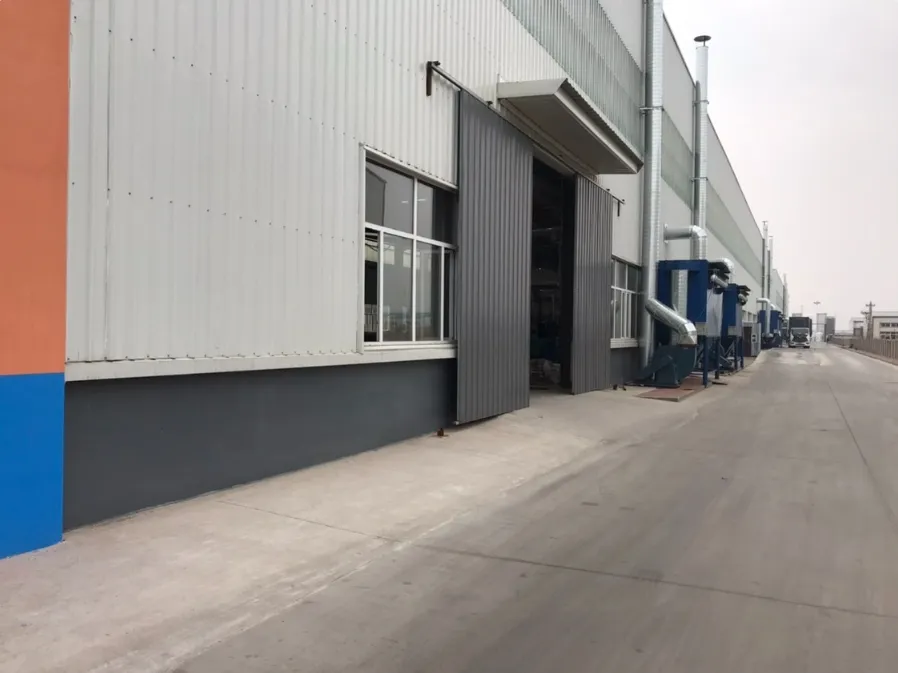

We are an integrated R&D, production, and sales enterprise specializing in high-quality building materials. Our manufacturing base spans 13,132 square meters with over 500 employees, achieving annual outputs of 450,000 tons of Scaffolding.
Our products have obtained multiple internationally recognized certifications, including EN12810/EN12811 European standards, AS/NZS 1576, and ISO 9001.
Frequently Asked Questions
What is cuplock scaffolding?
Cuplock scaffolding is a modular system scaffold that uses a unique cup-and-lock joint for quick and secure assembly without the need for loose bolts.
What are the main components of the system?
The main components include vertical standards, horizontal ledgers, diagonal braces, adjustable base jacks, U-head jacks, steel planks, guardrails, and spigot pins.
What are the primary advantages?
It offers high load capacity, quick assembly, strong stability, versatile applications, and a durable galvanized surface for long-term reuse.
Where is cuplock scaffolding typically used?
It is widely used in building construction, bridges, tunnels, shipyards, staging, and formwork support.
What surface treatments are available?
The surface is usually hot-dip galvanized for maximum corrosion resistance, though painted or cold galvanized options are also available.
Is the scaffolding reusable?
Yes, with proper maintenance, cuplock scaffolding can be reused for over 10 years, making it a highly cost-effective solution.
