Product Description

Basic Specifications

Certification

ISO / ISO9001

Material

Steel Q235/Q355

Type

Beam Formwork

Finished

HDG / Painted

Usage

Formwork Shoring System

Specification

900MM

Capacity

500 Ton / Month

HS Code

73084000

Product Overview

Building Beam System & Heavy-Duty Propping Solutions

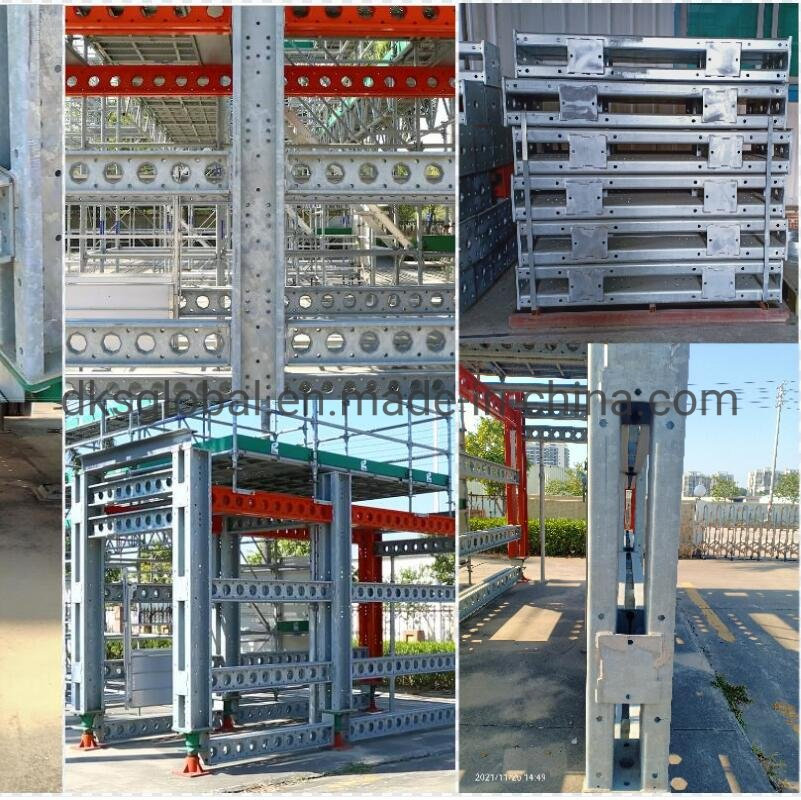

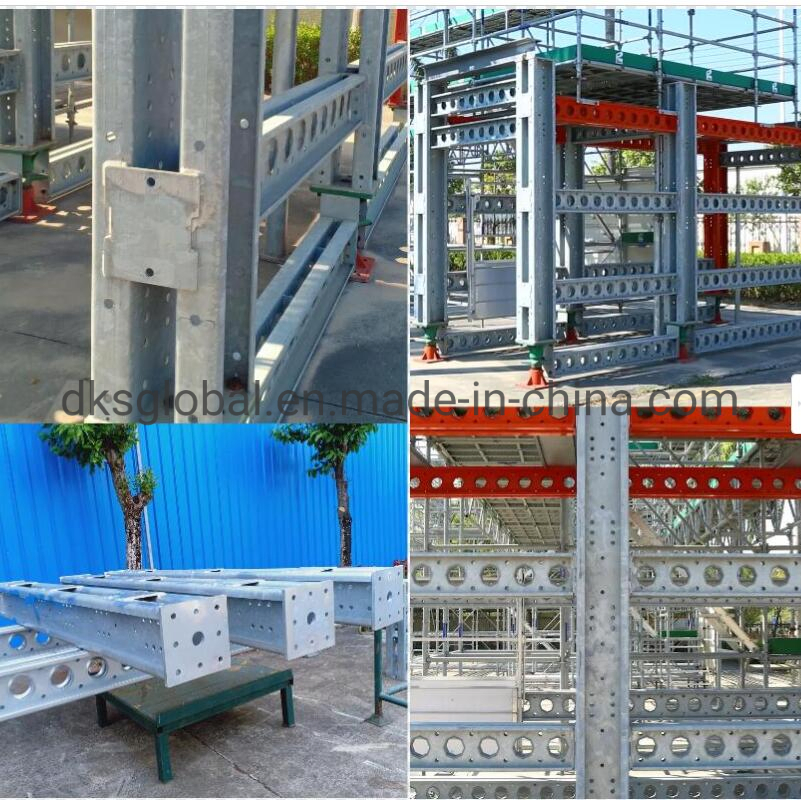

Mega beam is a versatile temporary modular heavy-duty propping system that can be adapted to the most demanding projects on construction sites. Its most frequent uses are the support of bridges, superstructures and ground shoring applications.

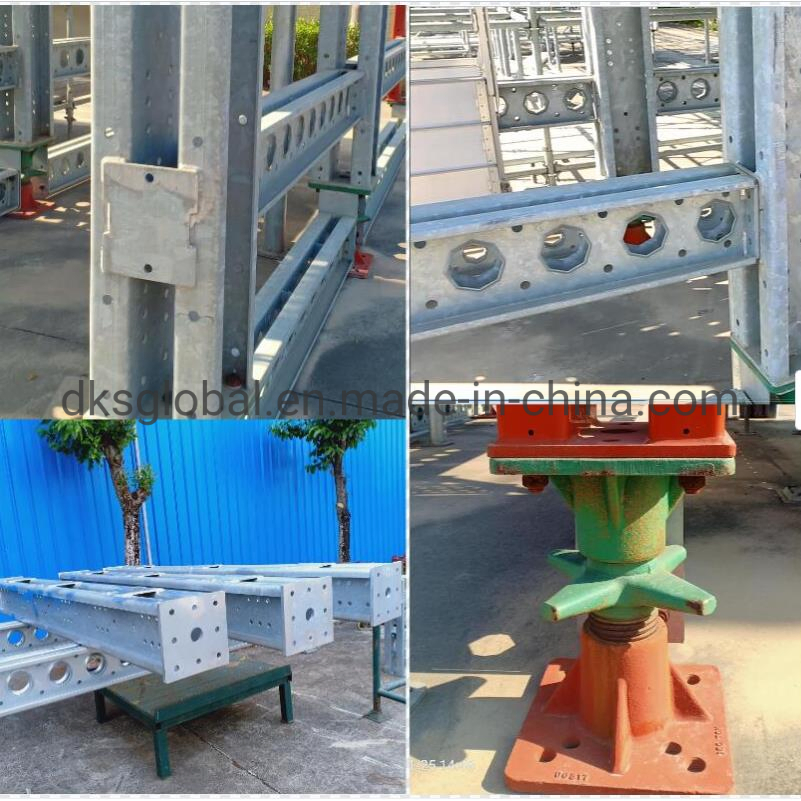

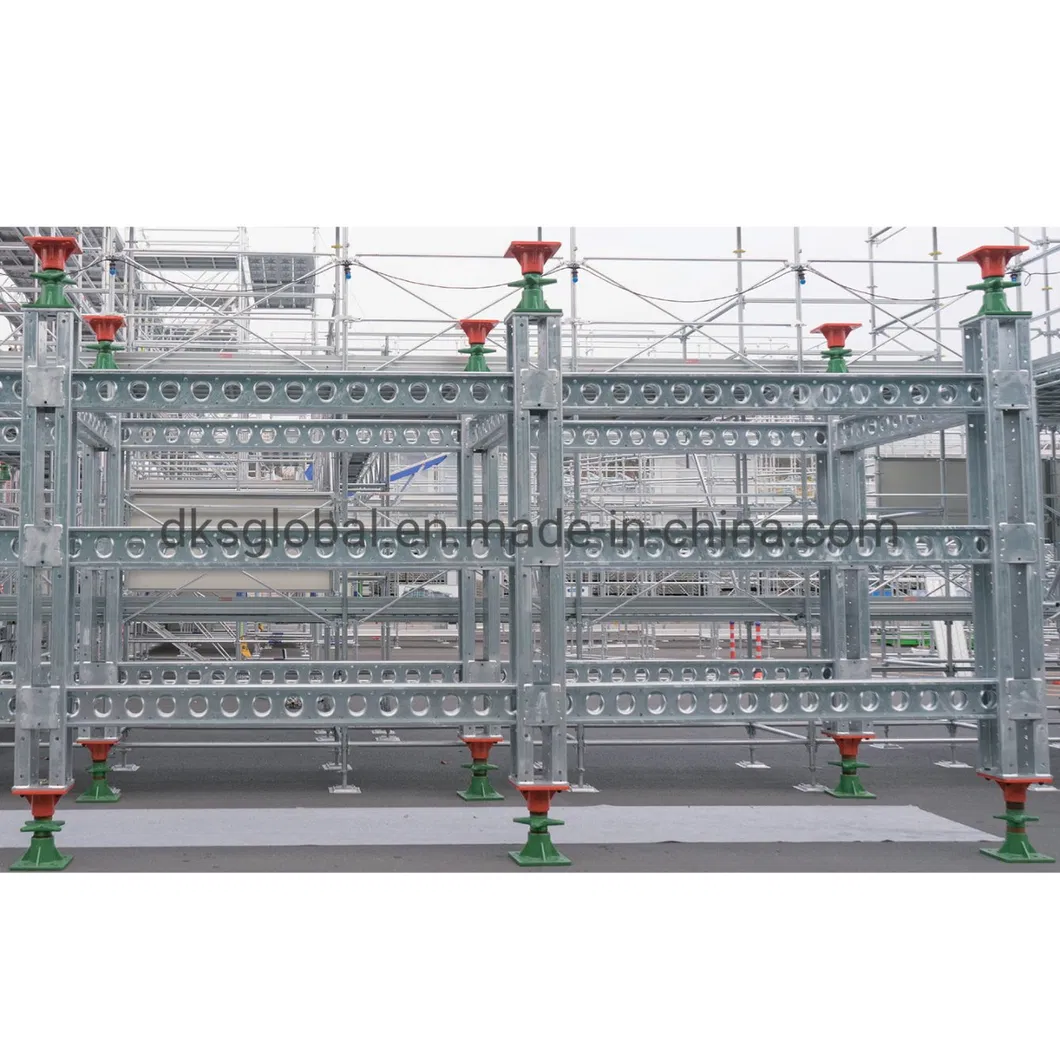

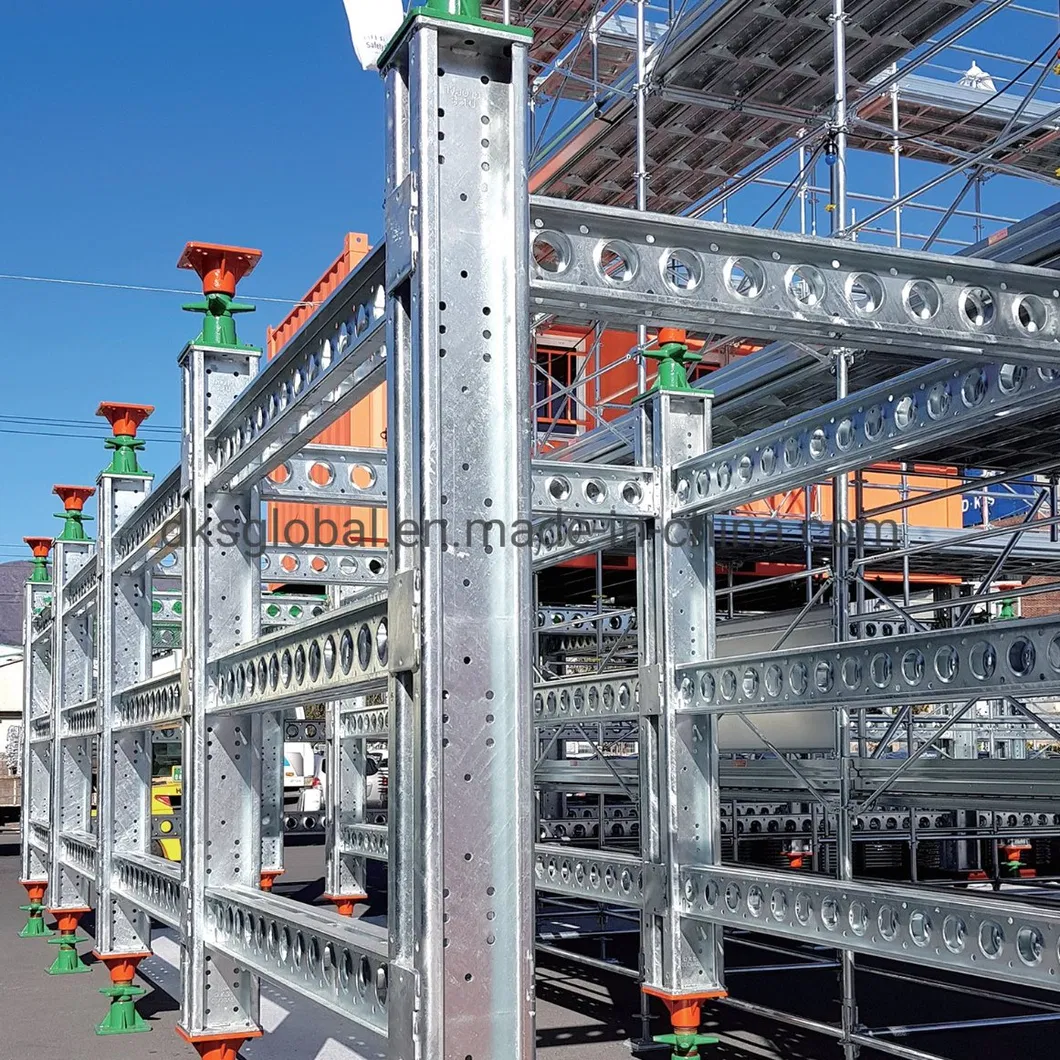

It is one of the fastest, most efficient and versatile ways to provide quick support and access solutions in a wide variety of situations, using only two main components: the base jack and heavy-duty mega beam.

🚀Features & Benefits

Nine Standard Lengths: From 3.5in(90mm) to 212.6in (5400mm), allowing assembly into towers and props of nearly any length.
Massive Load Capacity: 1000kN axial load capacity with high axial stiffness for heavy formwork and bridge decks.
Efficient Design: backbone support for bridges with minimal traffic flow disruption.
Superior Durability: Manufactured using accurate welding jigs and high-yield steel; hot-dip galvanizing eliminates corrosion.
Productivity: Engineered to minimize labor costs, increase site productivity, and improve work site safety.

Main Applications

Cofferdams

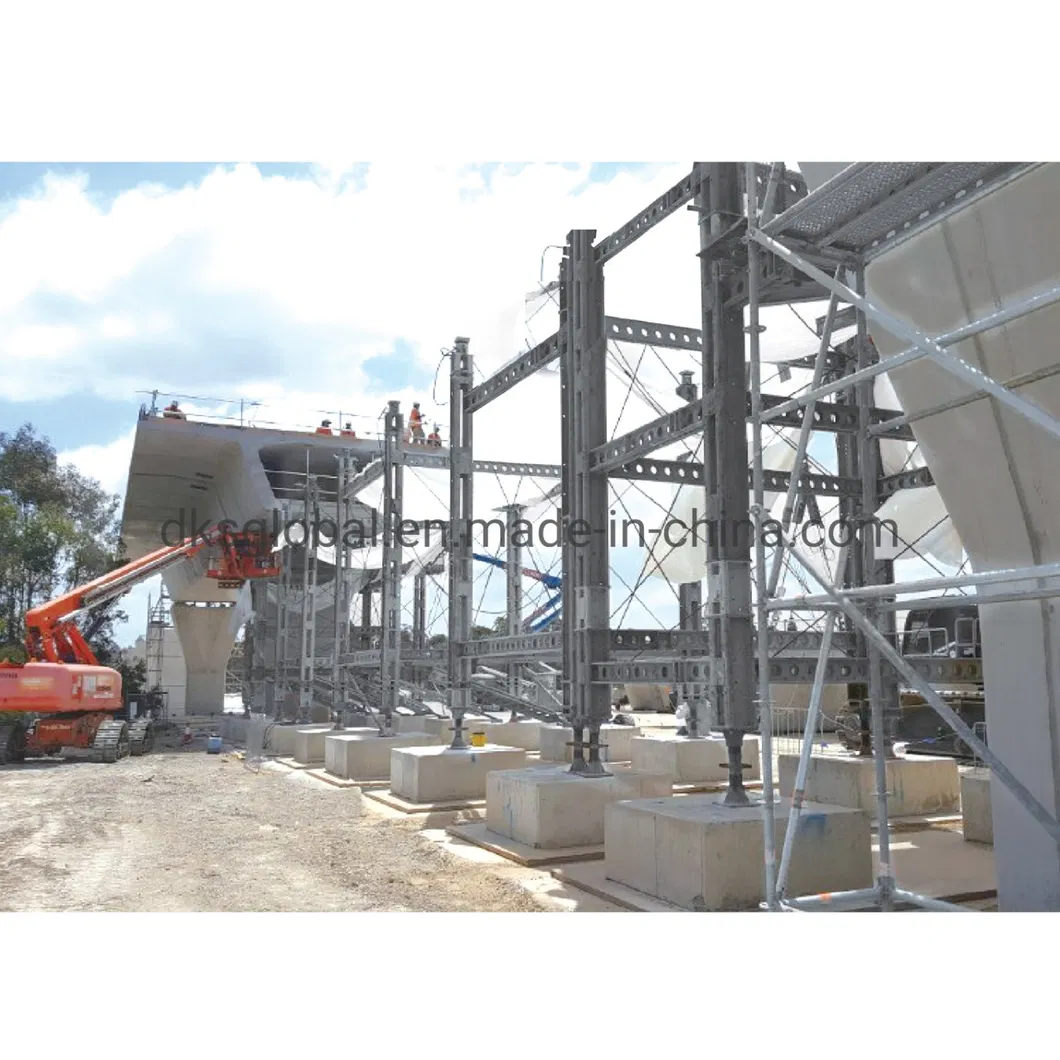

Bridge propping and hydraulic jacking
Façade retention
Ground shoring and excavation support
Construction of lifting rigs
Travelling slab and tunnel formwork

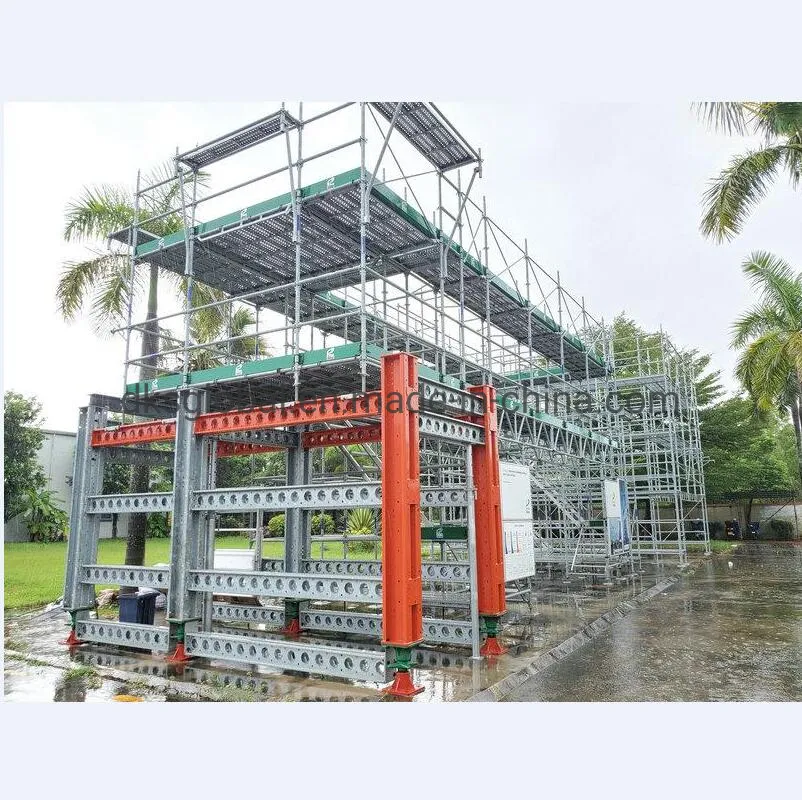

Heavy duty falsework

Technical Parameters

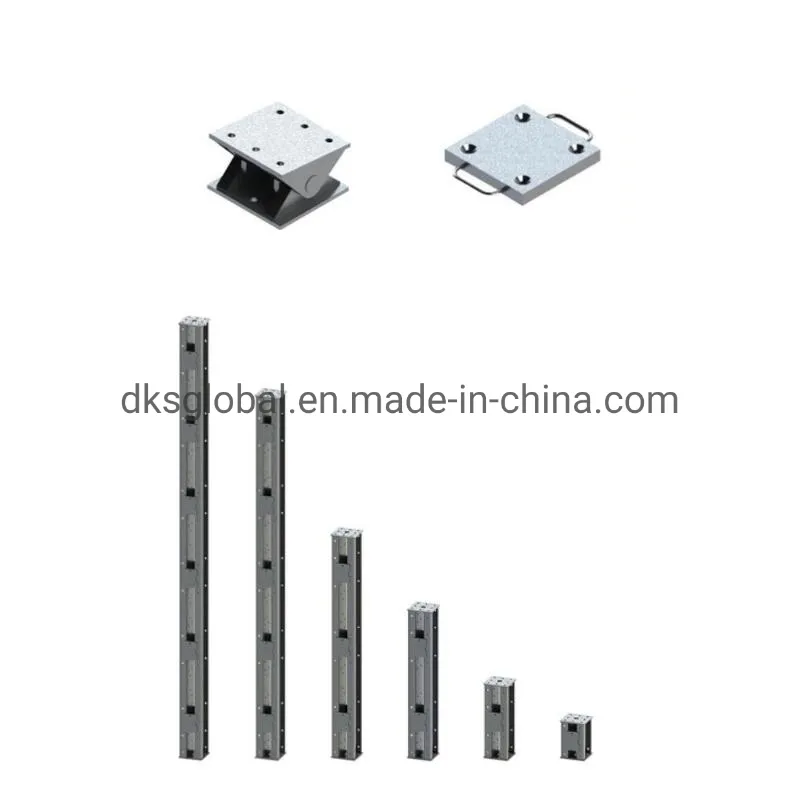

1. DKS Mega Beam 1000 Specifications

Code	Length (in)	Description	Weight (lb)	Weight (kg)
DMB5400	212.6in	MB leg 5400mm	696.7lb	316.0kg
DMB4500	177.2in	MB leg 4500mm	586.4lb	266.0kg
DMB2700	106.3in	MB leg 2700mm	352.7lb	160.0kg
DMB1800	70.9in	MB leg 1800mm	246.9lb	112.0kg
DMB0900	35.4in	MB leg 900mm	143.3lb	65.0kg
DMB0450	17.7in	MB leg 450mm	99.2lb	45.0kg
DMB0270	10.6in	MB leg 270mm	77.2lb	35.0kg
DMB0090	3.5in	MB leg 90mm	55.1lb	25.0kg
DMB0015	0.6in	MB leg 15mm E/P	22.0lb	10.0kg

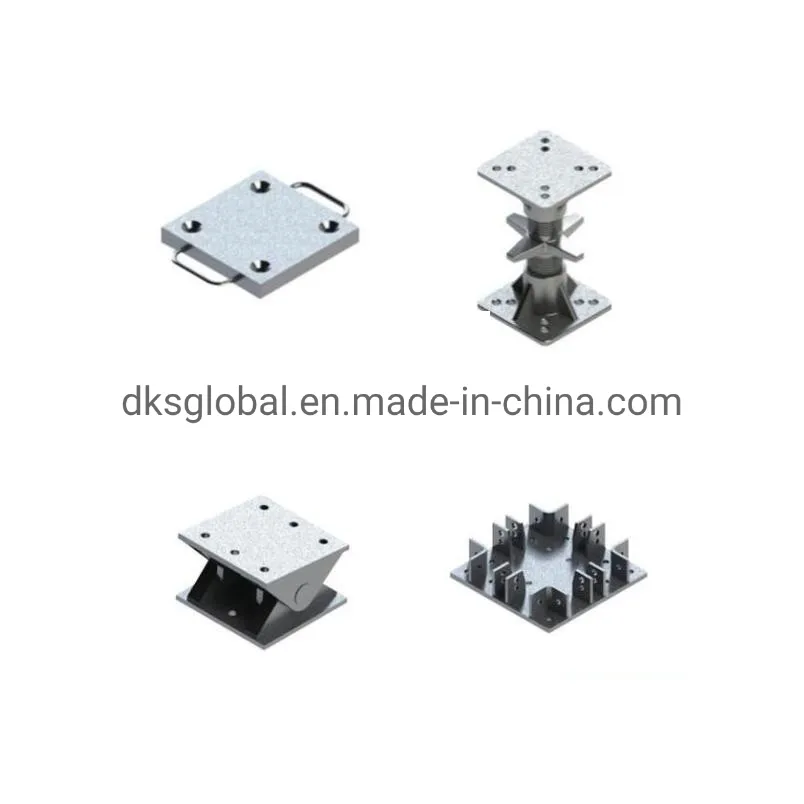

2. Accessories (Screw Jack, Head & Plates)

Code	Description	Weight (lb)	Weight (kg)
DMB1000	Screw Jack	119.1lb	54.02kg
DMB03	Rocking Head	103.6lb	47.0kg
DMB01	Jack Plate	44.8lb	20.3kg
DMB02	Brace Plate	44.1lb	20.0kg

Manufacturing Excellence

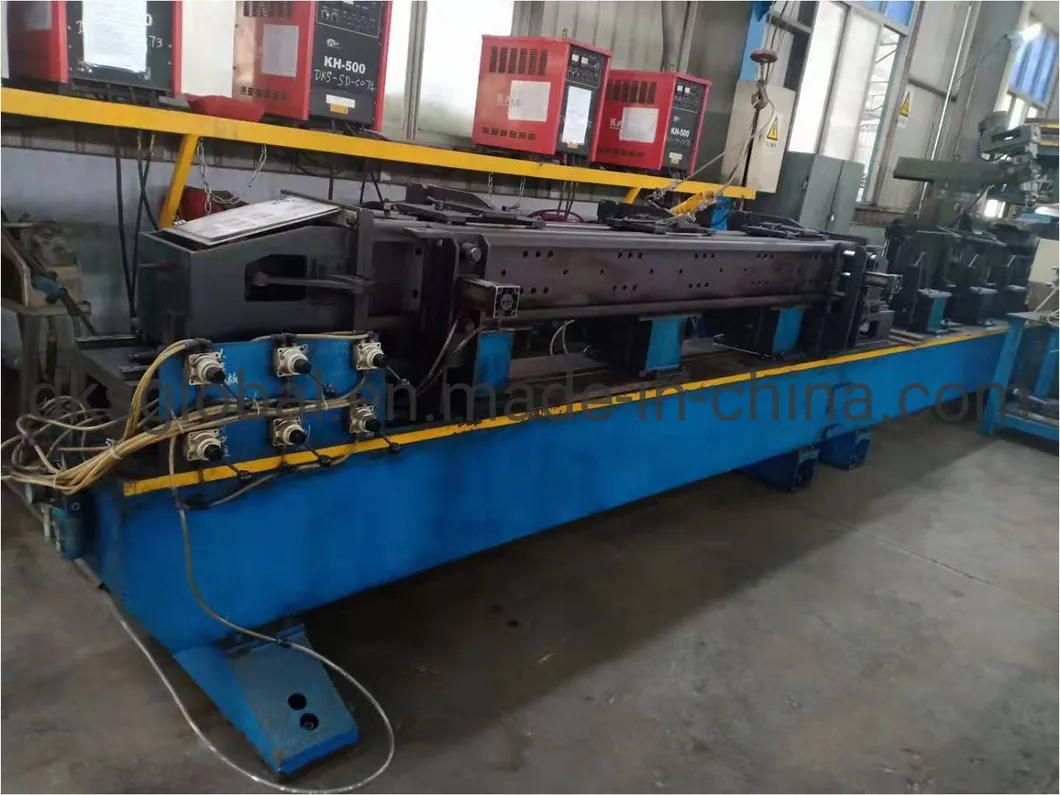

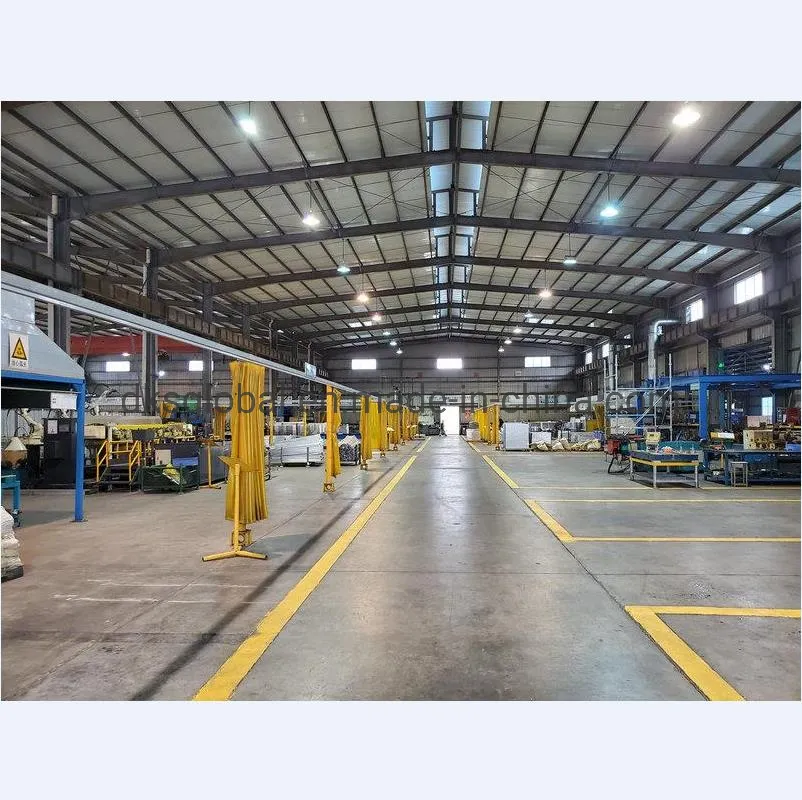

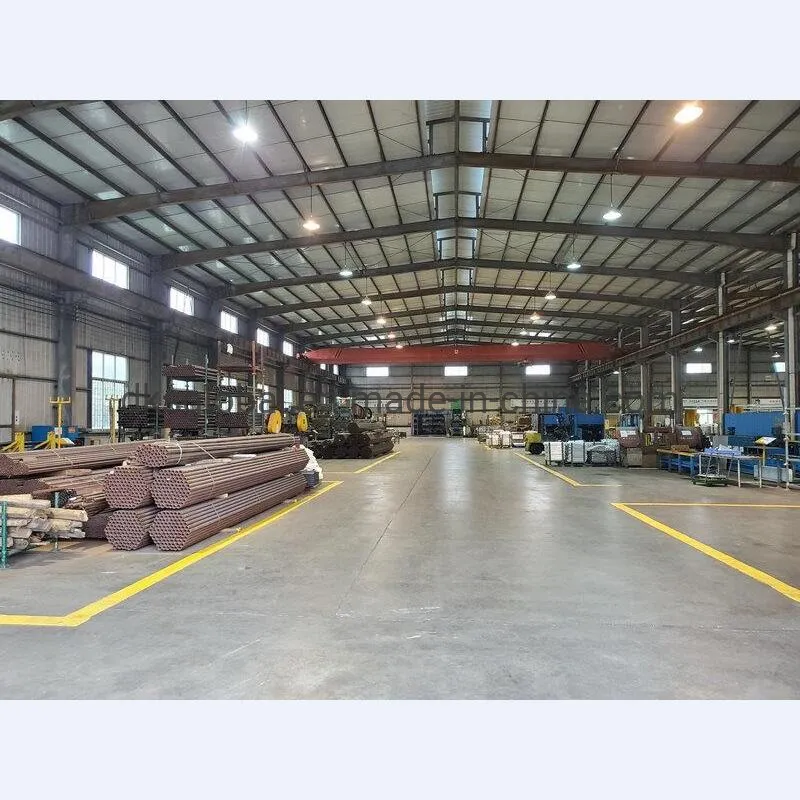

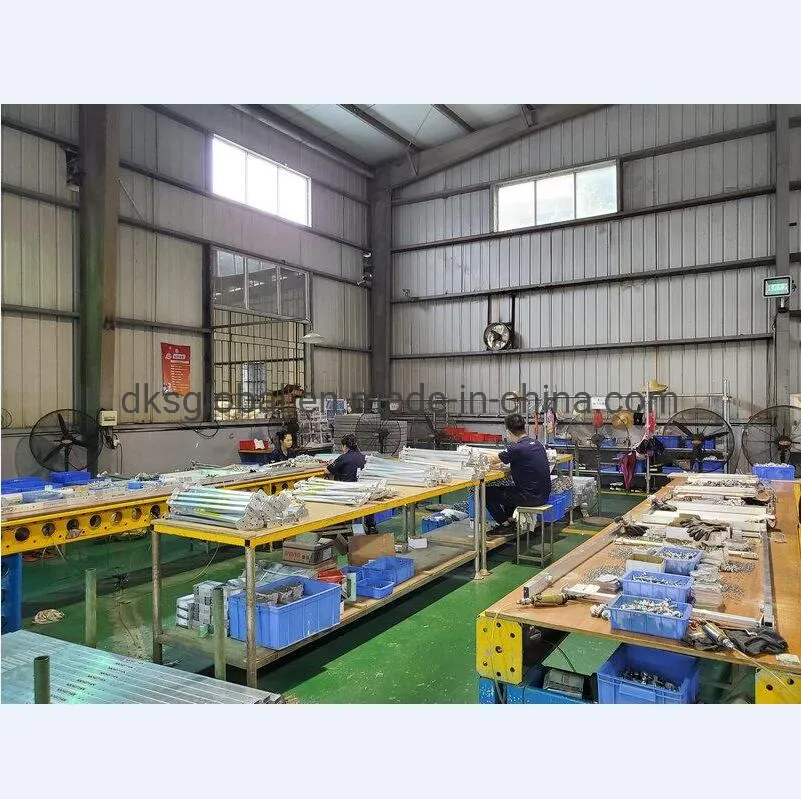

The facility covers an area of 16,528 M2 and is specialized in the production of shoring and safety systems. Equipped with modern, high-performance welding jigs and production tools, ensuring ISO 9001 certified quality.

Frequently Asked Questions

What is the maximum load capacity of the Mega Beam system?

The Mega Beam system features a massive axial load capacity of 1000kN with high axial stiffness, making it suitable for heavy-duty construction projects.

What materials are used for the beams?

The system is manufactured using high-quality Q235 and Q355 steel, finished with hot-dip galvanizing (HDG) or paint to eliminate corrosion.

Are there different lengths available for modular assembly?

Yes, there are nine standard lengths available, ranging from 3.5 inches (90mm) up to 212.6 inches (5400mm), allowing for highly versatile configurations.

In which construction scenarios is this system typically used?

It is frequently used for bridge support, cofferdams, façade retention, ground shoring, and heavy-duty falsework applications.

Is the production facility certified?

Yes, our production facility is ISO 9001 certified and utilizes modern welding jigs to ensure maximum durability and load capacity.

How does the system help in reducing project costs?

The Mega beam system is engineered to minimize labor costs and increase site productivity through its efficient, modular design and easy assembly.
