Basic Information
Structural Style
Multi-Pole Scaffolding
Framework
Combined Scaffolding
Supporting Mode
Projecting Scaffolding
Erection Position
External Scaffolding
Part Type
Scaffolding Planks
Product Description

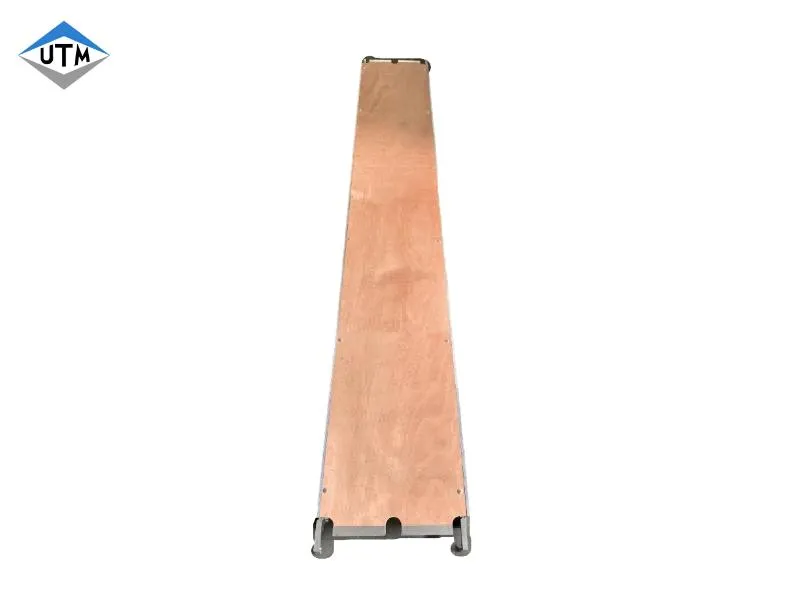

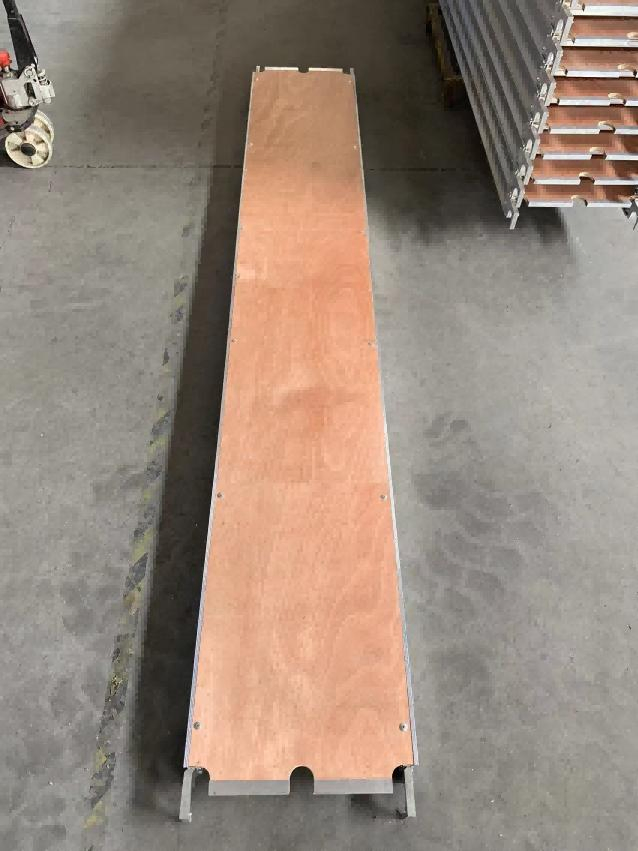

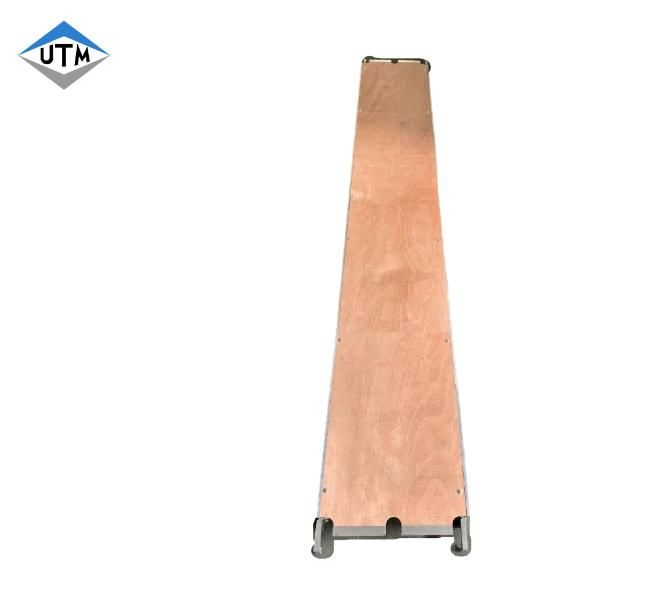

Scaffold Aluminium Wood Boards (walkboards or scaffold planks) are made from high-quality wood and aluminium materials, essential for safe working conditions at height.
These boards provide a sturdy working platform for construction workers, ensuring superior structural integrity and safety standards on-site.
Key Advantages
- Anti-deposited sand & Anti-Corrosion
- Anti-slip surface for safety
- High compressive strength
- Lightweight & Easy to transport
- Recyclable & Fireproof
| Code |
Name |
Length |
Specifications |
Weight(kg) |
Material |
Standard |
| UTM-AB-142-1520 | Aluminium Wooden Board | 5'/1520mm | 483mm wide | 10 | 6061-T6 | ASTM/AS/EN/BS |
| UTM-AB-142-2130 | Aluminium Wooden Board | 7'/2130mm | 483mm wide | 13 | 6061-T6 | ASTM/AS/EN/BS |
| UTM-AB-142-2440 | Aluminium Wooden Board | 8'/2440mm | 483mm wide | 15 | 6061-T6 | ASTM/AS/EN/BS |
| UTM-AB-142-3048 | Aluminium Wooden Board | 10'/3048mm | 483mm wide | 18 | 6061-T6 | ASTM/AS/EN/BS |
Functional Characteristics

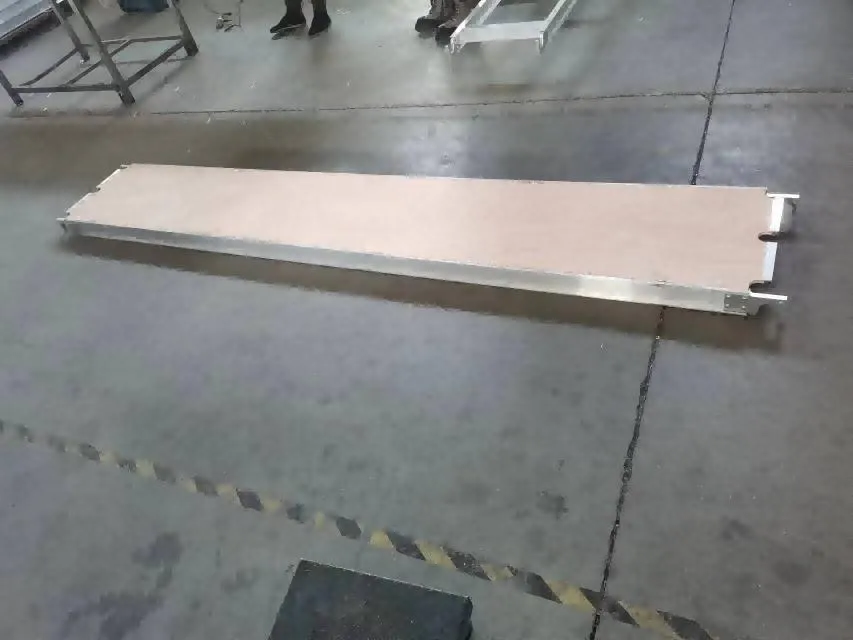

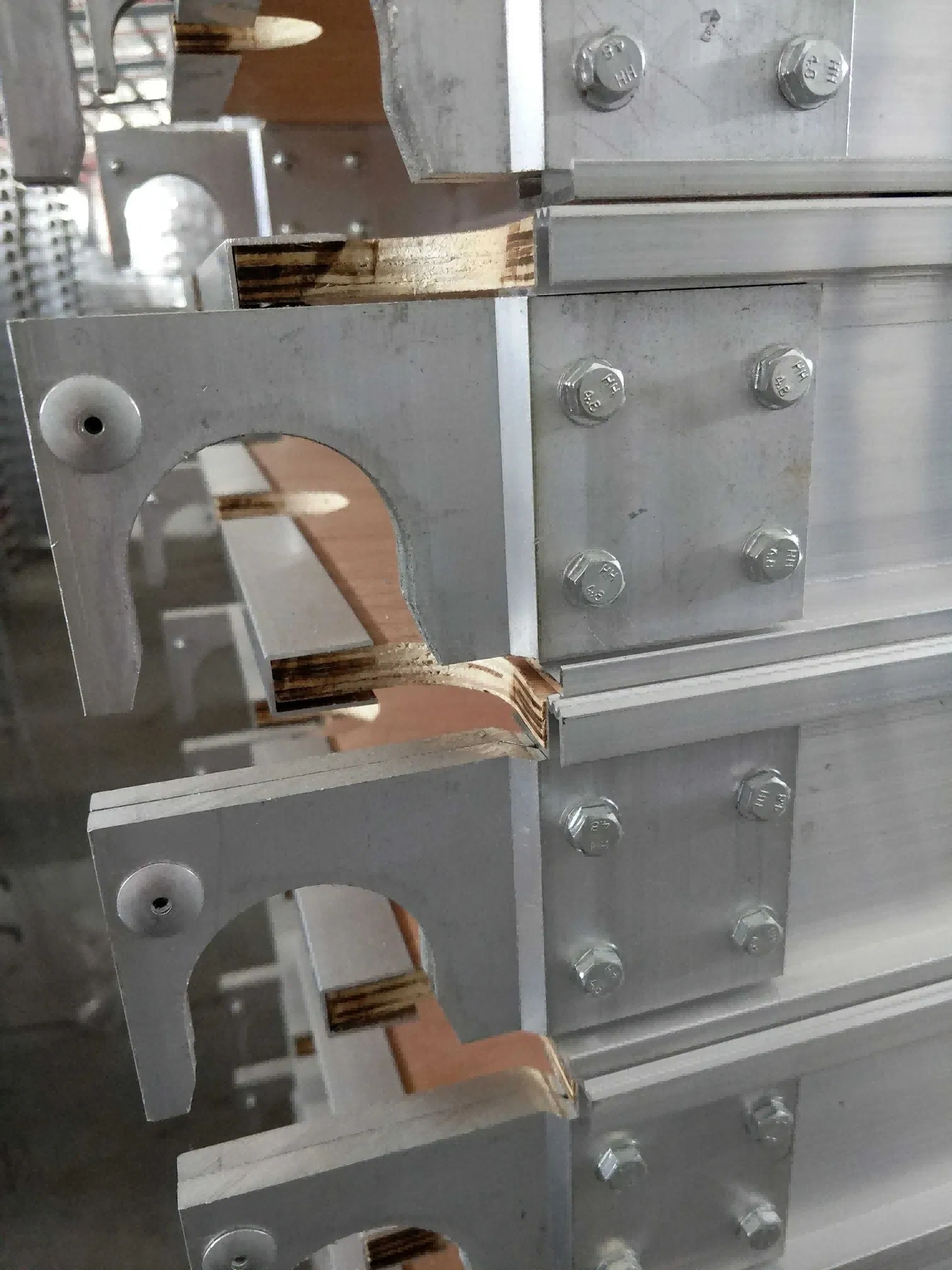

Constructed to hold 75 lbs per square foot, these planks qualify for heavy-duty applications by OSHA standards. The aluminum walk boards are reinforced on the bottom for strength, while the top features grooves to remove standing water and ensure excellent traction. The lightweight design allows for efficient assembly and rust-proof longevity.

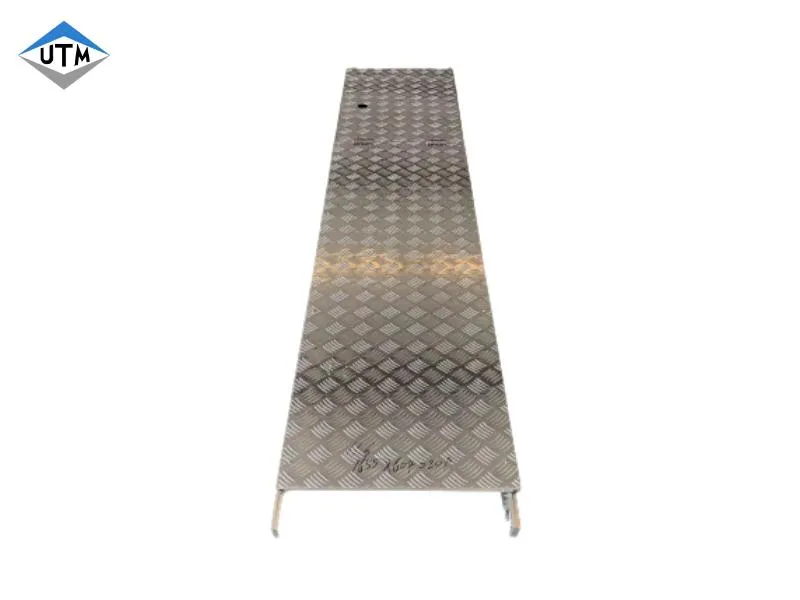

Technical Specifications (With Ladder)
| Code |
Length |
Specifications |
Weight(kg) |
Material |
Standard |
| UTM-AB-144-2070 | 2070mm | 610mm wide with ladder | 23.7 | 6061-T6 | ASTM/EN/BS |
| UTM-AB-144-2570 | 2570mm | 610mm wide with ladder | 29.5 | 6061-T6 | ASTM/EN/BS |
| UTM-AB-144-3070 | 3070mm | 610mm wide with ladder | 34.3 | 6061-T6 | ASTM/EN/BS |
Applications

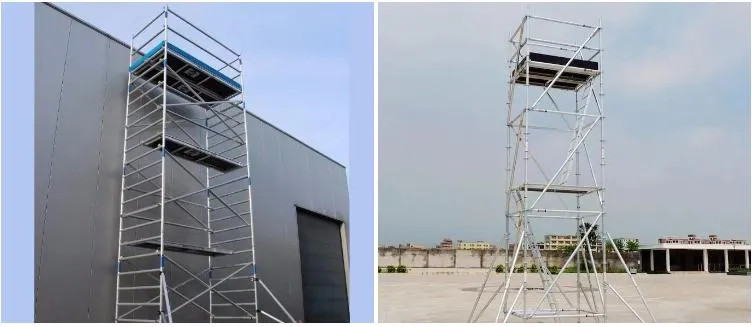

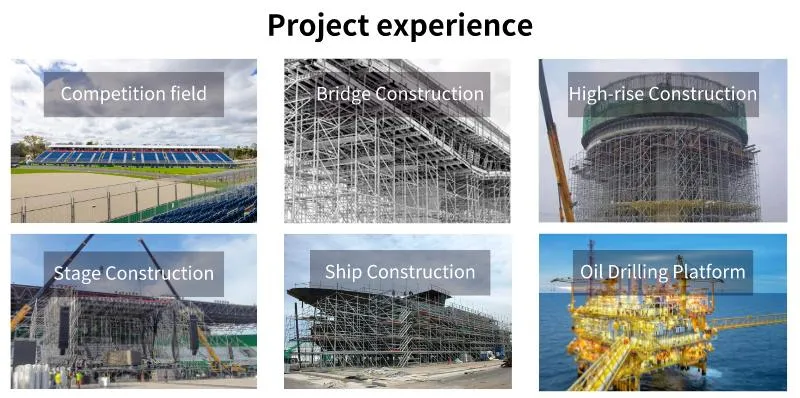

Ideal for aluminum scaffolding towers, frame scaffolding, ringlock, and cuplock system scaffolding. Used globally as a stable work platform, catwalk, or toe board for construction and industrial maintenance.

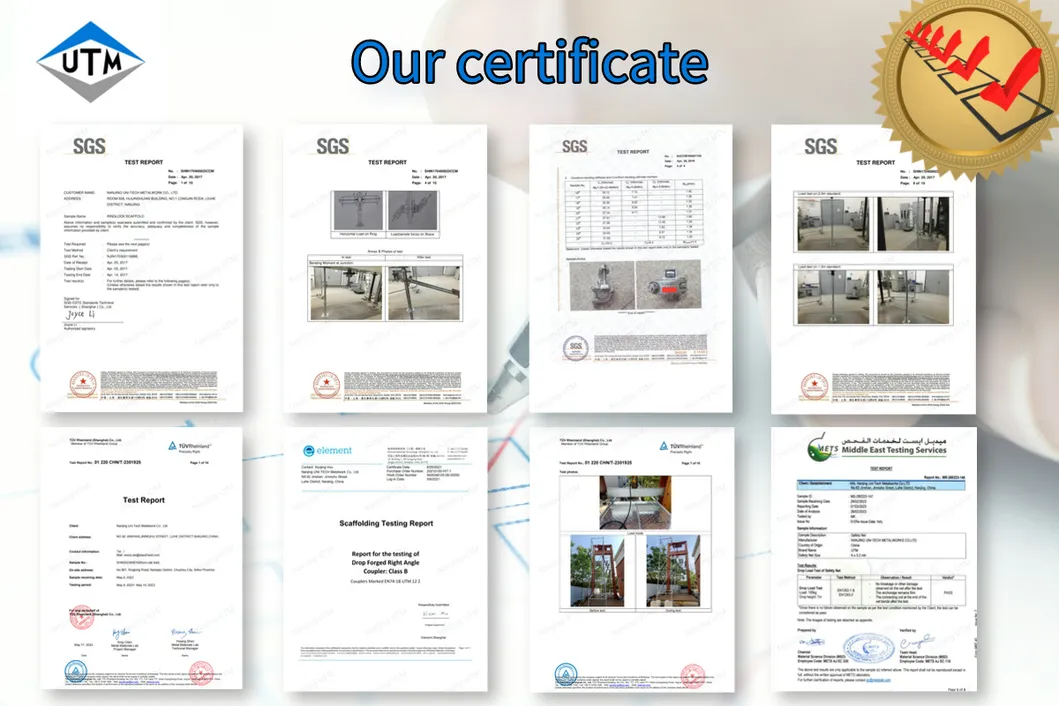

Certifications & Quality Control
Company Overview
With 16 years of industry experience, we specialize in high-quality scaffolding production. Our products meet EN, BS, and AS standards and are exported to the US, UK, Australia, UAE, Saudi Arabia, and Singapore. We focus on ringlock systems, aluminum scaffolds, and accessories, providing comprehensive design solutions and technical support.
One-Stop Professional Service
We provide personalized one-to-one service, 24-hour response times, and online technical guidance for product installation. Our quality control spans from raw material supply to welding and final packaging.
Frequently Asked Questions
What about after-sales service?
All products are fully tested before dispatch with a complete traceability system. We offer replacement or reasonable compensation for any validated product issues through photos and videos.
What are the payment terms?
We primarily accept T/T and L/C. Other payment methods are negotiable based on the order requirements.
What is the Minimum Order Quantity (MOQ)?
Normally, we accept one full container. However, for special products, we are happy to discuss specific quantity requirements with our customers.
Can we customize our company logo on products?
Yes, we can provide permanent logo engraving or high-quality stickers on products according to your specific requirements.
How fast can you finish the order?
Once the order is confirmed, we establish a strict production schedule to meet customer needs and ensure timely delivery.
Can you provide engineered drawings?
Yes, our professional engineering team is capable of designing and providing detailed technical drawings for challenging scaffolding access solutions.
