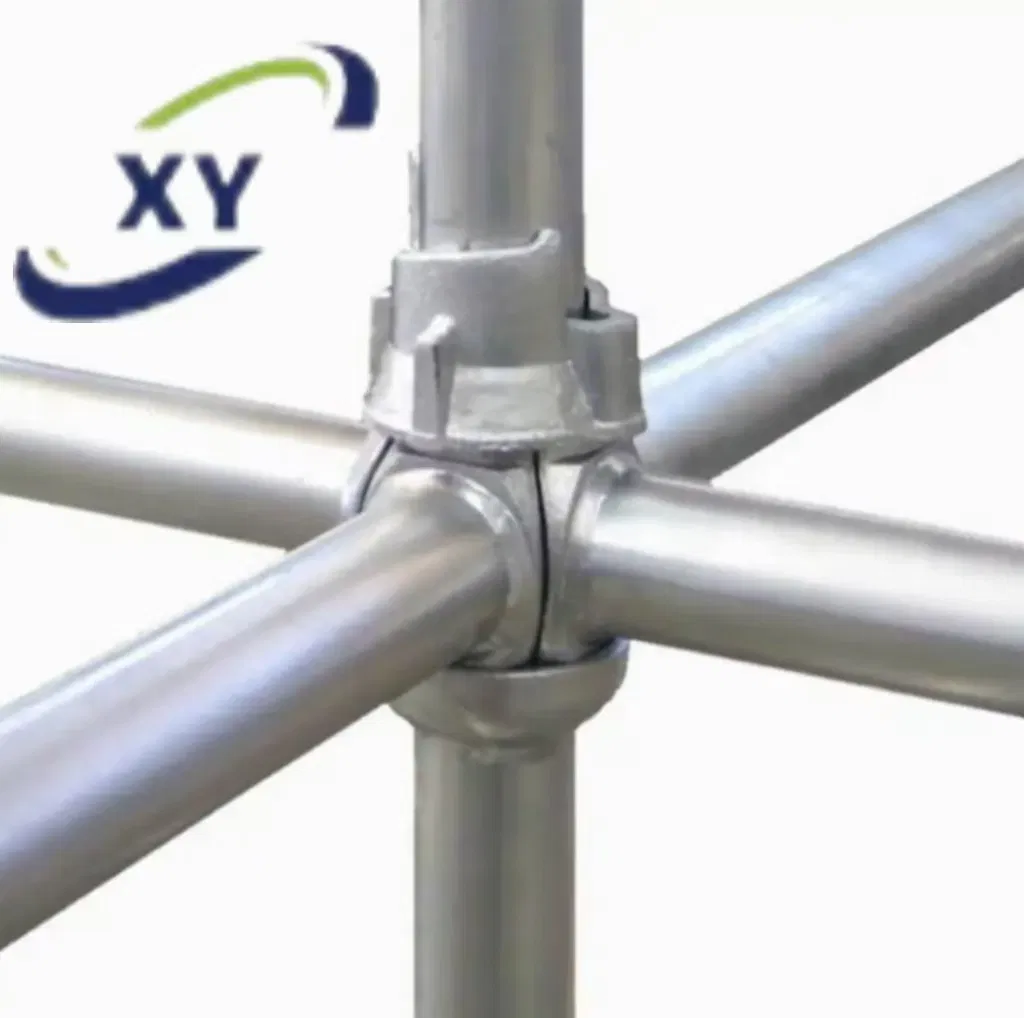

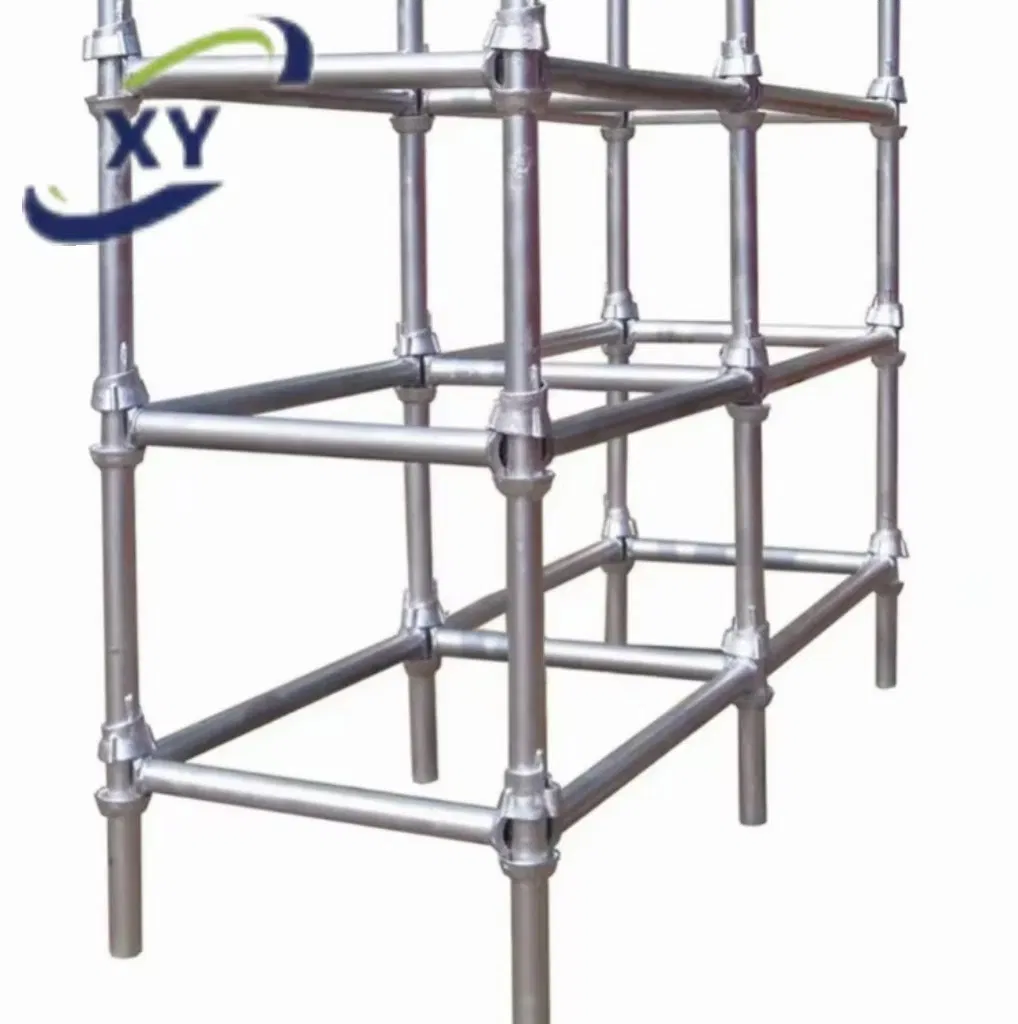

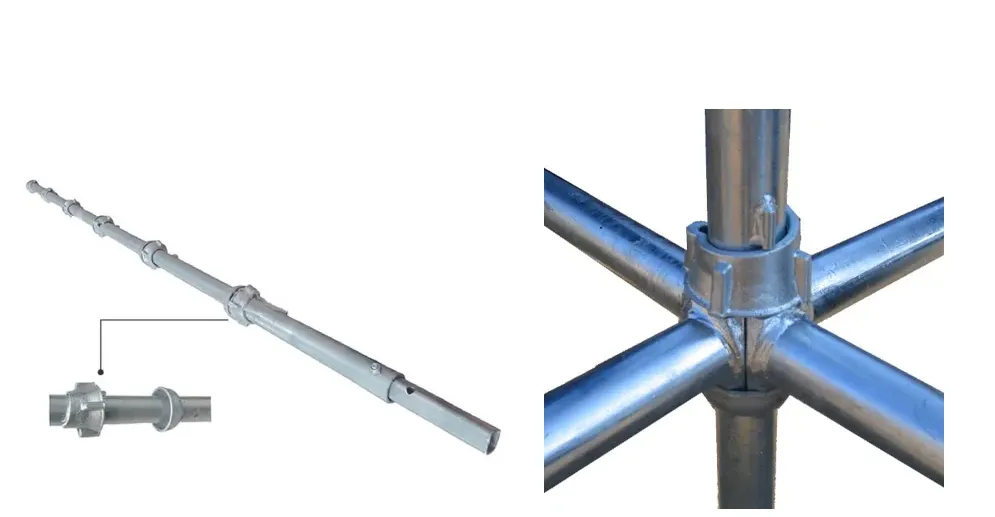

Cuplock scaffolding standard is made from OD48.3x3.2mm scaffolding pipe and scaffold steel tube. Ledgers are crafted from 3.2mm or 3.0mm scaffold tubes. Options include painted cuplock and hot-dip galvanized (HDG) cuplock scaffolding. Painted versions are cost-effective, while HDG versions (also known as lock-up scaffolding) offer superior durability.

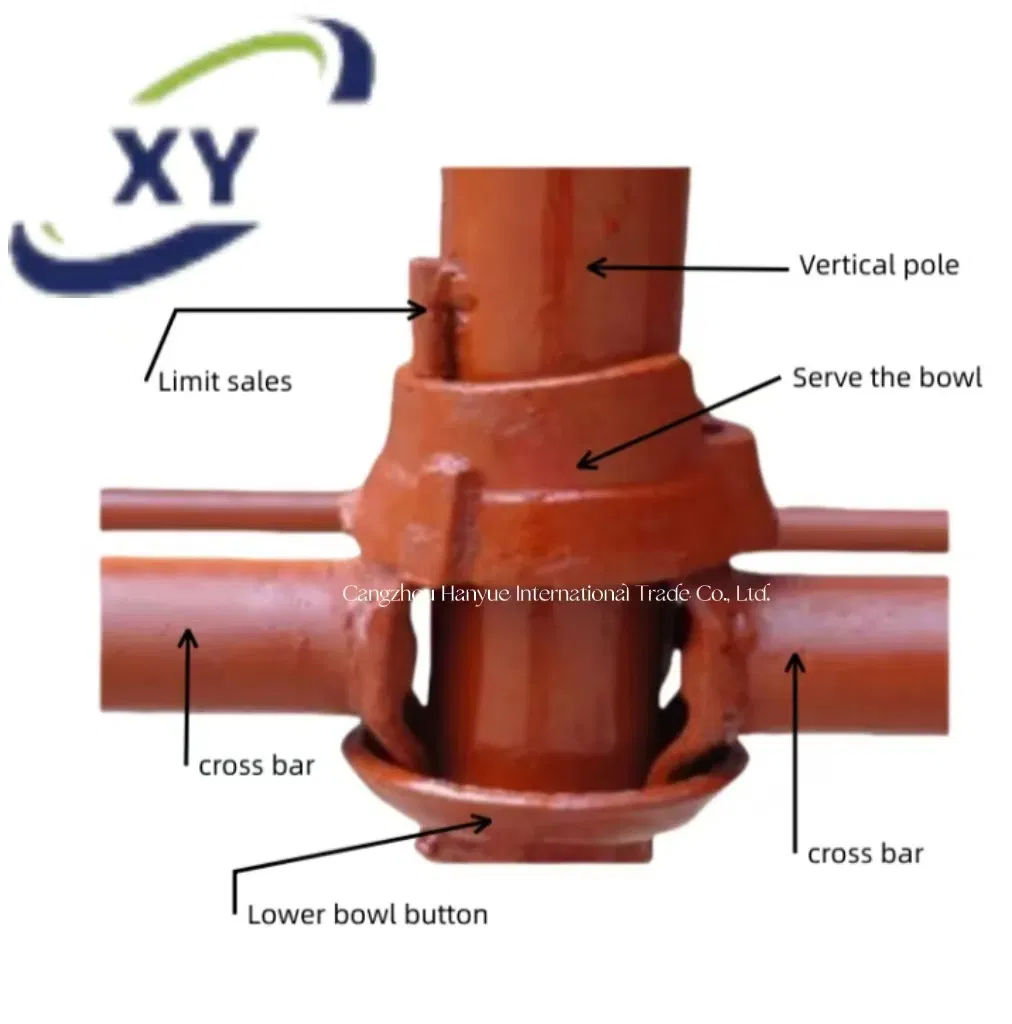

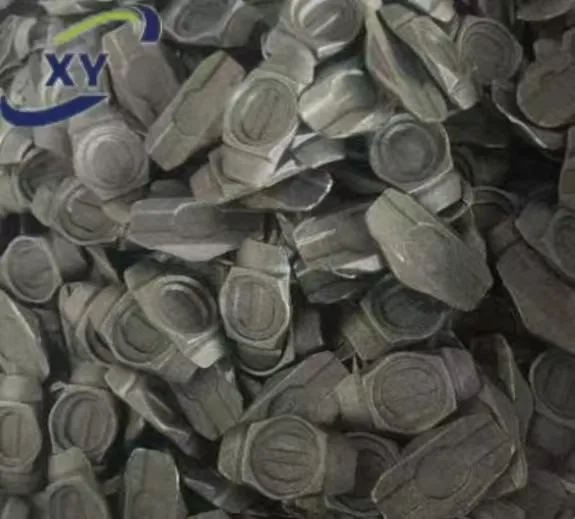

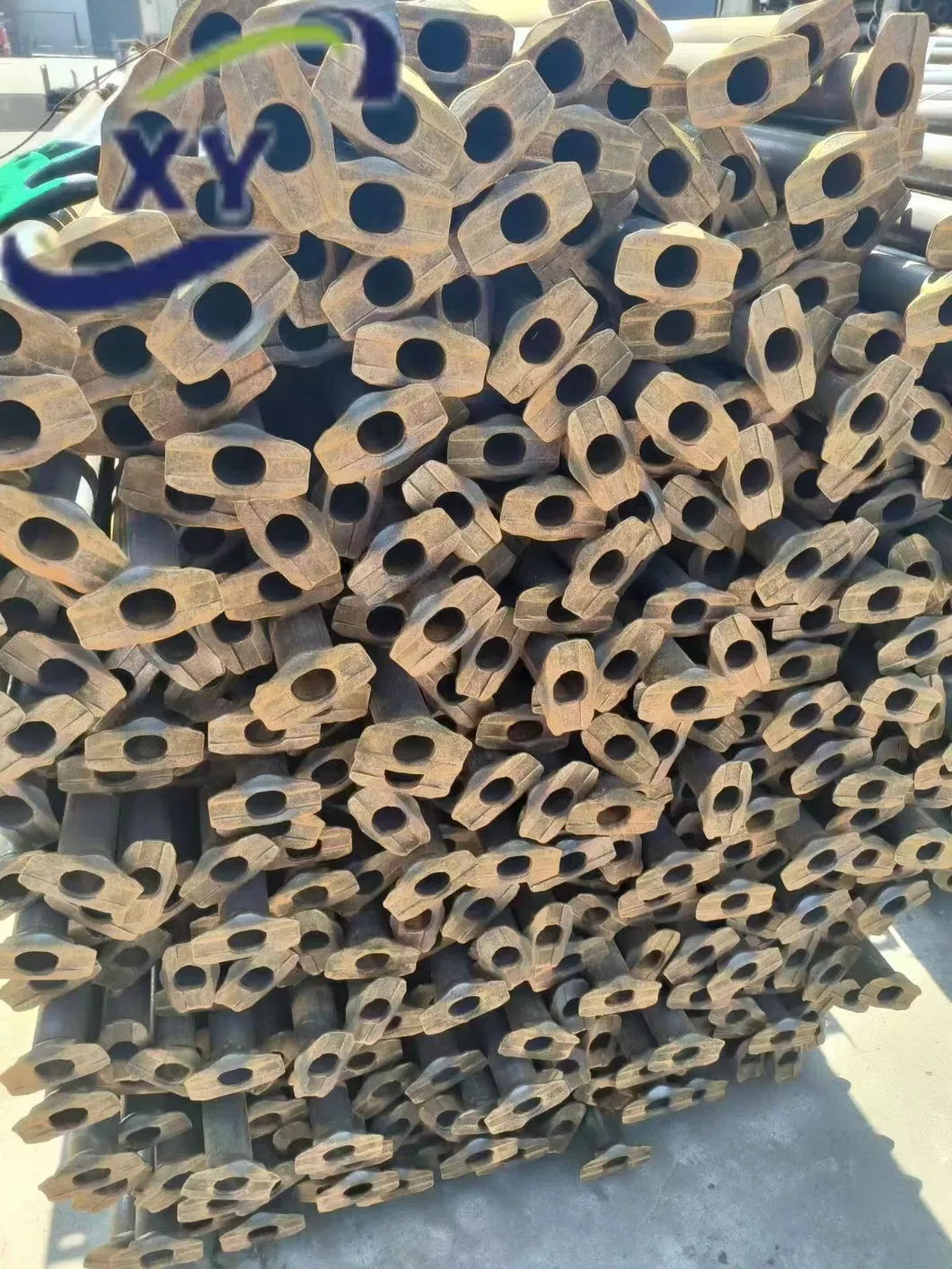

Key Accessories1. Ledger blades: Available in cast or drop-forged types.

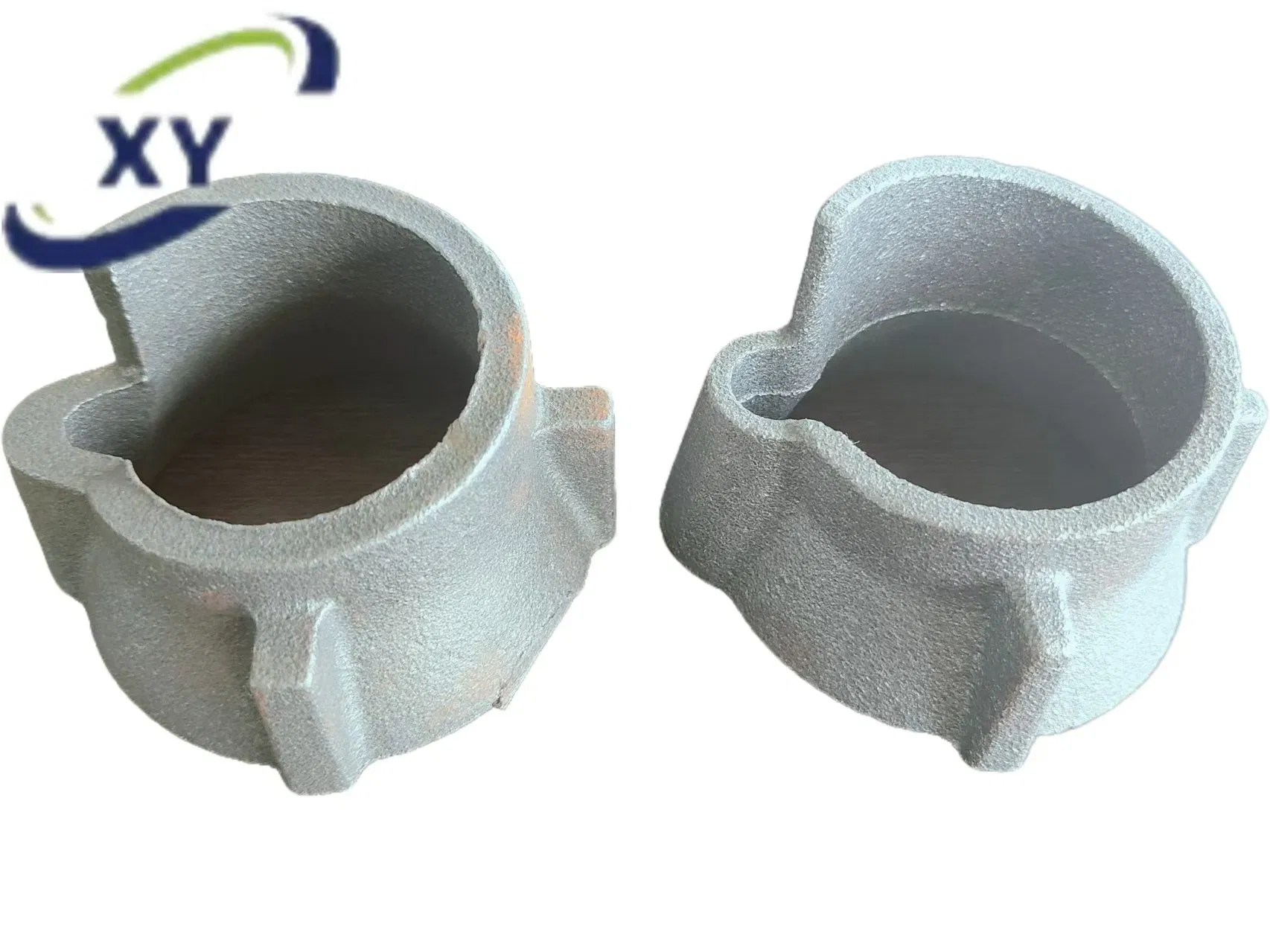

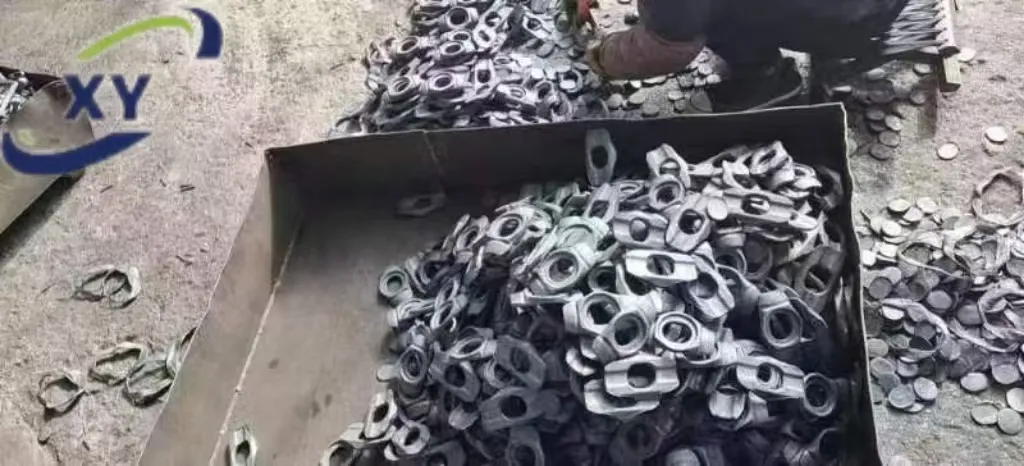

2. Top cups: Options for drop-forged or cast steel.

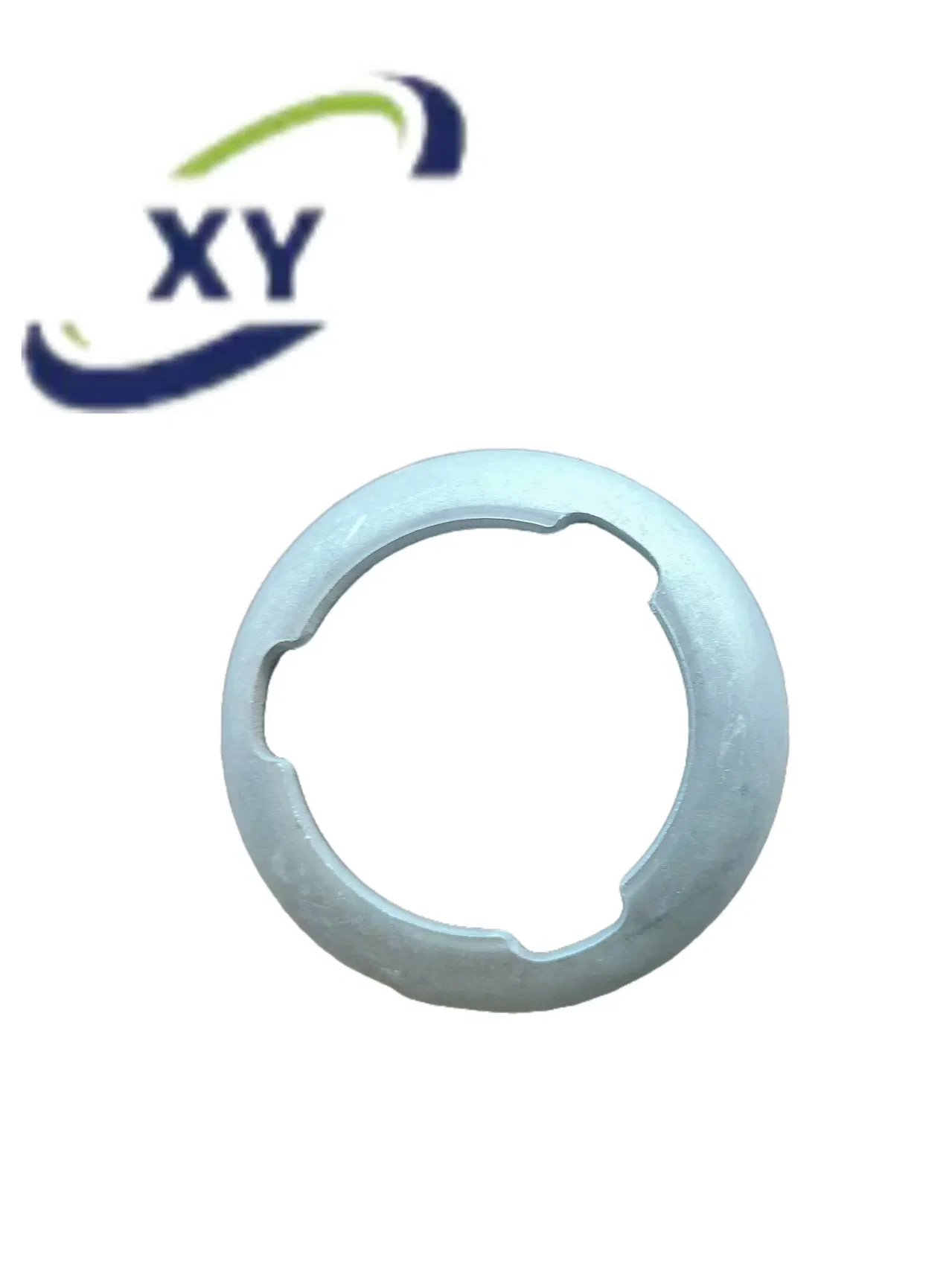

3. Heavy-duty bottom cups and precision-engineered holes for secure locking.

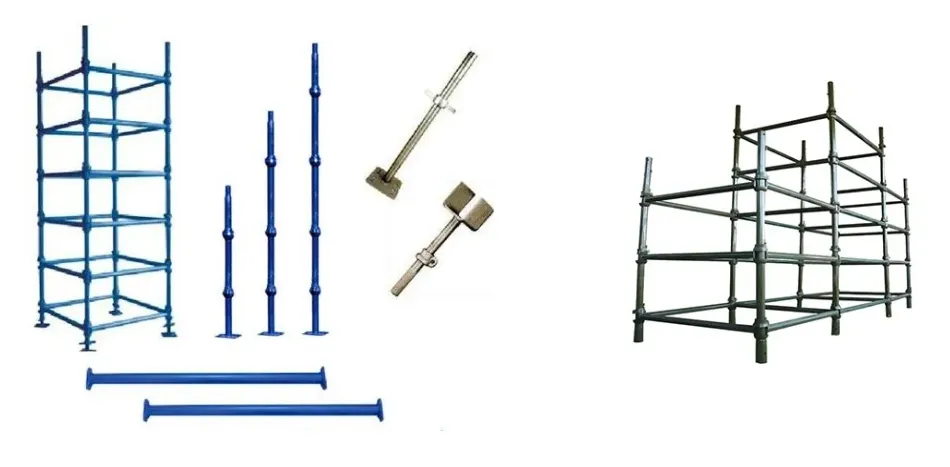

4. Full range of ladders, girders, and diagonal braces available for both surface treatments.
Popularly used in slab formwork support, docking beams, infill beams, drop heads, and socket base plates. Compatible with SGB type klock systems and universal jacks.

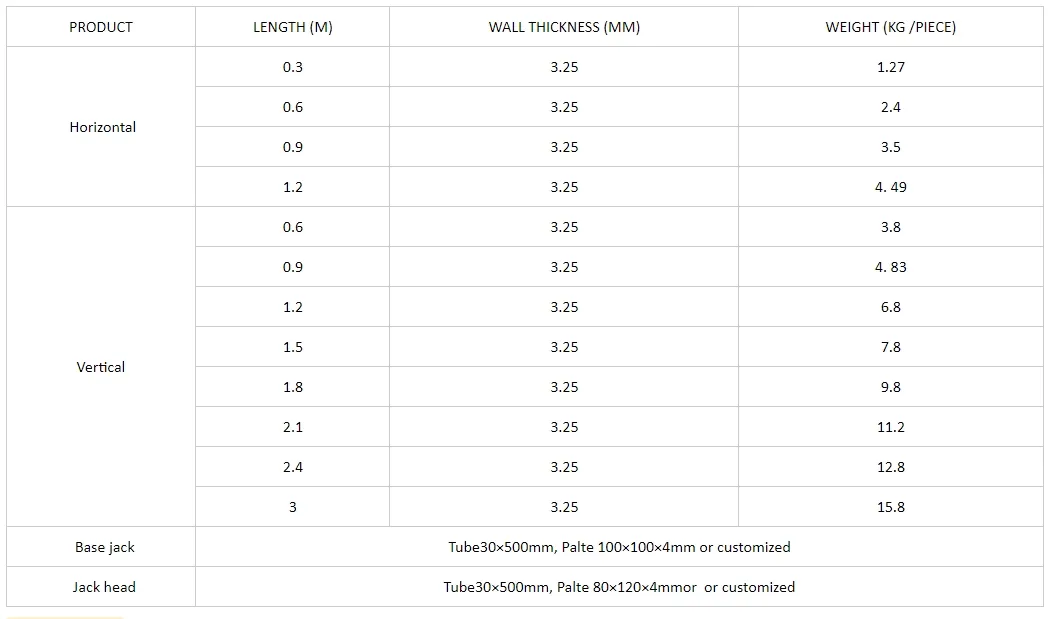

| Item Name | Material (mm) | Length (m) |
|---|---|---|
| STANDARD | Q235/Q345, 48.3*3.2mm | 0.5 / 1.0 / 1.5 / 2.0 / 2.5 / 3.0 |
| SPIGOT CONNECTOR | Q235, 38*2.5mm | 0.25 / 0.27 |
| LEDGER | Q235/Q345, 48.3*3.2mm | 0.6 / 0.9 / 1.2 / 1.3 / 1.8 / 2.5 |
| INTERMEDIATE TRANSOM | Q235/Q345, 48.3*3.2mm | 1.2 / 1.3 / 1.8 / 2.5 |
| DIAGONAL BRACE | Q235/Q345, 48.3*3.2mm | H1.5 L1.8 / H2.0 L2.5 |
| BEAM BRACKET | Q235/Q345, 48.3*3.2mm | 1.0 / 1.5 |

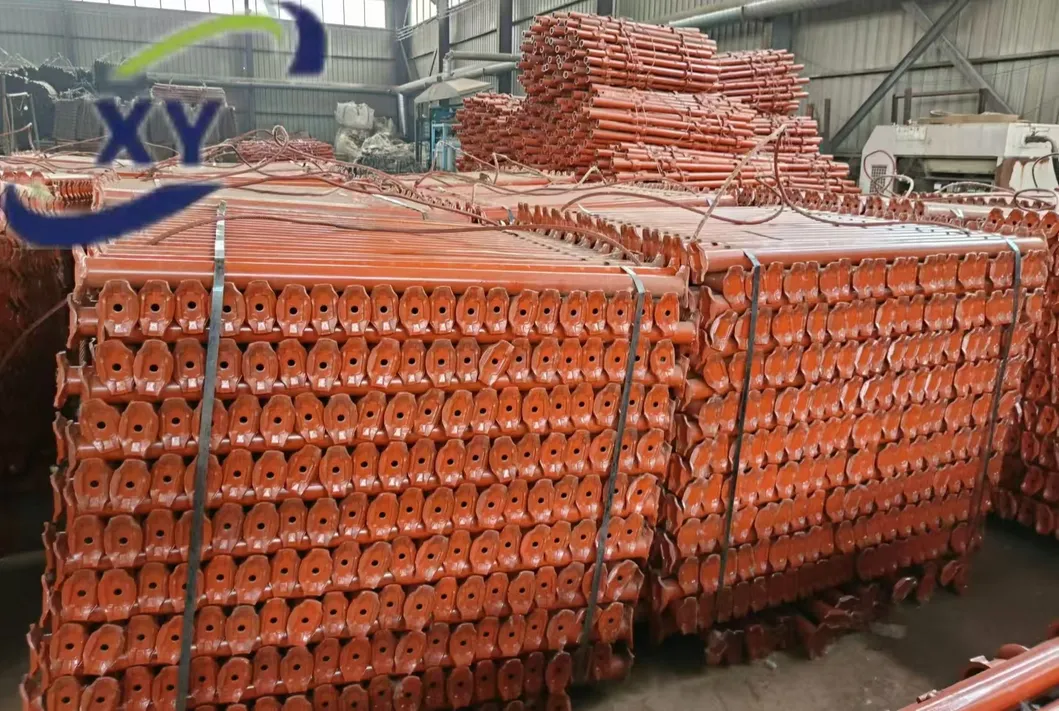

All products are securely packed in steel pallets, cartons, plywood cases, or woven bags according to client requirements to ensure safe international transport.
