Total Scaffolding Manufacturer. Main products include: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, and Couplers.

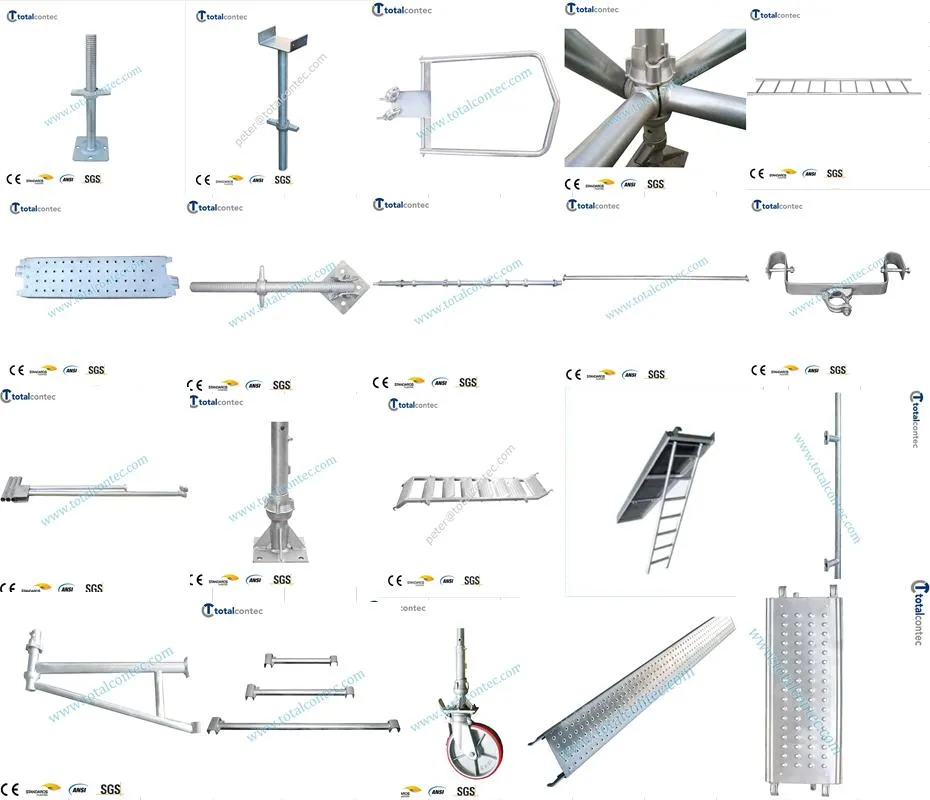

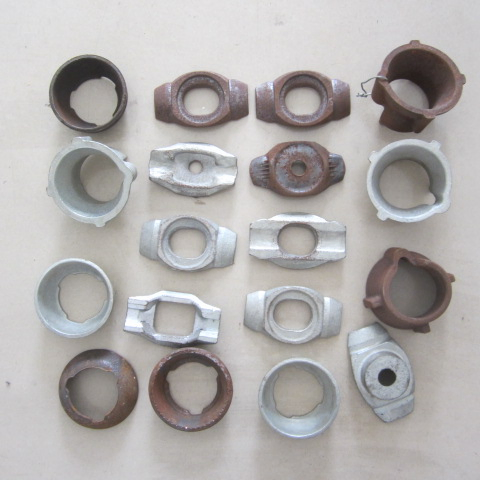

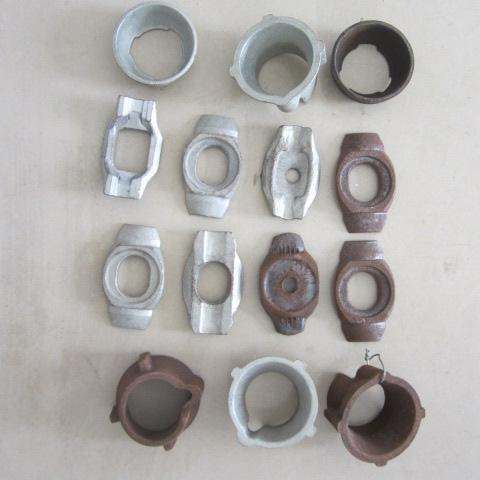

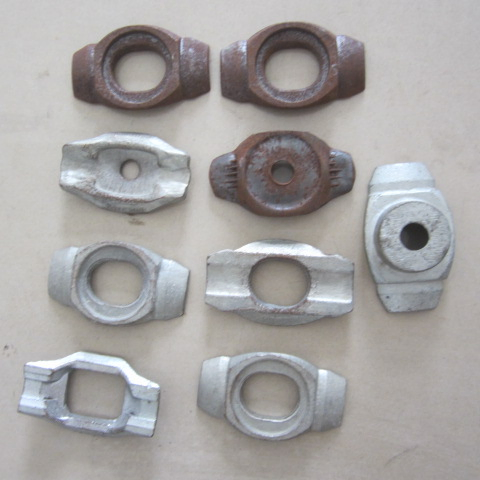

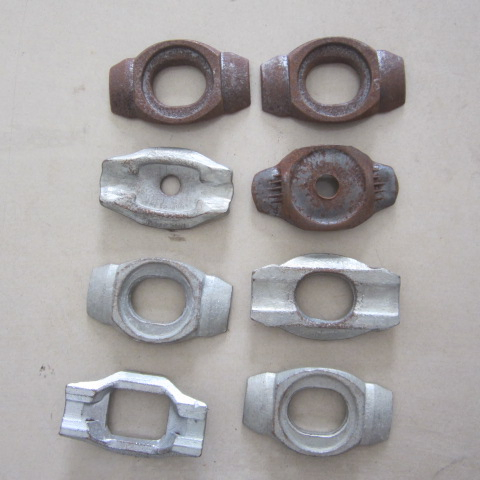

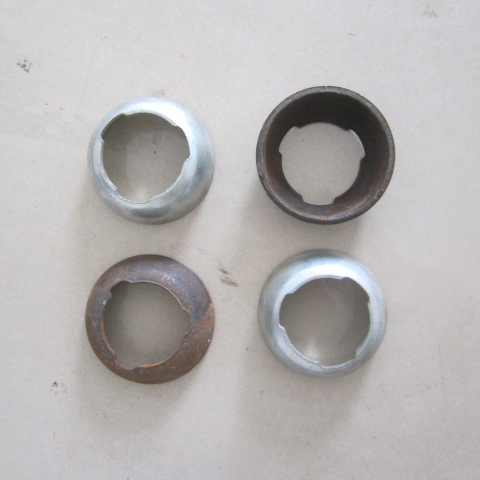

Cuplock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on. The Cuplock node is revolutionary, making it faster and easier to erect than any other scaffolding. It uses the "Cup" and "Blade" to lock the vertical and horizontal together by rotating the top cup.
Materials are mainly Q355 pipe with a thickness of 3.2mm. Surface treatments include hot-dip galvanized for safety, durability, and reliability, as well as painted and powder-coated options for specific market needs.
| Item Name | Materials | Weight | Surface Treatment |
|---|---|---|---|
| Standard/Verticals 050-300 | Q235, Q345 (48.3*3.2mm) | 2.96kg - 14.78kg | Hot Dip Galvanized / Powder Coated |
| Ledger/Horizontal 090-300 | Q235, Q345 (48.3*3.2mm) | 3.83kg - 10.71kg | Hot Dip Galvanized / Painted |
| Diagonal/Brace 073-307 | Q235 (48.3*2.0mm) | 5.34kg - 9.22kg | Pre-Galvanized |
| Steel Plank/Deck 1090-3070 | Q235 (1.2mm - 1.8mm) | 8.58kg - 22.15kg | Hot Dip Galvanized |
