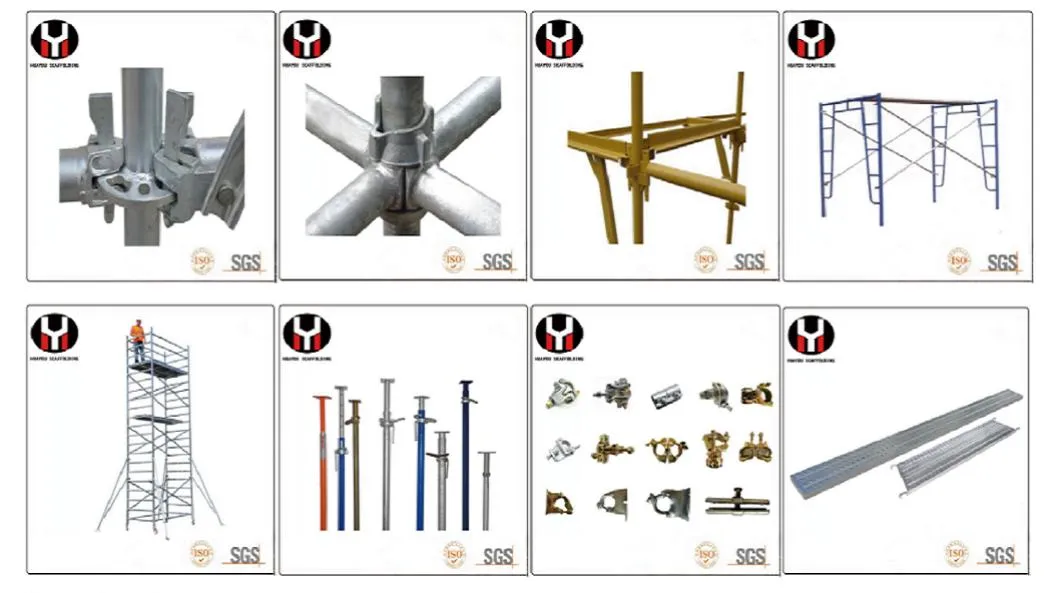

We are specialized in producing and selling scaffolding products and other related building materials. With years of experience, a complete product system has been established to serve markets worldwide including Southeast Asia, the Middle East, North & South America, Australia, and Europe. We warmly welcome your inquiry.

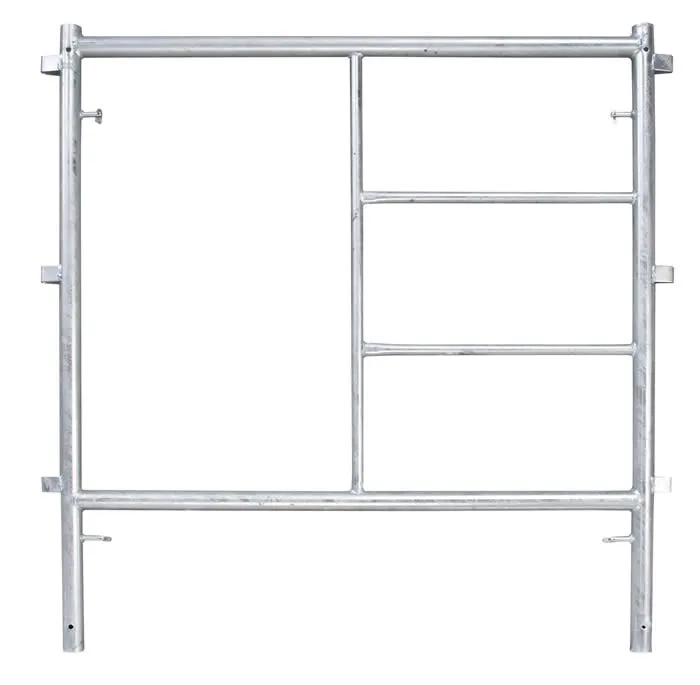

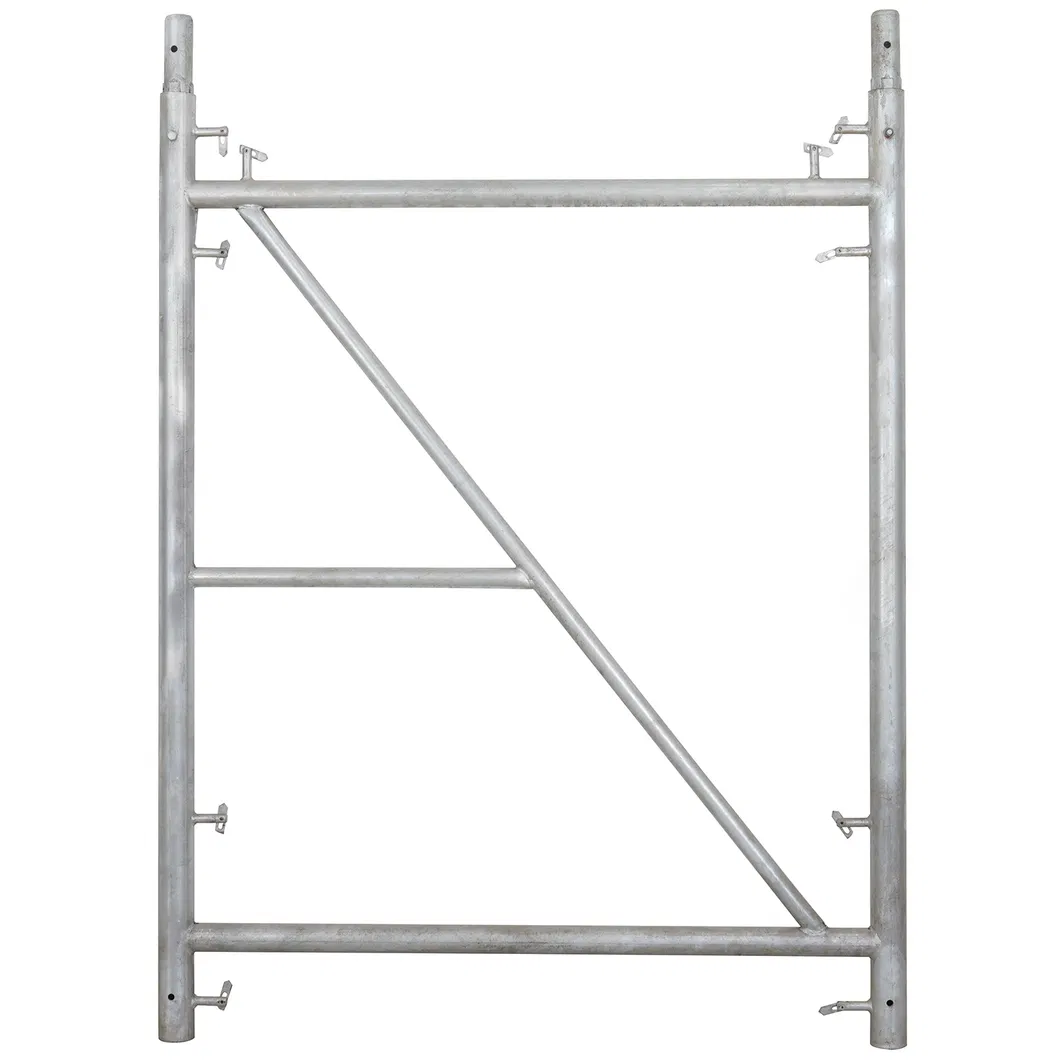

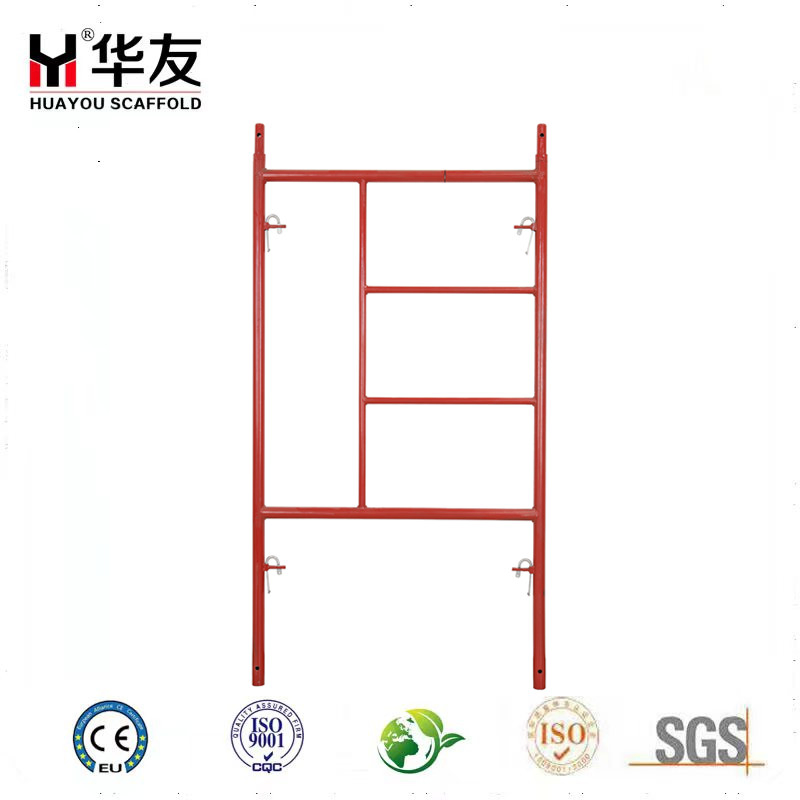

| Name | Size mm | Main Tube mm | Other Tube mm | Steel Grade | Surface Treatment | Package |
|---|---|---|---|---|---|---|
| Main Frame | 1219x1930 | 42x2.4/2.2/1.8/1.6/1.4 | 25/21x1.0/1.2/1.5 | Q195-Q235 | Pre-Galv./Painted | Steel Strap |
| H Frame | 1219x1930 | 42x2.4/2.2/1.8/1.6/1.4 | 25/21x1.0/1.2/1.5 | Q195-Q235 | Pre-Galv./Painted | Steel Strap |

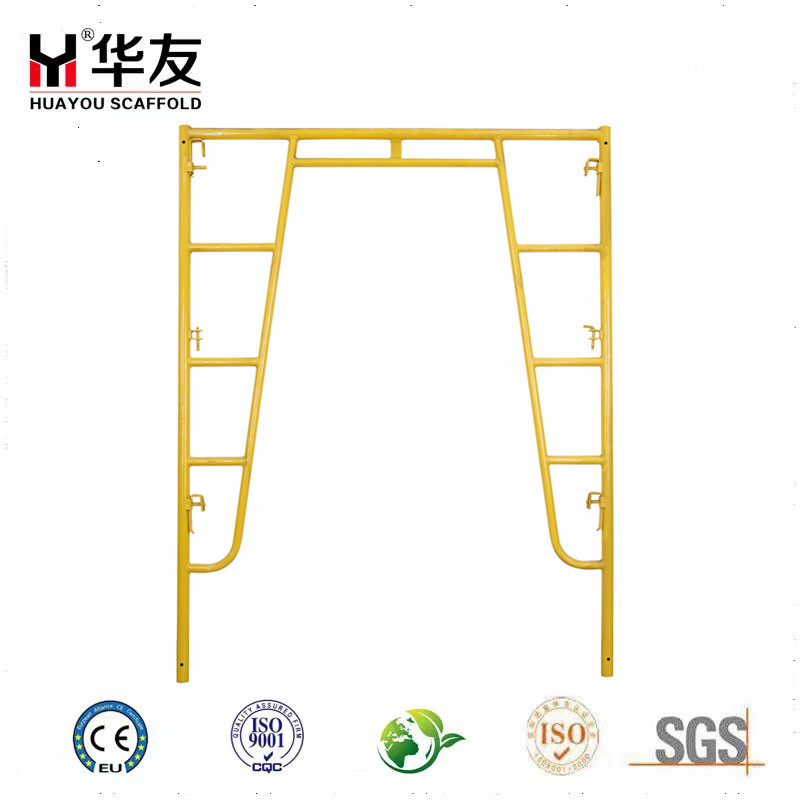

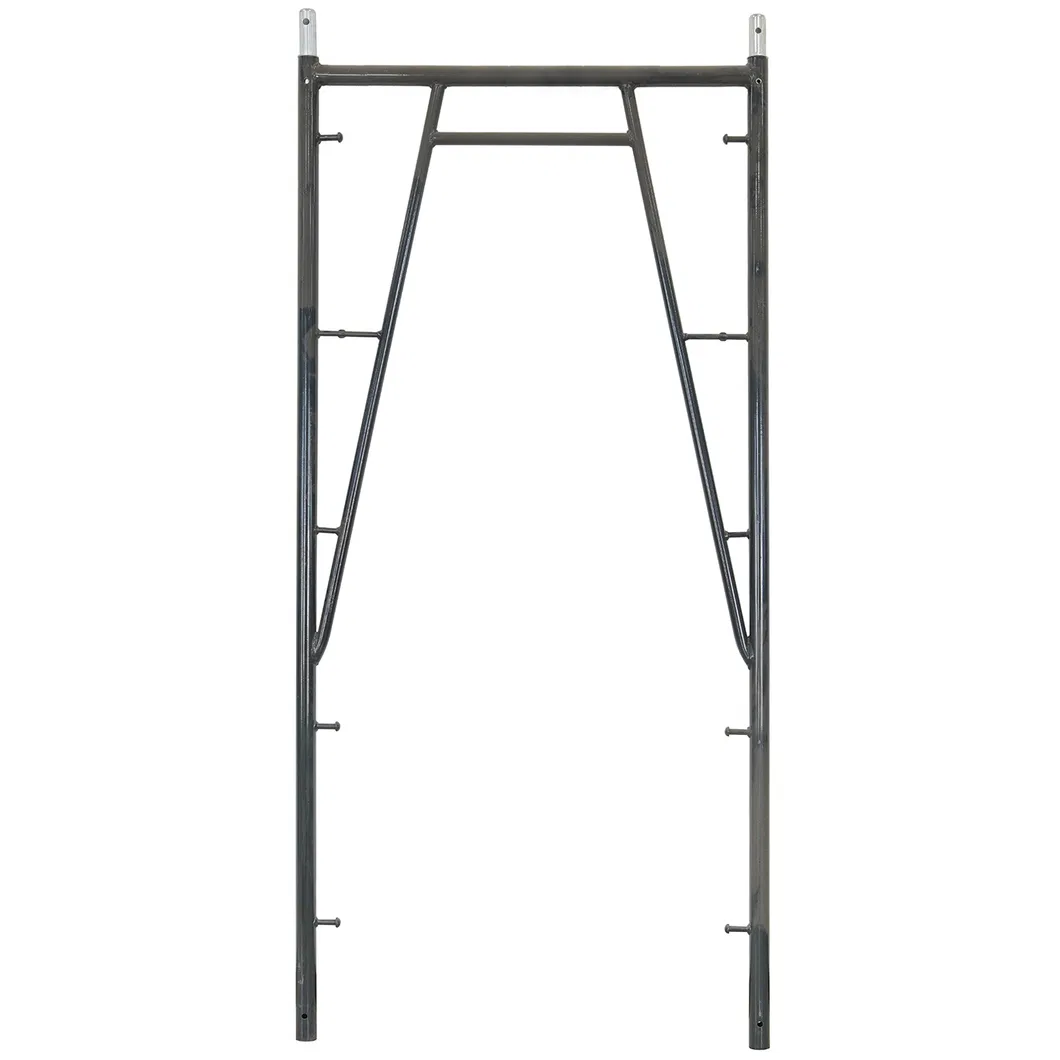

| Name | Tube and Thickness | Type Lock | Steel Grade | Weight kg | Weight Lbs |
|---|---|---|---|---|---|

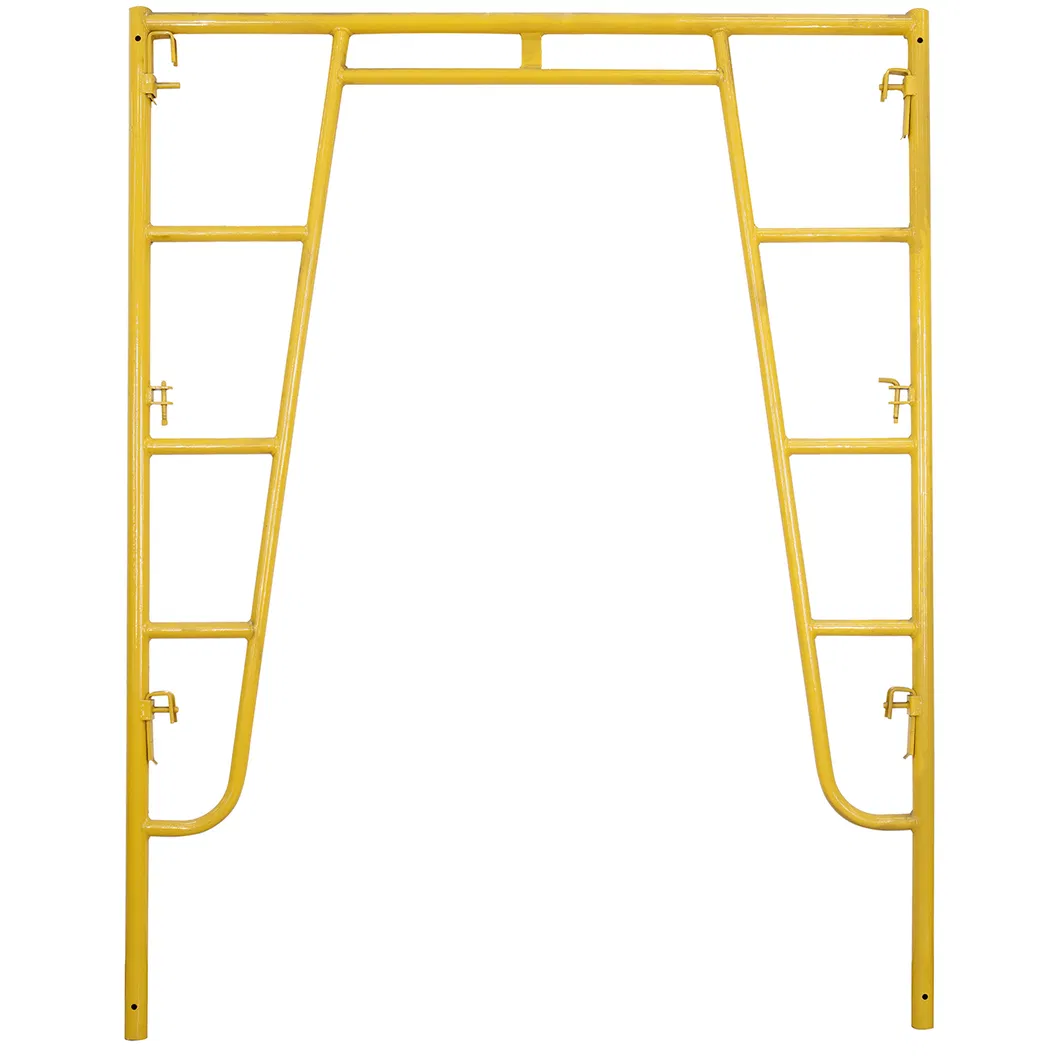

| 6'4"H x 3'W - Walk Thru | OD 1.69" thickness 0.098" | Drop Lock | Q235 | 18.60 | 41.00 |
| 6'4"H x 5'W - Walk Thru | OD 1.69" thickness 0.098" | Drop Lock | Q235 | 21.35 | 47.00 |
| Name | Tube Size | Type Lock | Steel Grade | Weight Kg |
|---|---|---|---|---|

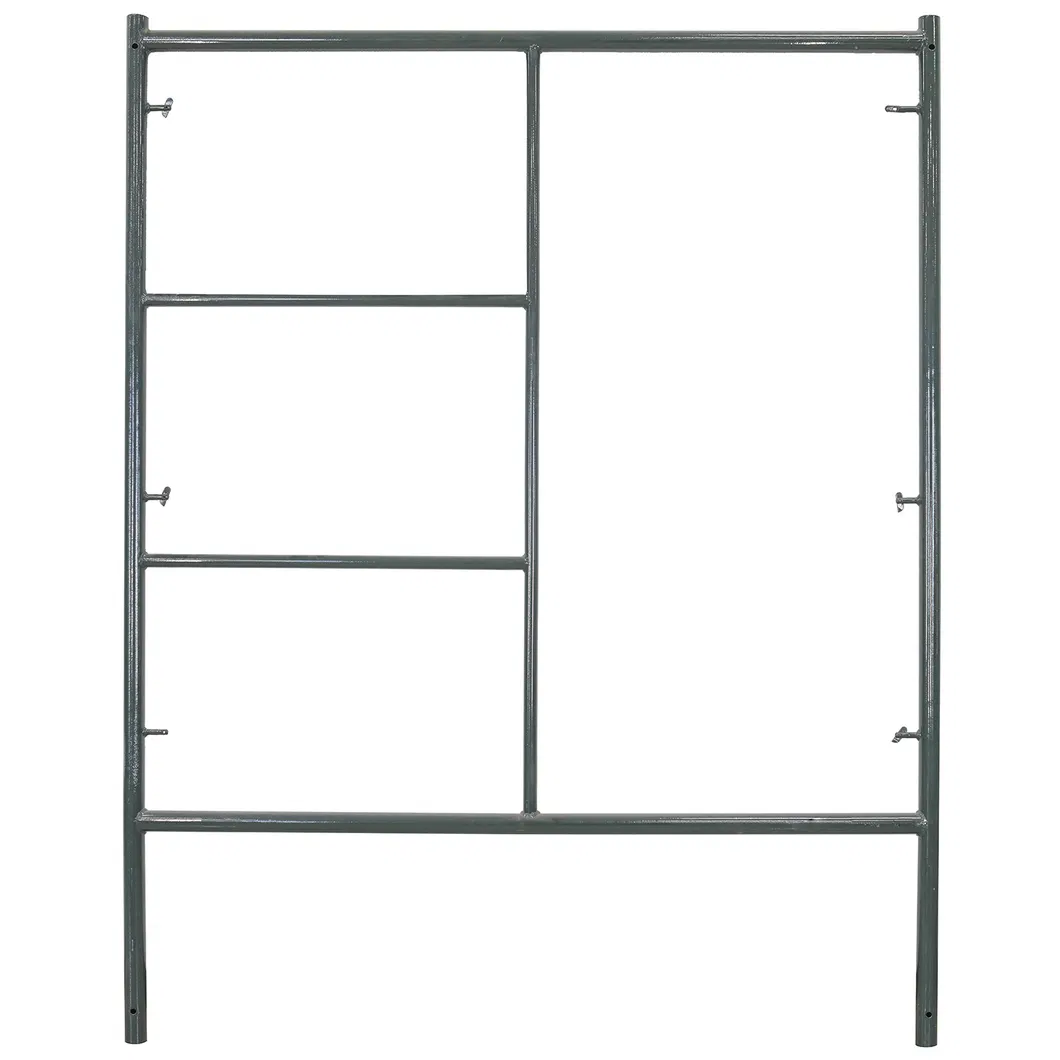

| 5'H X 5'W - Mason frame | OD 1.69" thickness 0.098" | Drop Lock | Q235 | 16.80 |
| 6'4''H X 5'W - Mason frame | OD 1.69" thickness 0.098" | Drop Lock | Q235 | 20.40 |

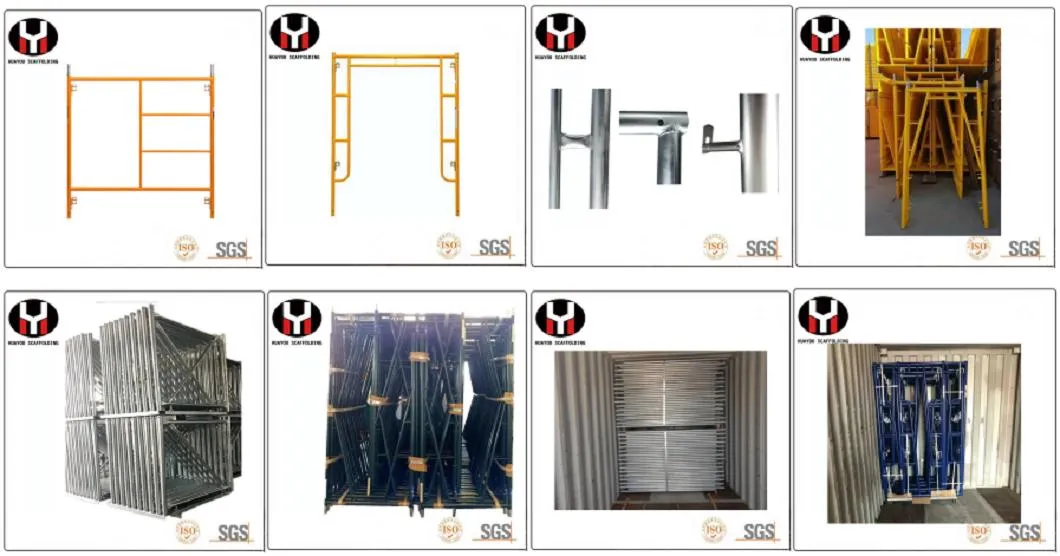

All our Scaffolding Frames are for overseas markets, especially the USA, Europe, and Asia. We provide high-level quality with wooden and steel pallet packaging options to ensure professional and safe transport.
