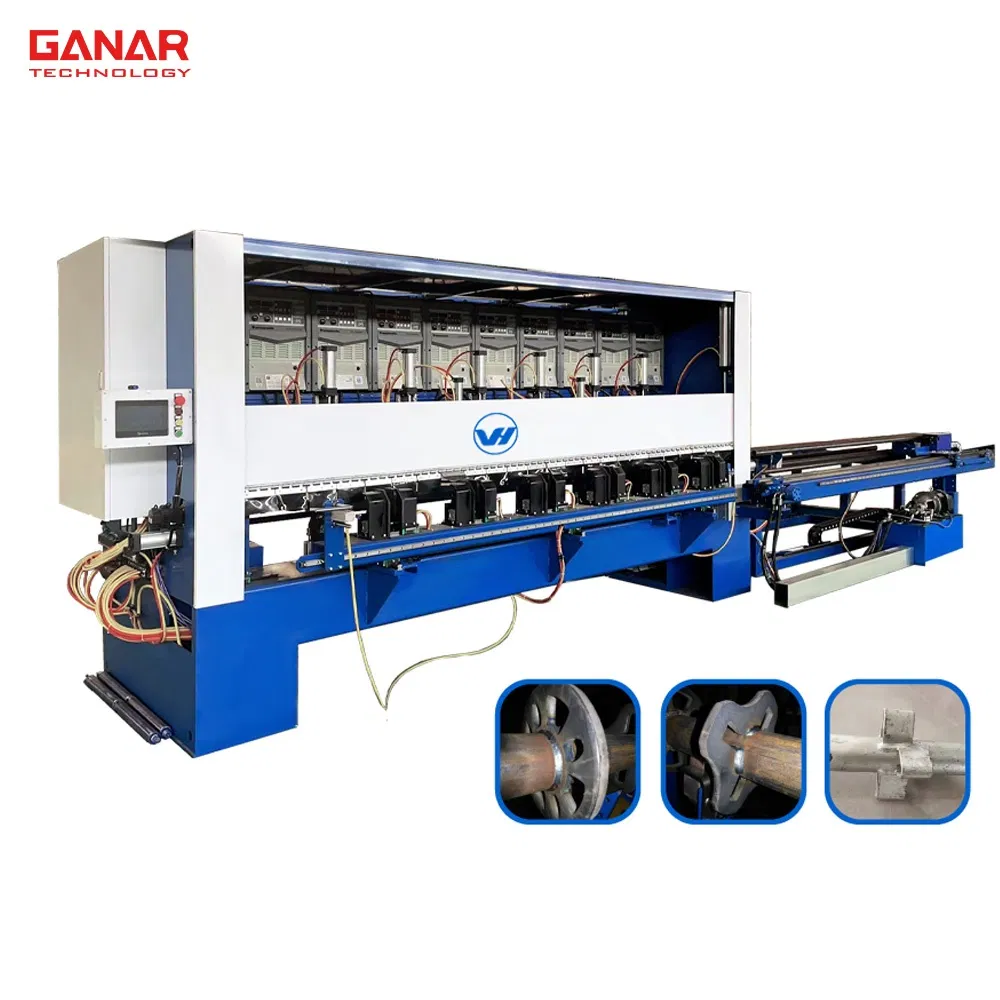

This high-efficiency equipment is an automatic welding machine designed for the production of scaffolding. It realizes a full cycle of automatic tube loading, spot welding, and ring welding. The system features automatic drop parts and robot palletizing, ensuring beautiful welds and significantly reduced production costs.
🛠️ Equipment Composition: Main engine, material bin, automatic pipe piercing rack.
🔄 Production Process: Automatic upper tube → Automatic tube piercing → Automatic point fixing → Manual upper plate.

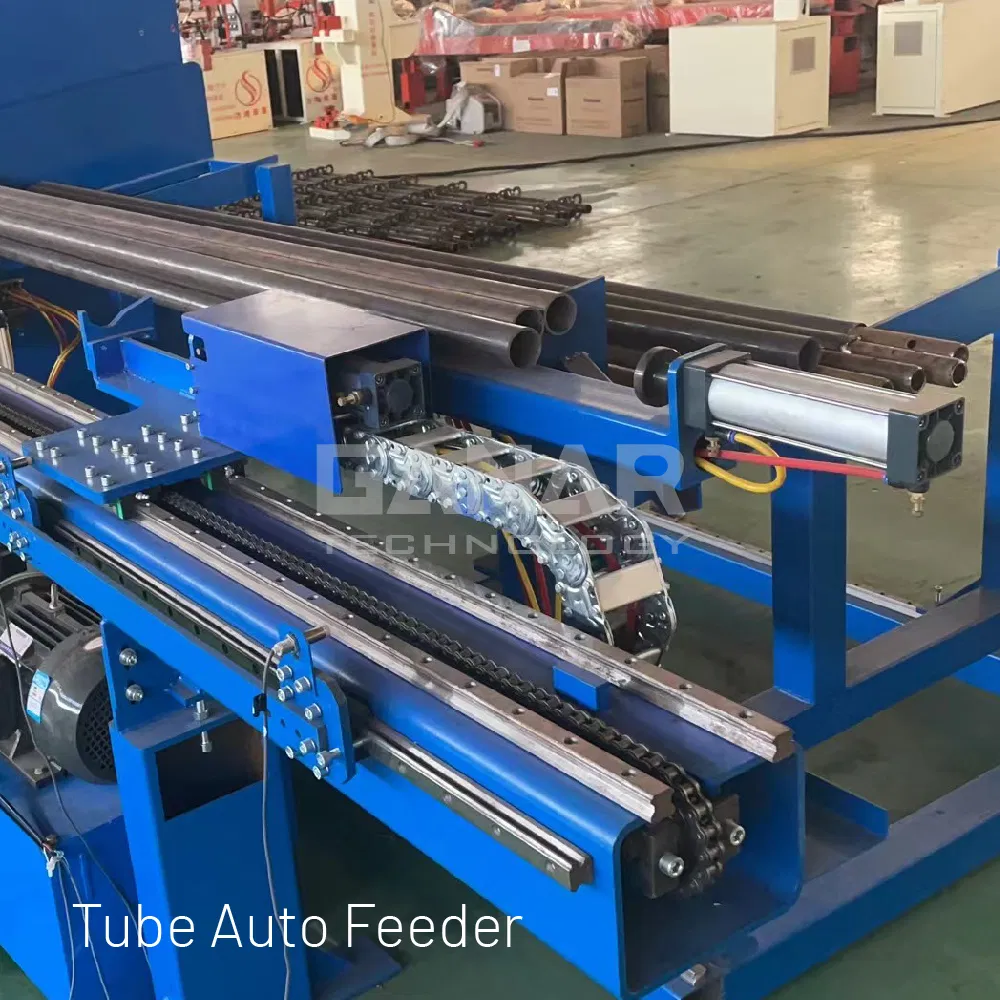

Tube Auto Feeder
Precise Alignment

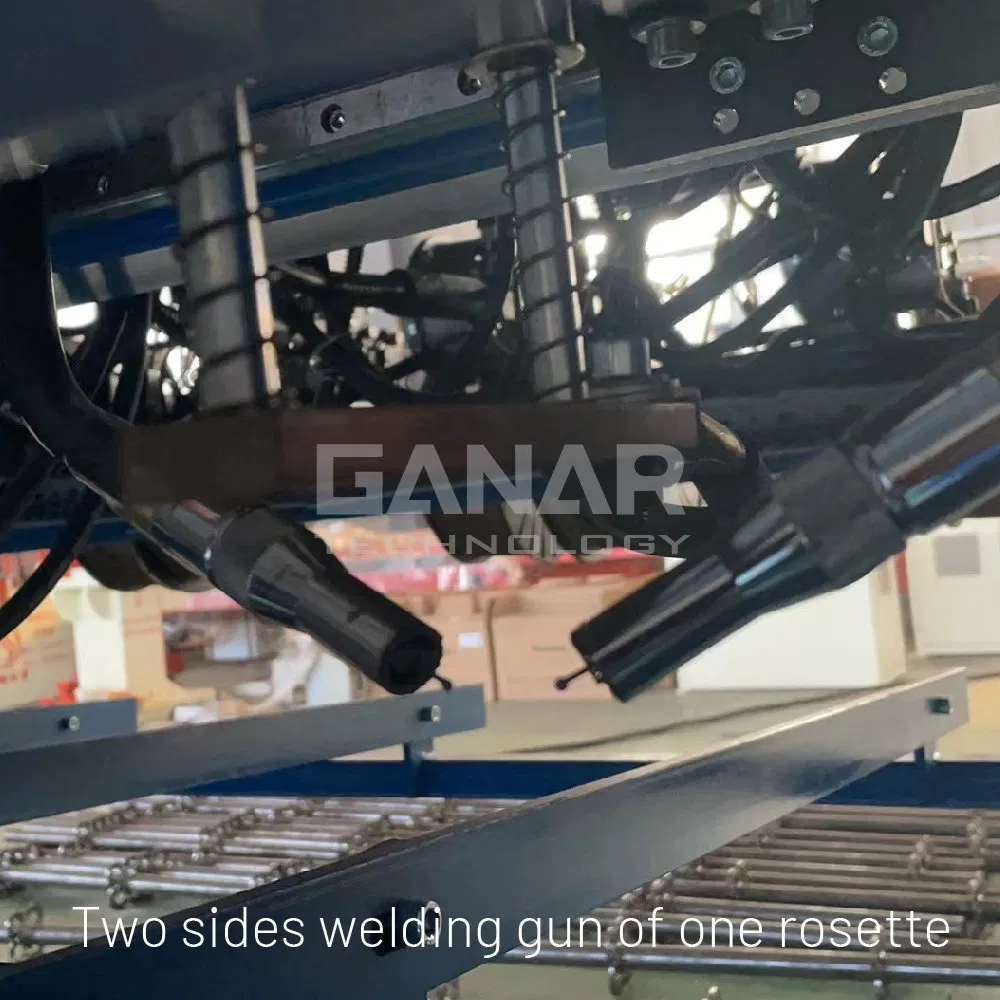

Two-Sided Welding Guns

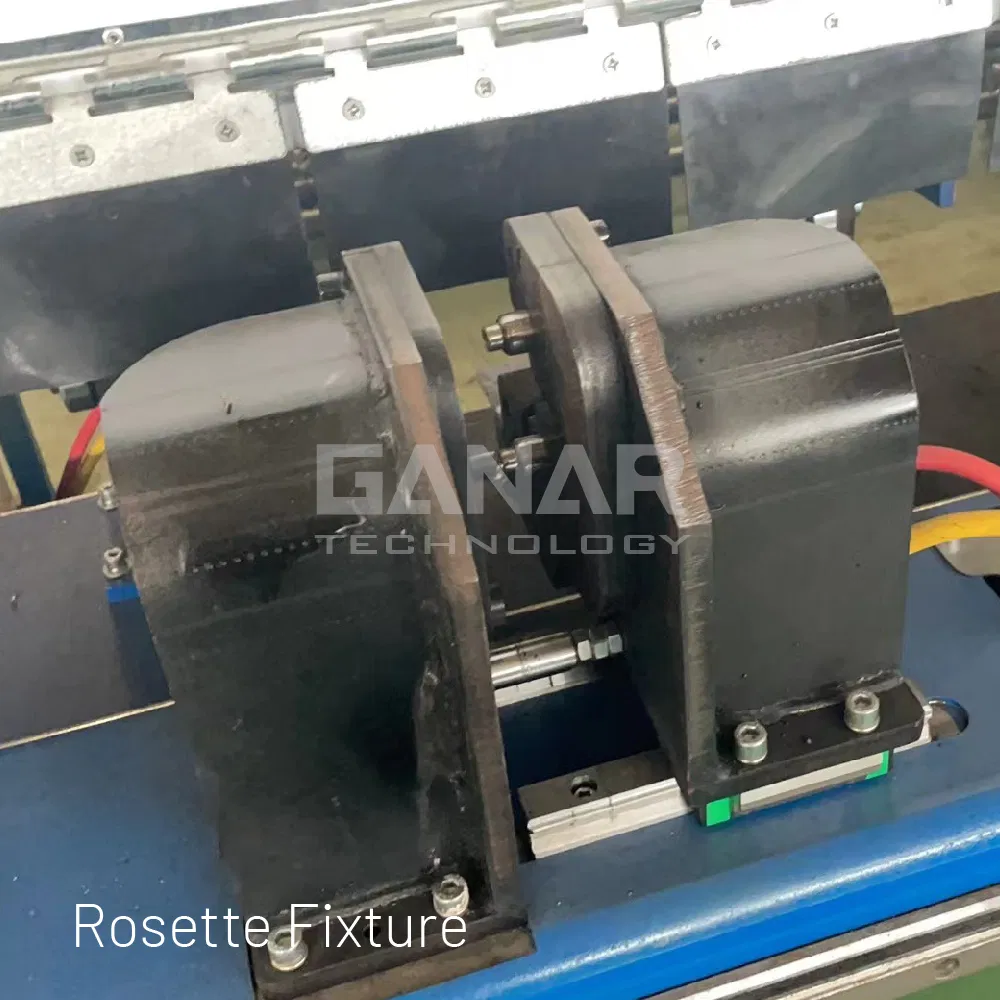

Rosette Fixture

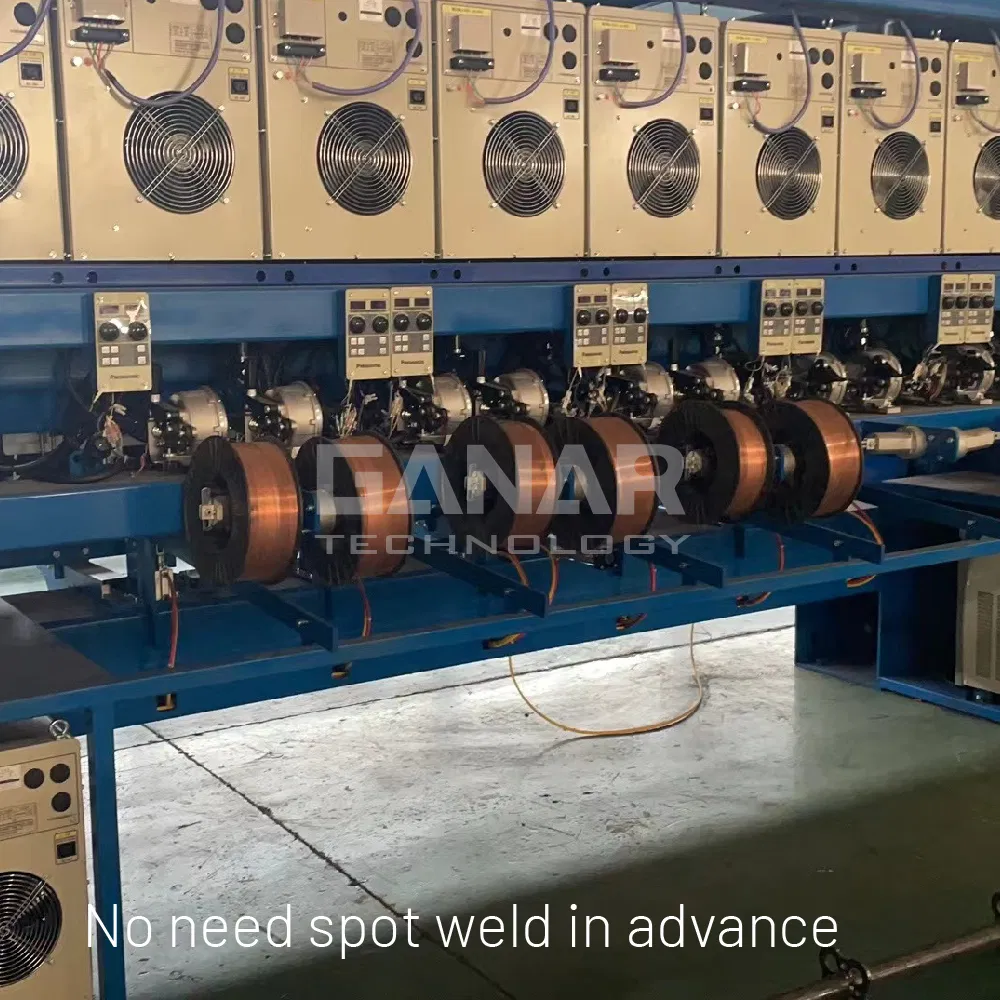

Inverter Welding Array

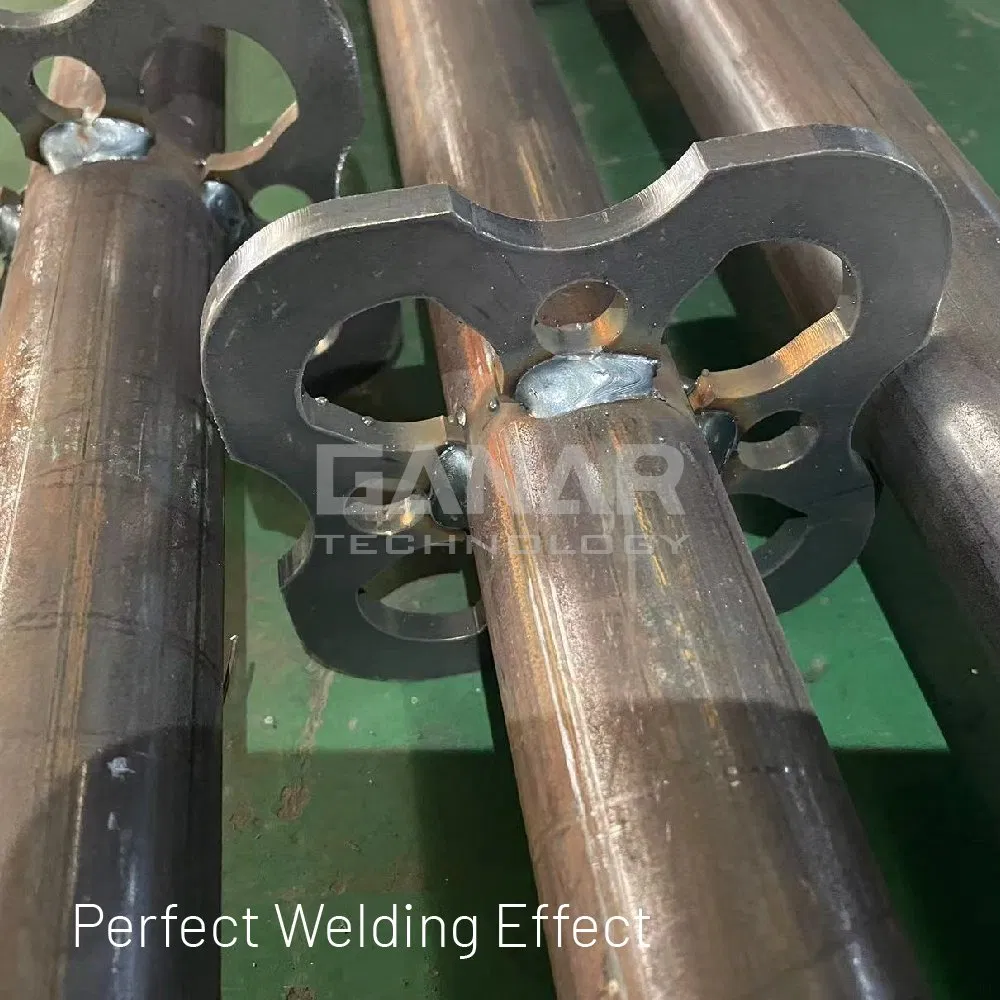

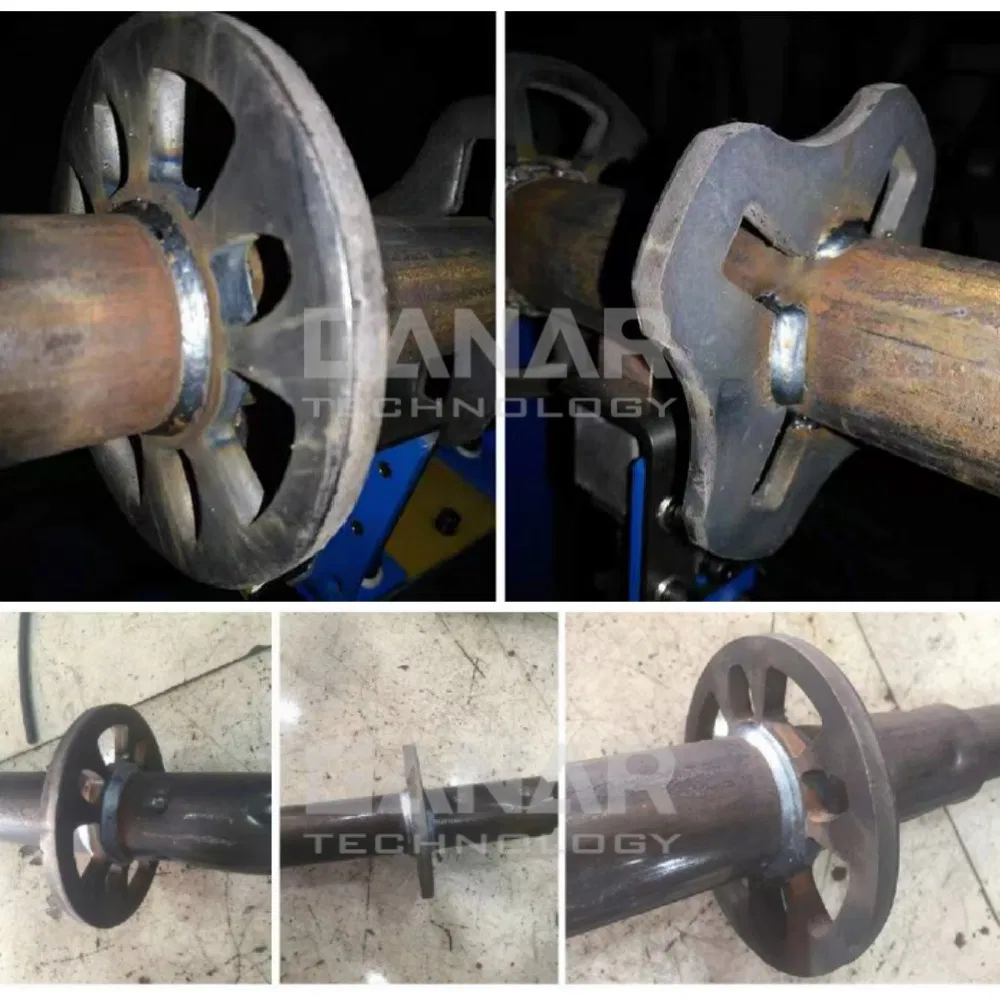

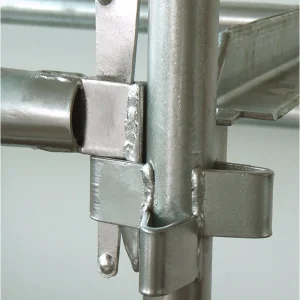

Welding Result
| Parameter Item | Specifications |
|---|---|
| Model | VH-F12 |

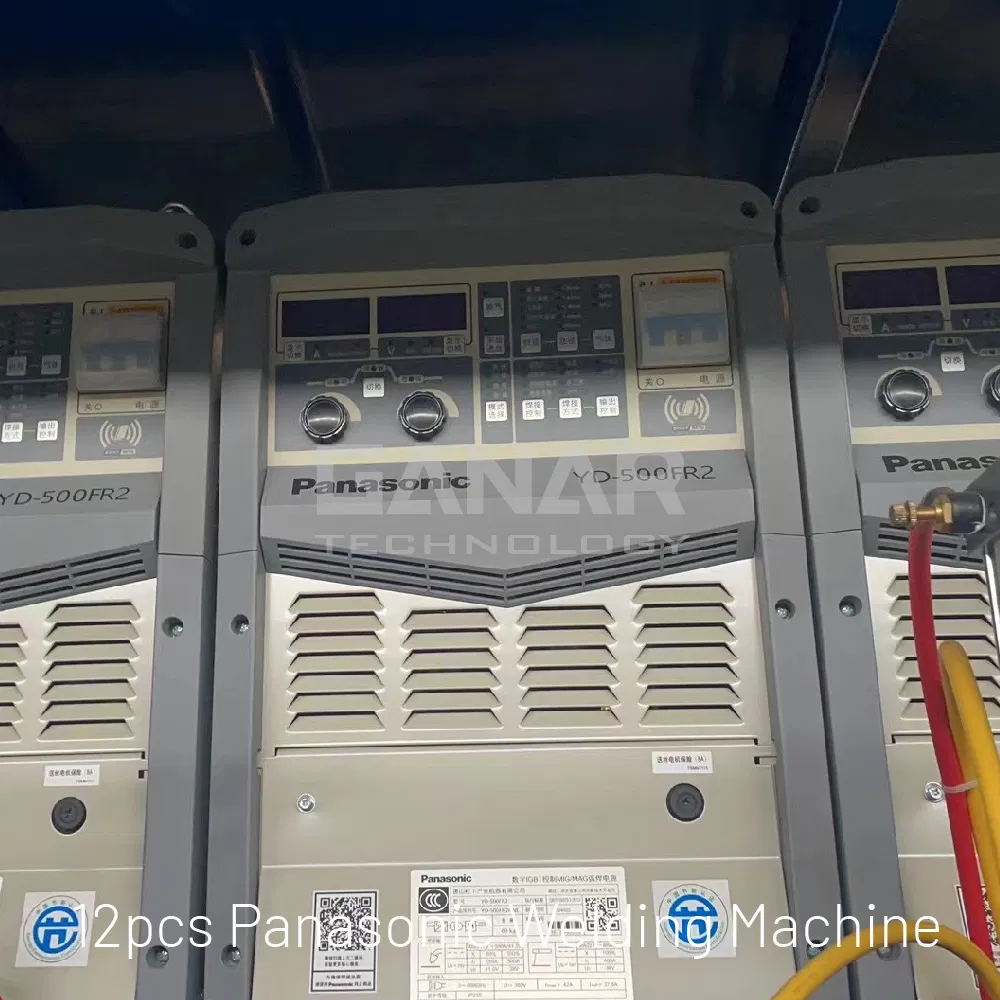

| Welder Brand | 12pcs High-Performance Digital Inverters |
| Rated Voltage | 50HZ AC380V+N (Customized) |
| Rated Power | 70kw |
| Air Source Pressure | 0.6-0.8 Mpa |
| Rotary Range | 1-15rpm |
| Overall Dimensions | L8500 X W2200 X H2100mm |
| Total Weight | 3800kgs |
Focusing on enhancing production performance, we deliver state-of-the-art automation technology. More than 15% of our workforce is dedicated to Pre-Sales Engineering and After-Sales Service to ensure maximum productivity for our global clients.
We provide 24-hour professional support. Our service system includes a dedicated network of engineers and customer service personnel, along with comprehensive maintenance plans and training programs covering equipment operation and safety.
