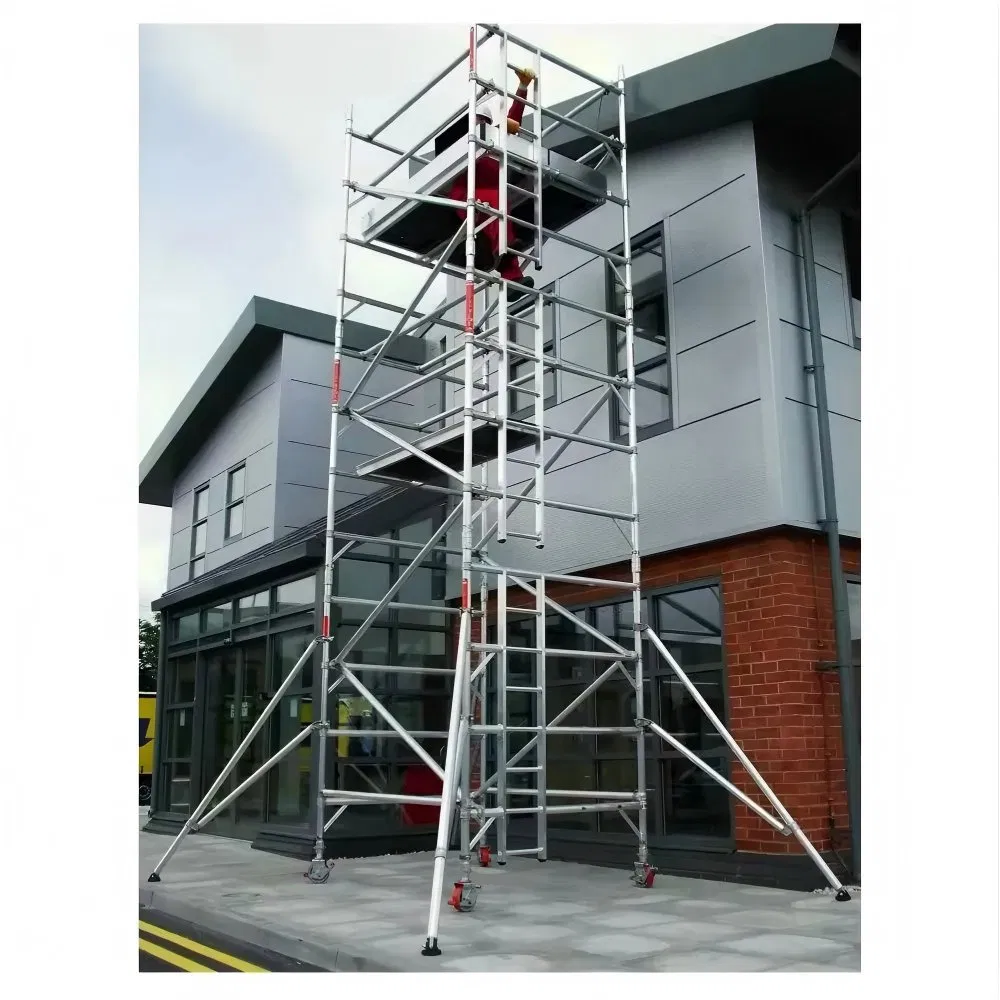

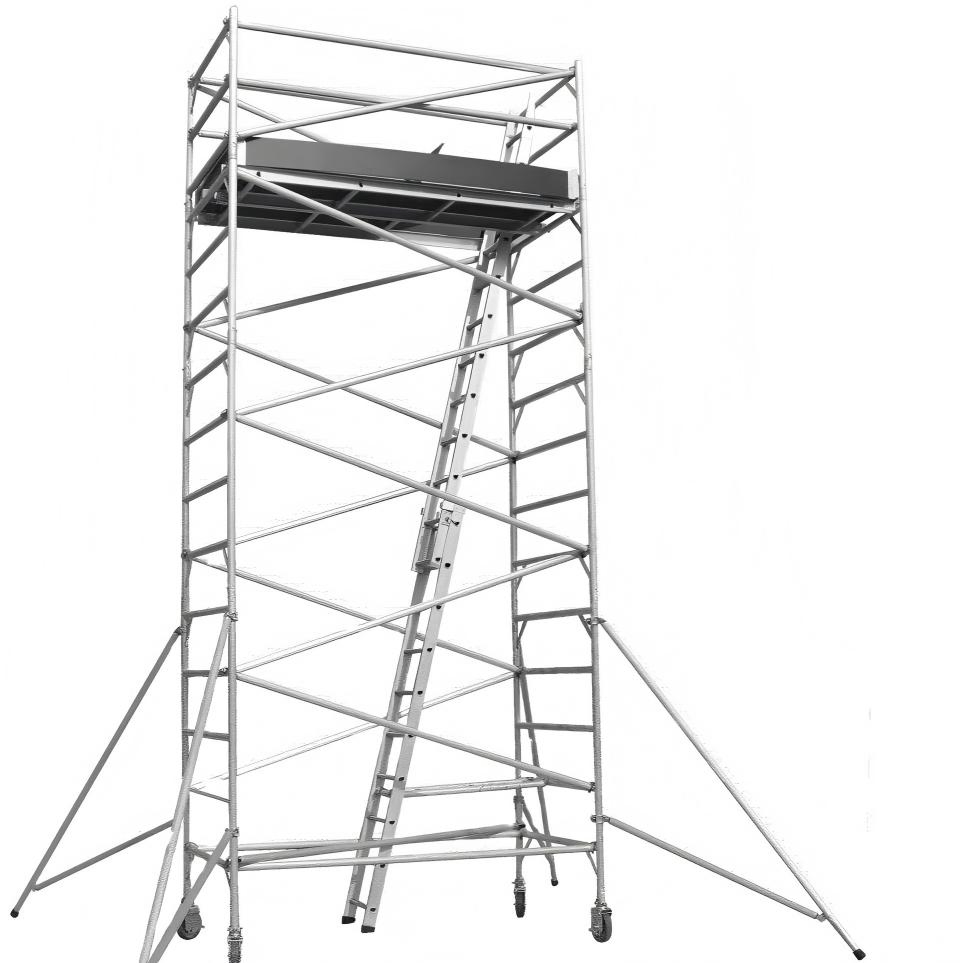

| Model NO. | Scaffolding Tower | Type | Mobile |
| Structural Style | Multi-Pole Scaffolding | Framework | Combined Scaffolding |
| Supporting Mode | Floor Type Scaffolding | Lapping Form | Cross Ring Scaffolding |
| Surface Finish | Galvanized | Material | Q355B Steel |

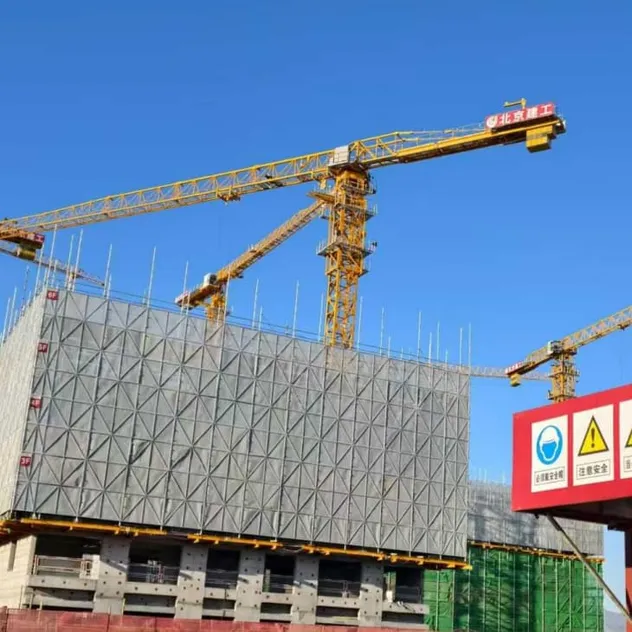

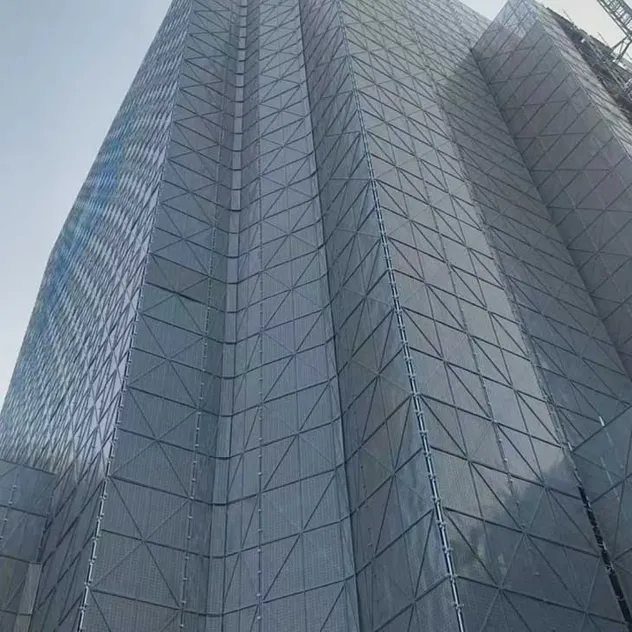

| Application | Office Building, Hospital, School, Mall, Apartment | Production Capacity | 5000 Pieces Per Month |
Wedge-type scaffolding belongs to socket-type steel tube scaffolding, which connects the sockets on vertical poles and the plugs on horizontal poles by wedge-shaped pins.

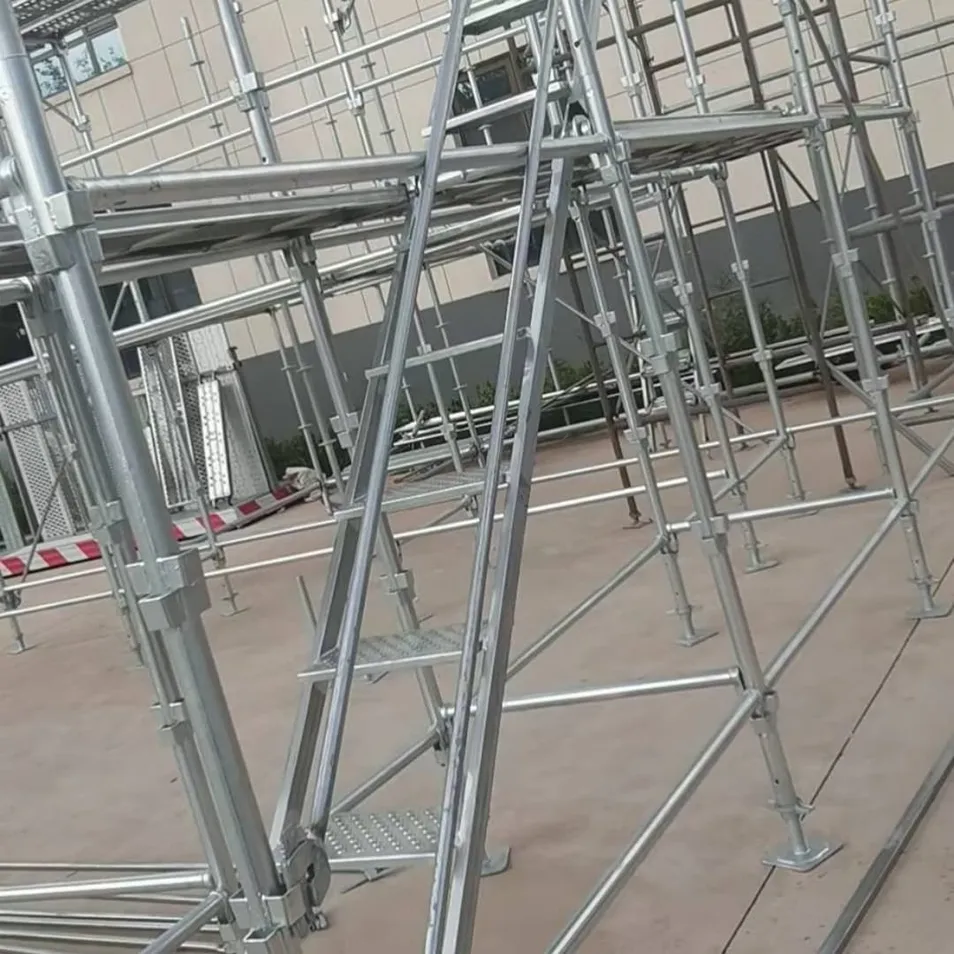

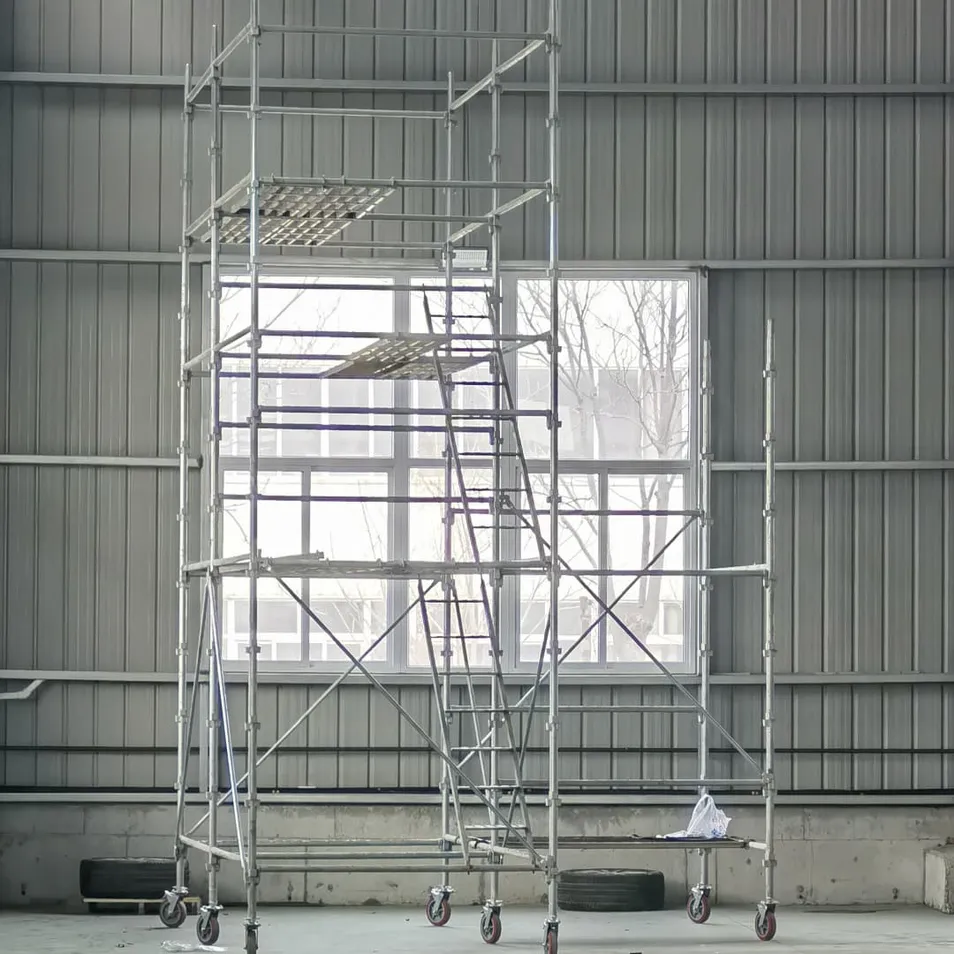

The main components of this scaffolding system consist of vertical poles, horizontal poles, diagonal tie rods, adjustable base jacks, scaffolding planks, adjustable wall connectors, and tripod brackets. All components have been optimized for lightweight design, with the weight of a single piece not exceeding 14 kg, which can be easily lifted by one person, thus greatly improving work efficiency.
Its design principle is that the wide-body wedge-shaped plugs at both ends of the horizontal poles perfectly fit into the wide-body wedge-shaped slots of the vertical poles when struck with a hammer. This design enhances the anti-torsion capacity of the joints and ensures more reliable stability of the whole structure.
| Product Name | Material | Weight Range | Surface Treatment |
|---|---|---|---|
| Scaffolding Wedge-type System | Q355B | 0.8 - 14kg | Electro/Hot Dip Galvanized |

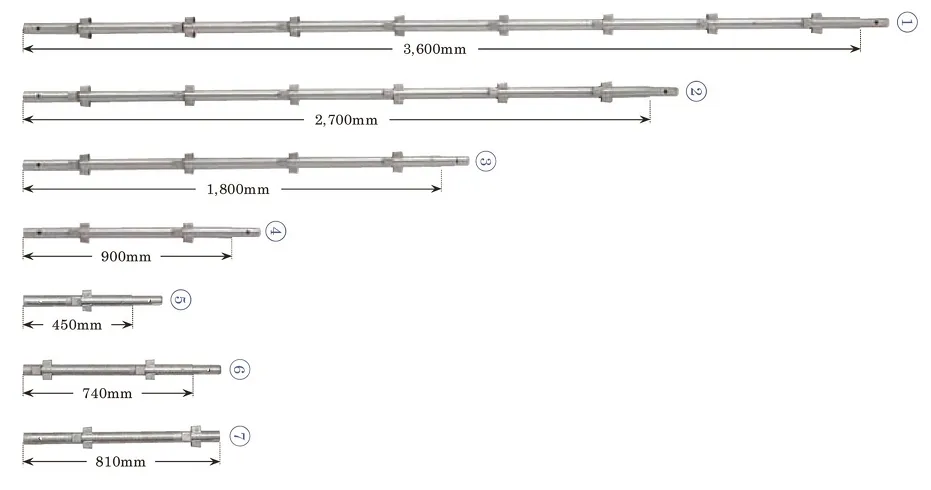

| Standard Model | Specification | Weight |
|---|---|---|
| LG-36 | Φ48.6*3600mm | 14kg |
| LG-27 | φ48.6*2700mm | 10.2kg |
| LG-18 | Φ48.6*1800mm | 7kg |
| LG-09 | Φ48.6*900mm | 3.9kg |
Constructed with socket-type wedge components for superior stability. Full range of matched products eliminates safety risks.
Extremely simple construction using only a hammer. Erection speed is 3x faster than traditional scaffolding.
Adaptable to irregular buildings and complex sites. Can be assembled into single, double, or cantilever scaffolds.
Reduces steel consumption and investment costs. Erection area is 2.5–3 times that of standard steel tube scaffolding.
