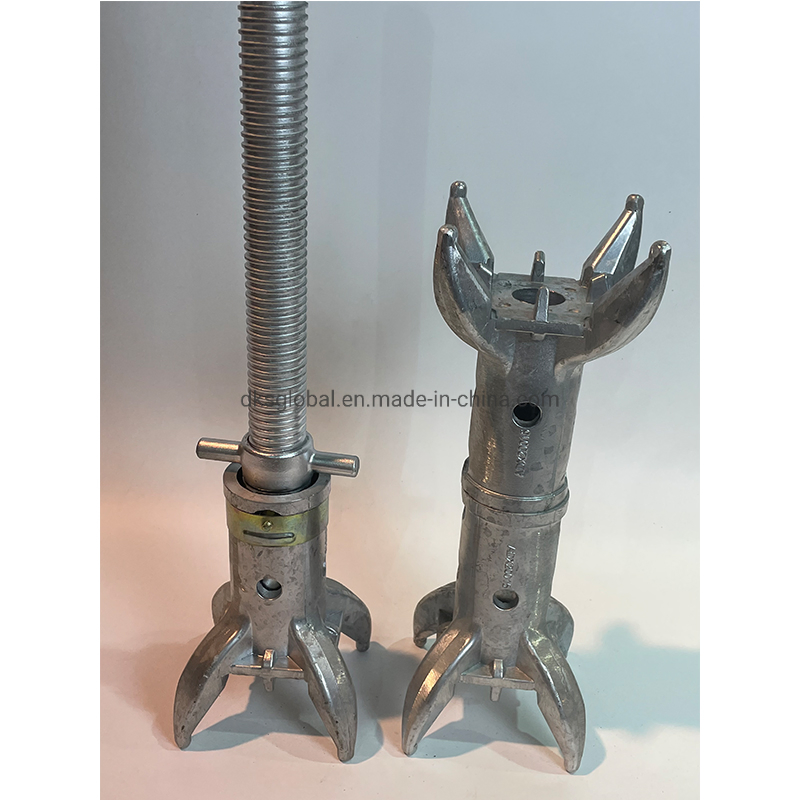

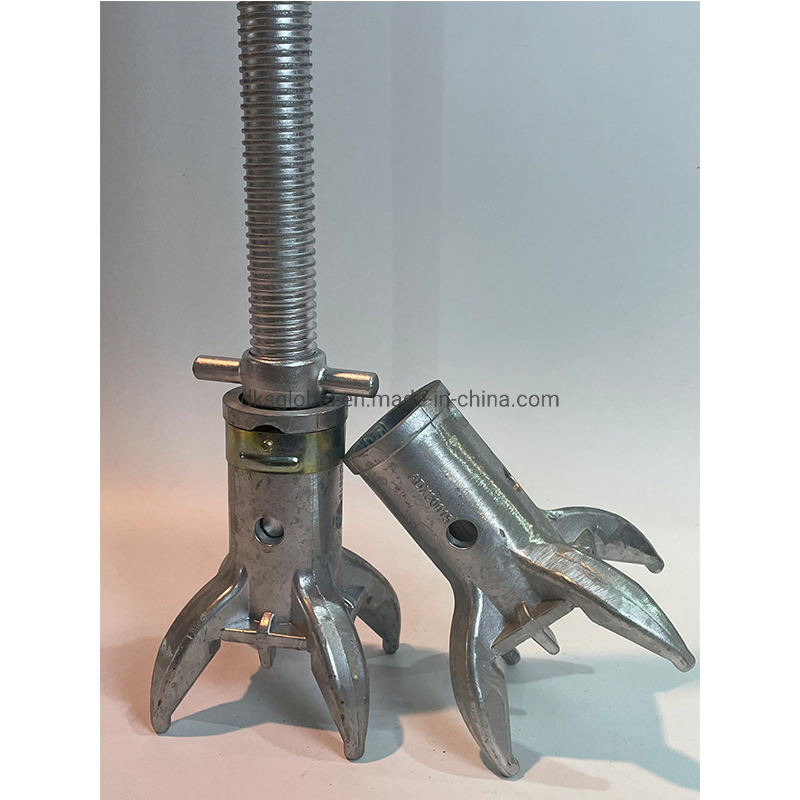

Solid crown building material frame Qinglock scaffolding system

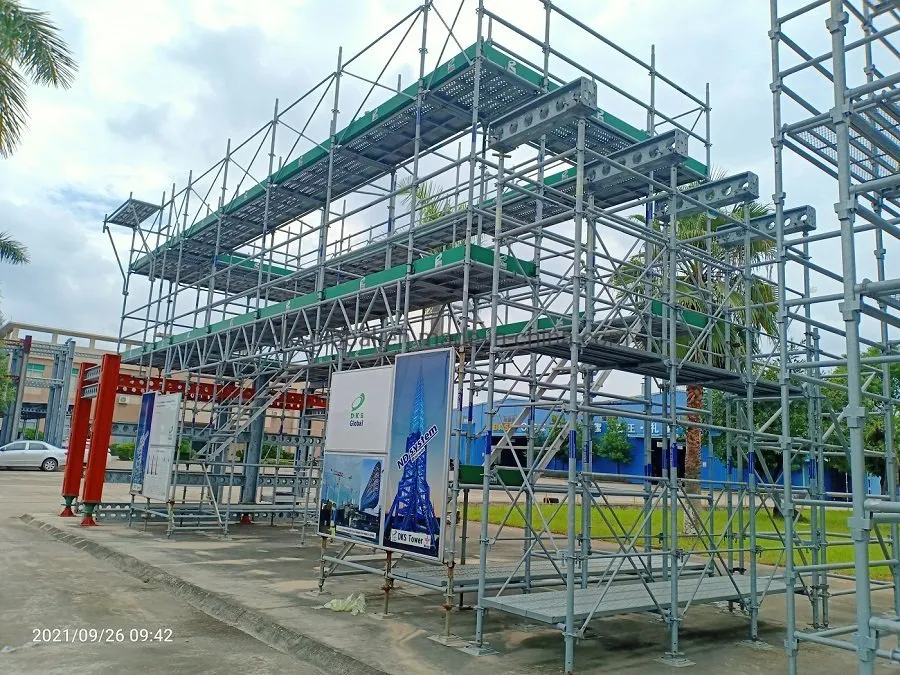

Engineered for versatility and durability, the Ring Frame is ideal for structures with complex shapes, plans and heights. Whether as a scaffold or a shoring system, it is the perfect choice when angular flexibility is essential.
At the core of the Ring Frame System is the rosette design. This unique plate has eight apertures that can link up to eight horizontal and diagonal to each rosette. It offers virtually unlimited angular fitting and design, making it the perfect scaffold for triangular, polygonal and curved structures.
All Ring Frame System components are galvanized and therefore offer excellent anti-corrosion resistance. This protection reduces maintenance costs, extends lifespan and enables longer utilization.
The Ring Frame system uses a wedge shaped system to ensure a safe and reliable connection between standards, ledgers and diagonal braces, preventing accidental dislodgement.

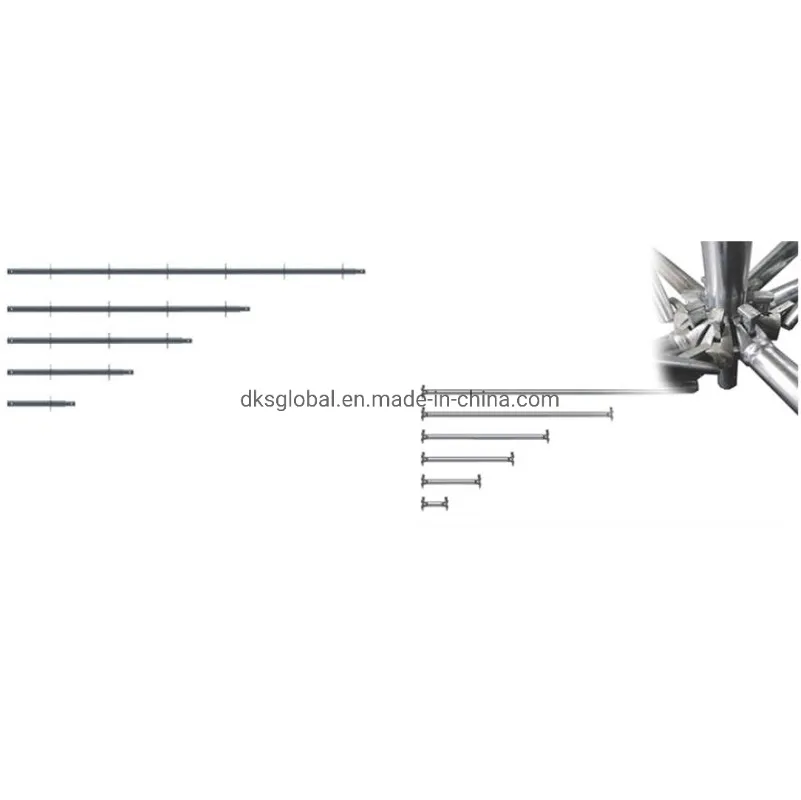

1. Standards
| Code | Length | Description | Tube Size & Weight (1.9in) | Tube Size & Weight (2.4in) |
| DRF-S-3000 | 118.1 in | RF Standard 3000mm | 1.9(in)x3.2t & 13.37kg | 2.4(in)x3.2t & 16.2kg |
| DRF-S-2500 | 98.4 in | RF Standard 2500mm | 1.9(in)x3.2t & 11.14kg | 2.4(in)x3.2t & 13.5kg |
| DRF-S-2000 | 78.7 in | RF Standard 2000mm | 1.9(in)x3.2t & 8.92kg | 2.4(in)x3.2t & 10.8kg |

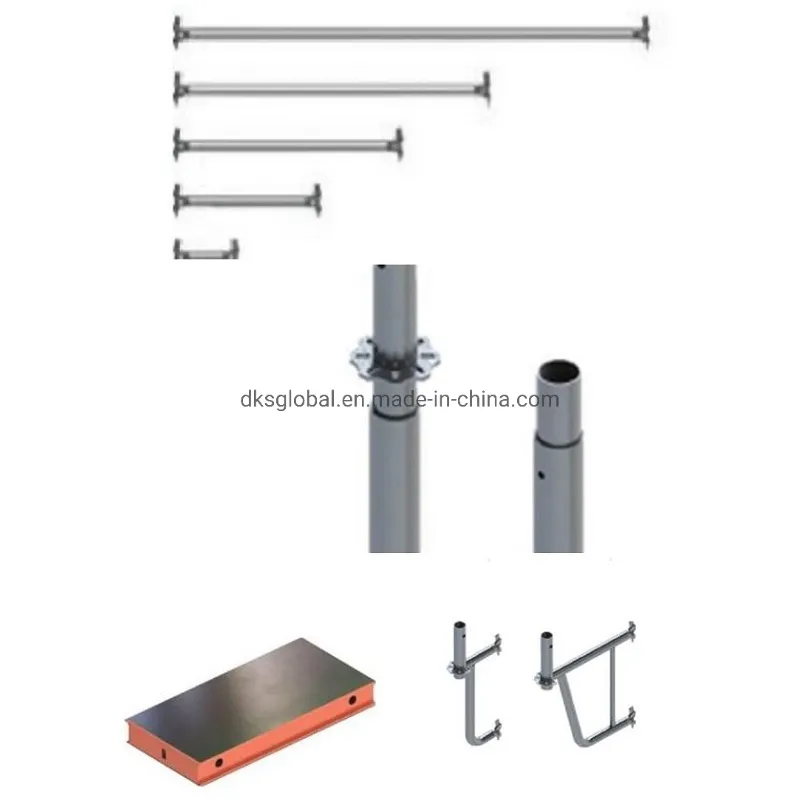

2. Ledgers
| Code | Length | Description | Weight (lb) | Weight (kg) |
| DRF-L-2440 | 96.1 in | RF Ledgers 2440mm | 20.9 lb | 9.50 kg |
| DRF-L-1830 | 72.0 in | RF Ledgers 1830mm | 15.4 lb | 7.00 kg |
| DRF-L-1220 | 48.0 in | RF Ledgers 1220mm | 11.01 lb | 5.00 kg |

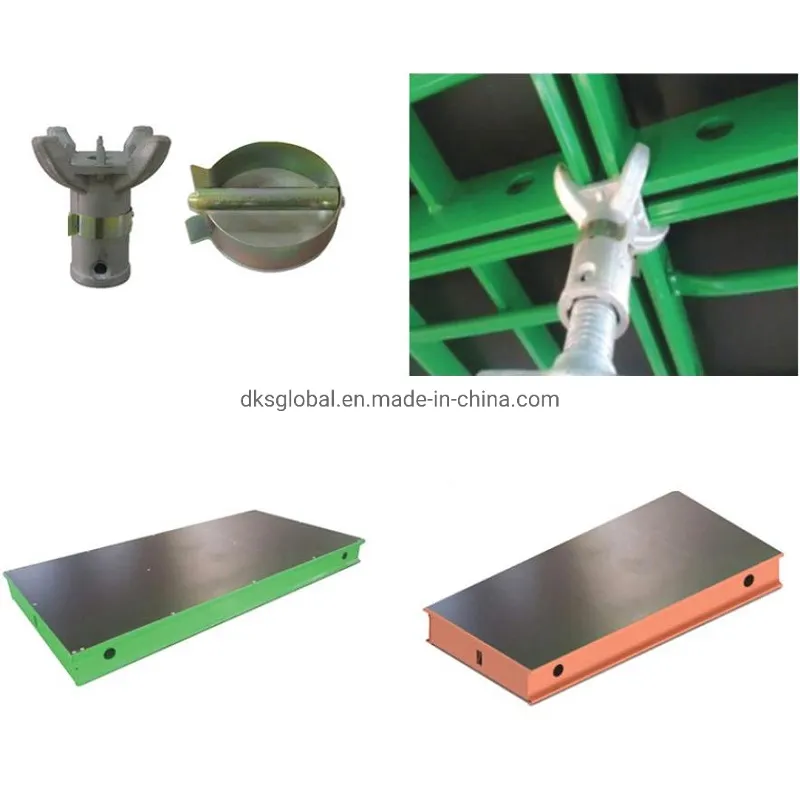

3. Mega Panels (AL6082-T6)
| Code | Size (in) | Size (mm) | Weight (lb) | Weight (kg) |
| DRF-MP-1809 | 70.9 X 35.4 | 1800 x 900 | 87.5 lb | 39.7kg |
| DRF-MP-1806 | 70.9 X 23.6 | 1800 x 600 | 57.3 lb | 36.0kg |

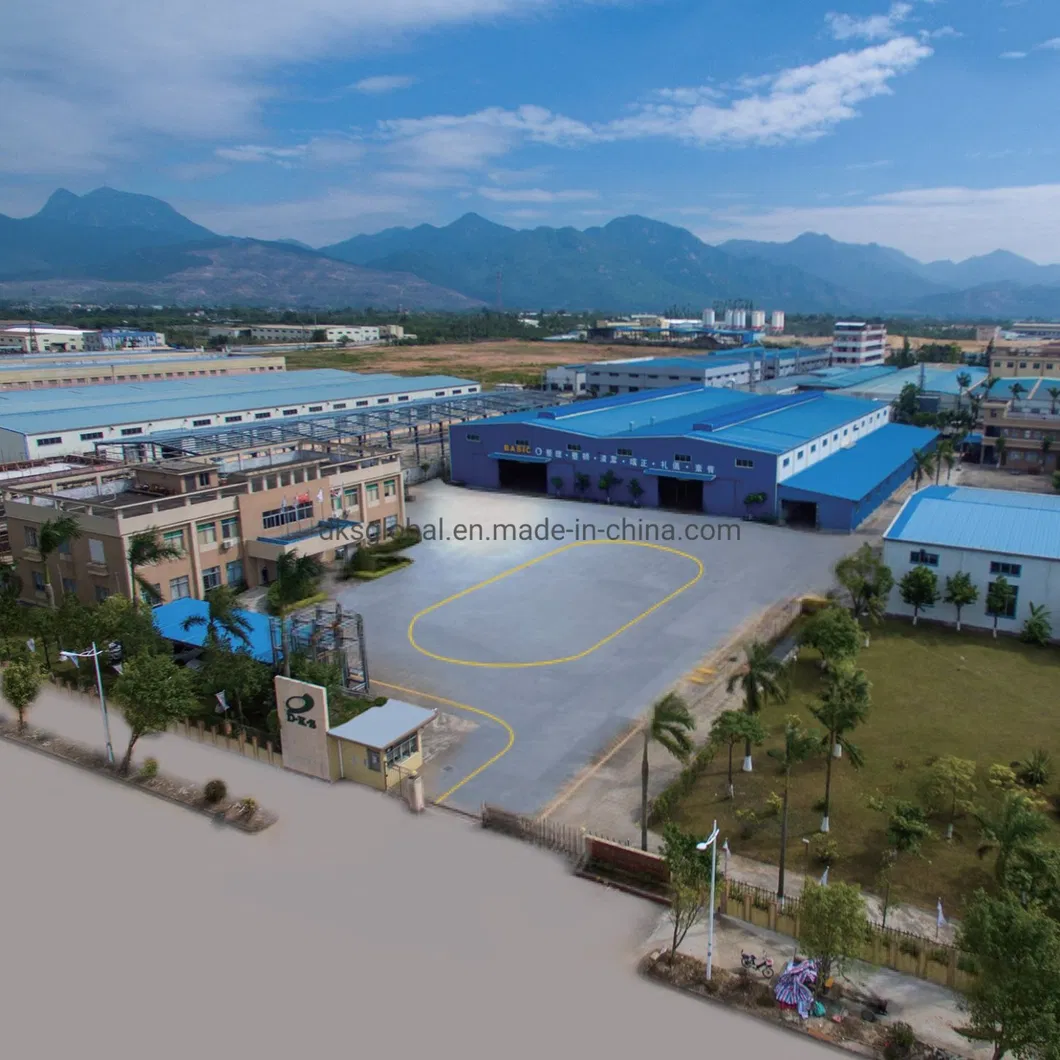

Located in Guangdong, the factory covers an area of 16,528 m² and is specialized in the production of shoring and safety systems. Equipped with modern and high-performance production tools, the facility is ISO 9001 certified.
Our products, including shoring systems, scaffolding systems, and formwork systems, are exported to Japan, the United States, Canada, Germany, Spain, and many other countries.
