Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
1 / 5
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material
Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material

Zulin Falsework Kwikstage Layher Ringlock System Scaffolding for Steel Construction Building Material

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚡ Basic Information
Model NO.
RL 60, 48
Material
Steel
Type
Mobile
Structural Style
Multi-Pole Scaffolding
Supporting Mode
Projecting Scaffolding
Steel
Q235/Q345 Steel
Surface Treatment
Hot DIP Galvanized/Electro Galvanized
Diameter
48mm/60mm
Advantages
Heavy Loads, Stable, Flexible, Easy Assembling
Application
Building Construction
Certificate
SGS/ISO9001:2015
Production Capacity
1000 Tons/Month
📦 Product Description
Ringlock System Scaffolding
🔹 Introduction
Ring-lock scaffolding, one of the support systems for construction, owns advantages of both cup-lock scaffolding and shoring tower. It is in the development direction of new type scaffolding. According to the standard diameter, they are divided into two series: 48mm series and 60mm series. Equipped with staircases, the 60mm series can also be used as stair towers. The screw jack head and screw jack foot are adjustable. The system has excellent stability and bearing capacity.

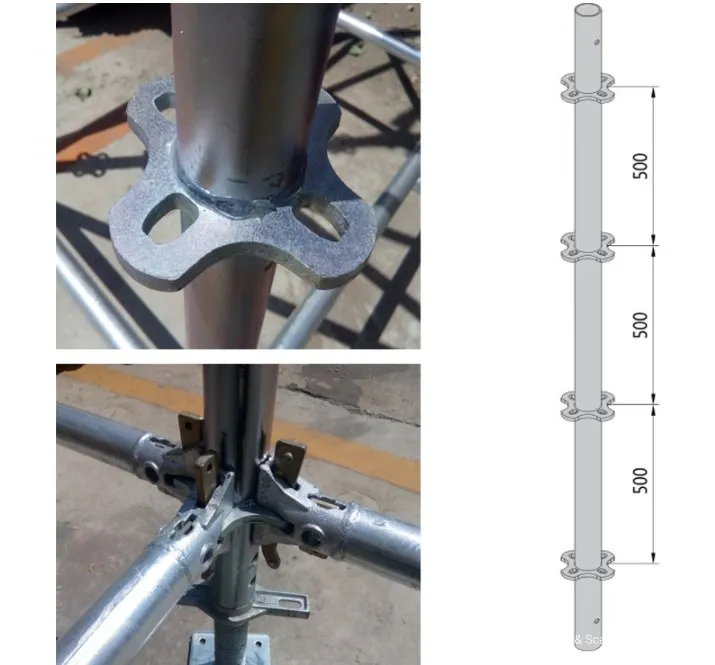

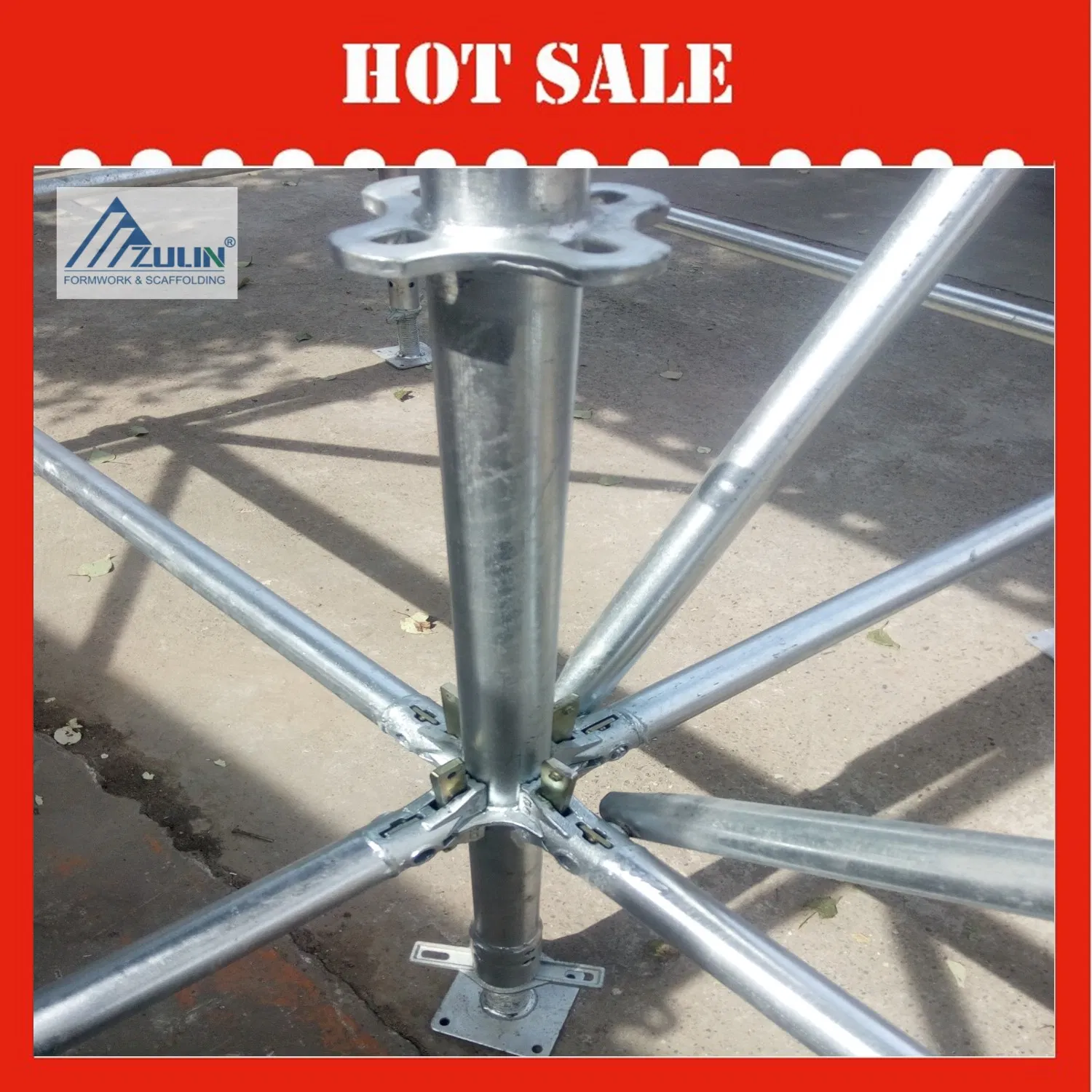

🔹 Rosette node: flexible
Weld a Rosette node on the standard every 500mm for connecting ledgers in four directions.
Rosette node

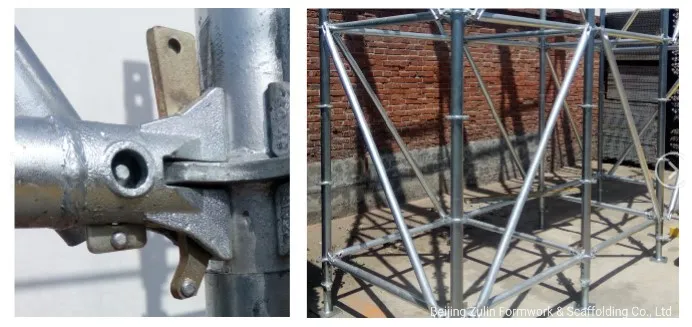

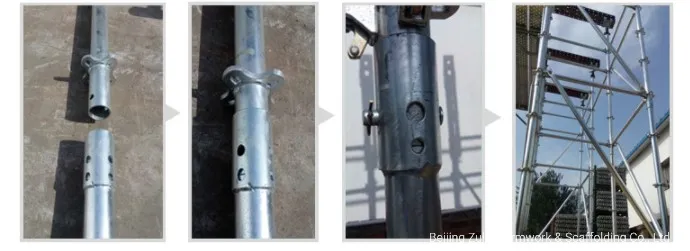

🔹 Vertical & Horizontal Connection
One end of the standard can be inserted into the other end of other standard. Every ledger has two connectors at both ends for connecting Rosette node and diagonal brace. The inverted pins can move up and down easily but can't be pulled out.
Vertical Connection Horizontal Connection

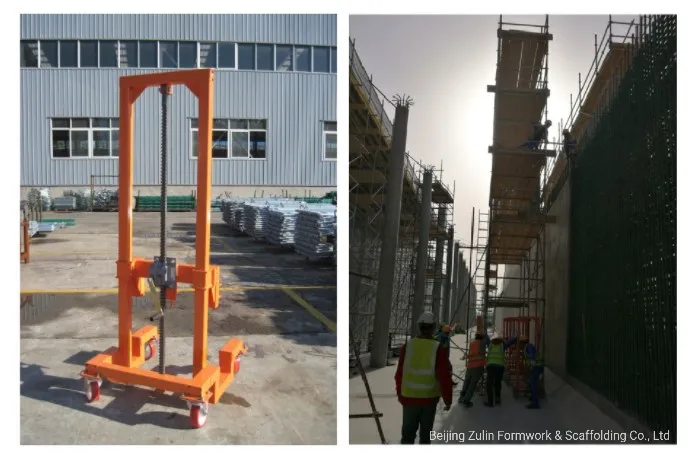

🔹 Trolley for Scaffolding
This kind of shifting trolley is designed for the ring-lock scaffolding system, allowing the assembled scaffolding to be moved integrally.
Shifting Trolley
📊 Product Parameters
Name Diameter (mm) Length (mm) Thickness (mm)
Ledger (42)42600~30003\2.5
Standard (48)48500~30003\3.25
Diagonal Brace (42)421200*1500~3000*20003\2.5
Screw Jack Head (48)-600~900-
Standard (60)60500~30003.25
Diagonal Brace (48)481200*1500~2400*25003
📜 Certifications & Projects

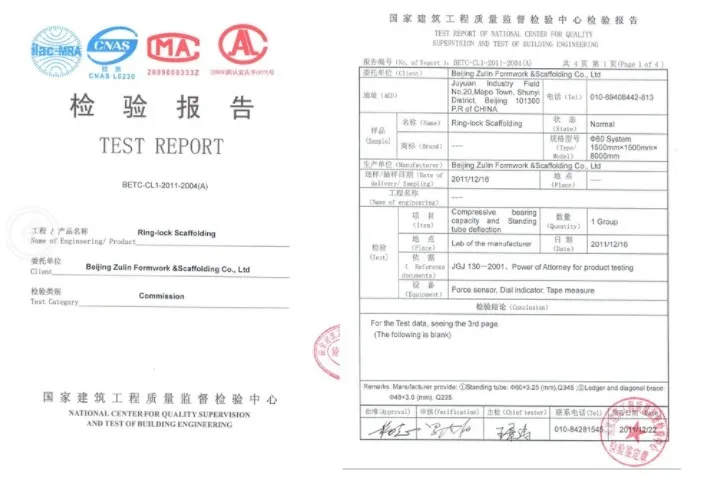

Certification

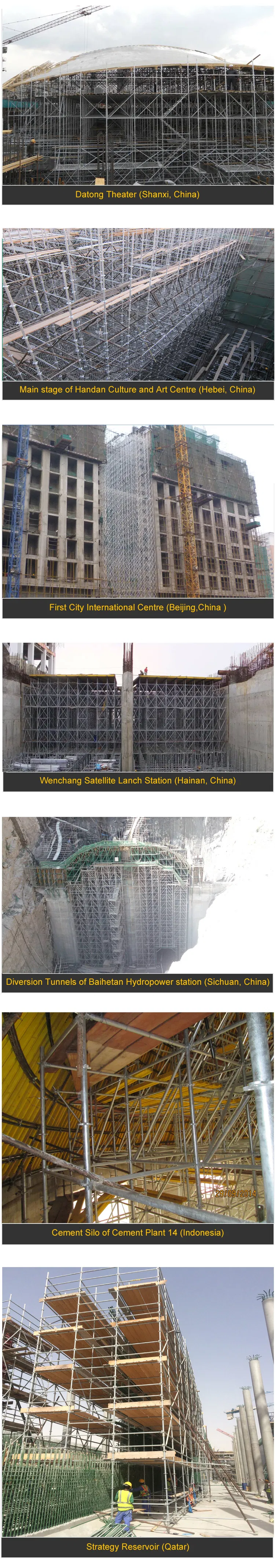

Completed Project
🚚 Packaging & Shipping

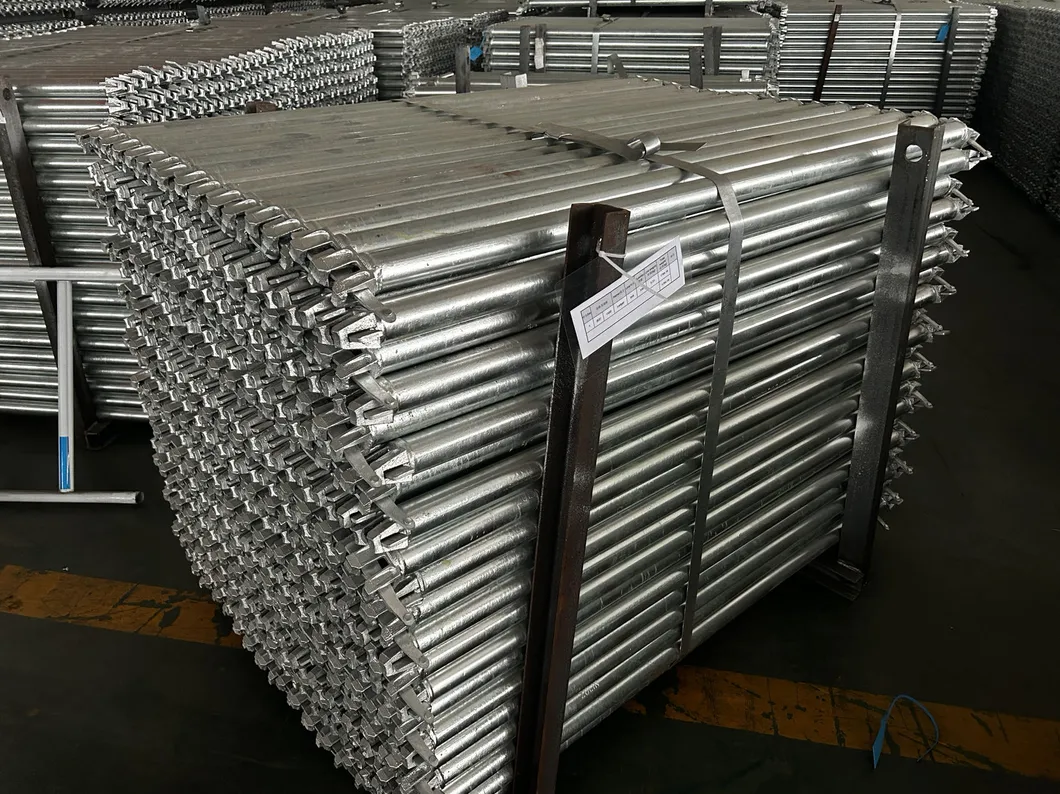

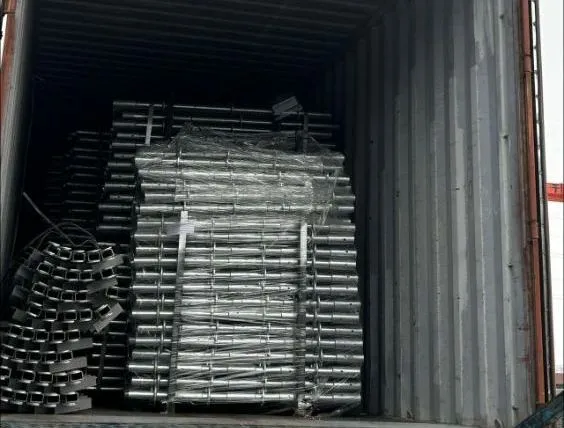

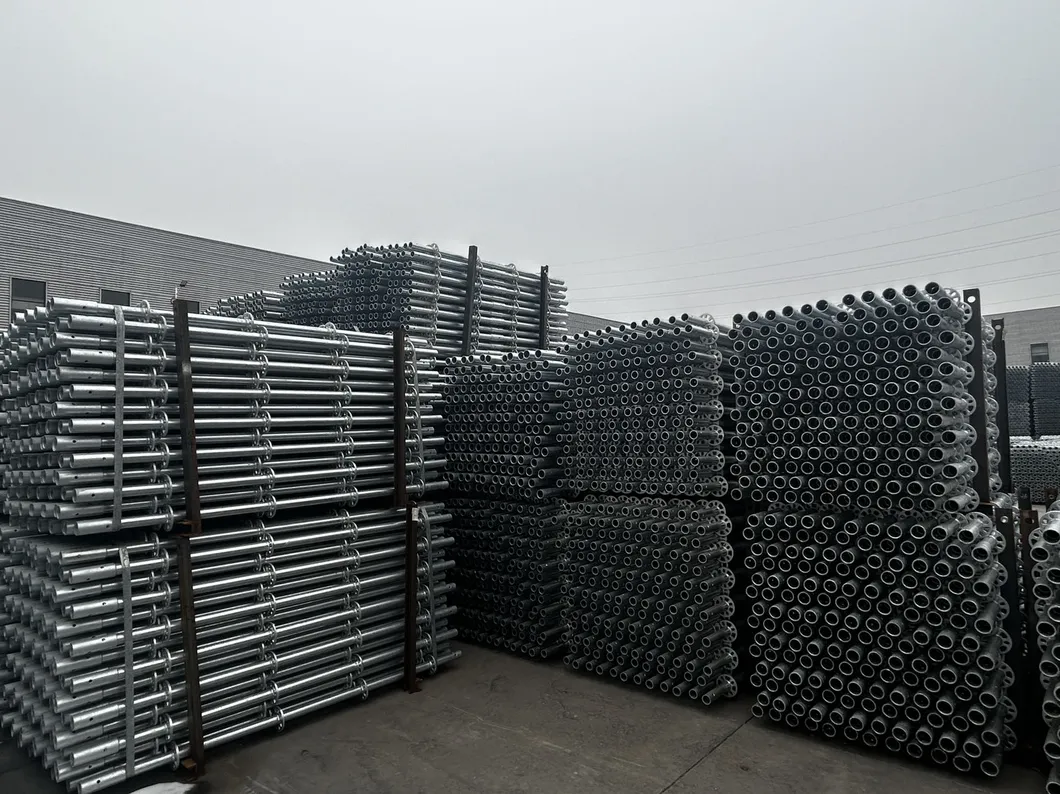

Packaging 1 Packaging 2 Packaging 3
🏢 Company Profile
We are a leading company that develops, designs, manufactures, and sells Formworks and Scaffoldings for construction projects in civil engineering, roads, bridges, and hydroelectric dams. With dedicated professional technical specialists, we continuously improve our product offerings, supported by multiple steel structure workshops. Our innovations in hydraulic auto-climbing formwork and protection panels have gained recognition globally.
Company Facility
🔹 Customer Visiting
We maintain close communication with foreign customers through factory visits and face-to-face discussions to ensure technical accuracy and project success.
Customer Visit 1 Customer Visit 2
❓ FAQ
Q1: What are the main series of the Ring-lock scaffolding?
A: Our system is divided into two main series based on standard diameters: the 48mm series and the 60mm series.
Q2: Can the 60mm series be used for other purposes?
A: Yes, equipped with staircases, the 60mm series is frequently used as stair towers for construction access.
Q3: How does the Rosette node system work?
A: The Rosette nodes are welded every 500mm on the standards, allowing for ledger connections in four directions with high flexibility.
Q4: What material is used for production?
A: We use high-quality Q235 and Q345 steel with surface treatments like Hot DIP Galvanization for maximum durability.
Q5: Is it possible to move the scaffolding after assembly?
A: Yes, we provide a specialized shifting trolley that allows the entire assembled scaffolding structure to be moved integrally.
Q6: What certifications do your products hold?
A: Our scaffolding systems are certified under SGS and ISO9001:2015 standards to ensure safety and quality.
