📋 Basic Info.
Model NO.:#48/#60
Material:Steel
Type:Mobile
Structural Style:Multi-Pole Scaffolding
Framework:Combined Scaffolding
Supporting Mode:Projecting Scaffolding
Lapping Form:Double Scaffolding
Erection Position:External Scaffolding
Move Method:Attached Lifting Scaffolding
Scaffolding Part Type:Scaffolding Frames
Construction Properties:Building Scaffold
Product Name:Ringlock Scaffolding System
Tube Diameter:48.3 mm / 60.3 mm
Wall Thickness:2.75 mm / 3.0 mm / 3.25 mm
Material Type:Q235 Steel / Q345 Steel
Surface Treatment:Hot-DIP Galvanized
Application:Construction / Bridge / Stage / Industrial
Standard Compliance:En12810 / En12811 / AS/NZS 1576 / Osha
Service Life:5–10 Years
Certification:CE / ISO9001 / SGS / AS/NZS
Origin:China
HS Code:73084000
Production Capacity:15, 000 Tons/Month
🏗️ Product Description

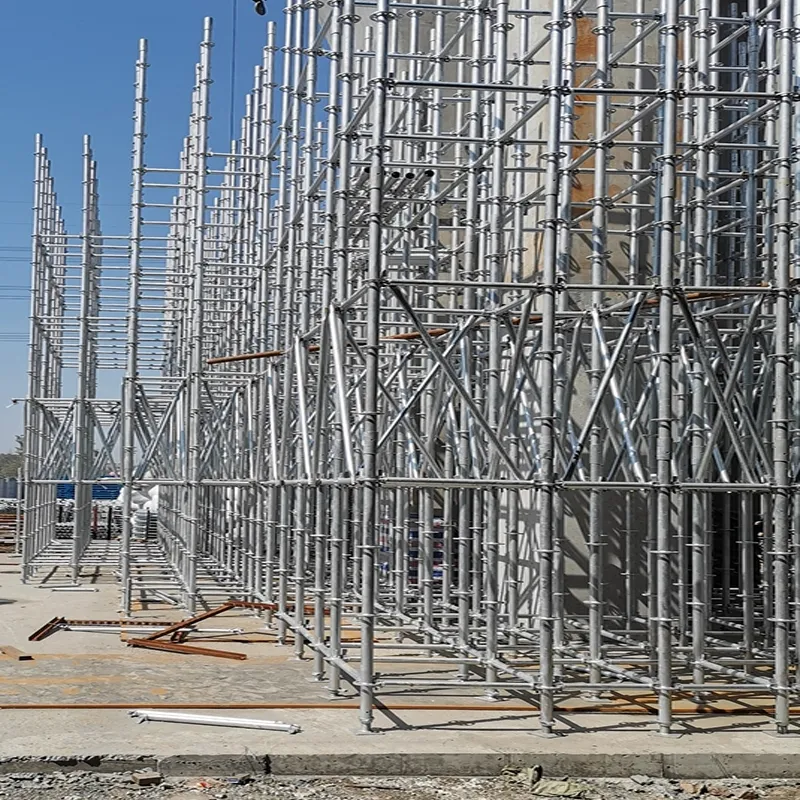

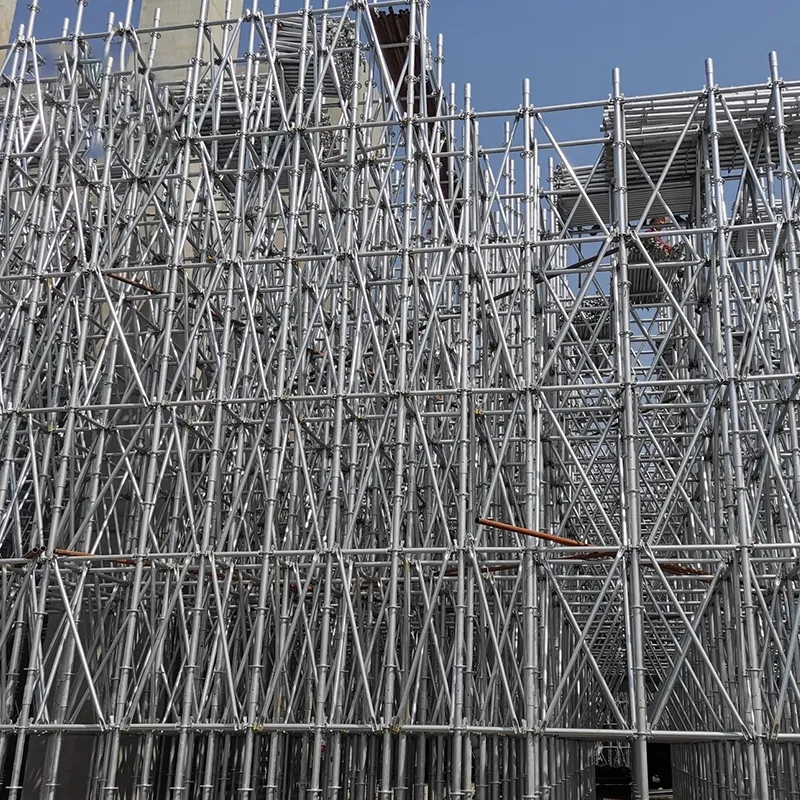

Ringlock Scaffolding is a modern and versatile scaffolding system, widely used in construction projects, bridge construction, stage setup, and various temporary structures that require high load-bearing capacity and flexible layout. It is designed and manufactured in accordance with internationally advanced ringlock connection technology, featuring a stable structure, quick installation, safety and reliability.

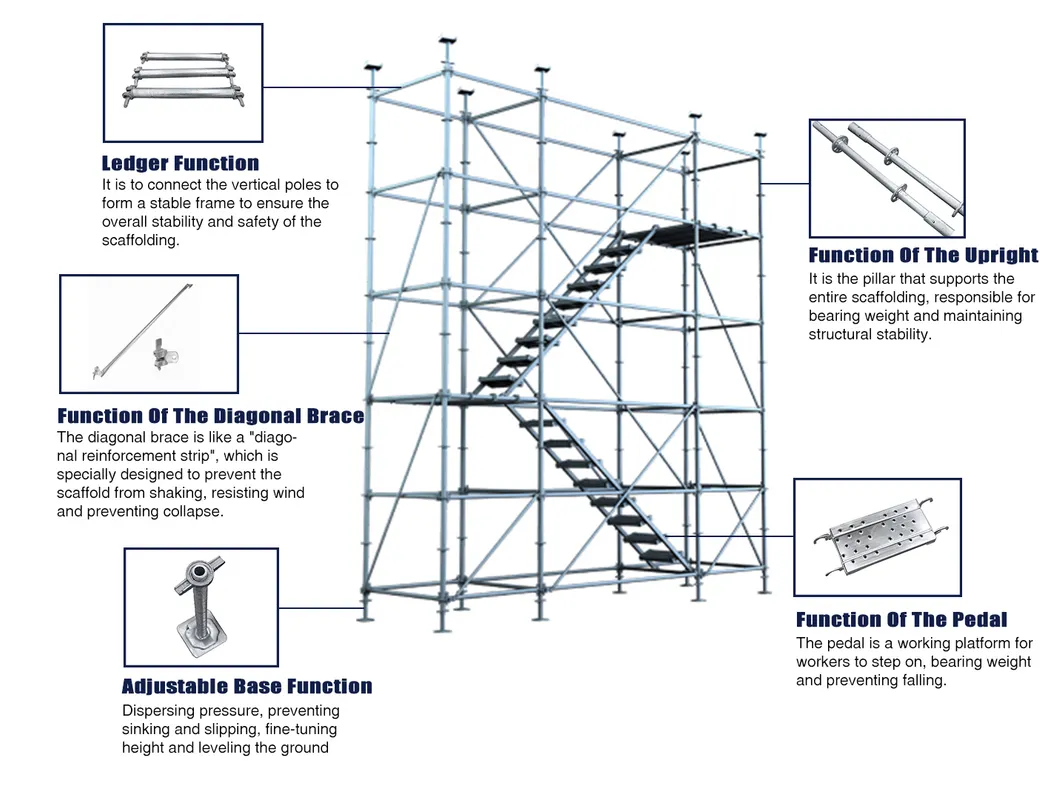

⚙️ Component Parts
Ringlock scaffolding system consists of vertical standards, ledgers, diagonal braces, steel planks, jacks, ladders, and various safety accessories. The vertical standards serve as the main load-bearing members, with rosette connection points welded at regular intervals for attaching ledgers and braces. Ledgers are arranged horizontally and connected to the rosettes on the standards via wedge-shaped ends, forming a stable framework. Diagonal braces are installed at an angle to enhance the overall rigidity and stability of the structure.

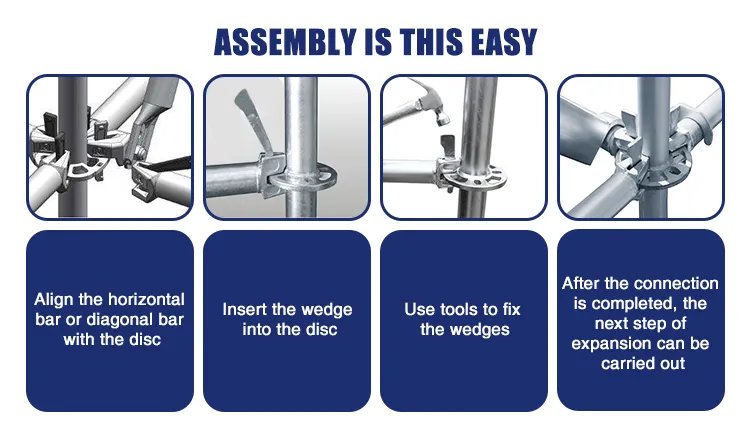

🔗 Connection Method
📊 Product Parameters

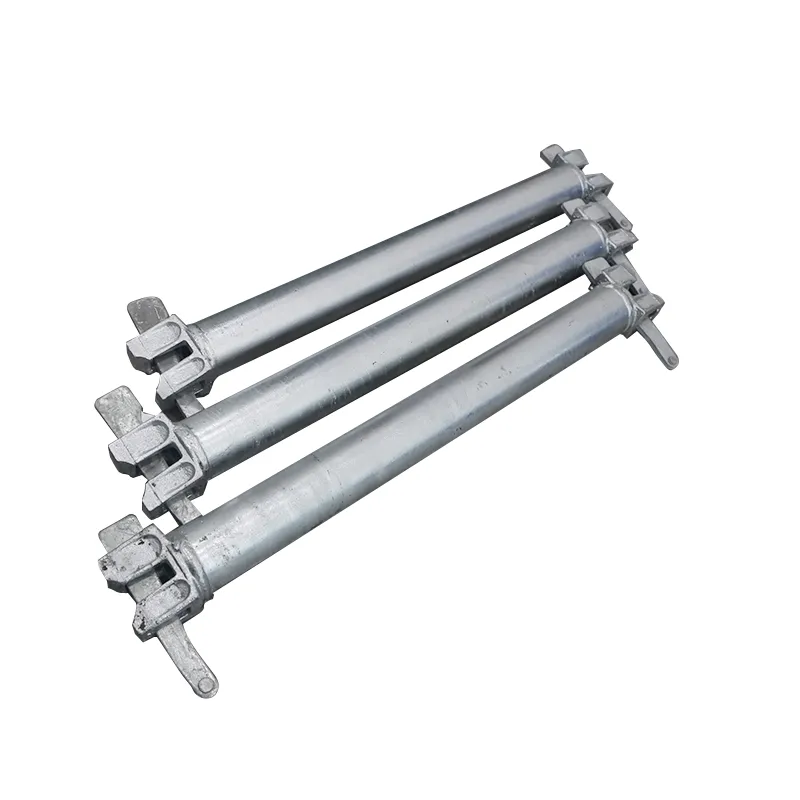

| Standard Specifications for Horizontal Bars |
| Image |
Tube Diameter (mm) |
Tube Thickness (mm) |
Material |
Weight (kg) |
Length (mm) |
Surface Treatment |
 |
48 | 2.75 | Q235 | 1.41 | 300 | Hot dip galvanizing |
| 48 | 2.75 | Q235 | 2.39 | 600 | Hot dip galvanizing |
| 48 | 2.75 | Q235 | 3.34 | 900 | Hot dip galvanizing |
| 48 | 2.75 | Q235 | 4.29 | 1200 | Hot dip galvanizing |
| 48 | 2.75 | Q235 | 5.24 | 1500 | Hot dip galvanizing |
| 48 | 2.75 | Q235 | 6.14 | 1800 | Hot dip galvanizing |

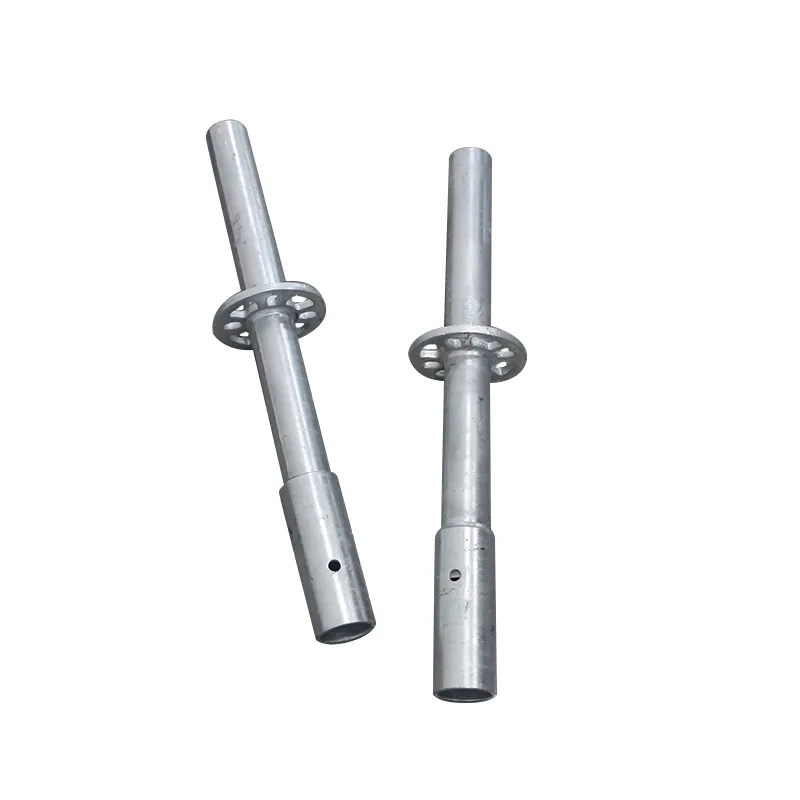

| Standard Specifications for Vertical Bars |
| Image |
Tube Diameter (mm) |
Tube Thickness (mm) |
Material |
Weight (kg) |
Length (mm) |
Surface Treatment |
 |
48 | 3.25 | Q345 | 12.75 | 2500 | Hot dip galvanizing |
| 48 | 3.25 | Q345 | 10.45 | 2000 | Hot dip galvanizing |
| 48 | 3.25 | Q345 | 8.02 | 1500 | Hot dip galvanizing |
| 48 | 3.25 | Q345 | 5.17 | 1000 | Hot dip galvanizing |

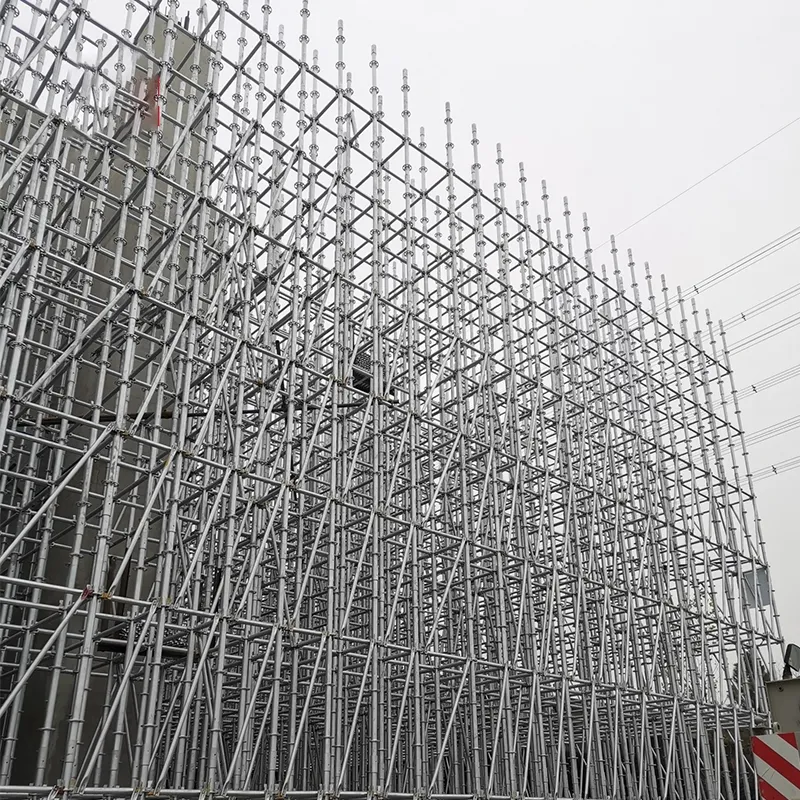

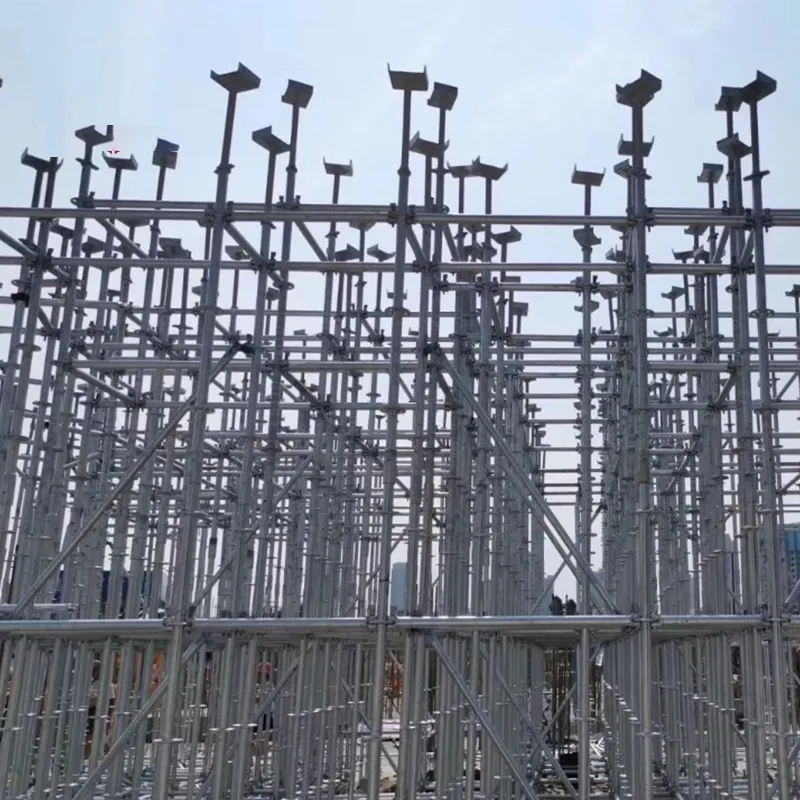

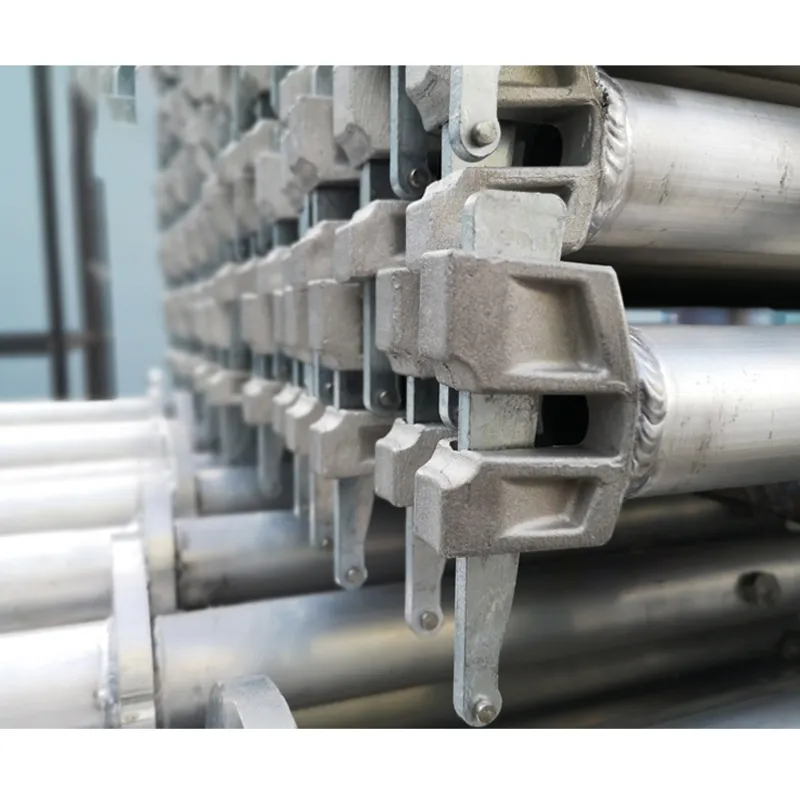

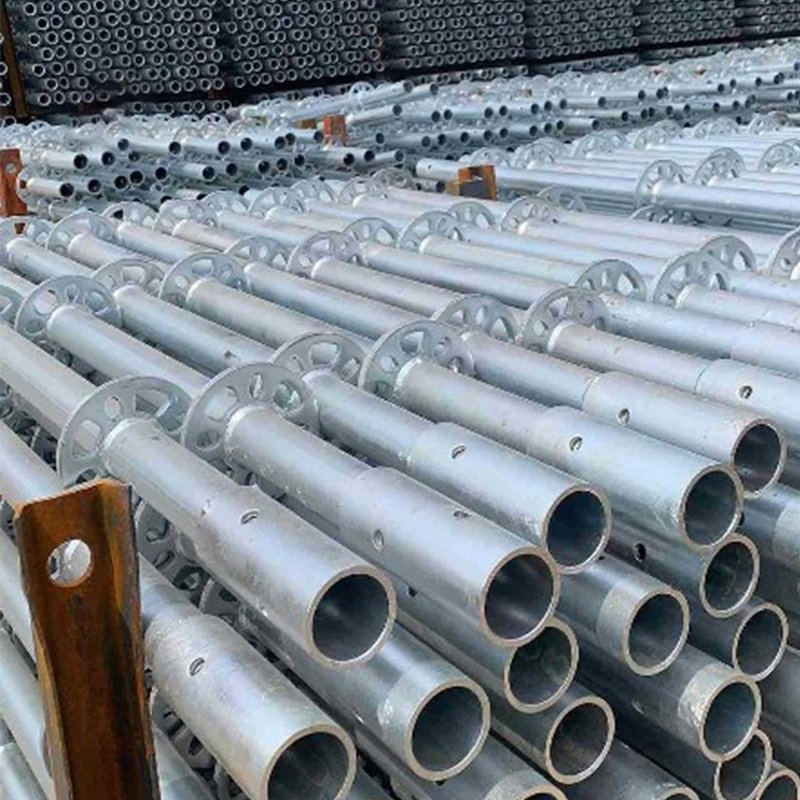

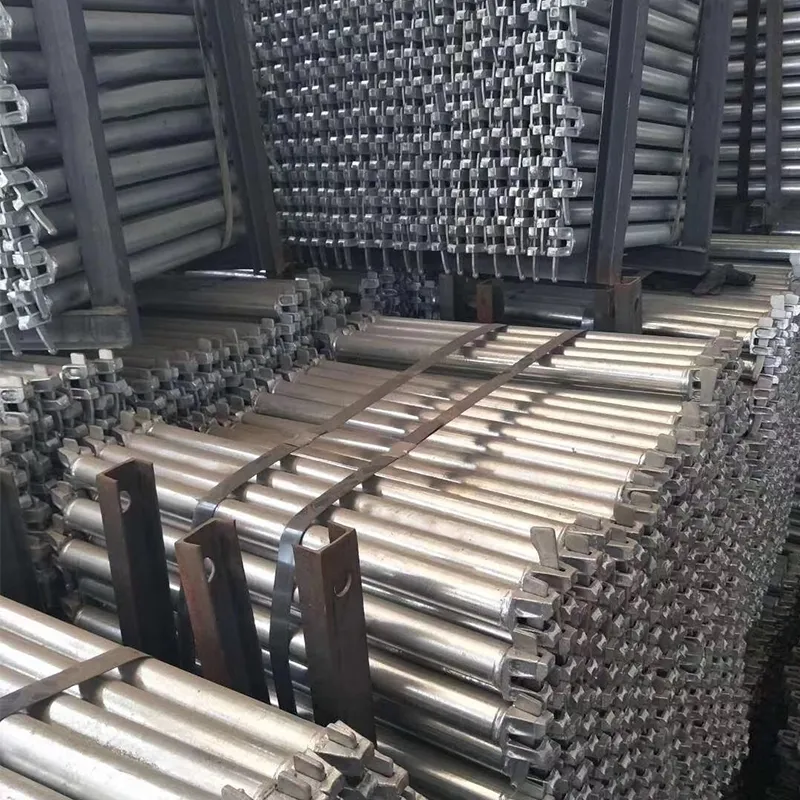

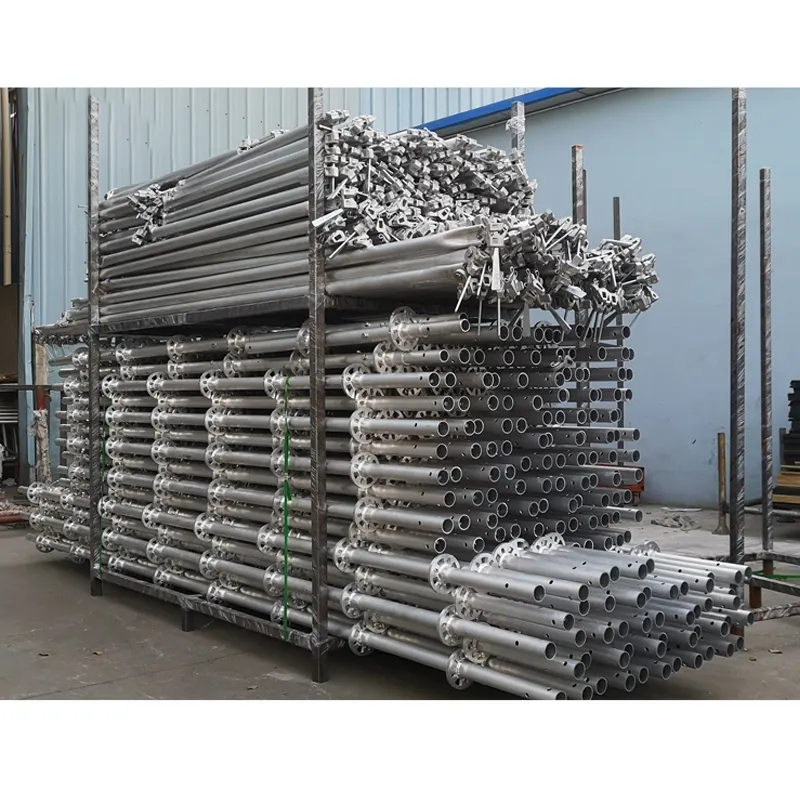

📸 Detailed Photos
Ringlock scaffolding offers advantages such as quick assembly and disassembly, high load-bearing capacity, excellent safety, strong versatility, and outstanding durability. Its multi-directional rosette connection design allows ledgers and diagonal braces to be quickly inserted and locked without the need for bolts.

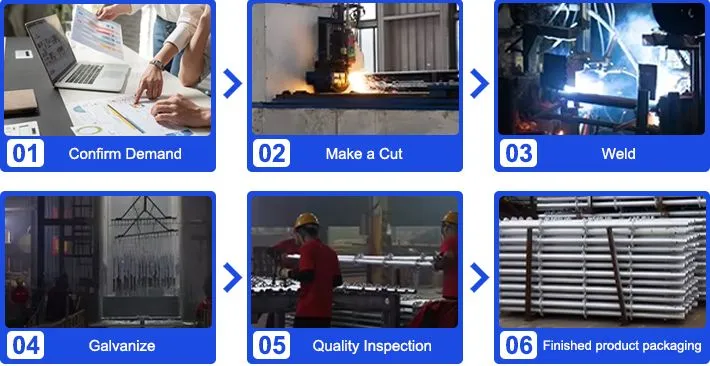

🏭 Production Process
Ringlock scaffolding involves raw material preparation, cutting, forming, welding, surface treatment, inspection, and packaging. Q345B or Q235B steel is cut and formed into components, welded precisely, then hot-dip galvanized or coated for corrosion protection.

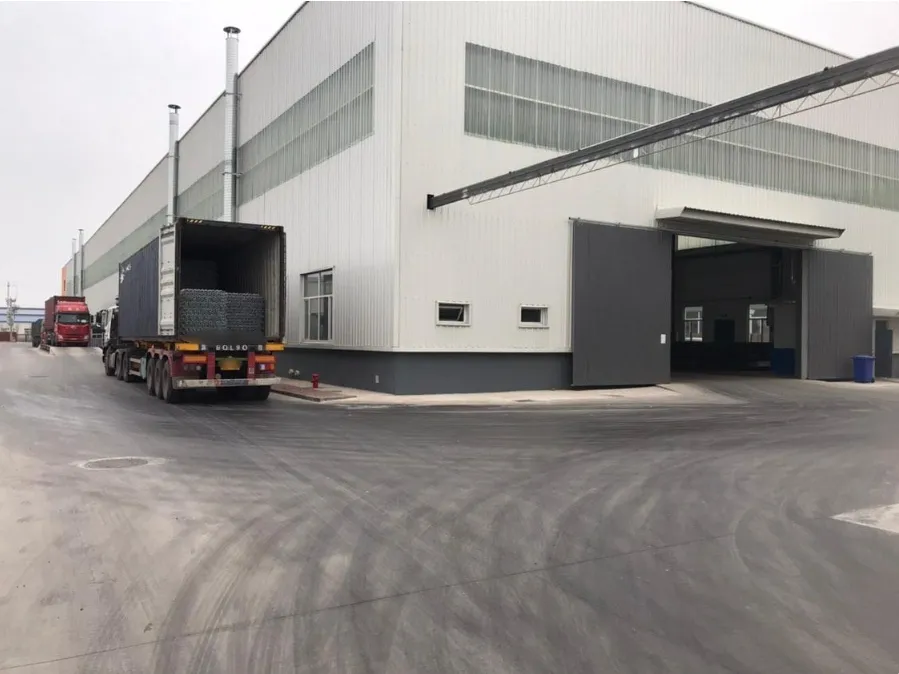

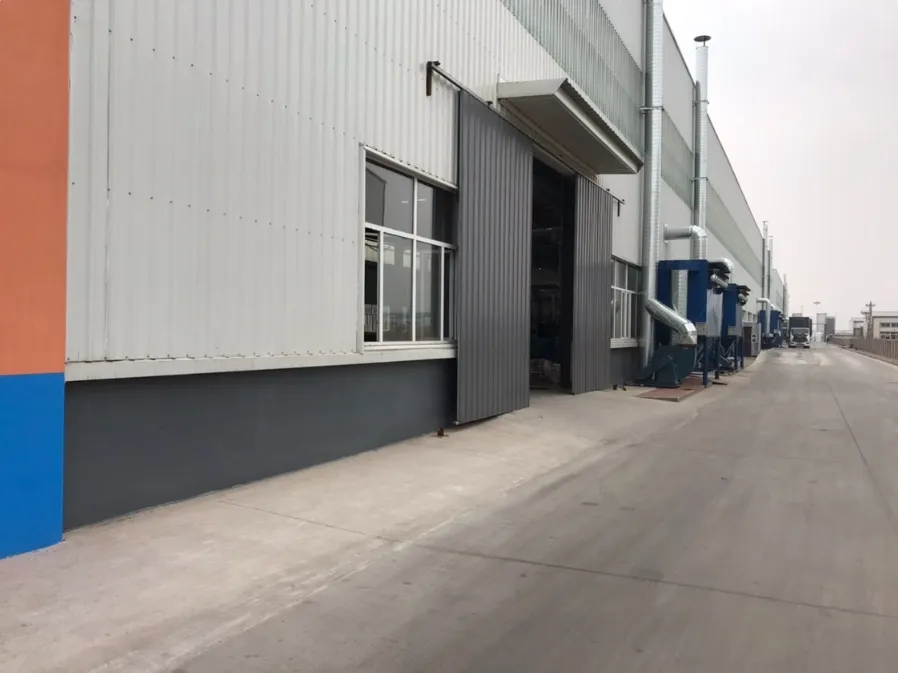

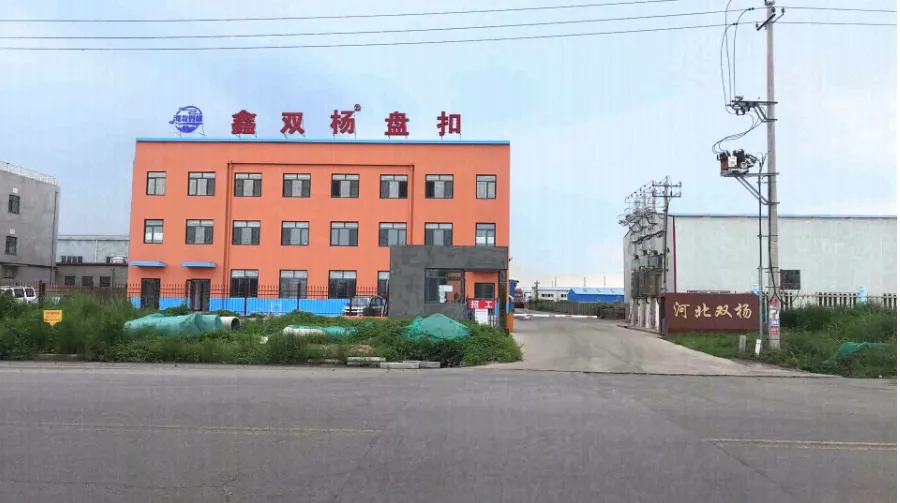

🏢 About Our Factory
The group is an integrated R&D, production, and sales enterprise specializing in high-quality building materials and scaffolding solutions. The manufacturing base (established in 2014) spans 13,132 square meter with over 500 employees and 150+ production units, achieving annual outputs of 300,000 tons of steel pipes, 450,000 tons of Scaffolding, and 5 million Steel props.
📜 Certificate
Our scaffolding products have obtained multiple internationally recognized certifications, including EN12810/EN12811 European standards, AS/NZS 1576 Australian/New Zealand standards, and the ISO 9001 quality management system certification.

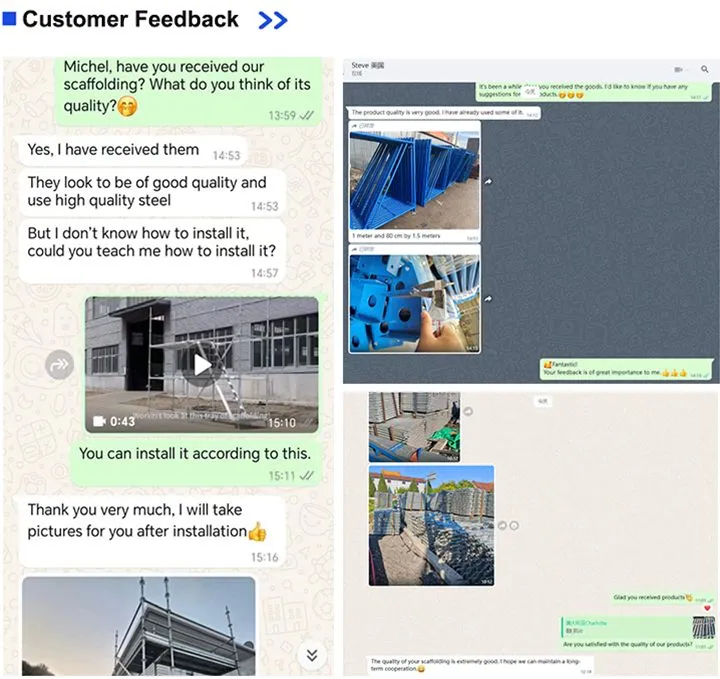

💬 Customer Feedback
Our customers worldwide highly appreciate the quality, durability, and ease of assembly of our scaffolding products. Feedback consistently highlights the stability and safety of our scaffolding in various construction projects.
🚢 Packaging & Shipping
All components, including standards, ledgers, braces, and steel planks, are carefully sorted, bundled, or palletized to ensure safe handling during loading, transportation, and unloading. Our packaging is optimized to maximize container space and reduce movement.
❓ Frequently Asked Questions
Q1: What projects are ringlock scaffolds suitable for?
A1: They are suitable for high-rise buildings, bridges, exhibitions, industrial facilities, and temporary construction platforms.
Q2: What is the load capacity?
A2: Standard load capacity: vertical standards up to 1.5-2.0 tons each, ledgers up to 0.5-1.0 tons each. Specific capacities can be customized according to project requirements.
Q3: What materials and surface treatment are used?
A3: Made of high-quality Q345B steel with hot-dip galvanizing or powder coating for corrosion resistance and durability, suitable for indoor and outdoor use.
Q4: Is customization available?
A4: Yes, OEM/ODM customization is available for dimensions, load capacity, color, and branding.
Q5: How are the products packaged and shipped?
A5: Components are sorted, bundled, or palletized for safe transport, supporting sea, land, and air shipping.
Q6: How is quality guaranteed?
A6: Certified to EN12810/EN12811, AS/NZS 1576, ISO9001, with third-party inspection reports from SGS, TÜV, and BV available upon request.
