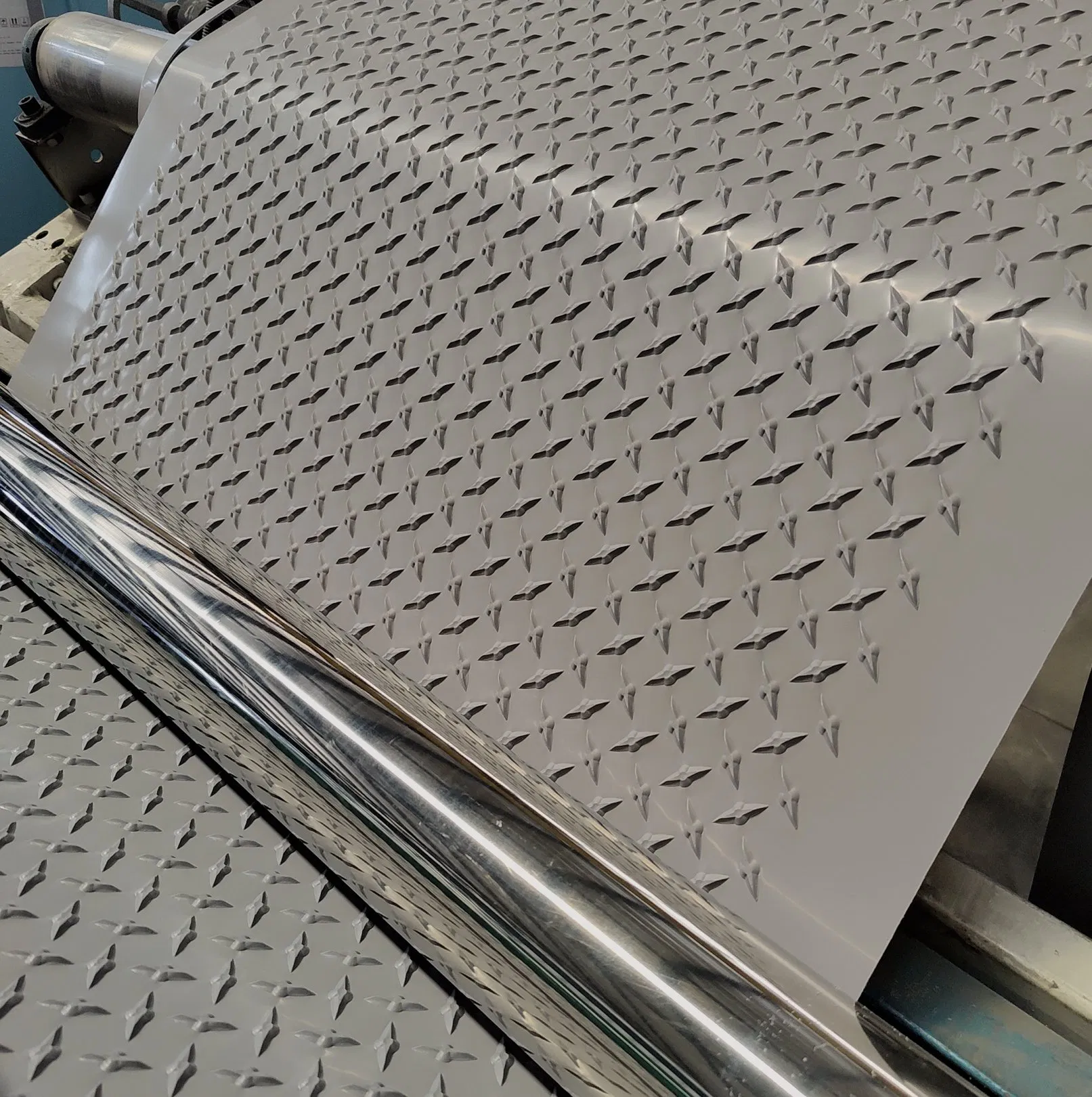

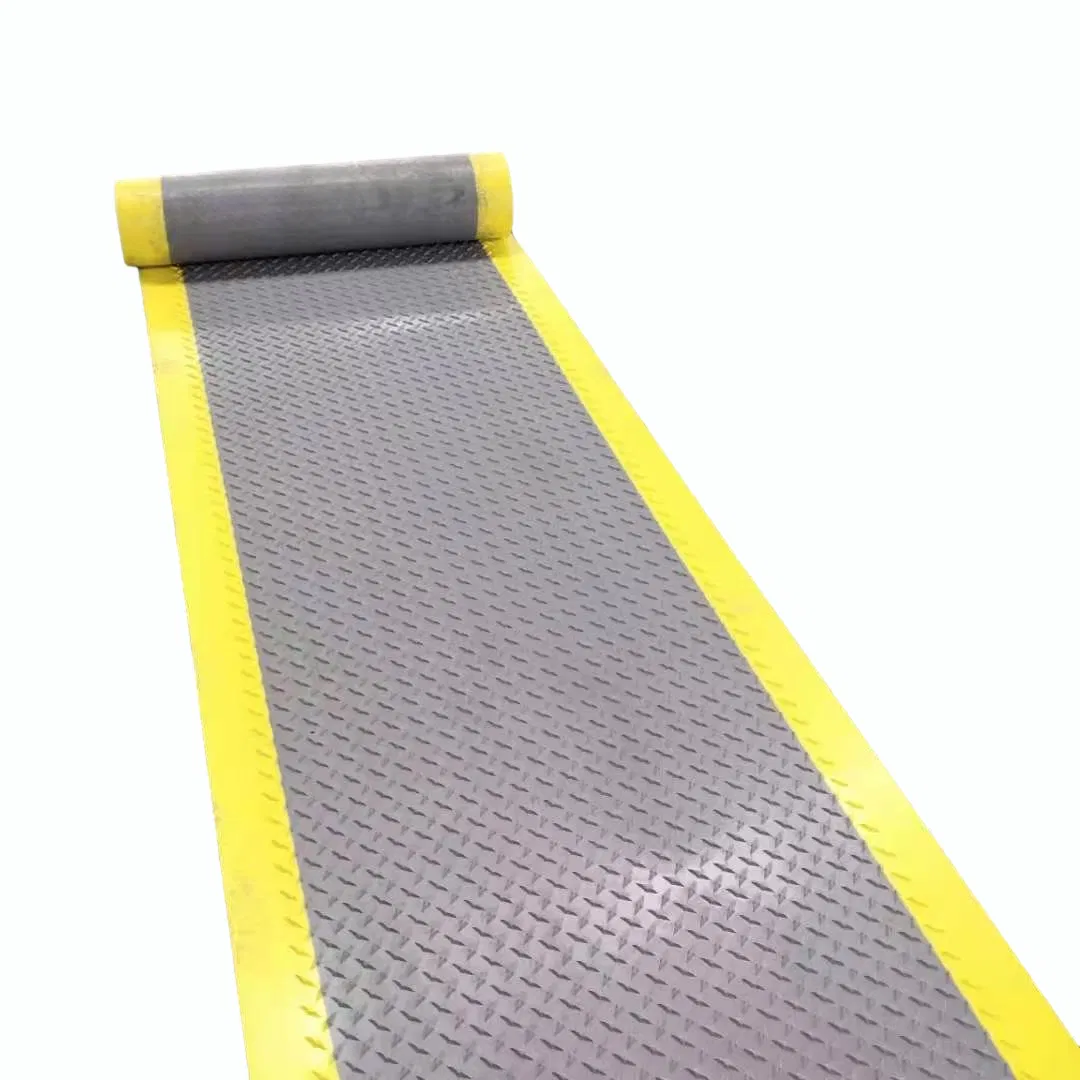

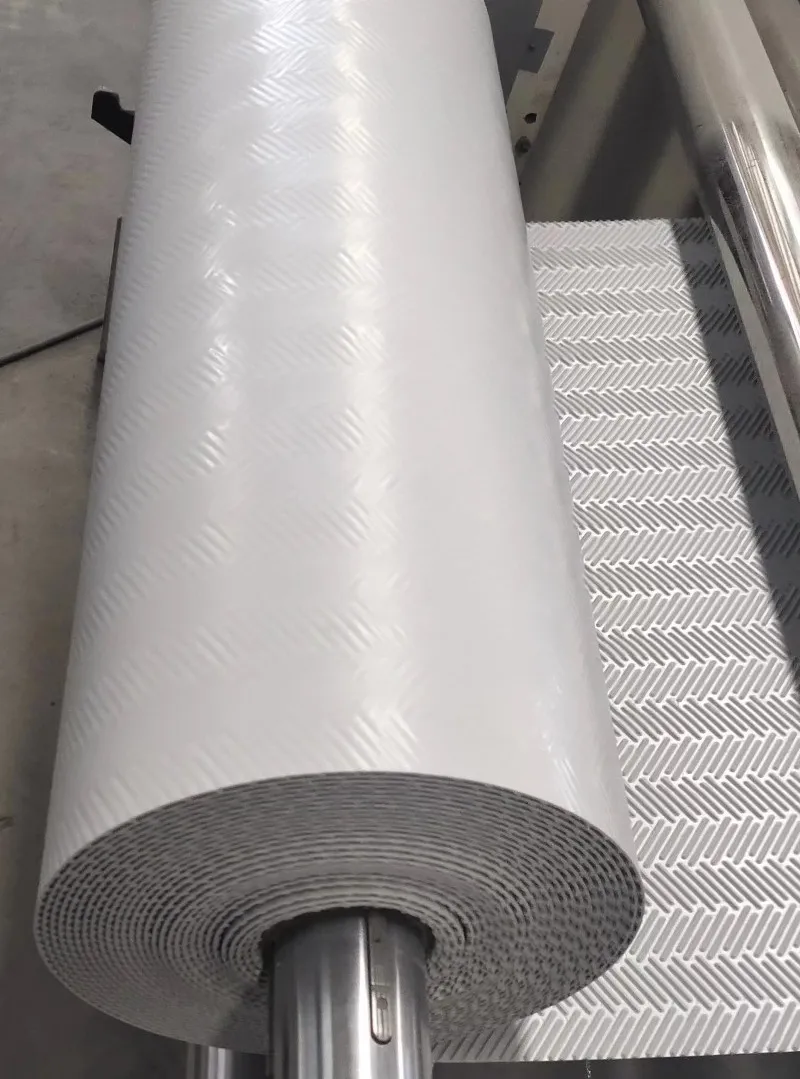

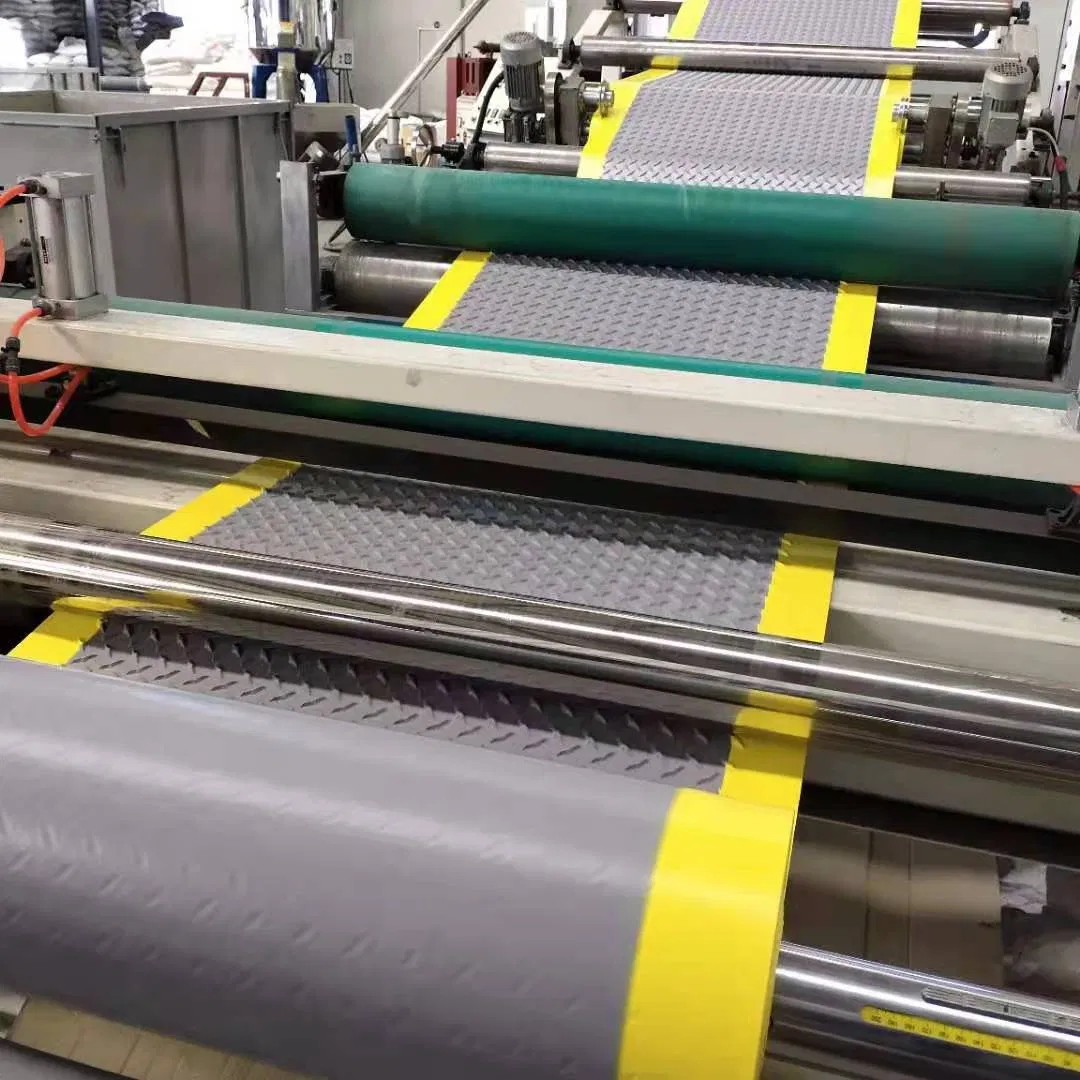

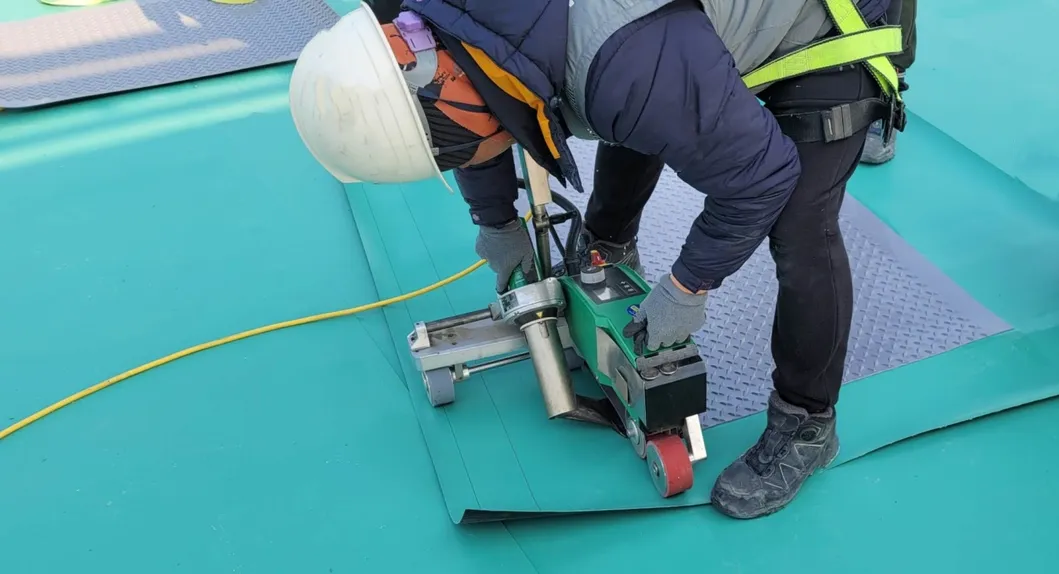

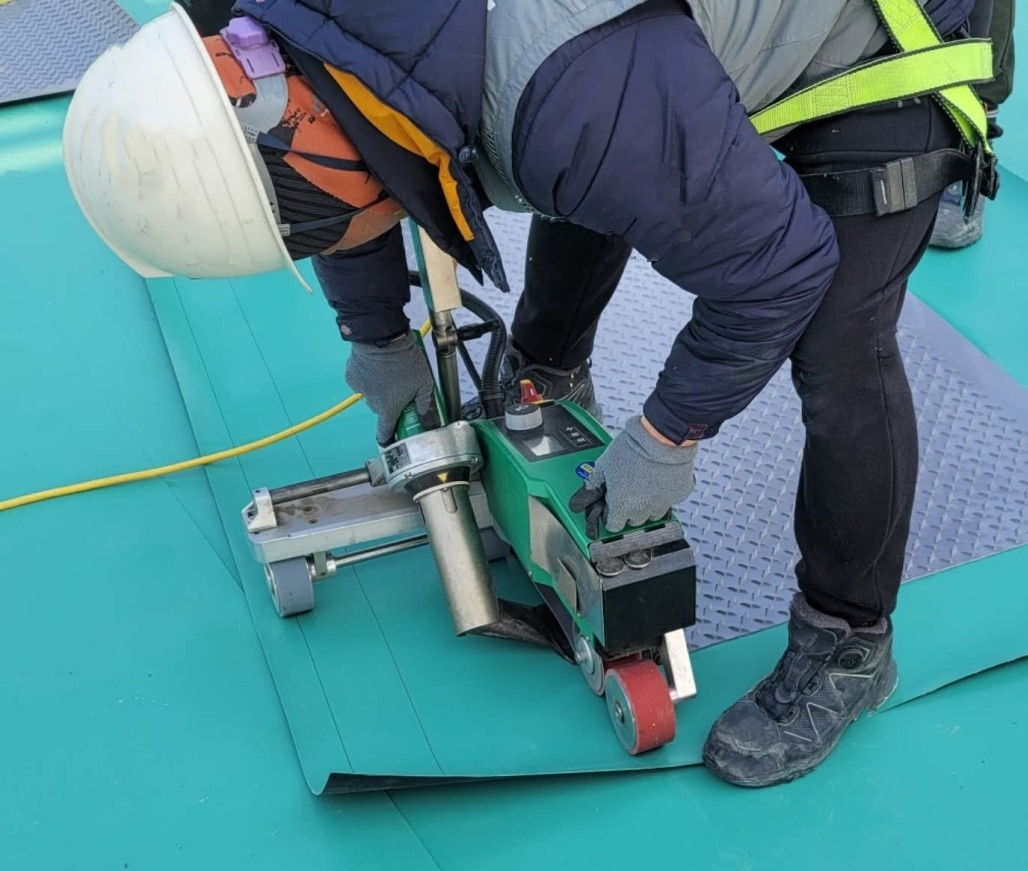

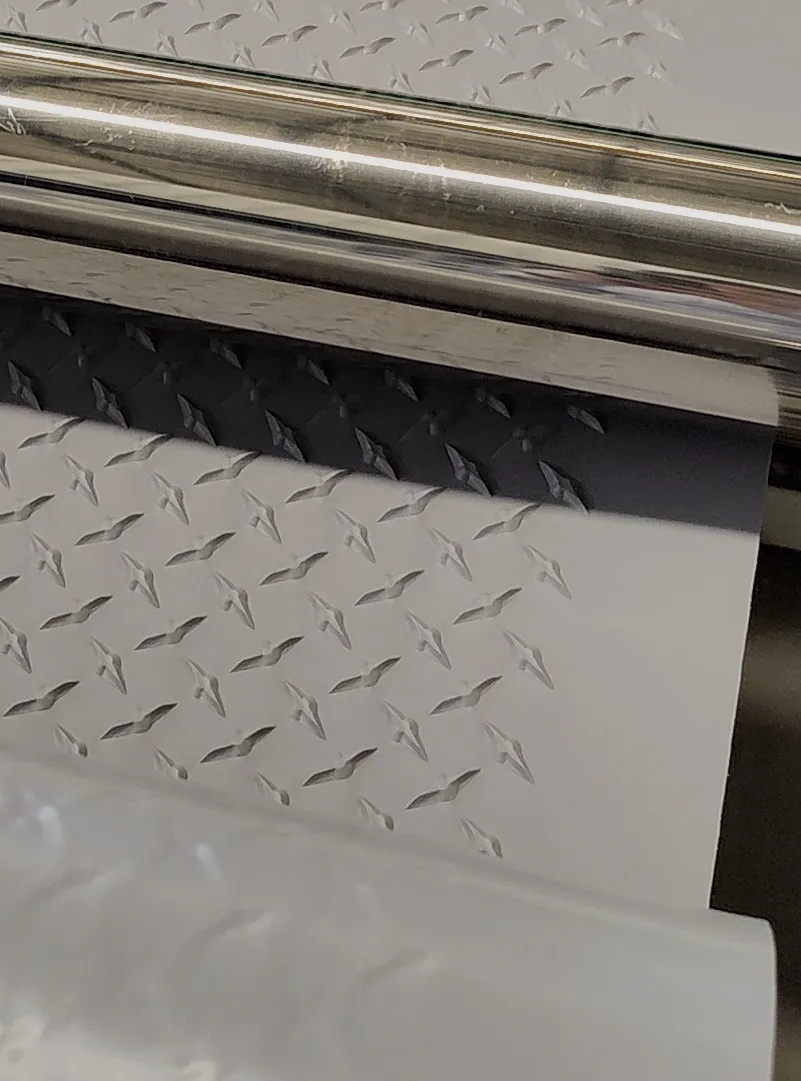

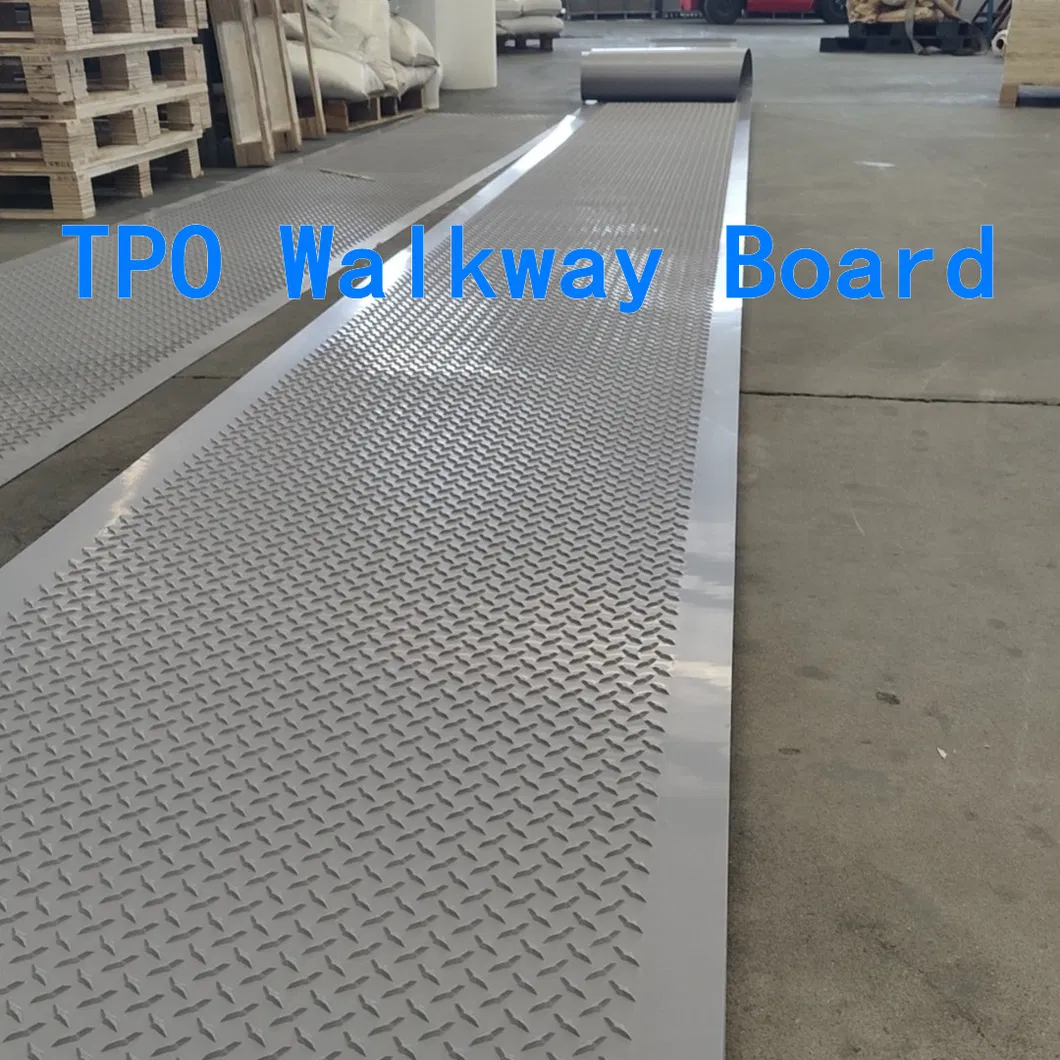

Thermoplastic Polyolefin Elastomer (TPO) Walkway Board is manufactured using independent cutting-edge technology and advanced process equipment, featuring a specialized anti-slip pattern. This walkway board is specifically designed for easy welding and provides high welding strength when integrated with roof TPO waterproof membrane materials. It is an environmentally friendly solution with exceptional durability and physical properties that meet the rigorous requirements of modern industrial roof designs.
| Performance Property | Type H | Type L | Type P |
|---|---|---|---|
| Resin thickness of Middle fabric (mm) | - | - | ≥ 0.4 |
| Maximum tension (N/cm) | - | ≥ 200 | ≥ 250 |
| Tension strength (Mpa) | ≥ 12 | - | - |
| Maximum tension elongation (%) | - | - | ≥ 15 |
| Fracture elongation (%) | ≥ 500 | ≥ 250 | - |
| Heat treatment size change rate (%) | ≤ 2.0 | ≤ 1.0 | ≤ 0.5 |
| Low temperature bend (-40°C) | No crack | ||
| Water tightness (0.3Mpa, 2h) | No seepage | ||
| Seam strip strength (N/mm) | ≥ 4.0 | ≥ 3.0 | |
