Total Scaffolding Manufacturer Hub
Main products include: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, and Couplers.

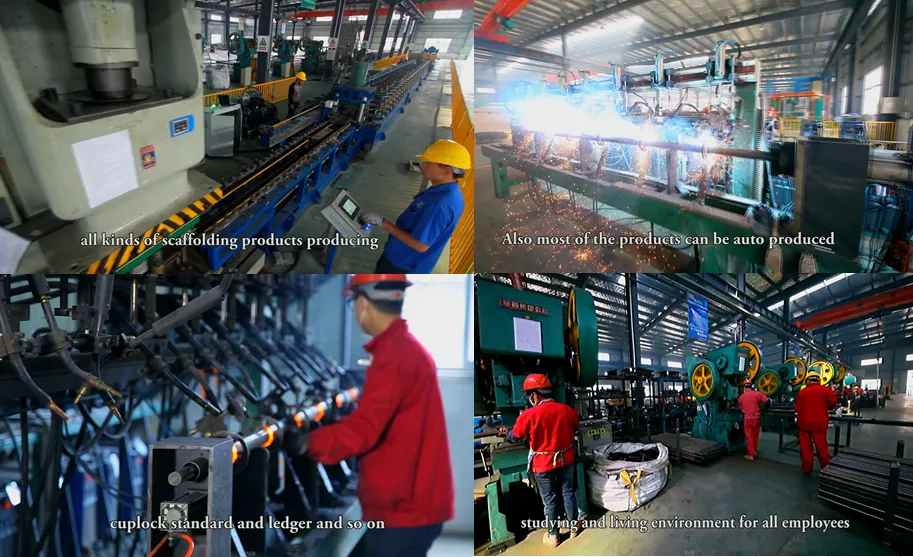

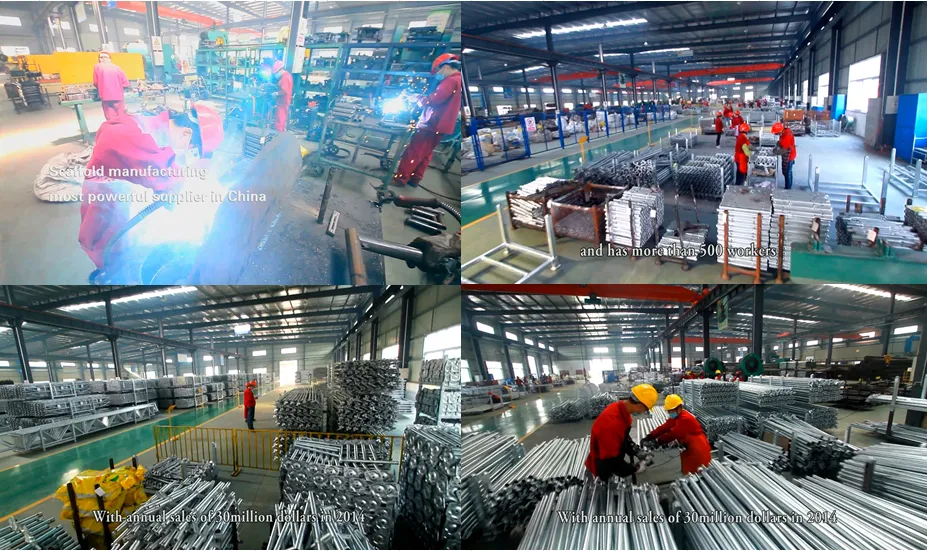

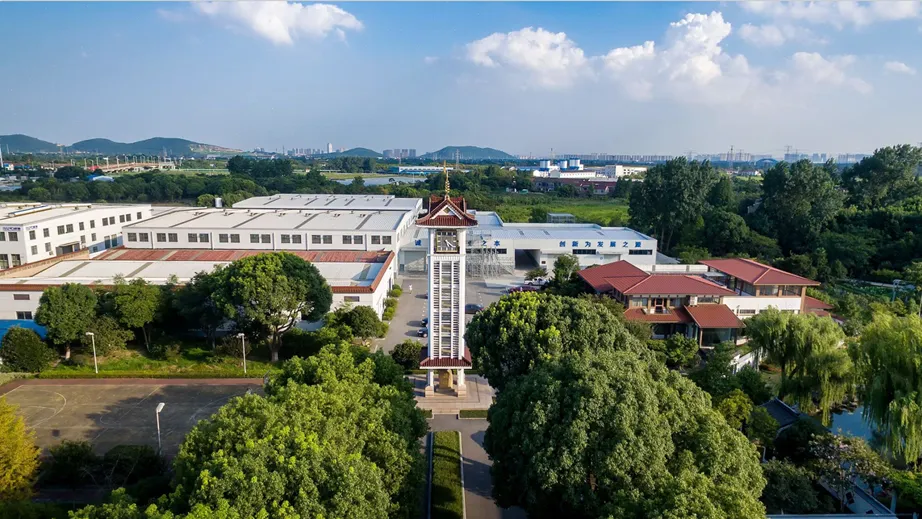

Wuxi Manufacturing Facility

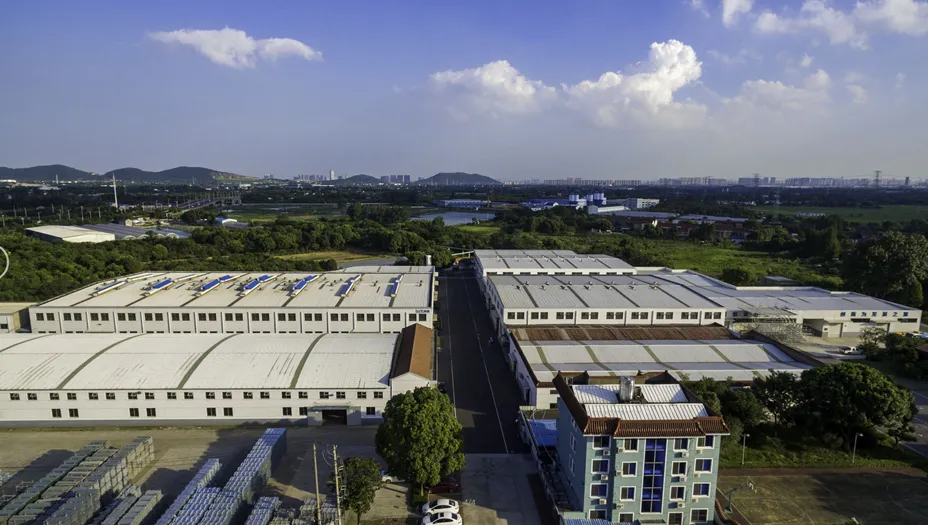

Tangshan Manufacturing Facility

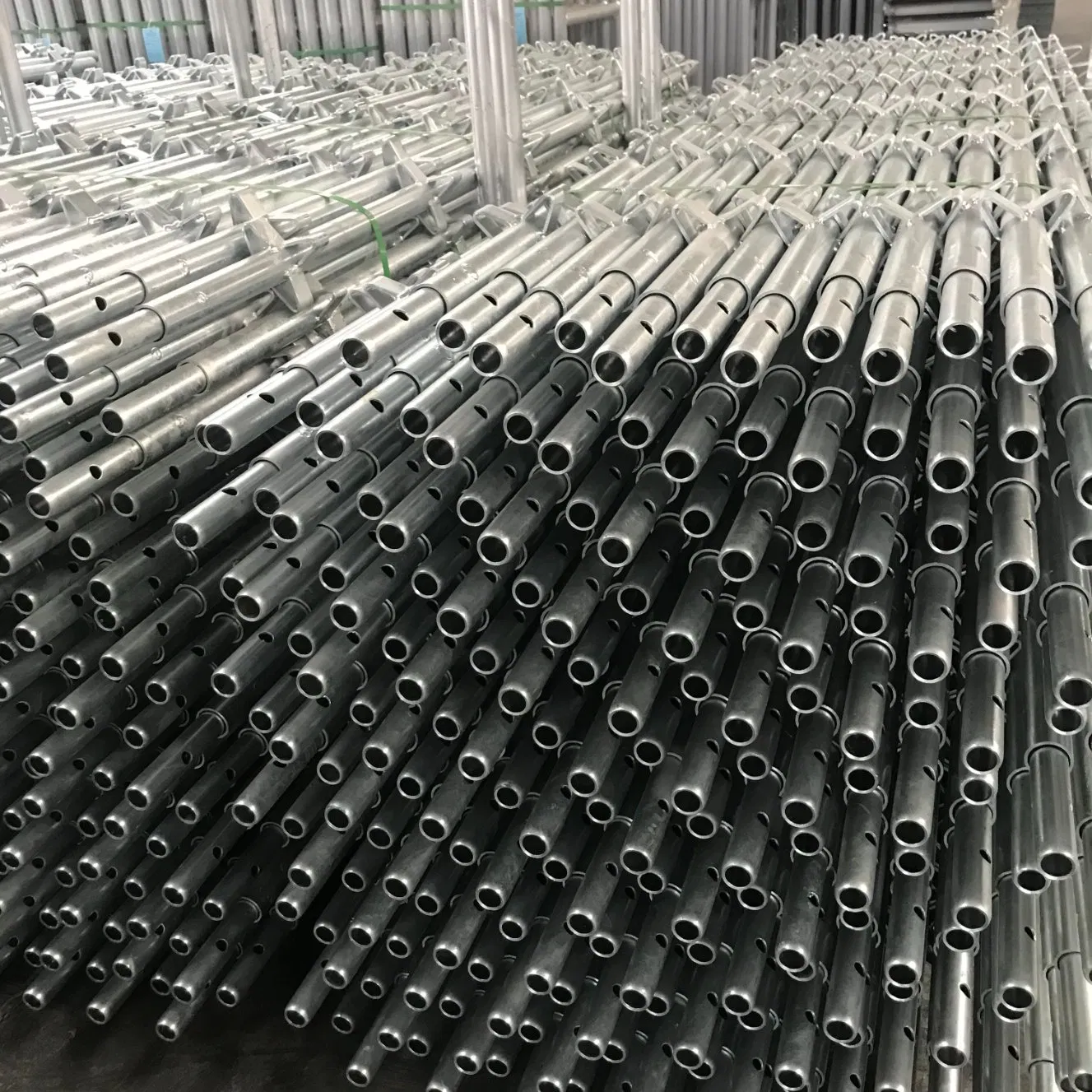

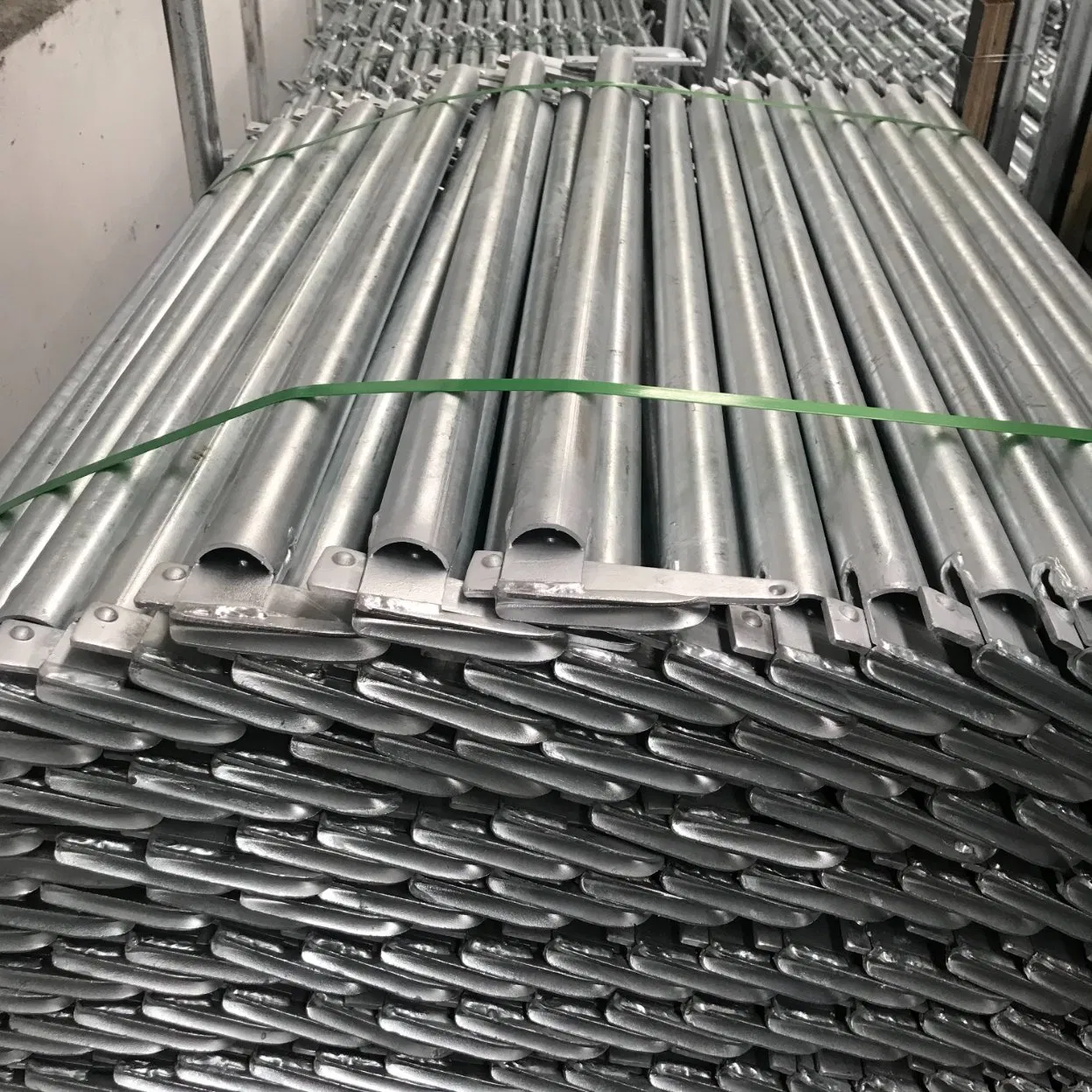

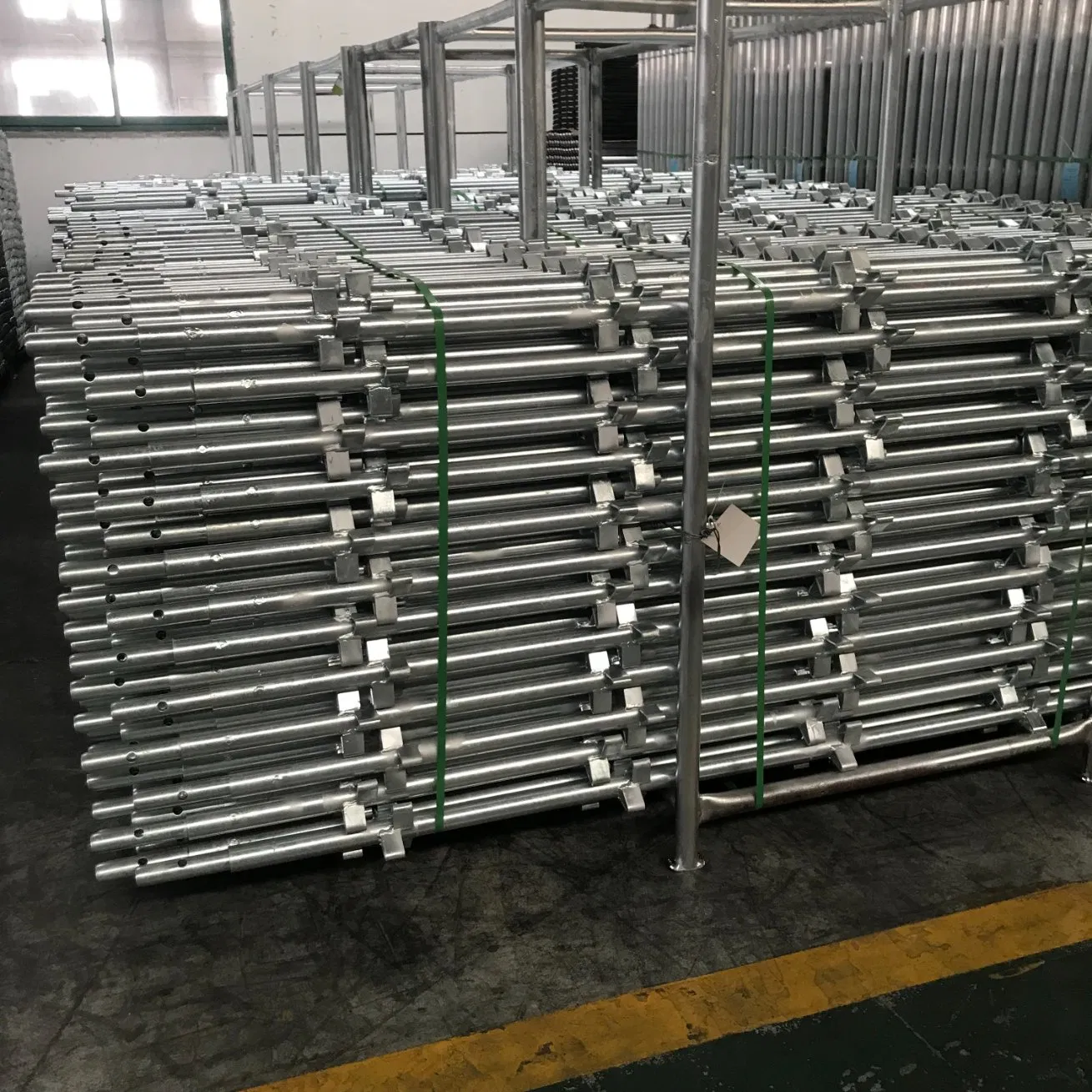

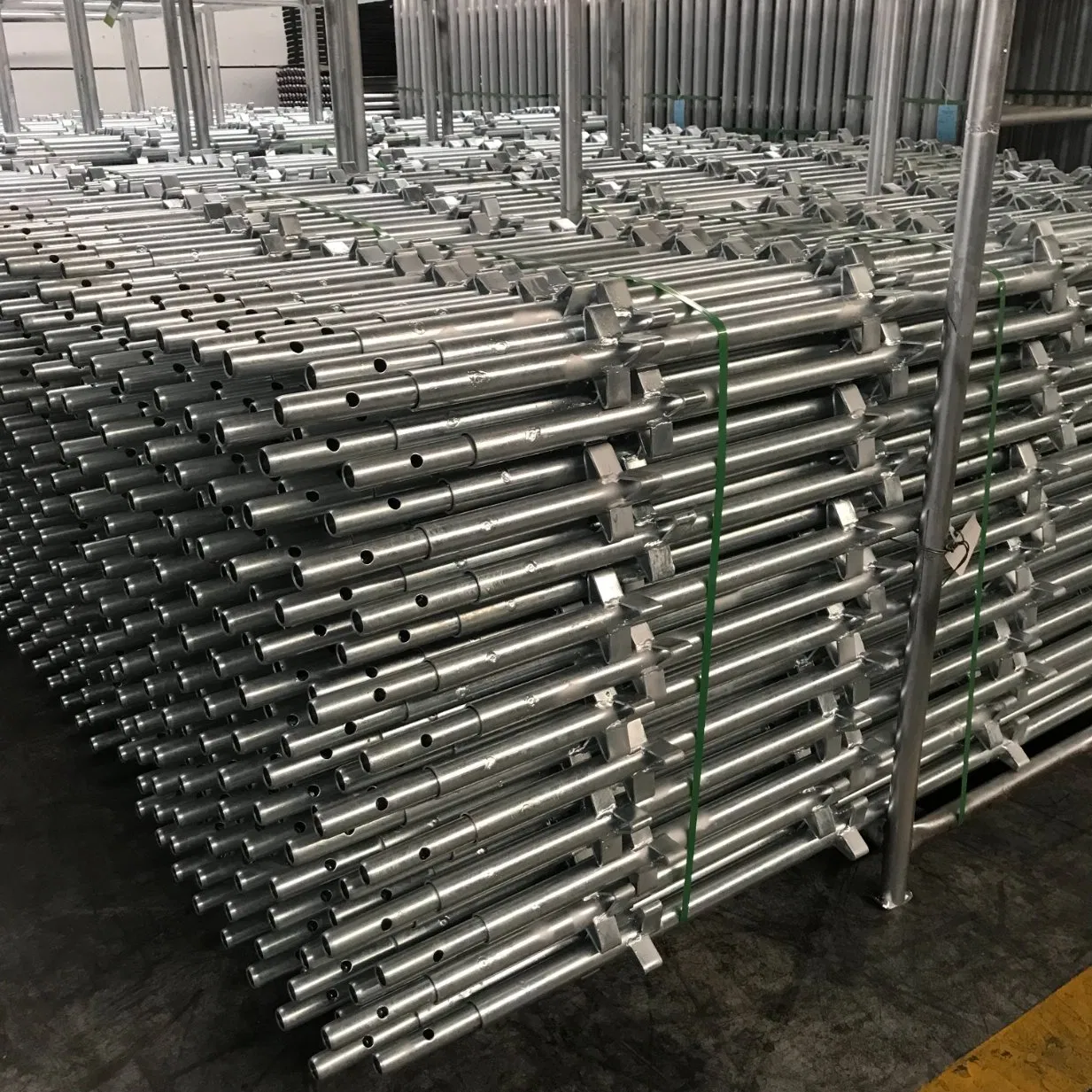

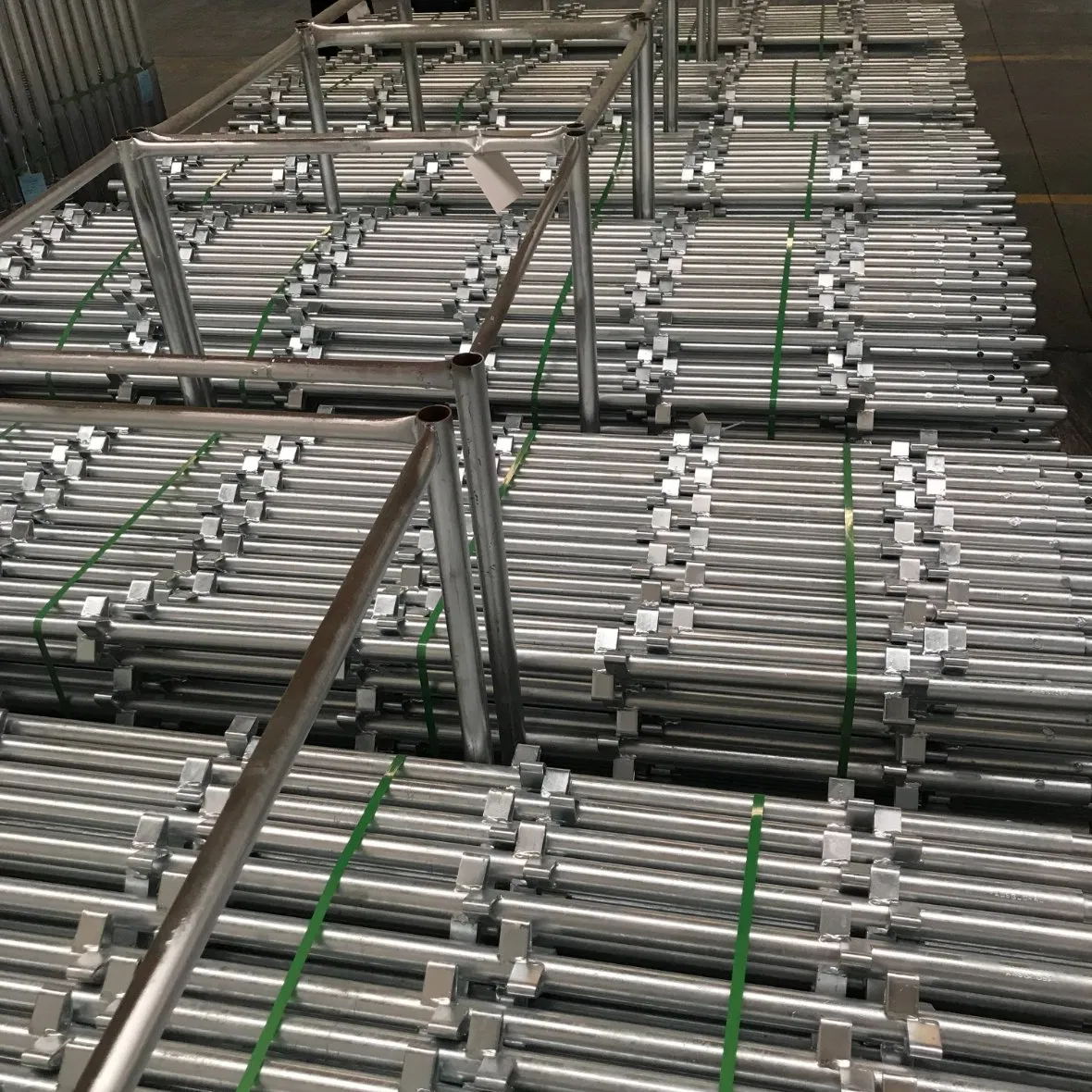

Kwikstage is a versatile and heavy-duty modular scaffold system. It is the most common method of access for work at heights on Residential, Commercial & Industrial building projects around the world. Kwikstage comprises a vast array of components that provide an extremely adaptable scaffold solution.
It is critical to the success of any building project that your site is safe for trades to work at height. Kwikstage scaffold is one of the best ways to satisfy WorkSafe regulations and provide effective access for trades to work quickly and efficiently.
Kwikstage scaffold can be used for all external works, including brickwork, rendering, carpentry & cladding installation. Provisions can also be made for roof guardrails, gutters, and facia installation.
Available Finishes: Painted or Hot Dip Galvanised.

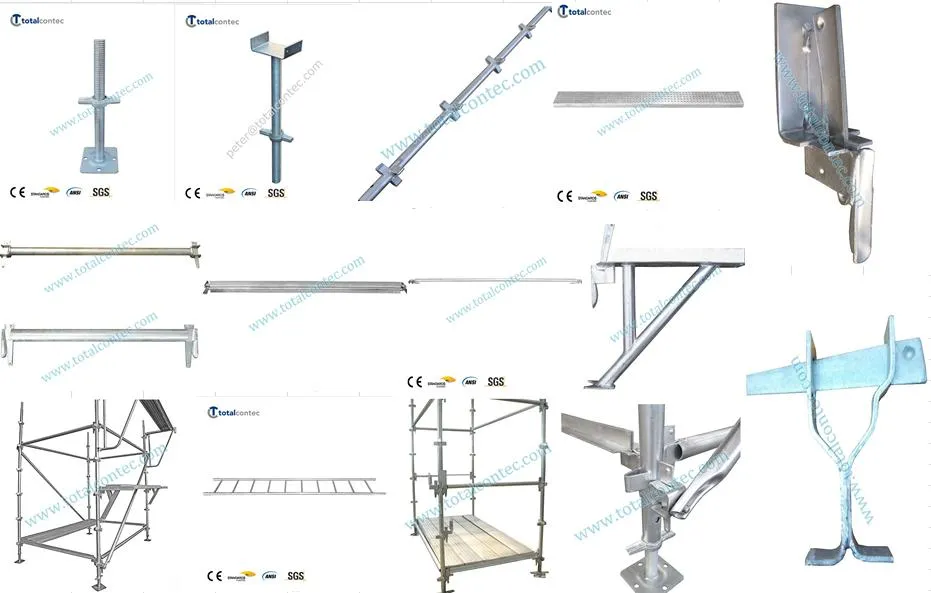

| Item Name | Materials | Weight | Surface Treatment |
|---|---|---|---|
| Ledger/Horizontal 076 | Q235, Q345 48.3*2.75/3.0/4.0mm | 3.85kg | Hot dip galvanized Powder coated Painted |
| Ledger/Horizontal 127 | 5.01kg | ||
| Ledger/Horizontal 183 | 7.61kg | ||
| Ledger/Horizontal 244 | 10.01kg | ||
| Transom 076 | Q235 50*50*5mm | 5.4kg | Hot dip galvanized Powder coated Painted |
| Transom 127 | 9.5kg | ||
| Transom 244 | 23.2kg | ||
| Diagonal/brace 170 | Q235 48.3*2.5mm | 7.5kg | Hot dip galvanized Powder coated Painted |
| Diagonal/brace 250 | 10.5kg | ||
| Diagonal/brace 360 | 13.5kg | ||
| Steel Plank/Deck 076 | Q235 1.2mm/1.5mm/1.8mm | 4.0kg | Hot dip galvanized Powder coated Painted |
| Steel Plank/Deck 180 | 10.5kg | ||
| Steel Plank/Deck 240 | 15.0kg |
