Structural Style
Multi-Pole Scaffolding
Framework
Combined Scaffolding
Supporting Mode
Floor Type Scaffolding
Lapping Form
Double Scaffolding
Erection Position
Internal Scaffolding
Move Method
Integral Lifting Scaffolding
Scaffolding Part Type
Scaffolding Frames
Construction Properties
Installation Scaffold
Product Name
Cuplock Scaffolding System
Surface Treatment
Hot-DIP Galvanized / Painted / Cold Galvanized
Connection Method

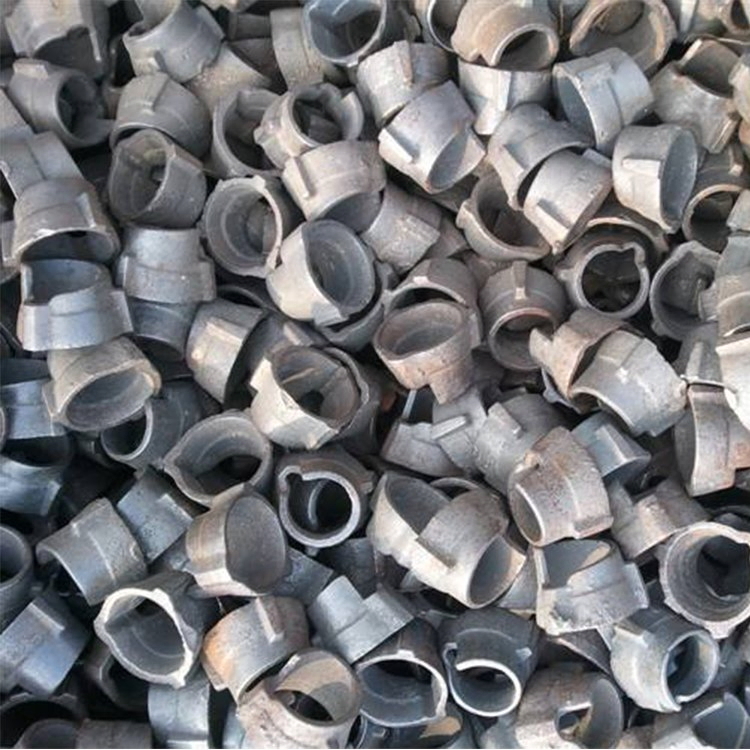

Cup and Lock (Top & Bottom Cups)
Load Capacity
up to 60kN Per Standard
Color
Silver / Grey / Custom
Application
Building, Bridge, Tunnel, Formwork, Stage
Standard Certification
En12810 / En12811 / As1576 / ISO9001
Production Capacity
15000 Tons/Month

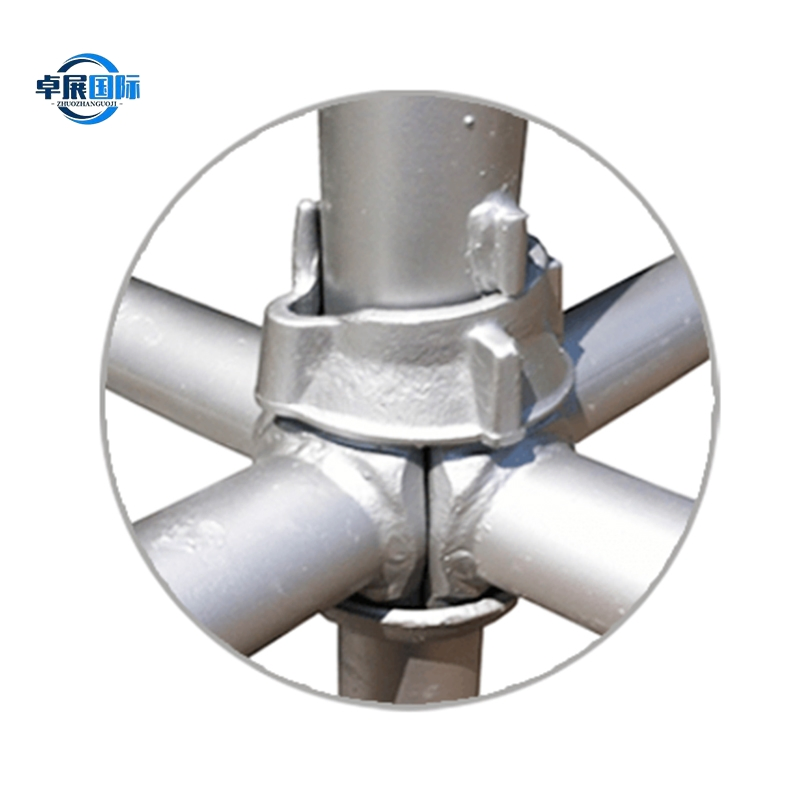

Cuplock scaffolding is a modular system scaffold widely used in construction, infrastructure, and industrial projects. It adopts a unique cup-and-lock joint connection, which allows quick fastening of ledgers and braces to the vertical standards without the need for bolts or loose fittings. This simple locking mechanism ensures fast installation, high strength, and excellent stability.

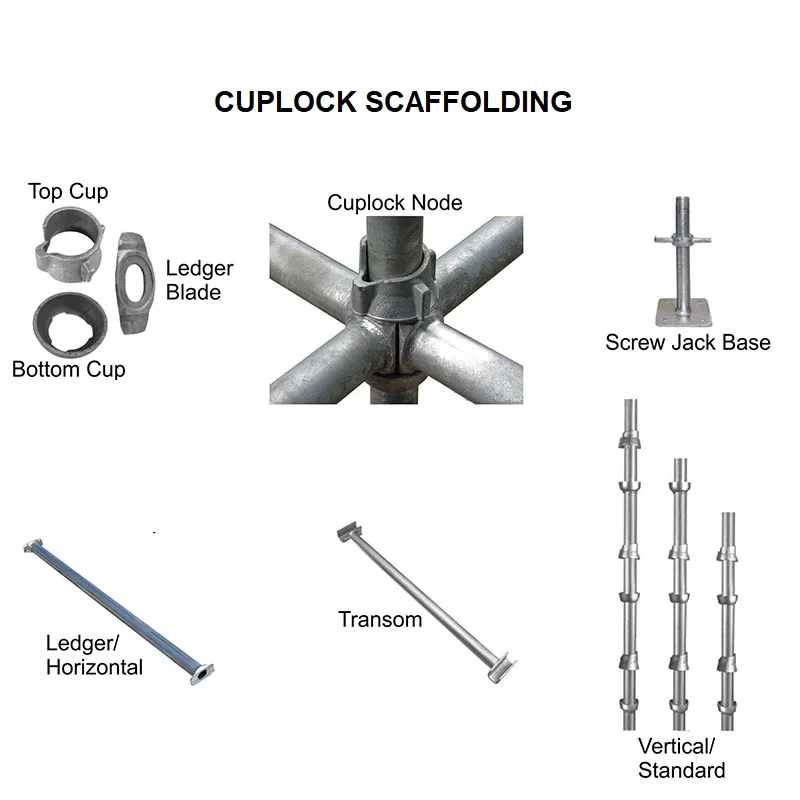

The system is designed with standardized modular components including verticals, ledgers, diagonal braces, base jacks, U-head jacks, steel planks, guardrails, and toe boards. The 500mm interval cup joints on the standards provide flexible height adjustment and versatile combinations for different structures.
| Component |
Common Sizes (mm) |
Tube Diameter & Thickness (mm) |
Description |

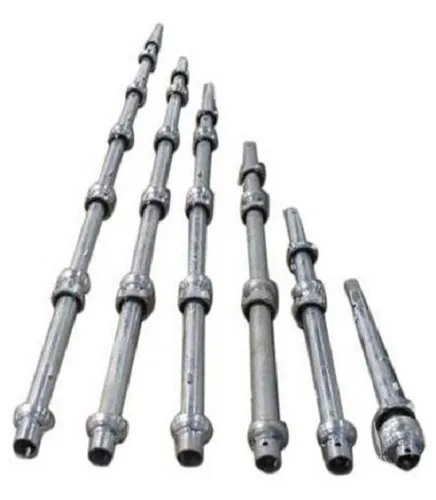

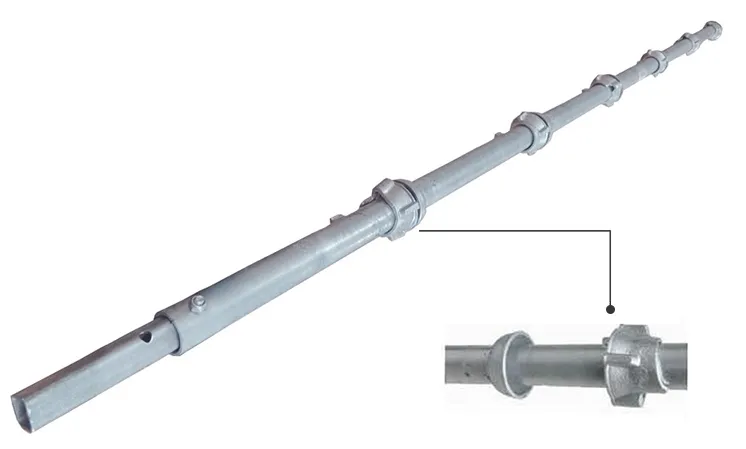

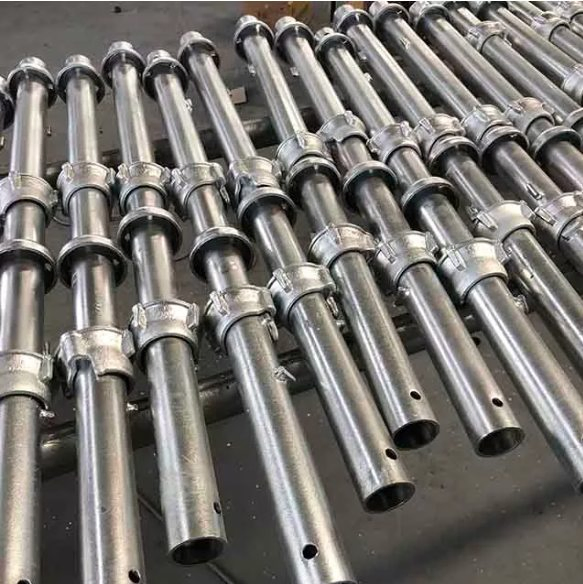

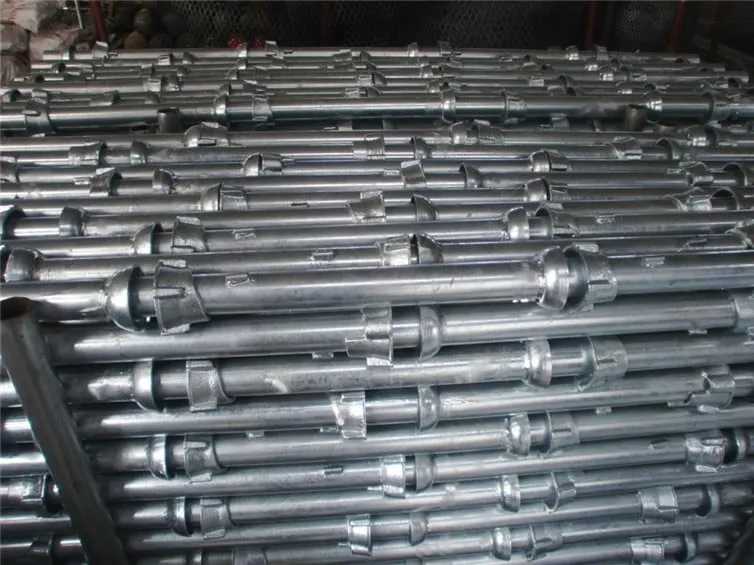

| Vertical (Standard) | 500 / 1000 / 1500 / 2000 / 2500 / 3000 | #48.3 × 3.2 / 3.25 | With top and bottom cup joints, spacing every 500mm |

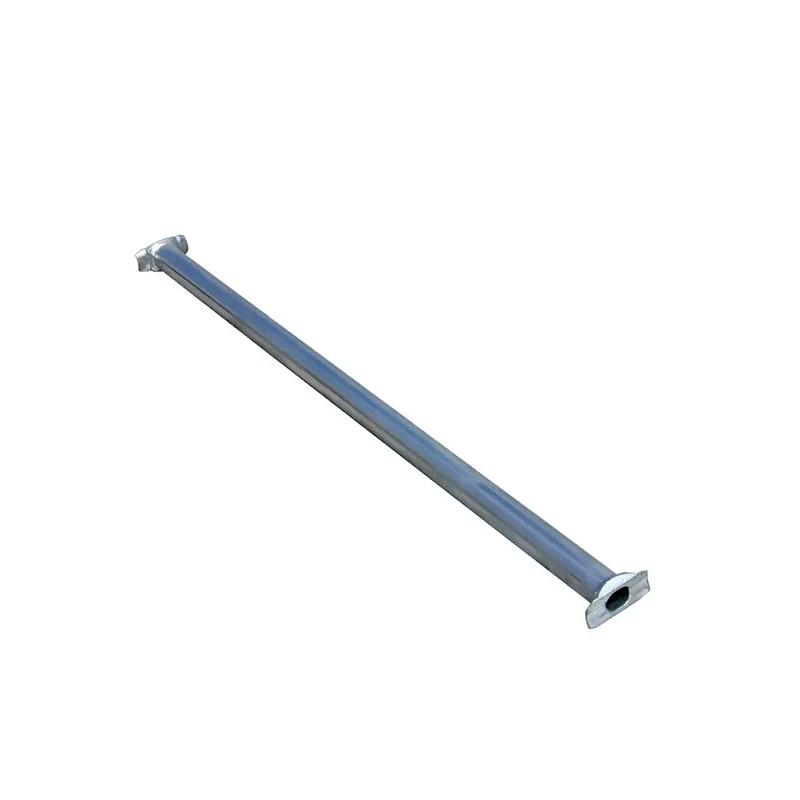

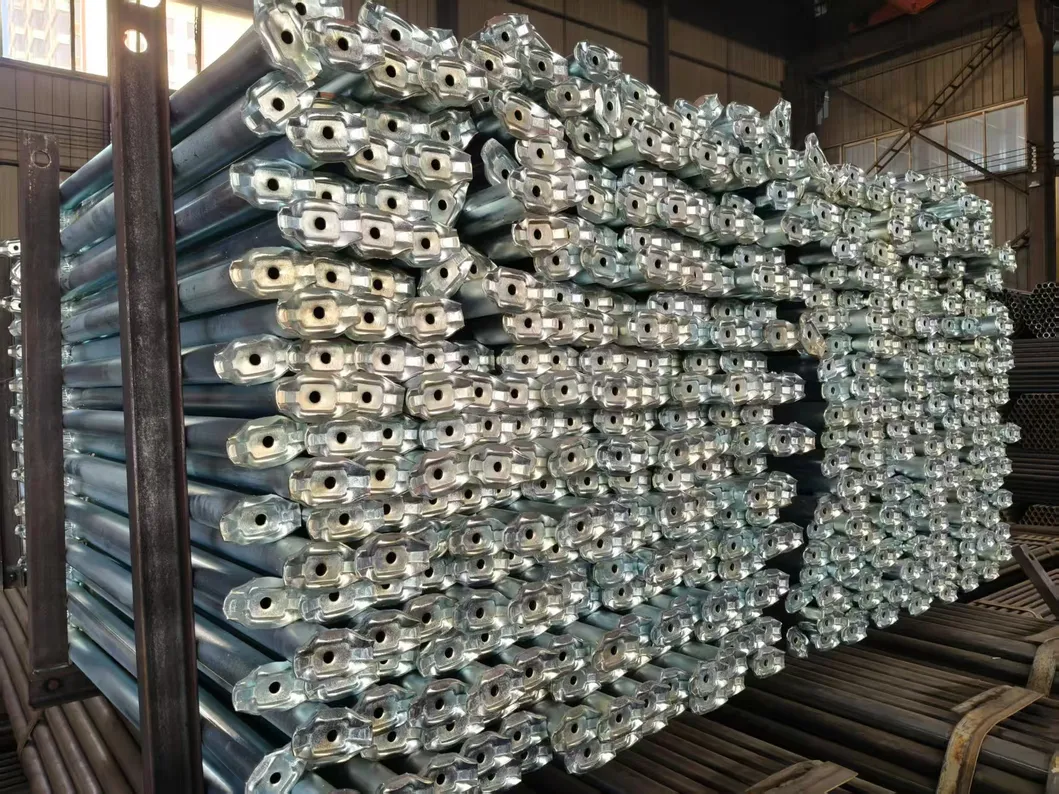

| Ledger (Horizontal) | 500 / 1000 / 1250 / 1500 / 2000 / 2500 | #48.3 × 3.0 / 3.25 | Both ends with forged blade, locked into cup joint |

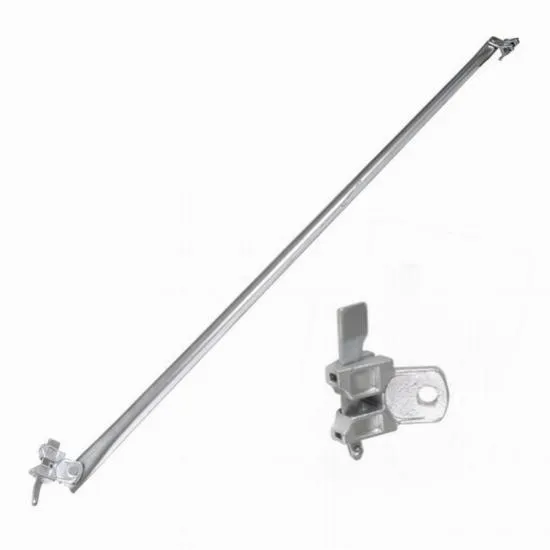

| Diagonal Brace | 1500 / 2000 / 2500 / 3000 / 4000 | #48.3 × 3.0 | With swivel blade at both ends for bracing |

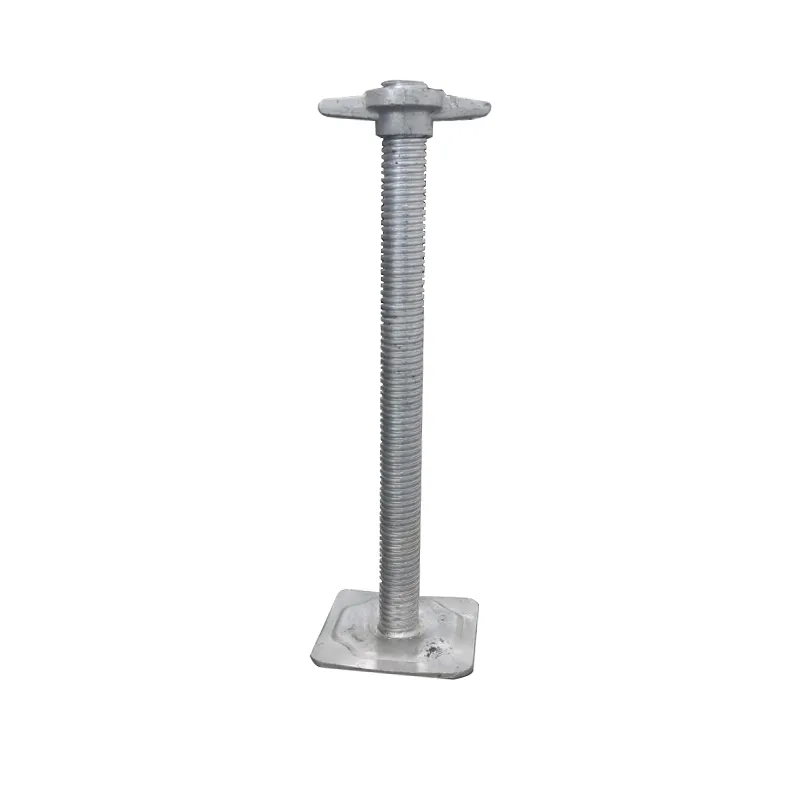

| Adjustable Base Jack | 500 / 600 | #38 / #48 threaded screw | For height adjustment at the bottom of verticals |
| Adjustable U-Head Jack | 600 / 750 | #38 / #48 threaded screw | For supporting beams or formwork at the top |

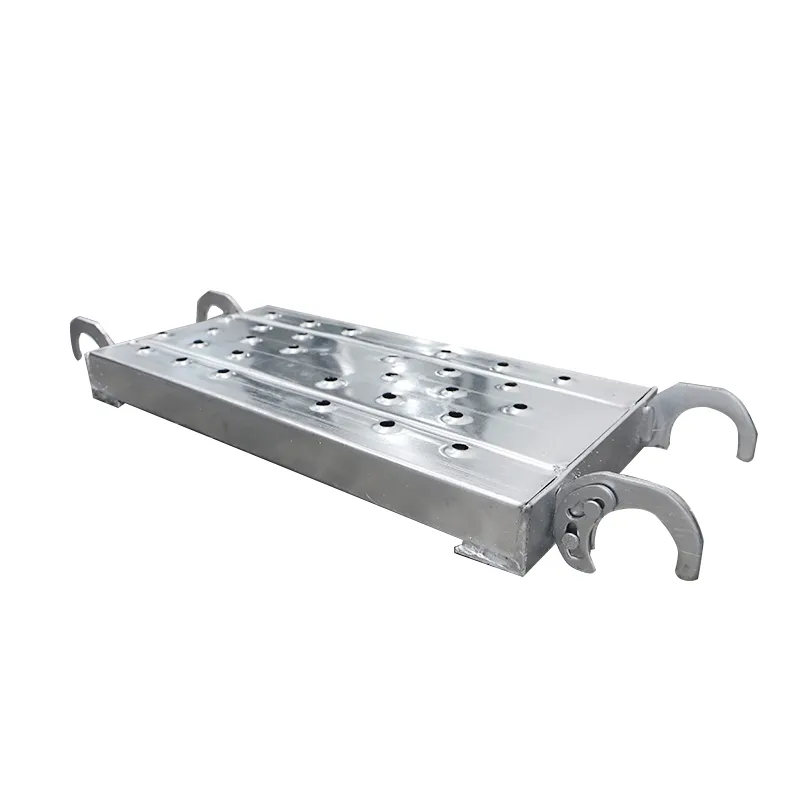

| Steel Plank | 210×45×1000/1500/2000/3000 | Steel sheet 1.2-1.5mm | With anti-slip holes and hooks |

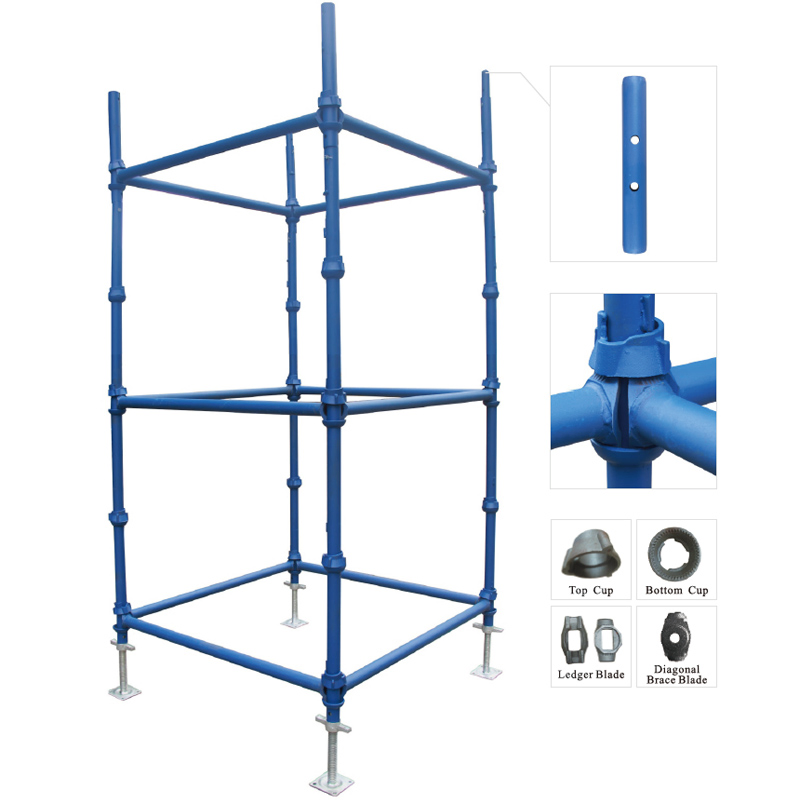

Our cuplock scaffolding features high-strength vertical standards with cup joints every 500mm for flexible assembly; horizontal ledgers with precision forged blade ends for quick connection; and diagonal braces for strong structural support. Adjustable base jacks allow easy height leveling, while U-head jacks support beams and formwork.
Quick and Easy Assembly: Simple cup-and-lock joint design allows fast erection and dismantling without bolts, saving labor and time.
High Load Capacity: Each vertical can carry 40-60kN, suitable for high-rise buildings and heavy-duty projects.
Durable Surface: Hot-dip galvanized surfaces ensure long service life with minimal maintenance.

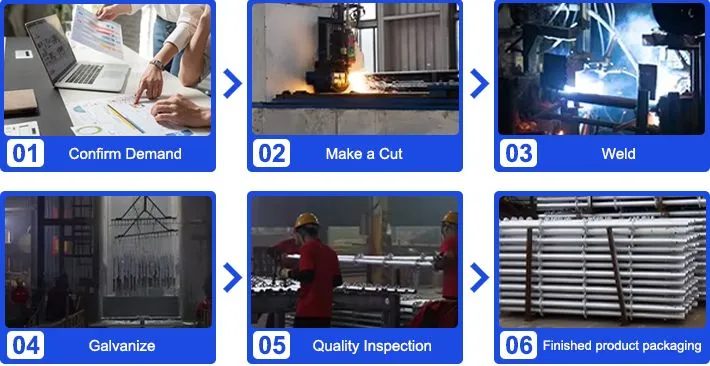

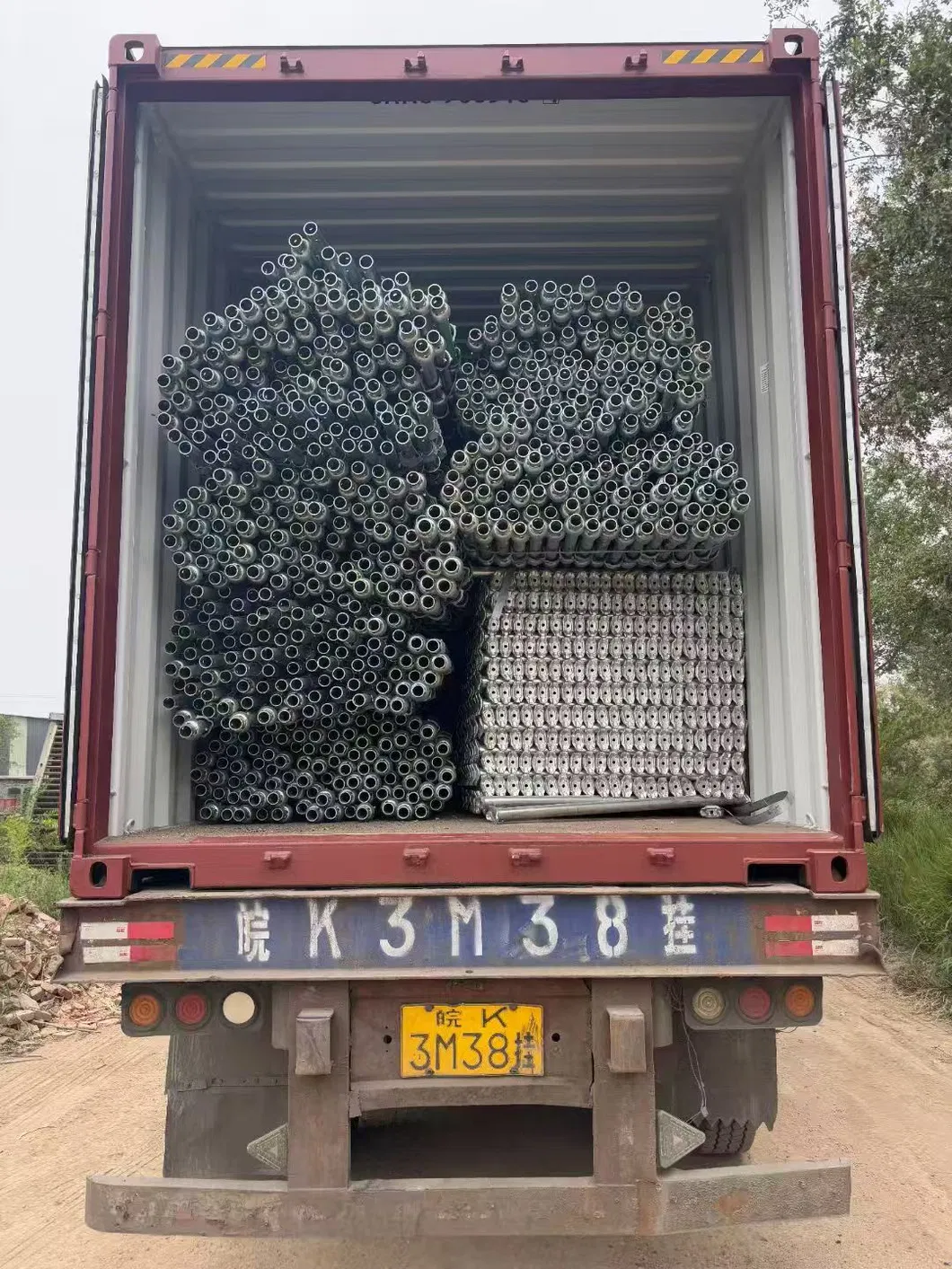

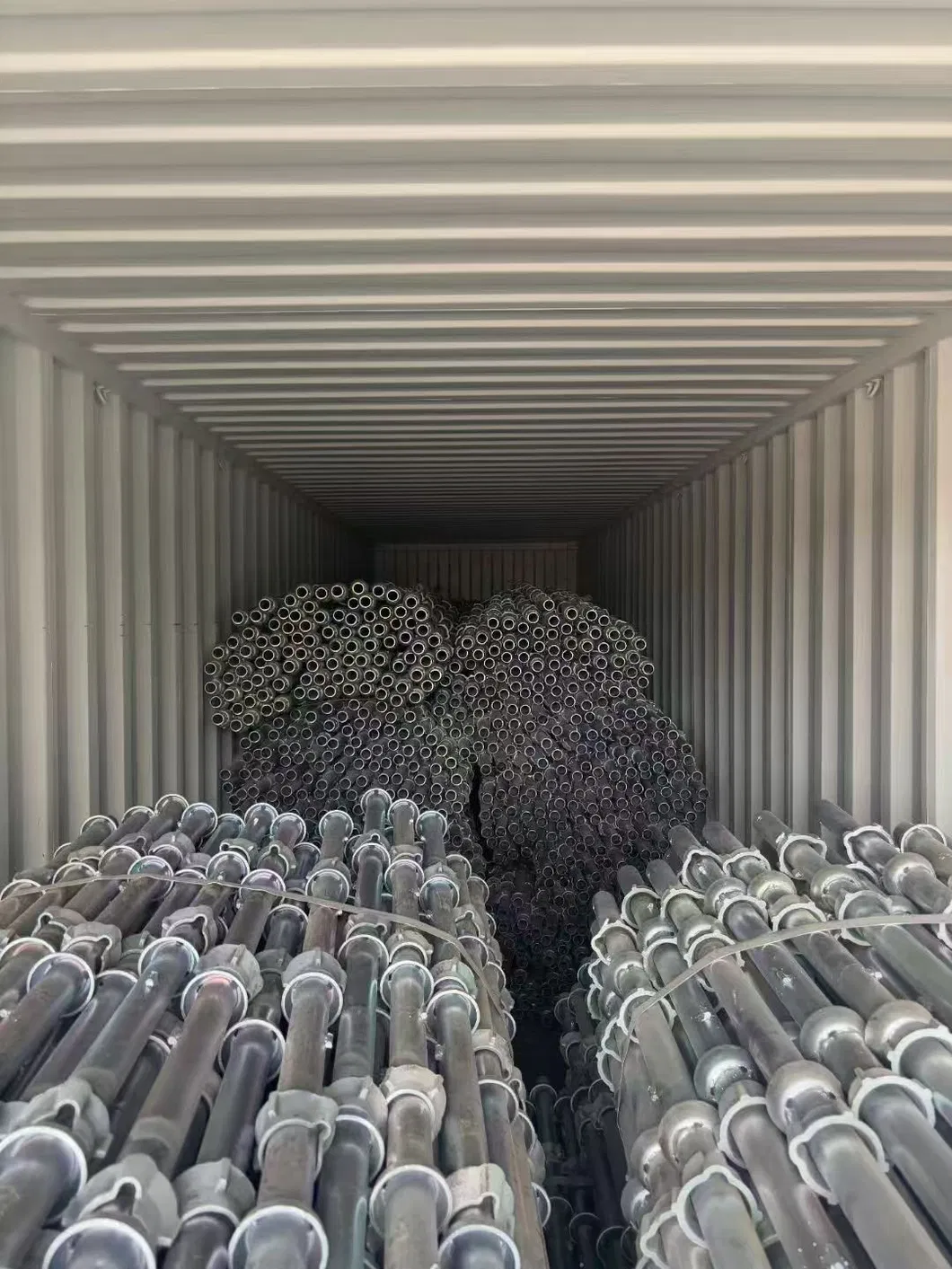

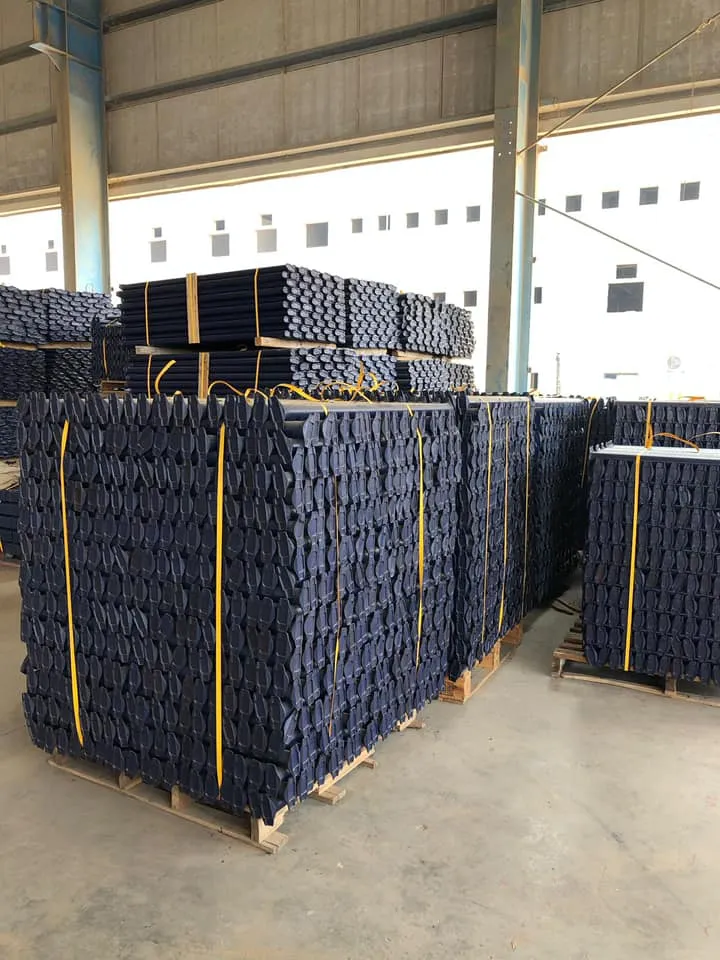

Frame scaffolding involves raw material preparation, cutting, forming, welding, surface treatment, inspection, and packaging. Q345B or Q235B steel is cut and formed into components, welded precisely, then hot-dip galvanized or coated for corrosion protection. After quality checks on dimensions, welds, and load capacity, parts are bundled for shipment.
📜

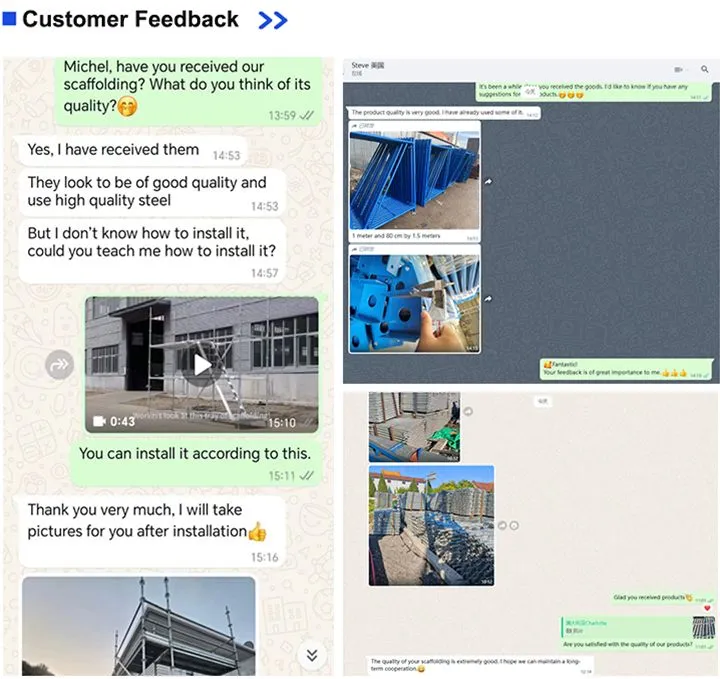

Certifications & Feedback
Our products have obtained internationally recognized certifications including EN12810/EN12811, AS/NZS 1576, and ISO 9001. We provide inspection services from organizations such as SGS, TÜV, and BV.
?
Frequently Asked Questions
Q1: What is cuplock scaffolding?
A1: Cuplock scaffolding is a modular system scaffold that uses a unique cup-and-lock joint for quick and secure assembly.
Q2: What are the main components of cuplock scaffolding?
A2: The main components include vertical standards, horizontal ledgers, diagonal braces, adjustable base jacks, U-head jacks, steel planks, guardrails, toe boards, and spigot pins.
Q3: What are the advantages of cuplock scaffolding?
A3: It has high load capacity, quick assembly without bolts, strong stability, versatile applications, and durable galvanized surface.
Q4: Where can cuplock scaffolding be used?
A4: It is widely used in building construction, bridges, tunnels, shipyards, staging, and formwork support.
Q5: What is the surface treatment of cuplock scaffolding?
A5: The surface is usually hot-dip galvanized for corrosion resistance and long service life, but painted or cold galvanized options are also available.
Q6: Is cuplock scaffolding reusable?
A6: Yes, with proper maintenance it can be reused for many years, making it cost-effective.
