Main products: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, Couplers.

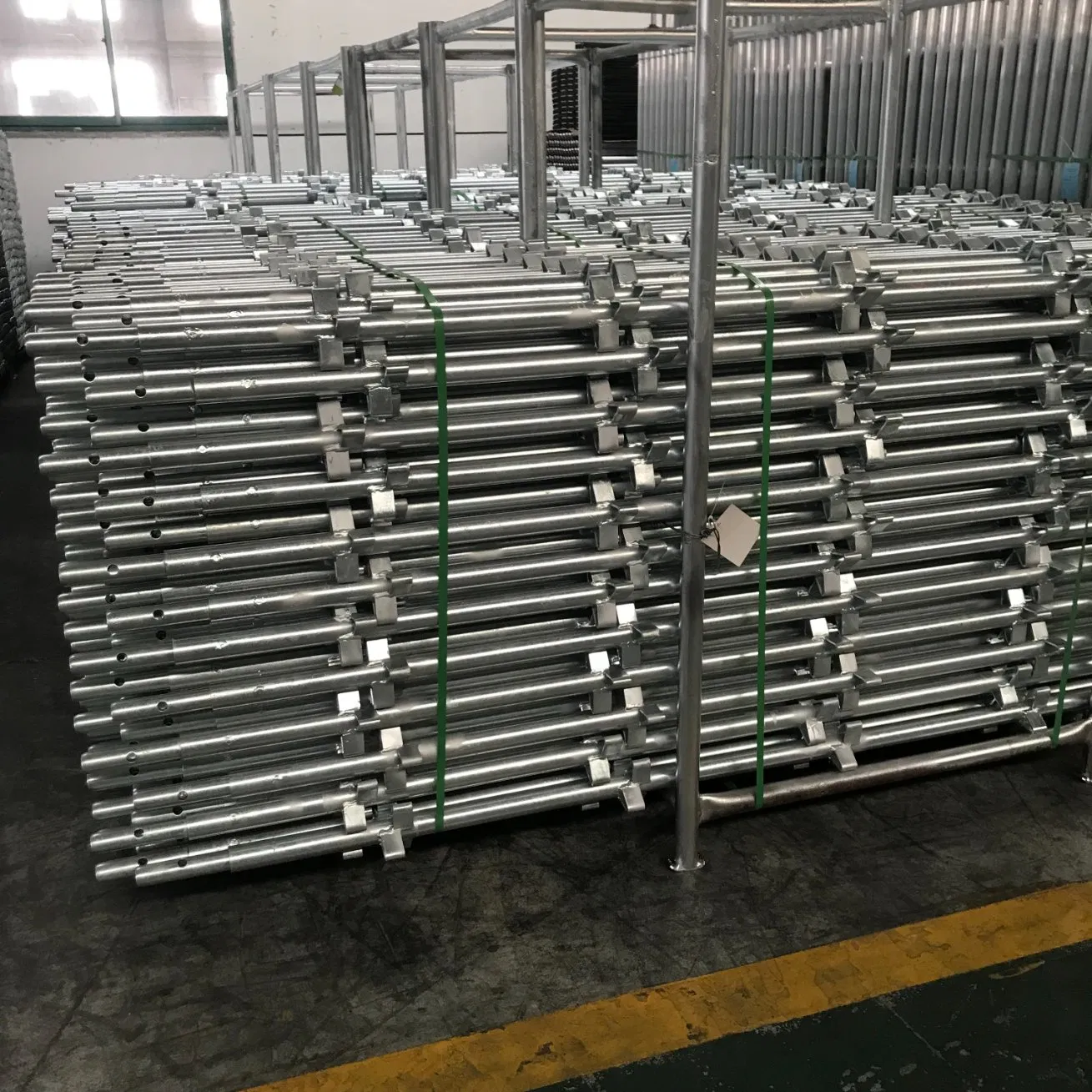

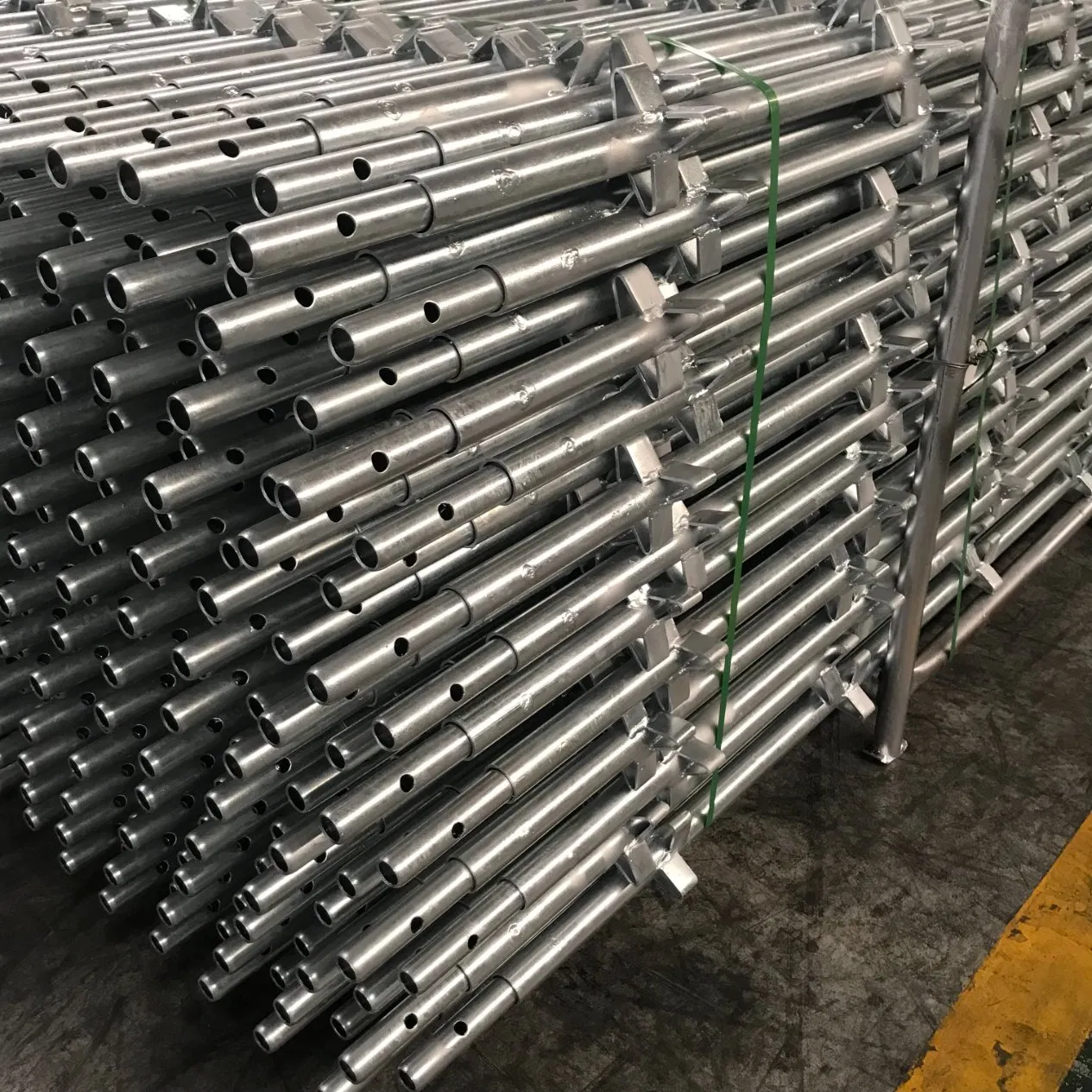

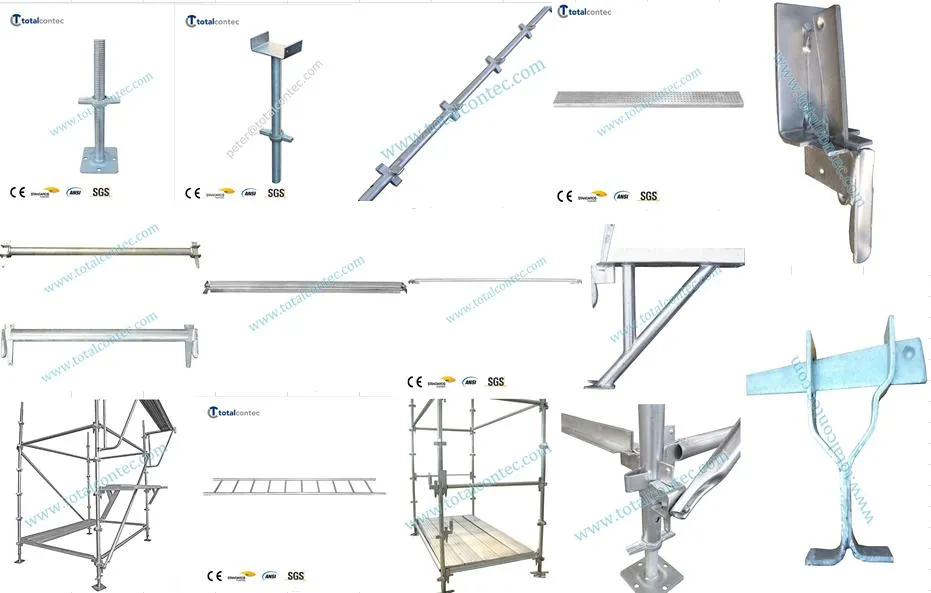

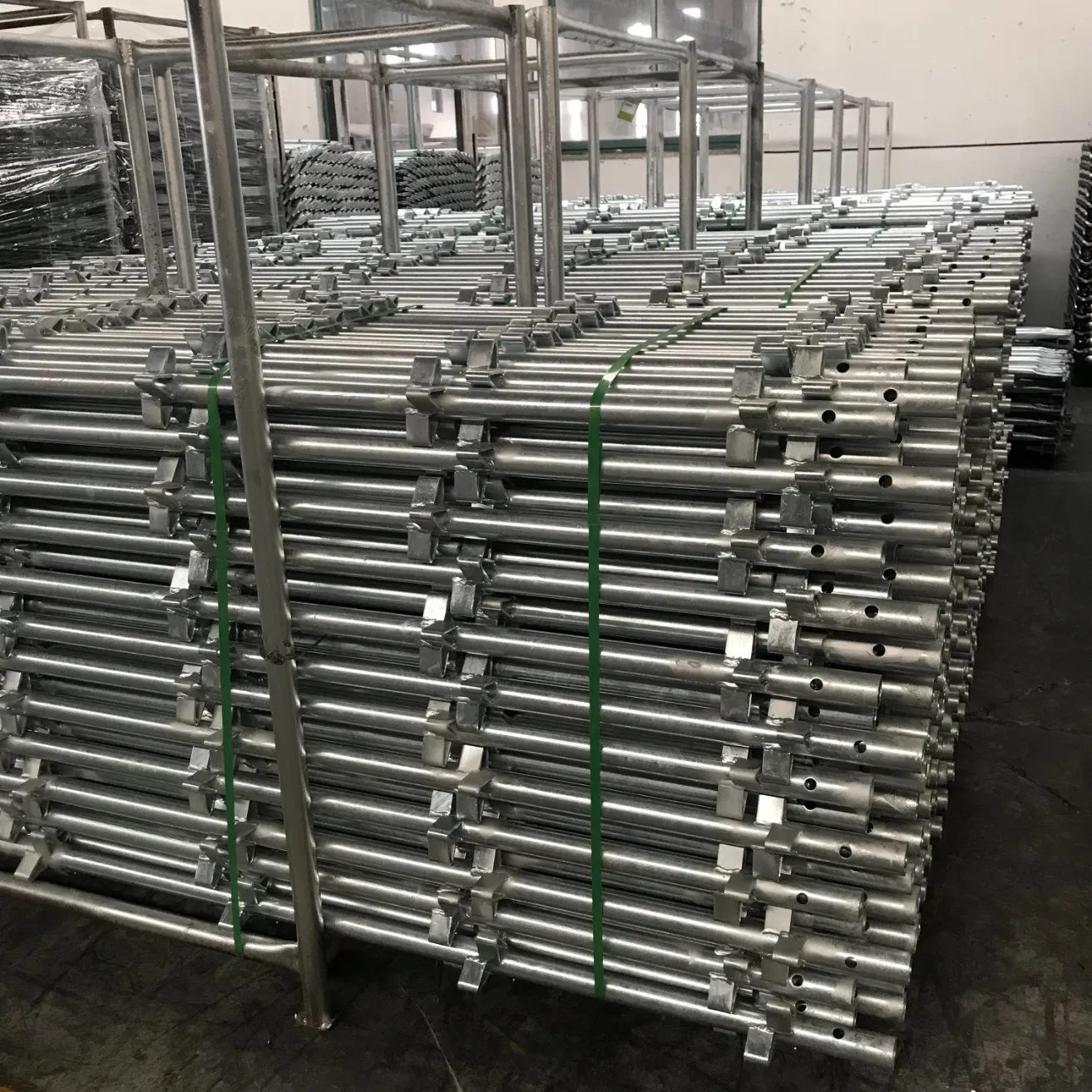

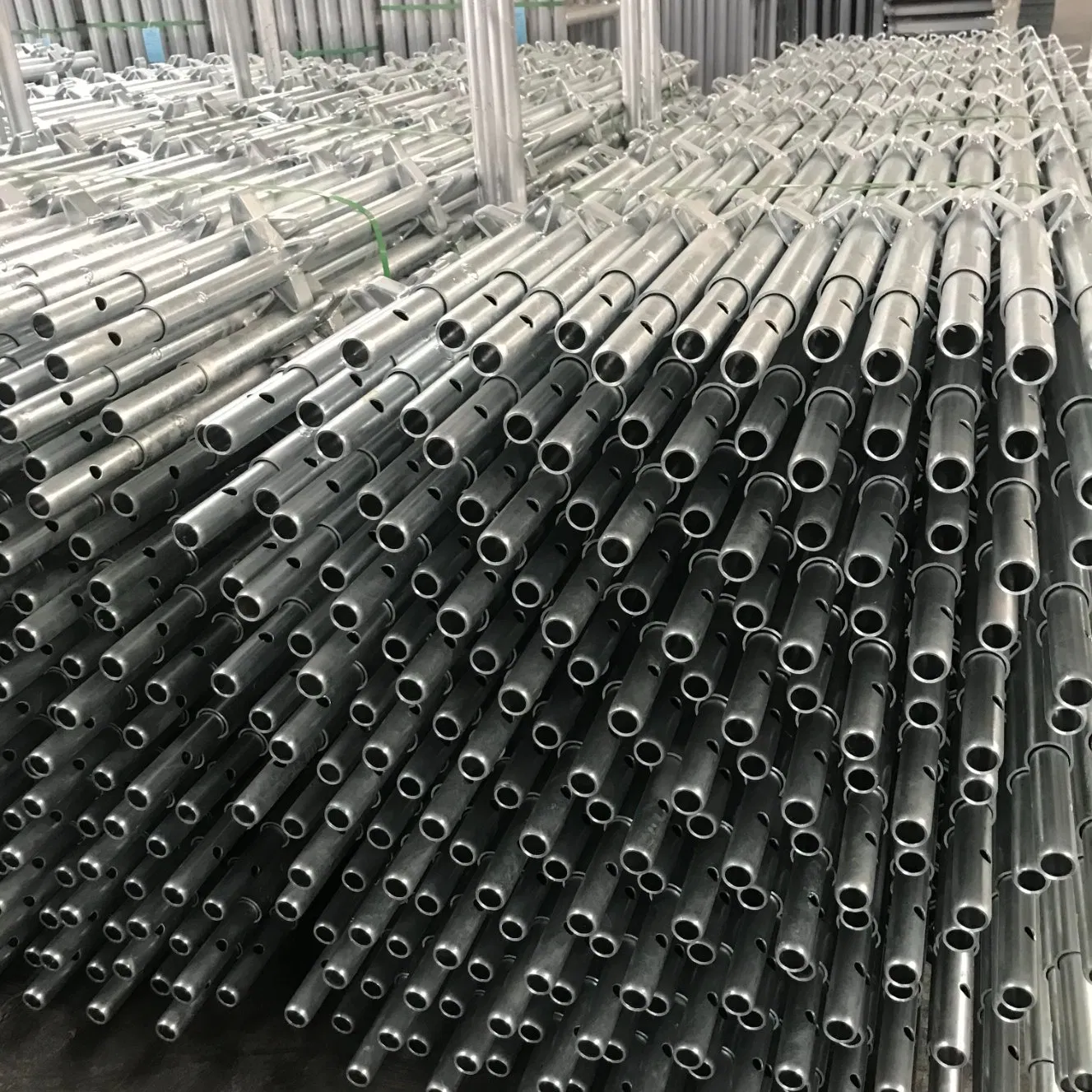

Kwikstage is a versatile and heavy duty modular scaffold system. It is the most common method of access for work at heights on Residential, Commercial & Industrial building projects around the world. What's more, Kwikstage comprises of a vast array of components that when used in conjunction with one another, provides an extremely adaptable scaffold solution.
| Item Name | Materials | Weight | Surface Treatment |
|---|---|---|---|
| Ledger/Horizontal 076 | Q235, Q345 48.3*2.75-4.0mm | 3.85kg | Hot dip galvanized Powder coated Painted |
| Ledger/Horizontal 100 | 4.35kg | ||
| Ledger/Horizontal 183 | 7.61kg | ||
| Ledger/Horizontal 244 | 10.01kg | ||
| Transom 076 | Q235, 50*50*5mm | 5.4kg | Hot dip galvanized Powder coated Painted |
| Transom 127 | 9.5kg | ||
| Transom 244 | 23.2kg | ||
| Diagonal/brace 170 | Q235, 48.3*2.5mm | 7.5kg | Hot dip galvanized Powder coated Painted |
| Diagonal/brace 250 | 10.5kg | ||
| Diagonal/brace 360 | 13.5kg | ||

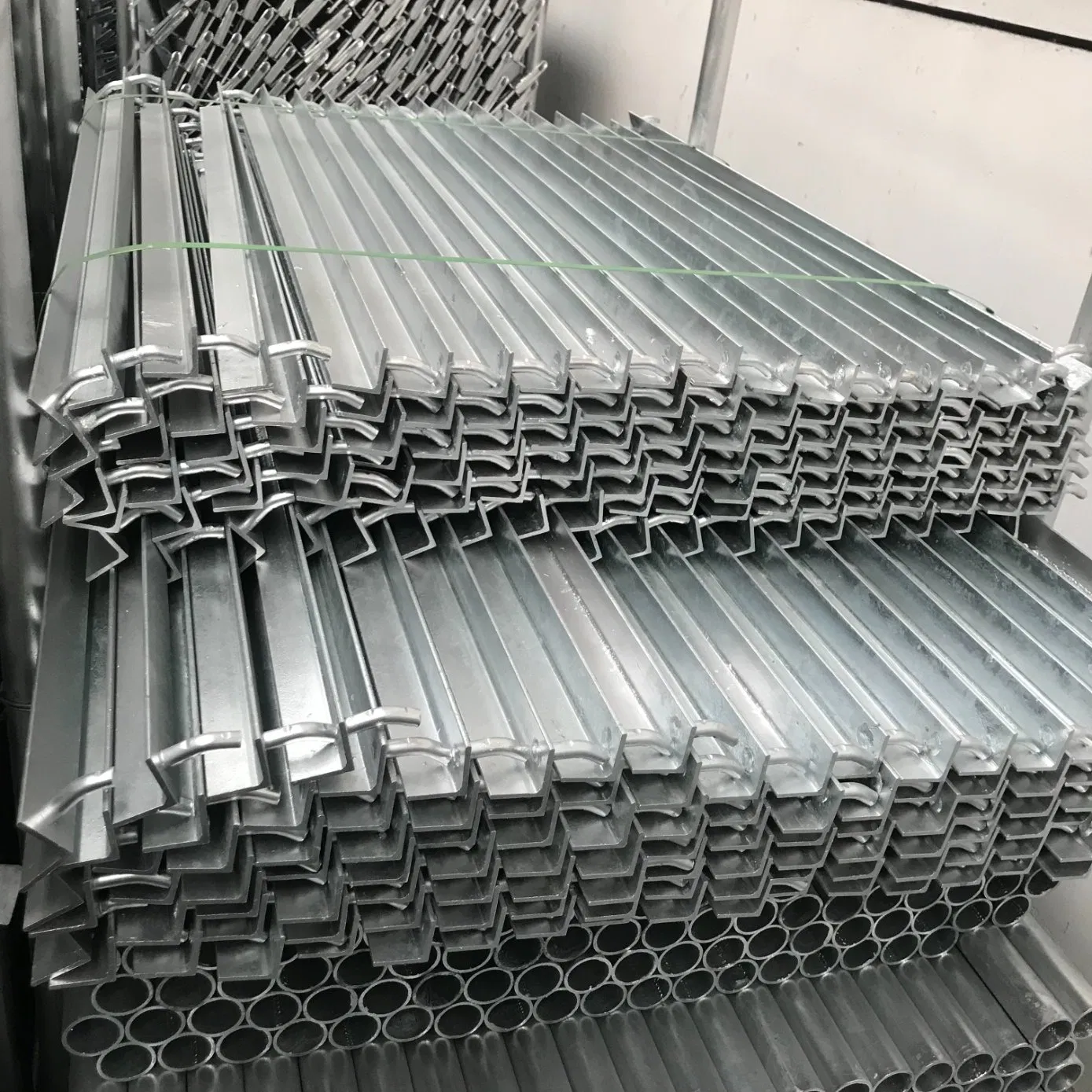

| Steel plank/deck 076 | Q235, 1.2-1.8mm | 4.0kg | Hot dip galvanized Powder coated Painted |
| Steel plank/deck 180 | 10.5kg | ||
| Steel plank/deck 240 | 15.0kg |
