Main Product Range:
Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, Couplers.

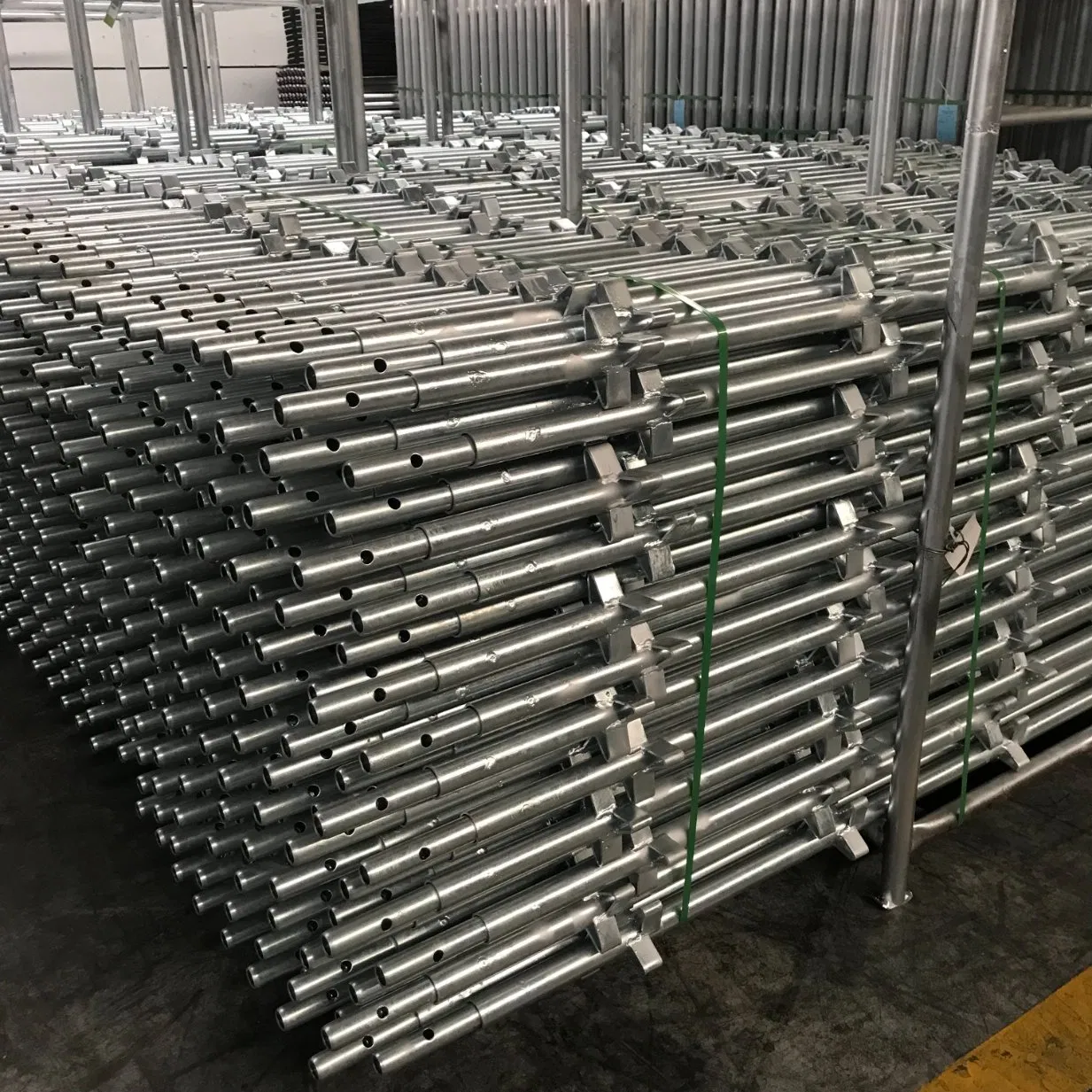

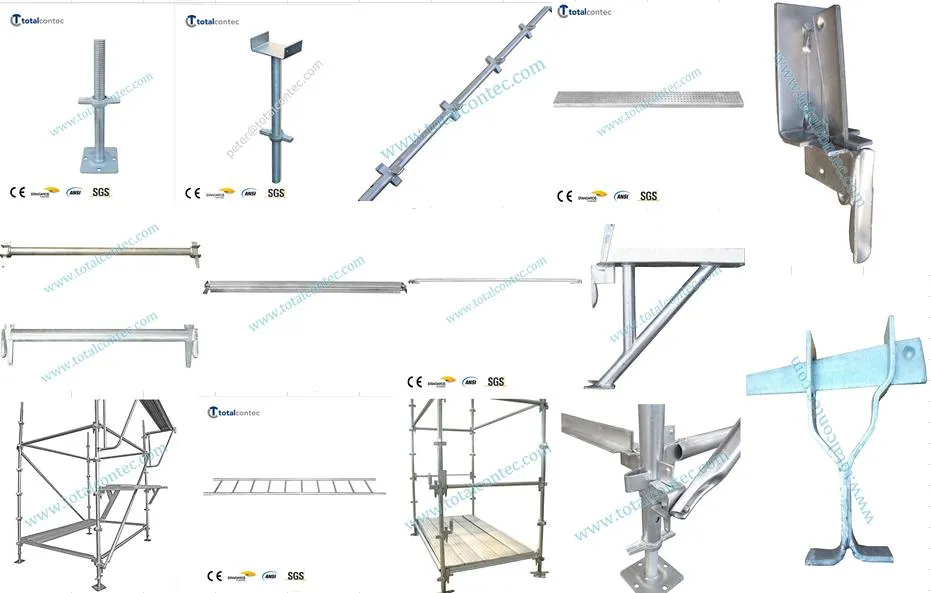

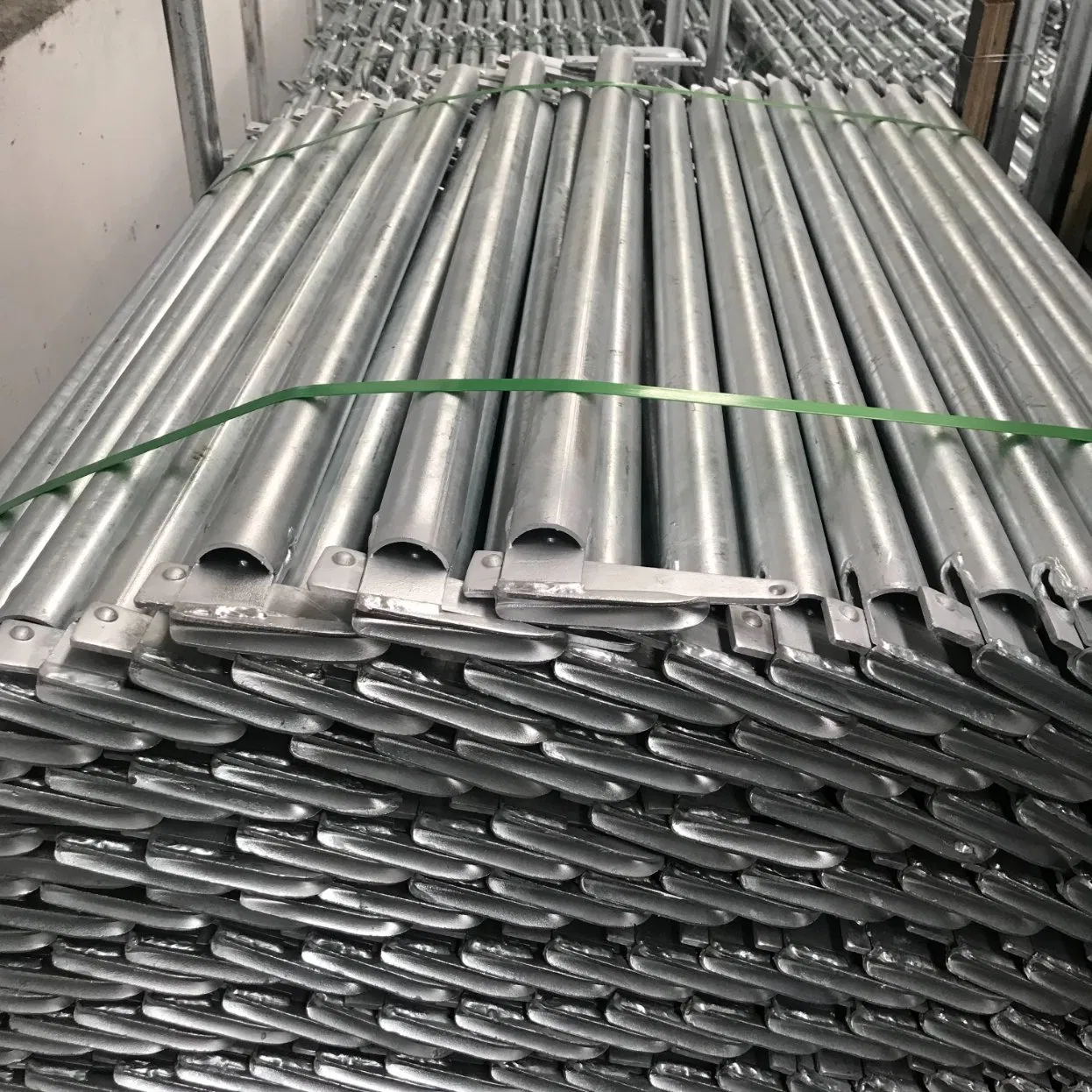

Kwikstage is a versatile and heavy duty modular scaffold system. It is the most common method of access for work at heights on Residential, Commercial & Industrial building projects around the world. Kwikstage comprises of a vast array of components that provide an extremely adaptable scaffold solution.
It is critical to the success of any building project that the site is safe for trades to work at height. The Kwikstage system is built to provide effective access for trades to work quickly and efficiently, satisfying safety regulations for all trades working at height.
Kwikstage scaffold can be used for all external works including brickwork, rendering, carpentry & cladding installation. Safety provisions can also be made for roof guardrails, gutter & facia installation.
| Item Name | Materials | Weight | Surface Treatment |
|---|---|---|---|
| Ledger/Horizontal 076 | Q235, Q345 48.3*2.75/3.0/3.2/3.75/4.0mm | 3.85kg | Hot dip galvanized Powder coated Painted |
| Ledger/Horizontal 100 | 4.35kg | ||
| Ledger/Horizontal 183 | 7.61kg | ||
| Ledger/Horizontal 244 | 10.01kg | ||

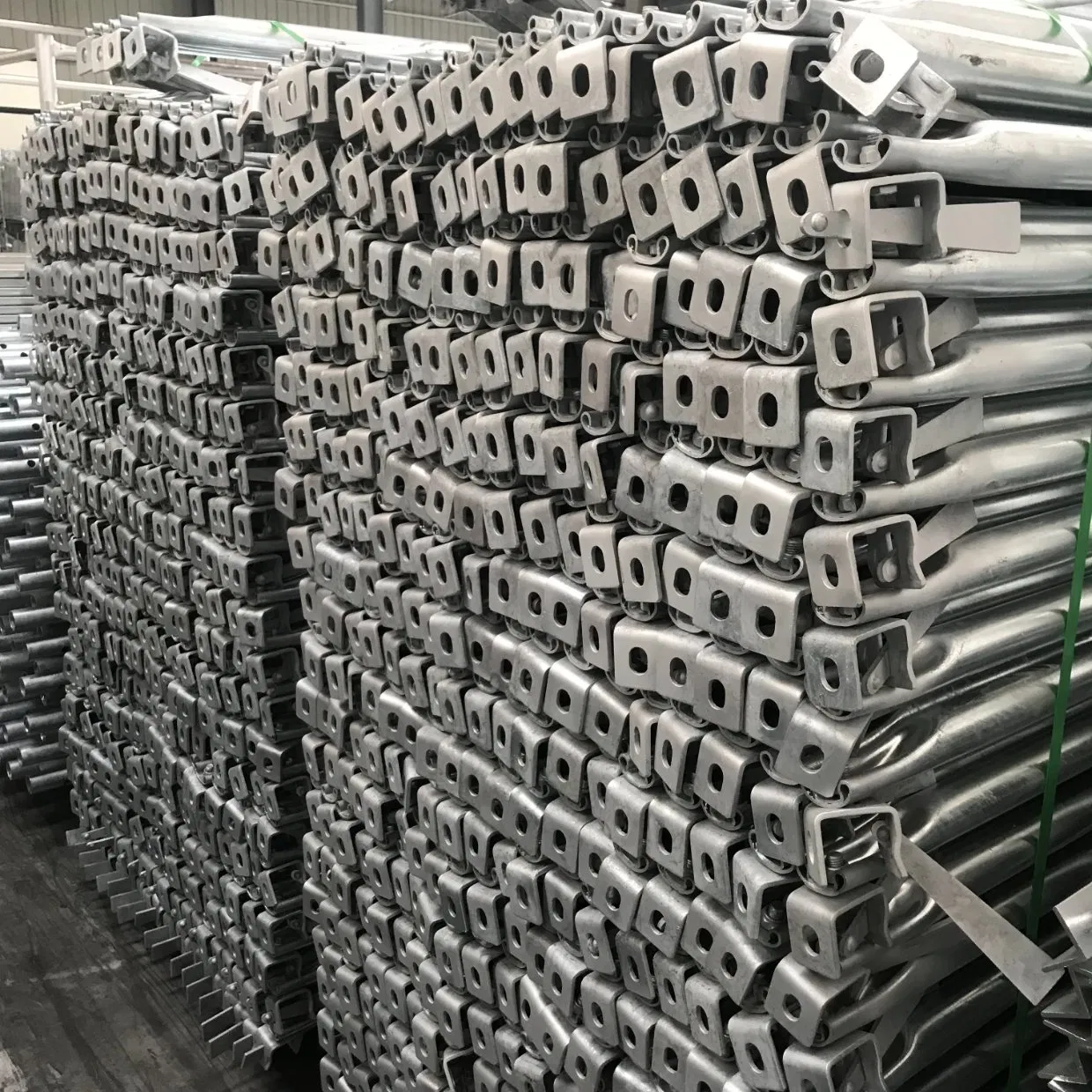

| Transom 076 | Q235, 50*50*5mm | 5.4kg | Hot dip galvanized Powder coated Painted |
| Transom 127 | 9.5kg | ||
| Transom 244 | 23.2kg | ||
| Diagonal/brace 170 | Q235, 48.3*2.5mm | 7.5kg | Hot dip galvanized Powder coated Painted |
| Diagonal/brace 250 | 10.5kg | ||
| Diagonal/brace 360 | 13.5kg | ||

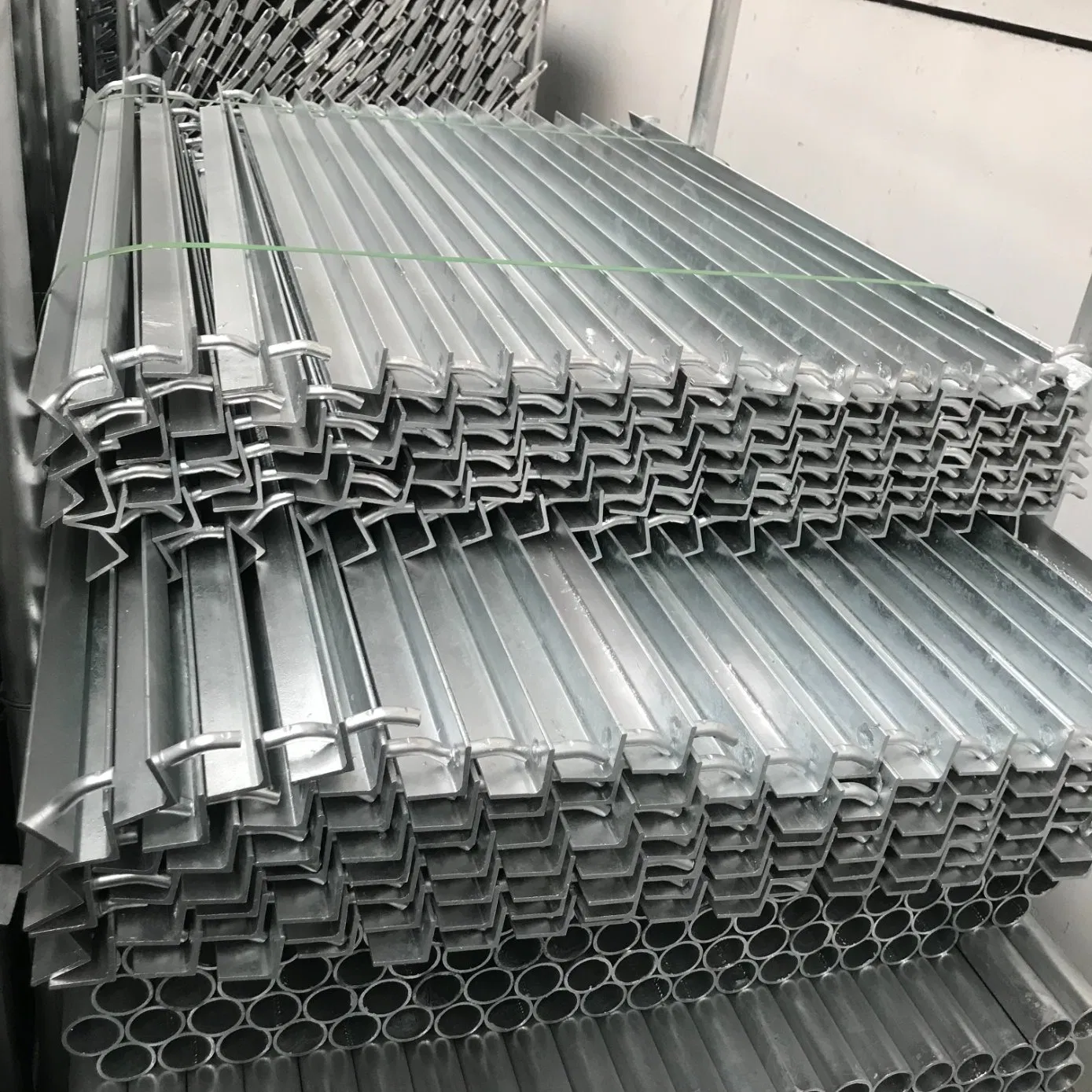

| Steel plank/deck 076 | Q235, 1.2mm 1.5mm, 1.8mm | 4.0kg | Hot dip galvanized Powder coated Painted |
| Steel plank/deck 180 | 10.5kg | ||
| Steel plank/deck 240 | 15.0kg | ||
