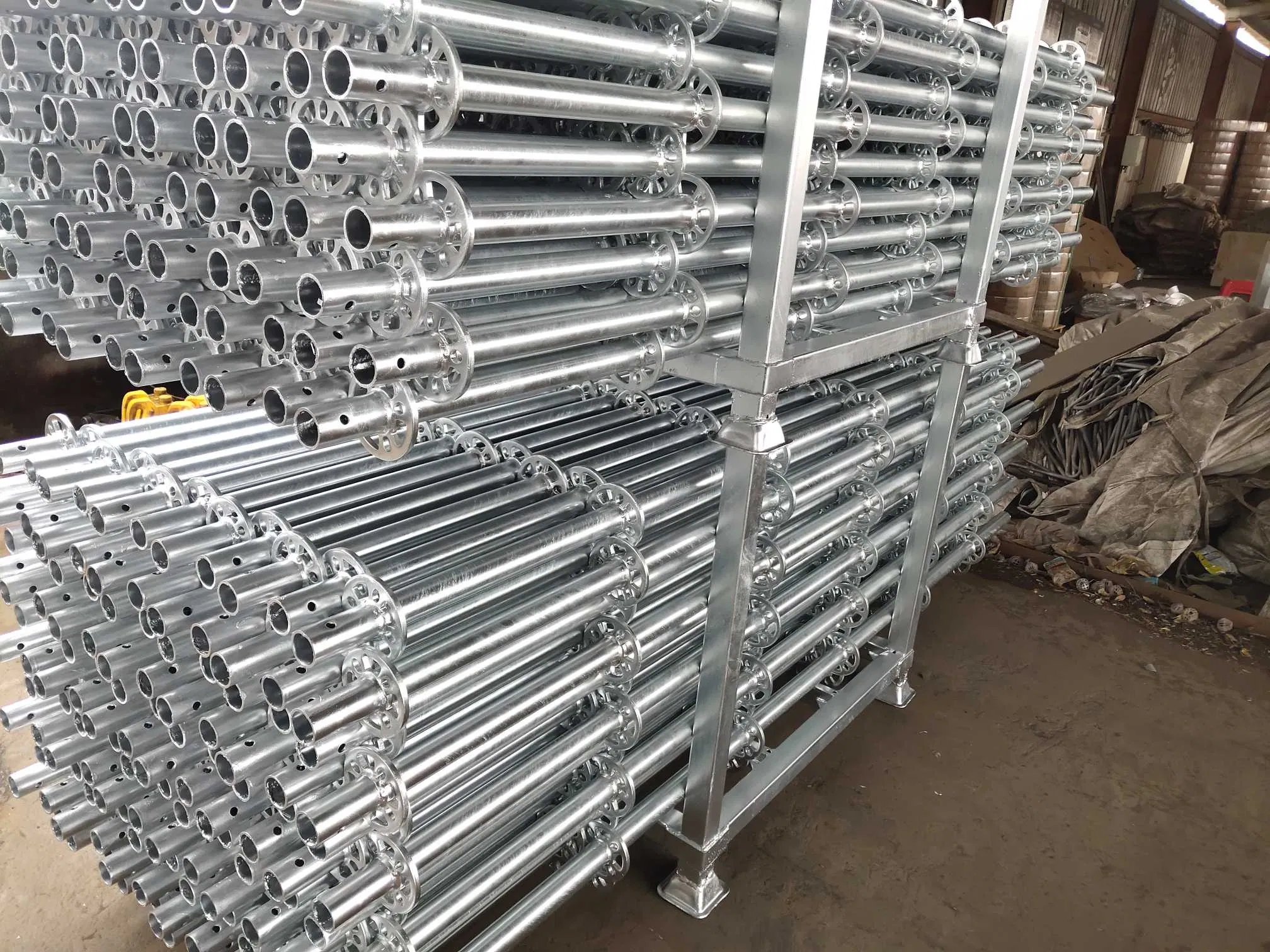

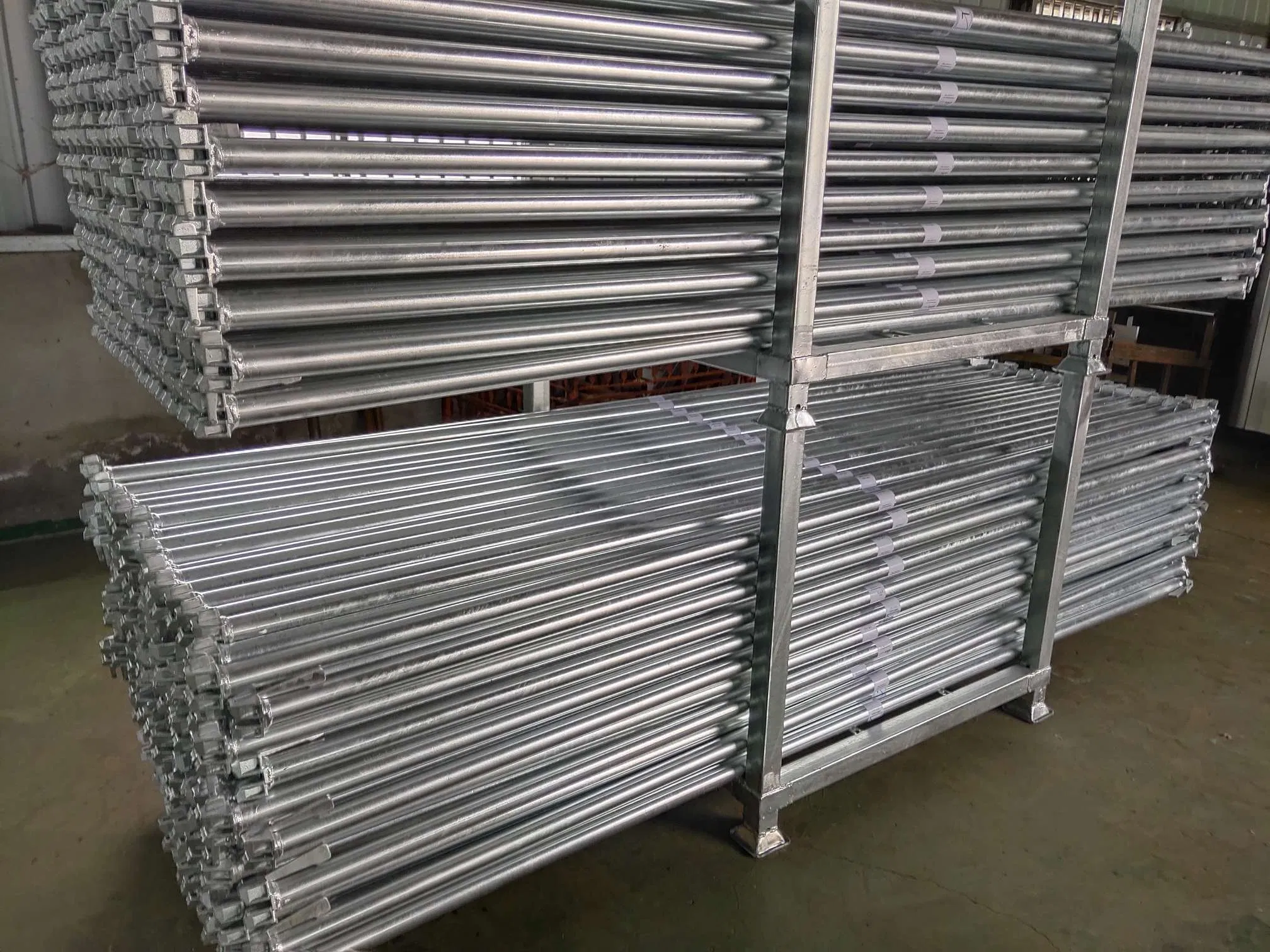

Construction Metal Heavy Duty Hot DIP Galvanized Layher system All Round Scaffolding
| Parameter | Details |
|---|---|
| Name | Ringlock scaffolding |
| Material | Steel Q355, Q235 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74 / BS1139 / AS1576 |

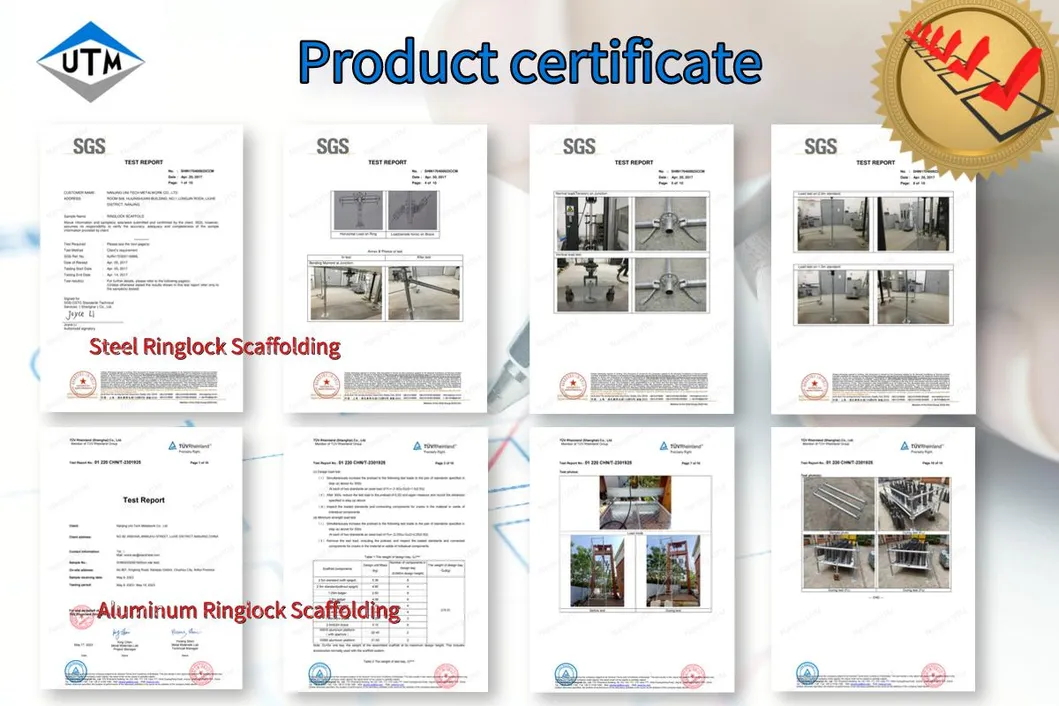

| Certificate | CE Certificate / SGS |
| Payment Term | TT / L/C |

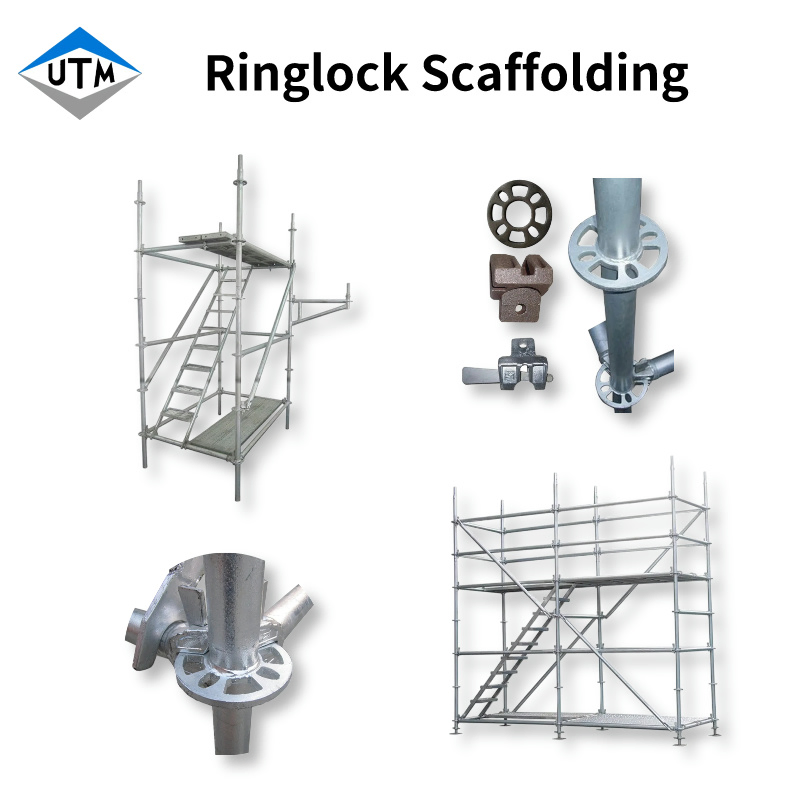

Ringlock scaffolding is known for its flexibility and adaptability, making it suitable for complex and challenging construction projects. Our systems are engineered to provide superior stability and load-bearing capacity. With a modular design, components can be quickly assembled, ensuring efficient installation and dismantling on job sites.

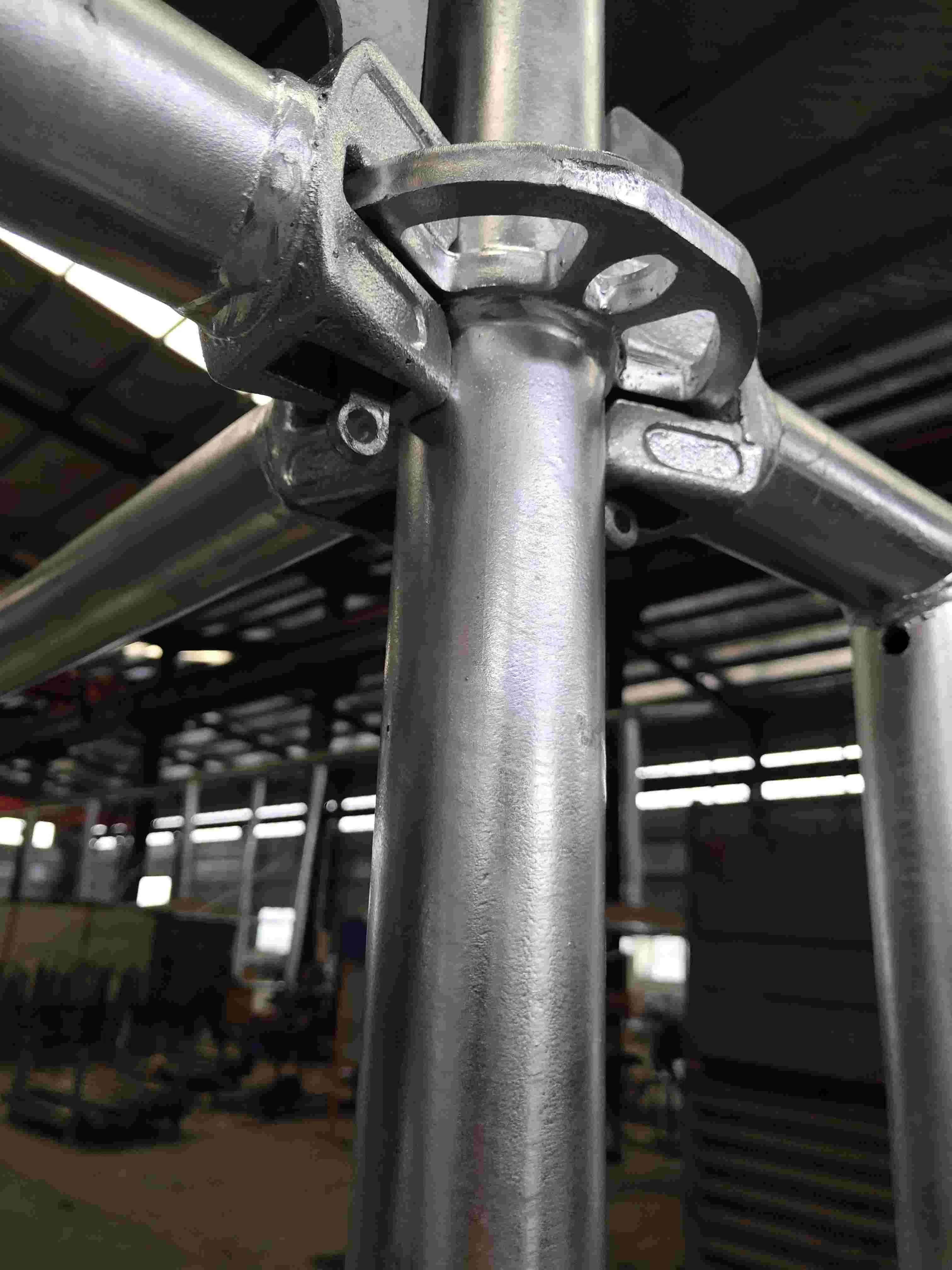

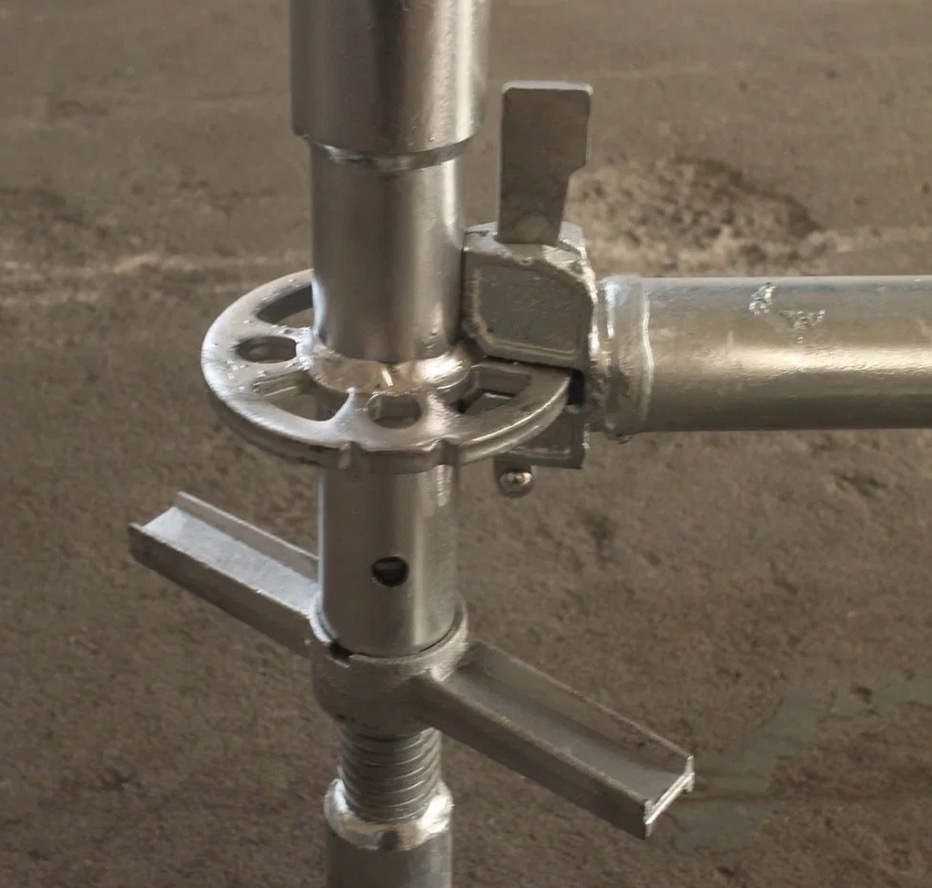

Ringlock System Features: This system breaks through traditional fastening connections by using pre-welded joint devices and eight-hole discs on the upright bars. Using gravity wedge self-locking pins, it creates a triangular stable structure with high safety performance and labor-saving benefits.

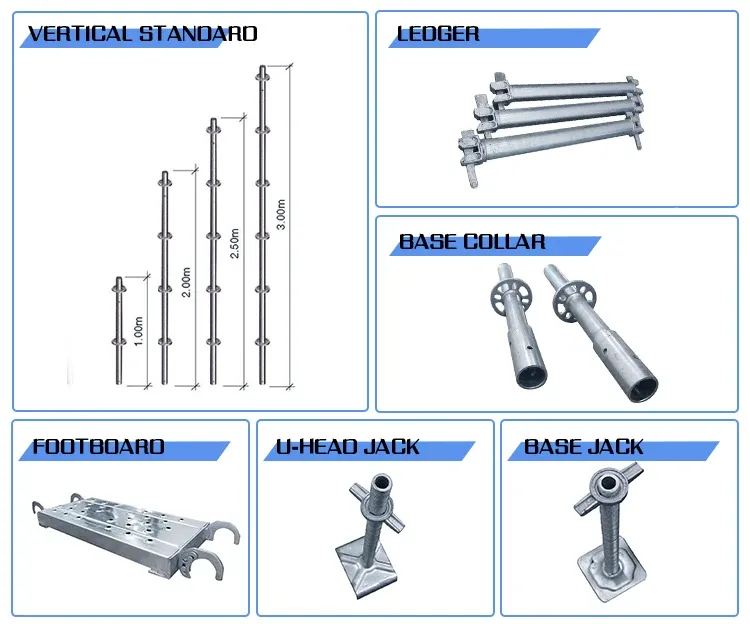

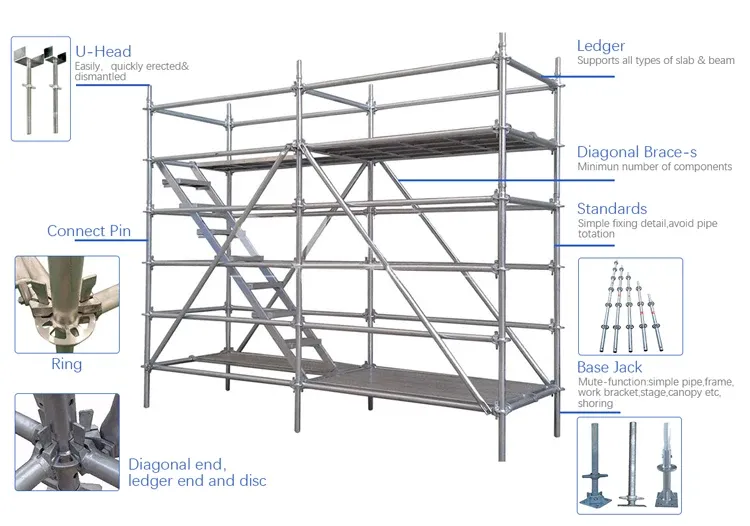

Key components include: Ringlock Standard, Ledger, Brace, Side Bracket, Intermediate Transom, Base Collar, Toe Board, Rosette and Wedge, Scaffolding Plank, and Base Jack.
| Code | Length (mm) | Weight (kg) | Material | Standard |
|---|---|---|---|---|
| UTM-RLS-147-500 | 500 | 3.22 | Q355 | EN74/BS1139 |
| UTM-RLS-147-1000 | 1000 | 5.57 | ||
| UTM-RLS-147-2000 | 2000 | 10.39 | ||
| UTM-RLS-147-3000 | 3000 | 15.15 |
| Code | Length (mm) | Weight (kg) | Material |
|---|---|---|---|
| UTM-RLS-148-730 | 730 | 3.45 | Q235 |
| UTM-RLS-148-1570 | 1570 | 6.59 | |
| UTM-RLS-148-3070 | 3070 | 12.19 |

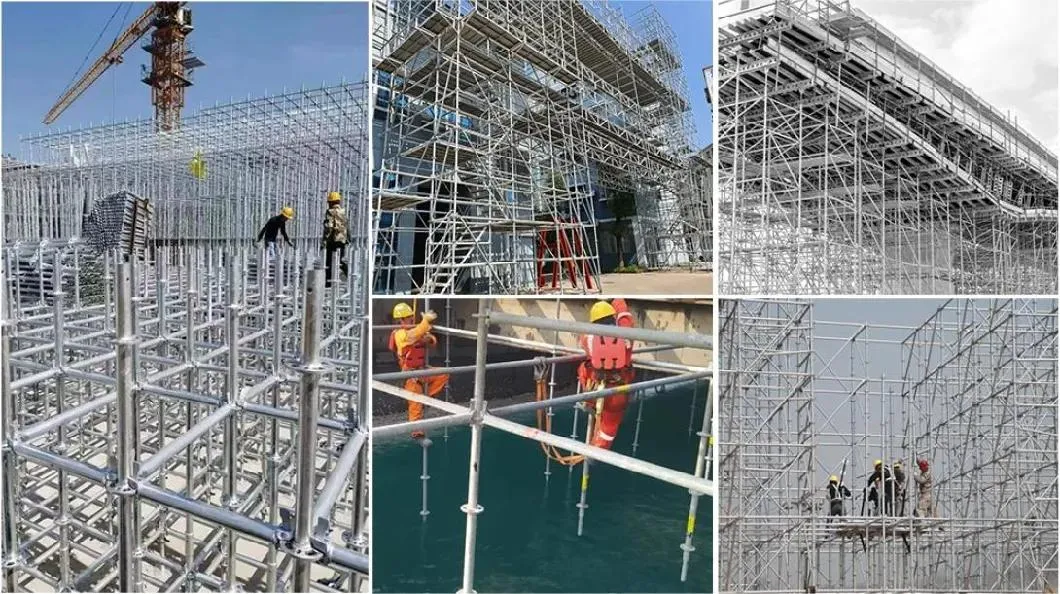

The Ringlock system is widely utilized in:
| Feature | Ringlock System Details |
|---|---|
| Easy Assembly | Simple plug-in and wedge mechanism, 30%-50% faster than traditional types. |
| Light Weight | Aluminum options available for even easier handling. |
| Versatile | 500mm intervals allow use for facades, birdcages, and mobile towers. |
| Safety | Gravity wedge self-locking mechanism ensures high structural stability. |

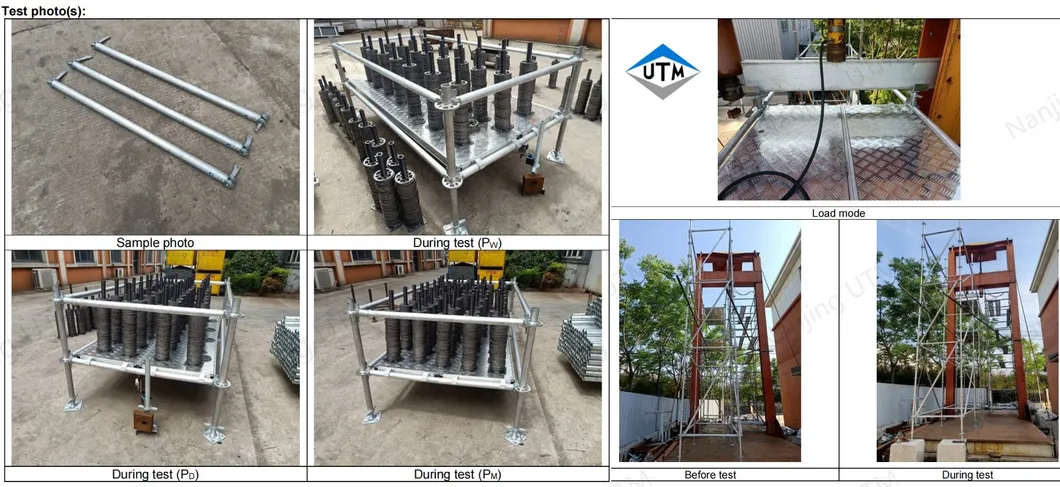

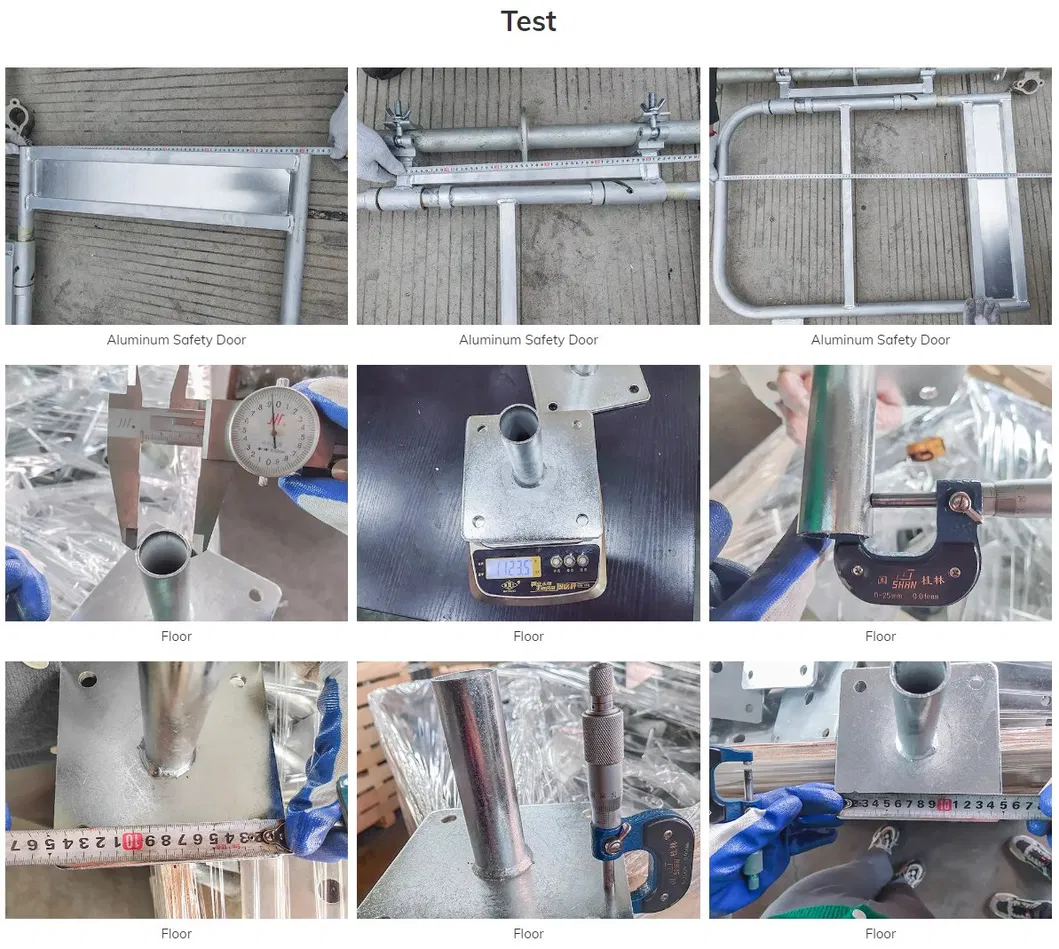

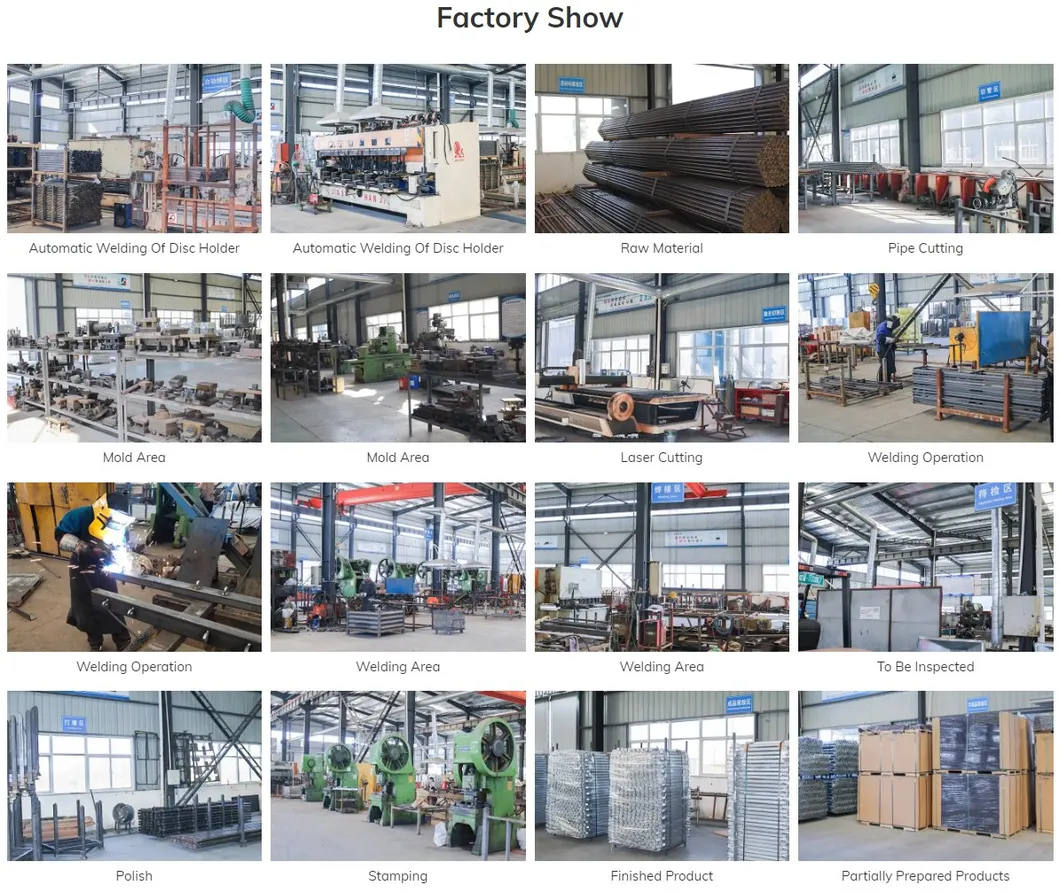

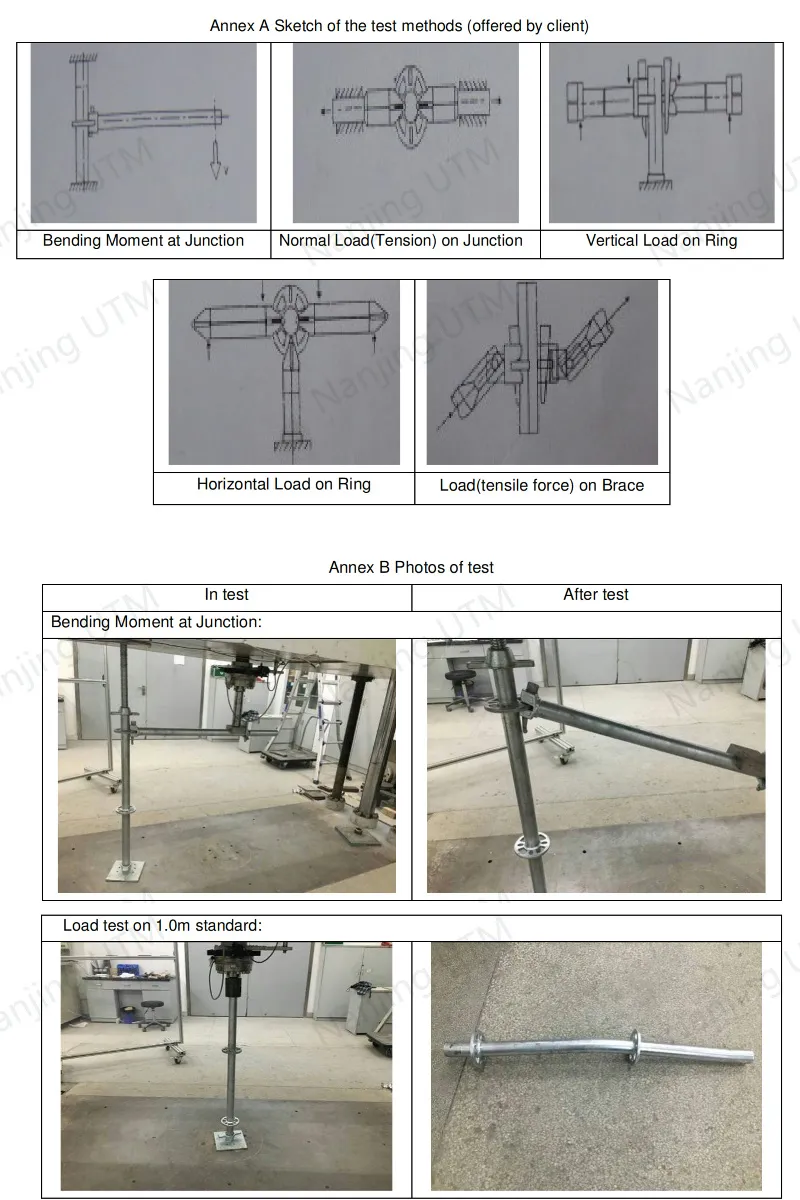

With 16 years of industry experience, all products undergo rigorous testing to meet EN, BS, and AS standards. We control the entire process from raw material supply to welding and packaging to ensure top-tier quality.
