Main products: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, Couplers.

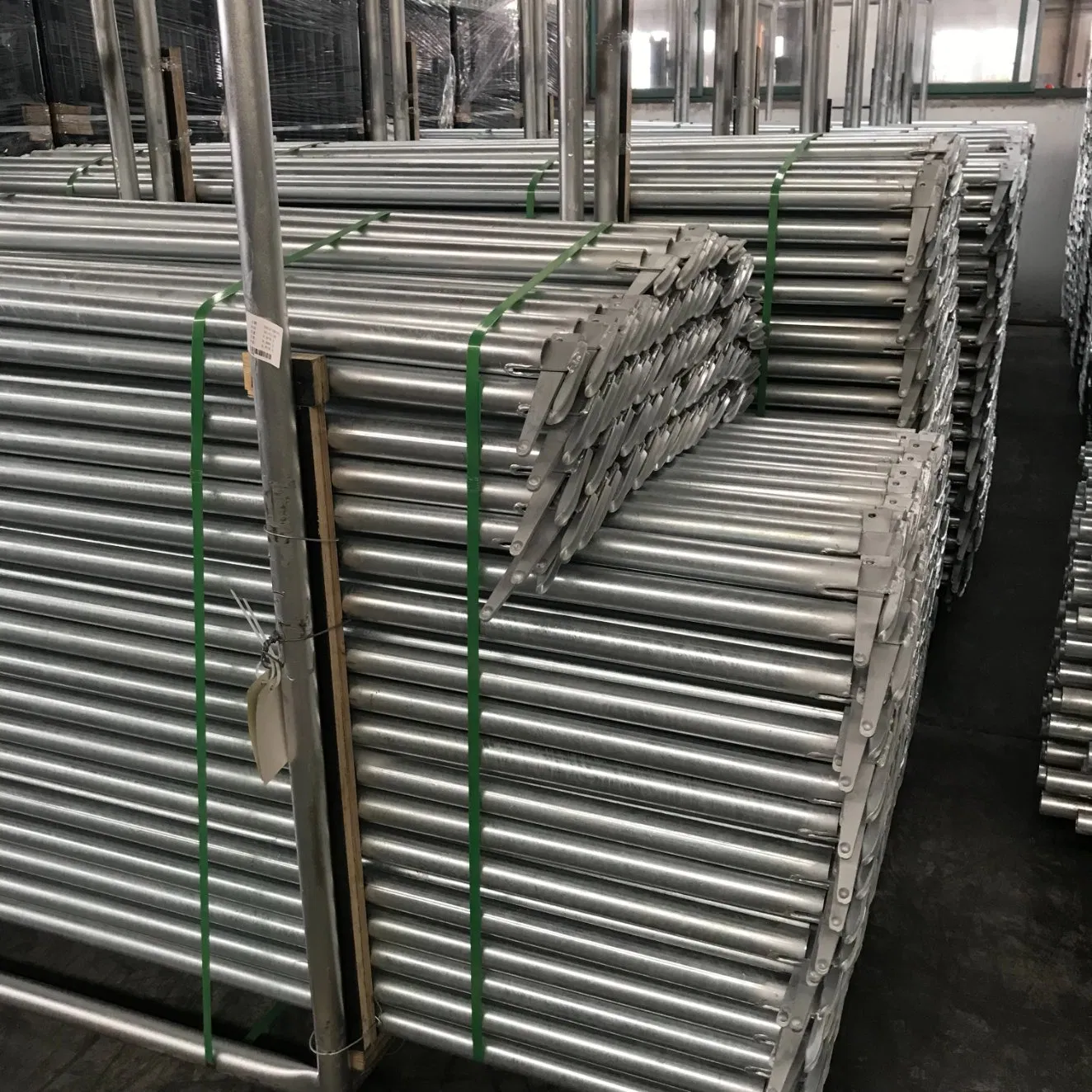

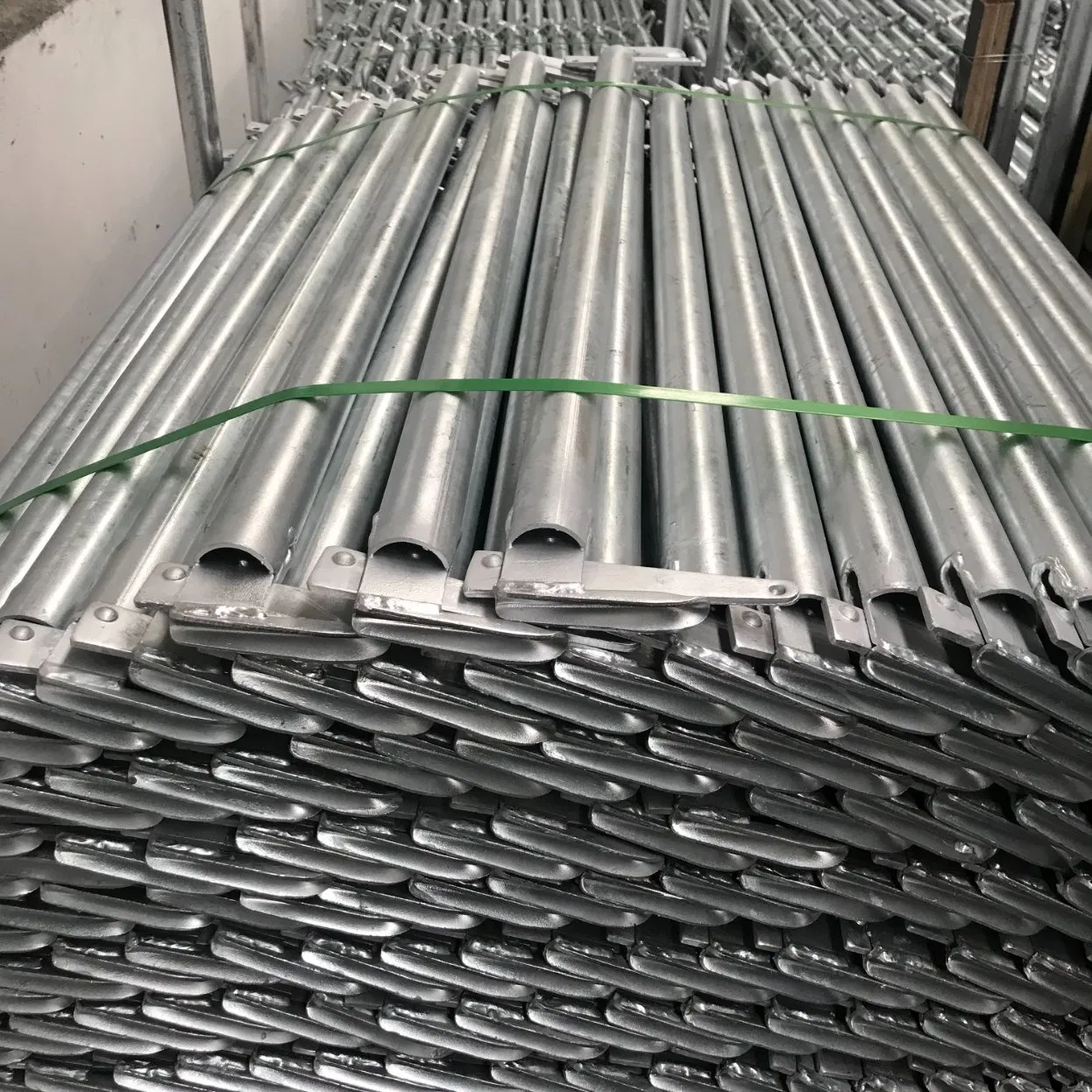

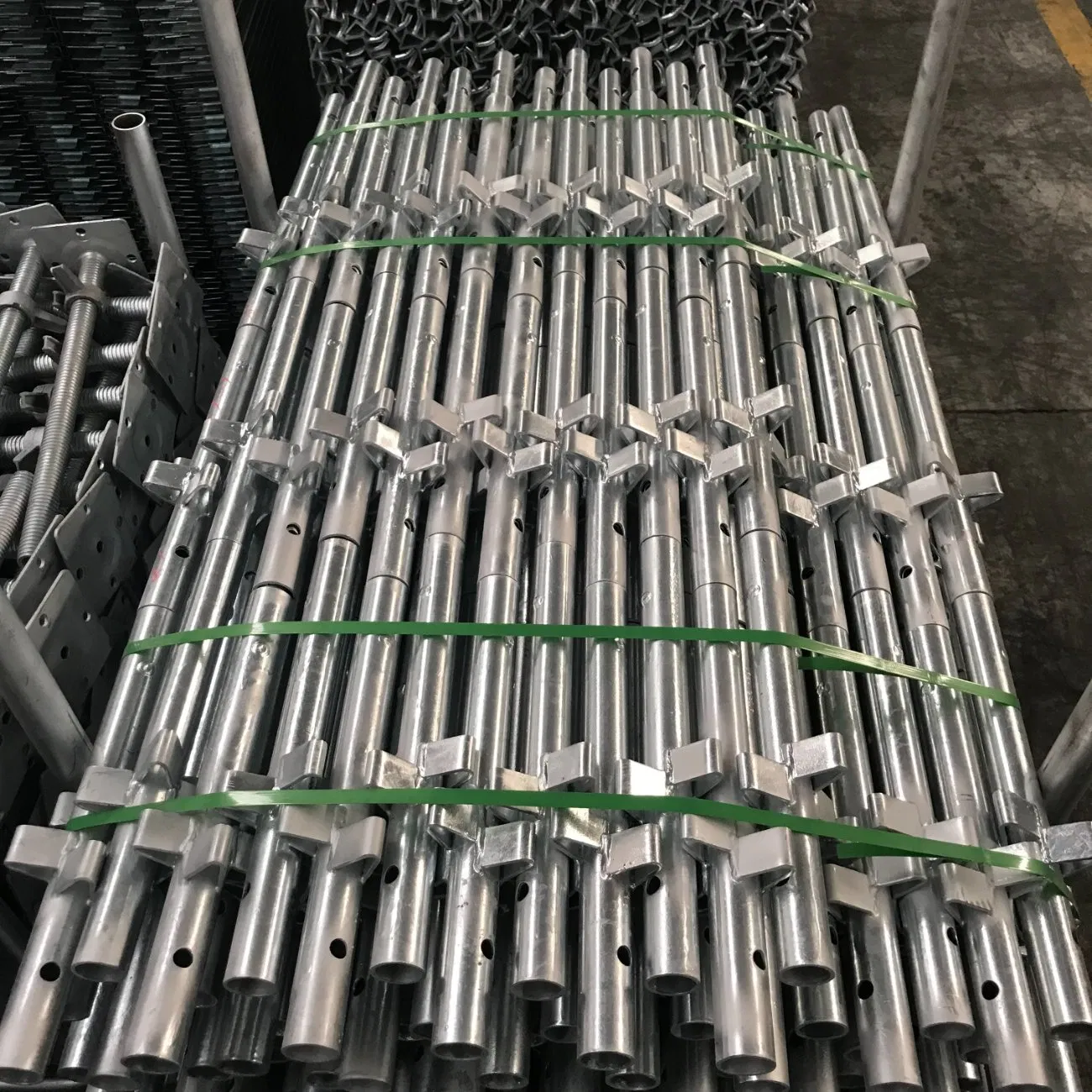

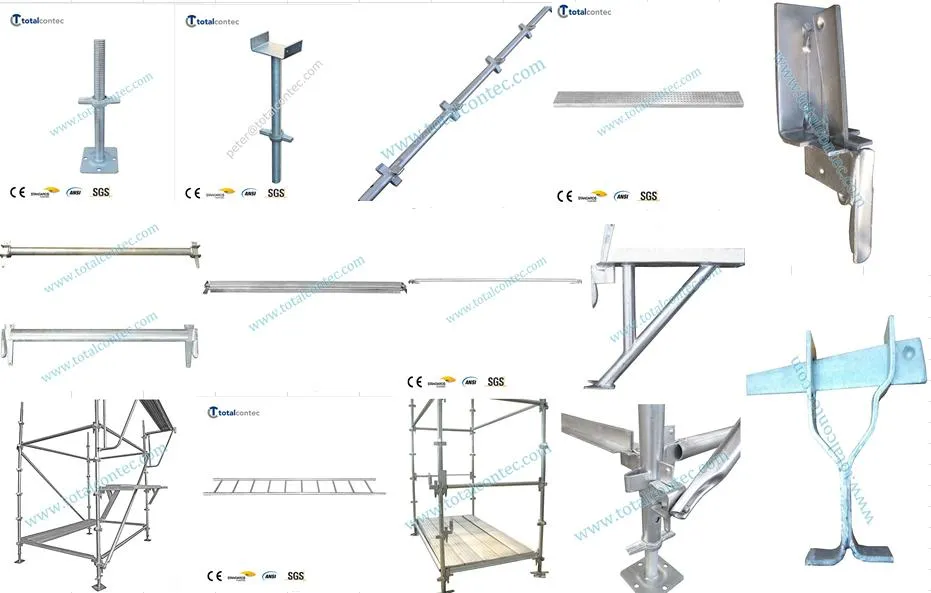

Kwikstage is a versatile and heavy duty modular scaffold system. It is the most common method of access for work at heights on Residential, Commercial & Industrial building projects around the world. What's more, Kwikstage comprises of a vast array of components that when used in conjunction with one another, provides an extremely adaptable scaffold solution.
It is critical to the success of any building project that not only is your site safe for trades to work safely at height, but also the scaffold system is built correctly to provide the most effective access for trades to work quickly and efficiently. Kwikstage scaffold is one of the best way to satisfy WorkSafe regulations as well as provide the best access for all trades working at height.
Kwikstage scaffold can be used for all external works at height, including brickwork, rendering, carpentry & cladding installation. Safety provisions can also be made to provide roof guardrails for plumbers, gutter & facia installation. All Kwikstage scaffold components are available in Painted or Hot Dip Galvanised to suit your environmental needs.
| Item Name | Materials | Weight | Surface Treatment |
|---|---|---|---|
| Ledger/Horizontal 076 | Q235, Q345 48.3*2.75/3.0/3.2/3.75/4.0mm | 3.85kg | Hot dip galvanized Powder coated Painted |
| Ledger/Horizontal 081 | 4.01kg | ||
| Ledger/Horizontal 100 | 4.35kg | ||
| Ledger/Horizontal 127 | 5.01kg | ||
| Ledger/Horizontal 183 | 7.61kg | ||
| Ledger/Horizontal 244 | 10.01kg | ||
| Transom 076 | Q235, 50*50*5mm | 5.4kg | Hot dip galvanized Powder coated Painted |
| Transom 081 | 5.7kg | ||
| Transom 100 | 9.1kg | ||
| Transom 127 | 9.5kg | ||
| Transom 183 | 16.2kg | ||
| Transom 244 | 23.2kg | ||
| Diagonal/brace 170 | Q235, 48.3*2.5mm | 7.5kg | Hot dip galvanized Powder coated Painted |
| Diagonal/brace 200 | 8.5kg | ||
| Diagonal/brace 250 | 10.5kg | ||
| Diagonal/brace 270 | 11.0kg | ||
| Diagonal/brace 320 | 12.5kg | ||
| Diagonal/brace 360 | 13.5kg |
