Universal Scaffolding System has been examined and complies with the European Standard SS-EN 12810-1.

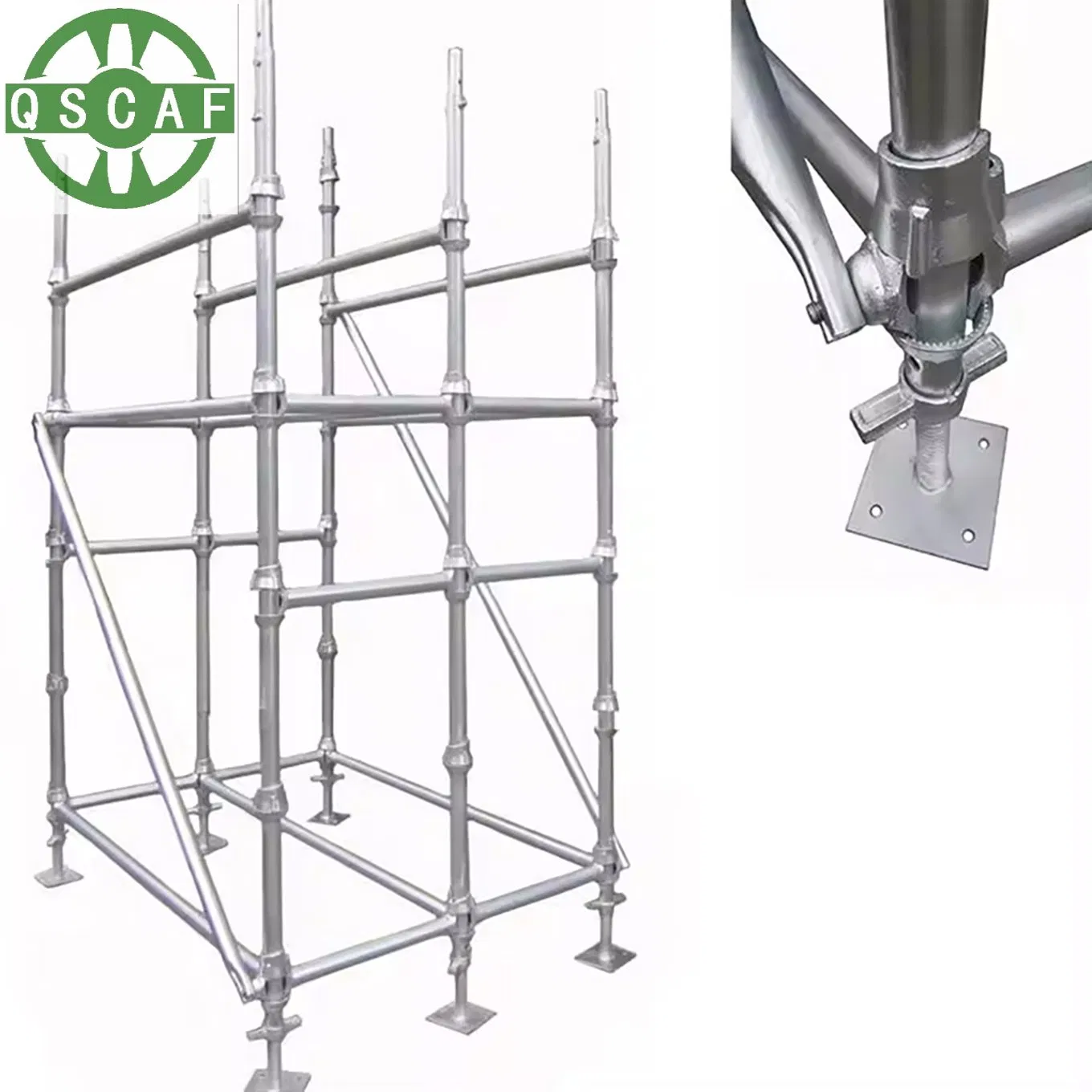

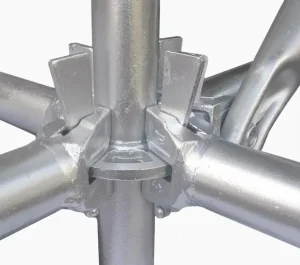

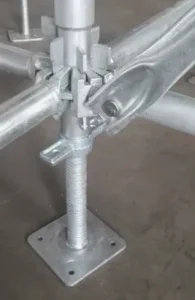

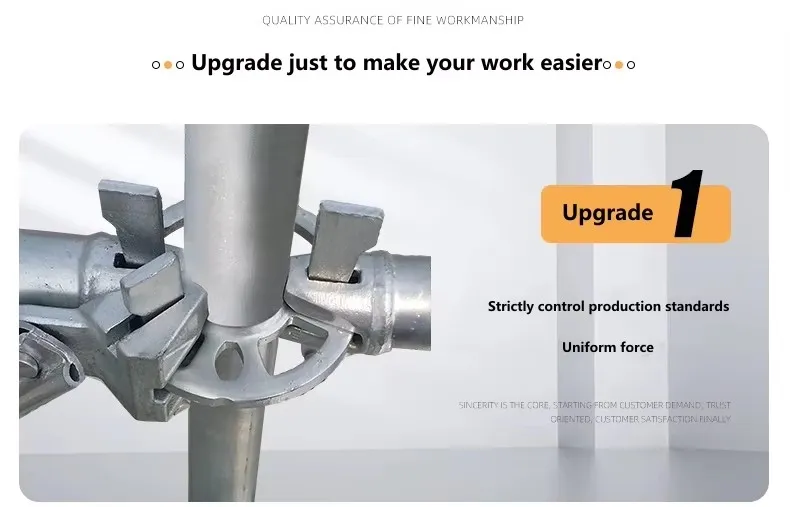

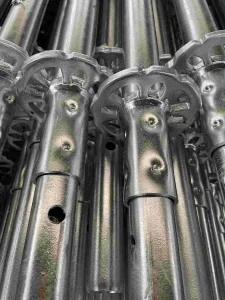

The system is constructed by prefabricated steel components including standards, ledgers, U-transoms, and diagonal braces that can be connected horizontally and vertically. Assembly rings are attached to the standards at a distance of 0.50m with eight connection points for assembly of ledgers and U transoms.
Standards have a length from 0.5m to 4.0m. Scaffolding bays come in lengths of 3.07m, 2.57m, 2.07m, and 1.57m. Horizontals are made in the same lengths and U transoms are 0.3m, 1.09m and 1.40m wide. All dimensions are based on center c/c between standards.
| STANDARD | European Standard SS-EN 12810-1 |
|---|---|
| Permissible load | load class 2-6 (1.5-4.5kN/m2) |
| Surface finish | Hot Dipped Galvanized |
| Material | Q345, Q235 |
| Loading conditions | Plank all lifts | One working height | - |
|---|---|---|---|
| Modular size | 2.57x1.40m | 3.07x1.40m | 3.07x1.09m |
| Lift height | 2.0m | 2.0m | 2.0m |
| Steel Plank | 24.0m load class 4 | 24.0m load class 3 | 24.0m load class 4 |
| Alu-Plank Extruded | 24.0m load class 6 | 24.0m load class 5 | 24.0m load class 5 |
As a leading manufacturer in China for scaffolding systems, tubes, fittings, and formwork accessories, all products are manufactured to meet European, American, and Australian standards. With over 15 years of experience, our solutions are widely utilized in mining, construction, and petrochemical industries across Europe, Australia, North America, and beyond.
We ensure goods are delivered safely through long-term partnerships with leading freight and shipping companies.
