Basic Information
Structural Style
Multi-Pole Scaffolding
Framework
Combined Scaffolding
Supporting Mode
Projecting Scaffolding
Lapping Form
Full Scaffolding
Erection Position
External Scaffolding
Move Method
Attached Lifting Scaffolding
Scaffolding Part Type
Scaffolding Planks
Construction Properties
Installation Scaffold
Transport Package
Steel Frame
Specification
500 1000 1500 2000

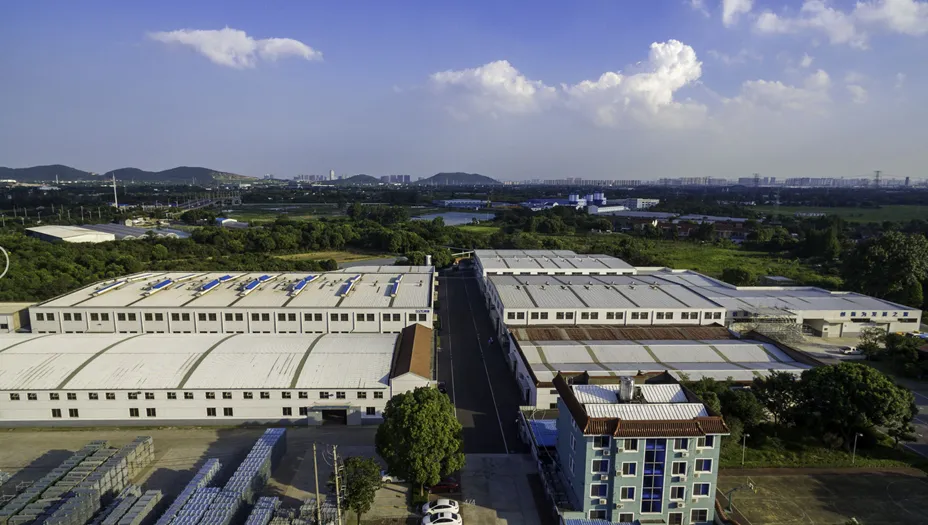

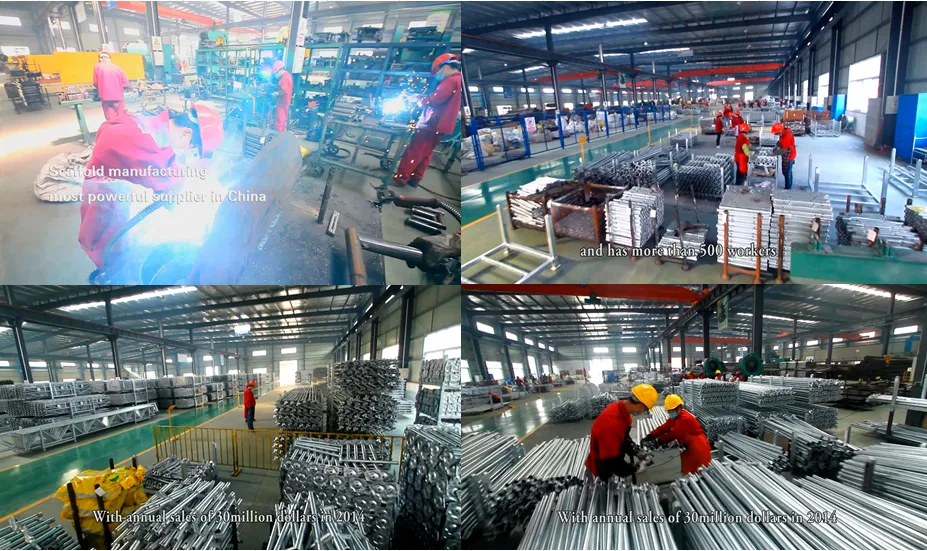

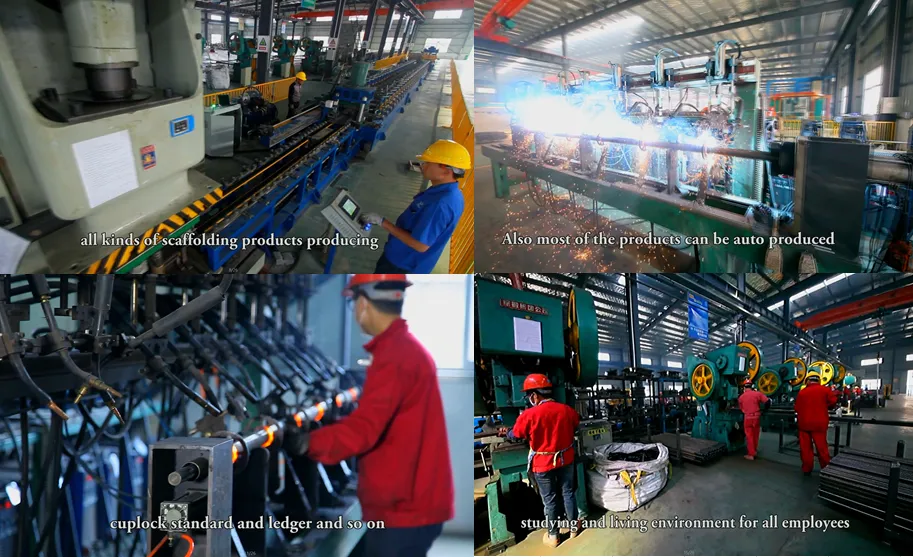

Production Capacity
100 Tons Per Day
Main products include: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, and Couplers.
Product Description

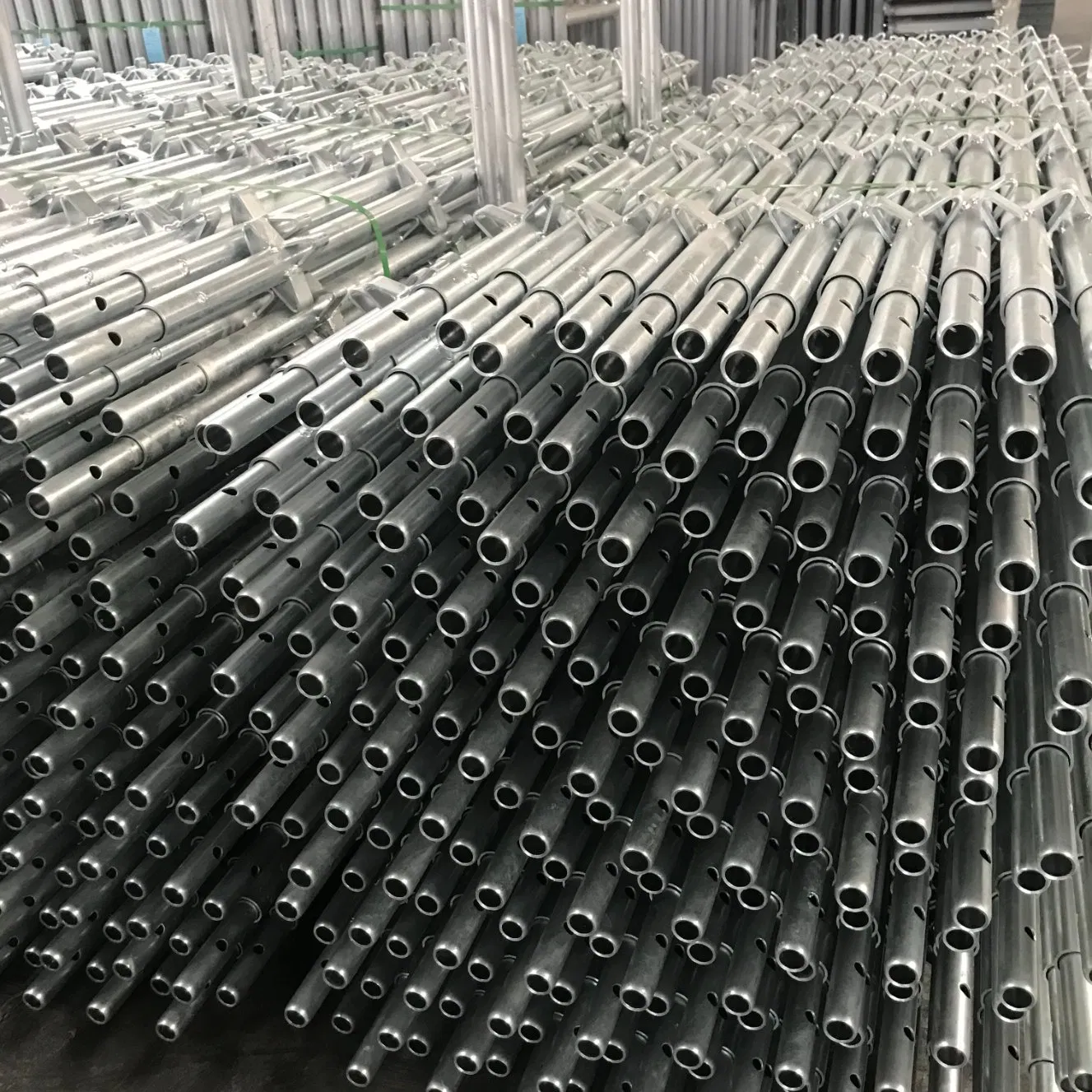

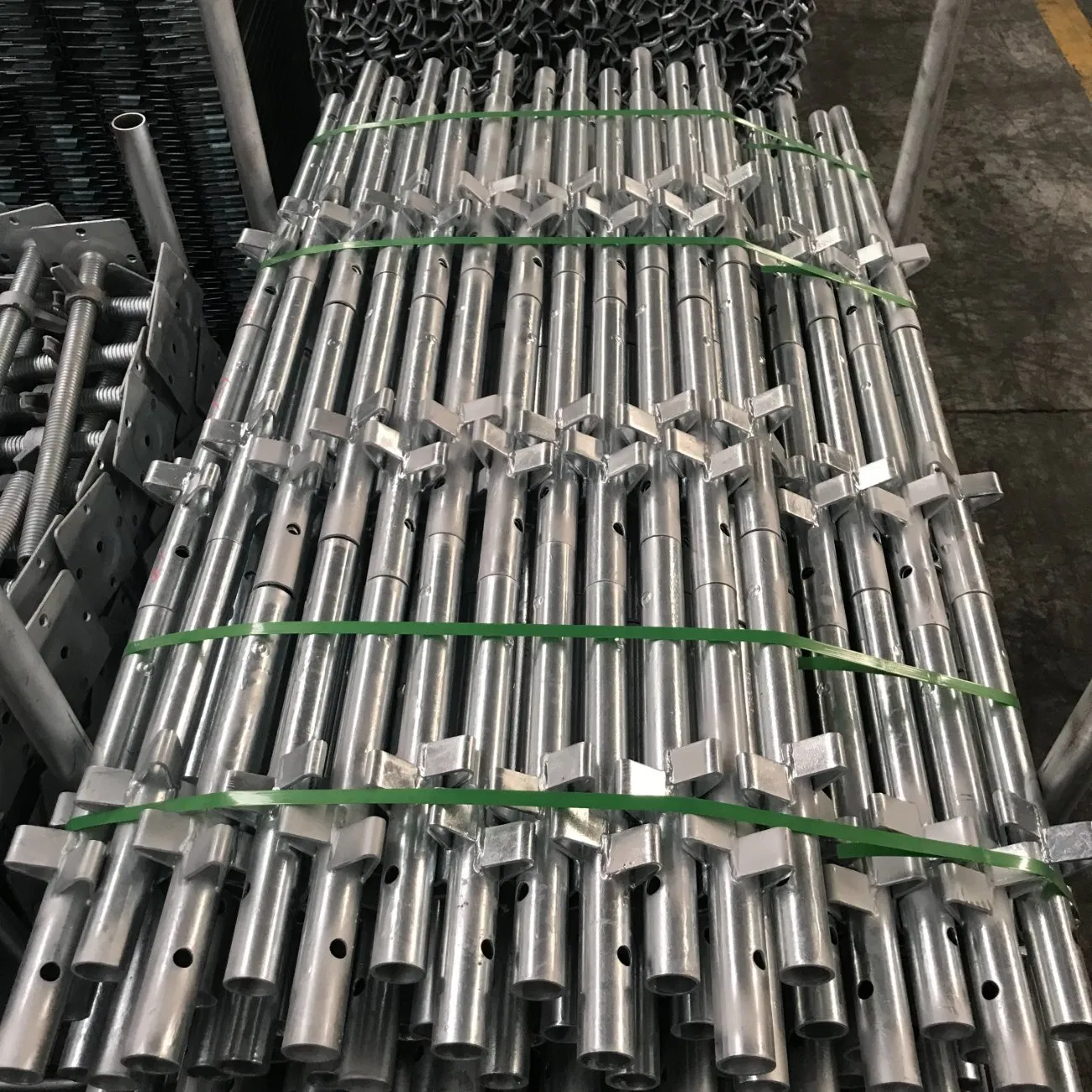

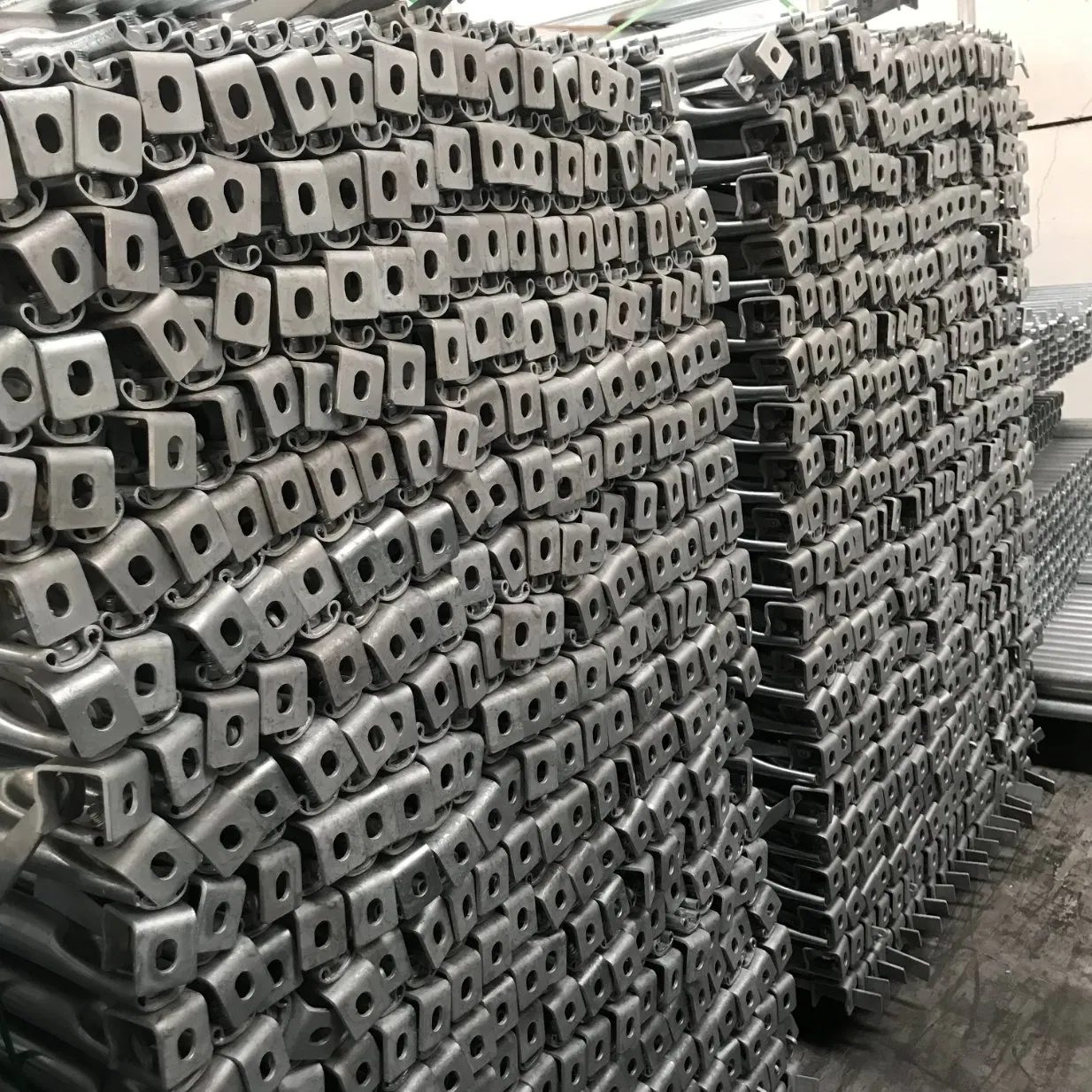

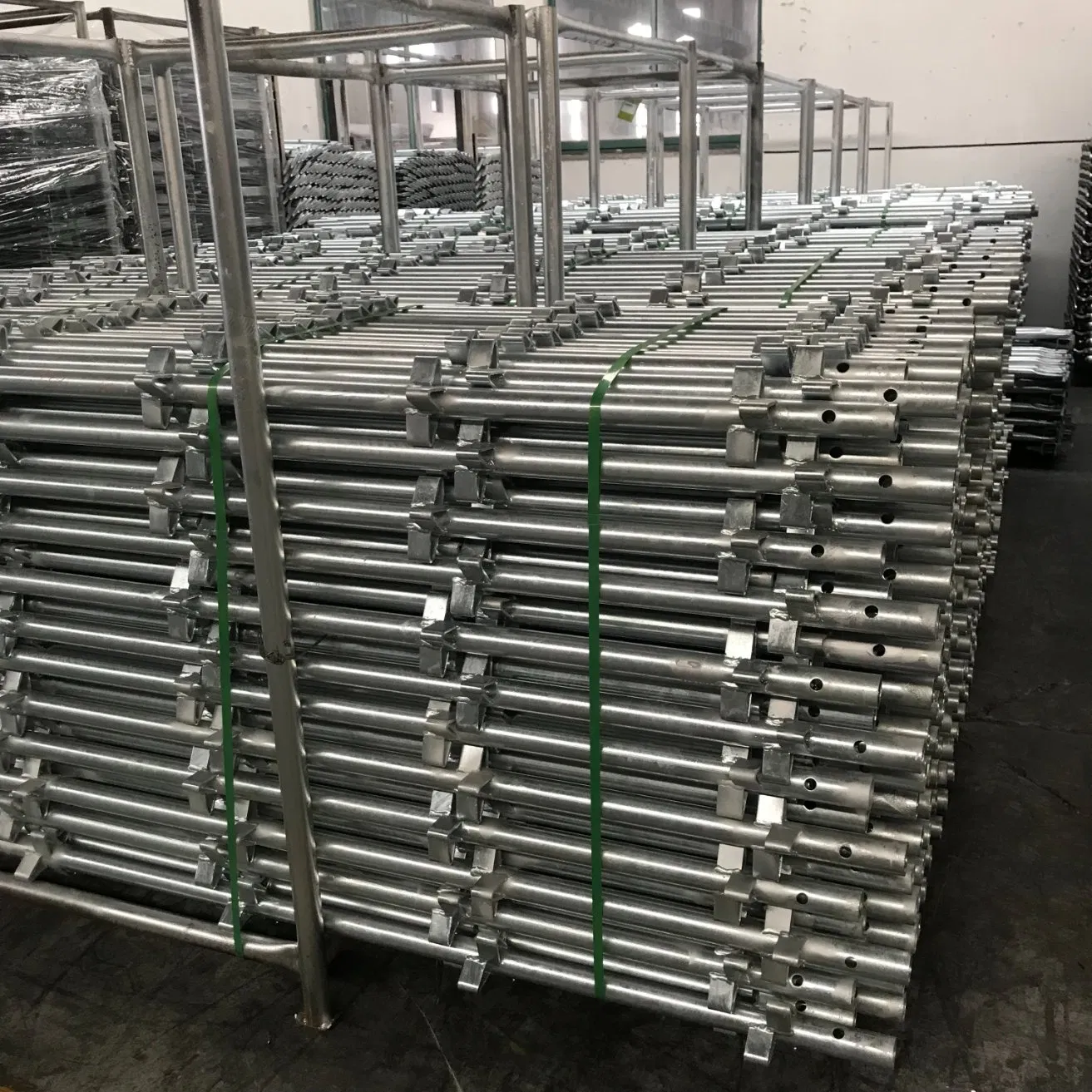

Kwikstage is a versatile and heavy-duty modular scaffold system. It is the most common method of access for work at heights on Residential, Commercial & Industrial building projects around the world. What's more, Kwikstage comprises of a vast array of components that when used in conjunction with one another, provides an extremely adaptable scaffold solution.
It is critical to the success of any building project that not only is your site safe for trades to work safely at height, but also the scaffold system is built correctly to provide the most effective access for trades to work quickly and efficiently. Kwikstage scaffold is one of the best ways to satisfy WorkSafe regulations as well as provide the best access for all trades working at height.

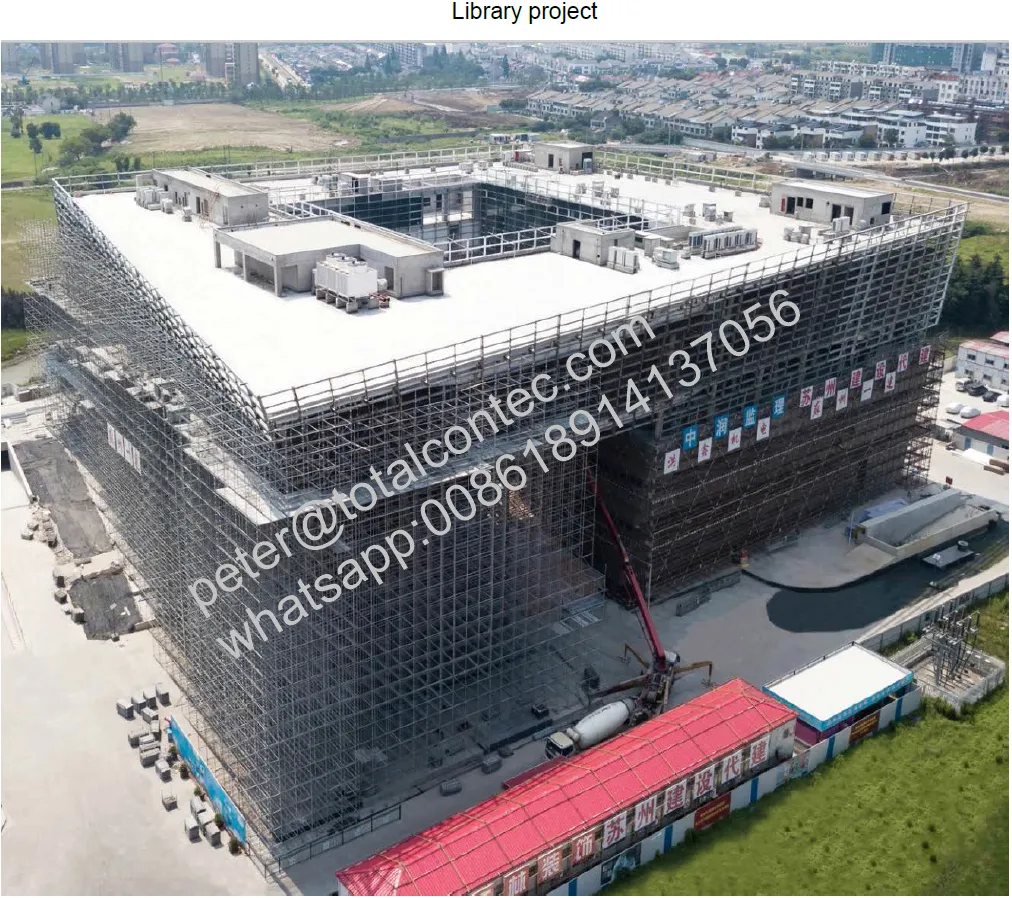

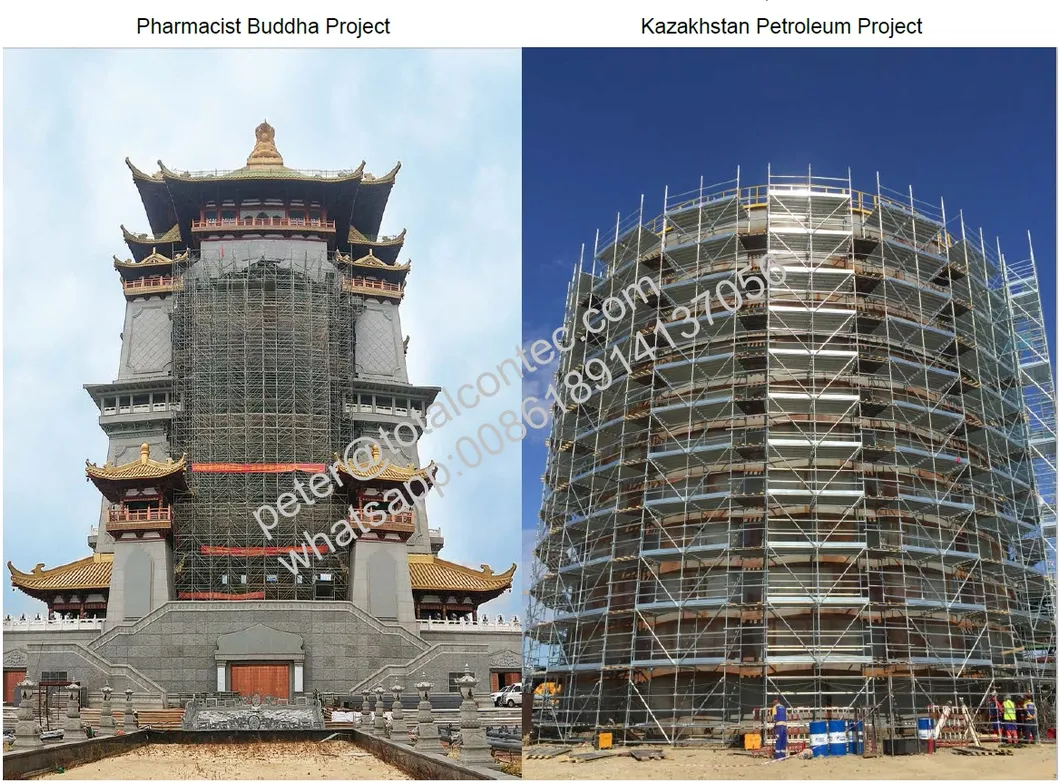

Kwikstage scaffold can be used for all external works at height, including brickwork, rendering, carpentry & cladding installation. Safety provisions can also be made to provide roof guardrails for plumbers, gutter & facia installation. All Kwikstage scaffold components are available in Painted or Hot Dip Galvanised to suit your environmental needs.

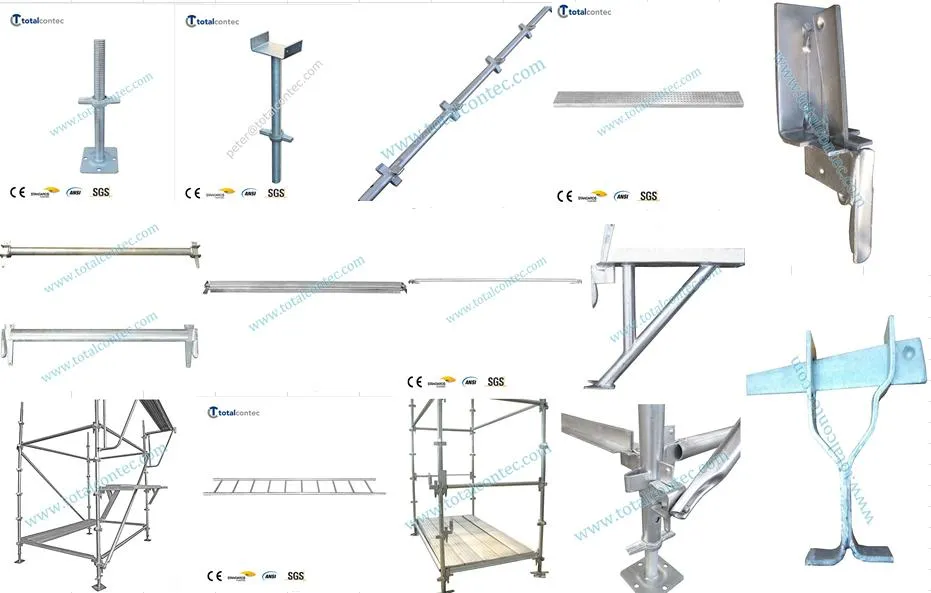

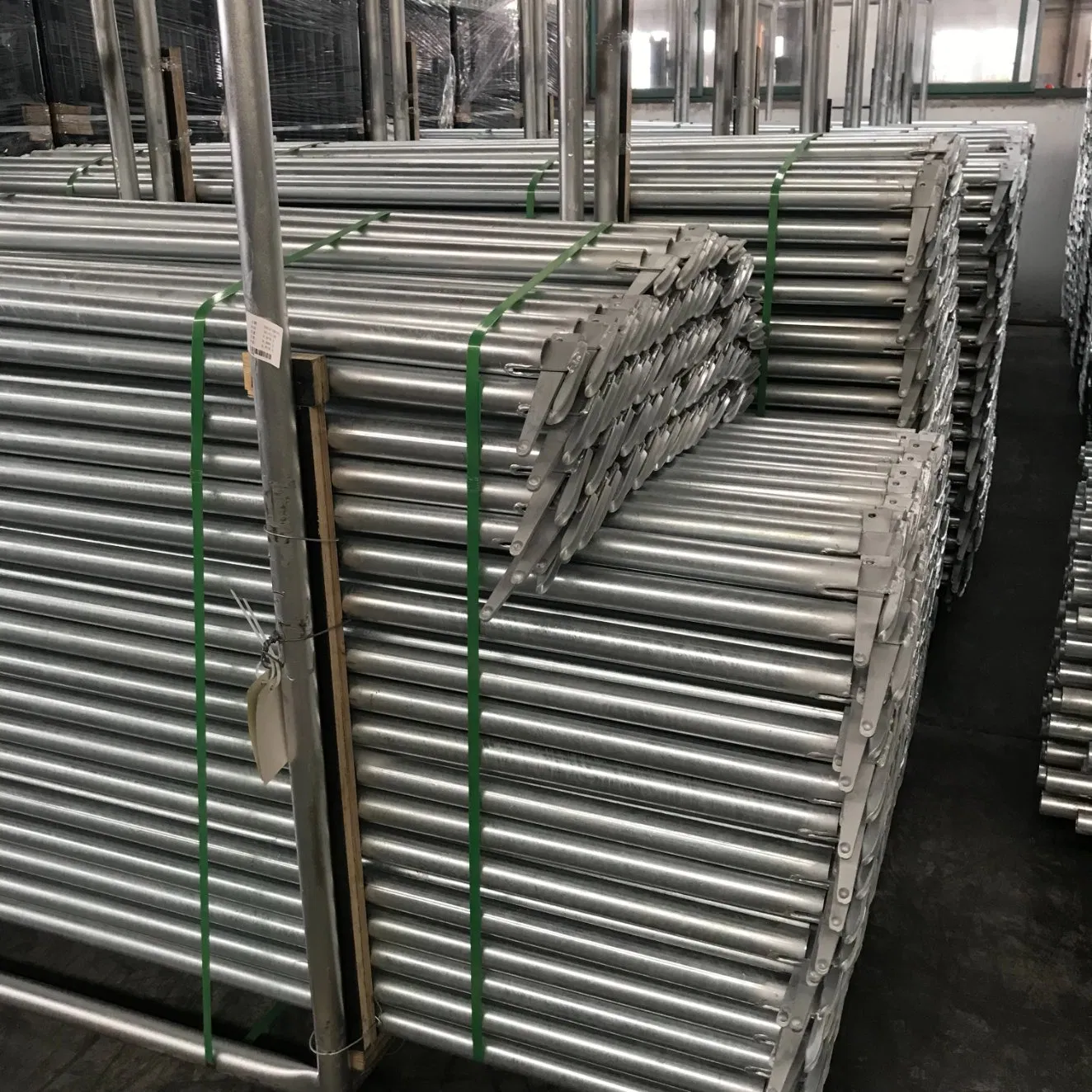

| Item Name |
Materials |
Weight |
Surface treatment |
| Ledger/Horizontal 076 | Q235, Q345
48.3*2.75/3.0/3.2/3.75/4.0mm | 3.85kg | Hot dip galvanized
Powder coated
Painted |
| Ledger/Horizontal 081 | 4.01kg |
| Ledger/Horizontal 100 | 4.35kg |
| Ledger/Horizontal 127 | 5.01kg |
| Ledger/Horizontal 183 | 7.61kg |
| Ledger/Horizontal 244 | 10.01kg |
| Transom 076 | Q235,
50*50*5mm | 5.4kg | Hot dip galvanized
Powder coated
Painted |
| Transom 081 | 5.7kg |
| Transom 100 | 9.1kg |
| Transom 127 | 9.5kg |
| Transom 183 | 16.2kg |
| Transom 244 | 23.2kg |
| Diagonal/brace 170 | Q235,
48.3*2.5mm | 7.5kg | Hot dip galvanized
Powder coated
Painted |
| Diagonal/brace 200 | 8.5kg |
| Diagonal/brace 250 | 10.5kg |
| Diagonal/brace 270 | 11.0kg |
| Diagonal/brace 320 | 12.5kg |
| Diagonal/brace 360 | 13.5kg |
| Steel plank/deck 076 | Q235, 1.2mm
1.5mm, 1.8mm | 4.0kg | Hot dip galvanized
Powder coated
Painted |
| Steel plank/deck 120 | 6.5kg |
| Steel plank/deck 180 | 10.5kg |
| Steel plank/deck 240 | 15.0kg |

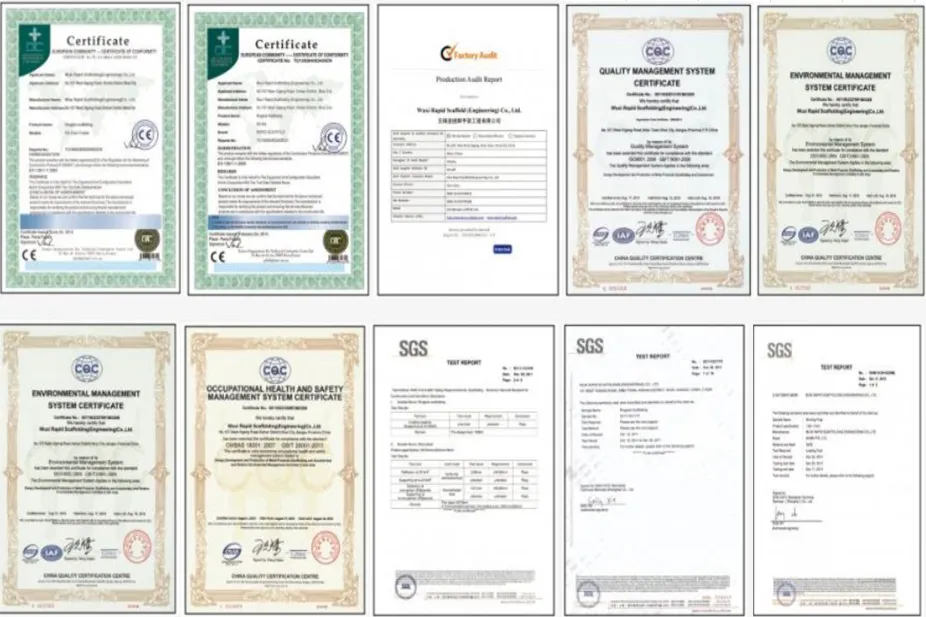

Scaffolding Certificate
Frequently Asked Questions
What is Kwikstage scaffolding?
Kwikstage is a modular scaffolding system known for its versatility and heavy-duty capacity. It is widely used in residential, commercial, and industrial construction projects worldwide.
What materials are used for these scaffolding parts?
The components are primarily manufactured using high-quality Q235 and Q345 steel, ensuring structural integrity and long-term durability on construction sites.
What surface treatments are available for the components?
Components are available in Hot Dip Galvanized, Powder Coated, or Painted finishes to meet various environmental requirements and corrosion resistance needs.
Can Kwikstage be used for specific construction tasks?
Yes, it is ideal for external works such as brickwork, rendering, carpentry, cladding installation, and can even provide roof guardrails for plumbing and gutter work.
What is the production capacity for these products?
The production capacity is approximately 100 tons per day, ensuring a steady supply for large-scale construction projects and distribution.
Does the scaffolding system comply with safety regulations?
Yes, Kwikstage is designed to satisfy WorkSafe regulations, providing a safe platform for tradespeople to work efficiently at various heights.
