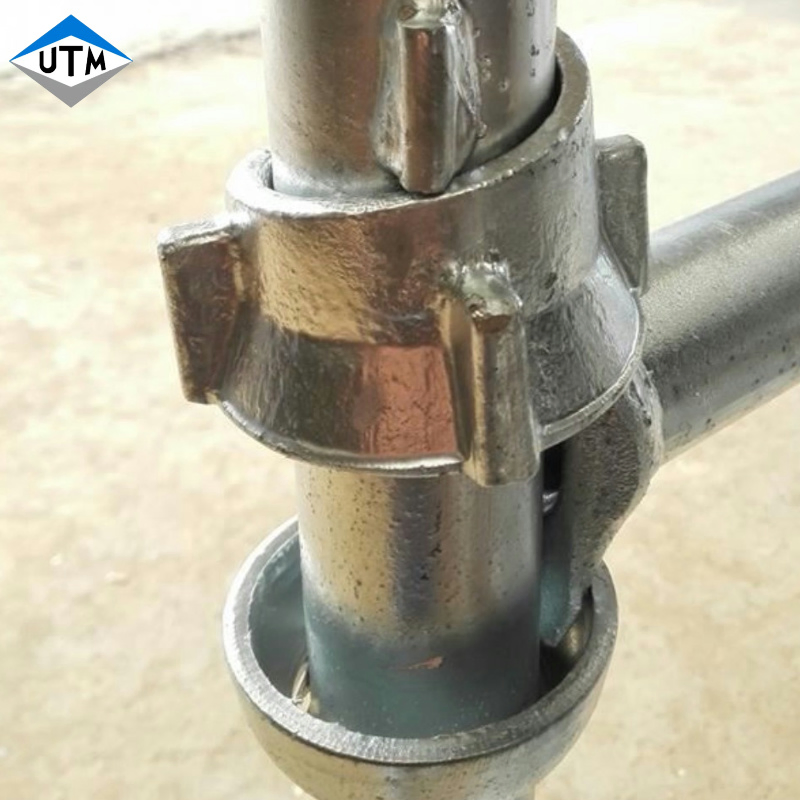

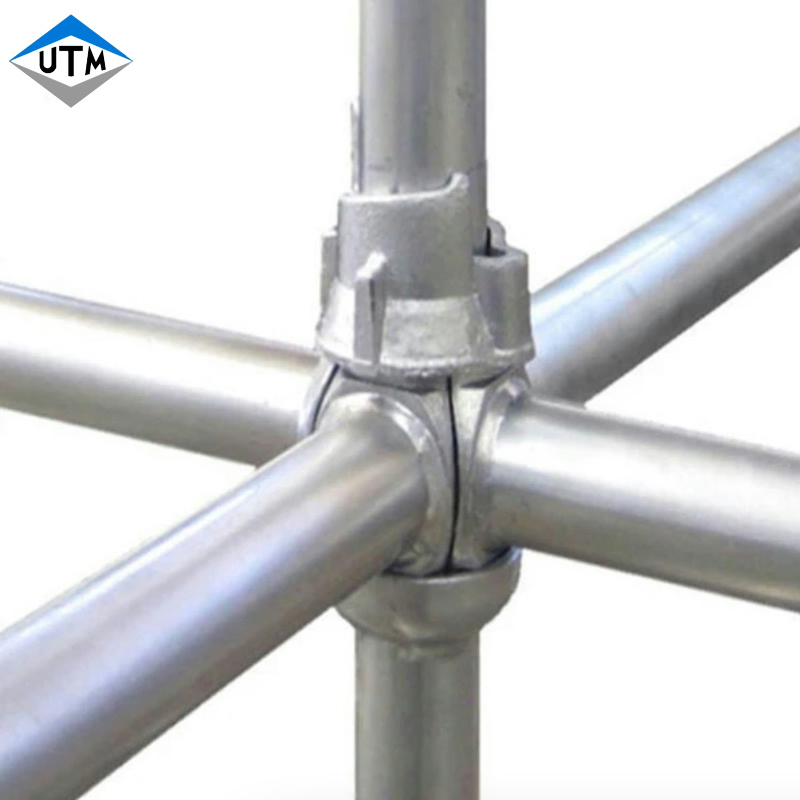

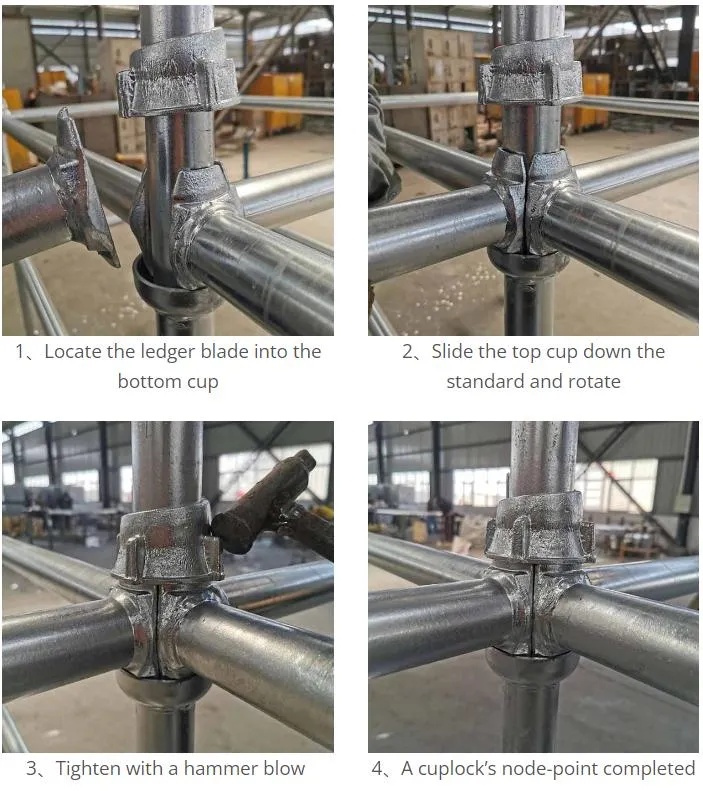

Building concrete scaffolding cuplock top cup scaffold system is a highly mature and versatile construction system. It primarily consists of standards, ledgers, braces, and planks. The cuplock node is revolutionary, making erection faster and easier than traditional systems. It utilizes a "Cup" and "Blade" mechanism to lock vertical and horizontal components together by rotating the top cup.
| Specification | Details |
|---|---|
| Material | Steel Q355, Q235 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74 / BS1139 / AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT / LC |

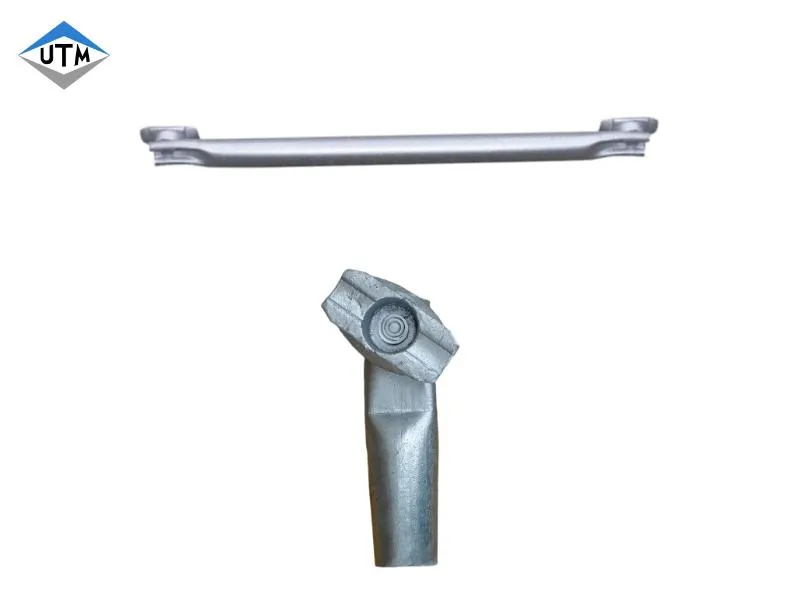

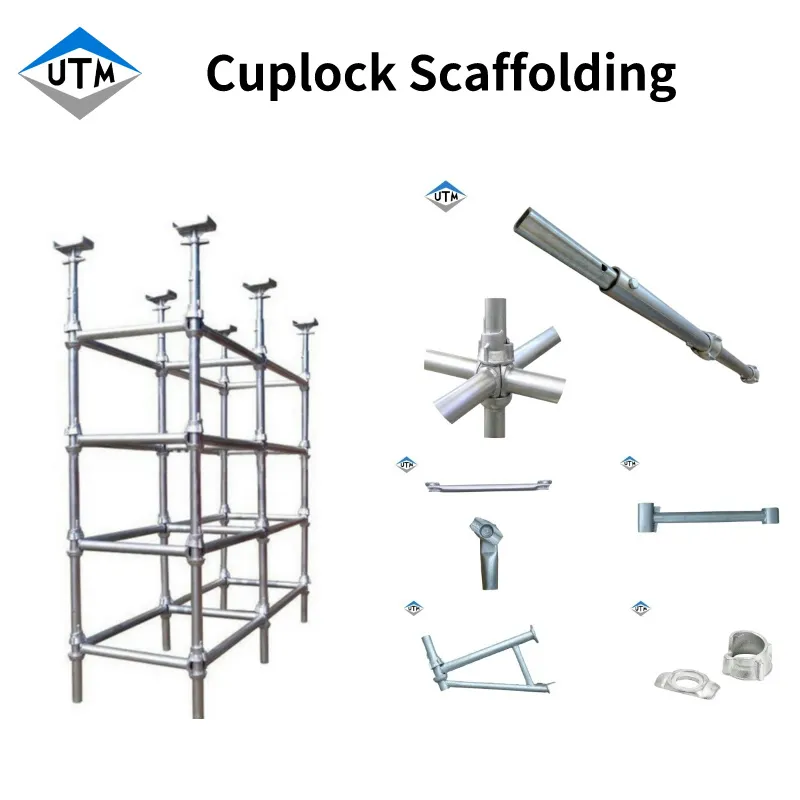

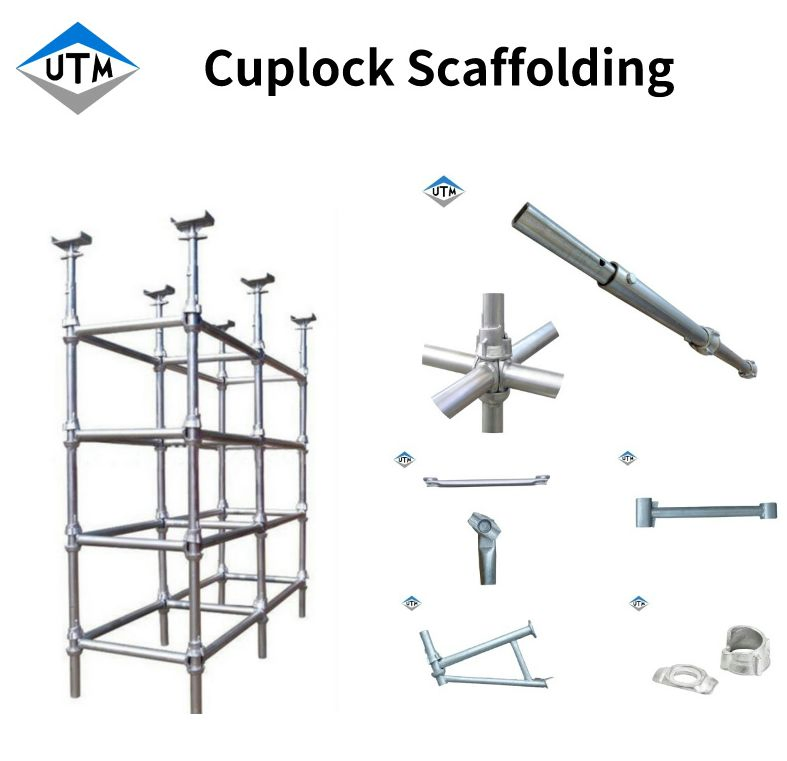

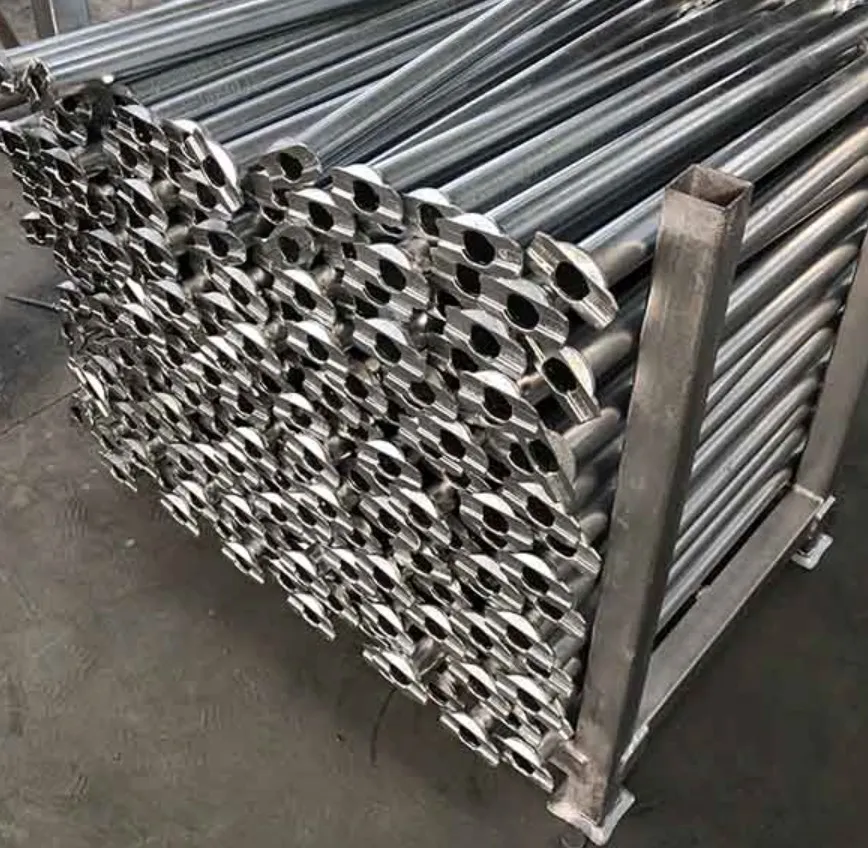

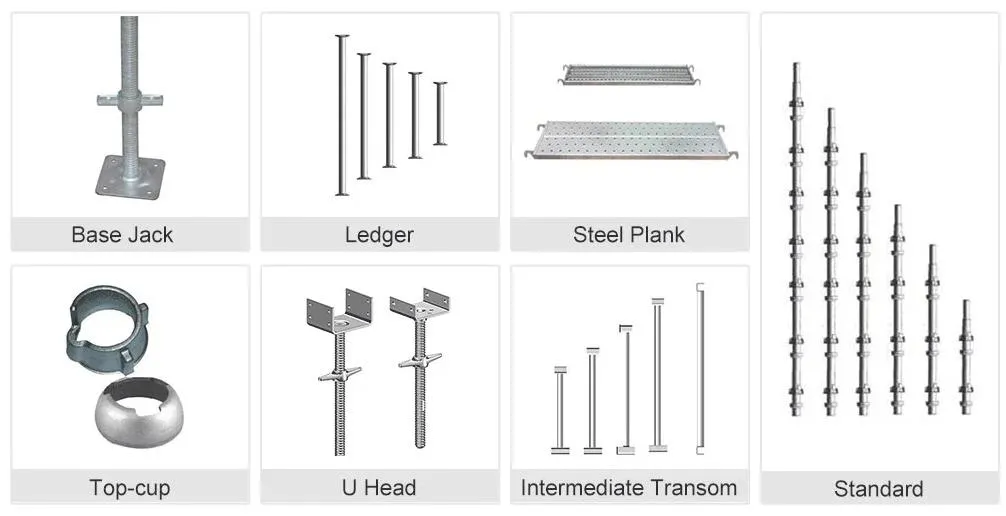

The system includes Vertical Standards, Ledgers (Horizontals), Bay Braces, Intermediate Transoms, and Side Brackets. Each component is designed for maximum safety and stability on the construction site.
| Code | Name | Length (mm) | Material | Surface |
|---|---|---|---|---|

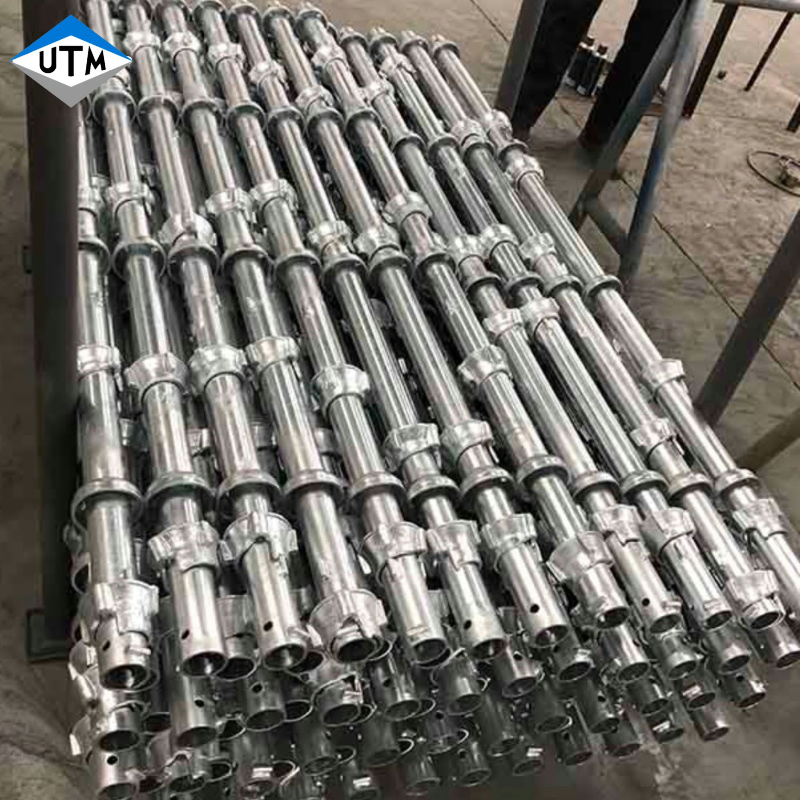

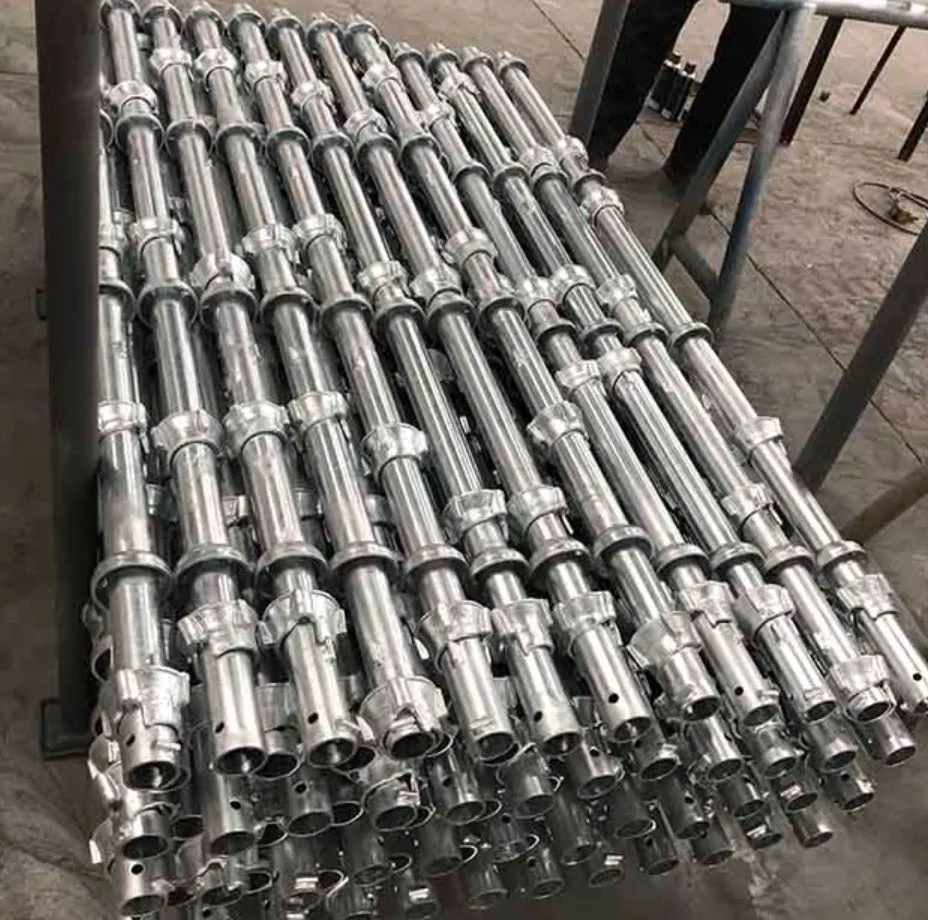

| UTM-CL-163-500 | Cuplock Standard | 500mm | Q355 | Galvanized |
| UTM-CL-163-1000 | 1000mm | |||
| UTM-CL-163-2000 | 2000mm | |||
| UTM-CL-163-3000 | 3000mm |

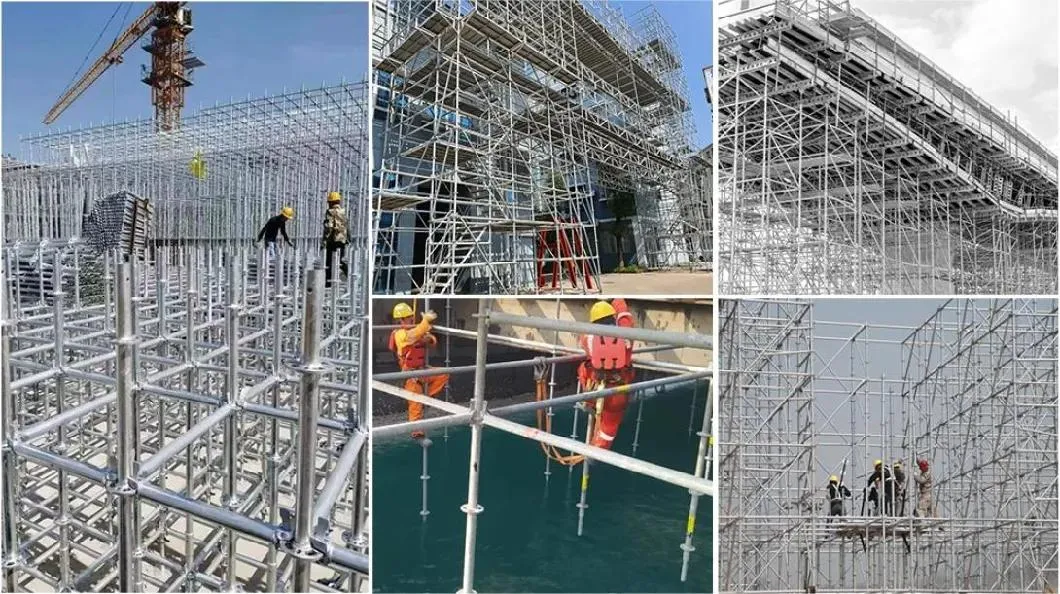

Cuplock scaffolding is ideal for building construction, painting, cleaning, suspending scaffolding, bridge frames, and stage racks. Its versatile nature allows for curved frames and heavy propping requirements.
