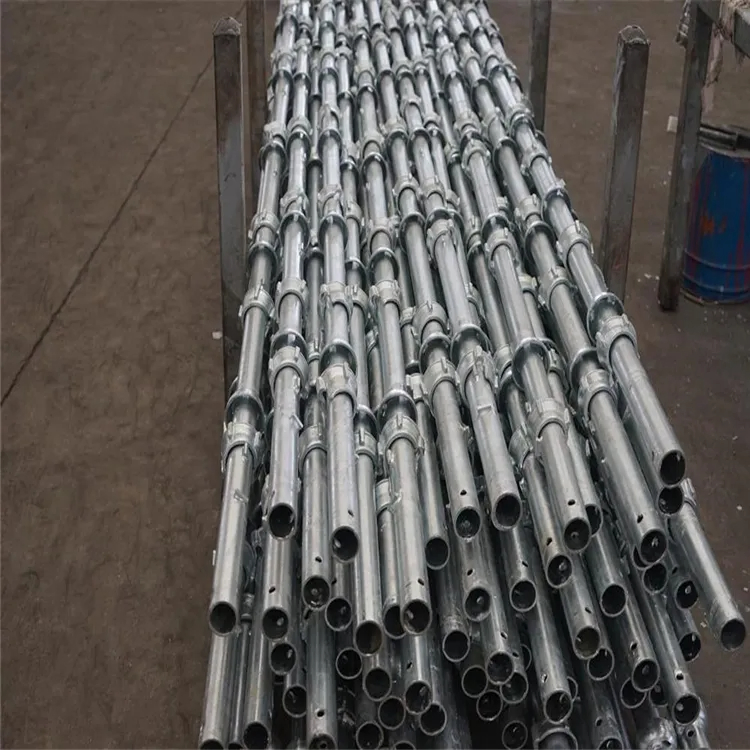

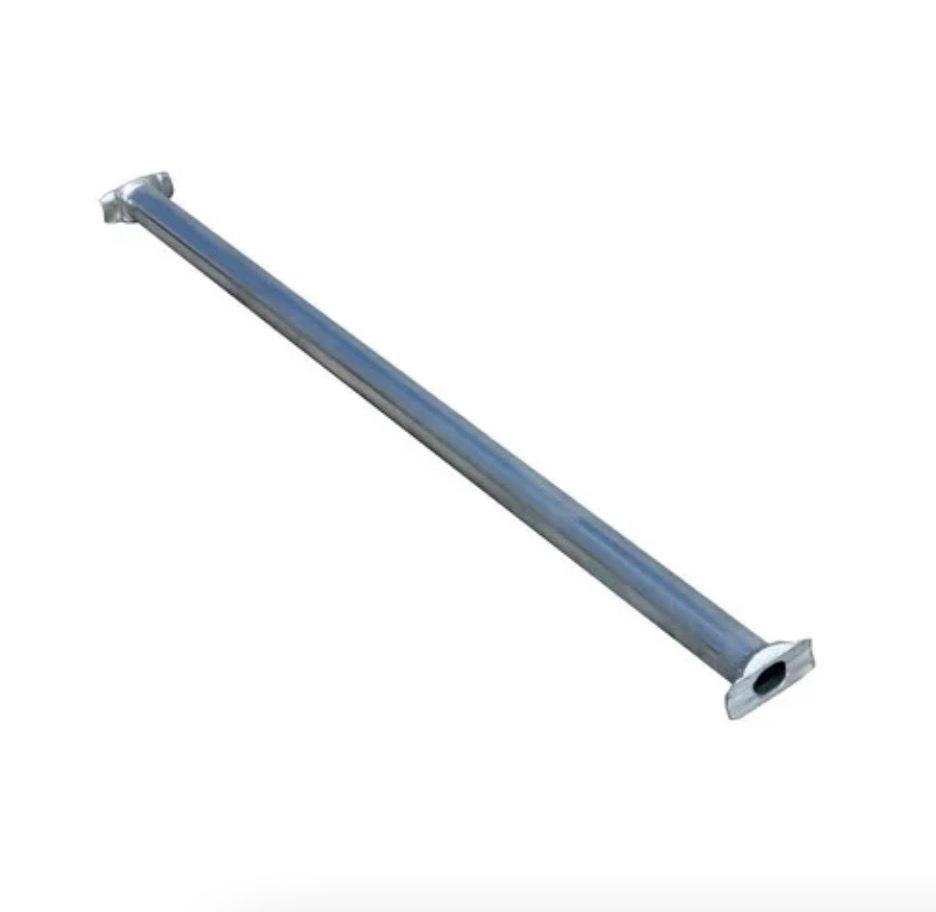

Factory Price Cup lock Scaffold tubular scaffolding system
| Specifications | Details |
|---|---|
| Material | Steel Q355, Q235 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74/BS1139/AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT / LC |

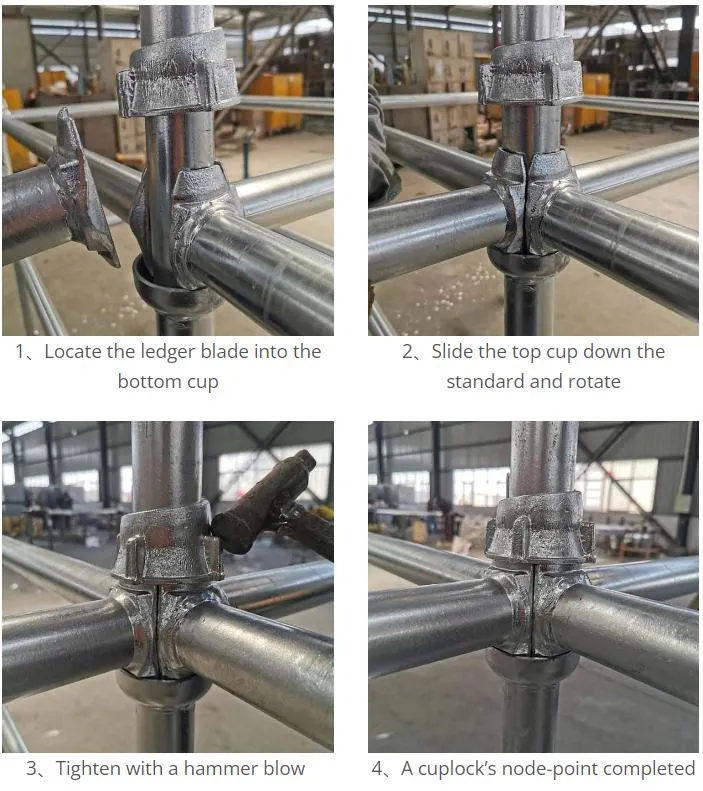

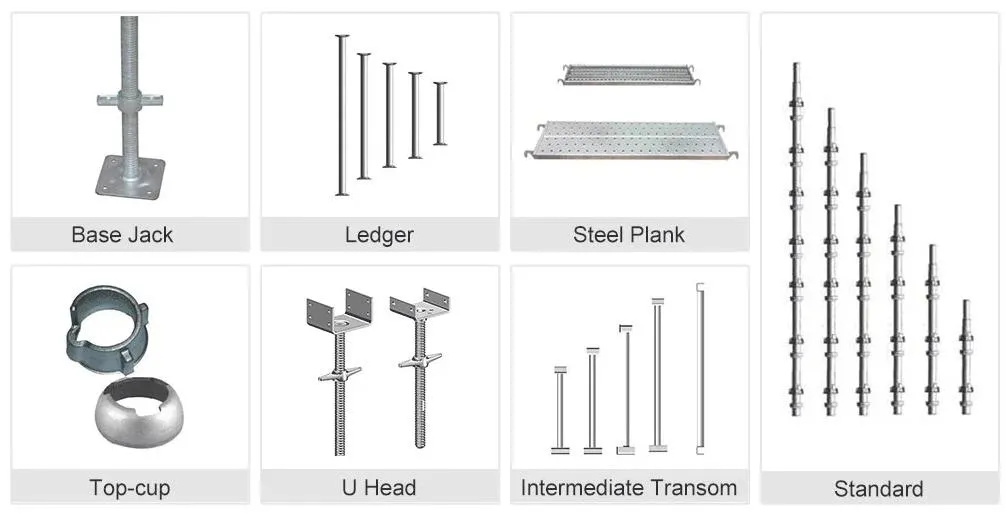

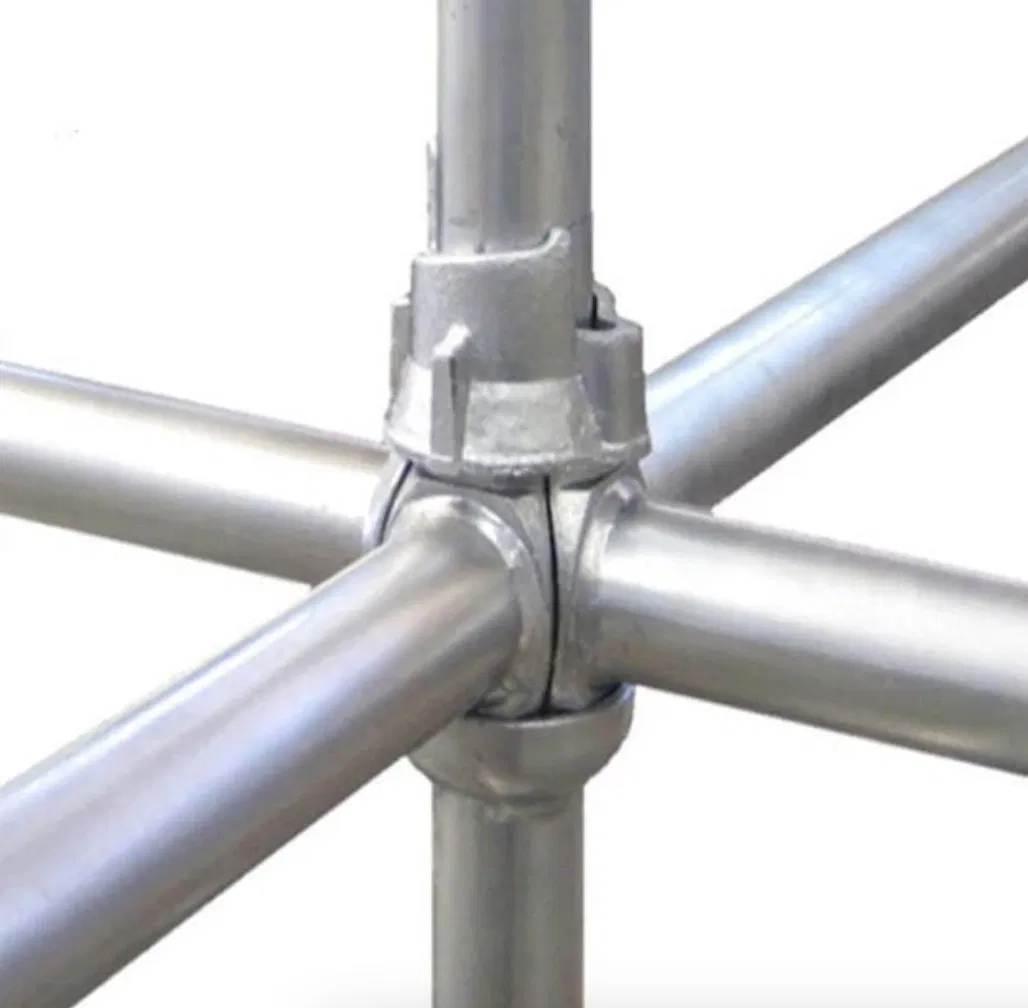

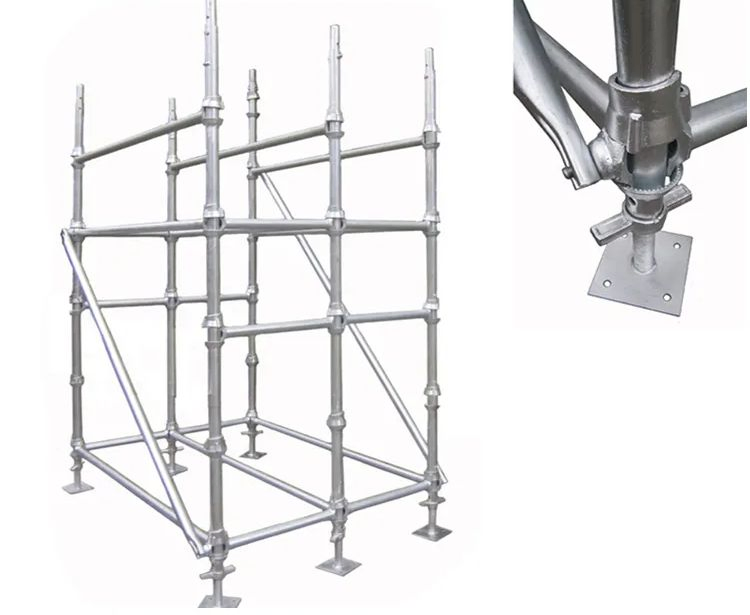

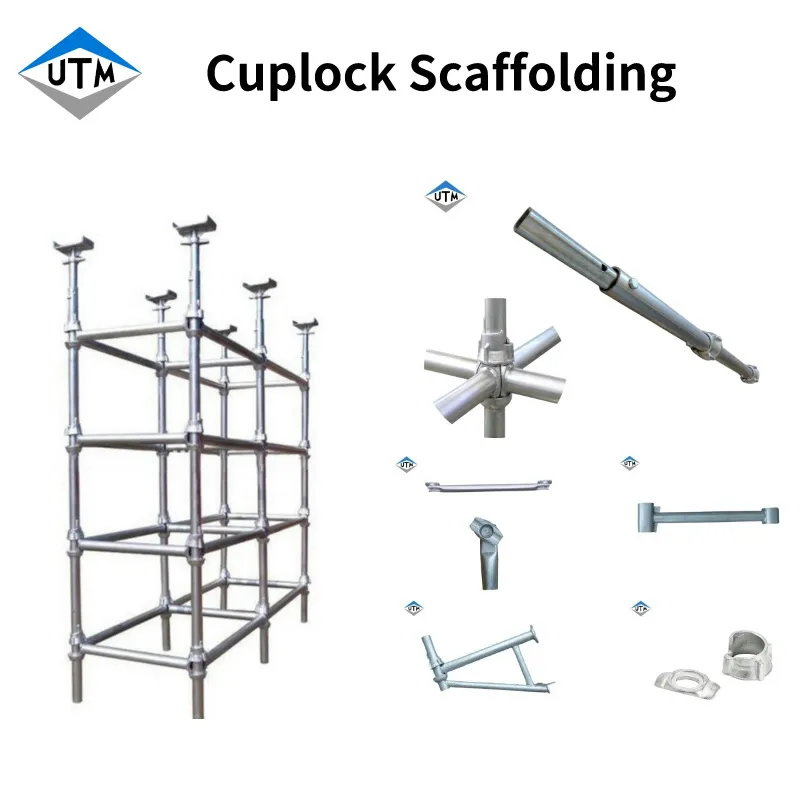

Cuplock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on. Cuplock node is revolutionary, making it faster and easier to erect than any other scaffolding. It uses the "Cup" and "Blade" to lock the vertical and horizontal together by rotating the top cup.
Cuplock Scaffolding System joint structure is reasonable, simple production process, easy operation, and wide range of use. Compared with traditional scaffolding, it features remarkable stability and strength.
Easy to Stand
No nut and bolt or wedge, just lock the blade into cup at each node.
Light Weight
3.2mm thickness high-grade steel makes it 20% lighter than standard 4mm tubes.
Fast Erection
30%-50% faster than traditional tube and fitting scaffolding.
Versatile
Suitable for Facade, Shoring, Circular structures, Birdcages, and Mobile Towers.

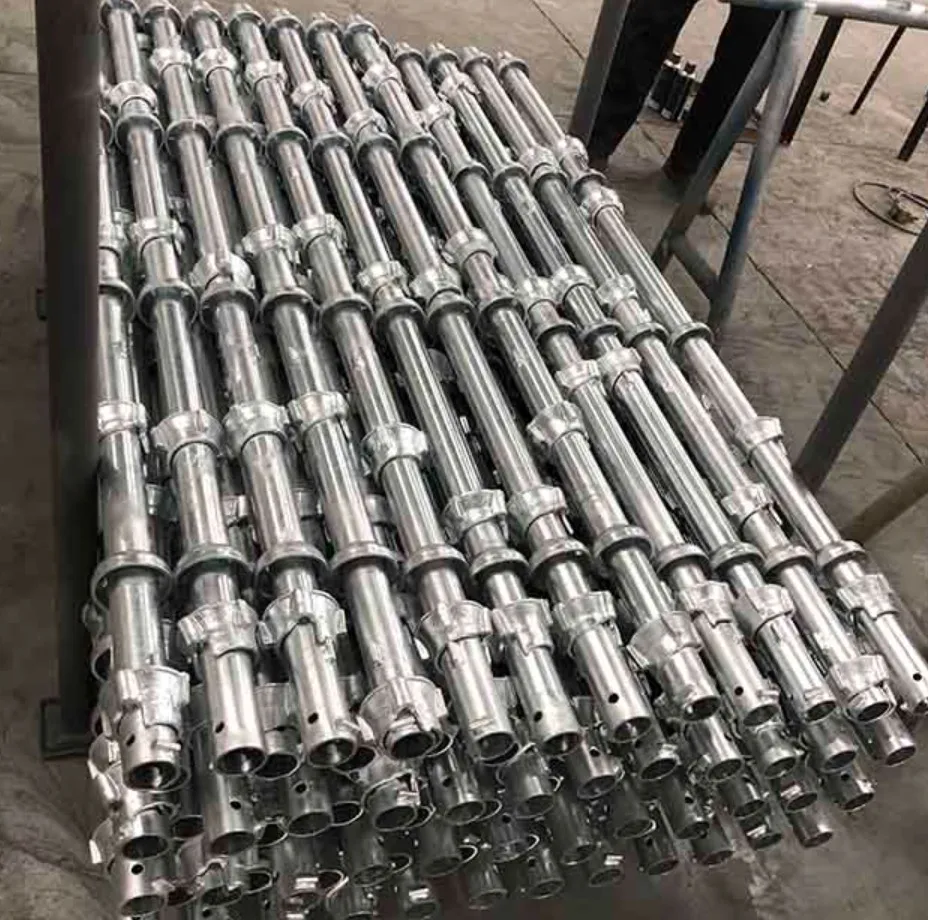

Cuplock Scaffolding Standards
| Code | Name | Length | Surface | Material |
|---|---|---|---|---|
| UTM-CL-163-500 | Cuplock Standard | 500mm | Galvanized | Q355 |
| UTM-CL-163-1500 | 1500mm | |||
| UTM-CL-163-3000 | 3000mm |

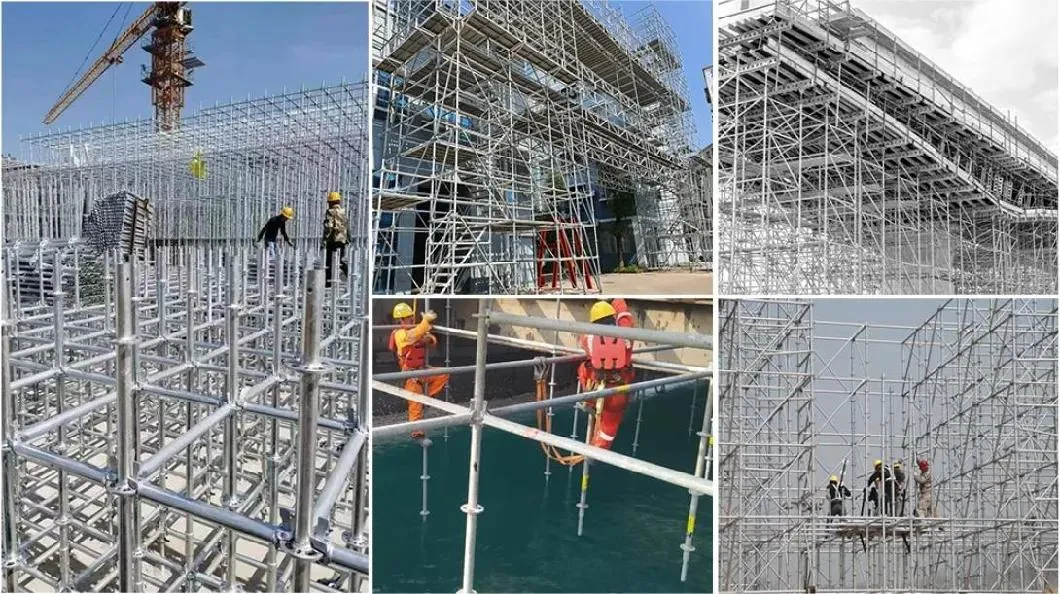

Used in wide-ranging projects including advertising, ceiling painting, building construction, industrial cleaning, suspended scaffolding, cantilever racks, bridge frames, and stage production.

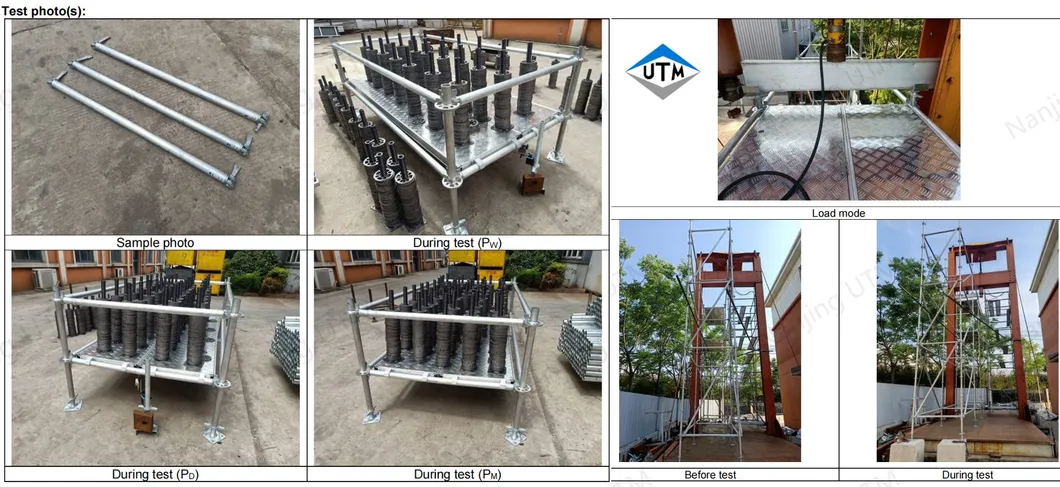

Lighter than standard steel scaffolding, the Aluminum Ringlock system offers quick assembly by inserting plugs into taper holes. Perfect for facade and mobile tower applications.
