| Model NO. | UTM-CLS |
|---|---|
| Material | Steel Q235/Q355 |
| Type | Cup Lock Scaffolding System |
| Structural Style | Multi-Pole Scaffolding |
| Framework | Combined Scaffolding |
| Supporting Mode | Projecting Scaffolding |
| Lapping Form | Double Scaffolding |
| Erection Position | External Scaffolding |
| Standard | En74-1 / BS1139 / As1576 |
| Finish | Zinc Plate or Hot Dipped Galvanized |
| Production Capacity | 500,000 pieces/Year |
Heavy Duty Modular Steel Scaffolding Cuplock Scaffolding System for Construction
| Name | Cuplock scaffolding |
| Material | Steel Q355, Q235 |
| Surface Treatment | Hot Dip Galvanized / Dip paint |
| Standard | EN74 / BS1139 / AS1576 |
| Certificate | CE Certificate / SGS |

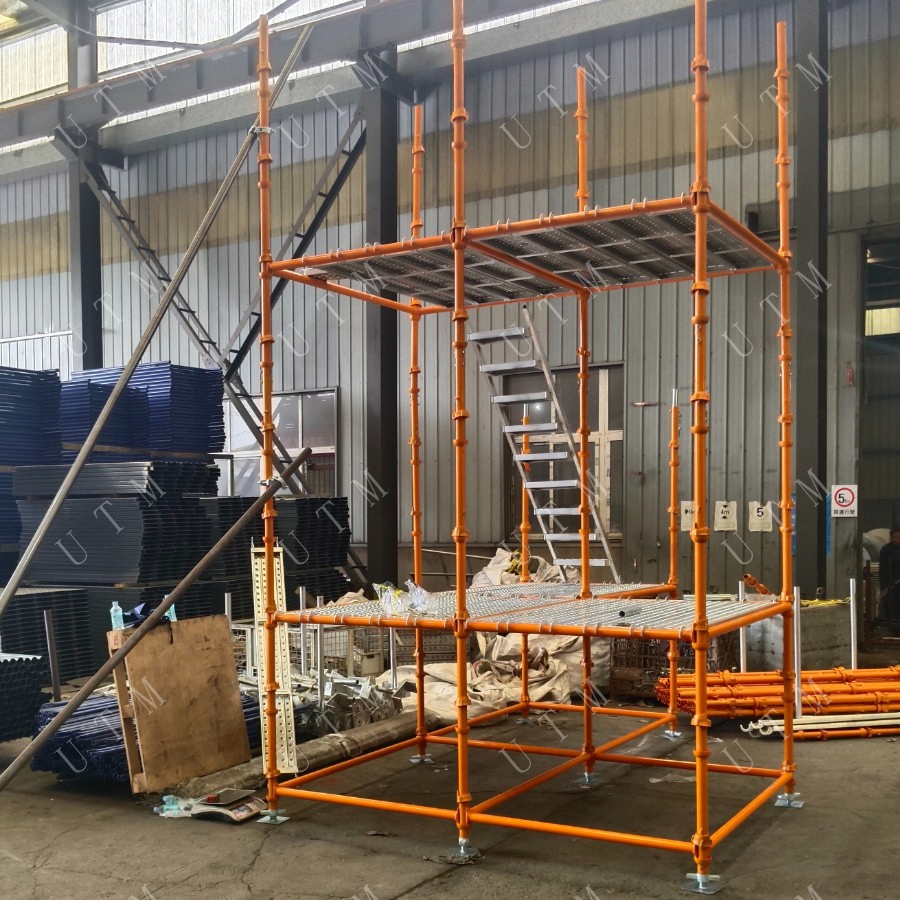

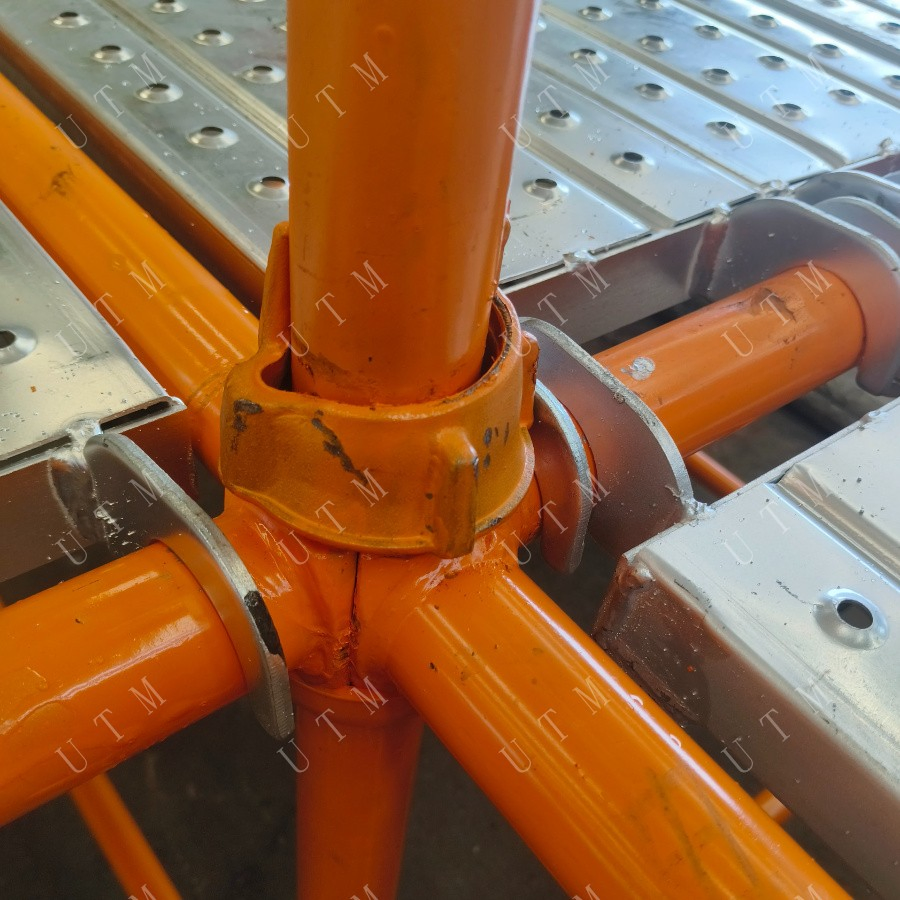

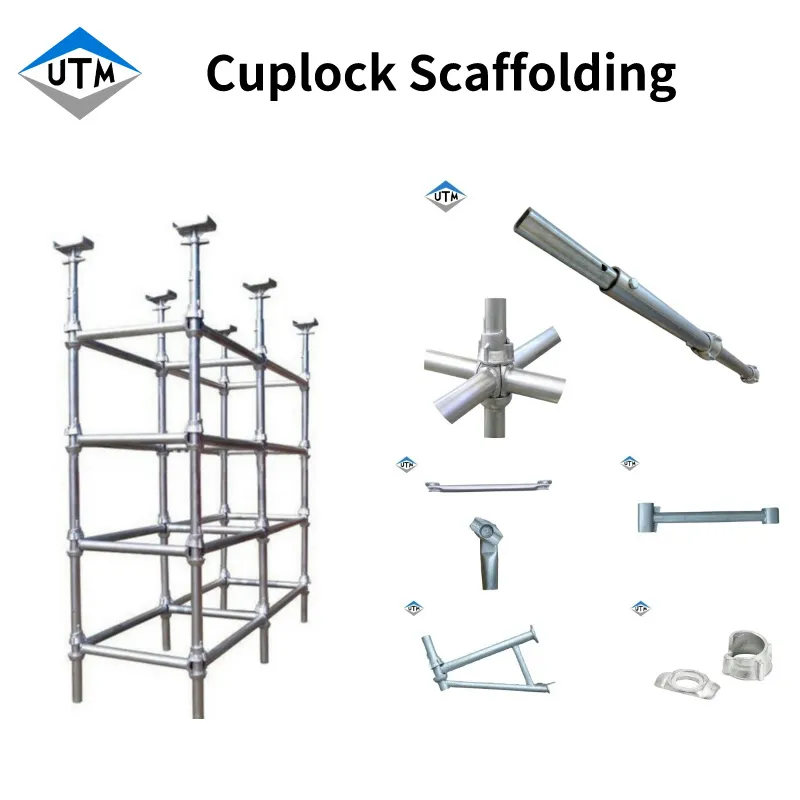

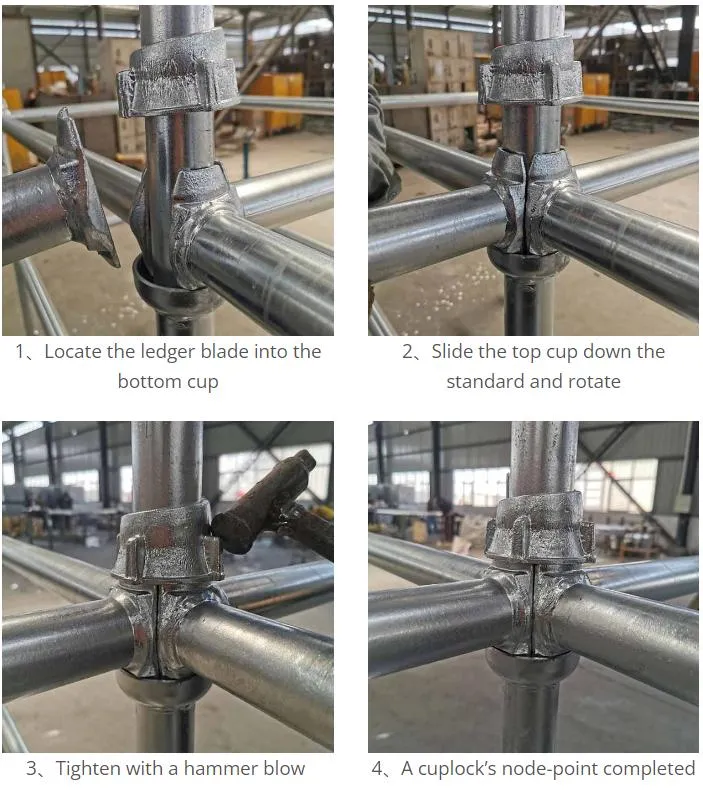

Cuplock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on. The Cuplock node is revolutionary, making it faster and easier to erect than any other scaffolding. It uses the "Cup" and "Blade" to lock the vertical and horizontal together by rotating the top cup.
30%-50% faster than traditional scaffolding. No nuts, bolts or wedges required.
20% lighter than standard 4mm thickness scaffolding tube due to high-grade 3.2mm steel.
Hot-Dip-Galvanized finish provides low maintenance and a long service life (up to 15 years).
Suitable for Facades, Shoring, Circular structures, Birdcages, and Mobile Towers.
| Length | Material | Surface |
|---|---|---|
| 500mm - 3000mm | Q355 | Galvanized |

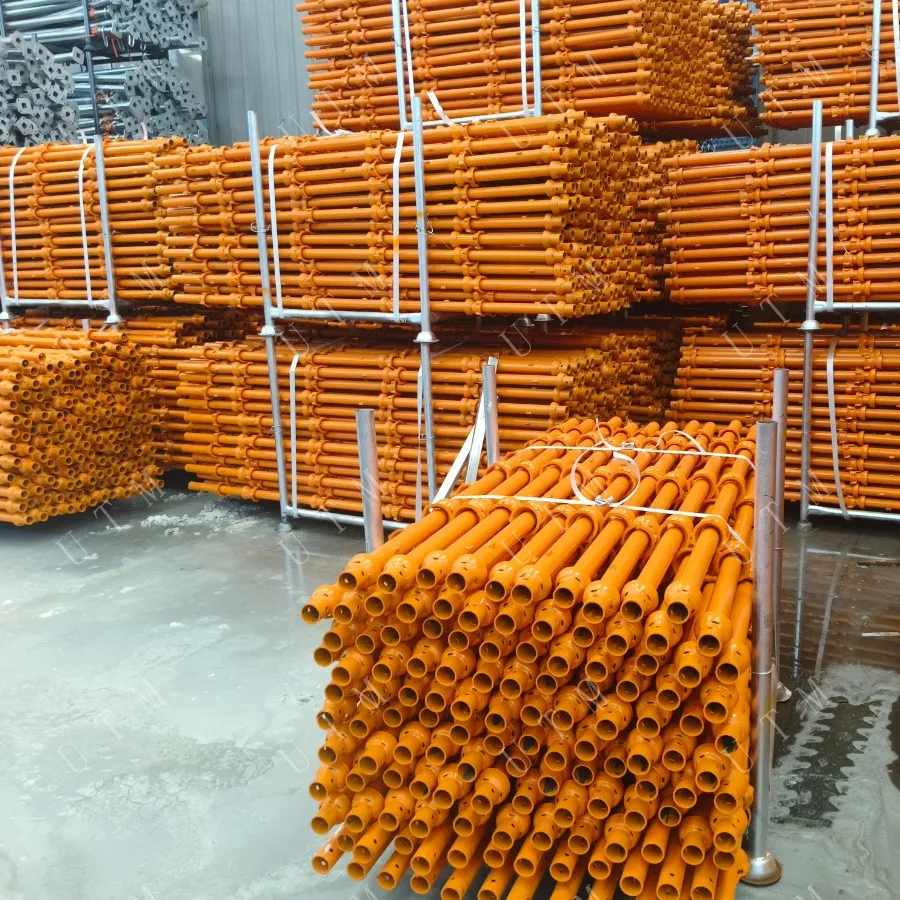

Standards are manufactured with a fixed bottom cup welded at 500mm intervals, securing up to four components with a moving top cup.
| Length | Material | Standard |
|---|---|---|
| 560mm - 3048mm | Q235 | BS1139 |

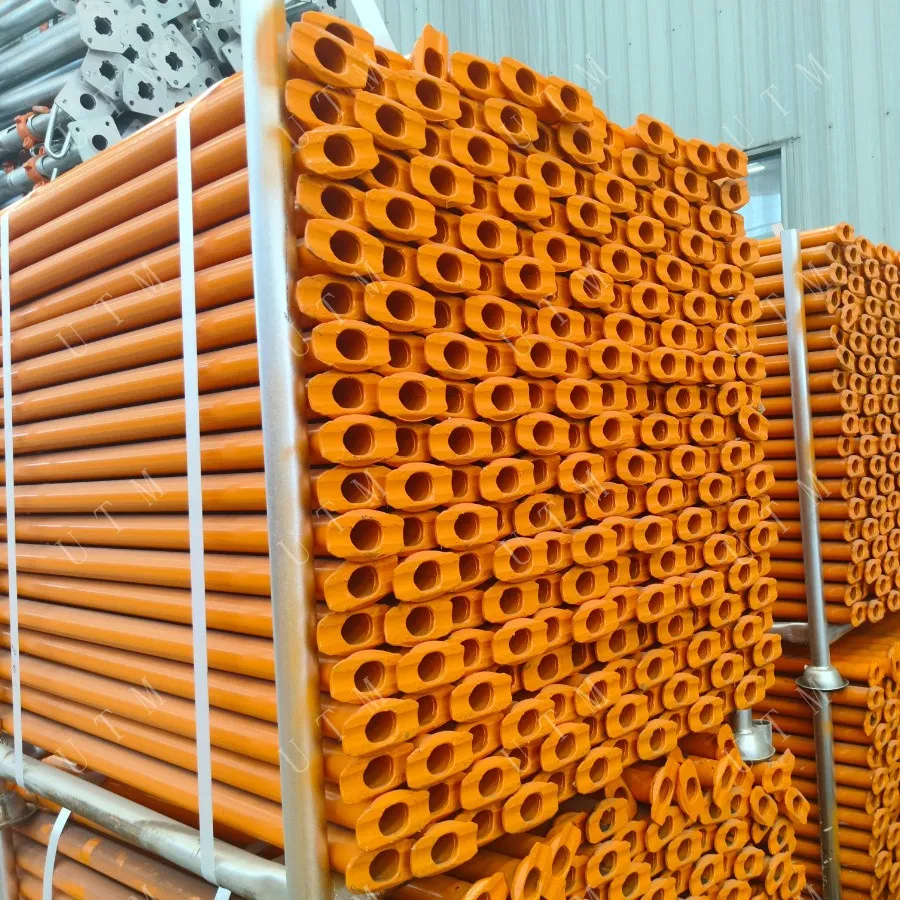

Ledgers provide horizontal support and connect easily to the vertical standards using unique cup-shaped sockets.

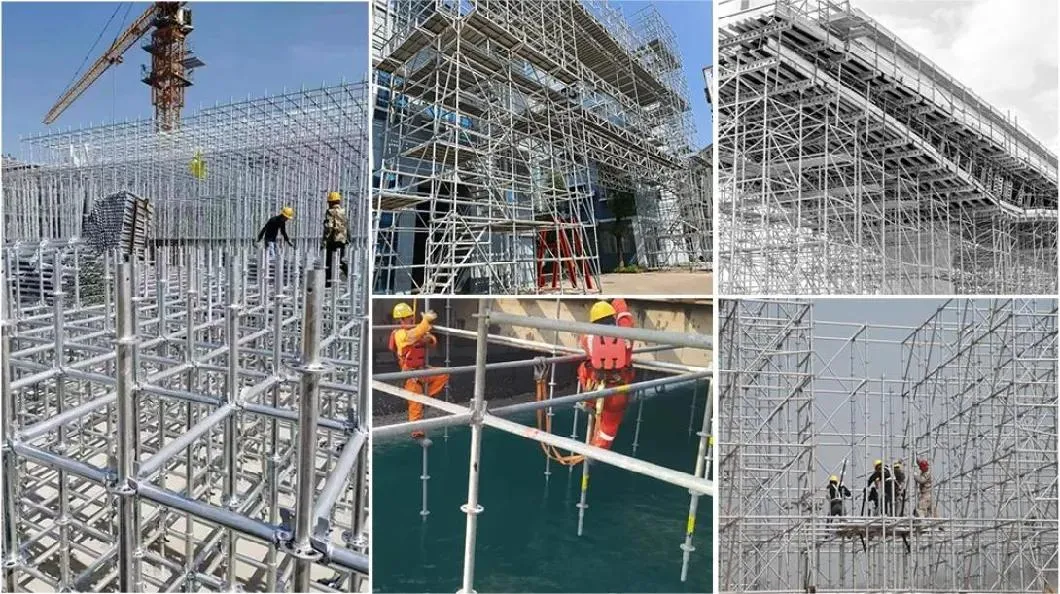

The cuplock scaffolding system is widely used in:
