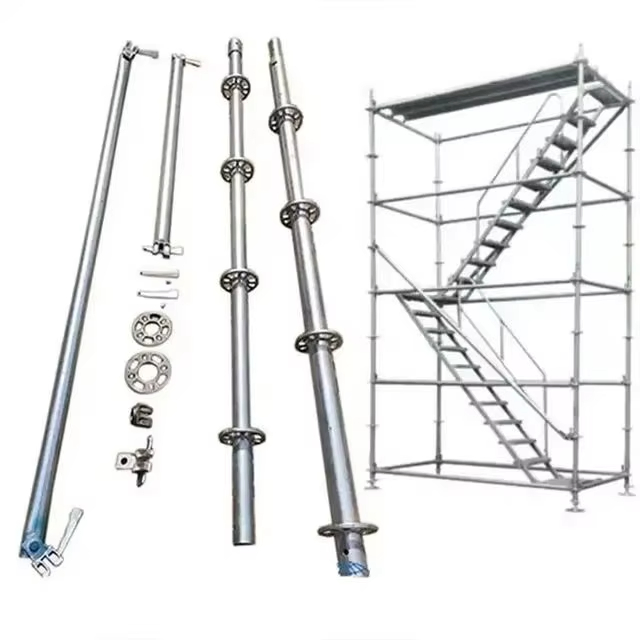

Heavy Duty All Round Ring Lock Scaffolding System is known for its flexibility and adaptability, making it suitable for complex and challenging construction projects. Engineered to provide superior stability and load-bearing capacity, its modular design ensures efficient installation and dismantling on job sites.

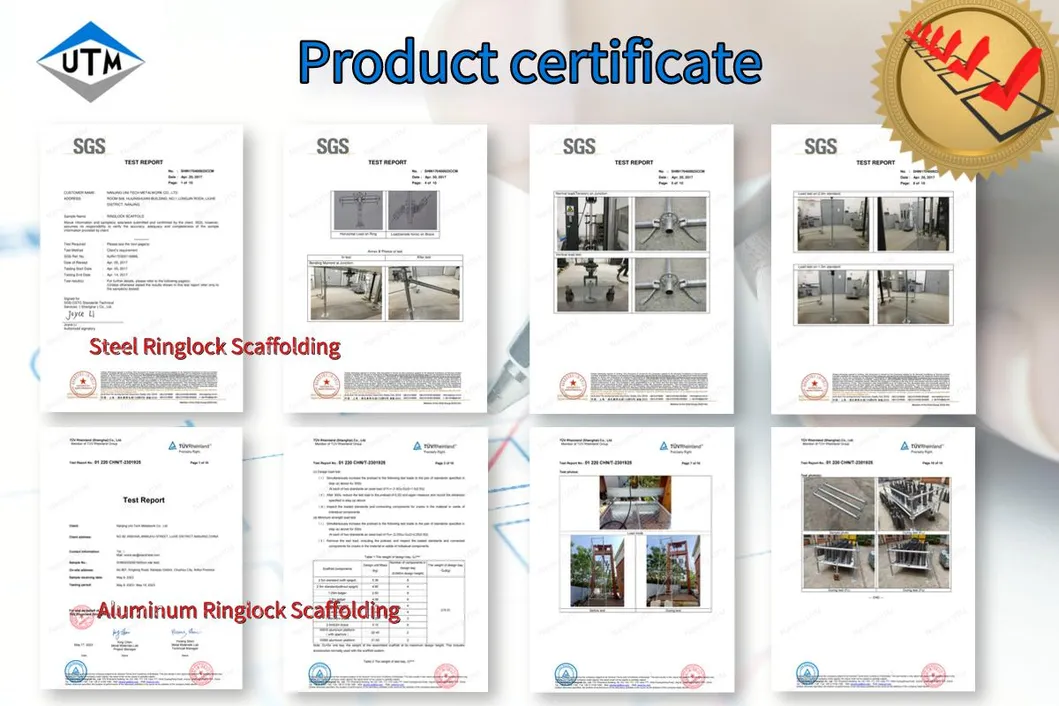

| Material | Surface Treatment | Standard | Certificate | Payment Term |
|---|---|---|---|---|
| Steel Q355, Q235 | Hot Dip Galvanized | EN74 / BS1139 / AS1576 | CE Certificate / SGS | TT / LC |

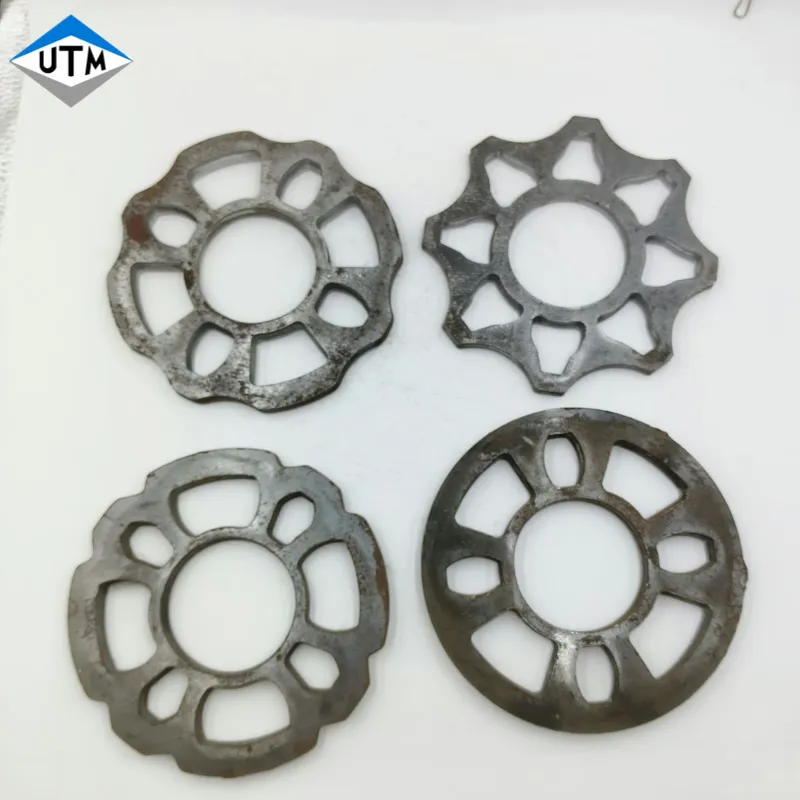

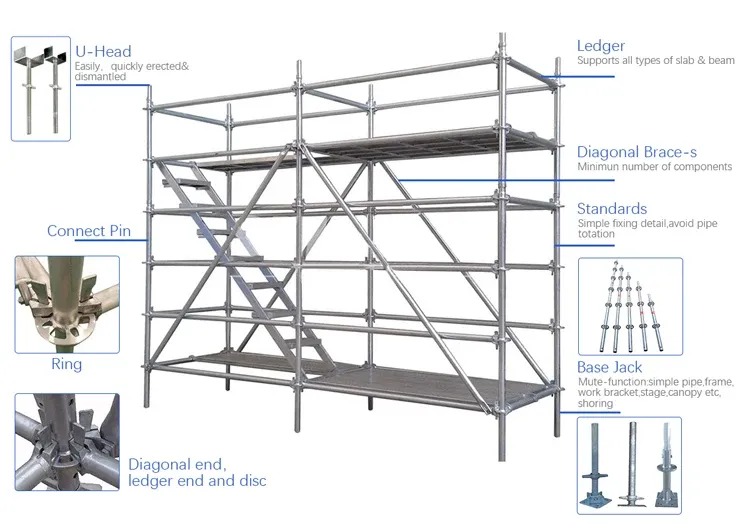

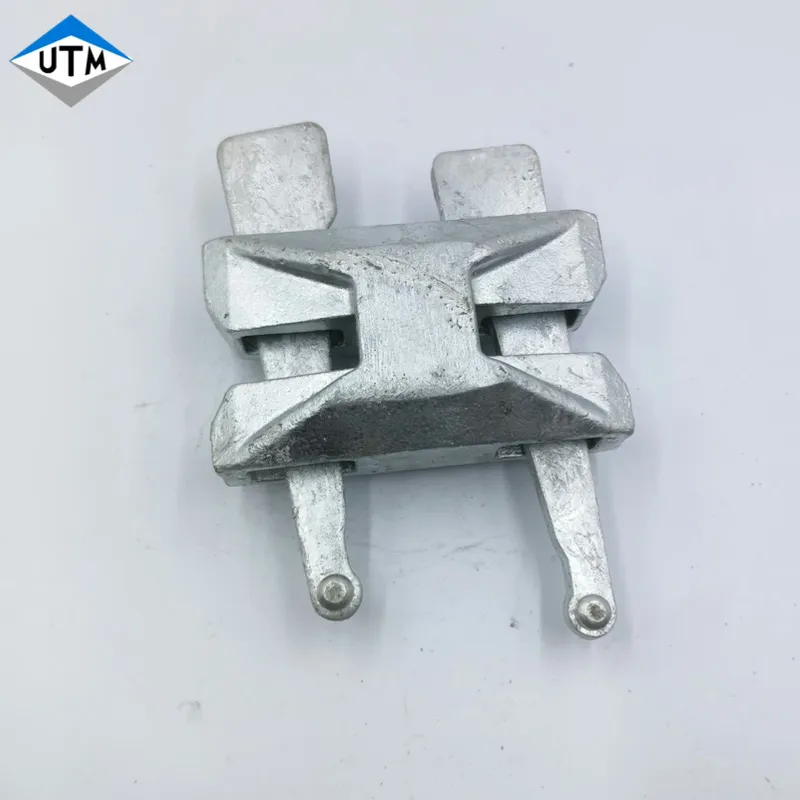

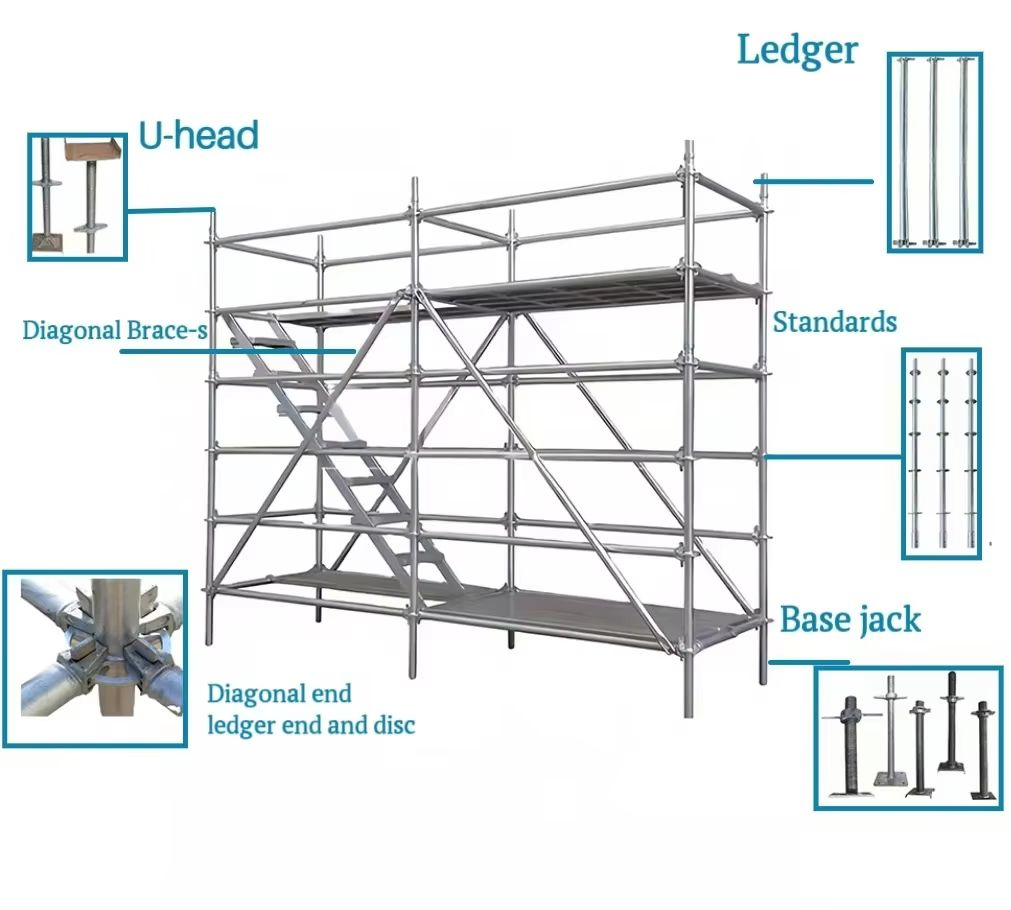

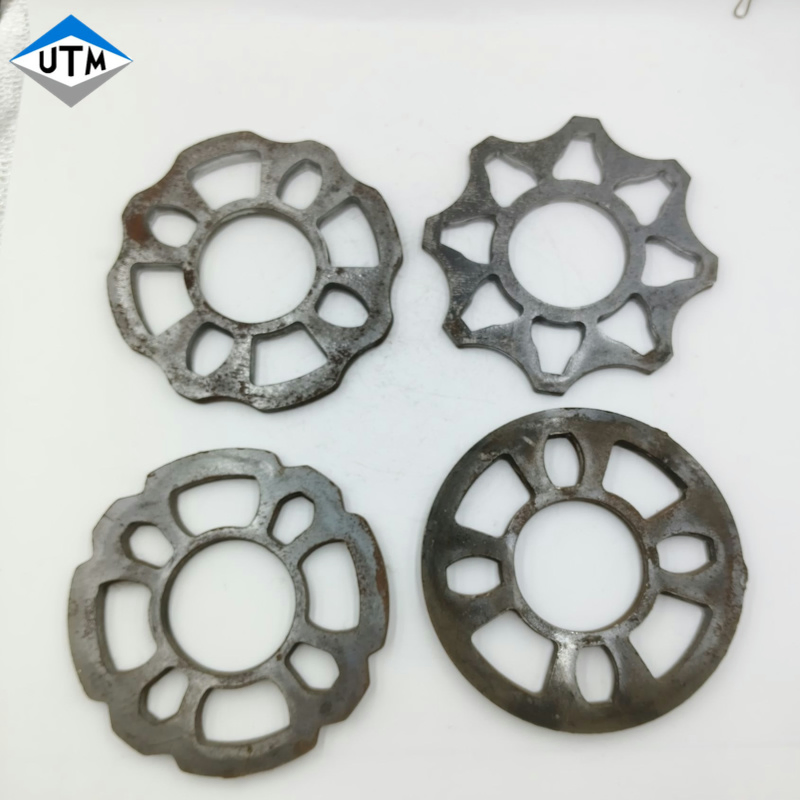

System Advantages: This new type of braced scaffolding system uses pre-welded joints and eight-hole discs on upright bars. Utilizing gravity wedge self-locking pins, it creates a stable triangular structure that combines into a robust 3D space structure. It offers high safety, labor efficiency, and a clean appearance.

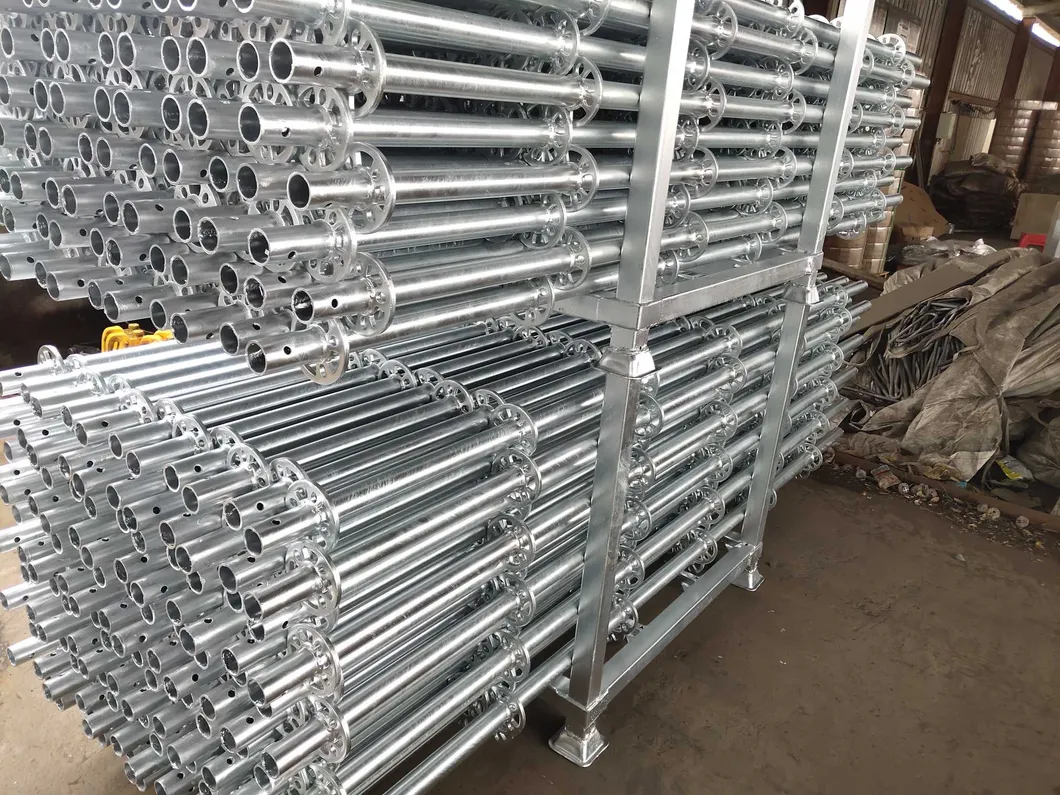

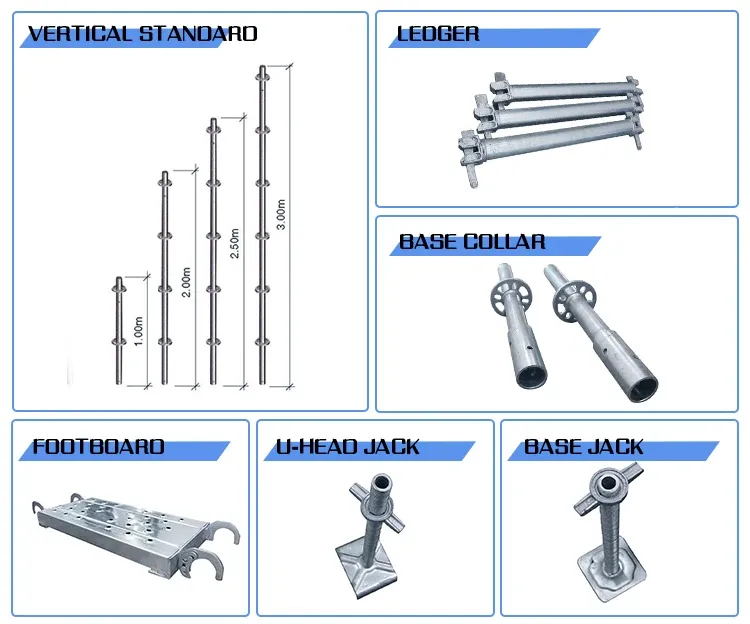

| Code | Length (mm) | Weight (kg) | Material | Surface |
|---|---|---|---|---|
| UTM-RLS-147-500 | 500 | 3.22 | Q355 | Galvanized |
| UTM-RLS-147-1000 | 1000 | 5.57 | Q355 | Galvanized |
| UTM-RLS-147-2000 | 2000 | 10.39 | Q355 | Galvanized |
| UTM-RLS-147-3000 | 3000 | 15.15 | Q355 | Galvanized |

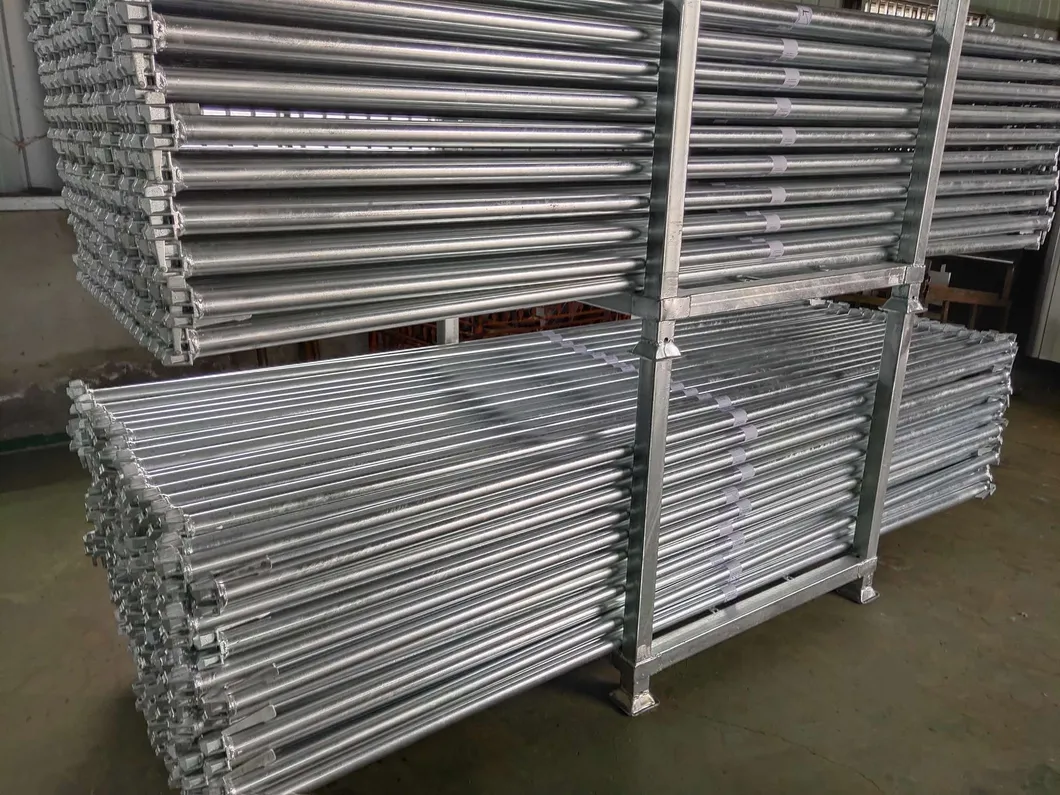

| Code | Length (mm) | Weight (kg) | Material | Surface |
|---|---|---|---|---|
| UTM-RLS-148-730 | 730 | 3.45 | Q235 | Galvanized |
| UTM-RLS-148-1090 | 1090 | 4.79 | Q235 | Galvanized |
| UTM-RLS-148-2070 | 2070 | 8.45 | Q235 | Galvanized |
| UTM-RLS-148-3070 | 3070 | 12.19 | Q235 | Galvanized |

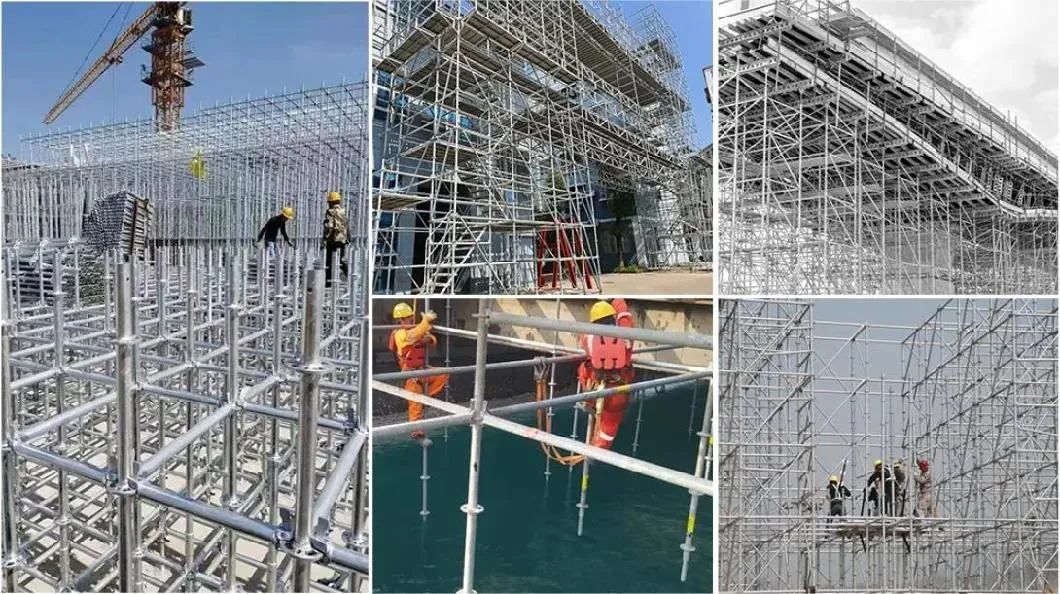

Widely used in tunnel, bridge engineering, viaducts, power plants, oil refineries, and special workshop supports. It is also ideal for stage construction, bleachers, and internal/external decoration.
| Feature | Details |
|---|---|
| Easy to Stand | Insert plugs into taper holes and tap tightly. |
| Light Weight | Aluminum alloy is lighter than standard steel tubes. |
| Fast | 30%-50% faster than traditional scaffolding. |

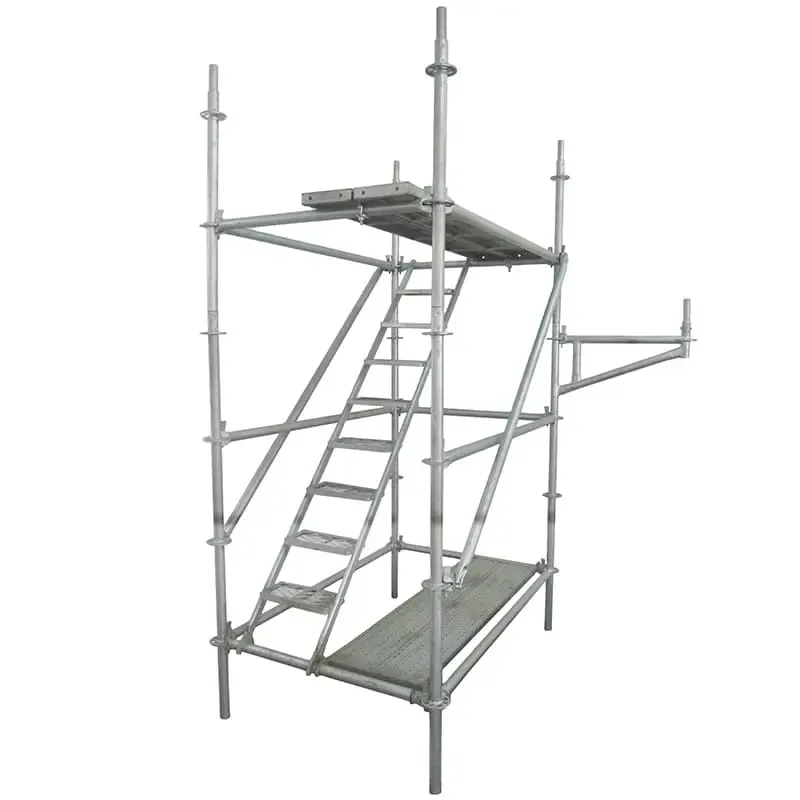

| Versatile | Suitable for Facades, Birdcages, Staircases, and Mobile Towers. |
