Wholesale High Quality Construction Building Cup Lock Scaffolding System

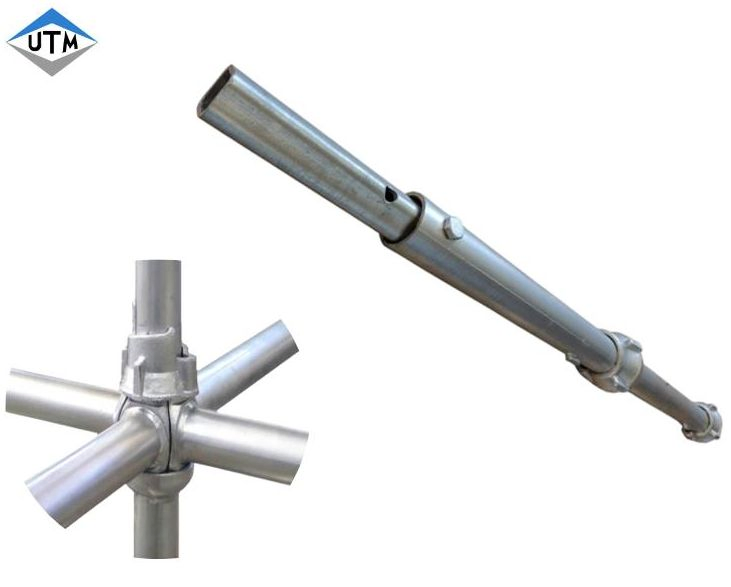

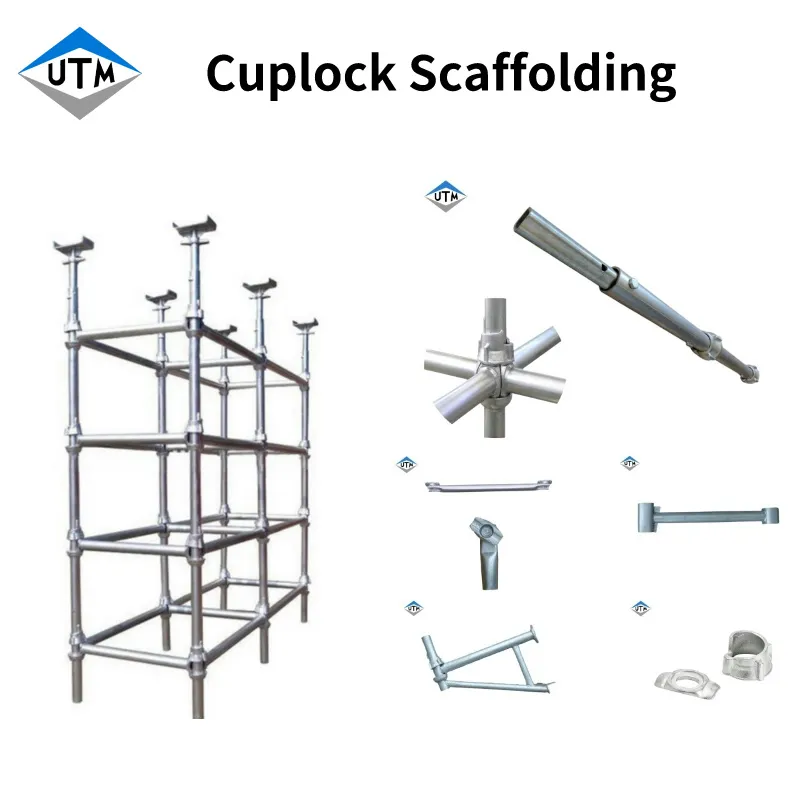

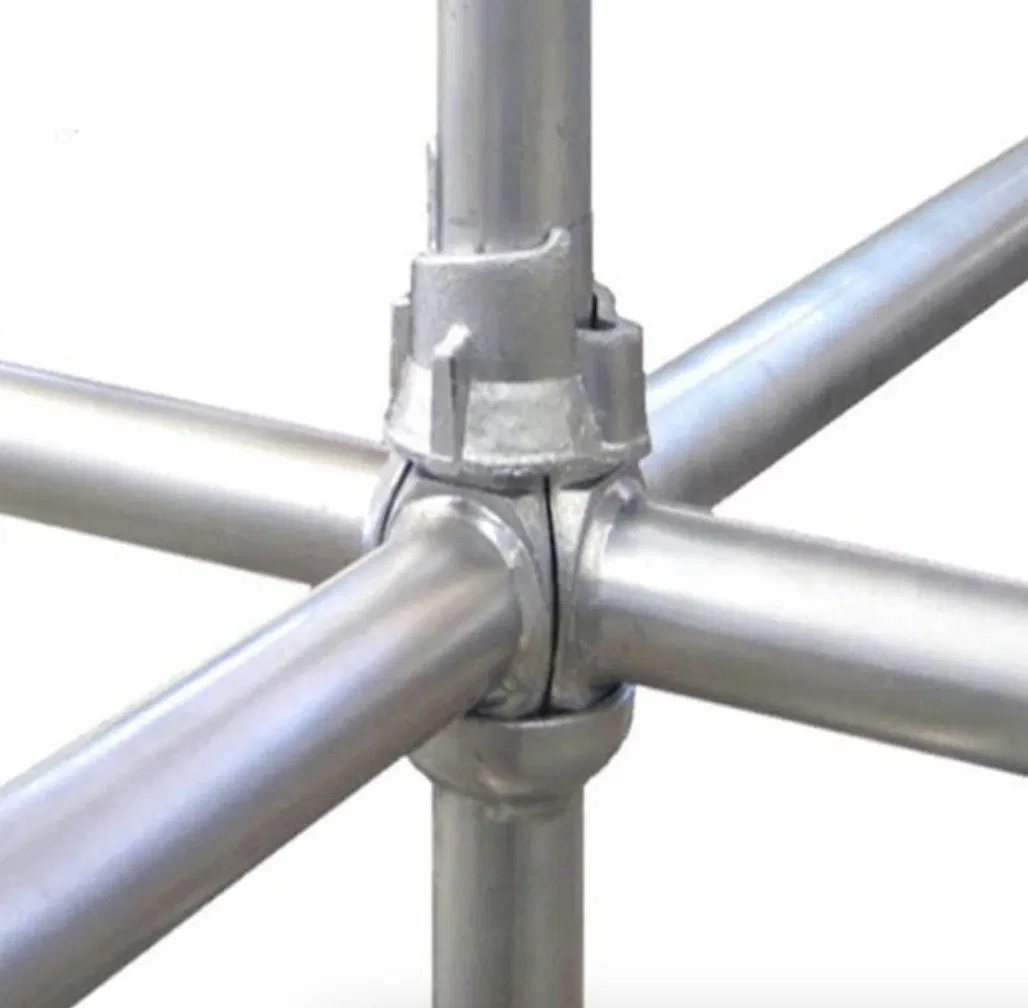

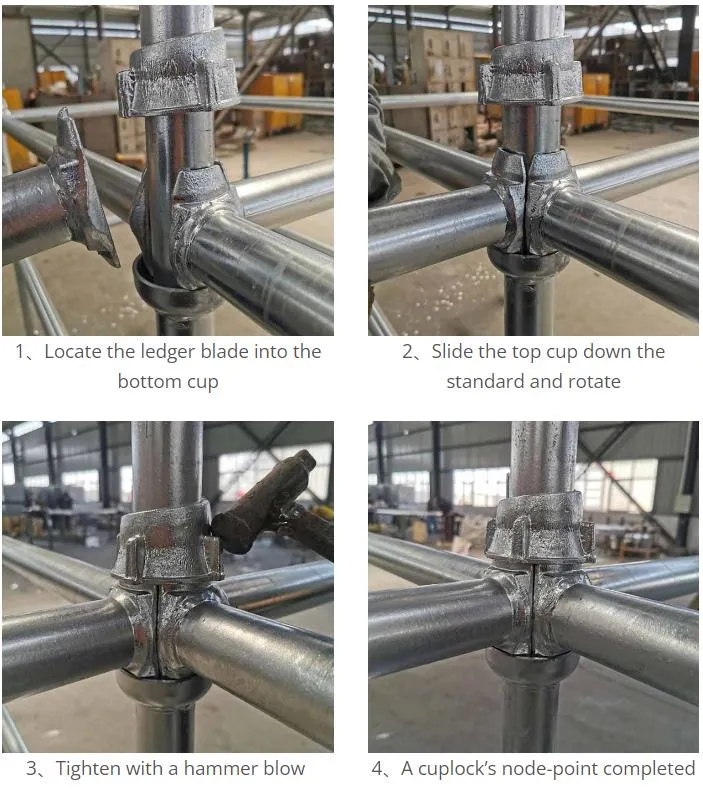

Cuplock scaffolding is a mature system composing of standards, ledgers, braces, and planks. The revolutionary cuplock node makes erection faster and easier than other systems by using a "Cup" and "Blade" mechanism to lock components with a simple rotation.
| Specifications | Details |
|---|---|
| Material | Steel Q355, Q235 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74 / BS1139 / AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT / LC |
The joint structure is reasonable, with a simple production process and easy operation. It offers high strength and stability for safe construction.
| Feature | Description |
|---|---|
| Easy to Stand | No nuts, bolts, or wedges; just lock the blade into the cup. |
| Light Weight | 3.2mm high-grade steel makes it 20% lighter than standard 4mm tubes. |
| Fast Erection | 30%-50% faster than traditional scaffolding systems. |
| Durable | Hot-dip galvanizing provides a long-life, low-maintenance finish. |

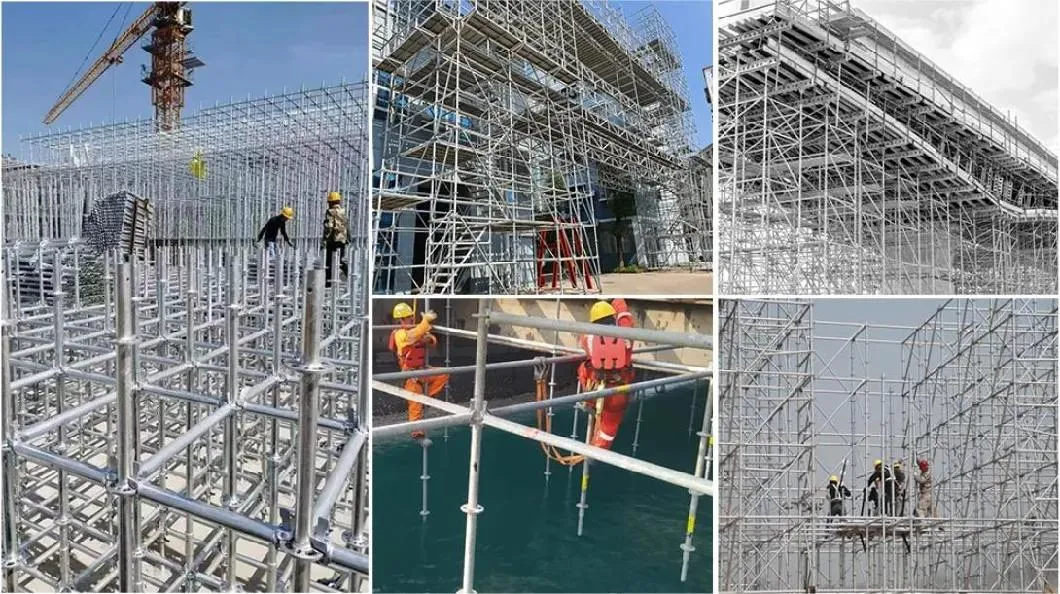

| Versatile | Suitable for facades, shoring, circular structures, and mobile towers. |

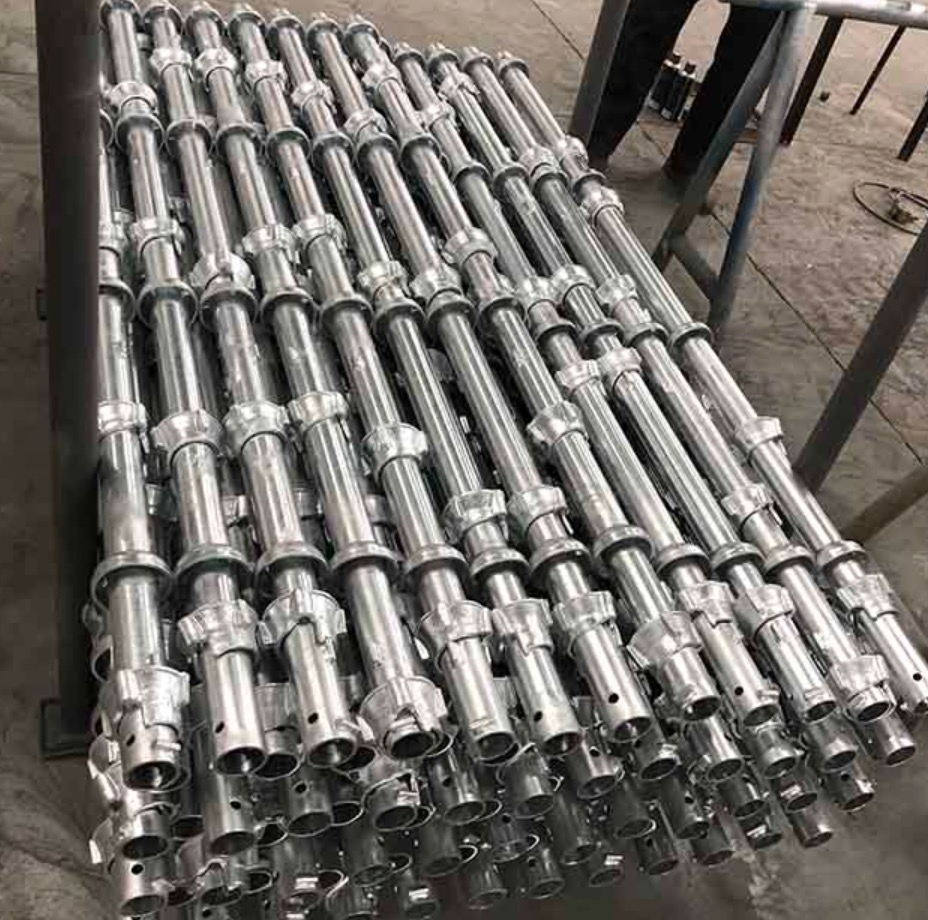

Vertical supports manufactured with fixed bottom cups at 500mm intervals and captive moving top cups.
| Code | Length | Material |
|---|---|---|
| UTM-CL-163-1000 | 1000mm | Q355 |
| UTM-CL-163-2000 | 2000mm | Q355 |
| UTM-CL-163-3000 | 3000mm | Q355 |

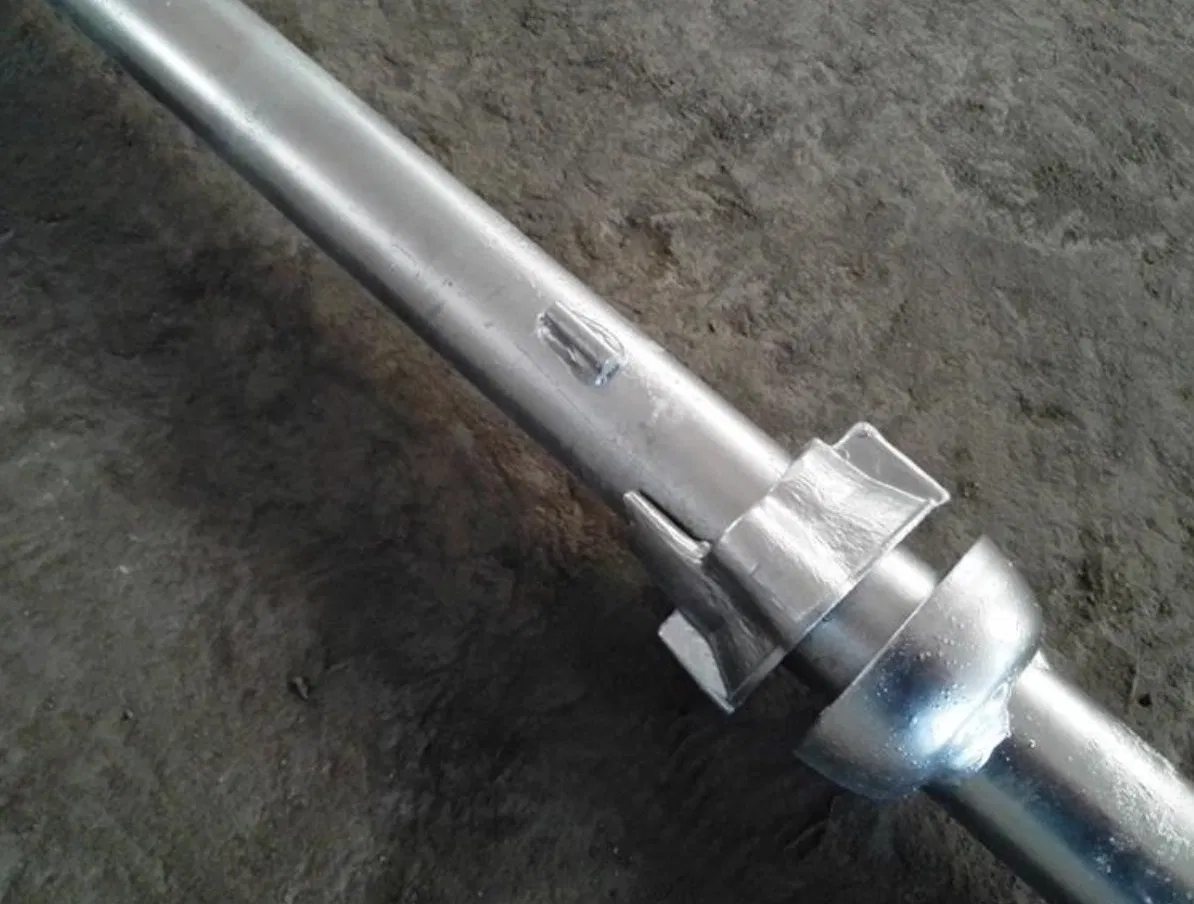

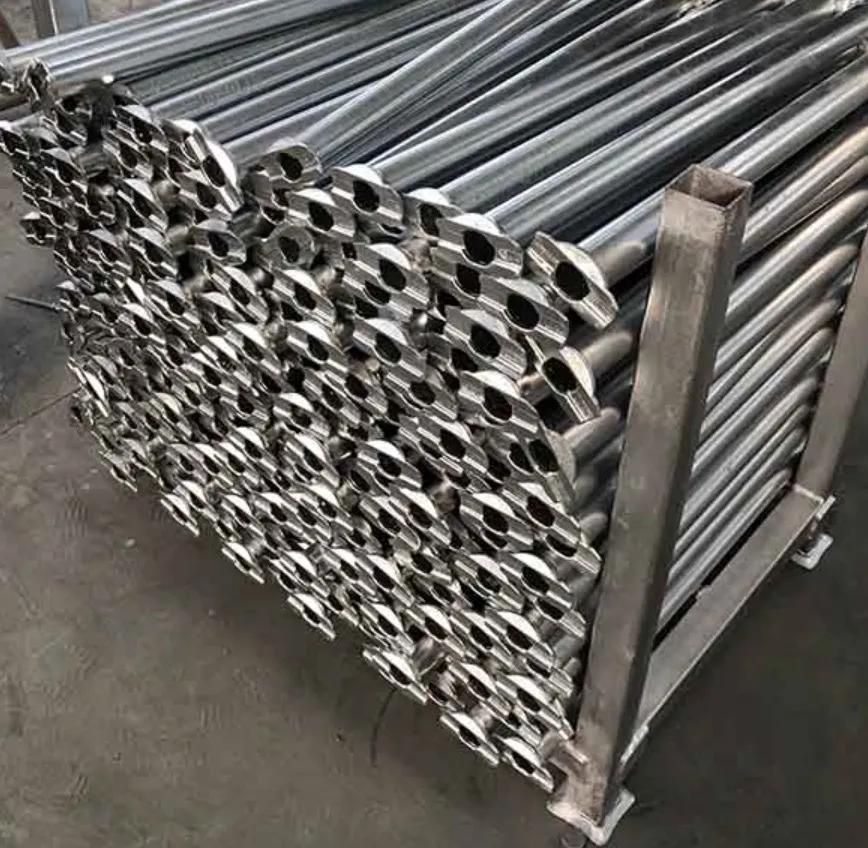

Horizontal supports with a unique design for easy connection to vertical standards.
| Code | Length | Material |
|---|---|---|
| UTM-CL-164-914 | 914mm | Q235 |
| UTM-CL-164-1219 | 1219mm | Q235 |
| UTM-CL-164-2572 | 2572mm | Q235 |

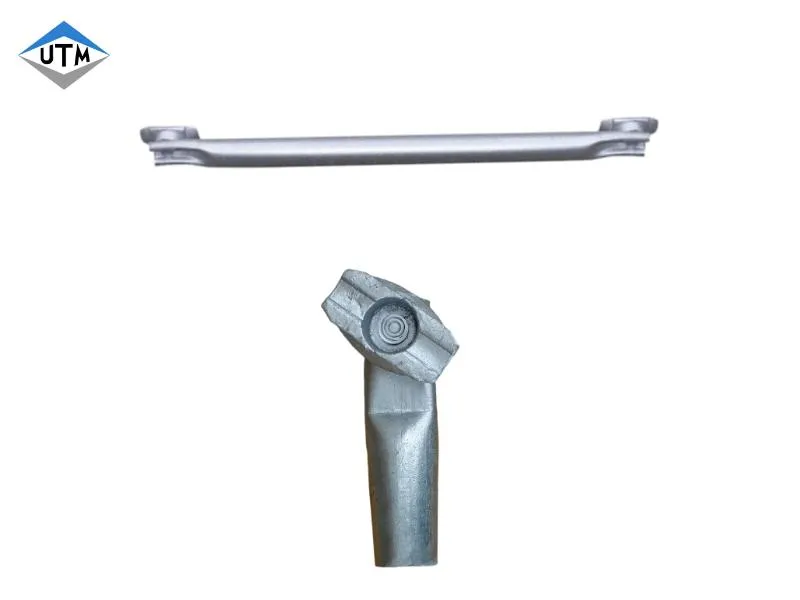

Vertical Bay Braces

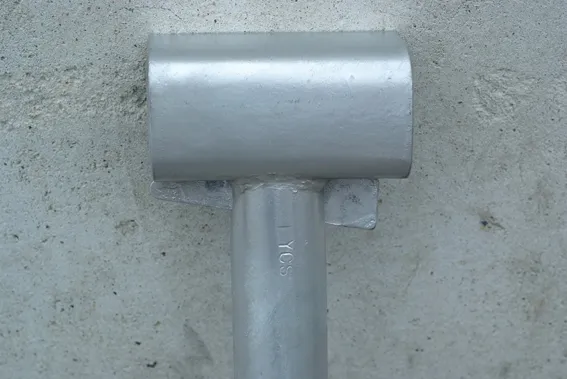

Intermediate Transoms

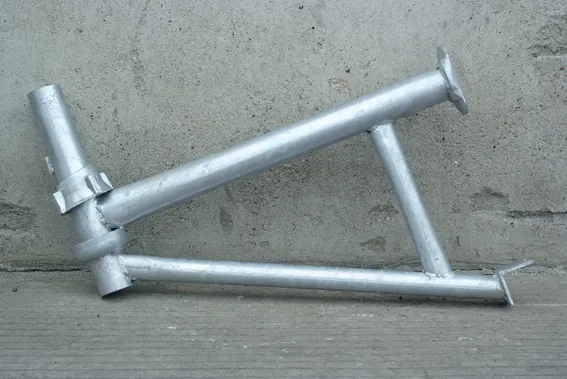

Side Brackets
Our company provides one-to-one service, ensuring 24-hour response to customer demands. We provide technical guidance, online installation support, and regular follow-ups to ensure product quality and customer satisfaction.
