Adjustable Heavy Duty Cuplock Scaffolding System and Scaffolding Standards /Vertical Accessories

CUPLOCK SYSTEM

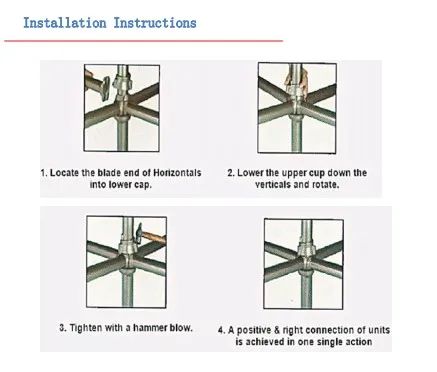

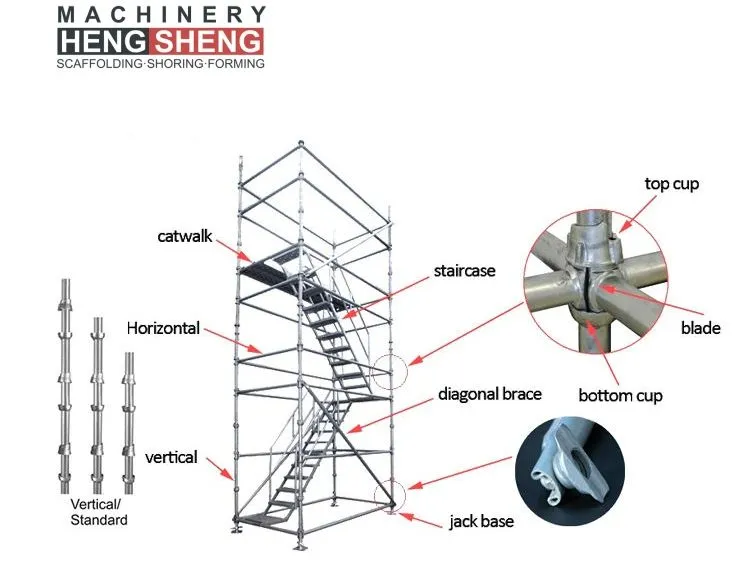

The system is a fully galvanised for appearance, multi-purpose steel system scaffold for all access, shoring and supporting vertical loads. Unique node points which can lock up to four components in one easy hammer blow provide a wider range of applications. Node points are spaced on all standards at 500mm intervals to ensure that correct working lifts can be provided and handrails are positioned at the correct height. Four components are secured in one action ensuring the system is faster to erect than traditional methods.

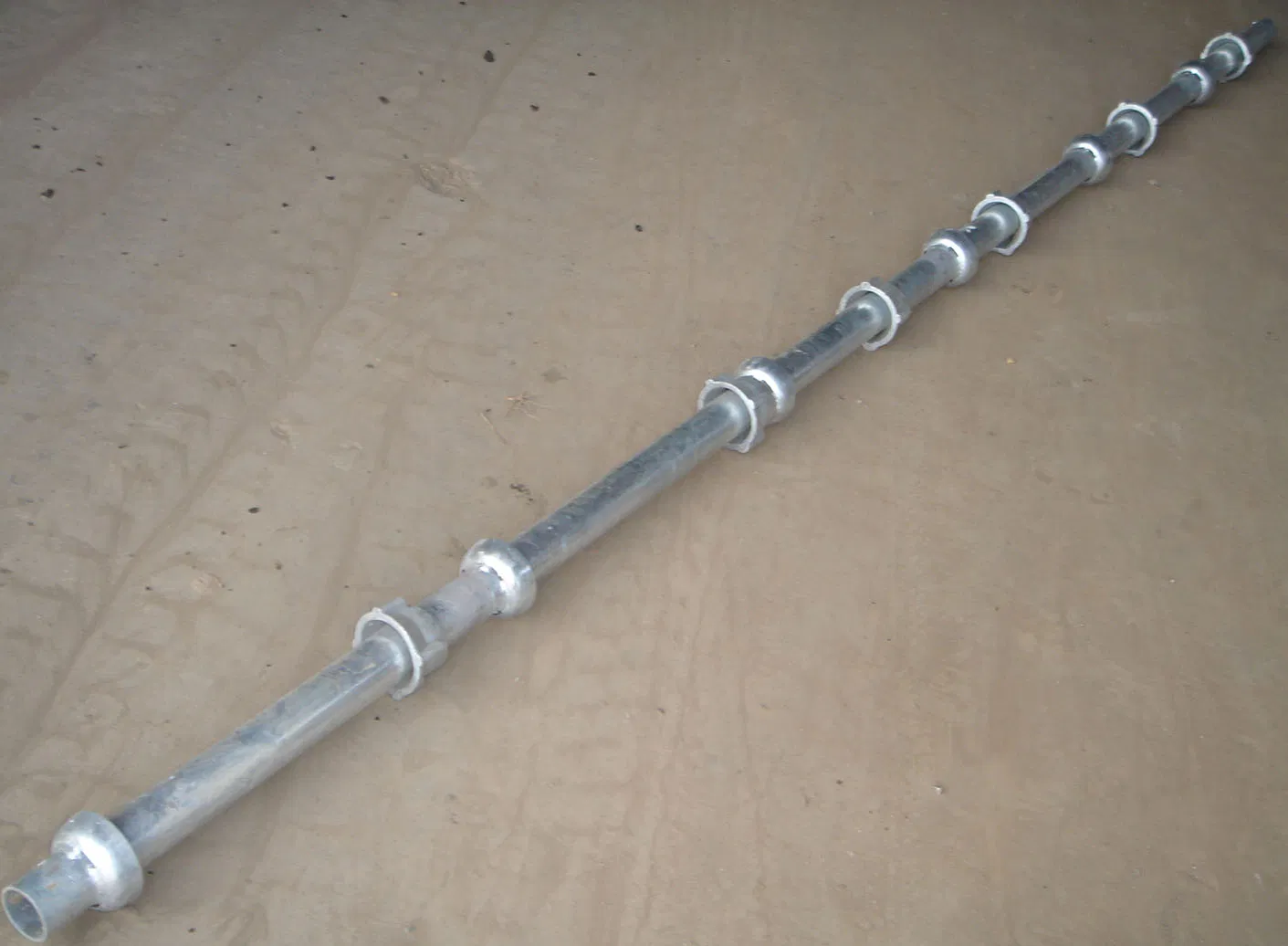

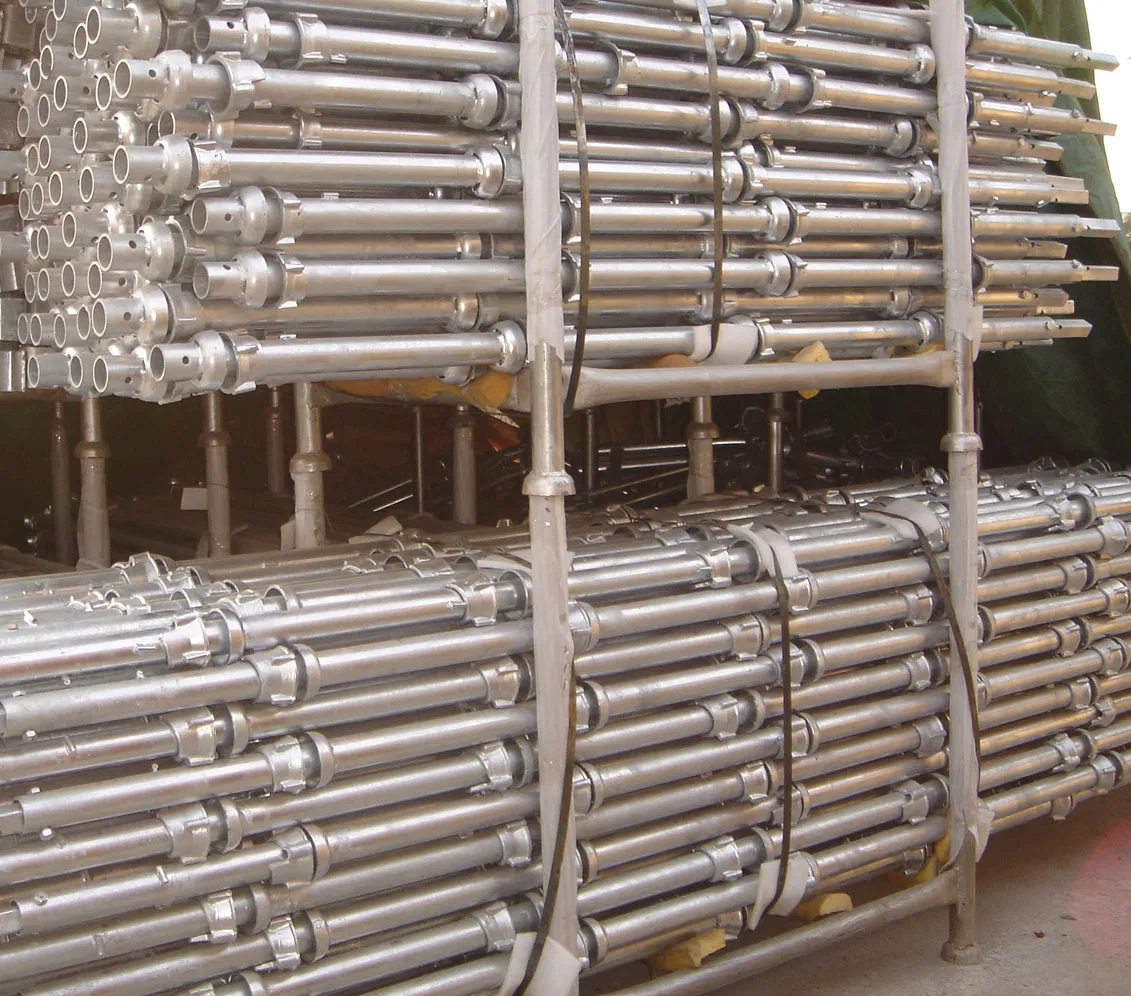

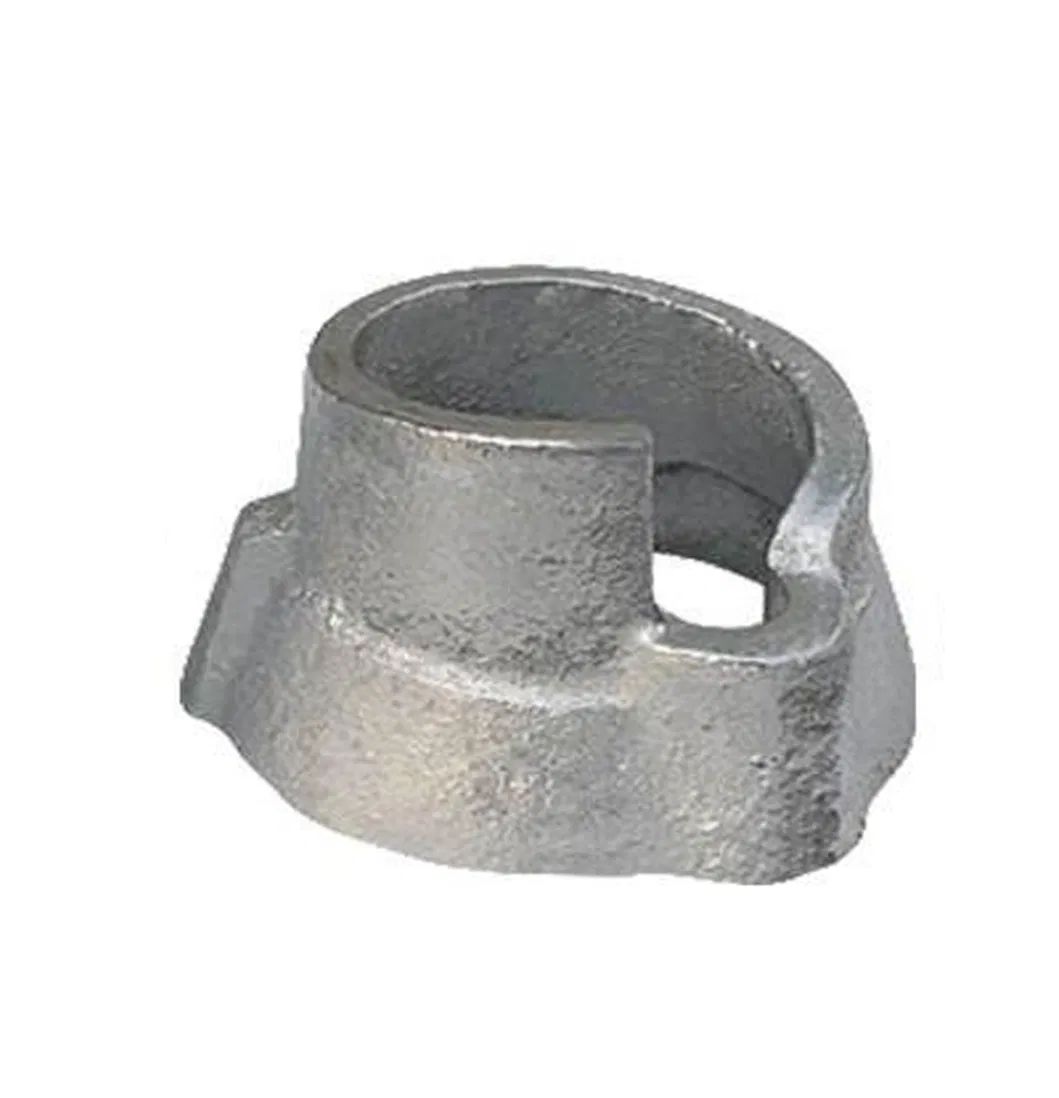

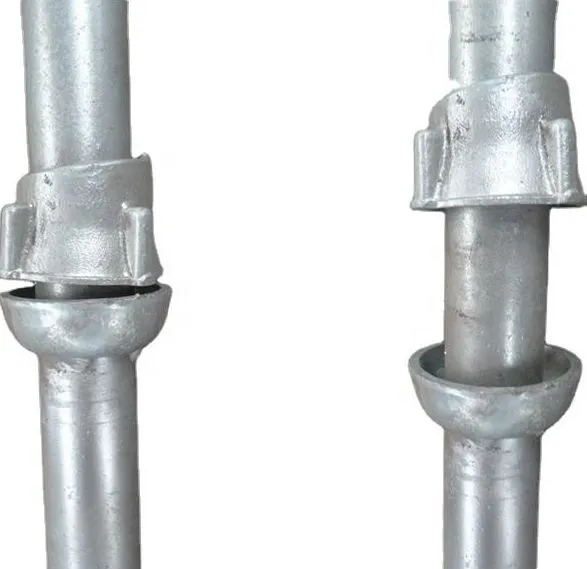

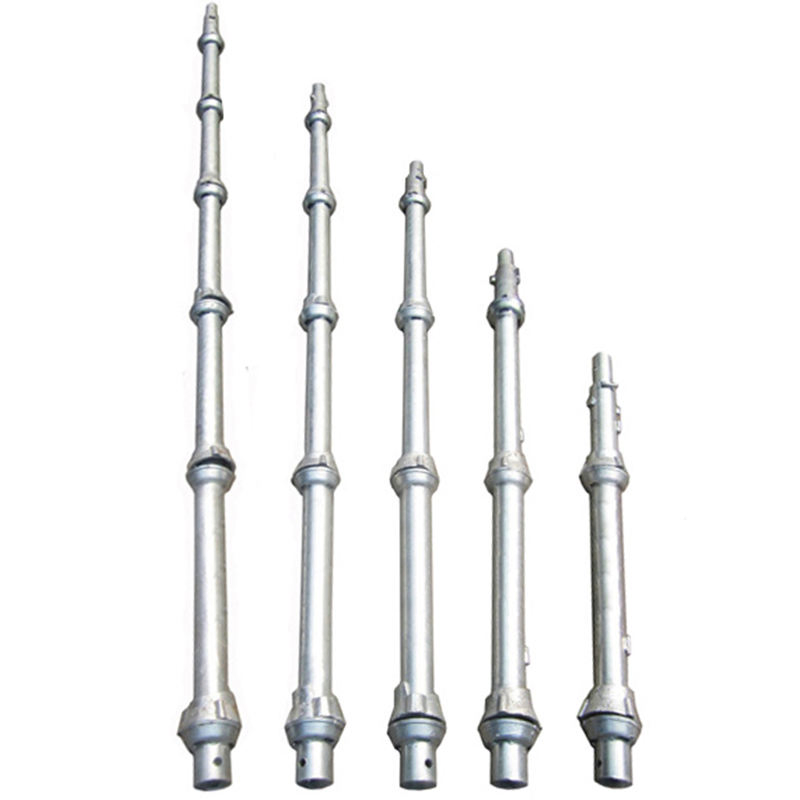

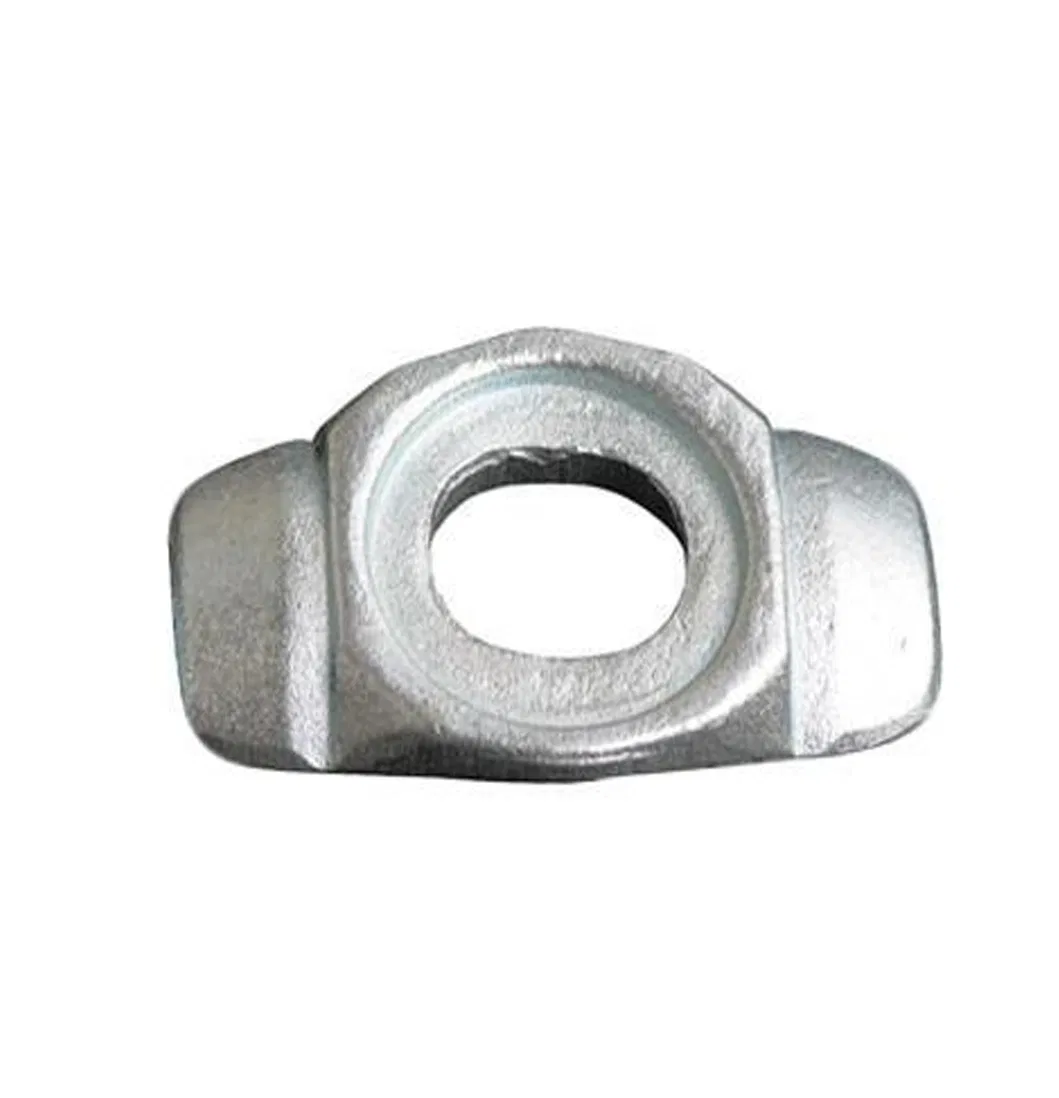

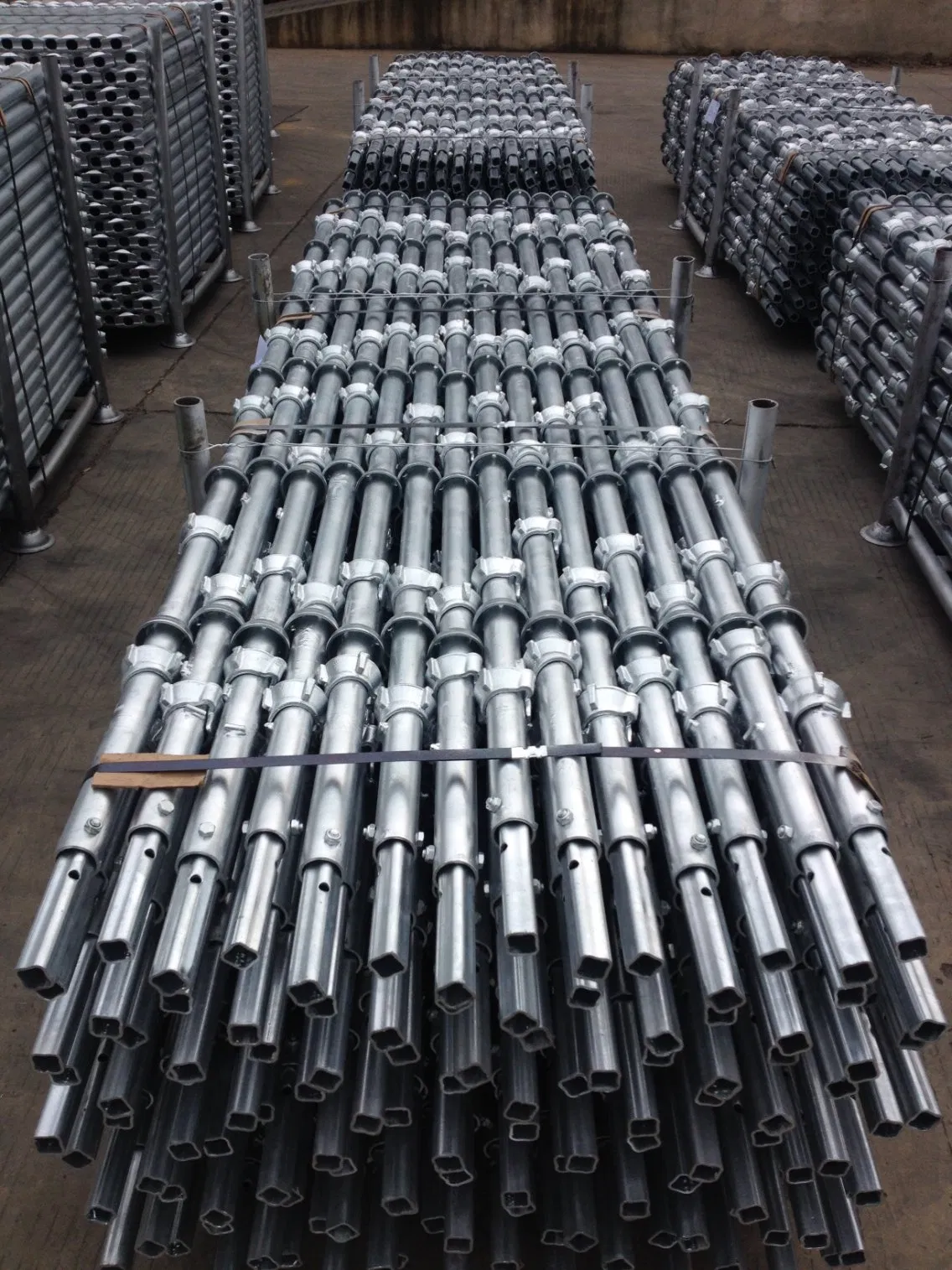

Standard/Vertical: These items form the vertical members of the scaffold and are made from 48.3 diameter x 3.2mm thick high grade steel Tube. They incorporate a fixed bottom cup which is welded at 500mm intervals, with a captive moving top cup that can secure up to four components. These cups are the fixing points for the ledgers, transoms and ancillary items. The location of the bottom cup, 80mm from the base of the standard, improves the structure's strength and reduces the need for base-bracing in support structures. At the top of the standards, there is a 150mm spigot that allows the vertical connection of further standards.

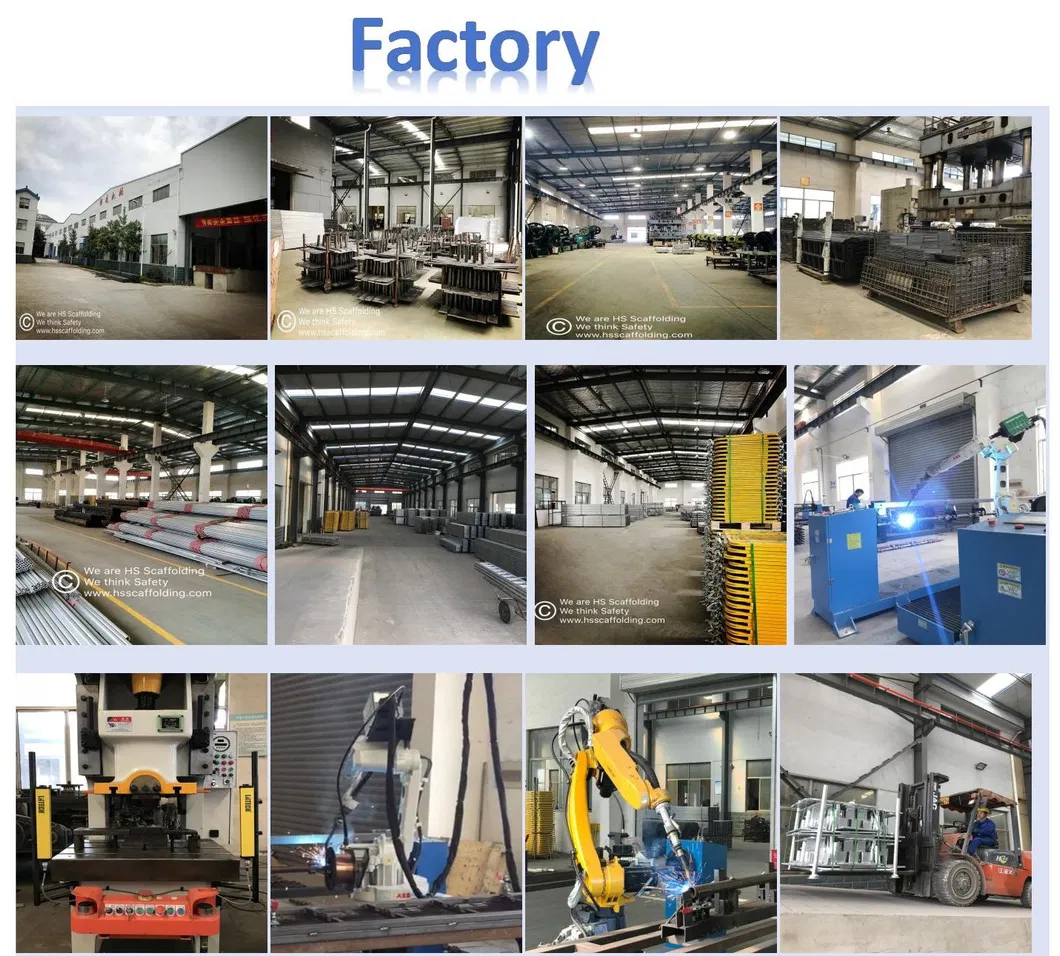

Founded in 1992, our company is one of the market leaders for the supply of System Scaffolding, Steel Boards, Stair Towers, and Aluminum components. All products are designed, developed and manufactured in our own facilities to guarantee the very best build quality and comply fully with all relevant standards. The factory is equipped with 12 advanced robotic welding production lines and various automated equipment, ensuring product consistency and reliability. We listen to your feedback to constantly improve our products and services, always putting customers first with technical expertise and efficient logistics.
