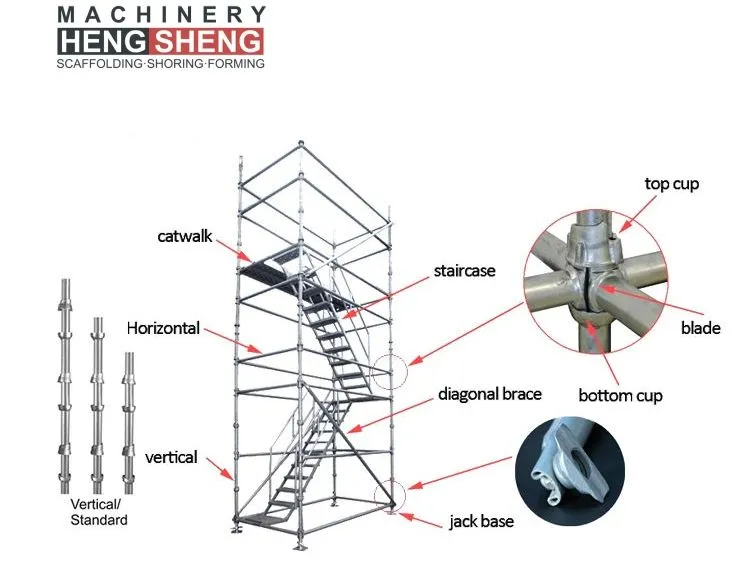

CUPLOCK SYSTEM: A fully galvanised, multi-purpose steel system scaffold for all access, shoring and supporting vertical loads.

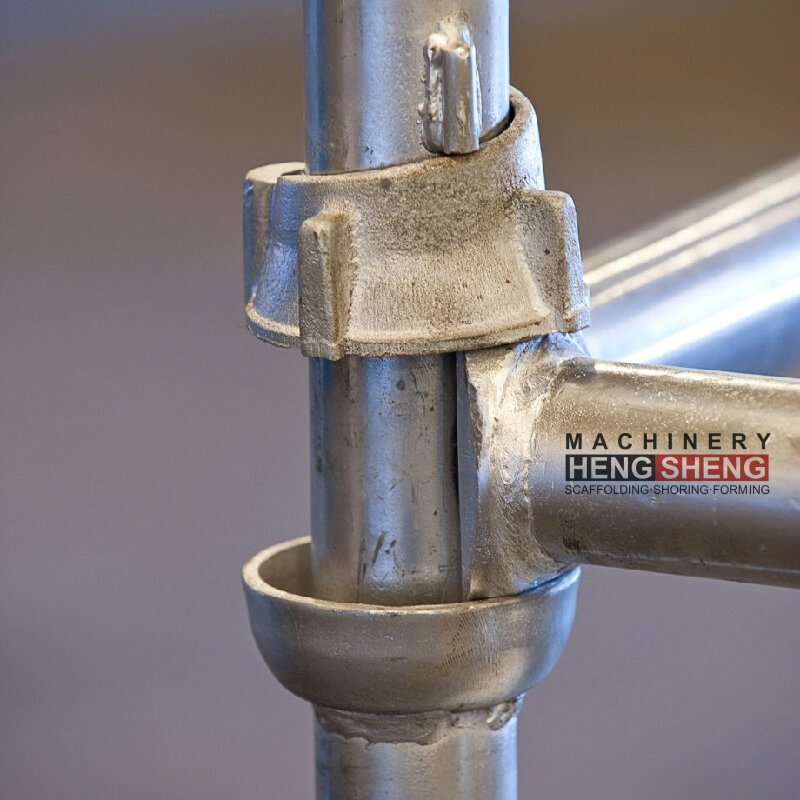

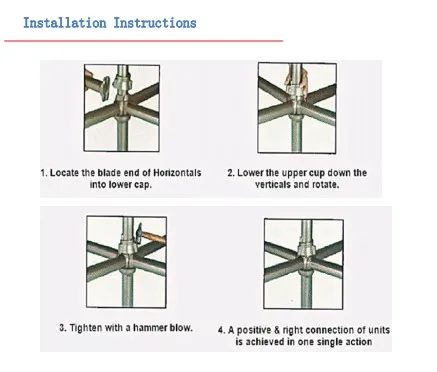

Unique node points which can lock up to four components in one easy hammer blow provide a wider range of applications. Node points are spaced on all standards at 500mm intervals to ensure that correct working lifts can be provided and handrails are positioned at the correct height. Four components are secured in one action ensuring the system is faster to erect than traditional methods.

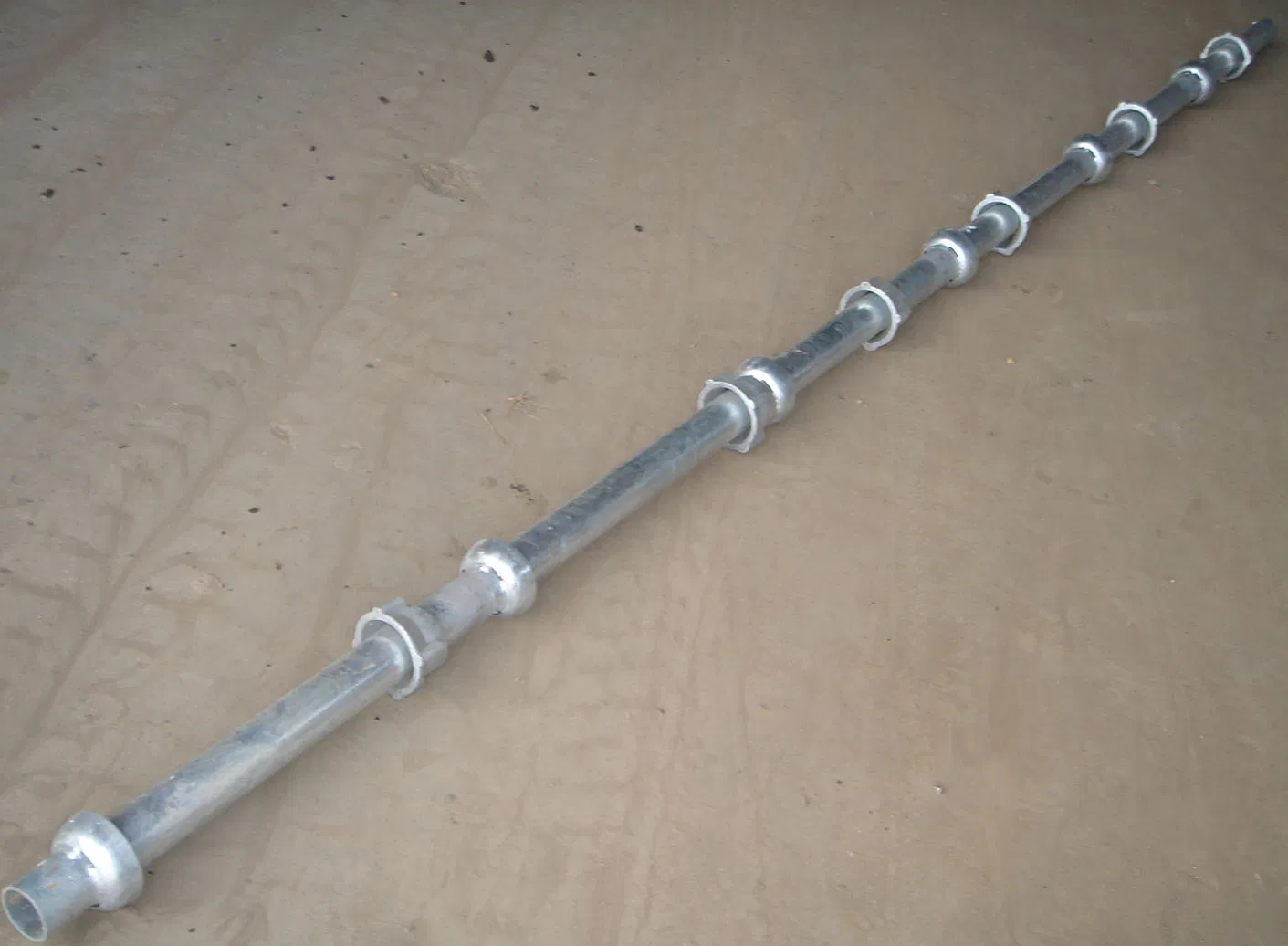

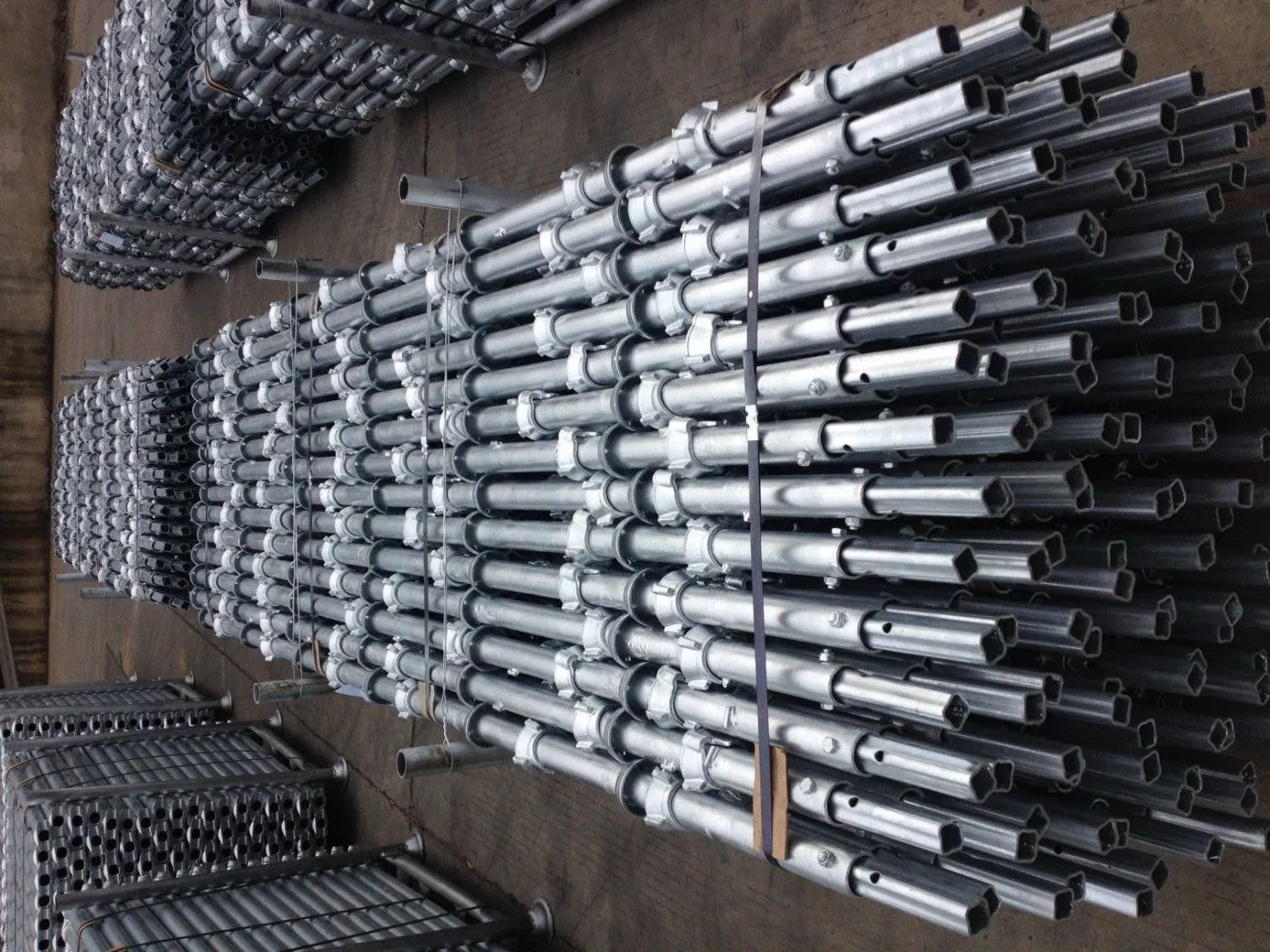

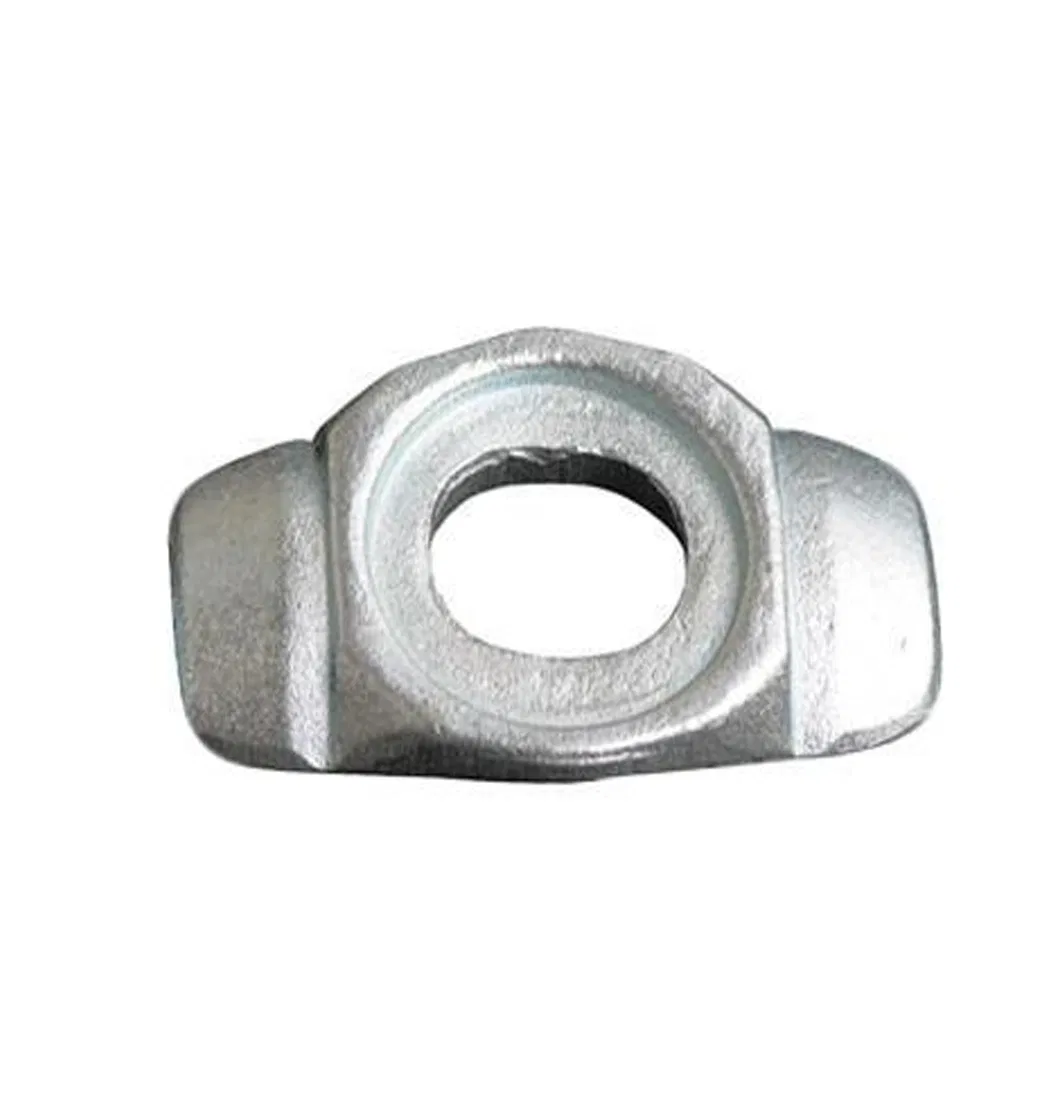

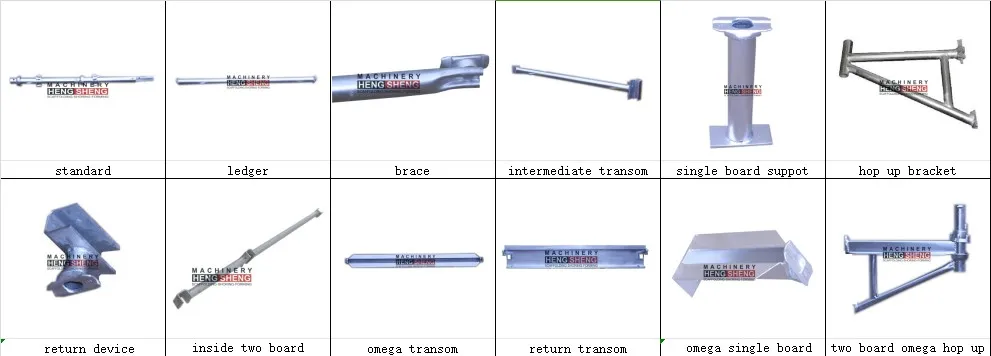

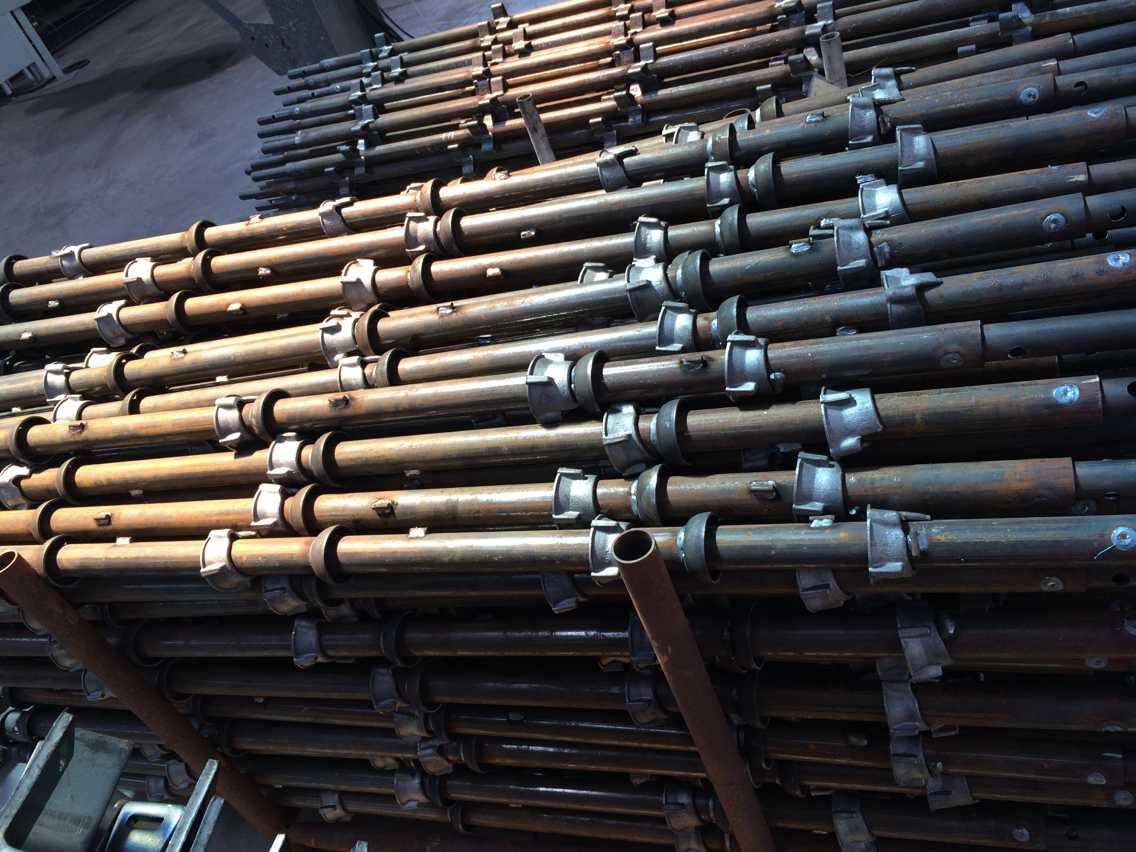

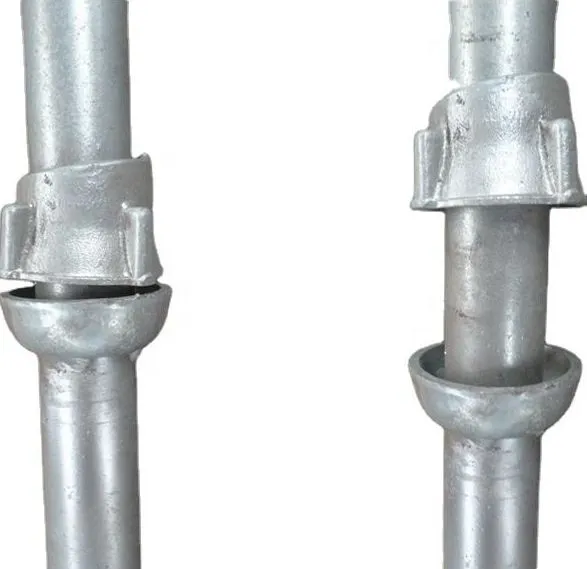

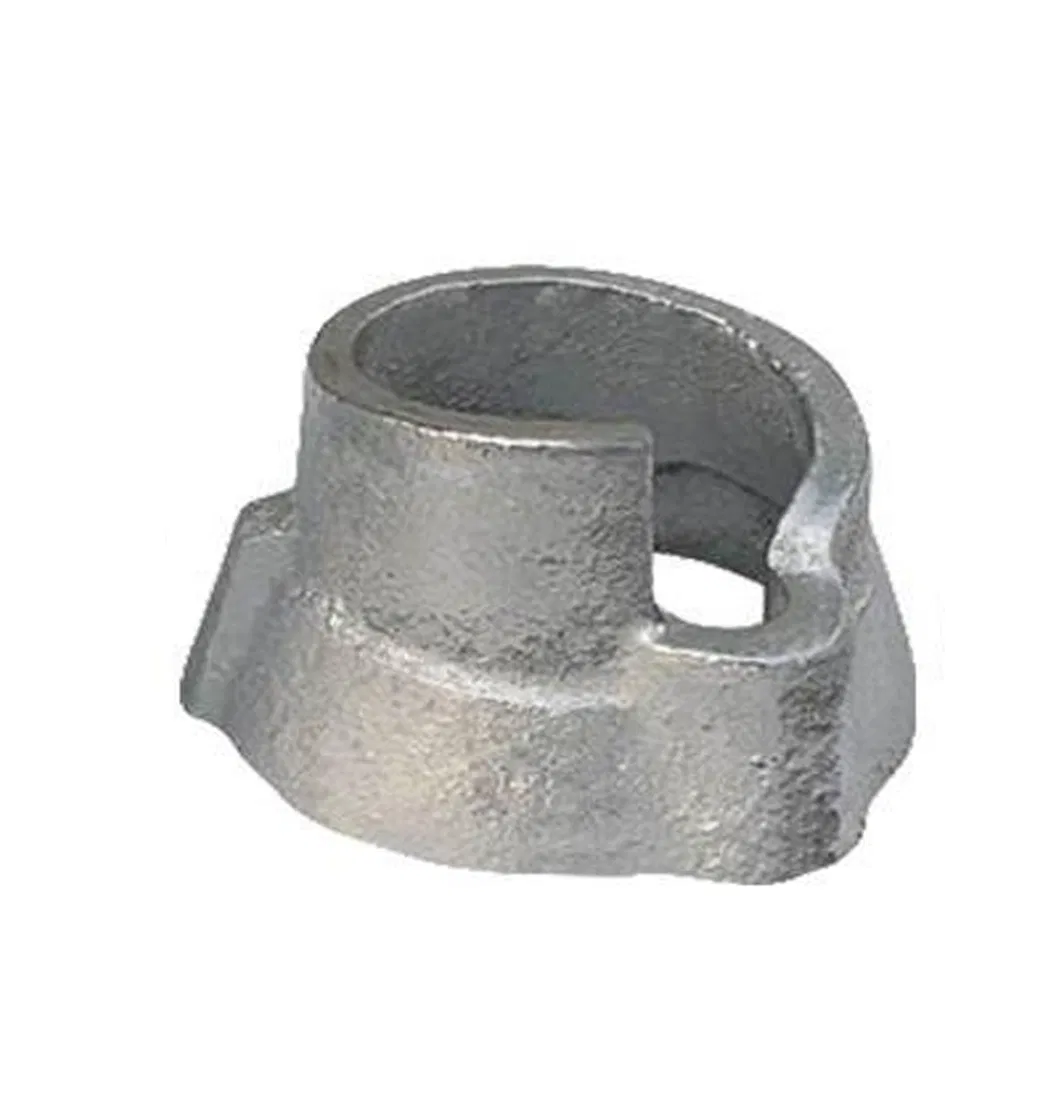

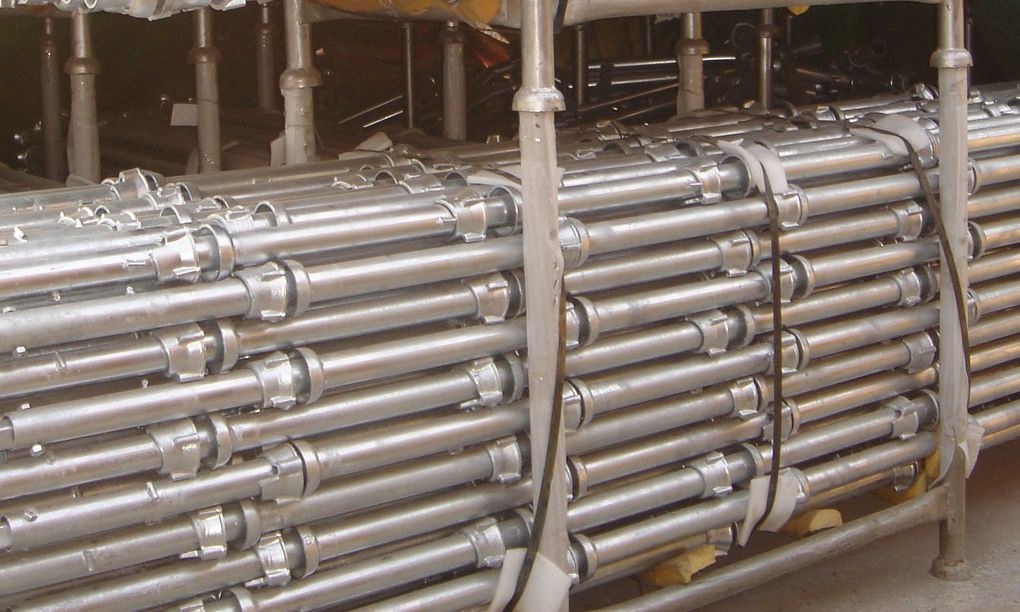

These items form the vertical members of the scaffold and are made from 48.3 diameter x 3.2mm thick high-grade steel Tube. They incorporate a fixed bottom cup which is welded at 500mm intervals, with a captive moving top cup that can secure up to four components. These cups are the fixing points for the ledgers, transoms and ancillary items. The location of the bottom cup, 80mm from the base of the standard, improves the structure's strength and reduces the need for base-bracing in support structures.
| Code | Description | Size | Weight |
|---|---|---|---|
| HSCS05 | 0.5M Standard | 500mm | 3.43kg |
| HSCS10 | 1.0M Standard | 1000mm | 6.00kg |
| HSCS20 | 2.0M Standard | 2000mm | 11.38kg |
| HSCS30 | 3.0M Standard | 3000mm | 16.34kg |

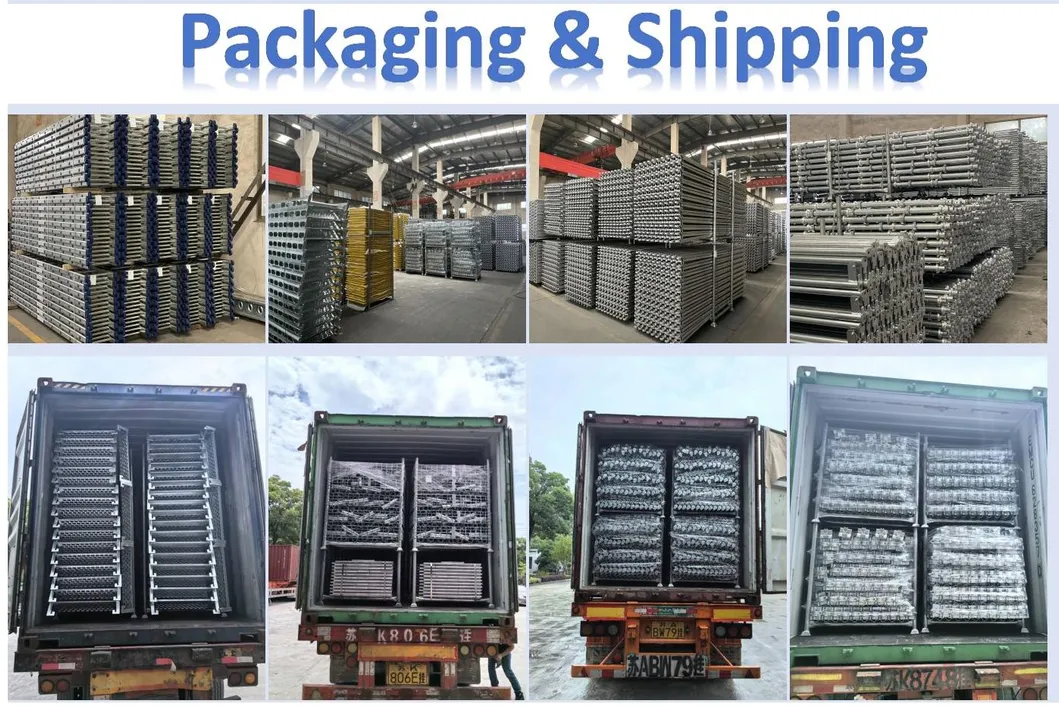

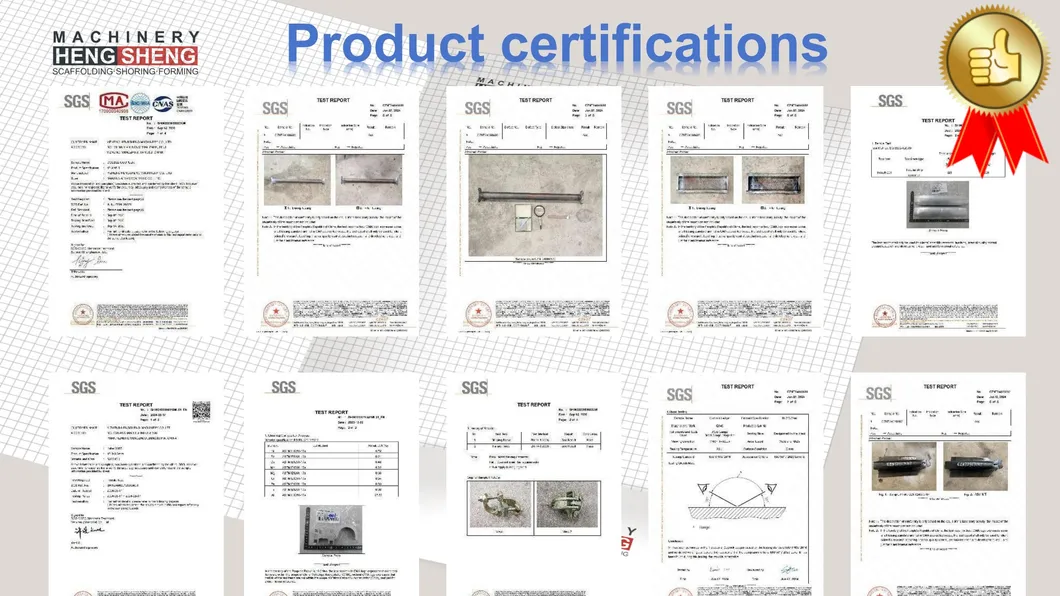

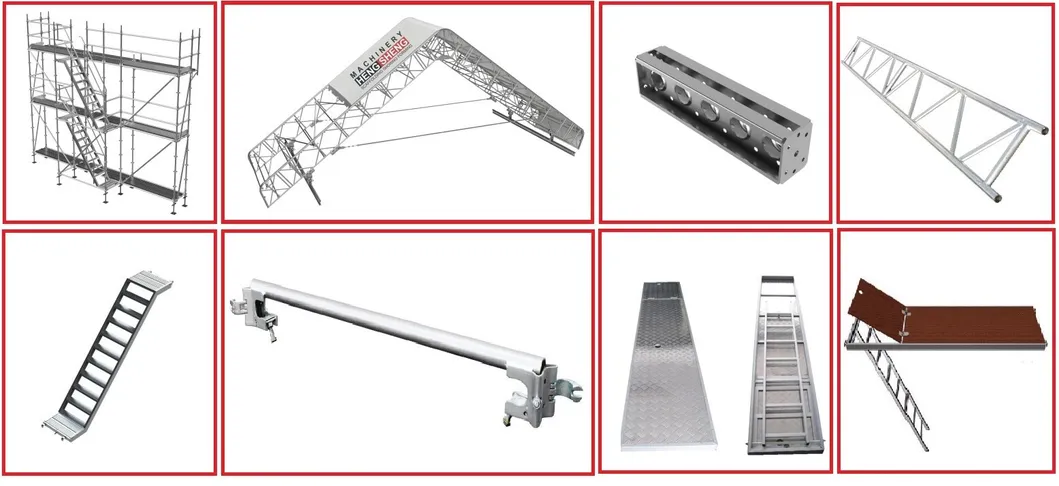

Our facility is a market leader for the supply of System Scaffolding, Steel Boards, Stair Towers, and ancillary components. Strategically located for efficient logistics, we ensure swift delivery of products to our global customers. All products are designed and manufactured in-house to guarantee the best build quality, complying fully with relevant international standards.

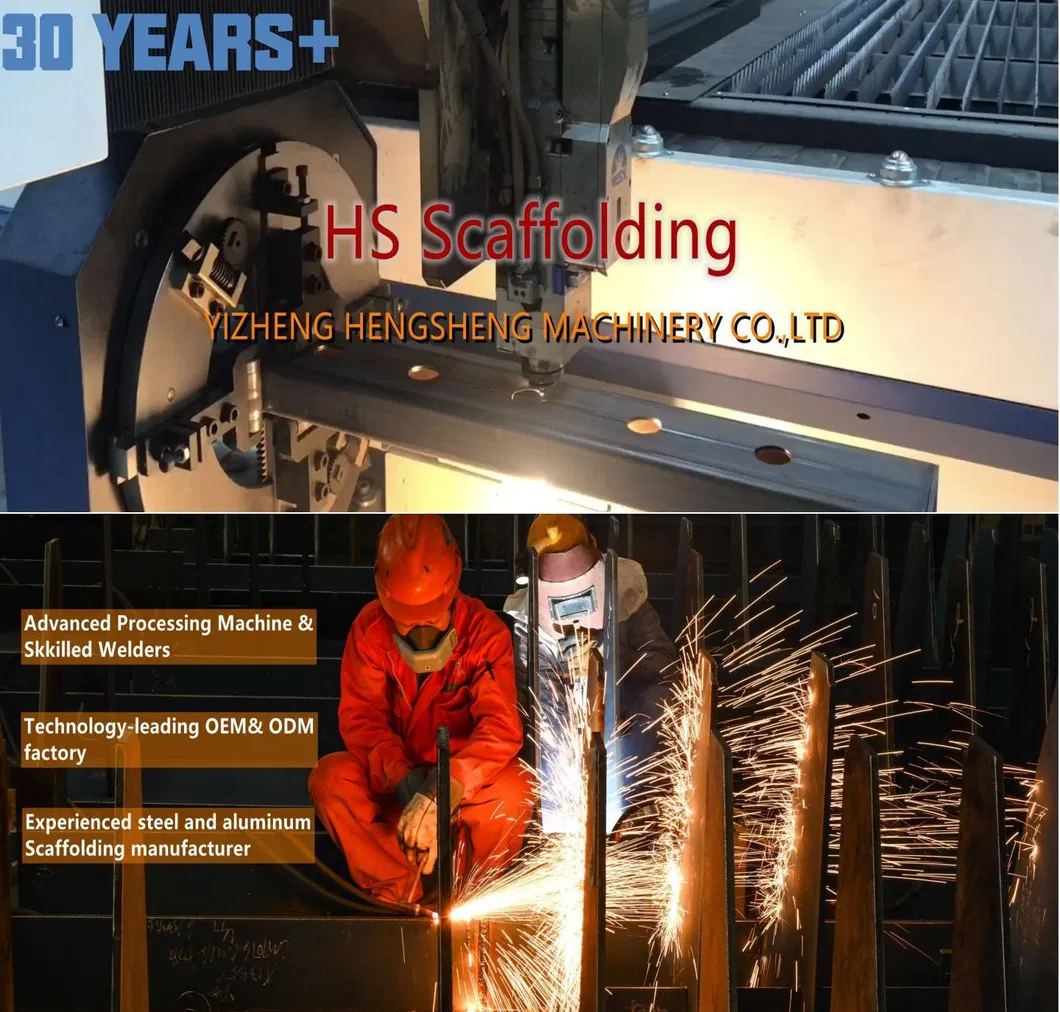

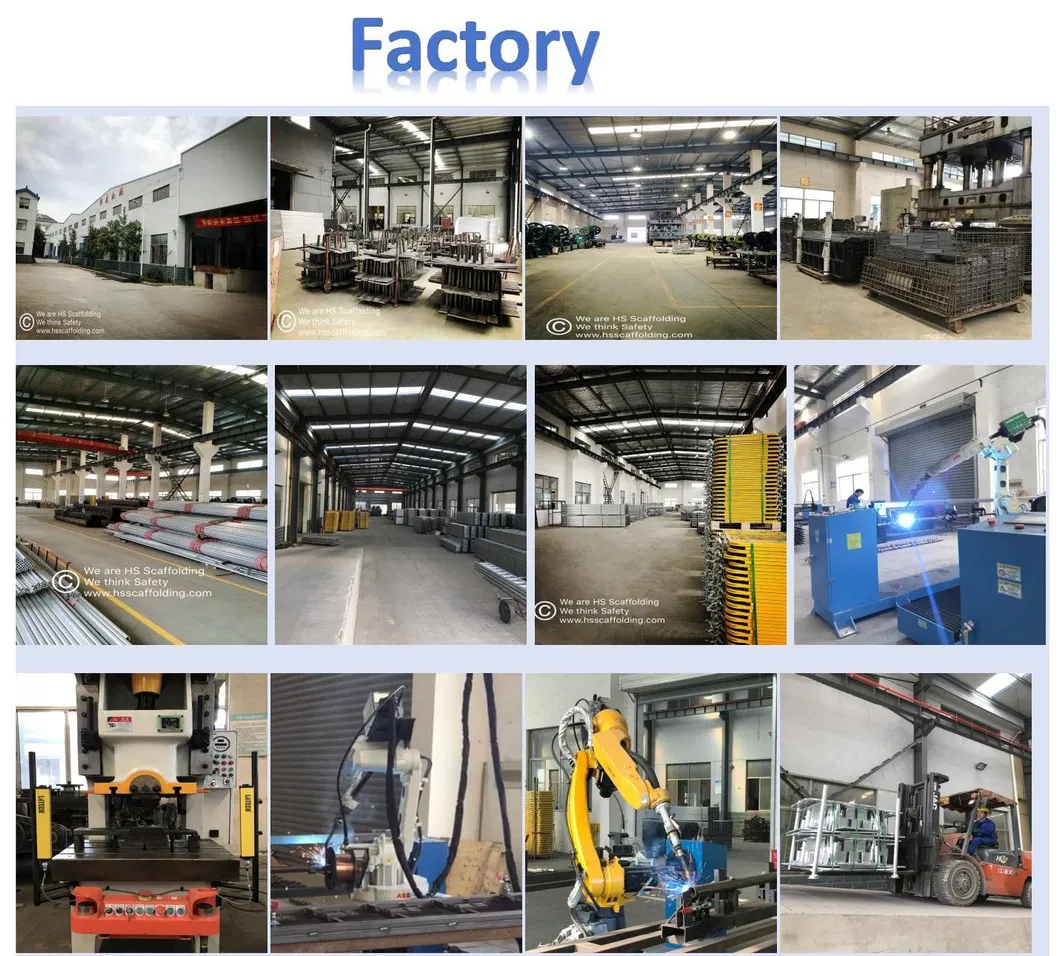

The factory is equipped with 12 advanced robotic welding production lines and automated equipment. These technologies enhance production efficiency while ensuring product consistency and reliability. We are committed to excellence, reflected in the quality of our products and the expertise of our technical team.
