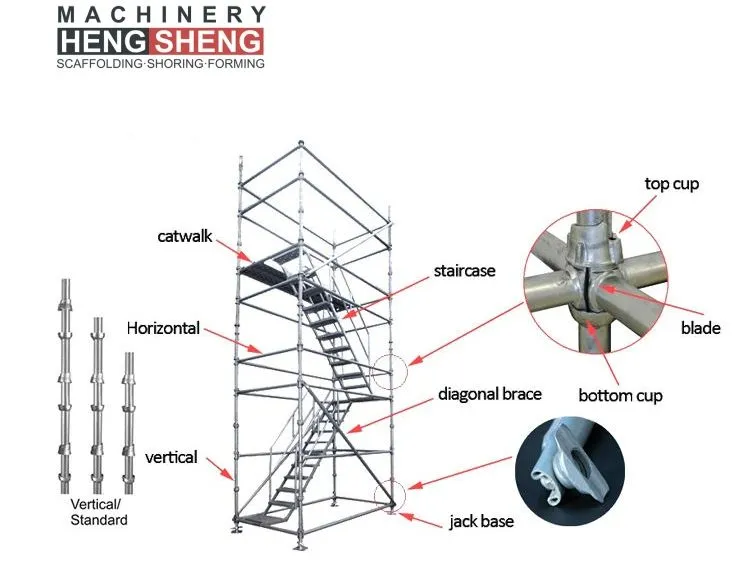

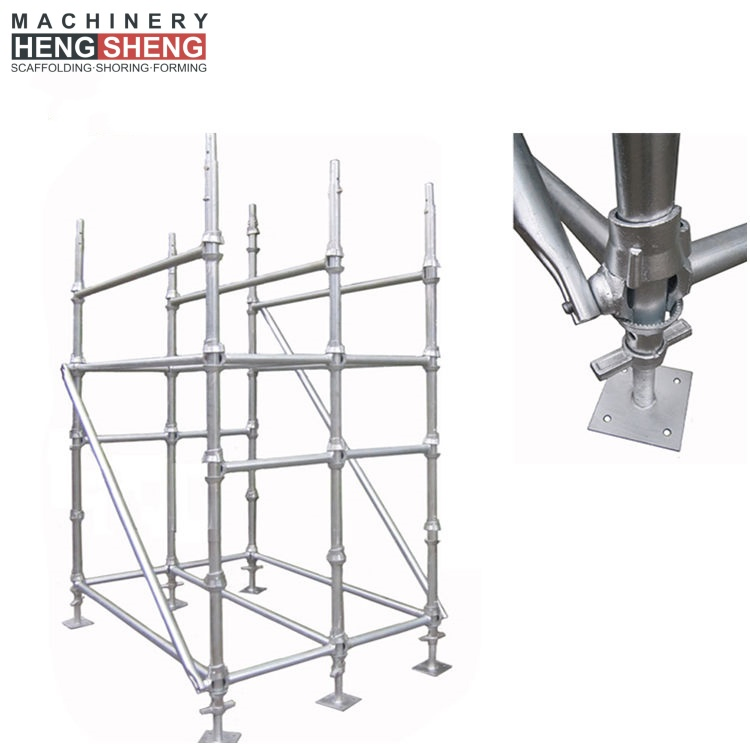

This is a fully galvanised, multi-purpose steel system scaffold for all access, shoring and supporting vertical loads.

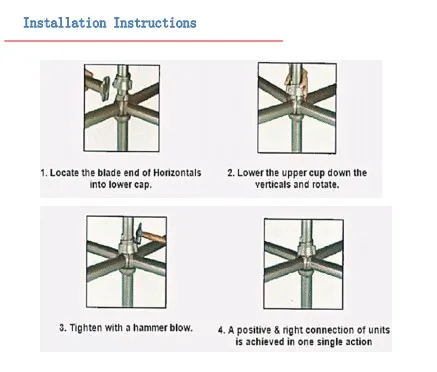

Unique node points which can lock up to four components in one easy hammer blow provide a wider range of applications. Node points are spaced on all standards at 500mm intervals to ensure that correct working lifts can be provided and handrails are positioned at the correct height. Four components are secured in one action ensuring the system is faster to erect than traditional methods.

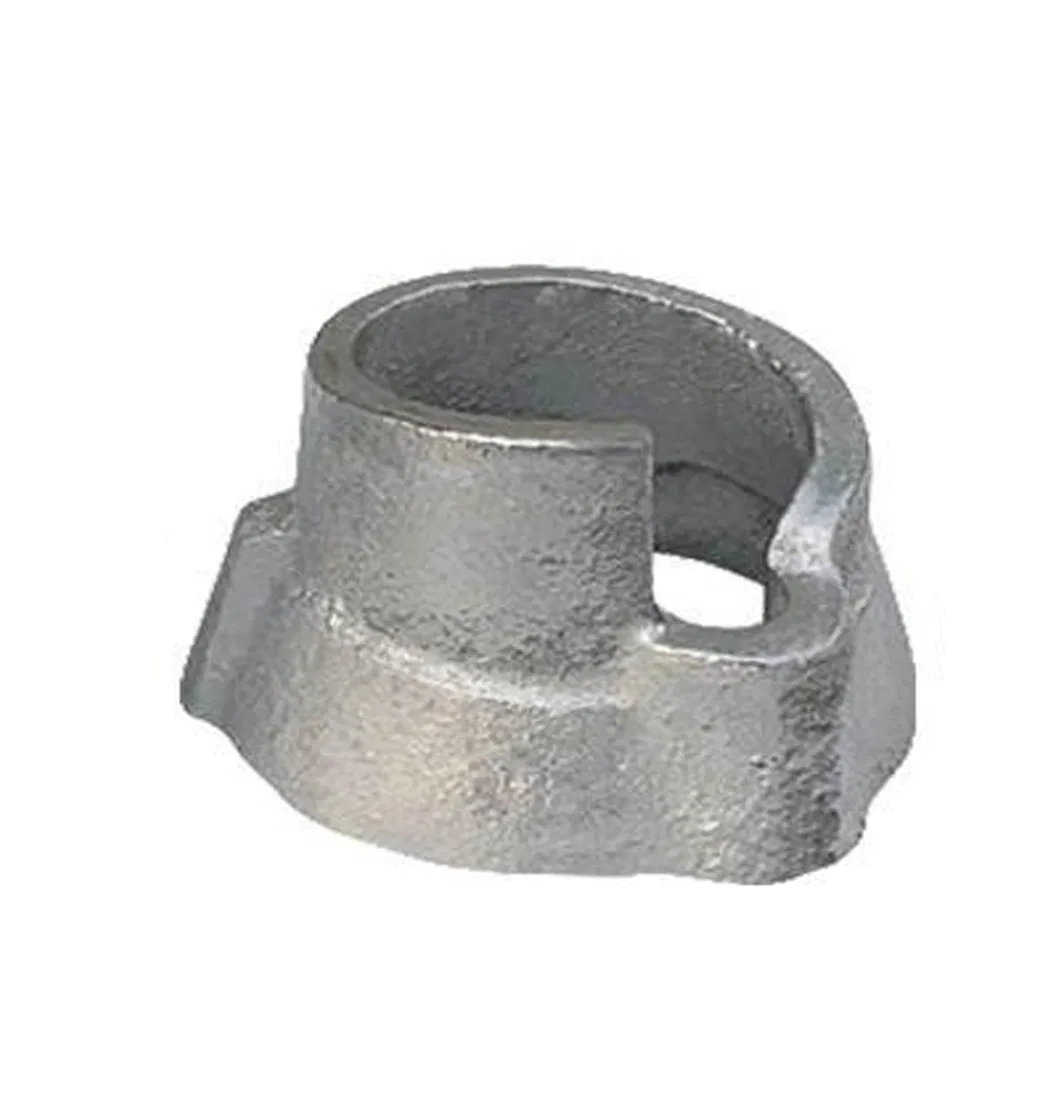

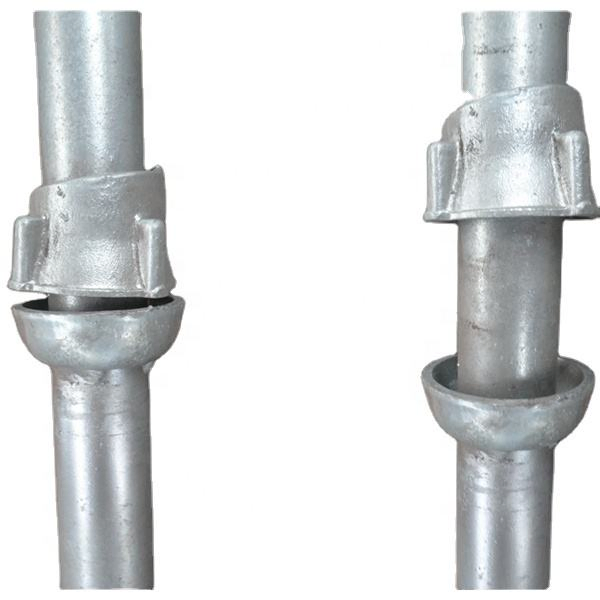

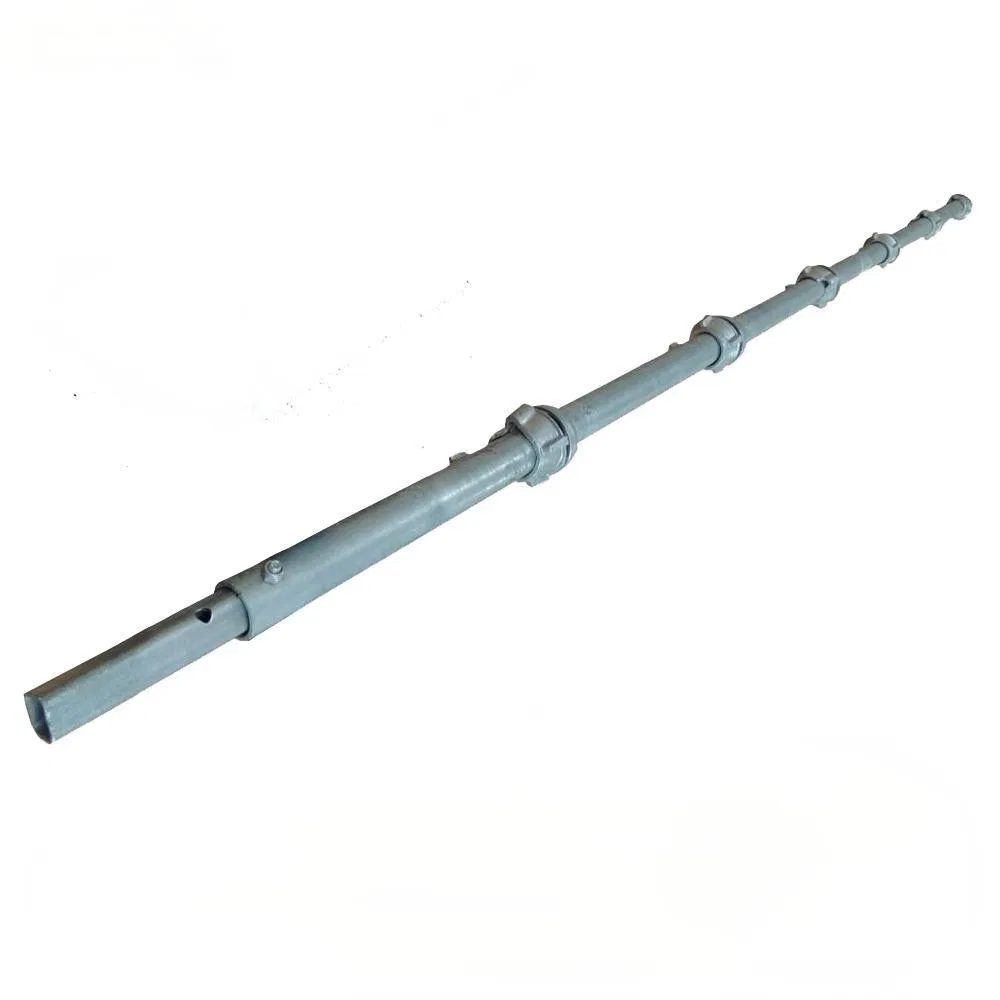

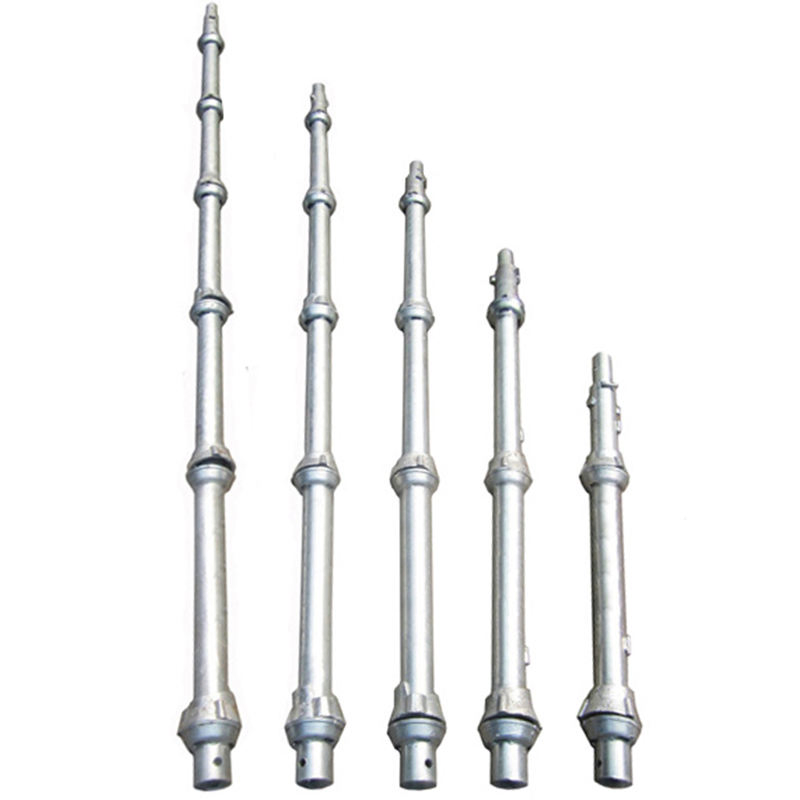

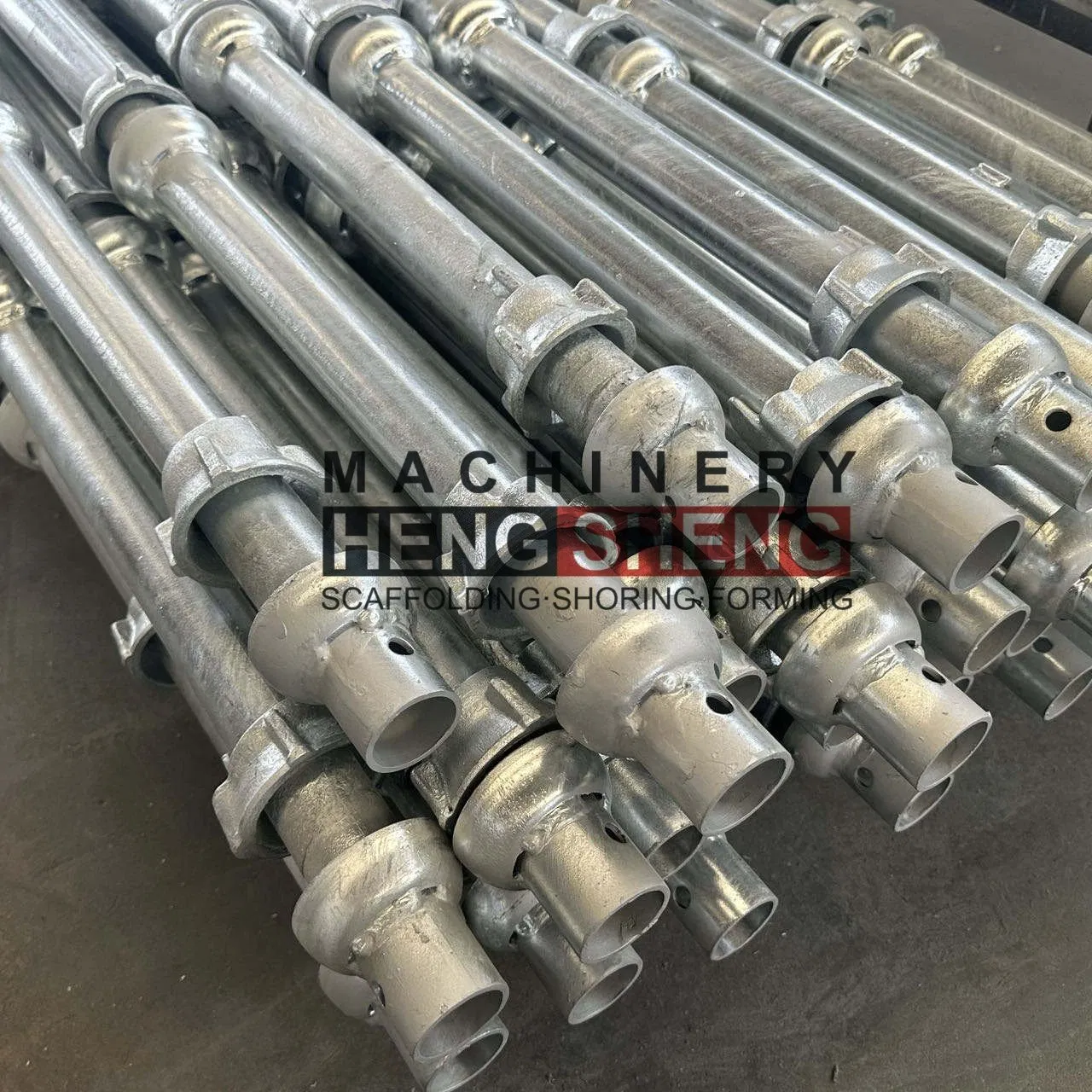

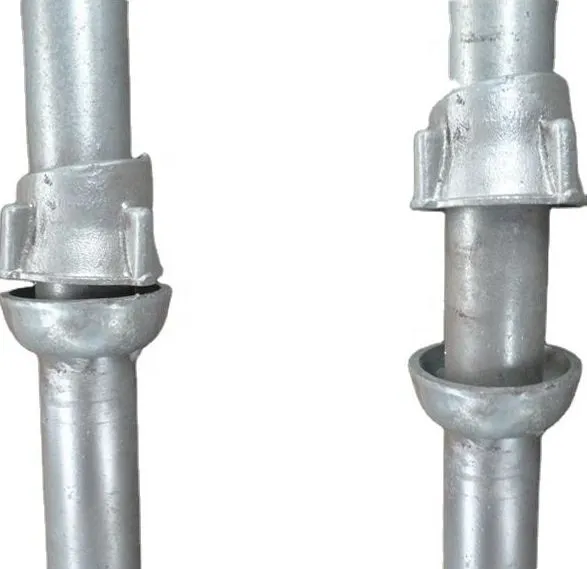

These items form the vertical members of the scaffold and are made from 48.3 diameter x 3.2mm thick high grade steel Tube. They incorporate a fixed bottom cup which is welded at 50mm intervals, with a captive moving top cup that can secure up to four components.
| Code | Description | Size | Weight |
|---|---|---|---|
| HSCS05 | 0.5M Standard | 500mm | 3.43kg |
| HSCS10 | 1.0M Standard | 1000mm | 6.00kg |
| HSCS20 | 2.0M Standard | 2000mm | 11.38kg |
| HSCS30 | 3.0M Standard | 3000mm | 16.34kg |
Founded in 1992, our facility is one of the market leaders for the supply of System Scaffolding, Steel Boards, Stair Towers, and Aluminum extrusions. All products are designed, developed and manufactured in-house to guarantee the very best build quality, complying fully with all relevant standards.

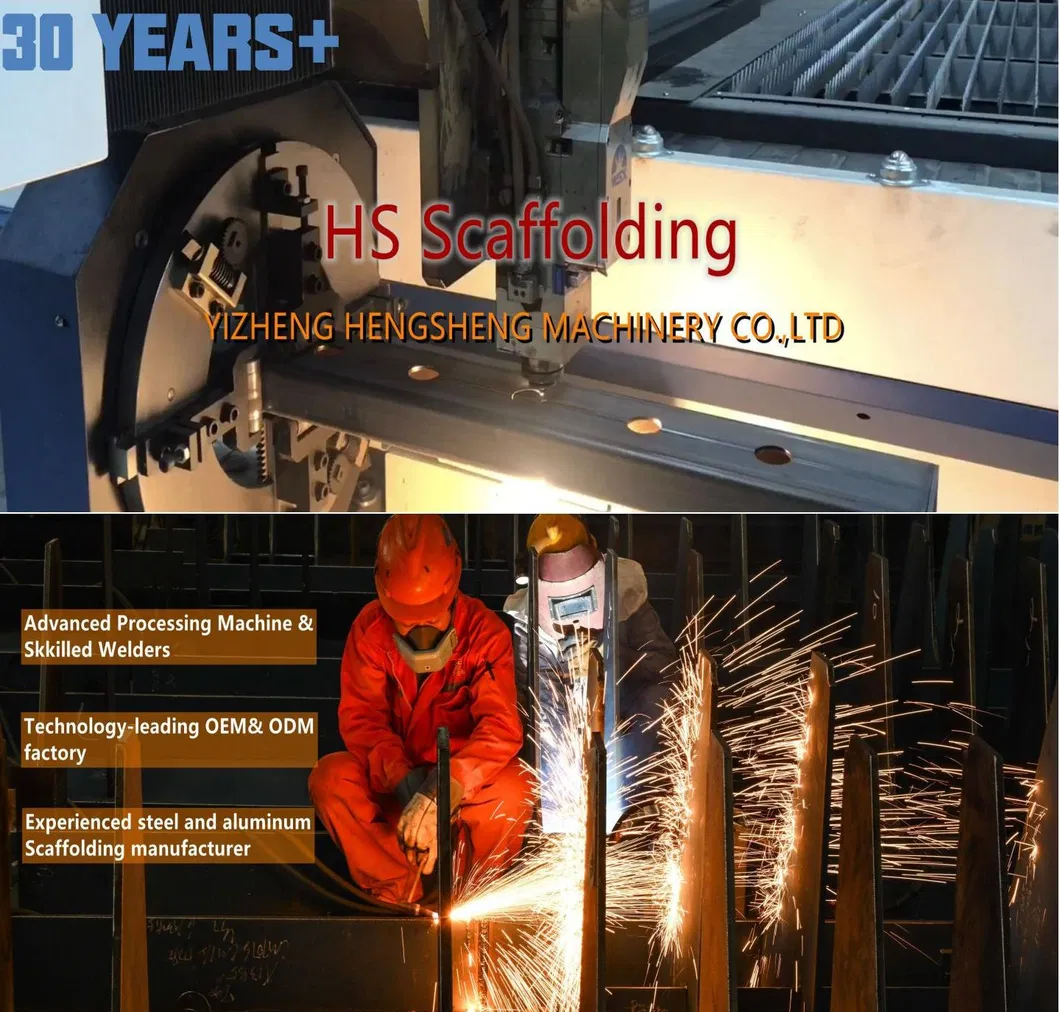

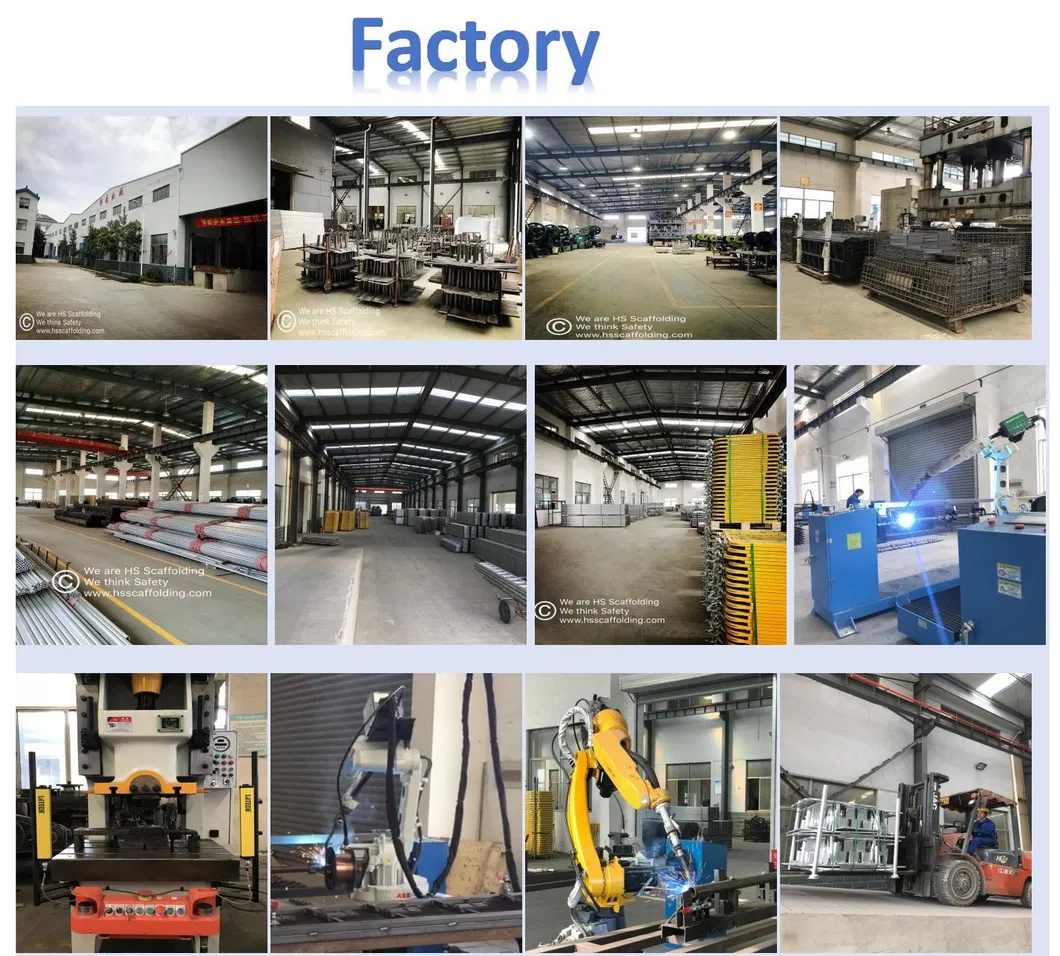

The factory is equipped with 12 advanced robotic welding production lines and various automated equipment. This technology enhances production efficiency while ensuring product consistency and reliability. Our team is highly trained to provide technical expertise on any project.
