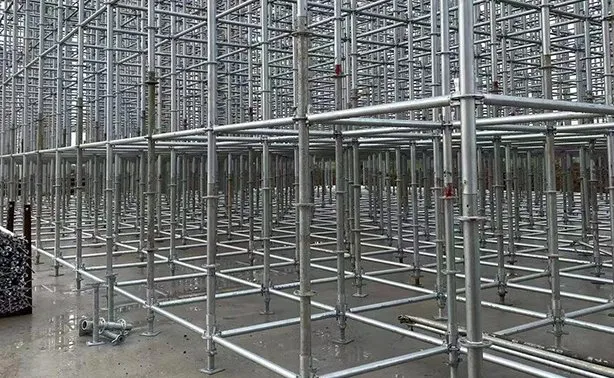

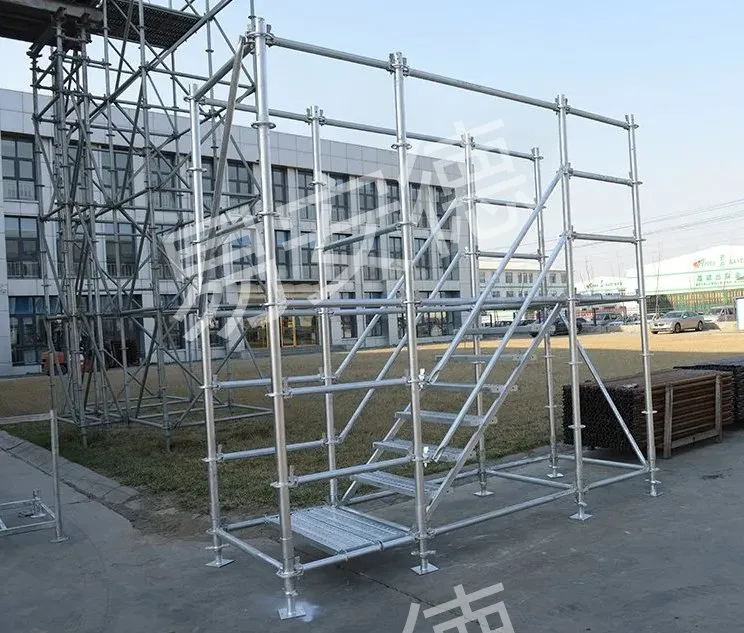

Cup Lock Scaffold is a Modular Safety Erect Scaffolding System. It includes components like Scaffold System of Cup Lock Scaffolding Standard, Cuplock Ledgers, Diagonal Braces, Intermediate Transoms, Hop Up Bracket, Steel Ladders, Scaffold Stairs, and Screw Jacks.

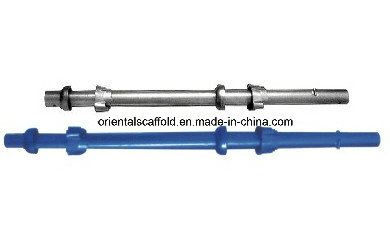

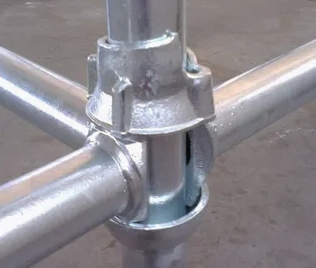

Made of Hot-dip galvanized steel (Ø 48.3 x 3.2 mm). Equipped with Top Cups and Bottom Cups for Ledgers and Braces. Distance between Bottom Cups: 500 mm.
| Art. No | Length (m) | Weight (Kg) | Detail |
|---|---|---|---|
| OSC-S-050 | 0.50 | 3.53 | - |
| OSC-S-100 | 1.00 | 6.31 | - |
| OSC-S-150 | 1.50 | 9.05 | - |
| OSC-S-200 | 2.00 | 11.82 | - |
| OSC-S-250 | 2.50 | 14.57 | - |
| OSC-S-300 | 3.00 | 17.34 | - |

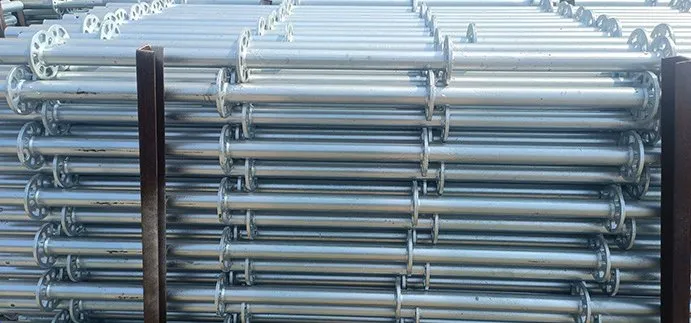

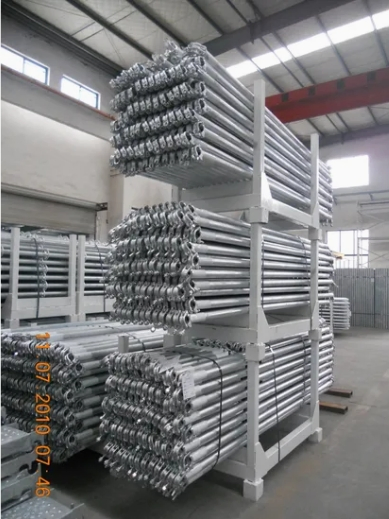

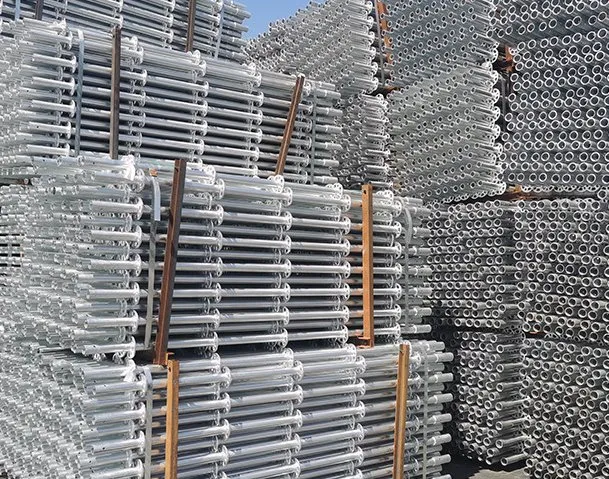

Packing: Packed with steel pallets and loaded with container, ensure sea transportation.
Shipping: 20 days after reception of L/C or deposit.
Focused on high-quality manufacturing of scaffolding and construction materials like Synthetic resin tile and FRP products. With products exported to over 20 countries across Southeast Asia, Americas, Europe, Australia, and Africa, we offer a complete range of steel, aluminum, and fiber glass scaffolding systems designed for stability and easy erection.
