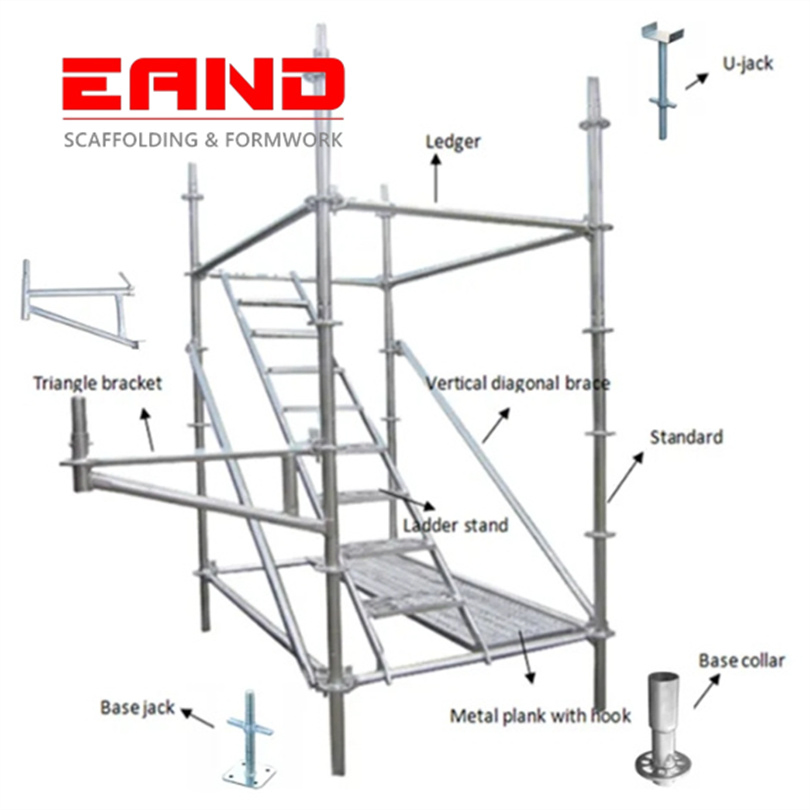

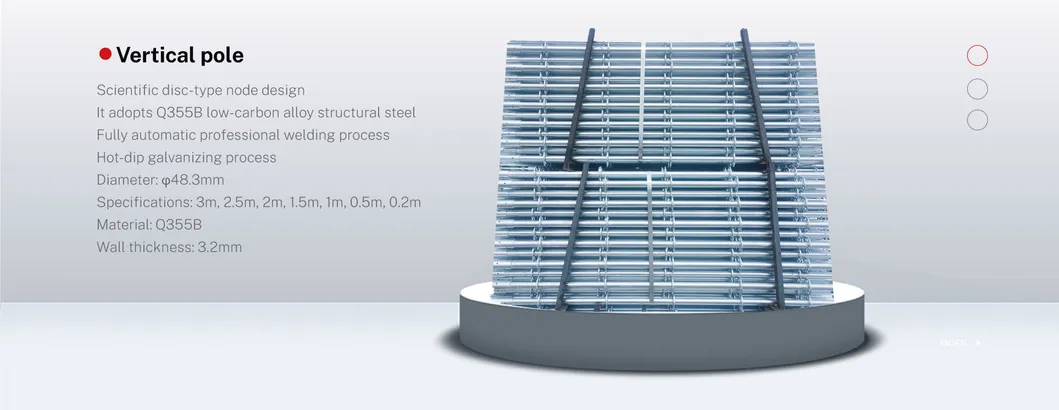

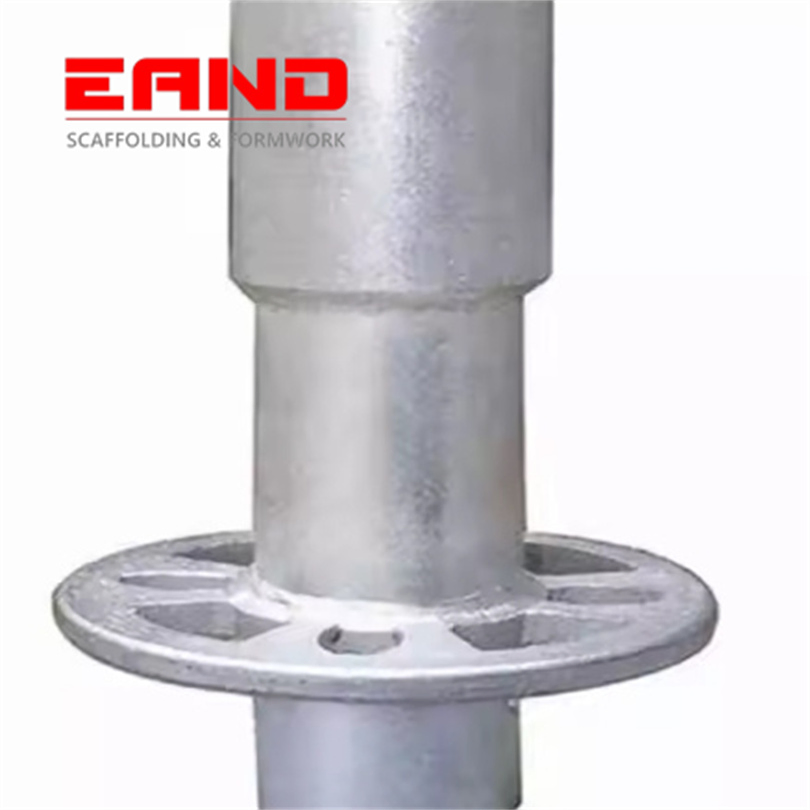

Vertical Standard: Hot-dip galvanized steel. Ø 48.3 x 3.2 mm. Equipped with Top Cups and Bottom Cups in which Ledgers and Braces are to be mounted. Distance between Bottom Cup: 500 mm.
| Art. No | Length (m) | Weight (Kg) |
|---|
| OSC-S-050 | 0.50 | 3.53 |
| OSC-S-100 | 1.00 | 6.31 |
| OSC-S-150 | 1.50 | 9.05 |
| OSC-S-200 | 2.00 | 11.82 |
| OSC-S-250 | 2.50 | 14.57 |
| OSC-S-300 | 3.00 | 17.34 |

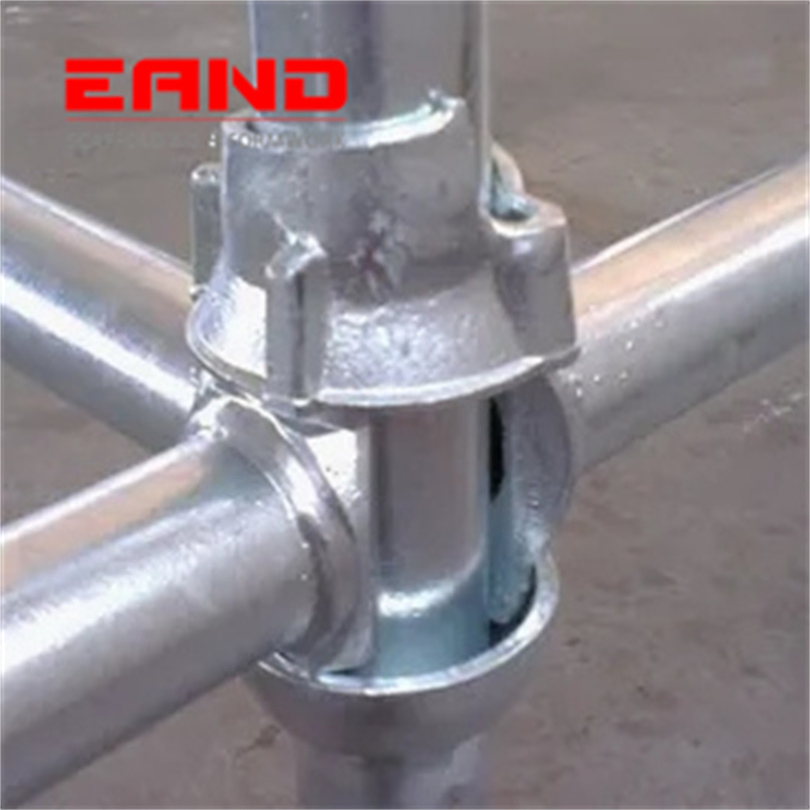

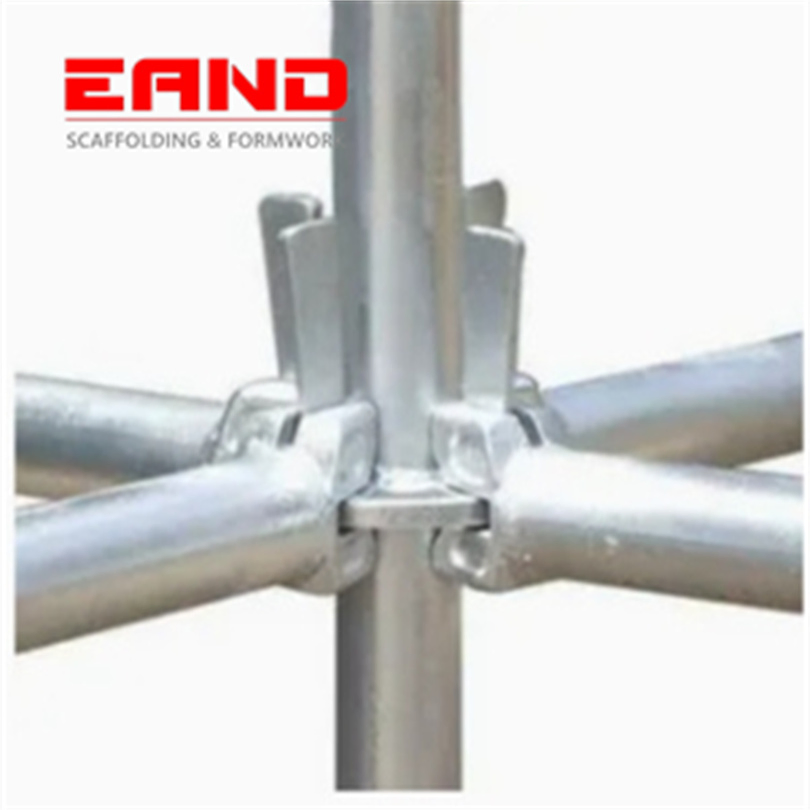

Ledger: Hot-dip galvanized steel. Ø 48.3 x 3.0 mm. Mounted into the space between Top Cup and Bottom Cup with the Blade, securing a right-angled scaffold. Serves as a guardrail.
| Art. No | Length (m) | Weight (Kg) |
|---|
| OSC-L-060 | 0.6 | 2.47 |
| OSC-L-100 | 1 | 3.92 |
| OSC-L-120 | 1.2 | 4.28 |
| OSC-L-150 | 1.5 | 5.73 |
| OSC-L-200 | 2 | 7.54 |
| OSC-L-250 | 2.5 | 9.35 |
Brace: Hot-dip galvanized steel. Mounted into the space between Top Cup and Bottom Cup with the swivel Blade. Diagonal braces should be placed on at least every fifth section.
| Art. No | Length (m) | Weight (Kg) |
|---|
| OSC-B-1 | 1.8*1.5 | 8.25 |
| OSC-B-2 | 1.8*2.0 | 9.31 |
| OSC-B-3 | 2.5*1.5 | 9.99 |
| OSC-B-4 | 2.5*2.0 | 10.86 |
| OSC-B-5 | 3.0*2.0 | 12.1 |
Frequently Asked Questions
Who are we and what is our experience?
We are a leading scaffolding provider with 33 years of industry experience since 1991. Currently, our annual export volume reaches approximately 1000 containers.
How do you guarantee product quality?
We ensure quality through a strict process: always providing a pre-production sample before mass production and conducting a final inspection before every shipment.
What scaffolding products can I buy from you?
Our range includes Ringlock Systems, Metal Planks, Screw Jacks, Props, Steel Formwork, Scaffolding Tubes, Couplers, Ladder Beams, and various hardware accessories.
Why should I choose your company over other suppliers?

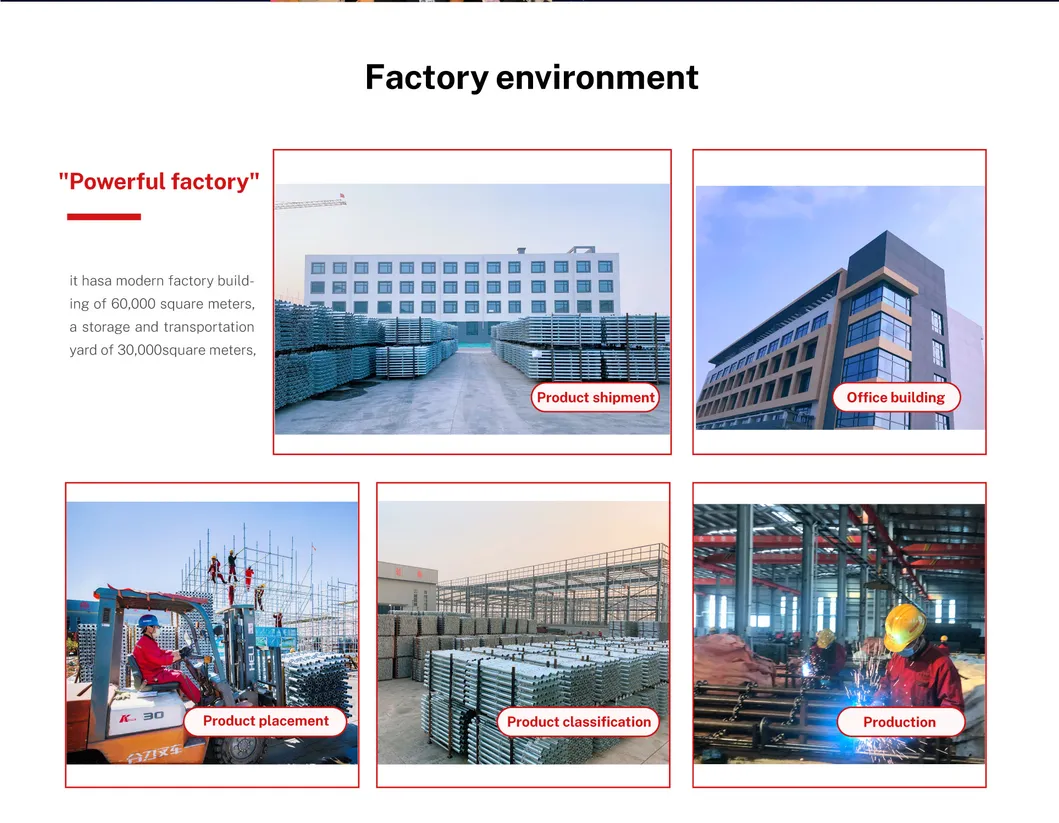

We offer a professional team with 30 years of market experience, a large-scale factory with a 300,000-ton annual capacity, a one-stop service center, and 24-hour online support.
What are your accepted delivery and payment terms?
We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and DAF. Accepted payment currencies include USD, EUR, AUD, HKD, and CNY via T/T, L/C, Credit Card, or PayPal.
Do you offer OEM or custom branding services?
Yes, we provide full OEM services. We can mark your logo or apply custom stickers to the products according to your requirements.
