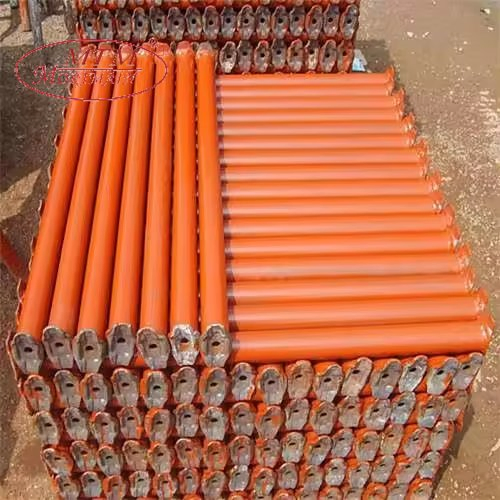

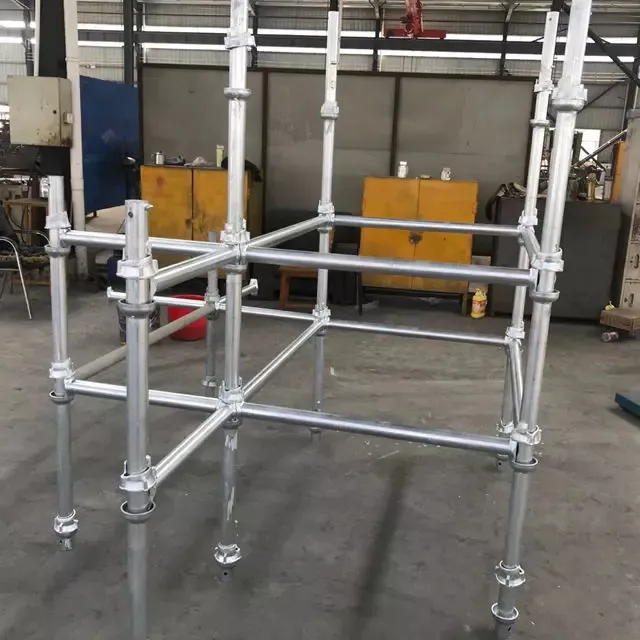

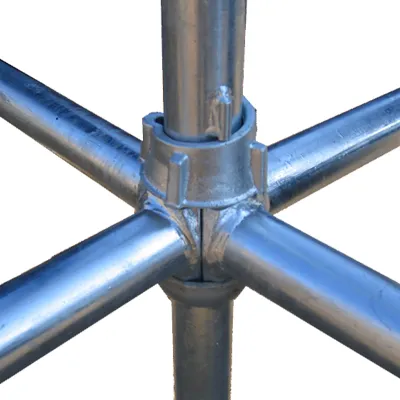

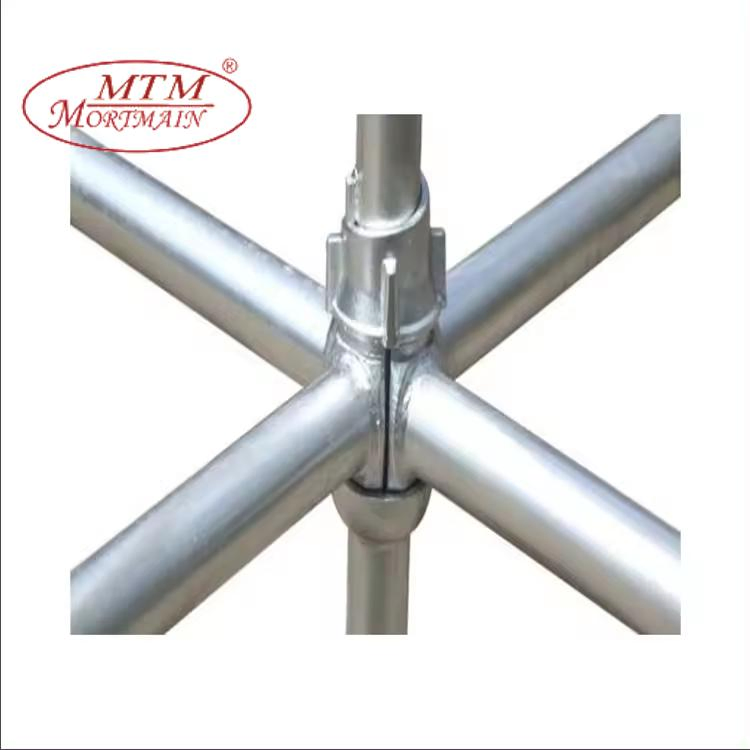

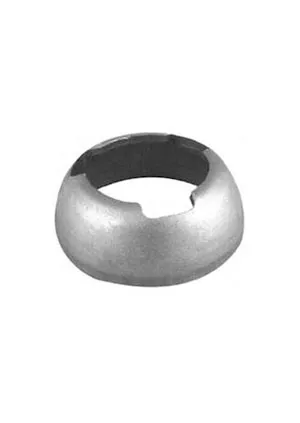

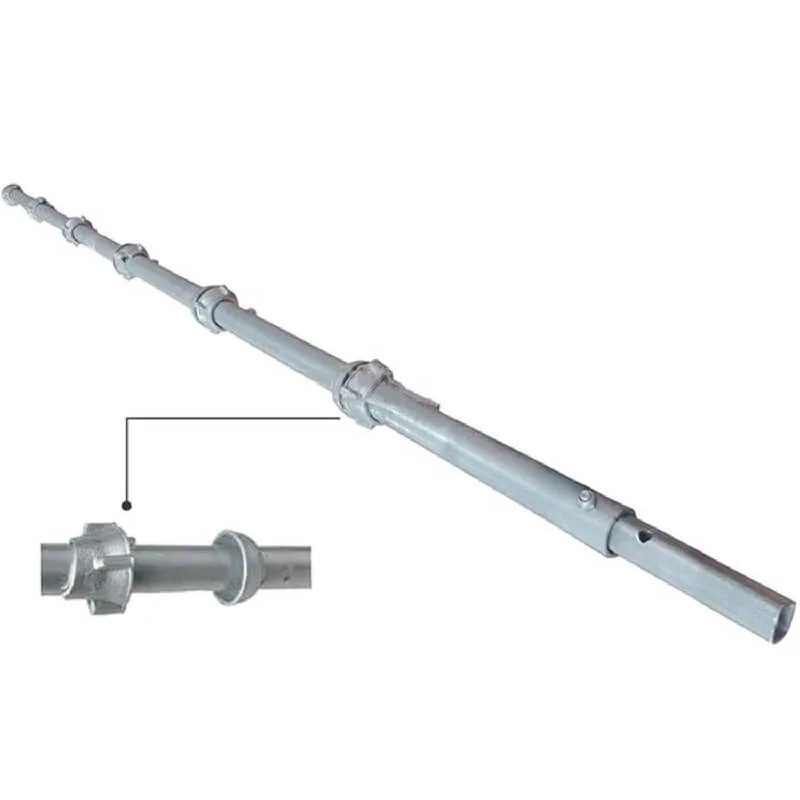

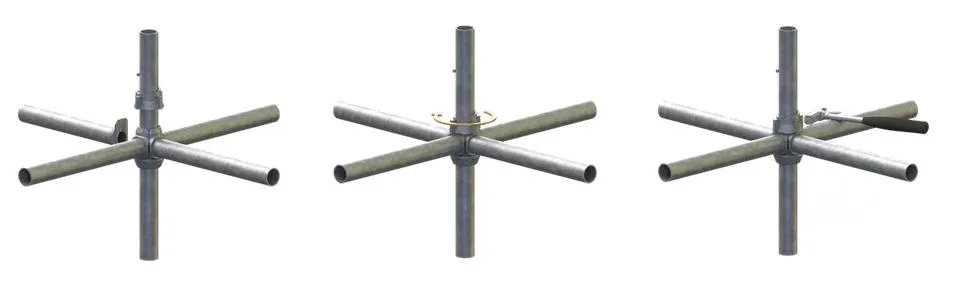

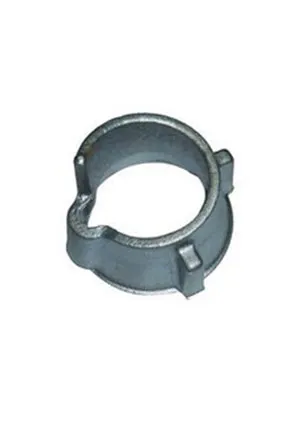

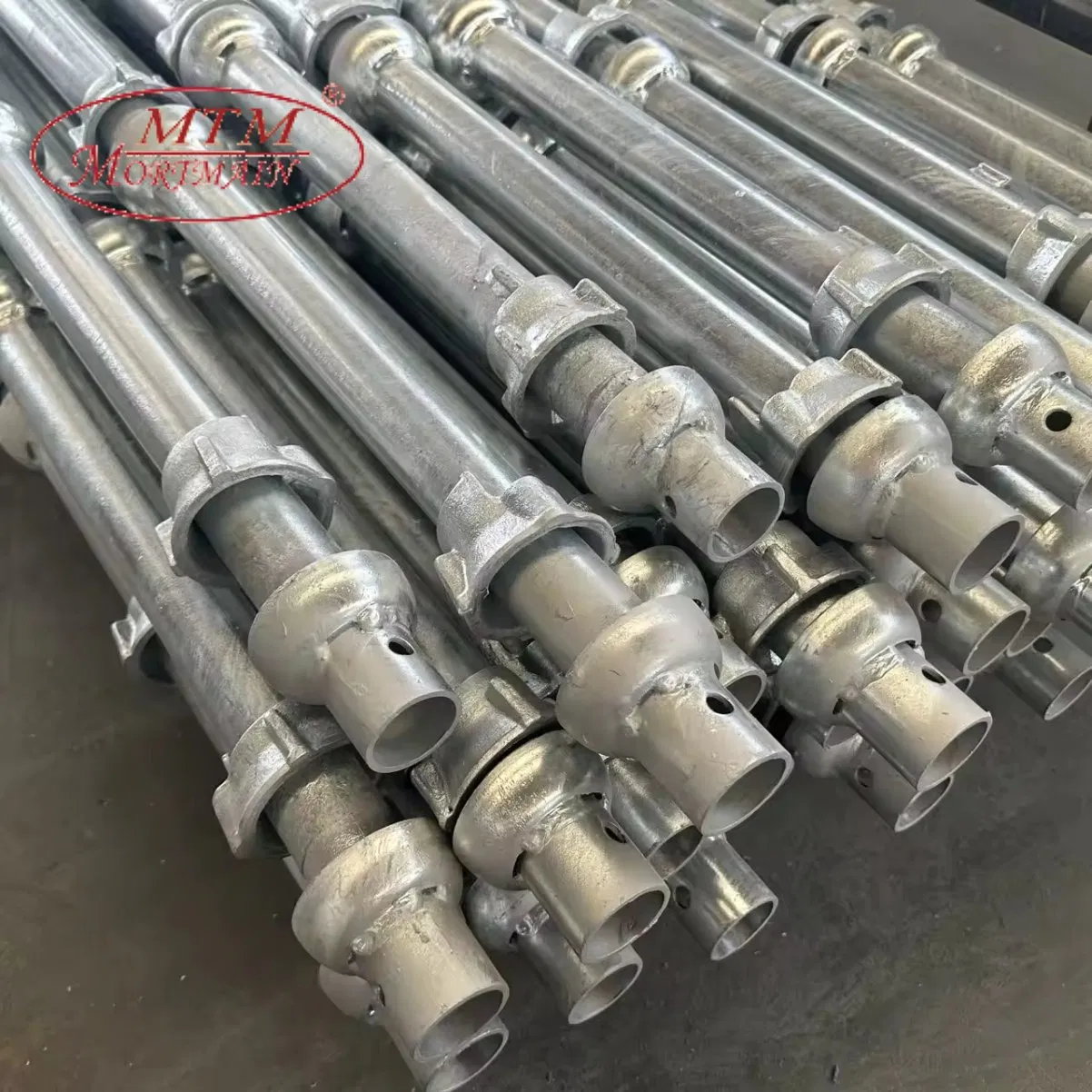

Standard Vertical Pipe: Features raw material steel pipe with 48mm diameter and 3mm thickness. The Standards Vertical & Ledger (Horizontal) are core components. The vertical pipe is formed by two cups - a fixed bottom cup welded to the pipe and a movable top cup that rotates to tighten the horizontal ledger pipe.

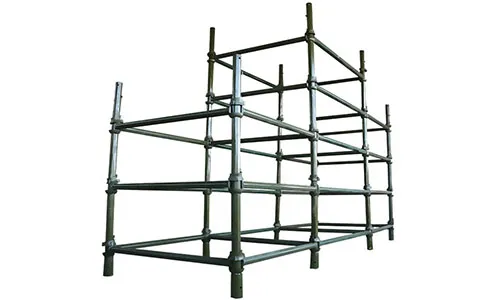

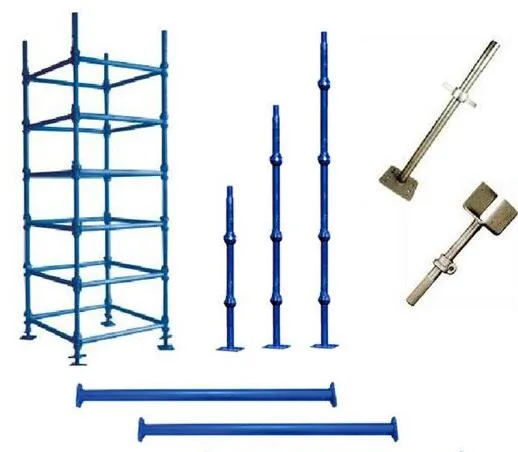

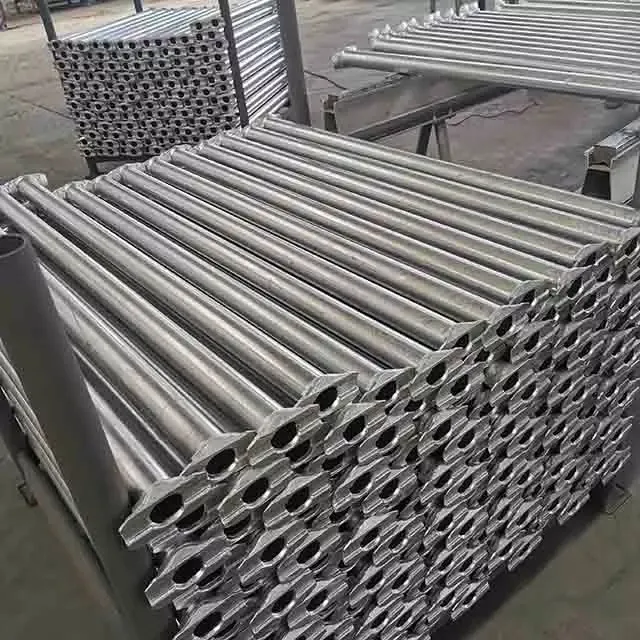

High-grade steel pipe with 48mm diameter. A forged blade is welded at the end of the horizontal ledger pipe, which locates securely between the top and bottom cups of the vertical standard.
| PRODUCT | LENGTH (M) | WALL THICKNESS (MM) | WEIGHT (KG/PC) |
|---|---|---|---|
| Horizontal | 0.3 - 1.2 | 3.25 | 1.27 - 4.49 |
| Vertical | 0.6 - 3.0 | 3.25 | 3.8 - 15.8 |

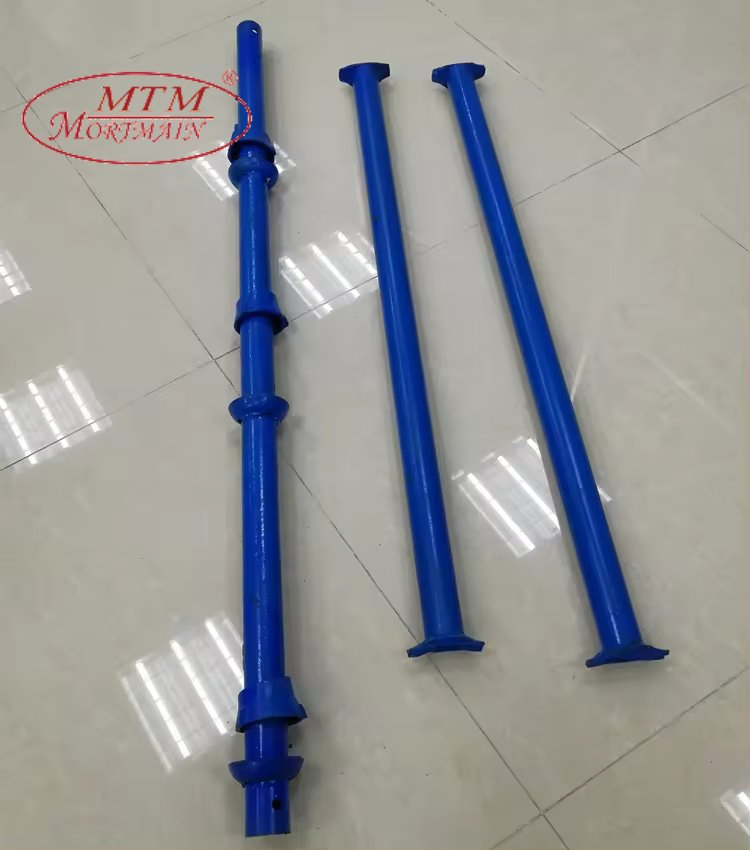

| Base Jack | Tube 30×500mm, Plate 100×100×4mm (Customizable) | ||
| Jack Head | Tube 30×500mm, Plate 80×120×4mm (Customizable) | ||

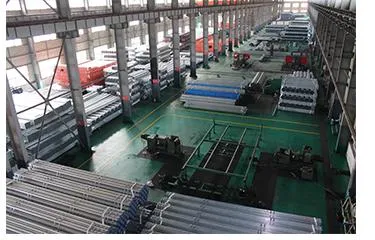

We are a large-scale professional building material provider. Our hollow plastic construction formwork products have been evaluated as "Green Building Selection Products". We have successfully passed CE certification, ISO9001, and international testing certifications. With over 15 years of export experience, we serve more than 100 countries worldwide, supported by multiple specialized facilities and a robust logistics network.
