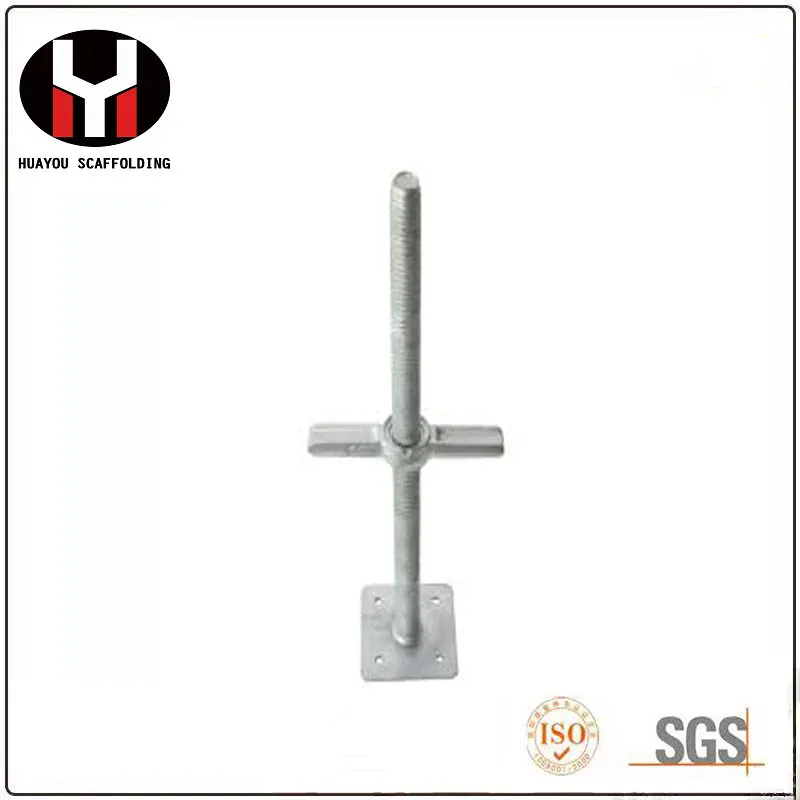

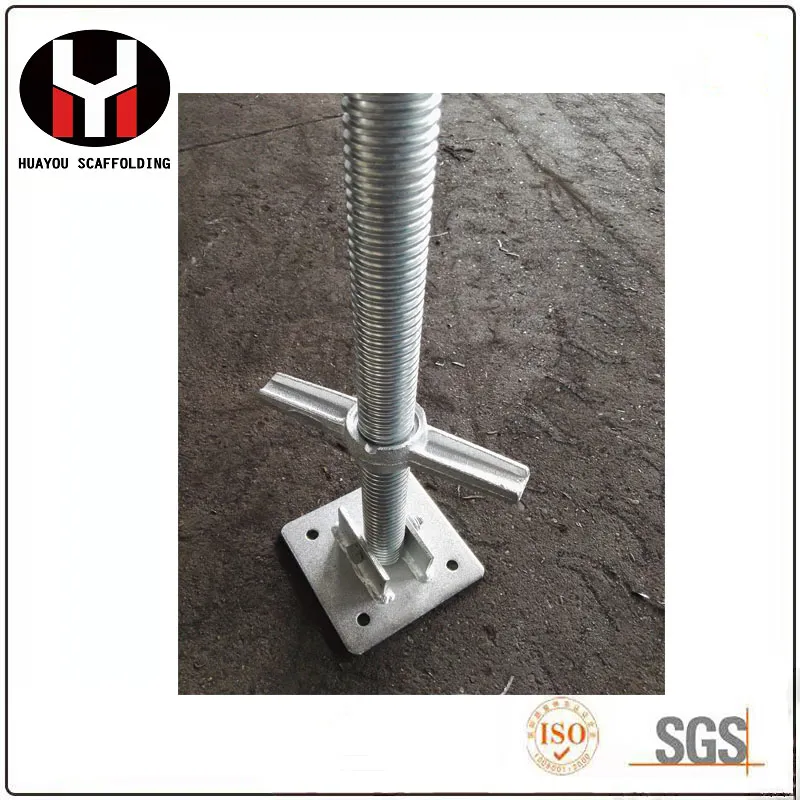

Scaffolding screw jack is an important accessory to provide support and end-to-end connection for construction work. It helps to level the scaffolding system to ensure the safety. With its high capacity and extremely durable rolled spindle thread, Scaffolding Base Jack has become the necessary components to scaffolding systems and widely used by different area clients.

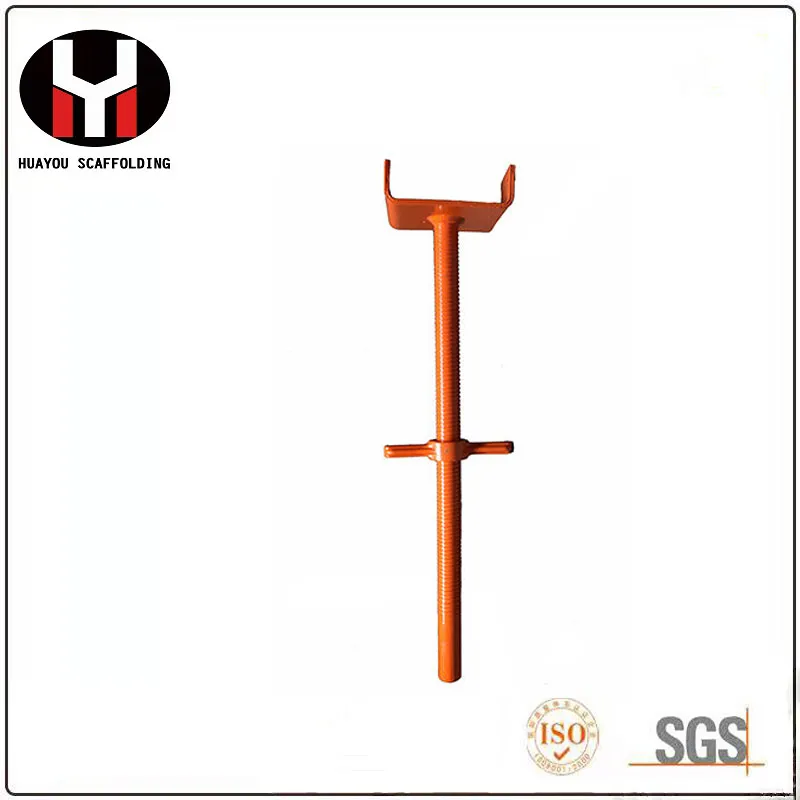

| Name | Adjustable Base Jack & U-Head Base Jack |
|---|---|
| Material | Q235 & Seamless Pipe |
| Type | Solid & Hollow |
| Size | 28mm; 30mm; 32mm; 34mm; 38mm; 48mm |
| Surface | Painted; Electro-Gal.; Hot dip gal.; Powder Coated |
| Package | By wooden pallet or steel pallet |
| TYPE | PIPE DIAMETER (MM) | LENGTH (MM) | U PLATE (MM) | BASE PLATE (MM) | CUSTOMIZED |
|---|---|---|---|---|---|
| Solid | 28 | 600 | 150*120*50*4 | 120*120*4 | YES |
| Solid | 30 | 600 | 150*120*50*4 | 120*120*4 | YES |
| Solid | 32 | 600 | 150*120*50*4 | 140*140*4 | YES |
| Solid/Hollow | 34 | 600 | 150*120*50*4 | 140*140*4 | YES |
| Hollow | 38 | 600 | 180*150*50*5 | 150*150*5 | YES |
| Hollow | 48 | 600 | 180*150*50*5 | 150*150*5 | YES |

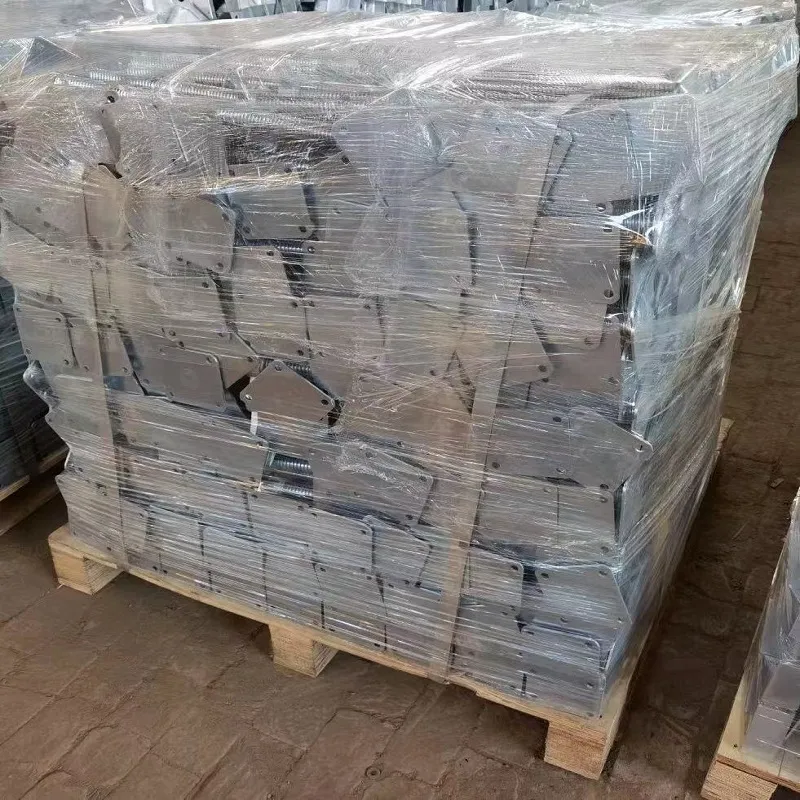

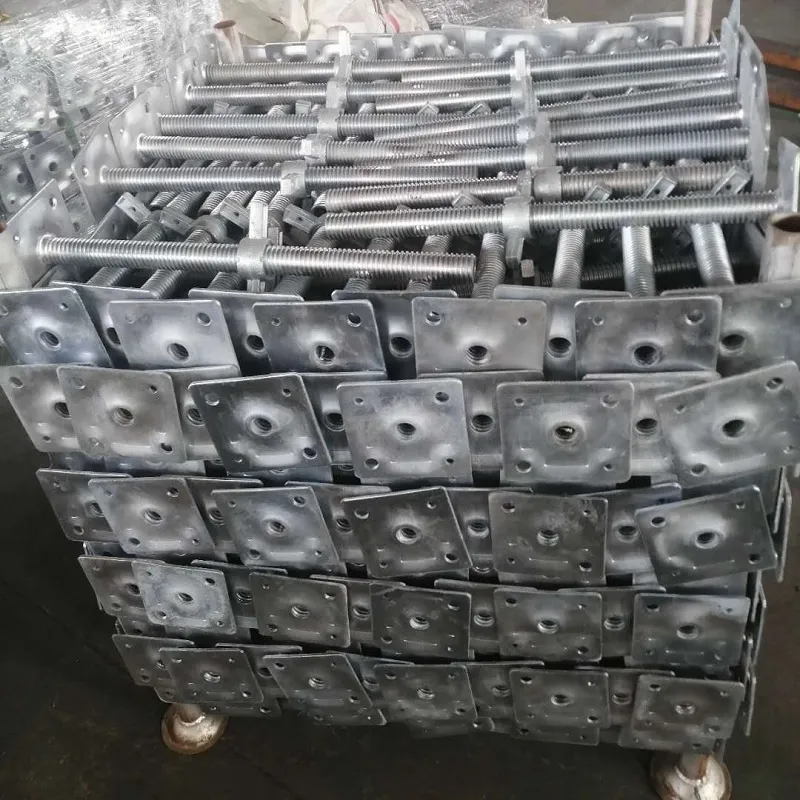

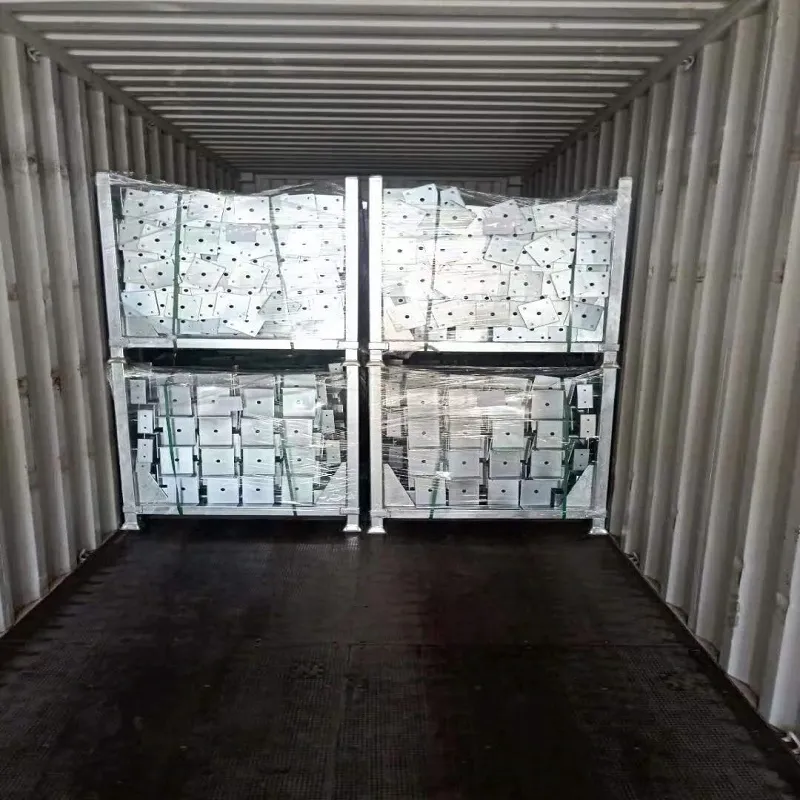

● Standard Loading: By wooden pallet or by steel pallet or as request, load in 20ft container.
