Cup Lock Scaffold is a Modular Safety Erect Scaffolding System featuring Scaffold System of Cup Lock Scaffolding Standard, Cuplock Ledgers, Diagonal Braces, Intermediate Transoms, Hop Up Bracket, Steel Ladders, Scaffold Stairs, and Screw Jacks.

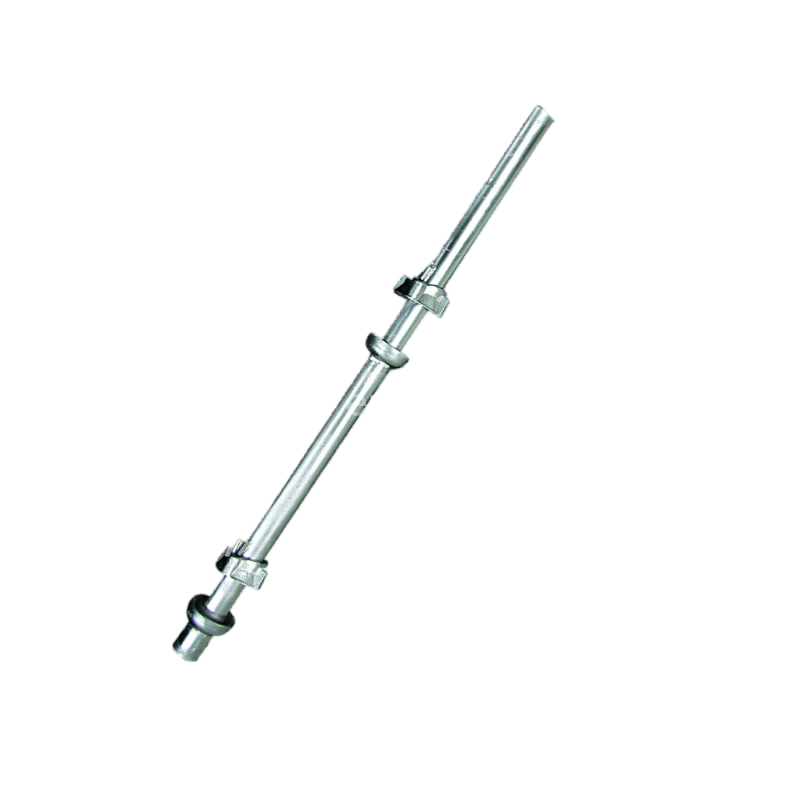

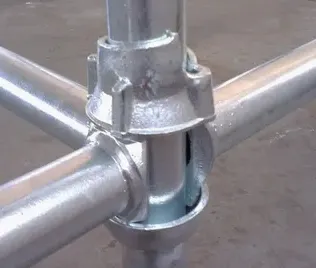

Made of Hot-dip galvanized steel. Specifications: Ø 48.3 x 3.2 mm. Equipped with Top Cups and Bottom Cups in which Ledgers and Braces are to be mounted. Distance between Bottom Cup: 500 mm.
| Art. No. | Length (m) | Weight (Kg) | Detail |
|---|---|---|---|
| OSC-S-050 | 0.50 | 3.53 | Standard |
| OSC-S-100 | 1.00 | 6.31 | Standard |
| OSC-S-150 | 1.50 | 9.05 | Standard |
| OSC-S-200 | 2.00 | 11.82 | Standard |
| OSC-S-250 | 2.50 | 14.57 | Standard |
| OSC-S-300 | 3.00 | 17.34 | Standard |
Dedicated to leading in the manufacturing of scaffolding and construction materials like Synthetic resin tile and FRP products. We deliver high-quality, innovative products that meet global requirements. Since 2006, our products have reached over 20 countries across Southeast Asia, North/South America, Europe, Australia, and North Africa. Our range includes steel, aluminum, and fiber glass systems designed for any access or support requirement.
