| Scaffolding Steel Prop Technical Parameters | |
|---|---|
| Type | Heavy Duty or Light Duty |
| Material Grade | Q355, Q235, Q195 |
| Adjustable Length | 1.4m - 5.5m |
| Tube Sizes | 40mm, 48mm, 56mm, 60mm, 76mm |
| Plate Forms | Flower, Square, U-Type |
| Surface Options | Pre-Galvanized, Hot Dip Galvanized, Painted, Powder Coated |
| Prop Type | Min Height (m) | Max Height (m) | Inner Tube (mm) | Outer Tube (mm) |
|---|---|---|---|---|
| Light Duty (Cup Nut) | 1.7 | 3.0 | 40*1.6-2.0 | 48*1.6-2.0 |
| 1.8 | 3.2 | 48*1.6-2.0 | 56*1.6-2.0 | |
| 2.0 | 3.5 | 40*1.6-2.0 | 48*1.6-2.0 | |
| Heavy Duty (Normal Nut) | 1.8 | 3.2 | 48*2.0-4.0 | 60*2.0-4.0 |
| 2.2 | 3.9 | 48*2.0-4.0 | 60*2.0-4.0 | |
| 3.0 | 5.5 | 48*2.0-4.0 | 60*2.0-4.0 |

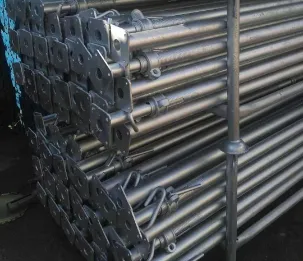

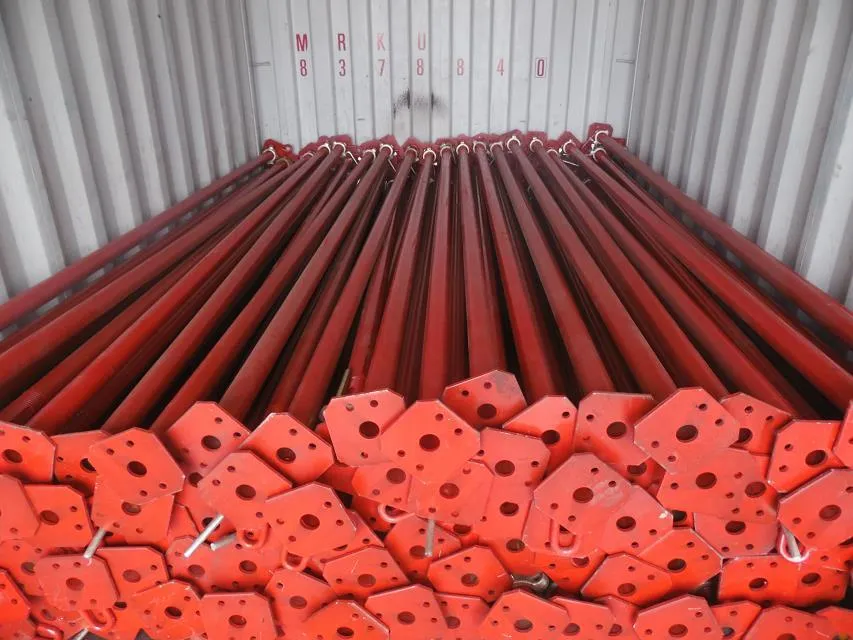

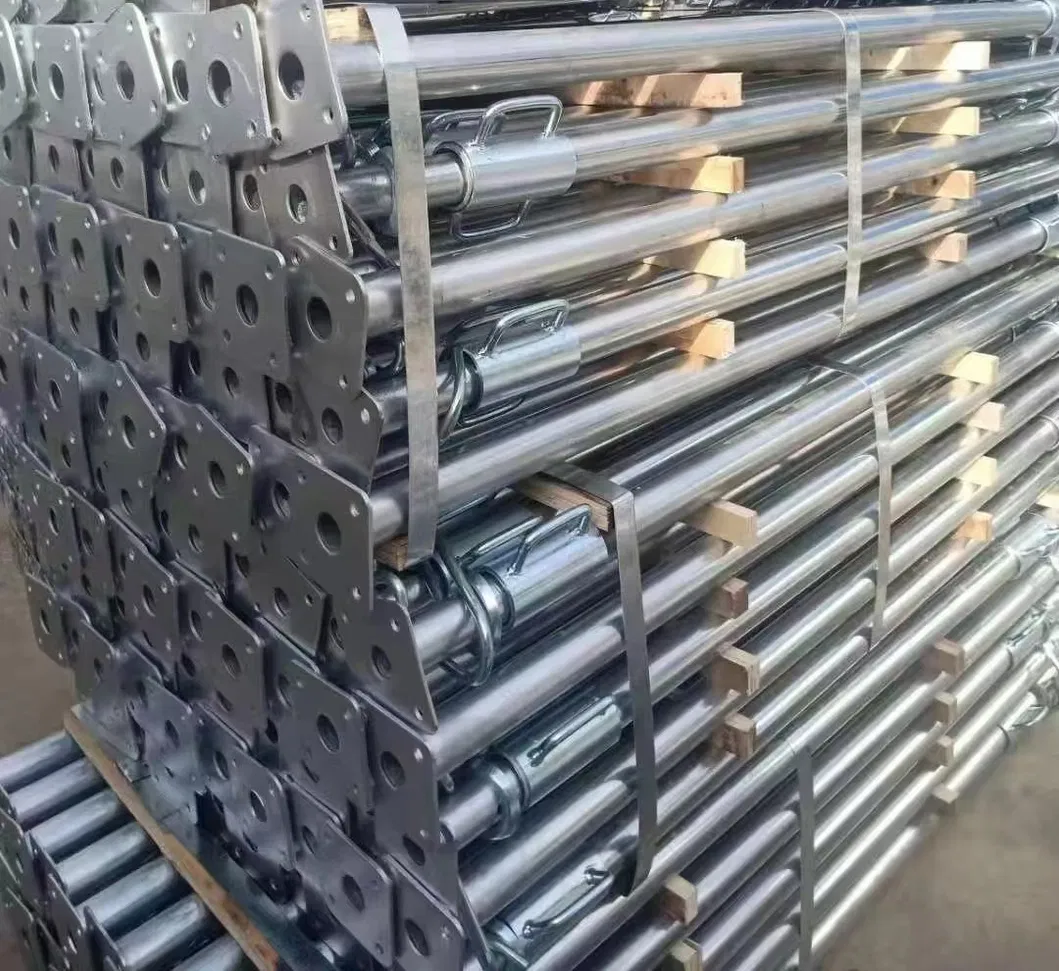

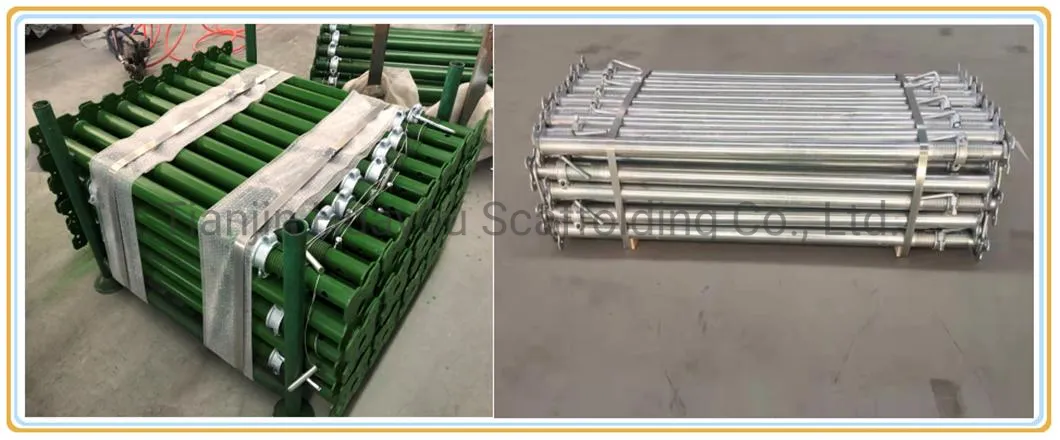

We provide various packaging options: by pieces, bundles, or pallets, all suitable for long-distance sea transportation.

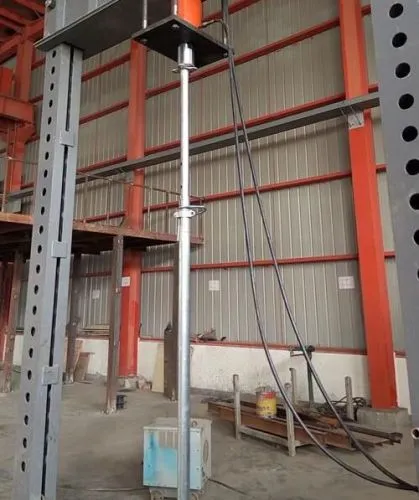

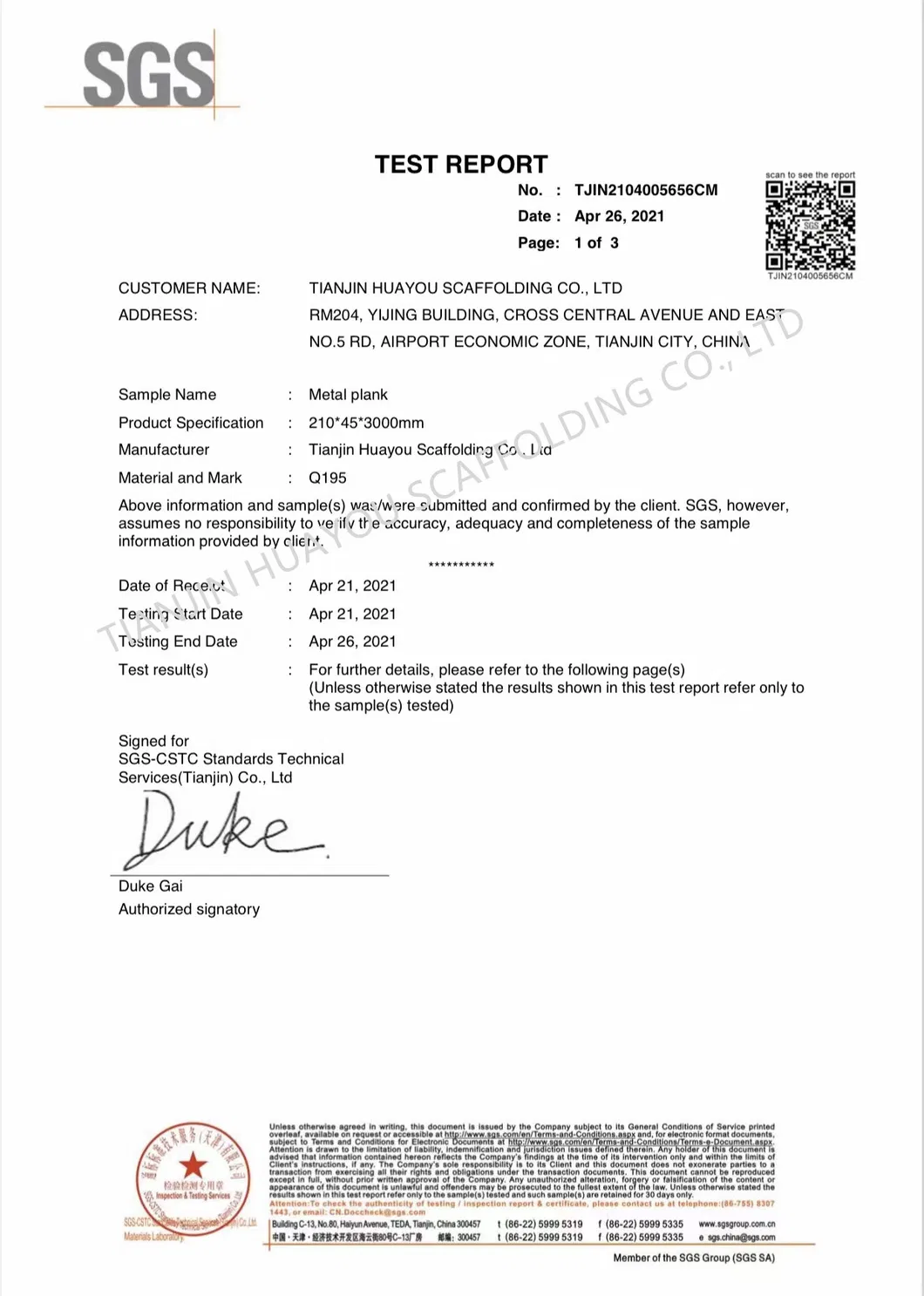

Our QC team strictly tests raw materials, welding quality, surface finish, and loading capacity for every batch to ensure compliance with international standards.

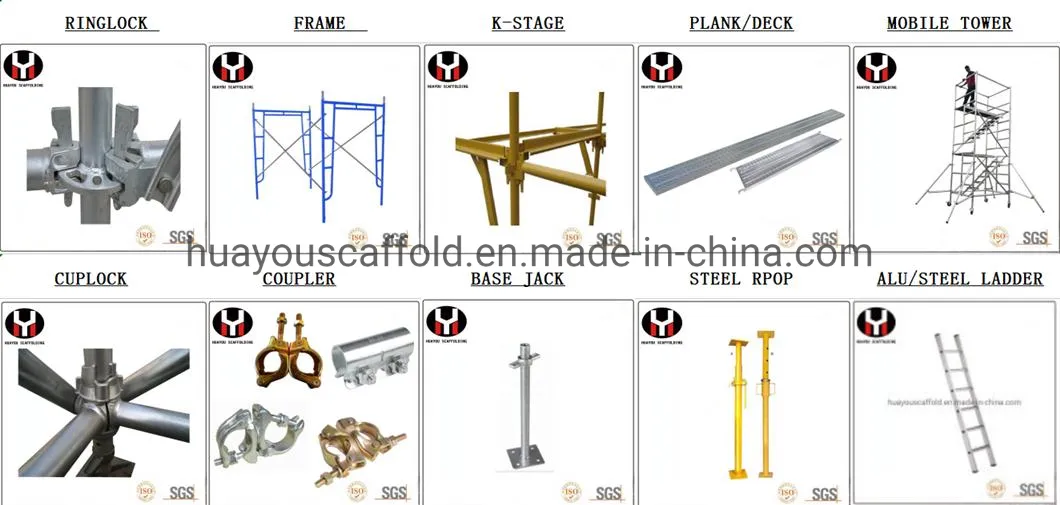

Operating from a major industrial base in China, we specialize in the production and sales of various scaffolding products. Our expertise includes Ringlock systems, Steel Boards, Frame systems, Jack bases, Couplers, and Formwork accessories.
Our products are exported globally, serving major markets in South East Asia, the Middle East, Europe, America, and Australia. We adhere to the principle of "Quality First, Customer Foremost."
