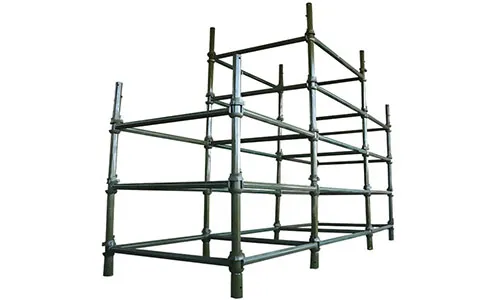

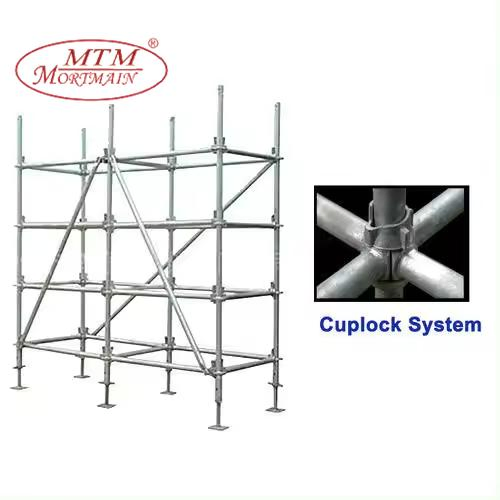

Cuplock Scaffolding System

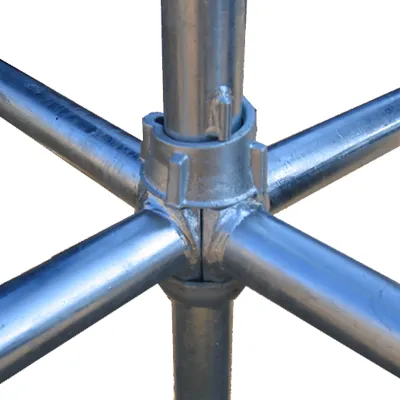

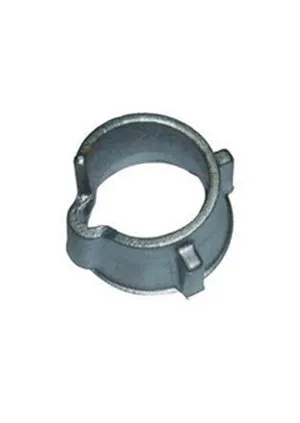

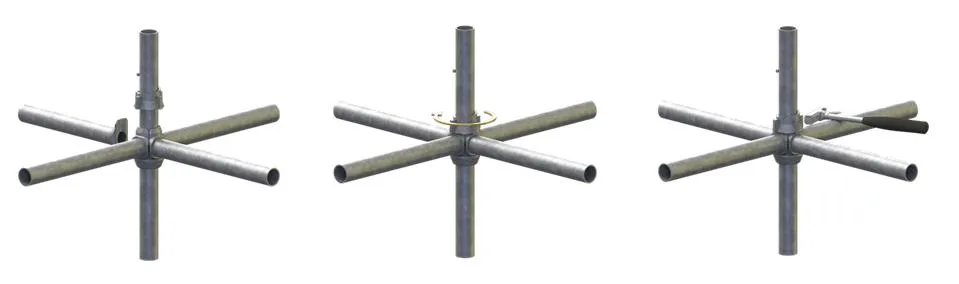

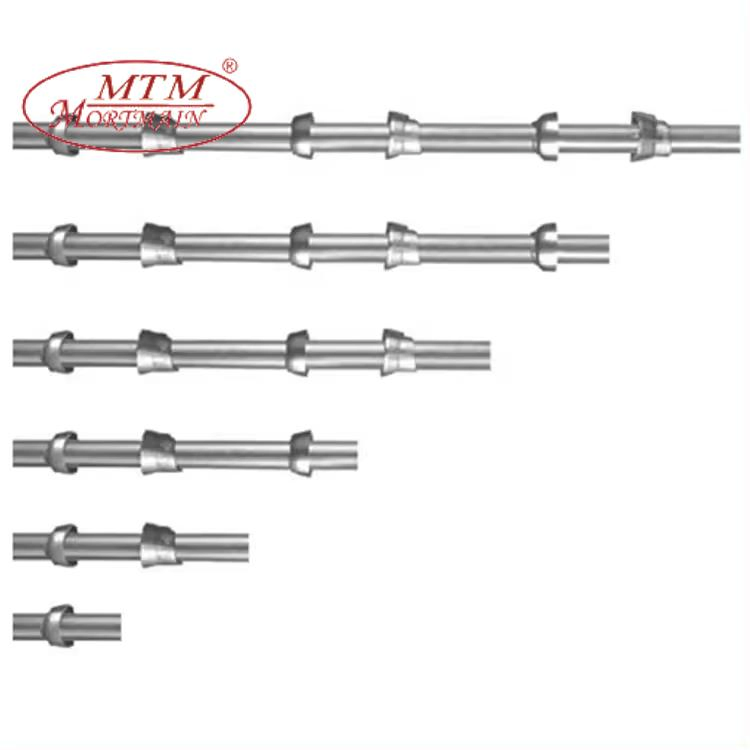

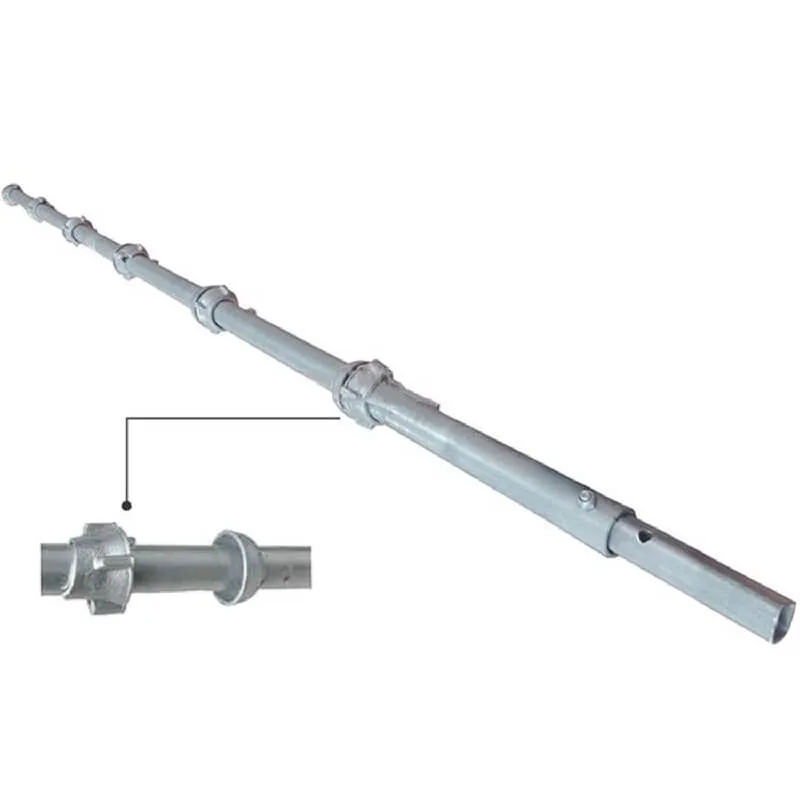

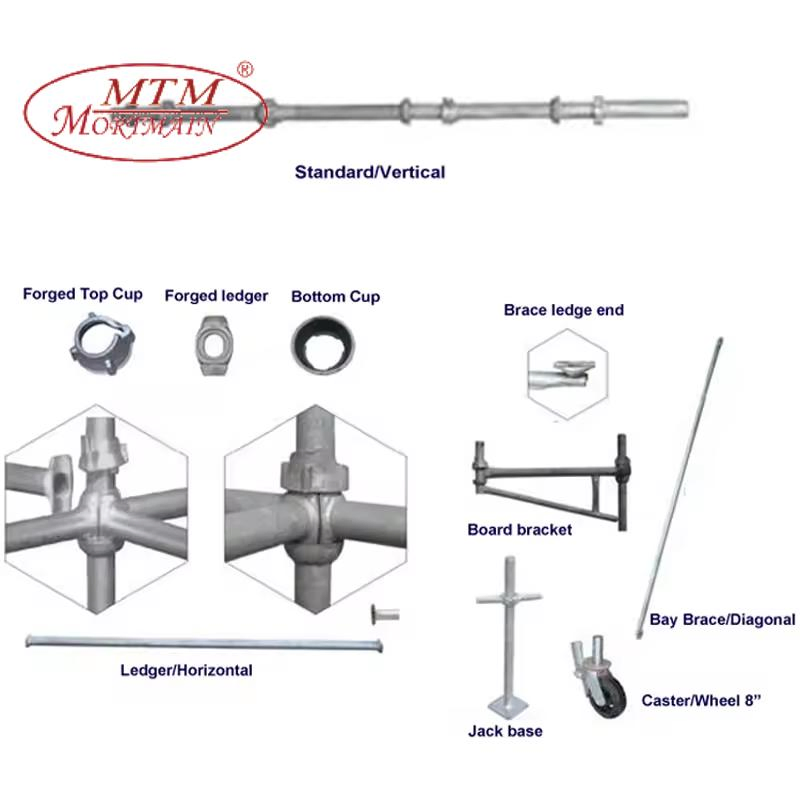

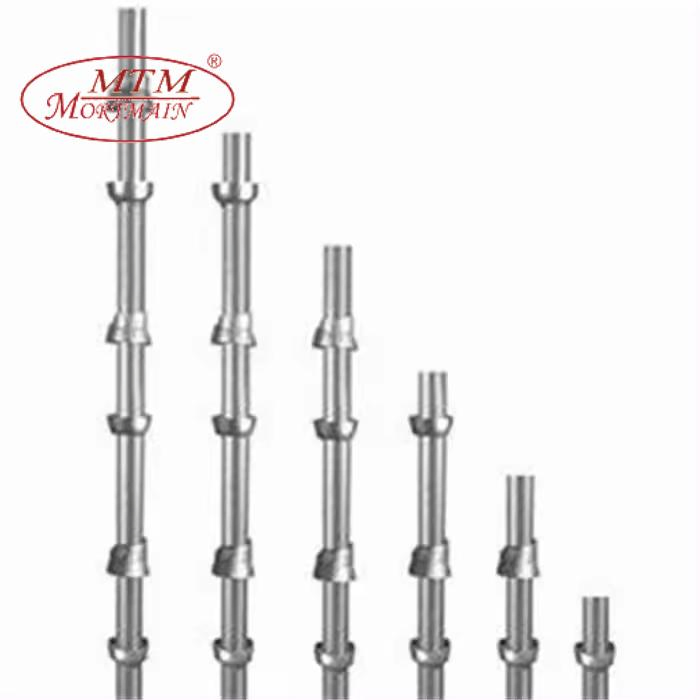

Standard Vertical Pipe: Raw material steel pipe 48mm diameter x 3mm thick. The Standards Vertical & Ledger (Horizontal) are two primary components of the cup lock scaffolding system. The vertical pipes feature fixed bottom cups welded to the pipe and movable top cups that rotate to secure the horizontal ledger pipes.

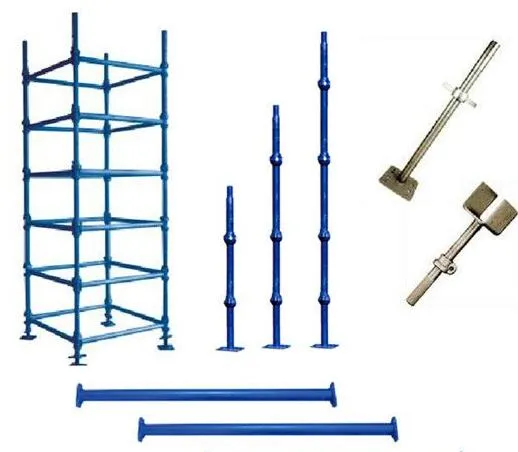

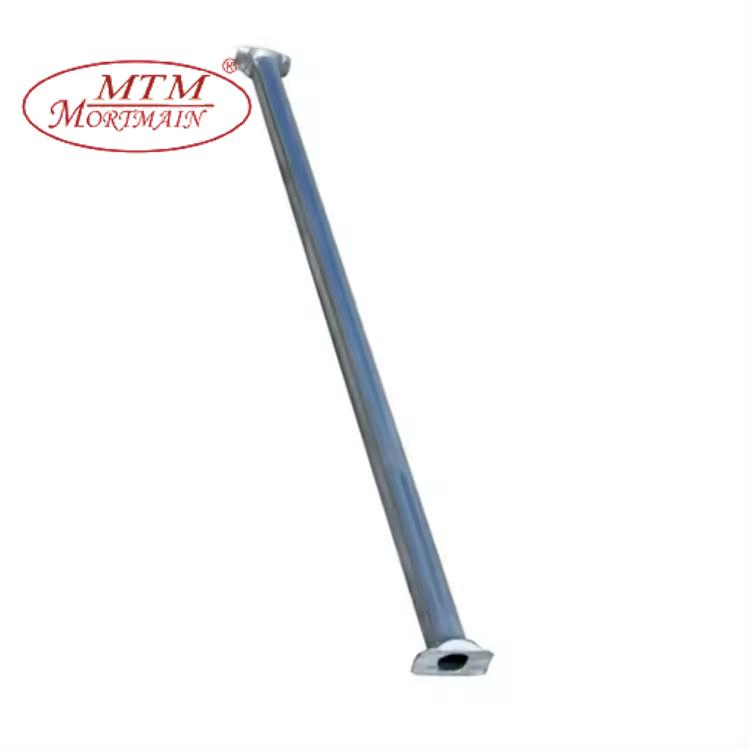

Horizontal Ledger Pipe: High-grade steel pipe 48 mm diameter. A forged blade is welded at each end of the horizontal ledger pipe, which locates securely between the top and bottom cups of the vertical standard.
| PRODUCT | LENGTH (M) | WALL THICKNESS (MM) | WEIGHT (KG /PIECE) |
|---|---|---|---|
| Horizontal | 0.3 | 3.25 | 1.27 |
| 0.6 | 3.25 | 2.4 | |
| 0.9 | 3.25 | 3.5 | |
| 1.2 | 3.25 | 4.49 | |
| Vertical | 0.6 | 3.25 | 3.8 |
| 1.5 | 3.25 | 7.8 | |
| 2.1 | 3.25 | 11.2 | |
| 3.0 | 3.25 | 15.8 | |
| Base Jack | Tube 30×500mm, Plate 100×100×4mm or customized | ||
| Jack Head | Tube 30×500mm, Plate 80×120×4mm or customized | ||
We are a large-scale professional building material company. Our hollow plastic construction formwork products have been evaluated as "Green Building Selection Products" and are included in the CTC Green Building selection catalogue. We hold CE certification, ISO9001, and international testing certifications.
With over 15 years of export experience, we serve more than 100 countries and maintain a robust network including multiple warehouses and dedicated technical staff.
