| Model NO. | HSCL | Material | Steel |
|---|---|---|---|
| Type | Fixed | Structural Style | Tower Scaffolding |
| Framework | Combined Scaffolding | Supporting Mode | Projecting Scaffolding |
| Lapping Form | Double Scaffolding | External Scaffolding | External Scaffolding |
| Move Method | Horizontal mobile | Steel Grade | Q235/Q355 |
| Surface Treatment | Pre-Galvanized/Hot DIP Galvanized | Certification | CE, ISO, RoHS, TUV |

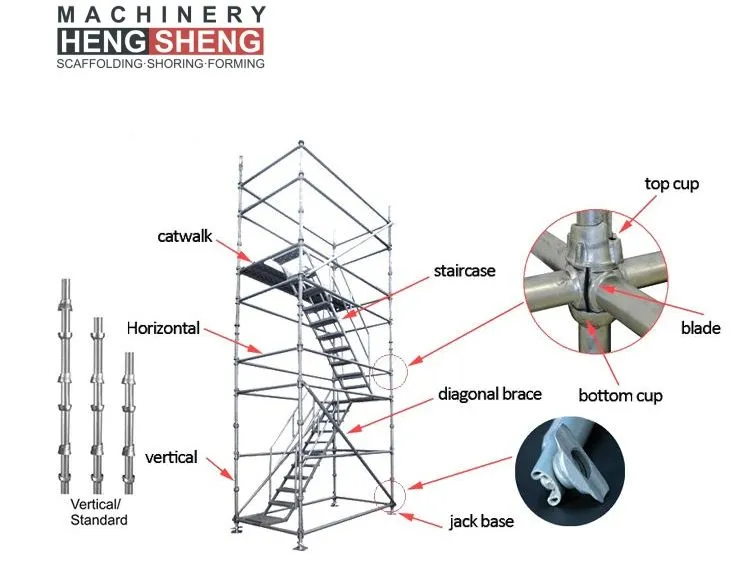

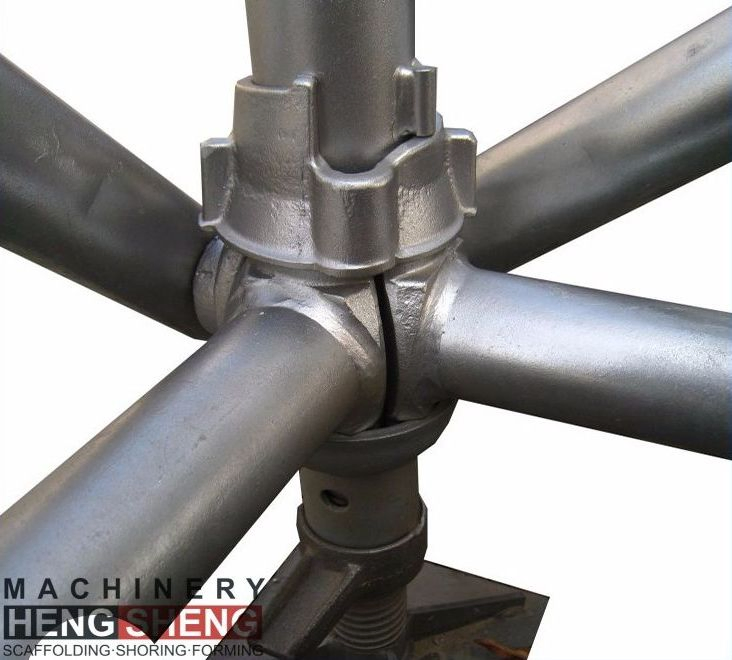

The CUPLOCK system is a fully galvanised, multi-purpose steel system scaffold designed for all access, shoring, and supporting vertical loads. Unique node points which can lock up to four components in one easy hammer blow provide a wider range of applications. Node points are spaced on all standards at 500mm intervals to ensure correct working lifts and handrail positioning.

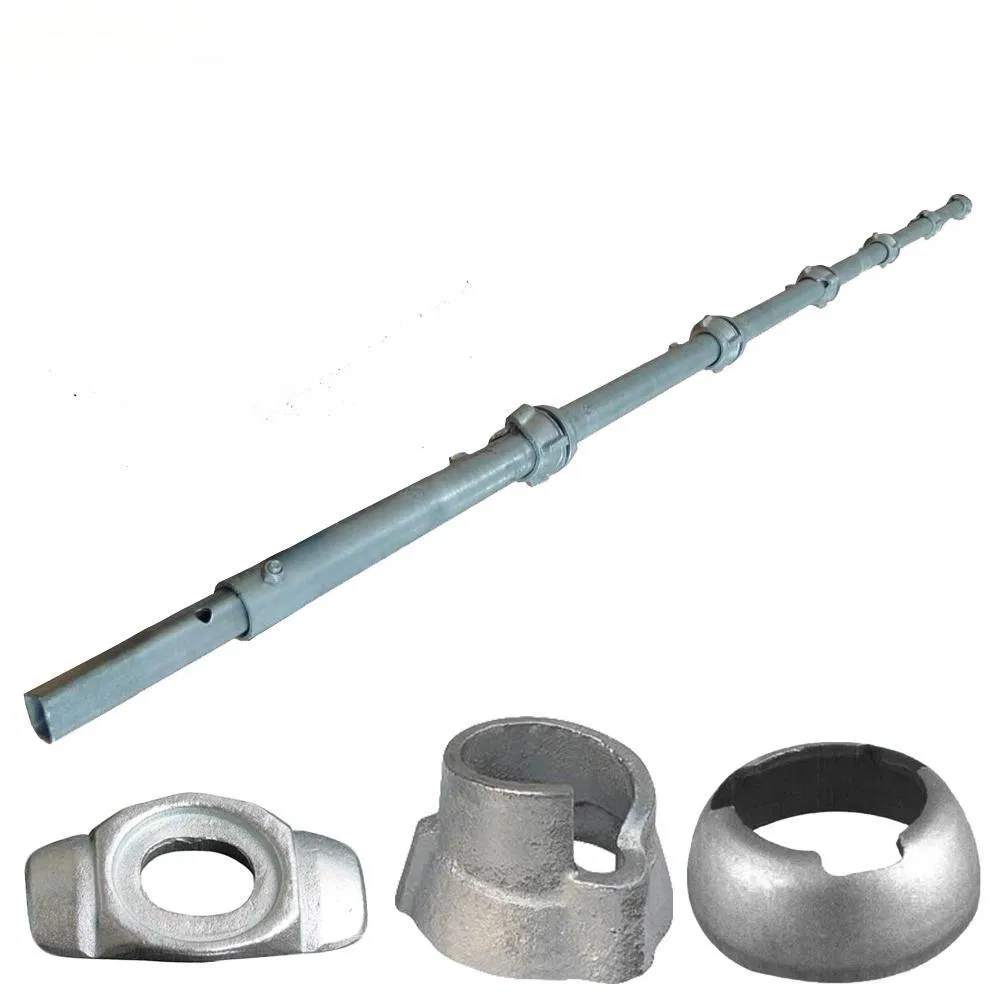

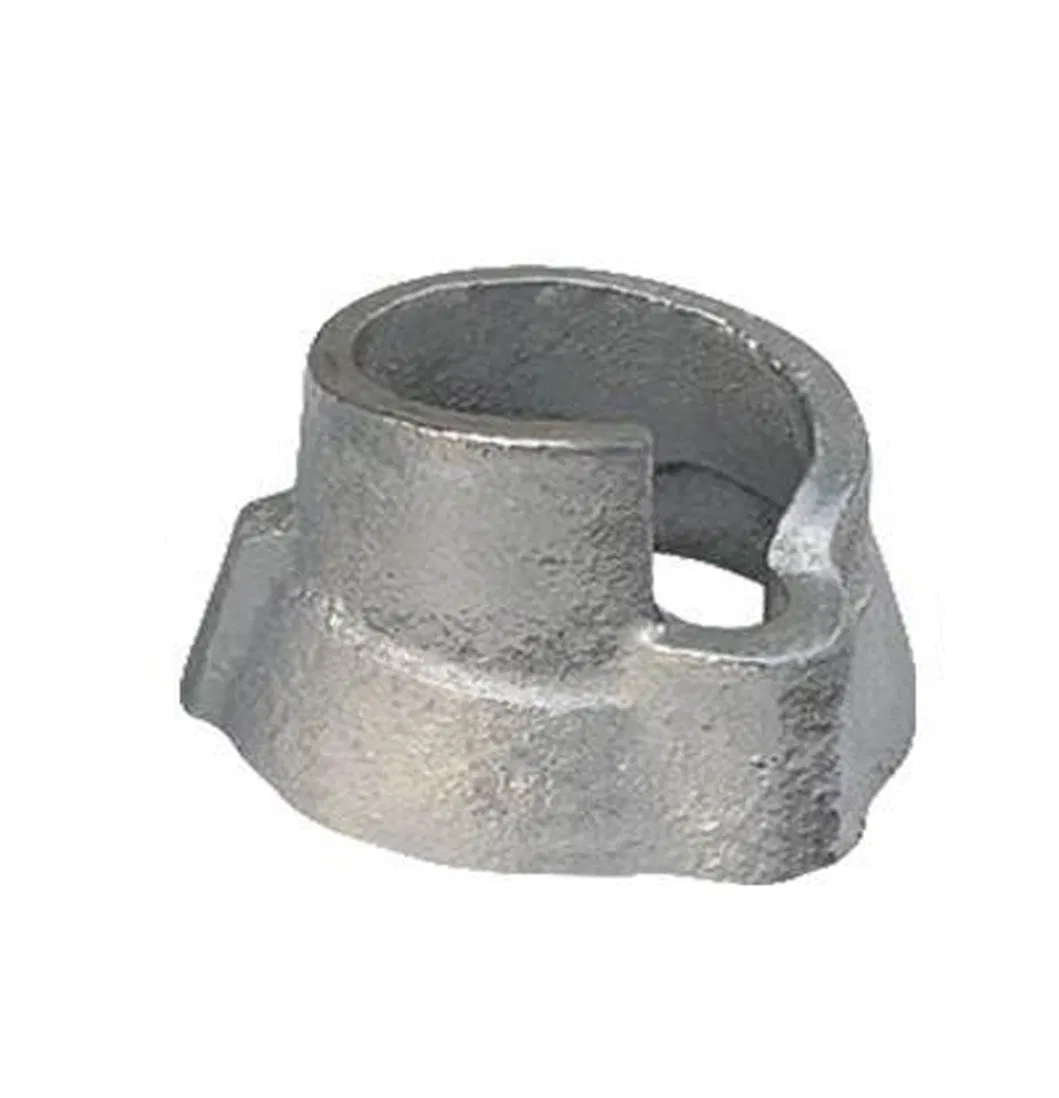

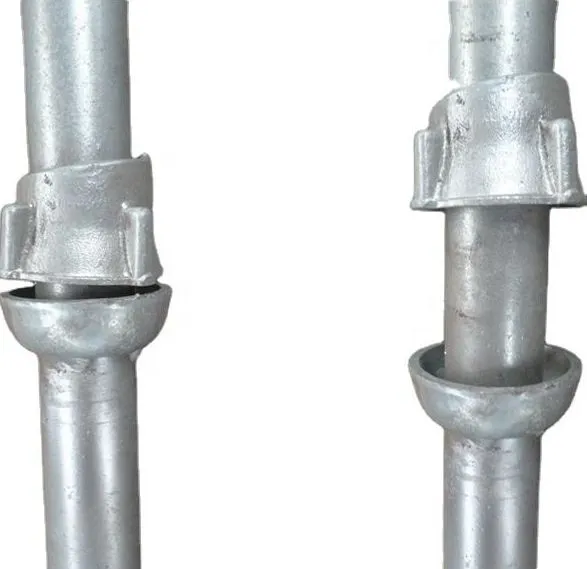

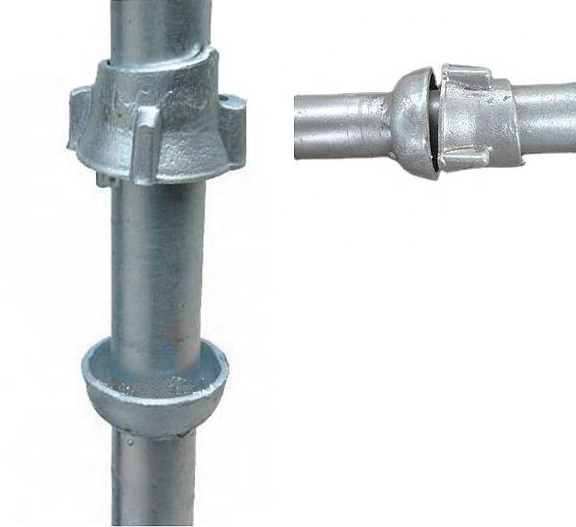

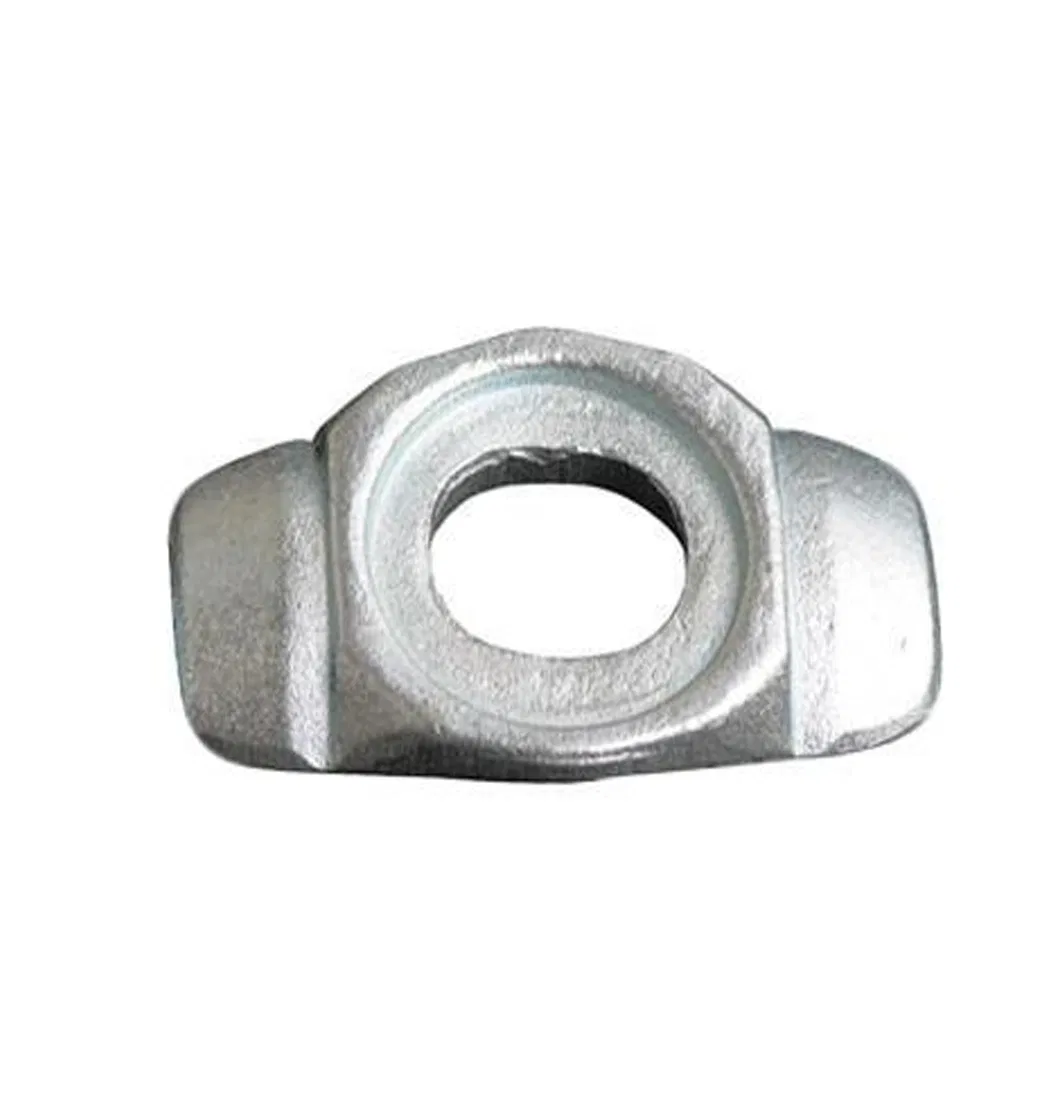

Vertical members are made from 48.3mm diameter x 3.2mm thick high-grade steel tube. They incorporate a fixed bottom cup welded at 500mm intervals, with a captive moving top cup. The location of the bottom cup (80mm from the base) improves structural strength and reduces the need for base-bracing.
| Code | Description | Size | Weight |
|---|---|---|---|
| HSCS05 | 0.5M Standard | 500mm | 3.43kg |
| HSCS10 | 1.0M Standard | 1000mm | 6.00kg |
| HSCS20 | 2.0M Standard | 2000mm | 11.38kg |
| HSCS30 | 3.0M Standard | 3000mm | 16.34kg |

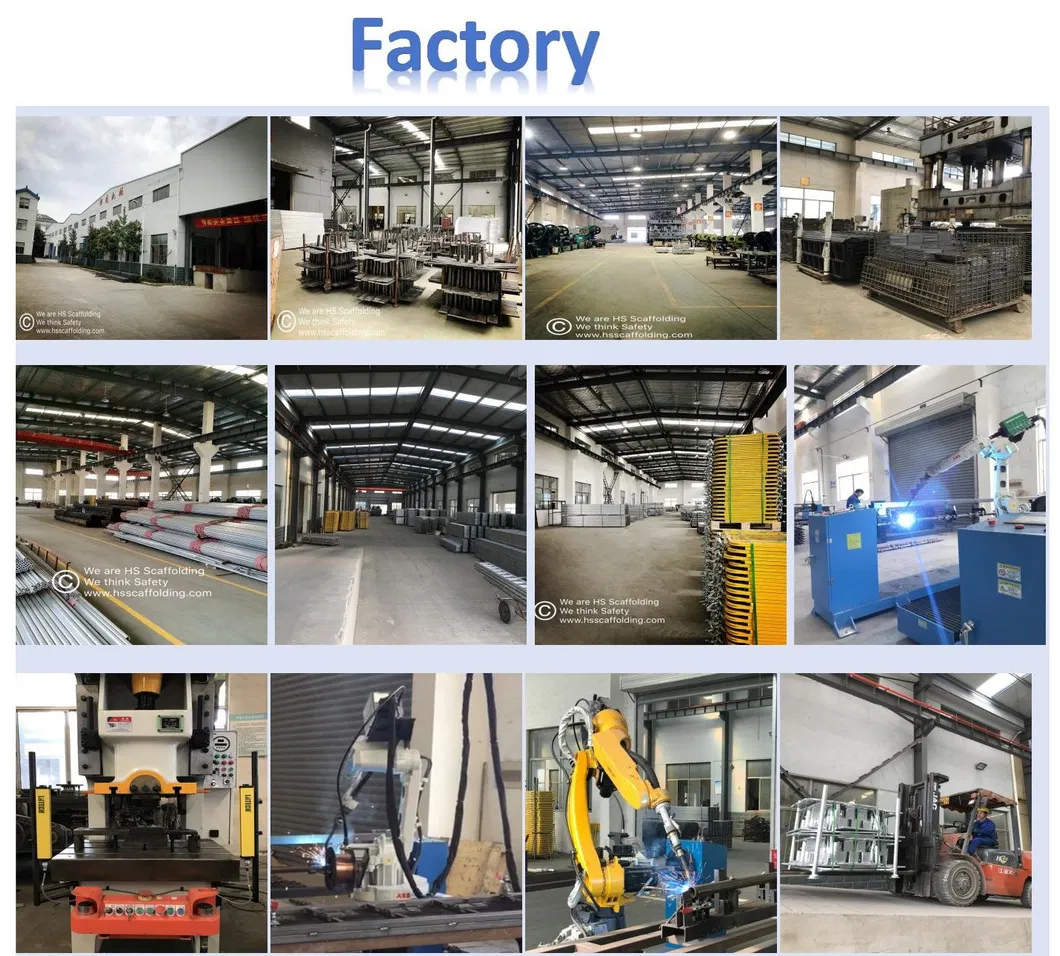

Our facilities utilize advanced robotic welding production lines and automated equipment to ensure product consistency and reliability. All products are designed and manufactured to comply with international standards.
