| Material | Steel | Type | Fixed |
|---|---|---|---|
| Structural Style | Tower Scaffolding | Framework | Combined Scaffolding |
| Supporting Mode | Projecting Scaffolding | Lapping Form | Double Scaffolding |
| Erection Position | External Scaffolding | Move Method | Horizontal mobile Scaffolding |
| Surface Treatment | Pre-Galvanized/Hot DIP Galvanized | Steel Grade | Q235/Q355 |
| Certification | CE, ISO, RoHS, TUV | HS Code | 7308900000 |

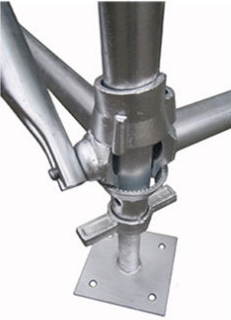

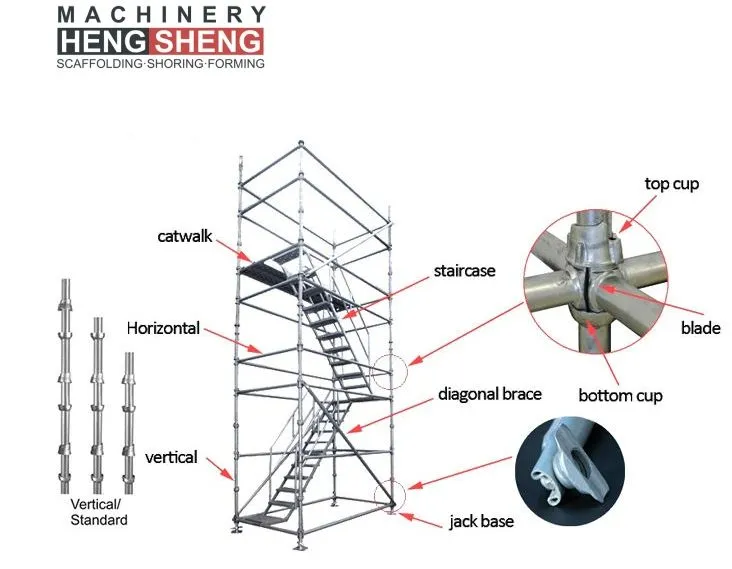

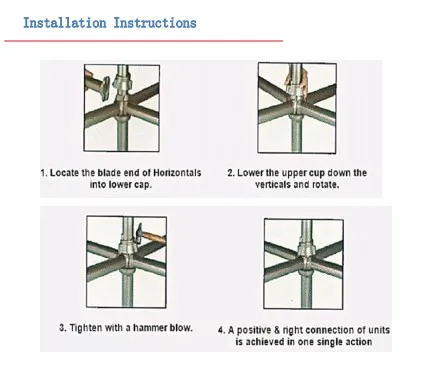

This system is a fully galvanised, multi-purpose steel system scaffold suitable for all access, shoring, and supporting vertical loads. Unique node points which can lock up to four components in one easy hammer blow provide a wider range of applications.
Node points are spaced on all standards at 500mm intervals to ensure that correct working lifts can be provided and handrails are positioned at the correct height. The system is significantly faster to erect than traditional methods.

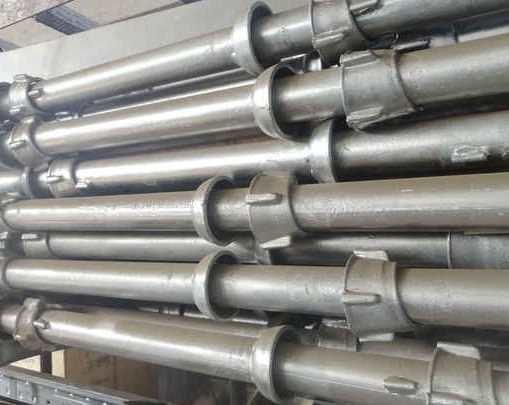

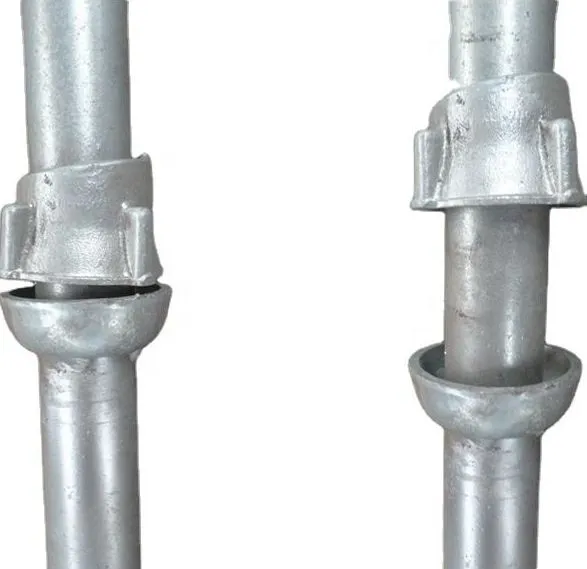

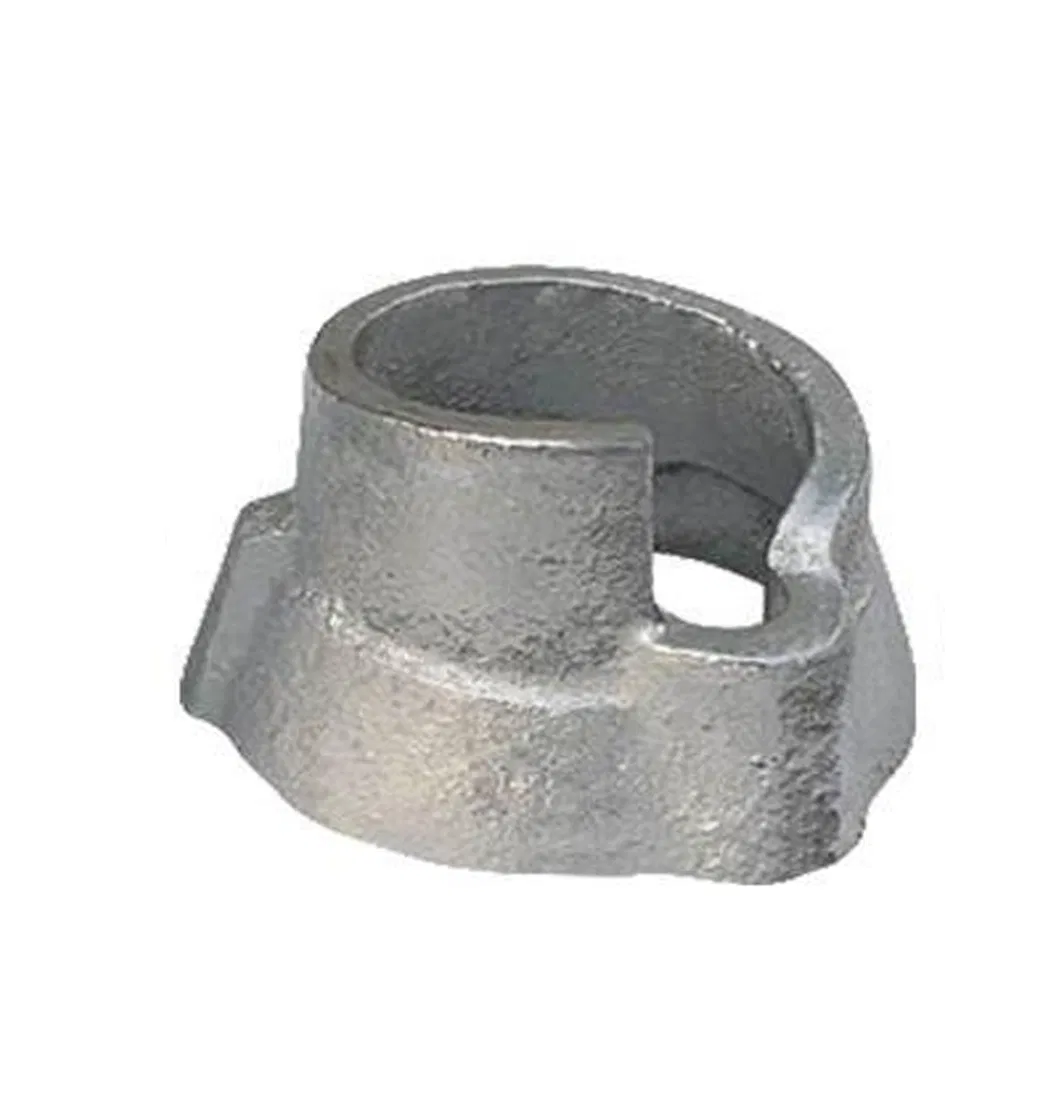

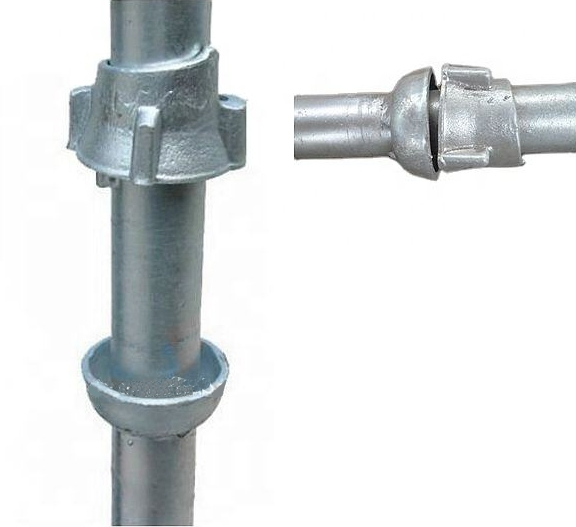

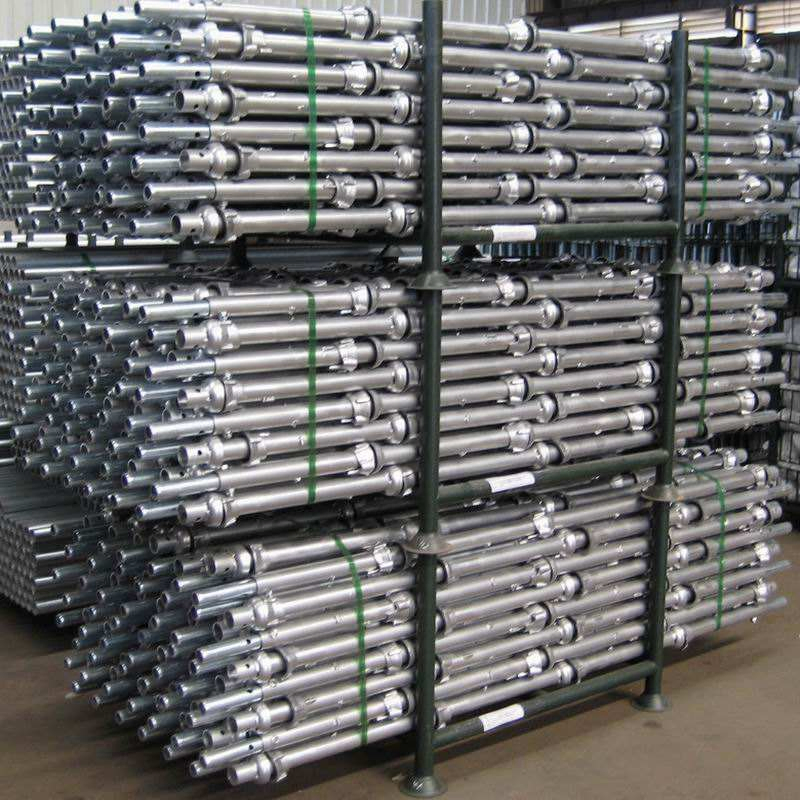

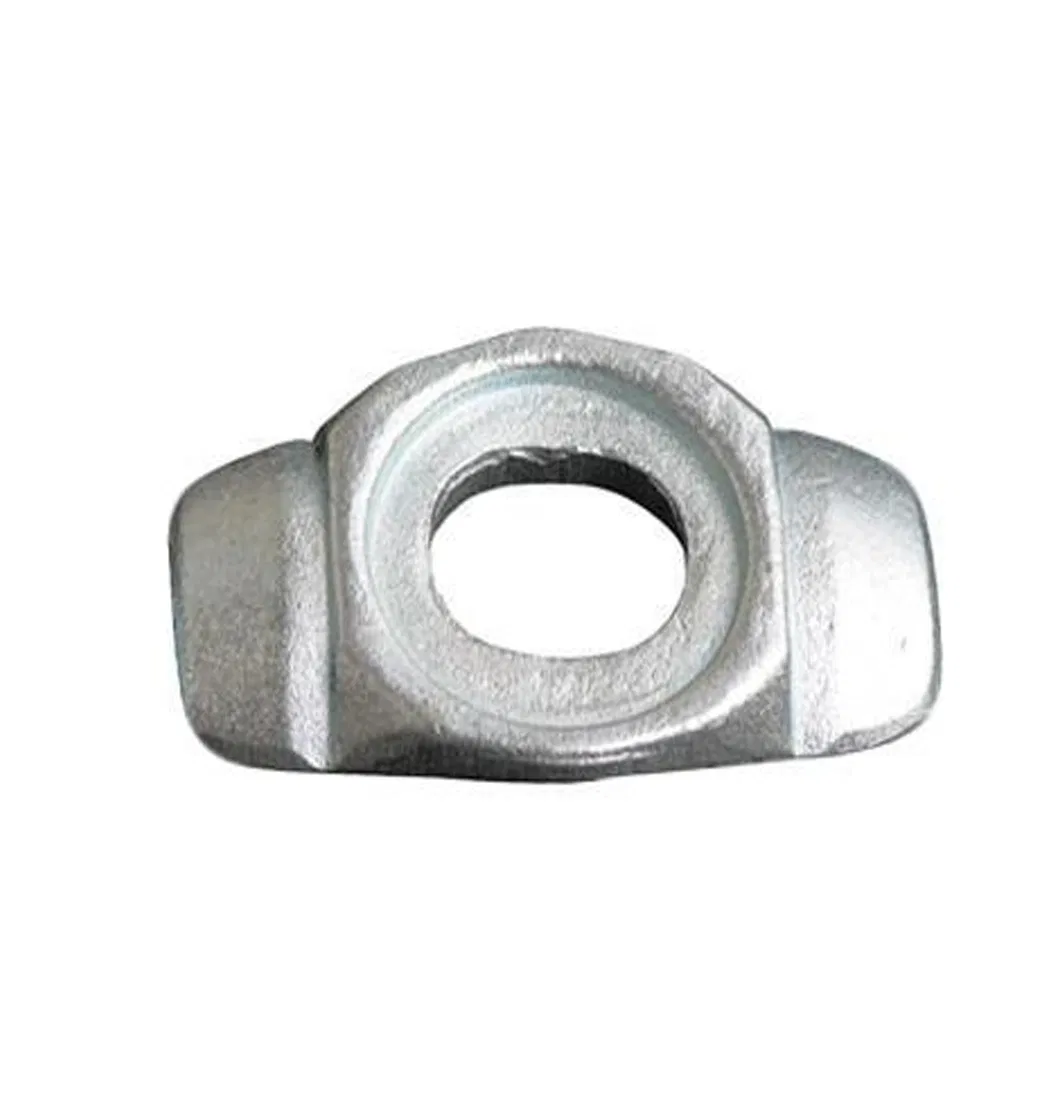

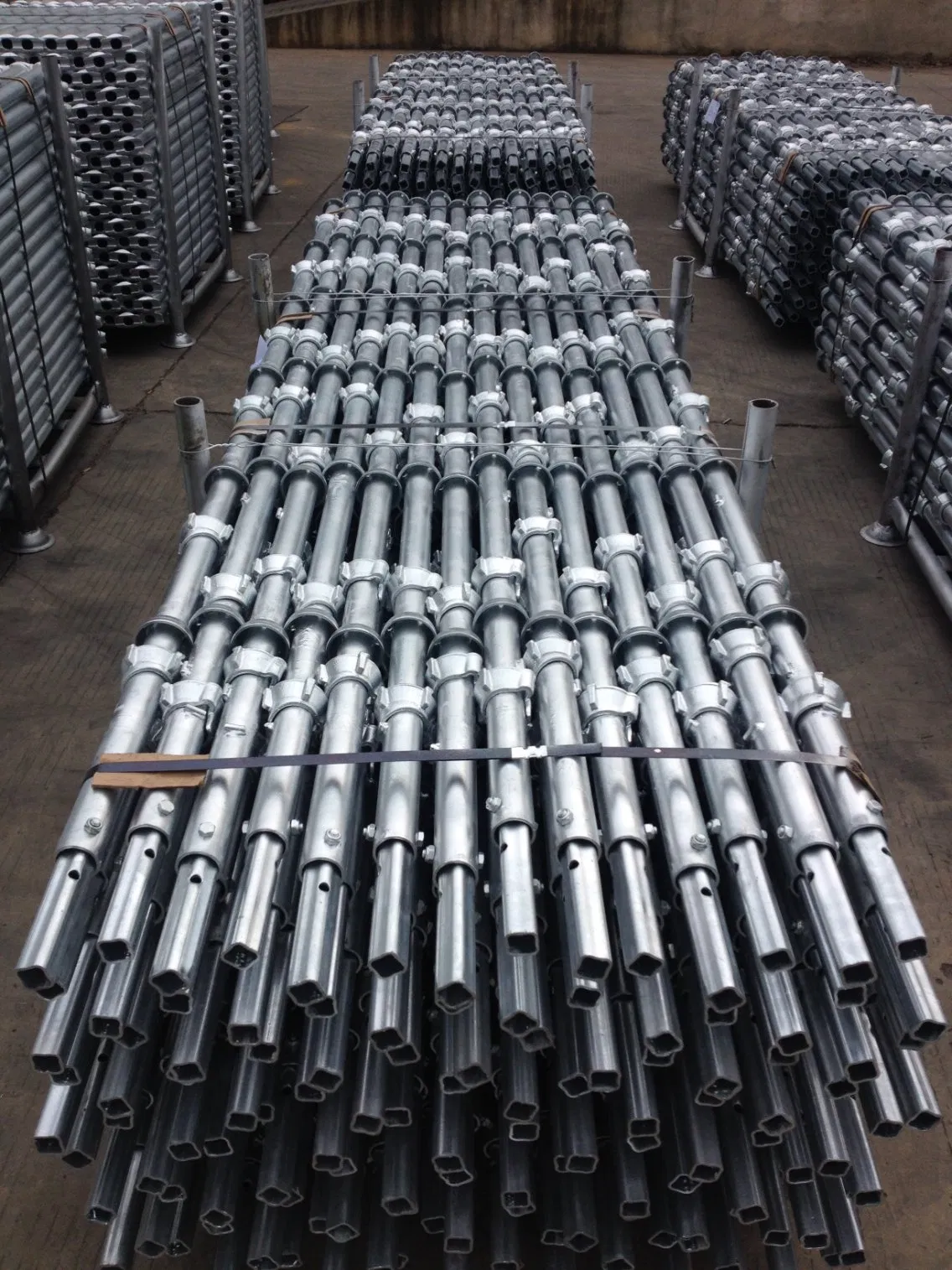

These vertical members are made from 48.3 diameter x 3.2mm thick high-grade steel tube. They incorporate a fixed bottom cup welded at 50mm intervals, with a captive moving top cup that secures up to four components. The 150mm spigot allows for secure vertical connection of further standards.
| Code | Description | Size | Weight |
|---|---|---|---|
| HSCS05 | 0.5M Standard | 500mm | 3.43kg |
| HSCS10 | 1.0M Standard | 1000mm | 6.00kg |
| HSCS20 | 2.0M Standard | 2000mm | 11.38kg |
| HSCS30 | 3.0M Standard | 3000mm | 16.34kg |

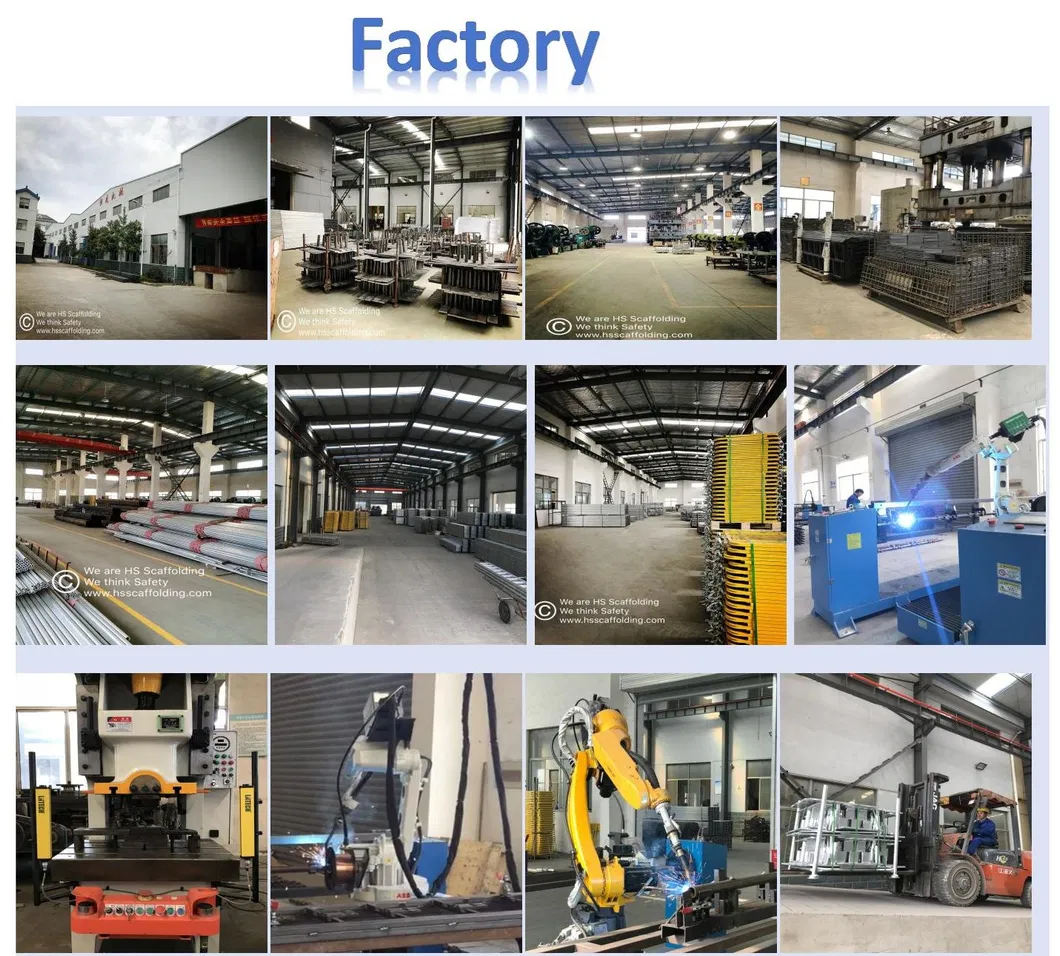

Operating since 1992, the facility is a market leader in providing system scaffolding, steel boards, and stair towers. Equipped with 12 advanced robotic welding production lines and various automated equipment, we ensure product consistency and reliability of the highest standards.
All products are designed and manufactured in-house to guarantee build quality and compliance with international standards. Our engineering team specializes in diverse scaffolding solutions to meet specific project needs.
