Product Description
CUPLOCK SYSTEM OVERVIEW
The Cuplock system is a fully galvanized multi-purpose steel system scaffold designed for all access, shoring, and supporting vertical loads.

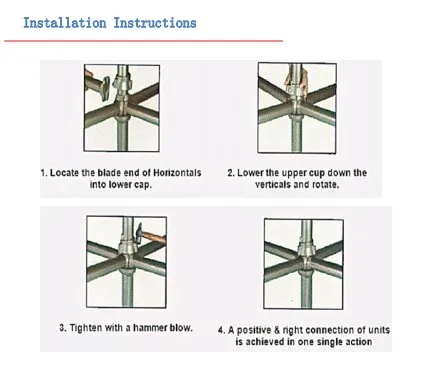

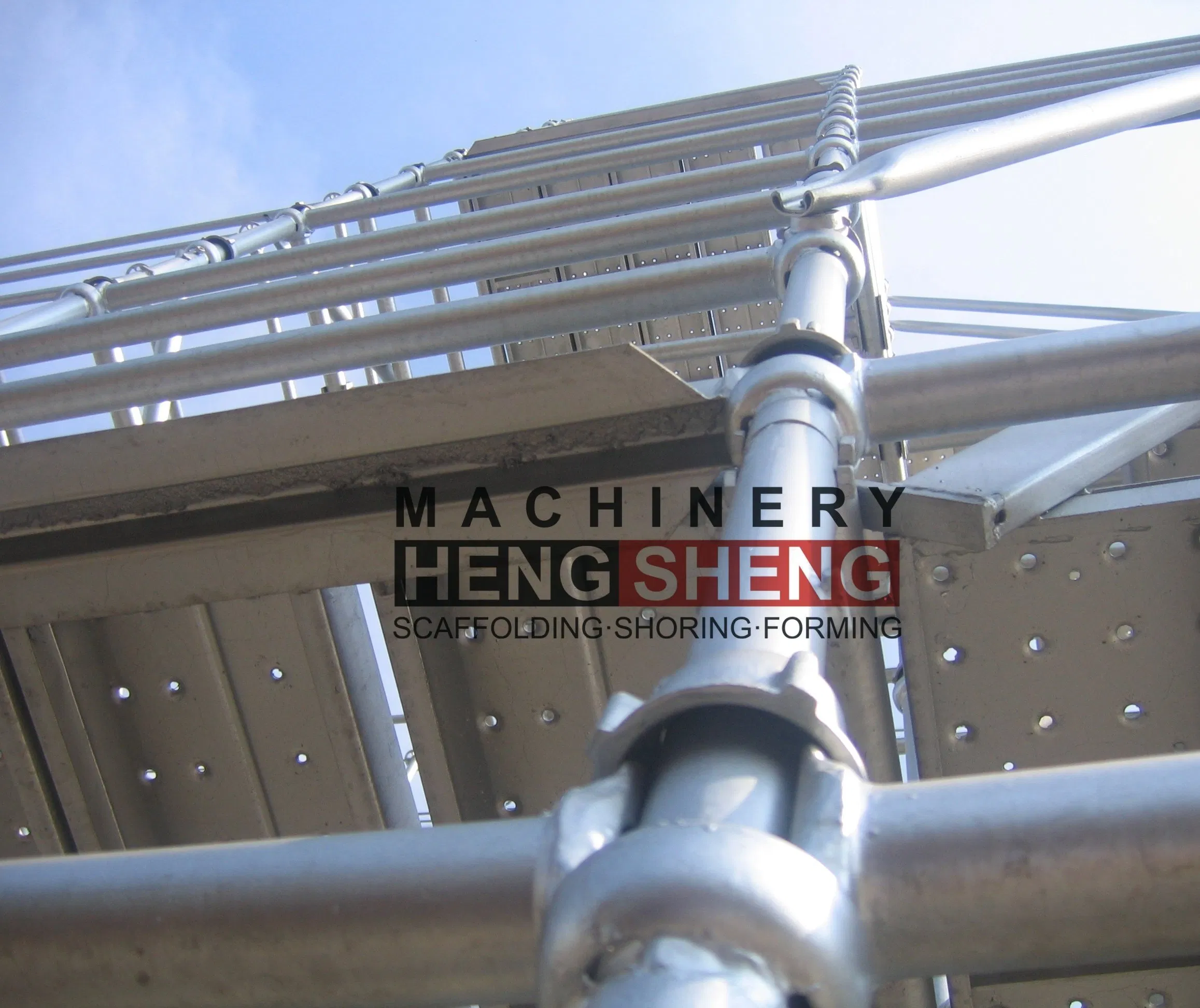

Unique node points which can lock up to four components in one easy hammer blow provide a wider range of applications. Node points are spaced on all standards at 500mm intervals to ensure that correct working lifts can be provided and handrails are positioned at the correct height.

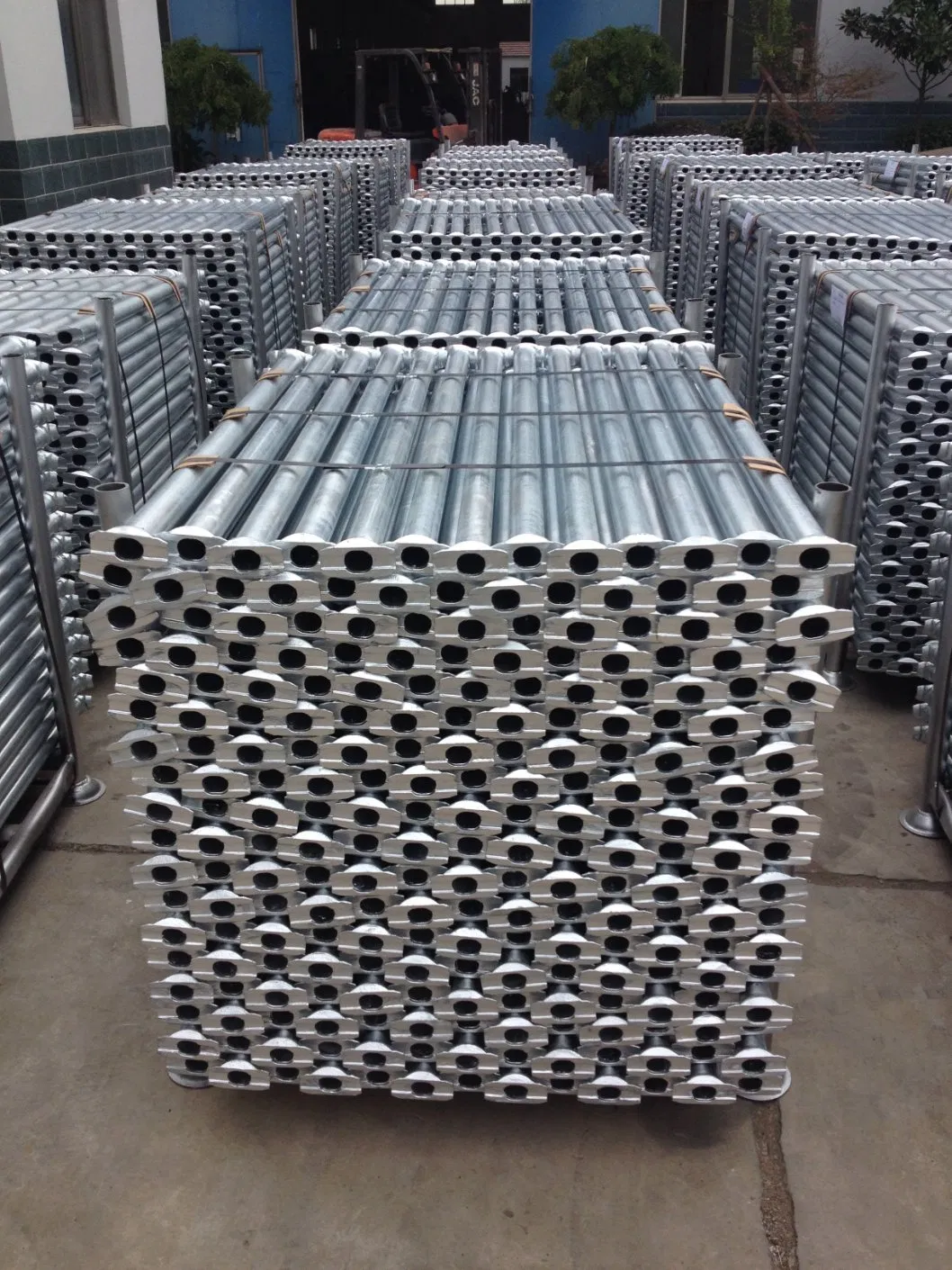

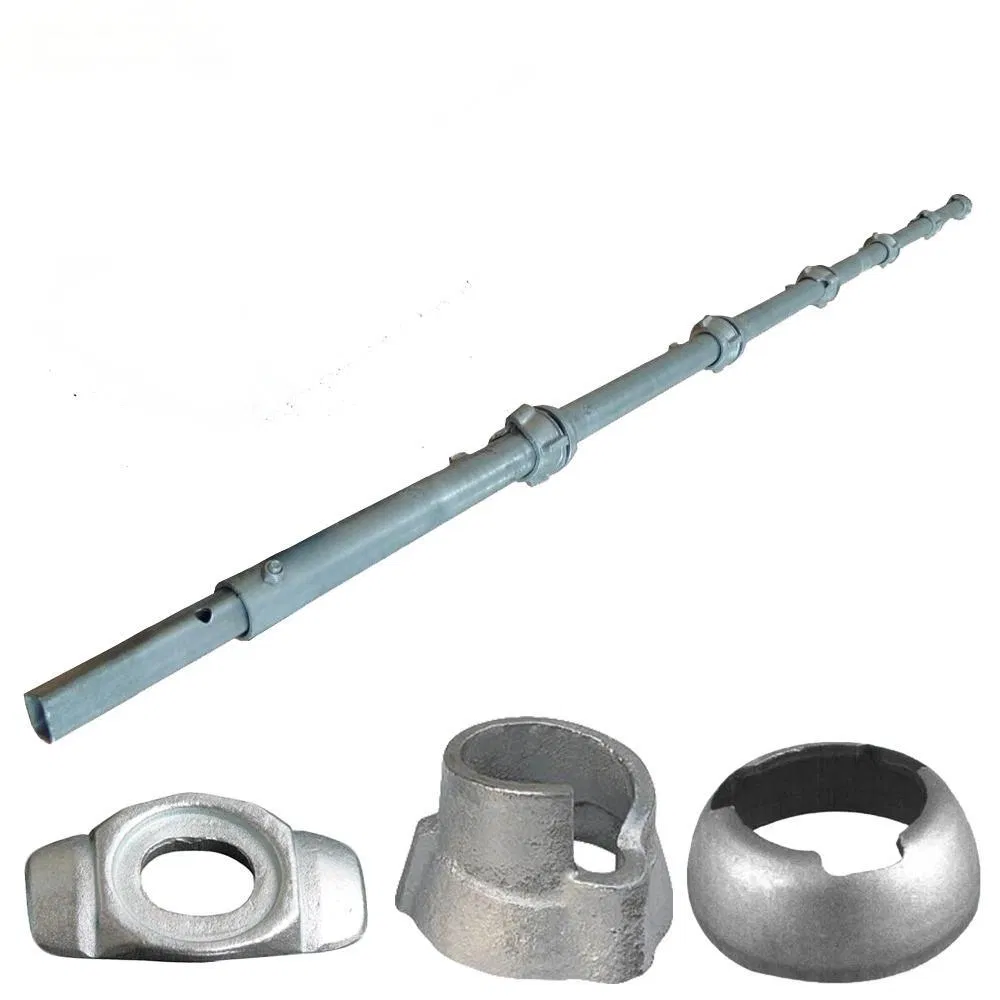

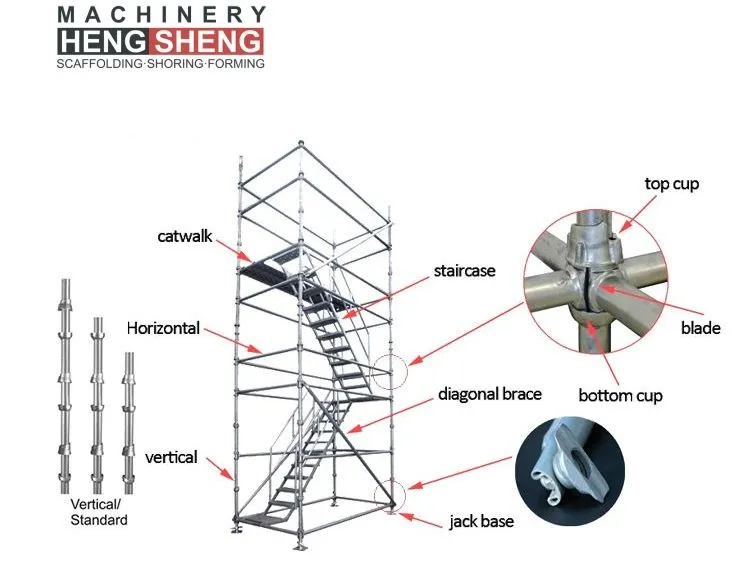

Standard/Vertical Details

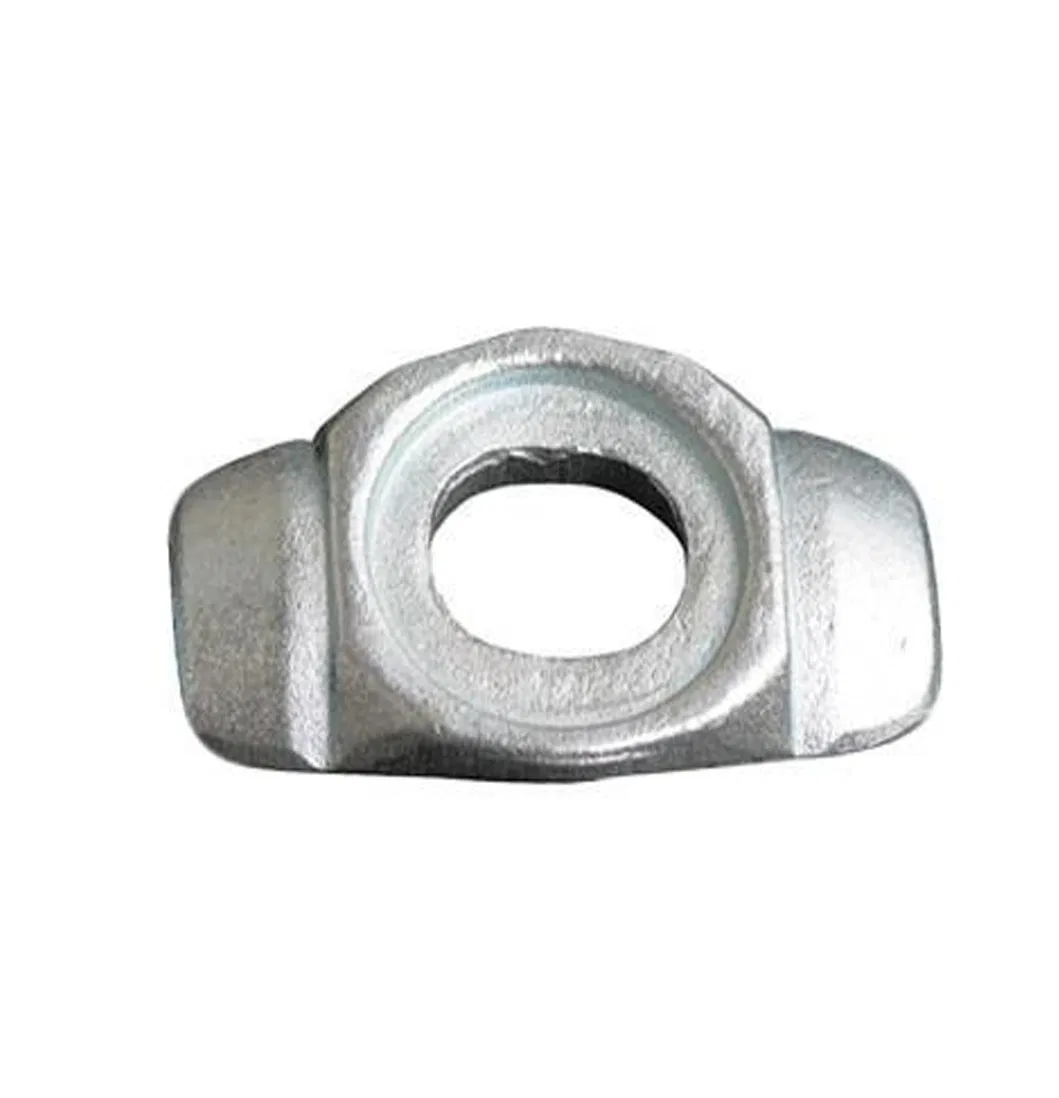

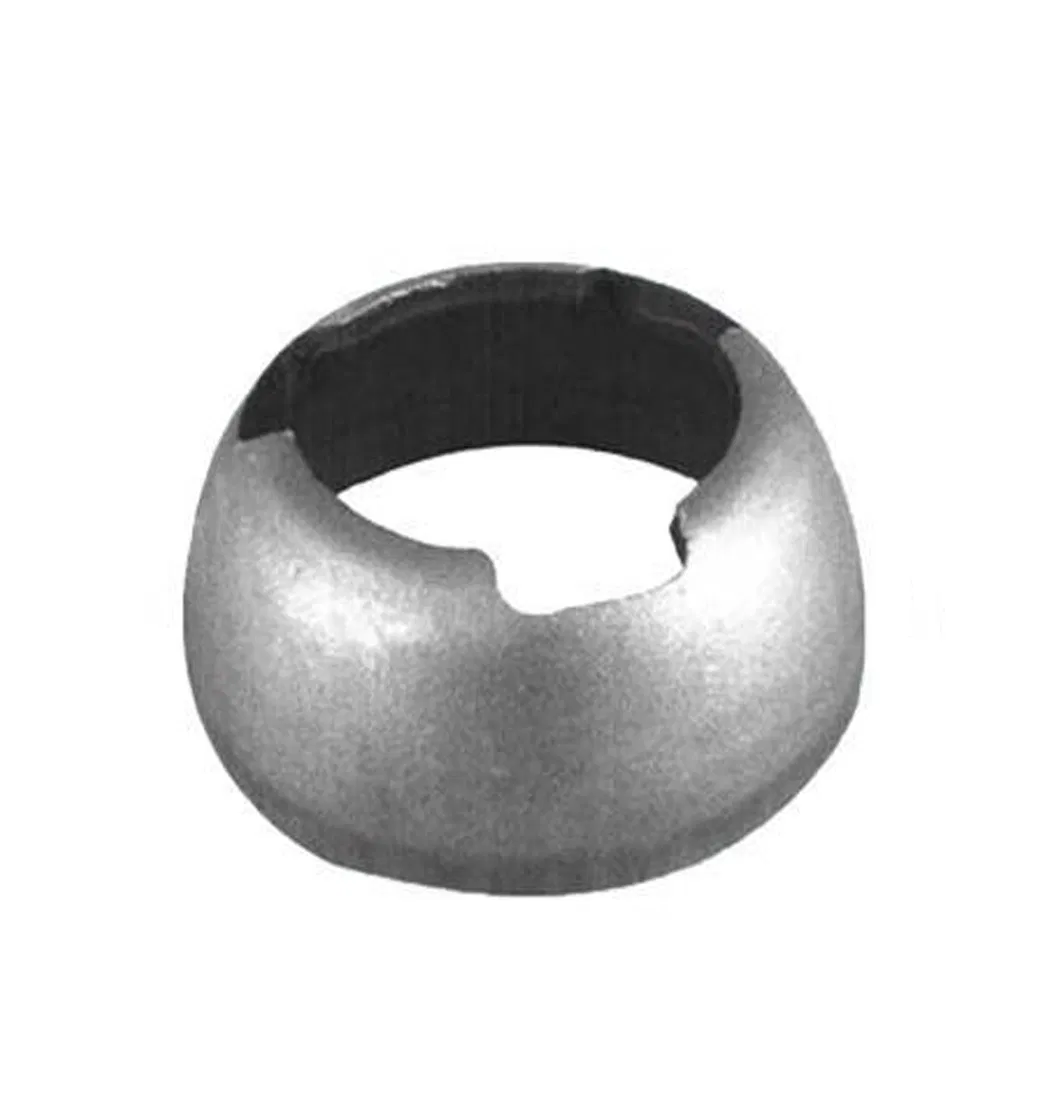

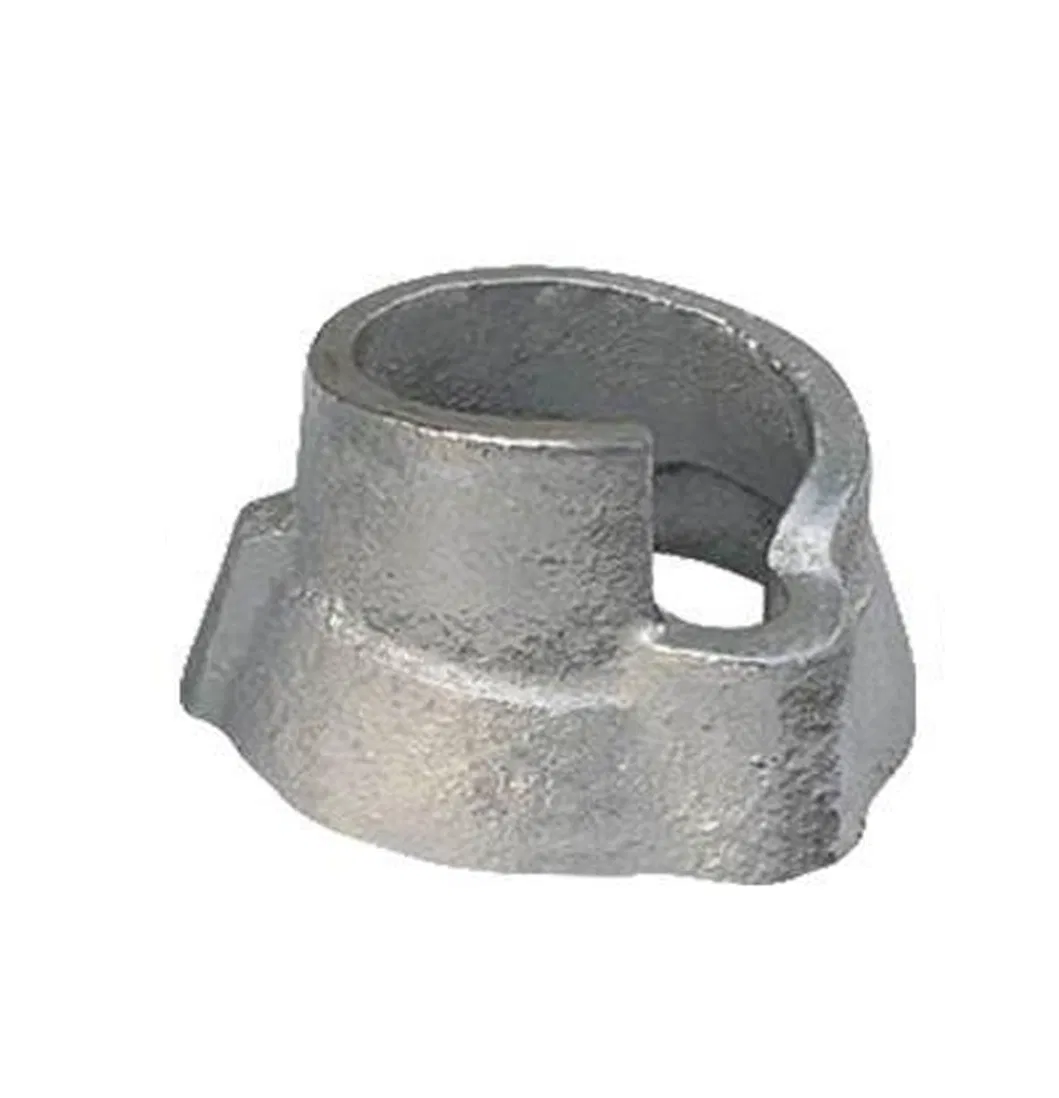

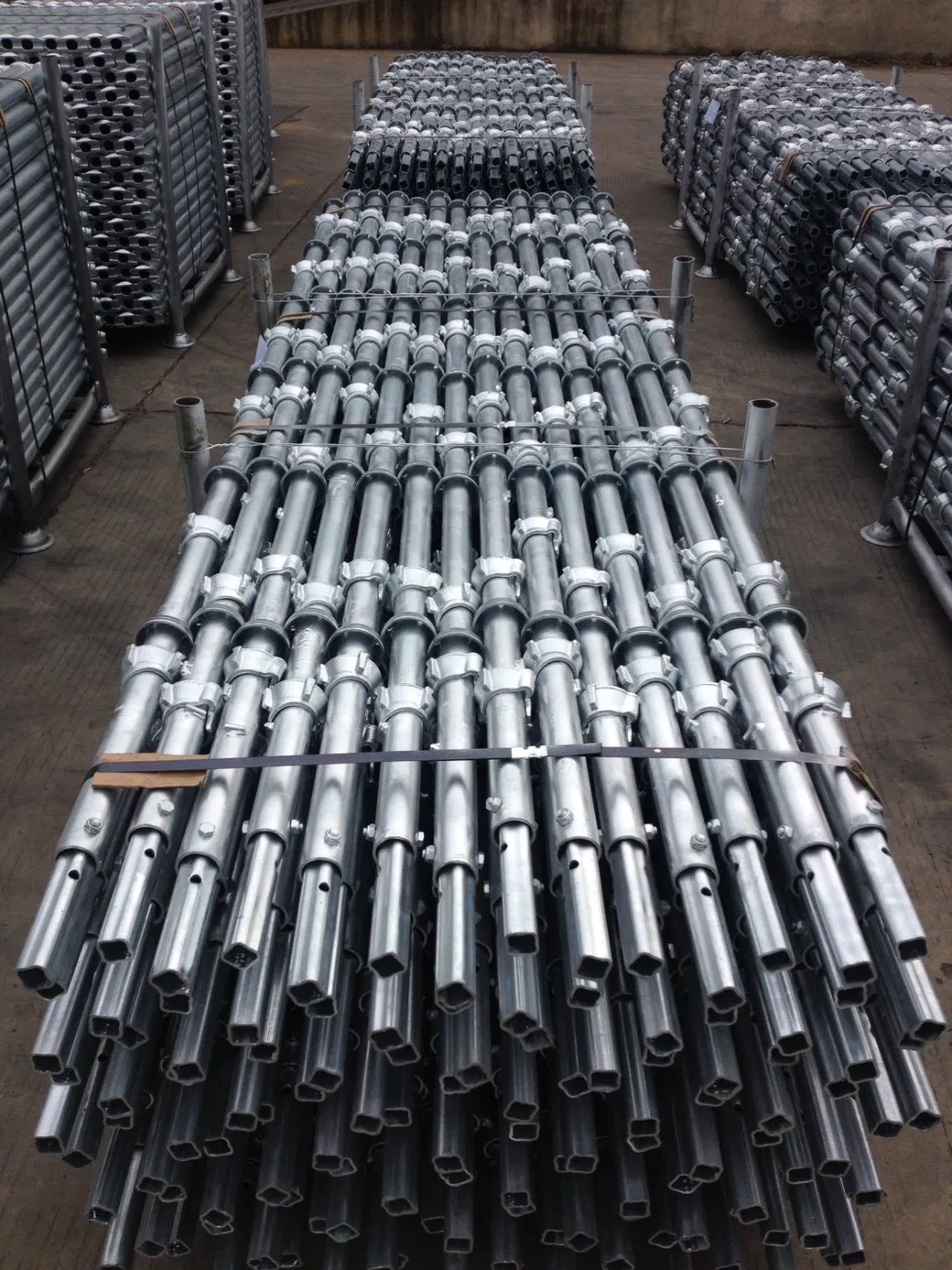

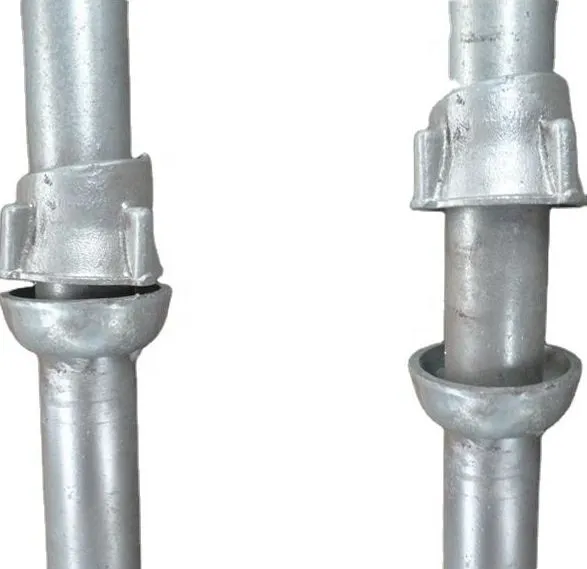

These items form the vertical members of the scaffold and are made from 48.3 diameter x 3.2mm thick high-grade steel tube. They incorporate a fixed bottom cup which is welded at 500mm intervals, with a captive moving top cup that can secure up to four components. At the top of the standards, there is a 150mm spigot that allows the vertical connection of further standards.
| Code |
Description |
Size |
Weight |
| HSCS05 | 0.5M Standard | 500mm | 3.43kg |
| HSCS10 | 1.0M Standard | 1000mm | 6.00kg |
| HSCS20 | 2.0M Standard | 2000mm | 11.38kg |
| HSCS30 | 3.0M Standard | 3000mm | 16.34kg |

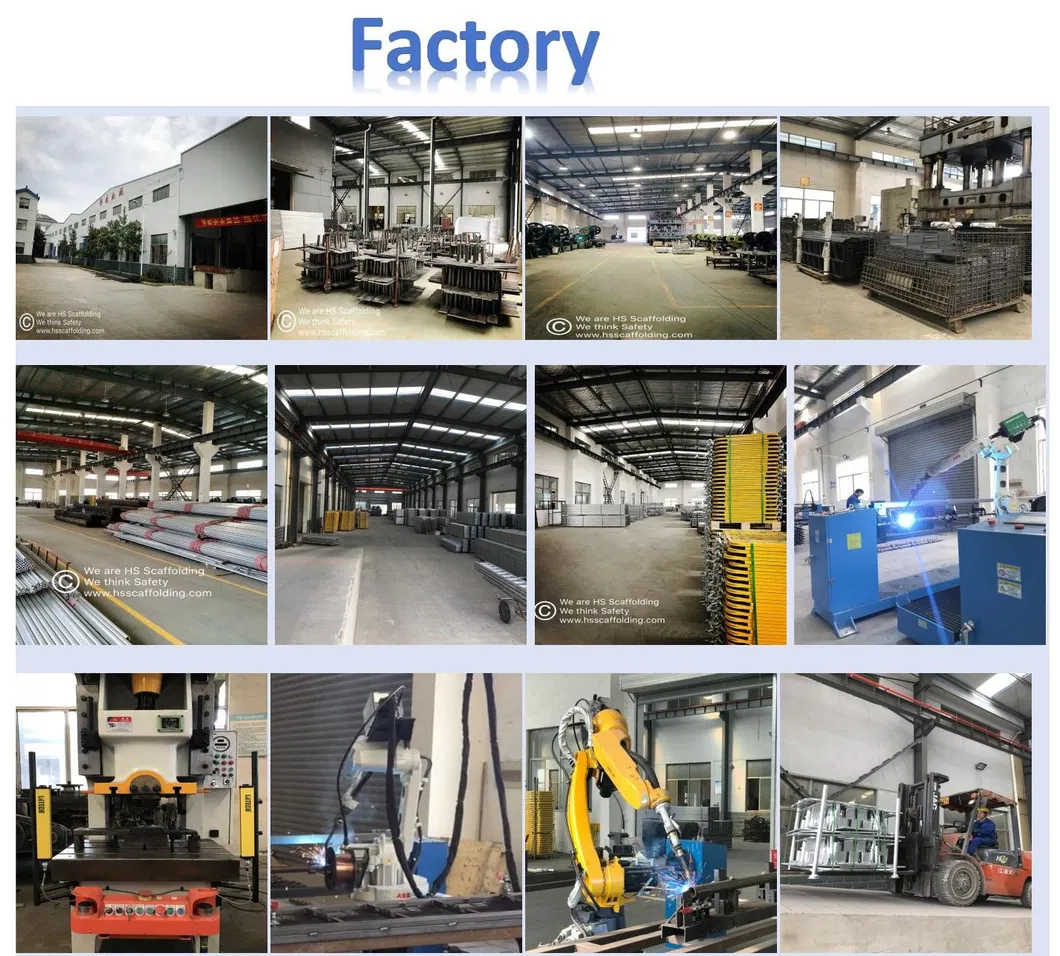

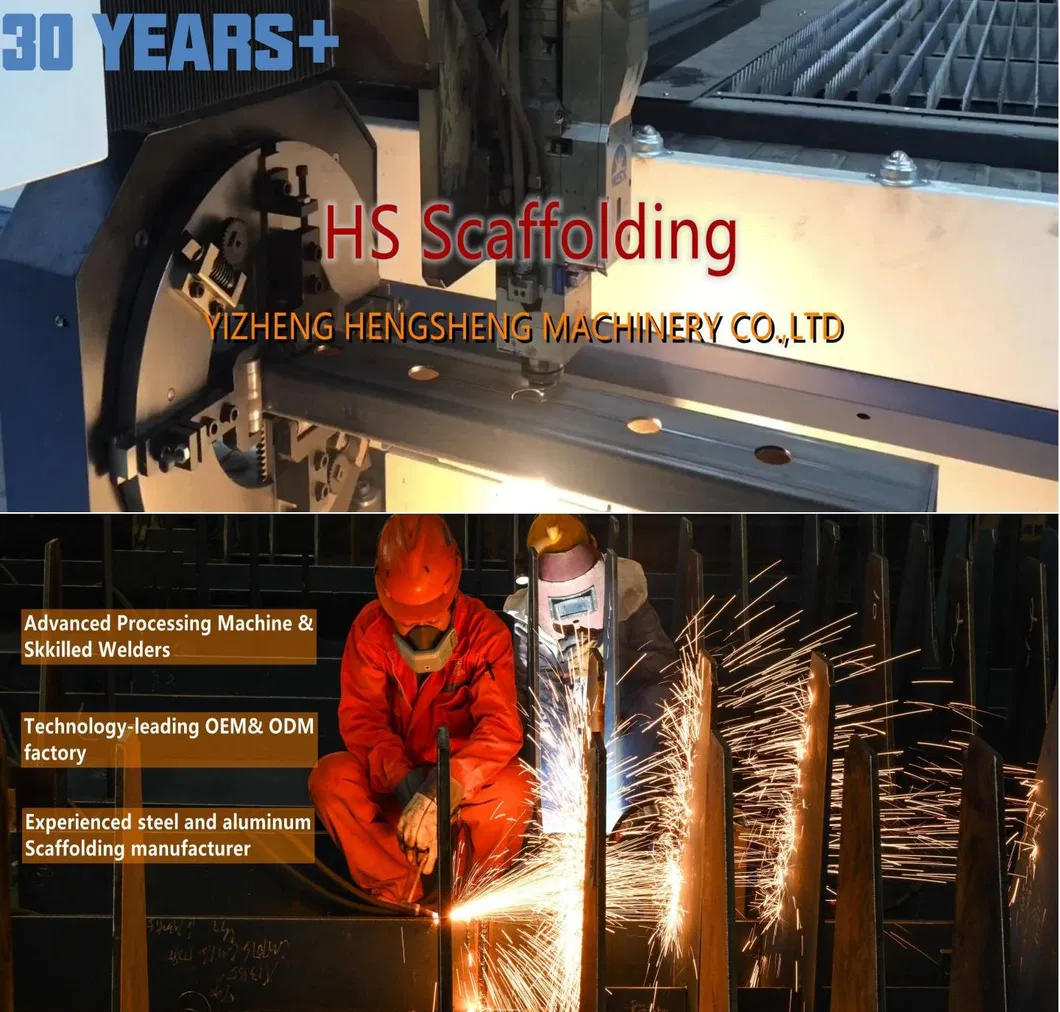

Manufacturing Capability
Equipped with 12 advanced robotic welding production lines and various automated equipment, the facility ensures product consistency and reliability. All products are designed and developed in-house to guarantee the highest build quality and compliance with international standards.
Frequently Asked Questions
What about after-sales service?
All products are fully tested before dispatch with a traceability system. If any issues arise, please provide photos and videos to our team for analysis. We offer replacements or reasonable compensation based on mutual agreement.
What are the accepted payment terms?
We generally accept T/T and L/C. Other terms are negotiable based on order specifics.
What is your Minimum Order Quantity (MOQ)?
Normally, we accept one full container. However, for specialized products, we are happy to discuss specific quantity requirements with our customers.
Can we customize our logo or name on the products?
Yes, we can apply permanent logos or stickers to the products according to your specific requirements.
How fast can an order be finished?
Once an order is confirmed, we establish a production schedule that meets your needs. All production plans are strictly followed to ensure timely delivery.
Are engineered drawings provided if needed?
Yes, our professional engineers are capable of designing solutions for even the most challenging scaffolding access requirements and can provide technical drawings.
